Heat-N-Glo SL-550TR-CE-C Assembly instructions

1
-Do not store or use petrol or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
-What to do if you smell gas
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Donotuseanyphoneinyourbuilding.
•Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier’s instructions
•If you cannot reach your gas supplier,
call the fire department.
-Installation and service must be performed
byaqualifiedinstallerorcompetent
person.
Model:
SL-550TR-CE-C Installers Guide
WARNING: IMPROPER INSTALLATION,
ADJUSTMENT, ALTERATION, SERVICE
OR MAINTENANCE CAN CAUSE INJURY
OR PROPERTY DAMAGE. REFER TO
THIS MANUAL. FOR ASSISTANCE OR
ADDITIONAL INFORMATION CONSULT A
QUALIFIED INSTALLER OR
COMPETENT PERSON.
529-985C 9/02
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
Please contact your Heat-N-Glo dealer with any
questionsor concerns. Forthe numberof yournearest
Heat-N-Glodealer, pleasecall1-888-427-3973.
Printed in U.S.A. Copyright 2002,
Heat-N-Glo,adivisionofHearthTechnologiesInc.
20802Kensington Blvd., Lakeville, MN 55044
These instructions are only valid if the
following country symbol is on the appliance.
If this symbol is not present on the appliance,
it is necessary to refer to the technical
instructions which will provide the necessary
information concerning the modification of the
appliace to the conditions of use for the
country.
0087
These instructions are valid for the following
countries: GB, IE
WARNING:
IF THE INFORMATION IN THESE
INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, AFIRE OR
EXPLOSION MAYRESULT
CAUSING PROPERTY DAMAGE,
PERSONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
!
SAFETY AND WARNING INFORMATION
READ and UNDERSTAND all instructions carefully before starting the installation.
FAILURE TO FOLLOW these installation instructions may result in a possible fire
hazard and will void the warranty.
Prior to the first firing of the stove, READ the Using Your Fireplace section of the Users
Guide.
DO NOT USE this appliance if any part has been under water. Immediately CALL a
qualified service technician to inspect the unit and to replace any part of the control
system and any gas control which has been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a qualified service person. The
appliance and flue system should be INSPECTED before initial use and at least
annually by a professional service person.
Always KEEP the appliance clear and free from combustible materials, petrol, and
other flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and ventilation air. Keep the front of the
appliance CLEAR of all obstacles and materials for servicing and proper operations.
Due to the high temperature, the appliance should be LOCATED out of traffic areas
and away from furniture and draperies. Clothing or flammable material SHOULD NOT
BE PLACED on or near the appliance.
Children and adults should be ALERTED to the hazards of high surface temperature
and should STAYAWAYto avoid burns or clothing ignition. Young children should be
CAREFULLYSUPERVISED when they are in the same room as the appliance.
These units MUST use one of the fluing systems described in the Installing the Fireplace
section of the Installers Guide. NO OTHER flue systems or components MAYBE USED.
This gas stove and flue assembly MUST be vented directly to the outside and MUST
NEVER be attached to a chimney serving a separate solid fuel burning appliance.
Each gas appliance MUST USE a separate flue system. Common flue systems are
PROHIBITED.
INSPECT the external terminal cap on a regular basis to make sure that no debris is
interfering with the air flow.
The glass door assembly MUST be in place and sealed, and the trim door assembly
MUST be in place on the stove before the unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass door removed, cracked, or broken.
Replacement of the glass door should be performed by a licensed or qualified service
person. DO NOT strike or slam the glass door.
The glass door assembly SHALL ONLYbe replaced as a complete unit, as supplied
by the gas stove manufacturer. NO SUBSTITUTE material may be used.
DO NOT USE abrasive cleaners on the glass door assembly. DO NOT ATTEMPT to
clean the glass door when it is hot.
Turn off the gas before servicing this appliance. It is recommended that a qualified
service technician perform an appliance check-up at the beginning of each heating
season.
Any safety screen or guard removed for servicing must be replaced before operating
this appliance.
This appliance is intended for use on a gas installation with a governed meter.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

3
Table of
Contents
Safety and Warning Information ................................. 2
Service Parts List........................................................ 4
Section 1: Approvals and Regulations ...................... 6
Appliance Certification ............................................... 6
Installation Regulations .............................................. 6
Section 2: Getting Started .......................................... 7
Introducing the Heat-N-Glo Gas Fireplaces................ 7
Pre-installation Preparation ........................................ 7
Section 3: Installing the Fireplace ............................10
Step 1Locating the Fireplace .................................10
Step 2Framing the Fireplace .................................11
Step 3Installing the Flue System............................12
A. Flue SystemApprovals............................12
B. Installing Flue Components .....................23
C. Flue Termination .....................................29
Step 4Positioning, Leveling and
Securing the Fireplace.................................33
Step 5The Gas Control Systems ...........................33
Step 6The Gas Supply Line ...................................34
Step 7Gas Pressure Requirements.......................35
Step 8Wiring the Fireplace ....................................35
Step 9Finishing ......................................................37
Step 10 Installing Trim, Logs & Ember Material ........ 38
Installingthe Trim ........................................38
Removing the Grate Shipping Support ........39
Positioning the Logs ....................................39
Placing the Ember Material..........................40
Step 11 Before Lighting the Fireplace .......................41
Step 12 Lighting the Fireplace ..................................41
Afterthe Installation .....................................41
Section 4: Maintaining and Servicing
Your Fireplace .........................................42
Section 5: Troubleshooting .......................................43
u= Contains updated information.
u
u
u
u
u

6
Appliance Certification
The Heat-N-Glo fireplace models discussed in this
Installers Guide have been tested to certification
standards and listed by the applicable laboratories.
CERTIFICATION
MODEL L ABORATORY TYPE STANDARD
SL-550TR-CE-C Advantica Gas Fireplace 90/396/EEC
Installation Regulations
Before installation check that local distribution conditions, nature of gas and
pressure, and adjustment of the appliance are compatible.
This appliance must be installed with the rules in force, and used only in a
sufficiently ventilated space. Consult instructions before installation and use of
this appliance.
Approvals
and
Regulations

7
Getting
Started
Heat-N-Glodirectflue gas fireplaces are designed to
operate with all combustion air siphoned from outside
ofthe building and all exhaust gasesexpelledto the
outside.
The information contained in this Installers Guide,
unless noted otherwise, applies to all models and gas
control systems.
Gas fireplace diagrams, including the dimensions, are
shown in this section.
This gas fireplace and its components are tested and
safe when installed in accordance with this Installers
Guide. Report to your dealer any parts damaged in
shipment, particularly the condition of the glass.Do
not install any unit with damaged, incomplete, or
substitute parts.
The flue system components and trim doors are
shipped in separate packages. The gas logs are
packagedseparately and must be fieldinstalled.
Read all of the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benefit. Failure to follow these instructions
will void the owner’s warranty and may present a
fire hazard.
TheHeat-N-Glo Fireplace Products, Inc. Warrantywill
bevoided by,and Heat-N-Glo FireplaceProducts, Inc.
disclaims any responsibility for, the following actions:
•Installationofany damaged fireplace or flue system
component.
•Modification of the fireplace or direct flue system.
•InstallationotherthanasinstructedbyHeat-N-Glo
Fireplace Products, Inc.
•Improper positioning of the gas logs or the glass
door.
•Installationand/or use of any component part not
manufacturedandapprovedby Heat-N-GloFire-
place Products, Inc., not withstanding any indepen-
denttesting laboratory orother party approvalof
such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A
FIRE HAZARD.
Introducing the
Heat-N-Glo
Gas Fireplaces
Pre-installation
Preparation

8
When planning a fireplace installation, it’s necessary to determine:
•Where the unit is to be installed.
•The flue system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framing and finishing details.
•Whether optional accessories—devices such as a fan, wall switch, or remote
control—are desired.
If the fireplace is to be installed on carpeting or tile, or on any combustible
material other than wood flooring, the fireplace should be installed on a metal or
wood panel that extends the full width and depth of the fireplace.

9

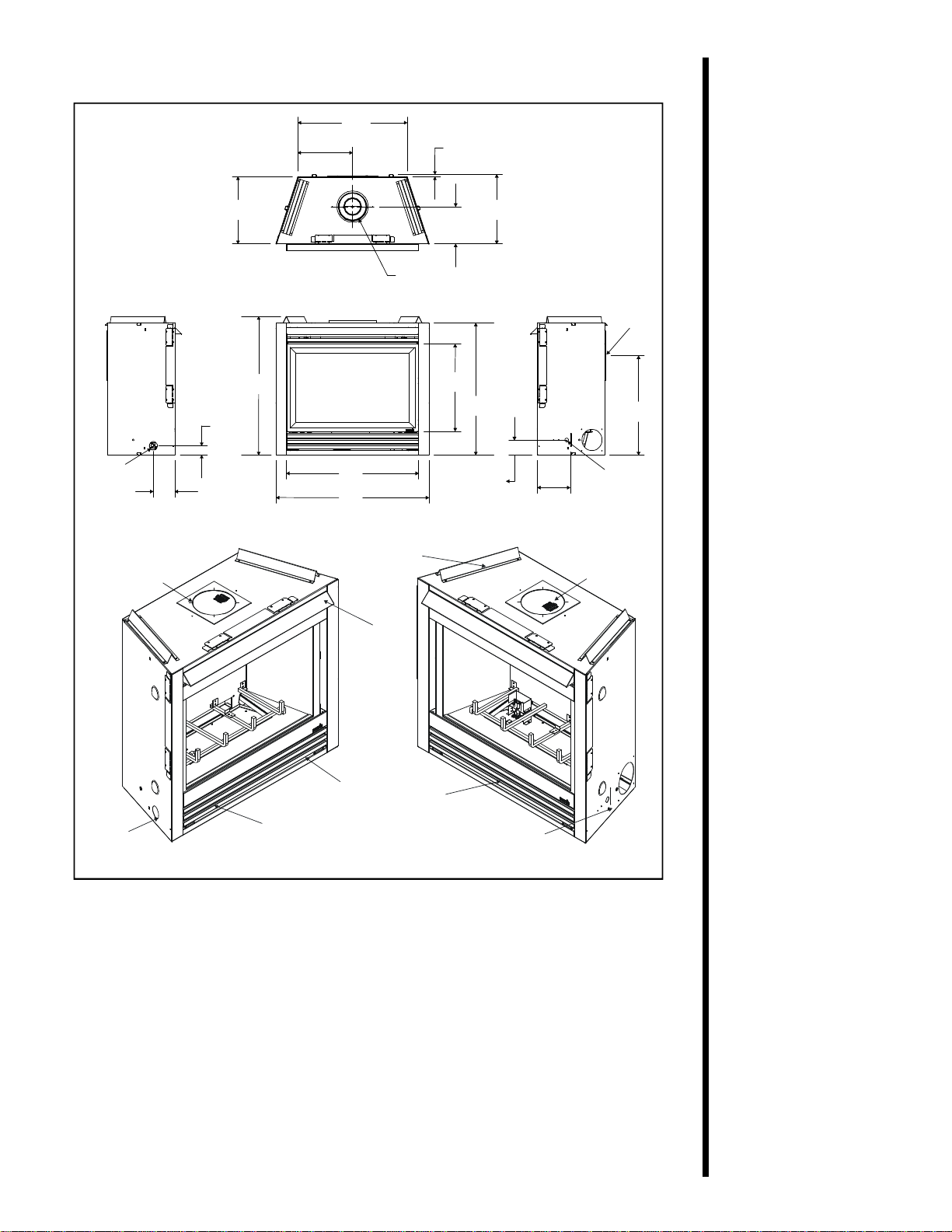

Figure 1. Diagram of the SL-550TR-CE-C
25 3/4
(653mm)
12 7/8
(327mm)
15 3/4
(402mm)
8 3/4
(223mm)
16 1/4
(415mm)
1/2
(14mm)
32 1/2
(827mm)
2 1/4
(55mm)
5 1/16
(129mm)
GAS LINE
ACCESS 31
(790mm)
36
(913mm)
3 1/2
(90mm)
8 (198mm)
ELECTRICAL
ACCESS
23 3/8
(593mm)
Ø 8 5/8
(219mm)
Ø6 5/8 (168mm)
20 1/2
(521mm)
31
(789mm)
BOTTOM
GRILLE COVER
ELECTRICAL
ACCESS
VENT
COLLARS
TOP STANDOFFS
RATING PLATE/LABELS
GAS
ACCESS GAS
CONTROLS
HOOD
CERAMIC
FIBER PAD
u

10
Installing the
Fireplace
Step 1
Locating the
Fireplace
The diagram below shows space and clearance
requirements for locating a fireplace within a room.
A B C D E
SL-550TR-CE 94.0 41.3 72.8 102.9 145.7
NOTE:DIMENSIONSSHOWN INCM.
NOTE:DIMENSIONSARE SHOWN WITHTHE SIDES, BACK
AND/ORCORNERSOF THEUNITTOUCHING THE WALL.
*
Figure 2. Fireplace Dimensions, Locations, and
Space Requirements
MODEL RECESSED DEPTH
SL-550TR-CE-C 41.3cm
The minimum clearance to a perpendicular wall extending past the face of the
fireplace is 7.62cm.
The back of the fireplaces may be recessed into combustible construction, as
shown below.
Minimum Clearances from the Fireplace to
Combustible Materials
Glass Back of Sides of Top of
Front Floor Fireplace Fireplace Fireplace Ceiling
91.4 cm 0 1.3cm 1.3cm 3.8cm 78.7cm
Clearance Requirements
The top and back of the fireplace are defined by stand-offs.
1.3cm
C
7.6cm
A
B
D
E

11
Minimum Clearances from the Flue Pipe to
Combustible Materials
For Vertical
For Horizontal Sections Sections At Wall Firestops
Top Bottom Sides Top Bottom Sides
7.5 cm 2.5 cm 2.5 cm 2.5 cm 6.4 cm 1.3 cm 2.5 cm
Step 2
Framing the
Fireplace
Fireplace framing can be built before or after the
fireplace is set in place. Framing should be positioned
to accommodate wall coverings and fireplace facing
material. The diagram below shows framing reference
dimensions.
CAUTION MEASURE FIREPLACE DIMENSIONS, AND
VERIFY FRAMING METHODS AND WALL
COVERING DETAILS, BEFORE FRAMING
CONSTRUCTION BEGINS.
Framing should be
constructed of 2 X 4 lumber or heavier.
The framing headers may rest
on the fireplace stand-offs.
Model A B C D E
SL-550TR-CE 94.0 83.8 41.3 92.7 61.9
NOTE: DIMENSIONS SHOWN IN CM.
Figure 3. FramingDimensions
A
B
C
VENT
FRAMING
HOLE
ED
u

12
Flue System
Termination Kits Flue System Components

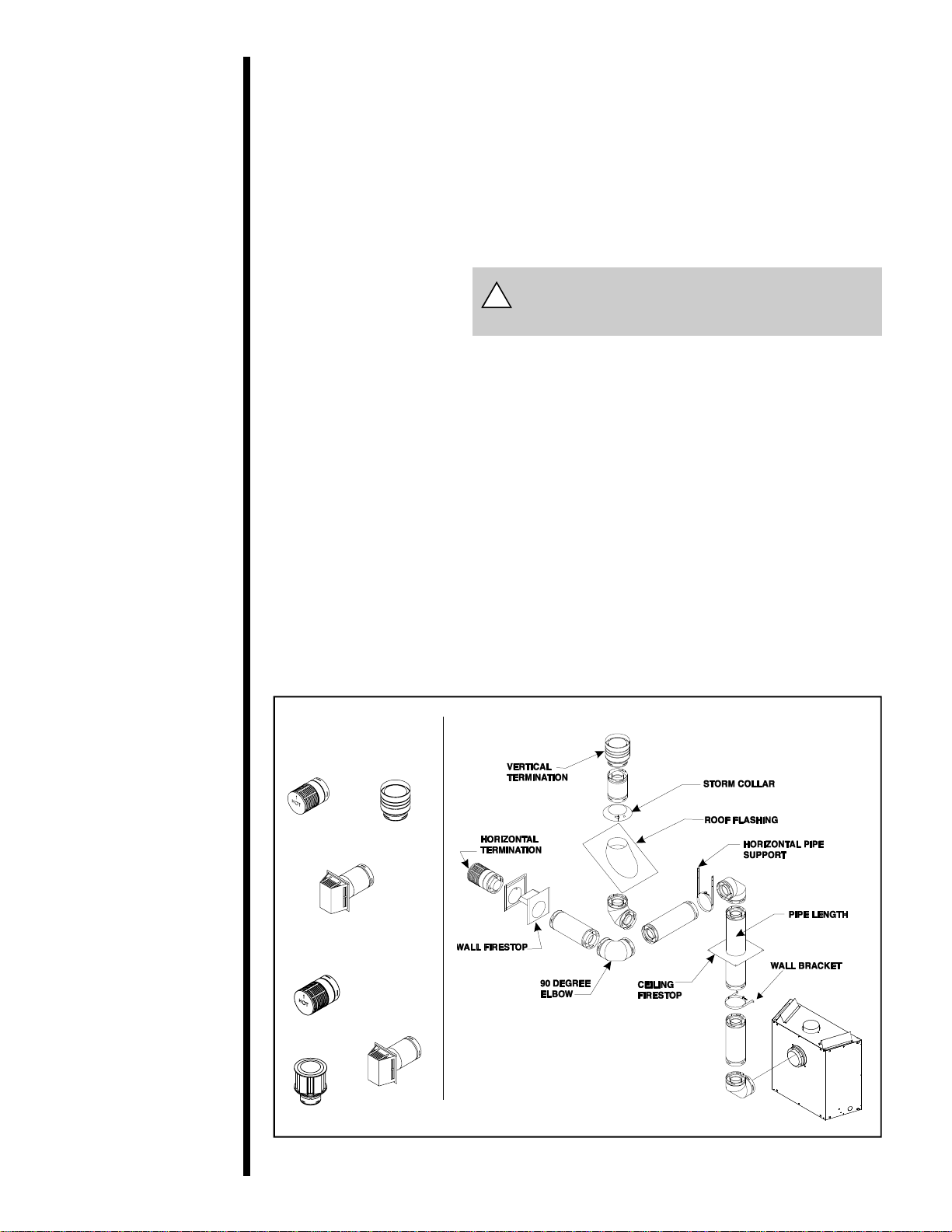

Figure 4. Flue Components and Terminations
A. Flue System Approvals
These models have flue starting collars on both the top
andthe back of the unit.Depending upon the
installation, decide which ONE set of starting collars
will be used to attached the flue system. The starting
collar sealing cap must remain on the starting collar
NOT used.
These models use SL-D-series, direct flue components
when using theTOP flue collars and D-series direct flue
components when using the REAR flue collars.
WARNING: YOU MUST NOT MIX D-SERIES
AND SL D-SERIES COMPONENTS IN ANY
FLUE SYSTEM CONFIGURATION.
Approved flue system components are labeled for
identification. NO OTHER FLUEING SYSTEMS OR
COMPONENTS MAY BE USED. Detailed installation
instructions are included with each flue termination kit
and should be used in conjunction with this Installers
Guide. Figure 4 shows flue system components and
terminations.
Identifying Flue Components
The flue systems installed on this gas fireplace may
include one, two, or three 90° elbow assemblies. The
relationships of vertical rise to horizontal run in flue
configurations using 90° elbows MUST BE strictly
adhered to. The rise to run relationships are shown in the
flueing drawings and tables on the next several pages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. You MUST always maintain the MAXIMUM
and MINIMUM rise-to-run ratios in the flue system
when using 45° elbows.
Step 3
Installing the
Flue System
!
SLD-SERIES
D-SERIES
DVK-01D DVK-TVCD
DVK-01TRD
SLK-01D
SLK-991DA
SLK-01TRD

13
NOTE: PIPESOVERLAP35mmATEACH JOINT.
Figure 5. D-Series Direct Flue Component Specifications
(127mm inner pipe/219mm outer pipe)
D
V
-
3
6
D
146mm
222mm
298mm
DV-12D
DV-09D
DV-06D
DV-48D
DV-90D
187mm
156mm
295mm
303mm
149mm
219mm
216mm
1
6
4
m
m
DV-45D
281mm
165mm
216mm
129mm
219mm
908mm
1213m

14
Figure 6. SL D-Series Flue Component Specifications
(102mm inner pipe/168mm outer pipe)
NOTE: PIPES OVERLAP 34.93mm AT EACH JOINT.
235mm
165mm
168mm 168mm
244mm
162mm
162mm
165mm
244mm
SL-90DSL-45D
165mm
168mm
146mm
298mm
SL-06D SL-12D
SL-17/24D
432-610mm
SL-09D
SL-12/17D
SL-24D
SL-36D
SL-48D
222mm
305-432mm 603mm
908mm
1213mm

15

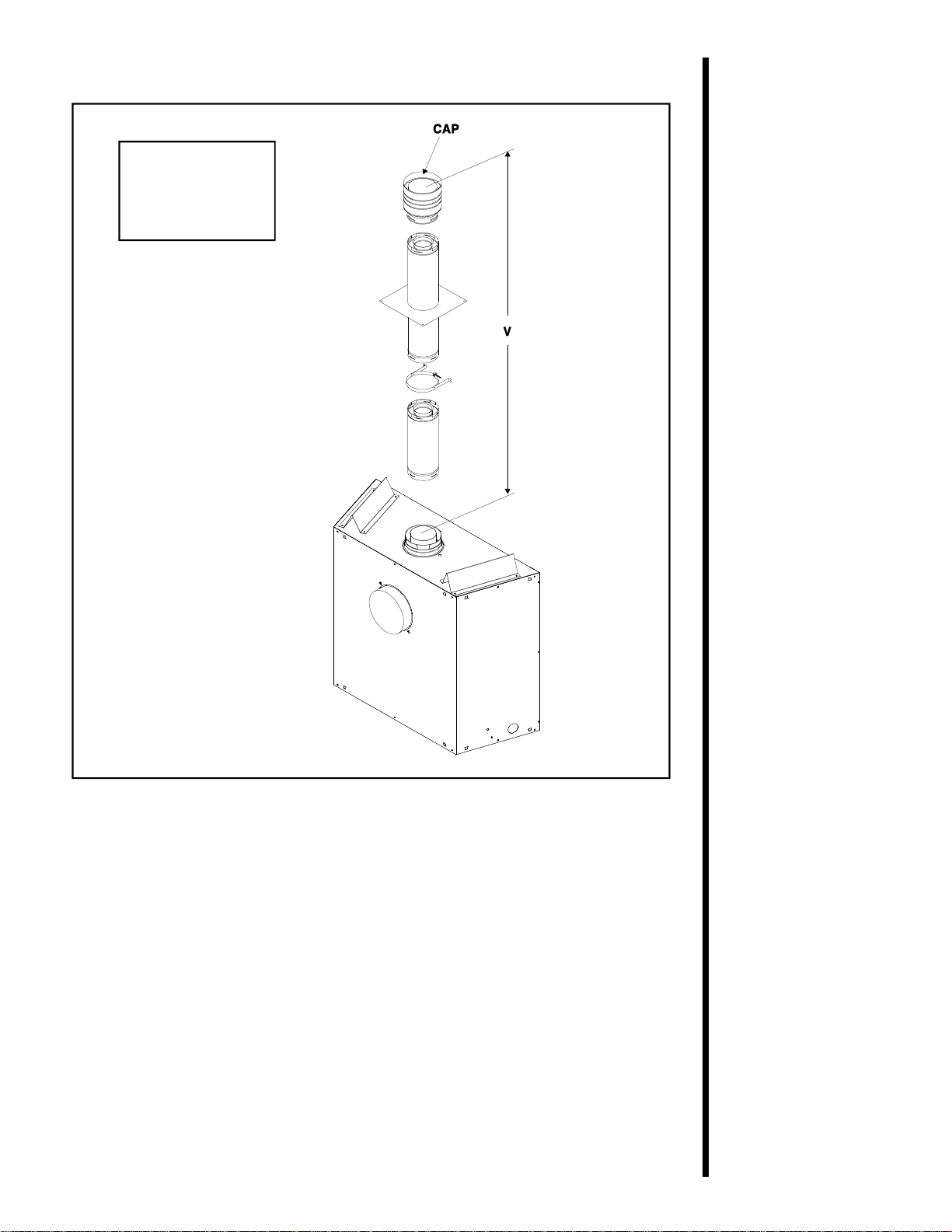

STRAIGHTUP
VERTICALFLUE
V
12.2mMAX.
Figure 7. Straight up Vertical Flue
Use SL D-Series
components only.

16

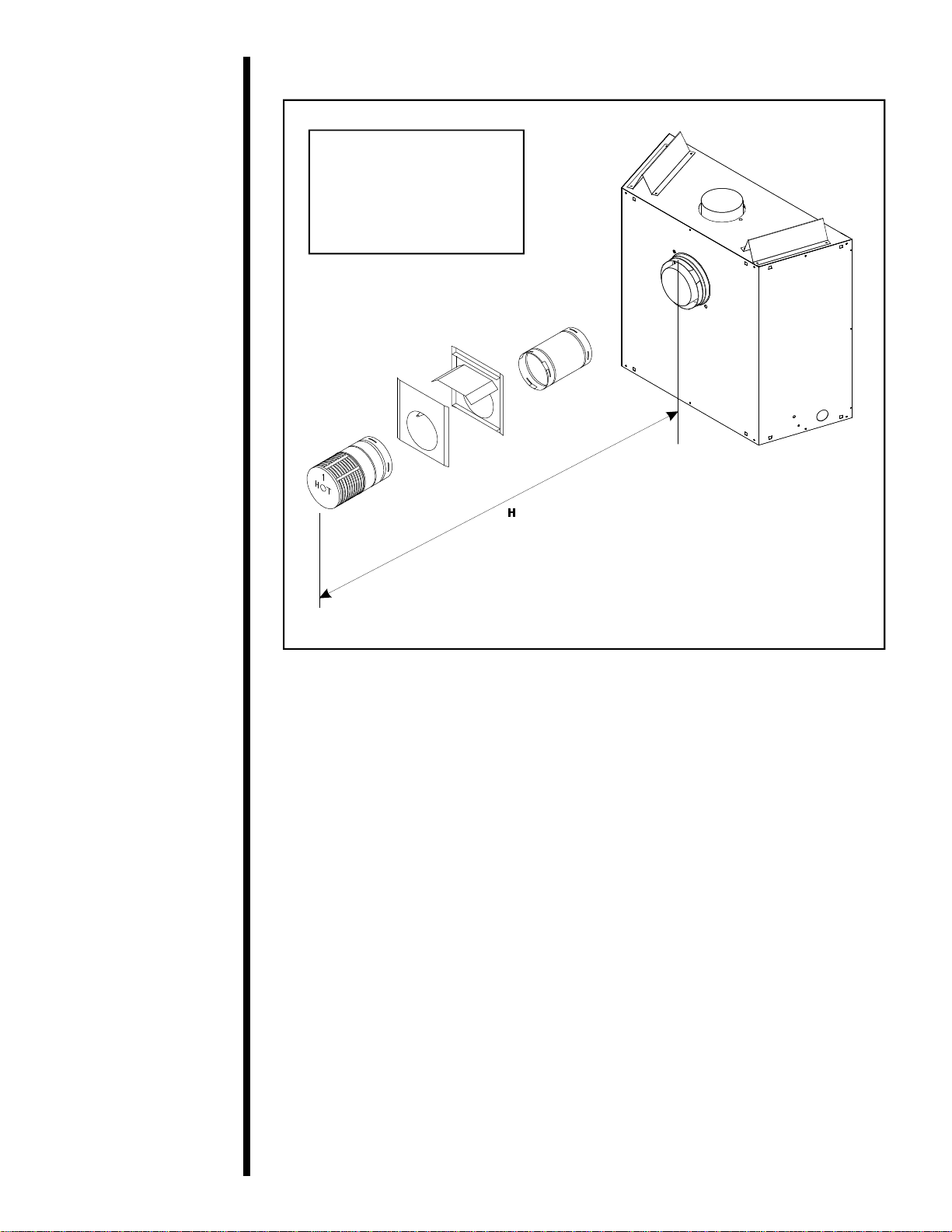

STRAIGHTOUTHORIZONTAL
FLUE
H
Max. Run
610mm
Use D-Series components only.
Figure 8. Straight Out Horizontal Flue

17
FLUEWITHONE (1) 90oELBOW
VH
MIN. 305mm MAX. 610mm
MIN. 610mm MAX.1.22m
MIN. 914mm MAX.1.86m
MIN. 1.22m MAX.2.48m
V+H = MAX. 12.2m H= MAX. 2.48m
Use D-Series
components only.
Figure 9. Flue with One 90° Elbow

18
Figure 10. Flue with One 90° Elbow
FLUEWITHONE (1) 90oELBOW
VH
MIN. 305mm MAX.1.22m
MIN. 610mm MAX.2.4m
MIN. 914mm MAX.3.6m
MIN. 1.22m MAX.4.8m
V + H = MAX 12.2m H = MAX. 4.8m
NOTE: For corner installations: A 152mm MINIMUM length of straight
pipe must be first attached to the fireplace before 90oelbow. This will
allow the flue pipe to clear the top standoffs.
Use SL D-Series components only.

19
FLUE WITH TWO (2) 90° ELBOWS
VHH + H1
MIN. 305 mm MAX. 610 mm MAX. 1.22 m
MIN. 610 mm MAX. 1.22 m MAX.2.4 m
MIN. 914 mm MAX. 1.86 m MAX.3.6 m
MIN. 1.22 m MAX. 2.48 m MAX.4.8 m
H = MAX. 2.48 m H + H1= MAX. 4.8m
V + H + H1= 12.2m MAX.
Figure 11. Flue with Two 90° Elbows

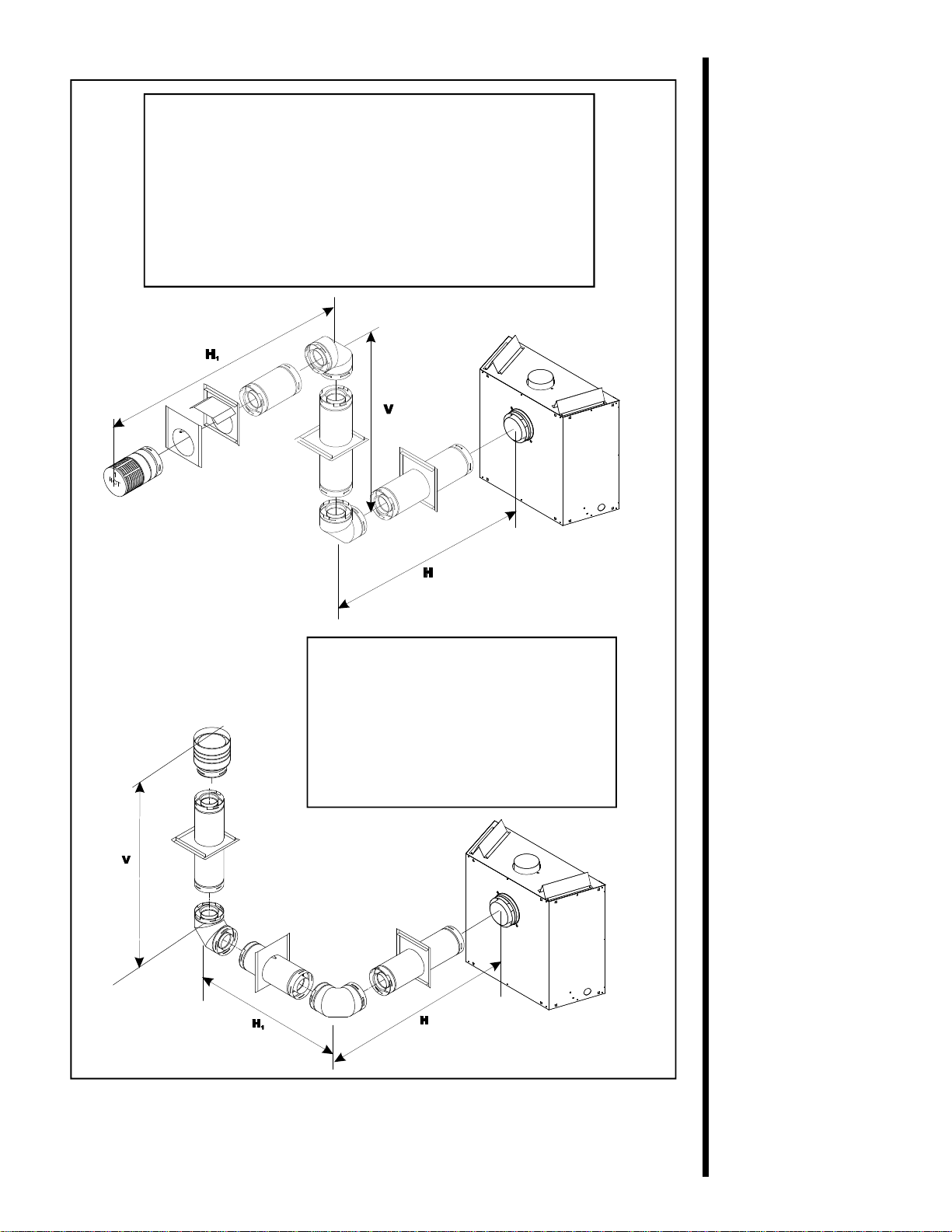

FLUE WITH TW0 (2) 90° ELBOWS
V H + H1
MIN. 305 mm MAX. 610 mm
MIN. 610 mm MAX. 1.22 m
MIN. 914 mm MAX. 1.86 m
MIN. 1.22 m MAX. 2.48 m
H + H1= MAX. 2.48m
V + H + H1= 12.2m MAX.
Use D-Series
components only.

20
V H
MIN. 305mm MAX.610mm
MIN. 610mm MAX. 1.22m
MIN. 914mm MAX. 1.86m
MIN. 1.22m MAX. 2.48m
MIN. 1.52m MAX. 4.8m
H = MAX. 4.8m
NOTE: V + V1 + H = MAX. 12.2m
FLUE WITH TWO (2) 90° ELBOWS
MIN. 305mm MAX.610mm
MIN. 610mm MAX. 1.22m
MIN. 914mm MAX. 1.86m
MIN. 1.22m MAX. 2.48m
MIN. 1.52m MAX. 4.8m
V+H+H1= MAX. 12.2m H+H1= MAX. 4.8m
FLUE WITH TWO (2) 90° ELBOWS
VH + H1
Figure 12. Flue with Two 90° Elbows
Use SL D-Series
components only.
H
1
H
V

21

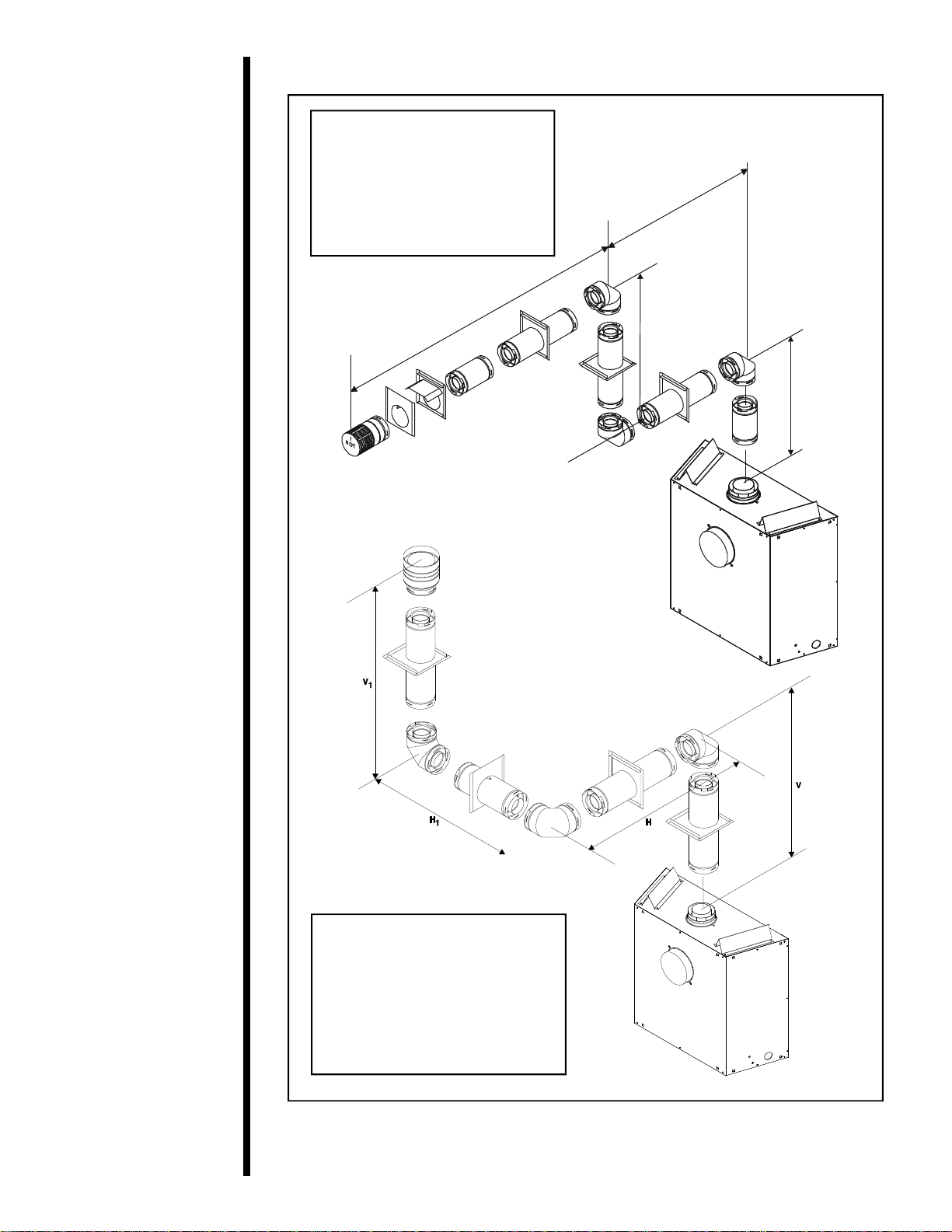

FLUEWITH THREE (3) 90°ELBOWS
MIN. 305 mm MAX. 610 mm MAX. 1.22 mm
MIN. 610 mm MAX. 1.22 m MAX. 2.48 m
MIN. 914 mm MAX. 1.86 m MAX. 3.72 m
MIN. 1.22 m MAX. 2.48 m MAX. 4.8 m
H = MAX. 2.48 m MAX. 4.8 m
NOTE: V + V, + H + H1= 9m MAX.
VH H + H1
V H H + H1+ H2
MIN. 305 mm MAX. 610 mm MAX. 1.22 mm
MIN. 610 mm MAX. 1.22 m MAX. 2.48 m
MIN. 914 mm MAX. 1.86 m MAX. 3.7 m
MIN. 1.22 m MAX. 2.48 m MAX. 4.8 m
V + H + H
1
+ H
2
= 9m MAX. H = MAX 2.48m H + H
1
+ H
2
= MAX. 4.8m
FLUEWITH THREE (3) 90°ELBOWS
Figure 13. Flue with three 90° elbows
V

22
V H + H1
MIN. 305mm MAX. 1.22m
MIN. 610mm MAX. 2.48m
MIN. 914mm MAX. 3.72m
MIN. 1.22m) MAX. 4.8m
MAX4.8m
V + V1 + H + H1= 9m MAX.
FLUEWITH THREE (3) 90°ELBOWS
V H + H1
MIN.305mm 4' MAX.1.22m
MIN.610mm 8' MAX.2.48m
MIN.914mm 12' MAX.3.72m
MIN.1.22m 16' MAX. 4.8m
H + H1= MAX. 4.8m
V+ V1+ H + H1= MAX. 9m
FLUEWITH THREE (3) 90°ELBOWS
Figure 14. Flue with three 90° elbows
H
11
H
V
11
V
