Heat-N-Glo Pier-TRC-CE Assembly instructions

1
Models:
Pier-TRC-CE
ST-TRC-CE
L-Corner-TRC-CE
R-Corner-TRC-CE
Installers Guide
682-900 2/02
- Do not store or use petrol or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
-What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier’s instructions
• If you cannot reach your gas supplier,
call the fire department.
- Installation and service must be performed
by a qualified installer or competent
person.
WARNING: IMPROPER INSTALLATION,
ADJUSTMENT, ALTERATION, SERVICE
OR MAINTENANCE CAN CAUSE INJURY
OR PROPERTY DAMAGE. REFER TO
THIS MANUAL. FOR ASSISTANCE OR
ADDITIONAL INFORMATION CONSULT
A QUALIFIED INSTALLER OR
COMPETENT PERSON.
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
PleasecontactyourHeat-N-Glodealerwithany
questionsorconcerns.Forthe number of your nearest
Heat-N-Glodealer, pleasecall952-985-6000.
Printed in U.S.A. Copyright 2002,
Heat-N-Glo,adivisionofHearthTechnologies Inc.
20802KensingtonBlvd.,Lakeville,MN55044
These instructions are only valid if the
following country symbol is on the appliance.
If this symbol is not present on the appliance,
it is necessary to refer to the technical
instructions which will provide the necessary
information concerning the modification of the
appliance to the conditions of use for the
country.
These instructions are valid for the following
countries: GB, IE
WARNING:
IF THE INFORMATION IN THESE
INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE,
PERSONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
This gas stove and flue assembly MUST be vented
directly to the outside andMUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas applianceMUST USE
a separate flue system. Common flue systems are
PROHIBITED.
INSPECT the external terminal cap on a regular
basis to make sure that no debris is interfering with
the air flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the stove before the unit can be placed into
safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLYbe
replaced as a complete unit, as supplied by the gas
stove manufacturer. NO SUBSTITUTE material may
be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
This appliance is intended for use on a gas
installation with a governed meter.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of theUsers Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should bePERFORMED by a
qualified service person. The appliance and flue
system should beINSPECTED before initial use
and at least annually by a professional service
person.
Always KEEP the appliance clear and free from
combustible materials, petrol, and other flammable
vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACEDon or near the
appliance.
Children and adults should beALERTED to the
hazards of high surface temperature and should
STAYAWAYto avoid burns or clothing ignition.
Young children should beCAREFULLYSUPERVISED
when they are in the same room as the appliance.
These unitsMUST use one of thefluing systems
described in the Installing the Fireplace section of the
Installers Guide. NO OTHER flue systems or
components MAYBE USED.
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
!
!

3
TABLE OF CONTENTS
Safety and Warning Information ................................................. 2
Service Parts Lists ...................................................................... 4
Section 1: Approvals and Codes.............................................. 12
Approval Listings and Codes........................................................ 12
Appliance Certification.................................................................. 12
Installation Codes ......................................................................... 12
High Altitude Installations .............................................................. 12
Section 2: Getting Started ........................................................ 13
Introducing the Heat-N-Glo Gas Fireplaces ................................. 13
Pre-installation Preparation .......................................................... 13
Section 3: Installing the Fireplace ........................................... 17
Step 1 Locating the Fireplace .................................................. 17
Step 2 Framing the Fireplace................................................... 17
Step 3 Installing the Flue System............................................. 20
A. Flue System Approvals............................................ 20
B. Installing Flue Components..................................... 27
C. Flue Termination...................................................... 30
Step 4 Positioning, Leveling, and
Securing the Fireplace.................................................. 32
Step 5 The Gas Control System .............................................. 33
Step 6 The Gas Supply Line .................................................... 33
Step 7 Gas Pressure Requirements ....................................... 33
Step 8 Wiring the Fireplace...................................................... 34
Step 9 Finishing........................................................................ 35
Step 10 Installing Trim, Logs, and Ember Material...................... 36
Installing the Trim .......................................................... 36
Positioning the Logs ..................................................... 36
Shutter Settings ............................................................ 36
Placing the Ember Material........................................... 36
Step 11 Before Lighting the Fireplace........................................ 37
Step 12 Lighting the Fireplace.................................................... 37
After the Installation ...................................................................... 37
Section 4: Maintaining and Servicing Your Fireplace ......... 38
Section 5: Troubleshooting ..................................................... 39

4

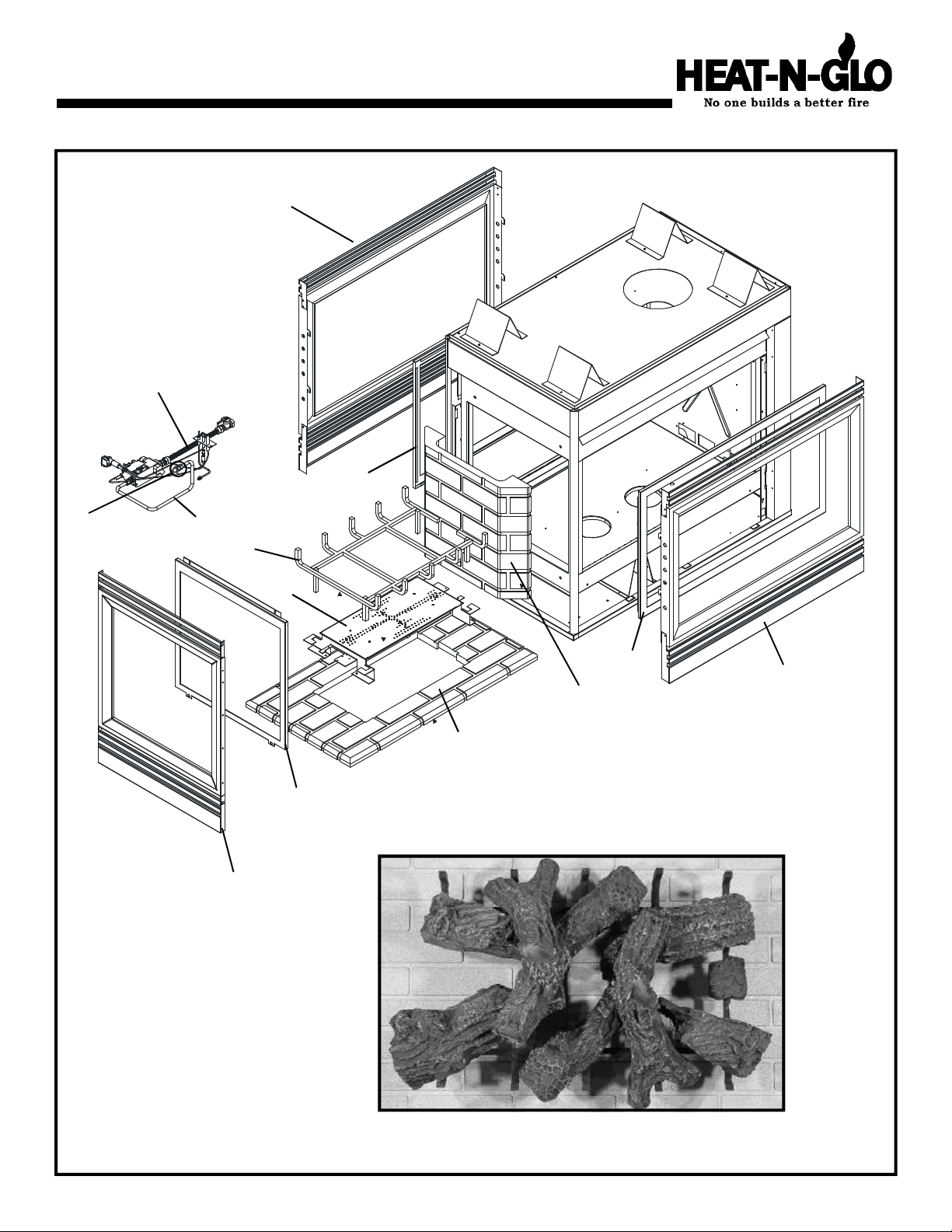

PIER-TRC-CE Exploded Parts Diagram
*Part number list on following page.
2
3
3
5
6
4
7
1
8 Log Assembly
Service Parts
10
11
12
9
11

5
PIER-TRC-CE (NG, LP) Exploded Parts Diagram
IMPORTANT: THISISDATEDINFORMATION. Themostcurrent informationislocated onyour dealersVIPsite. Whenordering,
supply serial and model numbers to ensure correct service parts.
ITEM PARTS SERIAL # PART NUMBER
ON/OFF Rocker Switch 060-511
1Burner Orifice NG 506-800
1Burner Orifice LP 446-801
2Glass Door Assembly - End GLA-PTRC-E
3Glass Door Assembly - Side GLA-PIER
4Burner Assembly NG 501-272A
4Burner Assembly LP 501-273A
5Log Grate 501-364
6Base Refractory SRV504-738-UM
7Refractory, Rear SRV504-737-UM
8Log Set Assembly (sold as complete log set only) LOGS-MS
9Flex Assembly 302-330A
10 Tube Assembly 567-301A
11 Door Assembly - Side 418-240A
12 Door Assembly - End 501-141A
Piezo Ignitor 418-513
Valve NG 060-524
Valve LP 060-526
Pilot Assembly NG 529-510A
Pilot Assembly LP 529-511A
Pilot Orifice NG 529-512
Pilot Orifice LP 529-513

6
ST-TRC-CE Exploded Parts Diagram
*Part number list on following page.
7 Log Assembly
1
2
4
5
6
3
2
Service Parts
8
10
10
9

7
ST-TRC-CE (NG, LP) Exploded Parts Diagram
IMPORTANT: THISISDATEDINFORMATION. Themostcurrent informationislocated onyour dealersVIPsite. Whenordering,
supply serial and model numbers to ensure correct service parts.
ITEM PARTS SERIAL # PART NUMBER
ON/OFF Rocker Switch 060-511
1Burner Orifice NG 506-800
1Burner Orifice LP 446-801
2Glass Door Assembly GLA-PIER
3Burner Assembly NG 501-272A
3Burner Assembly LP 501-273A
4Log Grate 501-364
5Base Refractory SRV504-738-UM
6Refractory, Rear SRV504-737-UM
7Log Set Assembly (sold as complete log set only) LOGS-MS
8Flex Assembly 302-330A
9Tube Assembly 567-301A
10 Door Assembly 418-240A
Piezo Ignitor 418-513
Valve NG 060-524
Valve LP 060-526
Pilot Assembly NG 529-510A
Pilot Assembly LP 529-511A
Pilot Orifice NG 529-512
Pilot Orifice LP 529-513

8
L-CORNER-TRC-CE Exploded Parts Diagram
*Part number list on following page.
9 Log Assembly
1
2
5
6
4
3
7
8
15
Service Parts
12
11
10

9
L-CORNER-TRC-CE (NG, LP) Exploded Parts Diagram
IMPORTANT: THISISDATEDINFORMATION. Themostcurrent informationislocated onyour dealersVIPsite. Whenordering,
supply serial and model numbers to ensure correct service parts.
ITEM PARTS SERIAL # PART NUMBER
ON/OFF Rocker Switch 060-511
1Burner Orifice NG 506-800
1Burner Orifice LP 446-801
2Glass Door Assembly - End GLA-PTRC-E
3Glass Door Assembly - Side GLA-PIER
4Burner Assembly NG 501-272A
4Burner Assembly LP 501-273A
5Log Grate 501-364
6Base Refractory SRV504-738-UM
7Refractory, Rear SRV504-737-UM
8Refractory, Back SRV504-736-UM
9Log Set Assembly (sold as complete log set only) LOGS-MS
10 30" Gas Tube SRV570-302
11 Door Assembly - Side 418-240A
12 Door Assembly - End 501-141A
Flex Assemlby 302-320A
Piezo Ignitor 418-513
Valve NG 060-524
Valve LP 060-526
Pilot Assembly NG 529-510A
Pilot Assembly LP 529-511A
Pilot Orifice NG 529-512
Pilot Orifice LP 529-513

10
R-CORNER-TRC-CE Exploded Parts Diagram / Vue éclatée des pièces
*Part number list on following page.
1
3
7
8
4
6
5
2
9 Log Assembly
Service Parts
10
13
12
11

11
R-CORNER-TRC-CE (NG, LP) Exploded Parts Diagram
IMPORTANT: THISISDATEDINFORMATION. Themostcurrent informationislocated onyour dealersVIPsite. Whenordering,
supply serial and model numbers to ensure correct service parts.
ITEM PARTS SERIAL # PART NUMBER
ON/OFF Rocker Switch 060-511
1Burner Orifice NG 506-800
1Burner Orifice LP 446-801
2Glass Door Assembly - End GLA-PTRC-E
3Glass Door Assembly - Side GLA-PIER
4Burner Assembly NG 501-272A
4Burner Assembly LP 501-273A
5Log Grate 501-364
6Base Refractory SRV504-738-UM
7Refractory, Rear SRV504-737-UM
8Refractory, Back SRV504-736-UM
9Log Set Assembly (sold as complete log set only) LOGS-MS
10 Flex Assembly 302-320A
11 Tube Assembly 567-301A
12 Door Assembly - Side 418-240A
13 Door Assembly - End 501-141A
Piezo Ignitor 418-513
Valve NG 060-524
Valve LP 060-526
Pilot Assembly NG 529-510A
Pilot Assembly LP 529-511A
Pilot Orifice NG 529-512
Pilot Orifice LP 529-513

12
Appliance Certification
TheHeat-N-Glo fireplacemodels discussedinthis Installers
Guidehavebeentested to certificationstandardsand listed
bythe applicable laboratories.
Certification
MODELS: PIER-TRC-CE,ST-TRC-CE,
L-CORNER-TRC-CE,R-CORNER-TRC-CE
LABORATORY: Advantica
TYPE: Gas Fireplace
STANDARD: 90/396/EEC
1
Heat-N-GloQuality
Systems registered
by SGS ICS
Approval
Regulations
Installation Regulations
Before installation check that local distribution conditions,
natureofgasand pressure,andadjustmentoftheappliance
arecompatible.
Thisappliancemust be installed with the rulesinforce,and
used only in a sufficiently ventilated space. Consult
instructions before installation and use of this appliance.

13
2
Getting Started
Introducing the Heat-N-Glo Gas Fireplaces
Heat-N-Glo direct flue gas fireplaces are designed to oper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems. Gas fireplace diagrams, including the dimensions,
are shown in this section.
Pre-install Preparation
This gas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The flue system components and trim doors are shipped in
separate packages. The gas logs are packaged separate-
ly and must be field installed.
Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the own-
er’s warranty and may present a fire hazard.
The Heat-N-Glo Warranty will be voided by, and Heat-N-Glo
disclaims any responsibility for, the following actions:
•Installation of any damaged fireplace or flue system com-
ponent.
•Modification of the fireplace or flue system.
•Installation other than as instructed by Heat-N-Glo.
•Improper positioning of the gas logs or the glass door.
•Installation and/or use of any component part not manu-
factured and approved by Heat-N-Glo, not withstanding
any independent testing laboratory or other party approval
of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•The flue system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framing and finishing details.
•Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

14

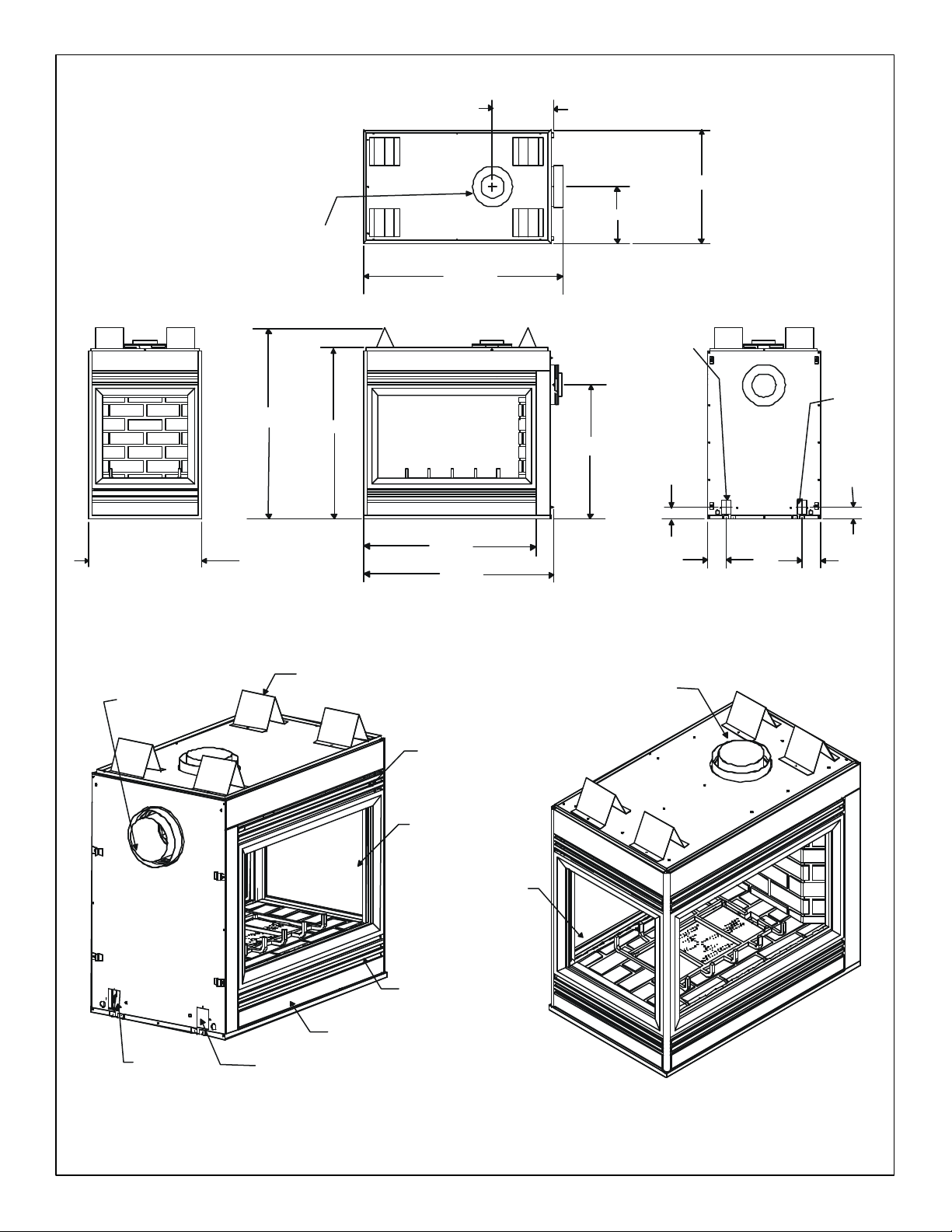

Figure 1. Diagram of the PIER-TRC-CE
ELECTRICAL
ACCESS
GAS LINE
ACCESS
REAR
COLLARS
GAS CONTROLS
& LABELS
BOTTOM
GRILLE
SIDE GLASS
DOOR
END GLASS
DOOR
TOP STANDOFFS
TOP GRILLE
TOP VENT
COLLARS
FRONT RIGHT SIDE LEFT SIDE
331mm
616mm
308mm
VENT COLLARS
1086mm
735mm
ELECTRICAL
ACCESS
64mm
102mm
102mm
GAS LINE
ACCESS
64mm
937mm
1035mm
937mm
1043mm
616mm

15
Figure 2. Diagram of the ST-TRC-CE
LEFT SIDE FRONT RIGHT SIDE
TOP VENT
COLLARS
REAR VENT
COLLARS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
GAS CONTROLS
& LABELS
BOTTOM
GRILLE
TOP GRILLE
TOP STANDOFFS
GLASS DOOR
1143mm
330mm
308mm
VENT COLLARS
616mm
733mm
64mm
GAS LINE
ACCESS
102mm
102mm
64mm
ELECTRICAL
ACCESS
1093mm
918mm
937mm
1042mm
616mm

16
Figure 3. Diagram of the L & R CORNER-TRC-CE
LEFTSIDE FRONT RIGHT SIDE
REAR VENT
COLLARS
ELECTRICAL
ACCESS
GAS LINE
ACCESS
GAS CONTROLS
& LABELS
BOTTOM
GRILLE
SIDE GLASS
DOOR
TOP GRILLE
END GLASS
DOOR
TOP STANDOFFS
TOP VENT
COLLARS
1086mm
330mm
VENT COLLARS
308mm
642mm
GAS LINE
ACCESS
ELECTRICAL
ACCESS
64mm 64mm
102mm
102mm
918mm
1034mm
733mm
937mm
1041mm
616mm

17
3Installing the Fireplace

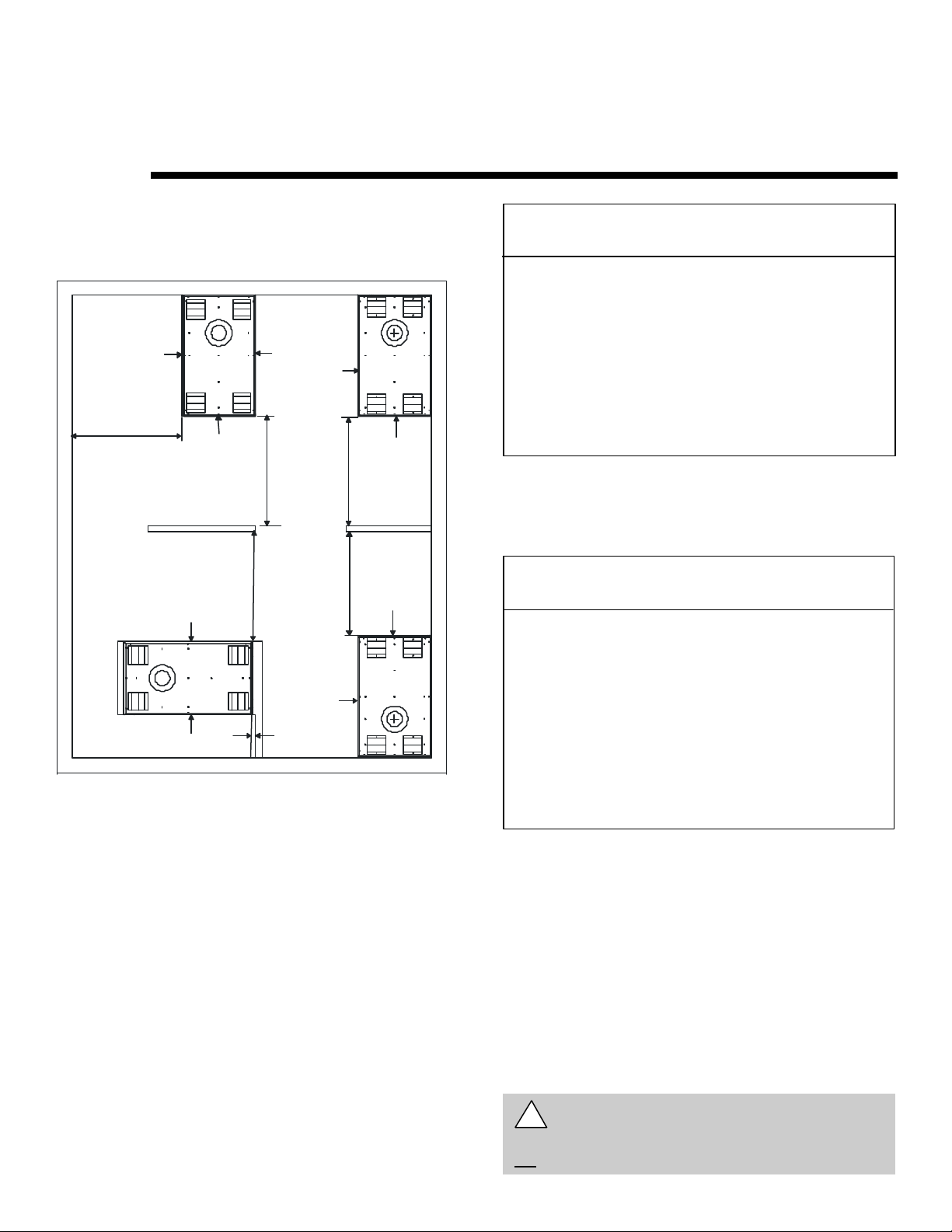

Step 1. Locating the Fireplace
The diagram below shows space and clearance require-
ments for locating a fireplace within a room.
Minimum Clearances
from the Fireplace to Combustible Materials
Glass Sides or Ends ............................... 915 mm
Floor ...................................................... 0
Rear Flue ............................................... 26 mm
Metal Sides or Ends ............................... 13 mm
Top ........................................................ 115 mm
Ceiling* .................................................. 788 mm
Figure 4. Fireplace Dimensions and Locations
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs. The minimum clearance to a perpendicular wall
extending past the face of the fireplace is 26mm. The metal
ends of the fireplace mayNOT be recessed into combustible
construction. There are no ventilation requirements for the
recess.
For minimum clearances, see the direct flue termination
clearance diagrams on pages 27 and 28 in this manual.
Step 2. Framing the Fireplace
Fireplace framing can be built before or after the fireplace is
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
grams on the following pages show framing reference di-
mensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.
Minimum Clearances
from the Flue Pipe to Combustible Materials
Vertical Sections. .................................26 mm
Horizontal Sections
Top .......................................................77 mm
Bottom..................................................26 mm
Sides ....................................................26 mm
At Wall Firestops
Top .......................................................64 mm
Bottom..................................................13 mm
Sides ....................................................26 mm
*The clearance to the ceiling is measured from the top
of the unit, excluding the standoffs (see Figure 35).
The distance from the unit to combustible construction is to
be measured from the unit outer warp surface to the com-
bustible construction, NOT from the screw heads that se-
cure the unit together.
!
WARNING: FRAMING DIMENSIONS ASSUME
USE OF 13 MM THICK WALL COVERING
MATERIALS ON EXTERIOR OF FRAMING ONLYAND
NO SHEETROCK ON INTERIOR OF FRAMING.
915mm
GLASS
GLASS PIER-TRC
TOP VIEW
R-CORNER-TRC
TOP VIEW
GLASS
915mm
GLASS
GLASS
915mm
GLASS
915mm
26mm
GLASS
GLASS
ST-TRC
TOP VIEW
L-CORNER-TRC
TOP VIEW
GLASS
915mm

18
Framing should be
constructed of 2 X 4
lumber or heavier.
Model A B C D E
FLUE FLUE
TOP REAR
PIER-TRC-CE 1099 1023 1054 591 1143 759
ST-TRC-CE 1069 1118 1054 591 1143 759
L&R CORNER-TRC-CE 1099 1023 1054 591 1143 759
Figure 5. Framing Dimensions
NOTE: DIMENSIONS SHOWN IN MILLIMETERS.
Shows center of 305mm x 305mm
flue framing holes for top and rear
flueing. The center of the hole is
one inch 26mm above the center of
the horizontal flue pipe.
B
C
A
PIER-TRC-CE
A
C
B
ST-TRC-CE
A
C
B
L-CORNER-TRC-CE
R-CORNER-TRC-CE
D
E

19
NOTE: PIPES OVERLAP 34.93mm AT EACH JOINT.
Figure 6.

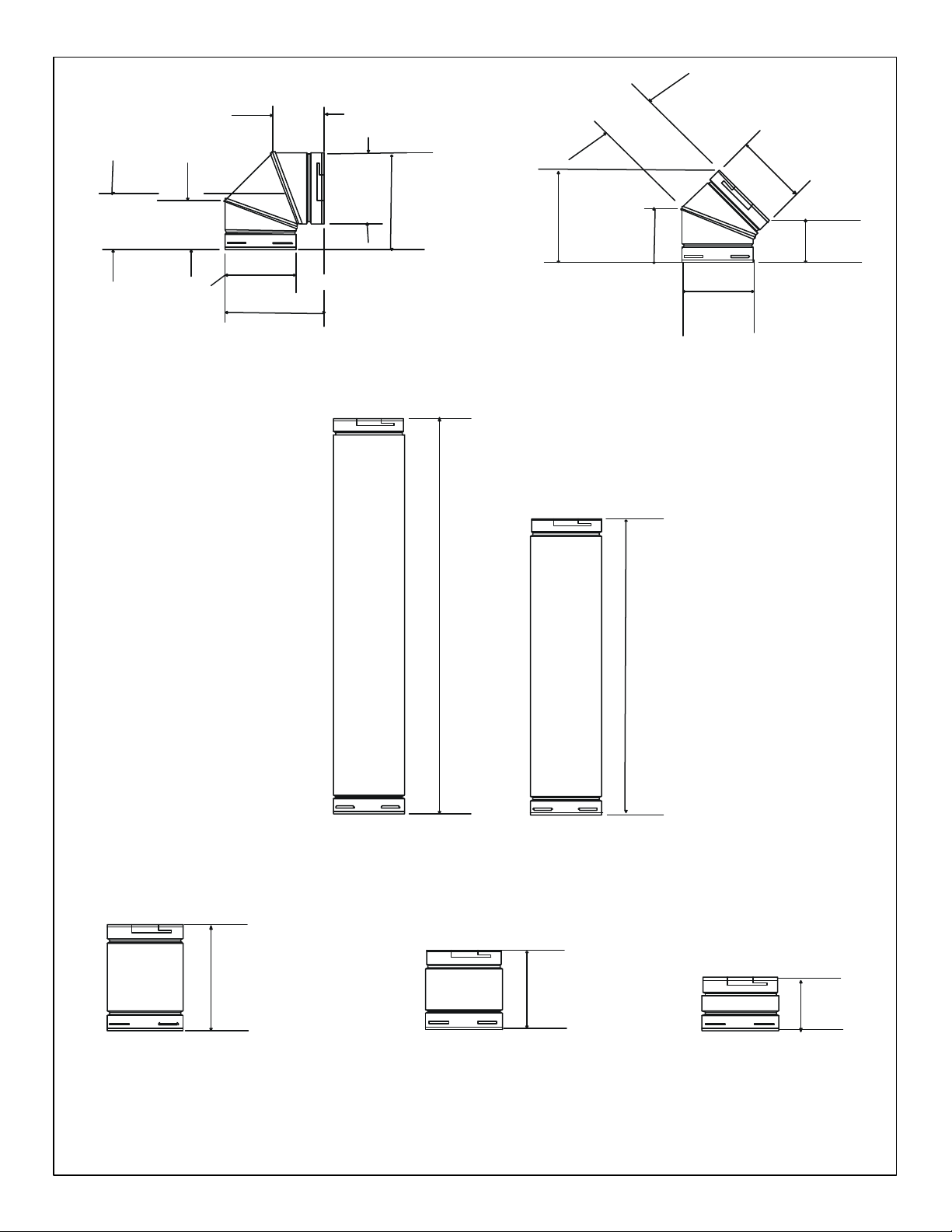

D-Series Direct Flue Component Specifications (127mm inner pipe / 219mm outer pipe)
D
V
-
3
6
D
146mm
222mm
298mm
DV-12D
DV-09D
DV-06D
DV-48D
DV-90D
1
87mm
156mm
295mm
303mm
149mm
220mm
216mm
1
6
4
m
m
DV-45D
281mm165mm
216mm
129m
m
220mm
908mm
1.2m

20
Figure 7. Flue System Components and Termination Kits
Step 3. Installing the Flue System
A. Flue System Approvals
These models are approved to use D-series direct flue pipe
components and terminations (see Figures 6 and 7). Ap-
proved flue system components are labeled for identifica-
tion. This pipe is tested and listed as an approved compo-
nent of the fireplace. The pipe is tested to be run inside an
enclosed wall. There is no requirement for inspection open-
ings at each joint within the wall. There is no required pitch
for horizontal flue runs. NO OTHER FLUEING SYSTEMS
OR COMPONENTS MAY BE USED.
Detailed installation instructions are included with each flue
termination kit and should be used in conjunction with this
Installers Guide.
The flame and ember appearance may vary based on the
type of fuel burned and the flueing configuration used.
Identifying Flue Components
The flue systems installed on this gas fireplace may in-
clude one, two, or three 90° elbow assemblies. The rela-
tionships of vertical rise to horizontal run in flue configura-
tions using 90° elbows MUST BE strictly adhered to. The
rise to run relationships are shown in the flueing drawings
and tables. Refer to the diagrams on the next several pages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the flue system must
be followed if 45° elbows are used.
This model has flue starting collars on both the top and the
back of the unit. Depending upon the installation, decide
which ONE set of starting collars will be used to attach the
flue system. The starting collar sealing cap must remain
on the starting collars NOT used.
Termination kits
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
DVK-TVCD
DVK-01TRD
