Heatilator Fi36S Manual

11/12 33734 Rev K 1
INSTALLATION & OPERATING INSTRUCTIONS
IMPERIAL GAS LOGS
Fi36S Fi36SL Fi36M Fi36ML
Fi42S Fi42SL Fi42M Fi42ML
FOR RESIDENTIAL USE
WARNING!
Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
Refer to this manual. For assistance or additional information, consult a qualified installer, service agency or
the gas supplier.
WARNING: If the information in this manual
is not followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
— What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a
qualifi ed installer, service agency or the gas sup-
plier.

2 33734 Rev K 11/12
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
Safety Precautions
1. Please read these installation instructions completely before beginning installation procedures. Failure to
follow them could cause an appliance malfunction resulting in serious injury and/or property damage.
2. Always check your local building codes prior to installation. The installation must comply with all local, regional,
state and national codes and regulations.
3. NEVER leave children unattended when there is a fire burning in the fireplace.
4. This Gas Log Set appliance is factory built to burn natural or propane gas. A gas conversion kit (to convert
from natural gas to propane, or propane to natural gas) is available for the Imperial Series.
5. The fl ue damper must be open at all times when the appliance is in use.
6. While servicing this log set, always shut off any electricity or gas to the appliance. This will prevent possible
electrical shock or burns. Also, make sure the fireplace is completely cooled before servicing.
7. Solid fuels cannot be burned in a fi replace where the decorative gas appliance is installed.
8. In order to install the Imperial Gas Log Set in the state of Massachusetts, the Commonwealth of Massachusetts
requires the existing fireplace damper be removed.
Table of Contents
A. Listings and Code Approvals ...........................................................................................................................................3
B. Description of the Imperial Gas Log Set..........................................................................................................................3
C. Important Information ......................................................................................................................................................5
D. Step-by-Step Installation .................................................................................................................................................6
E. Operating Instructions for the “M” Series ......................................................................................................................10
F. Operating Instructions for the “S” Series ....................................................................................................................... 11
G. Glass Doors...................................................................................................................................................................12
H. Cleaning ........................................................................................................................................................................12
I. Inspecting the Venting System ......................................................................................................................................12
J. Important Safeguards ....................................................................................................................................................13
K. Servicing........................................................................................................................................................................13
L. Owner Registration/Warranty ........................................................................................................................................13
M. Replacement Parts ........................................................................................................................................................13
N. Troubleshooting - “M” Series .........................................................................................................................................20
O. Troubleshooting - “S” Series .........................................................................................................................................21
P. Accessory Parts (For “M” Series Only) ..........................................................................................................................22
Warranty........................................................................................................................................................................23
WARNING!
This appliance is tested and listed for use only with the optional accessories listed in these instruc-
tions. Use of optional accessories not specifically tested for this appliance could void the warranty
and/or result in a safety hazard.
Note: An arrow ()found in the text signifies change in content.


11/12 33734 Rev K 3
A. Listings and Code Approvals
The Imperial Series Gas Log Set has been tested and listed in the U.S. in accordance with ANSI Z21.60-1996 (Gas Log
Set). In Canada the Imperial Series Gas Log Set has been tested and approved in accordance with CGA 2.26-M96. It has
been listed by Underwriters Laboratories Inc. for installation and operation in the United States and Canada as described
in these Installation and Operating Instructions. All components are UL, AGA, CGA or CSA safety certified.
Check with your local building code agency prior to installing this appliance to ensure compliance with local codes, includ-
ing the need for permits and follow-up inspections. In the absence of local codes, comply with the National Fuel Gas
Code, ANSI Z223.1-Latest Edition in the U.S.; in Canada, the CAN/CGA B149 Installation Codes. If any assistance is
required during installation, please contact your dealer for more information or visit: www.hpba.org/staysafe.
HEATILATOR® is a registered trademark of Hearth & Home Technologies Inc.
WARNING!
This Heatilator appliance and its components are designed to be installed and operated as a system.
Any alteration to or substitution for items in this system, unless allowed by these installation instruc-
tions, will void the Underwriters Laboratories listing and may void the product warranty. It may also
create a hazardous installation. Read through these instructions thoroughly before starting your
installation and follow them carefully throughout your project.
WARNING!
Do not use this appliance if any part has been under water. Immediately call a qualified service techni-
cian to inspect the appliance and to replace any part of the control system and any gas control which
has been under water.
B. Description of the Imperial Gas Log Set
The HEATILATOR® Imperial Gas Log Set
consists of the following:
1. Burner/Hearth Assembly
2. Grate Assembly
3. Four Fiber Logs
Optional components include:
RC-BATT-HTL Remote Control (M-Series only)
Imperial Series Nomenclature
Tools and building supplies nor-
mally required for installation:
Pliers
Phillips screwdriver
Tape measure
Crescent wrenches
Non-corrosive leak-check solution
Note:The illustrations and diagrams used throughout
these installation instructions are not drawn to
scale.
Fi42ML Logset Order Code Number
Fi Imperial Series Log Set
36 36” Log Set
42 42” Log Set
M Intermittent Pilot
S Safety Pilot Manual Valve
No Suffi x Natural Gas
L Propane Gas

4 33734 Rev K 11/12
These gas log sets are available with different valve systems. The Fi36S, Fi36SL, Fi42S and Fi42SL sets use a separate
regulator and valve system, and the Fi36M, Fi36ML, Fi42M and Fi42ML sets use a combination control with an intermit-
tent pilot. Both valve systems are available in natural or propane gas. Only the “M” Series can be used with an optional
remote control (RC-BATT-HTL).
Conversion kits to convert from natural gas to propane or from propane to natural gas are available.
• The conversion kits for all “M” series log sets are:
-DCKP to convert from natural gas to propane
-DCKN to convert from propane to natural gas.
• The conversion kits for all “S” series log sets are:
-CKMP to convert from natural to propane gas
-CKMN to convert from propane to natural gas.
These HEATILATOR® gas log sets and components have been tested and will operate safely when installed in accor-
dance with this installation manual. This decorative appliance is a highly engineered system. Unless you use HEATILA-
TOR® components which have been designed for the system, you may create a fire hazard.
Gas pressure
BTU/hr. Input
Model No. BTU/Hr. Input Orifice
Fi36M
60,000
.152
Fi36ML .093
Fi36S .169
Fi36SL .093
Fi42M
80,000
.182
Fi42ML .110
Fi42S .228
Fi42SL .110
Gas Pressure
Inlet gas supply pressure (NG) 4.5 (min) - 7.0 (max) in. w.c.
Optimal manifold pressure (NG) 3.5 in. w.c.
Inlet gas supply pressure (LP) 11.0 (min) - 14.0 (max) in. w.c.
Optimum manifold pressure (LP) 10 in. w.c.

11/12 33734 Rev K 5
C. Important Information
Installer: Please leave these instructions with the owner.
Owner: Please retain these instructions for future reference.
Important: Read these instructions carefully before making installation.
• This appliance must be installed only in a solid-fuel burning (woodburning) fi replace with a working flue and
constructed of noncombustible materials.
• The appliance area must be kept clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
• A fi replace screen must be in place when the log set is burning and, unless other provisions for combustion
air are provided, the screen shall have an opening(s) for introduction of combustion air.
• Installation and the provisions for combustion and ventilation air must conform with the latest edition of the
National Fuel Gas Code ANSI Z223.1 or in Canada, the current CAN/CGA-B149.1 and B149.2.
• Inlet and outlet taps are provided on the gas control (M Series) for a test gauge connection. Replace the plug
after the test.
• The appliance and its manual shutoff valve must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of 1/2 PSIG.
• The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff
valve during any pressure testing of the gas supply pipe system at test pressure equal to or less than 1/2
PSIG.
• The minimum size fi replace in which the log set can be installed and the minimum permanent free opening
that must be provided by either the fireplace chimney or chimney damper to vent the flue gases must be in
accordance with the tables in Figure 1.
• Any chimney damper must be fi xed so that the minimum permanent vent opening will be maintained at all
times (by screw, bolt at damper edge, or hole in damper.)
• Solid fuel shall not be burned in a fi replace where a decorative gas appliance is installed.
1. High Altitude Installation
For U.S. installation, appliances are tested and approved for elevations from 0-2000 feet. When installing this Imperial
Gas Log Set at an elevation above 2000 feet, National Fuel Gas Codes require a decrease of the input rating by changing
the existing burner orifi ce to a smaller size. Input should be reduced 4% for each 1000 feet above sea level. Check with
the local gas utility for proper orifice size identifi cation. The current orifice is available from your Heatilator distributor.
For Canada, appliances are certifi ed for elevations from 0-4500 feet. When installing this Imperial Gas Log Set at an
elevation between 0-4500 feet in Canada, the input rating does not need to be reduced. When installing this log set at an
elevation above 4500 feet in Canada, check with local authorities.
2. Minimum Dimensions
Figure 1
Minimum Firebox Dimensions Minimum Permanent Free Opening
Set Size Depth Height Front Opening Chimney Ht. (ft) 36 in. 42 in.
36 in. 13 in. 16 in. 30 in. 10 ft 40 sq in. 40 sq in.
42 in. 13 in. 16 in. 34 in.

6 33734 Rev K 11/12
D. Step-by-Step Installation
If the damper stop doesn’t fi t your application, use a per-
manent means that will keep the damper open at least to
the minimum vent opening. See Figure 1.
3. Position the Log Set in the Fireplace
The burner assembly should be located as far back as
possible and centered left to right in the combustion cham-
ber of the vented fireplace.
4. Connect the Gas Line
The appliance is provided with a stainless steel flexible
connector and a listed (and Commonwealth of Massachu-
setts approved) T-handle manual shutoff valve.
a. Remove the four screws that secure the burner
assembly to the top pan. See Figure 3.
b. Remove the four screws that secure the top pan to
the base of the appliance. See Figure 4.
1. Unpack the Log Set
Carefully remove all parts from the shipping container.
Your set includes four fi ber logs, a burner assembly, the
grate assembly, fi re embers, lava rock, damper stop, and
10” flex connector.
2. Install the Damper Stop
To install the damper stop: Open the damper to the fully
open position and secure it open with the stop as shown in
Figure 2.
c. Set the burner assembly and top pan aside.
d. The gas line connection for the Imperial Series Gas
Log Set may be plumbed from either the right or
left side of the appliance.
e. The 1/2” iron pipe incoming gas line should be piped
into the valve compartment from either the right or
left side and connected to the brass flare connector
and the 10” stainless steel fl ex line (supplied). See
Figure 5.
Optional: Seal around the gas line to prevent cold
air leakage.
Note: One manual shutoff valve is supplied with
the appliance. This appliance must be installed
with an additional manual shutoff valve (not
supplied) located no more than six feet from the
appliance.
Figure 2 - Damper Operation
Figure 3 - Burner Assembly
Figure 4 - Top Pan
Figure 5 - Gas Line Connection
Note: Have the gas supply line installed in accordance with building codes by a qualified installer approved and/or
licensed as required by the locality. In the Commonwealth of Massachuset ts, installation must be per formed by a licensed
plumber or gas fitter.

11/12 33734 Rev K 7
f. Bleed the gas line to extract any air that may have
been trapped inside the pipe. All connections
must be tightened and checked for leaks with a
commercially available, non-corrosive leak check
solution. Be sure to rinse off the solution when done
leak testing. DO NOT USE AN OPEN FLAME. Turn
off the gas after the leak test.
g. Reassemble the top pan with the four screws
removed earlier, and the burner assembly with the
four screws removed earlier.
5. Grate Assembly
The grate assembly should be positioned on top of the top
pan and the burner assemblies, centered from left to right
and pulled forward as far as possible. See Figure 6.
Note: Be sure when reassembling the burner
assembly that the burner neck is properly positioned
on the orifice.
6. Place the Rock Wool, Fire Glow, Lava
Rock and Vermiculite
a. Rock Wool
Place approximately 1/2” diameter pieces of rock
wool on the top of the burner covering the front 2/3
of the burner. Do not cover the rear row of burner
ports. The rock wool should also be placed to the
sides of the burner on the top pan and under the
front bar of the grate assembly to hide the burner.
See Figure 7.
b. Fire Glow (Fire 98)
A flame colorant material that also adds to the
realism of the gas appliance flame. After placing
the rock wool, sprinkle some of the Fire Glow on
the top of the burner assembly and the rock wool.
Figure 6 - Placing the Grate Assembly
c. Lava Rock
Place on the hearth refractory of the fi replace, all around
the log set. See Figure 8.
Figure 7 - Rock Wool Placement
Figure 8 - Lava Rock
d. Vermiculite
When placing the vermiculite, sprinkle it evenly over
the area covered by the lava rock.
e. It is not necessary to use the entire bag of the rock
wool, the Fire Glow, the lava rock or the vermiculite.
Save the remaining portions for later use.

8 33734 Rev K 11/12
7. Place the Logs
a. Rear Log
The rear log is supplied with locating slots in the
base of the log. Locate the rear log over the locating
tabs at the rear of the top pan. See Figure 9.
Figure 9 - Rear Log Placement
b. Front Log
The front log is supplied with notches in the base
of the log to locate the log on the grate. Line up
the notches in the log with the grate bars and pull
the log forward until it comes into contact with the
upright portion of the grate bars. See Figure 10.
c. Top Right Log
The top right log is supplied with locating slots in
the base of the log. Locate the log over the two
locating pins found in the rear log and the front log.
See Figure 11.
Figure 10 - Placing the Front Log
Figure 11 - Top Right Log
Figure 12 - Top Left Log
d. Top Left Log
The top left log is supplied with a locating tab that
fi ts into a notch on the top of the front log. See
Figure 12.

11/12 33734 Rev K 9
8. Intermittent Pilot Ignition
a. Appliance Requirements: This appliance does not require 110VAC supply for operation.
1) Awiring diagram is shown in Figure 13. A battery pack is supplied with the appliance. This appliance
requires the use of two D-cell batteries (not supplied with the appliance) for operation.
2) In the event of a power outage, the appliance will continue to operate if batteries are installed in the battery
pack.
Figure 13 - “M” Series Intermittent Pilot Wiring Diagram
b. Battery Replacement
1) Access Cover - Remove the access cover by locating the two hand tabs on either side of the access cover.
Slide the access cover to the right approximately 1” to disengage it from the base. See Figure 14.
2) Battery Pack - Locate the battery pack and slide it forward out of the base. See Figure 15. Replace batteries
and reinstall the battery pack into the base. The battery pack is held in place by a magnet located on the
base pan.
Figure 14 - Access Cover Removal Figure 15 - Battery Replacement
ON/OFF Switch

10 33734 Rev K 11/12
E. Operating Instructions for the “M” Series
Lighting Instructions, “M” Series
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
A. This appliance has an intermittent pilot. When
lighting the pilot, follow these instructions
exactly.
B. BEFORE LIGHTING smell all around the
appliance area for gas. Be sure to smell next to
the floor because some gas is heavier than air
and will settle to the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use
any phone in your building.
• Immediately call your gas supplier?from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
C. Do not use this appliance if any part has been
under water. Immediately call a qualified service
technician to inspect the appliance and to
replace any part of the control system and any
gas control which has been under water.
Due to high surface termperatures, keep children, clothing and furniture away.
Keep burner and control compartment clean. See installation and operating instructions accompanying the appliance.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety instruction label.
2. Turn wall switch to the "OFF" position.
3. Wait five minutes to clear out any gas. If you smell
gas, STOP! Follow "B" on the safety information
label. If you don't smell gas, go to next step.
4. Locate pilot assembly inside unit.
6. If appliance will not operate, follow the instructions "TO
TURN OFF GAS TO APPLIANCE" and call your service
technician or gas supplier.
TO TURN OFF GAS APPLIANCE
1. Turn on/off switch to "OFF".
GAS
CONTROL
KNOB
FLAME
SENSOR
IGNITOR
5. To light pilot and main burner, turn wall switch to "ON".
Do not light by hand.
34006
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
PILOT
BURNER

11/12 33734 Rev K 11
F. Operating Instructions for the “S” Series
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lit by
hand. When lighting the pilot, follow these
instructions exactly.
C. Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or
turn by hand, don't try to repair it, call a qualified
service technician. Force or attempted repair may
result in a fire or explosion.
B. BEFORE LIGHTING smell all around the
appliance area for gas. Be sure to smell next to
the floor because some gas is heavier than air
and will settle to the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use
any phone in your building.
• Immediately call your gas supplier?from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
D. Do not use this appliance if any part has been under
water. Immediately call a qualified service techni-
cian to inspect the appliance and to replace any
part of the control system and any gas control
which has been under water.
Due to high surface termperatures, keep children, clothing and furniture away.
Keep burner and control compartment clean. See installation and operating instructions accompanying the appliance.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety instruction label. 5. Turn knob on control counterclockwise to "PILOT".
3. Wait five minutes to clear out any gas. If you smell
gas, STOP! Follow "B" on the safety information
label. If you don't smell gas, go to next step.
4. Find pilot--follow metal tube from gas control. The
pilot is behind the burner pan.
6. Push in the knob all the way and hold in. Immediately
light the pilot with the use of a paper match and lighter
rod. Continue to hold the control knob in for about one
minute after the pilot is lit. Release button and it will pop
back up. Pilot should remain lit. If it goes out, repeat
steps 3 through 7.
If button does not pop up when released, stop and
immediately call your service technician or gas supplier.
If the pilot will not stay lit after several tries, turn the gas
control knob to "OFF" and call your service technician
or gas supplier.
7. Turn gas control knob counterclockwise to "ON".
Knob can be turned to "ON" only if the control knob is
popped out.
TO TURN OFF GAS APPLIANCE
1. Turn gas control clockwise to "OFF. Do not force.
2. Turn gas control knob clockwise to "OFF".
PILOT
BURNER
THERMOCOUPLE
34008
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.

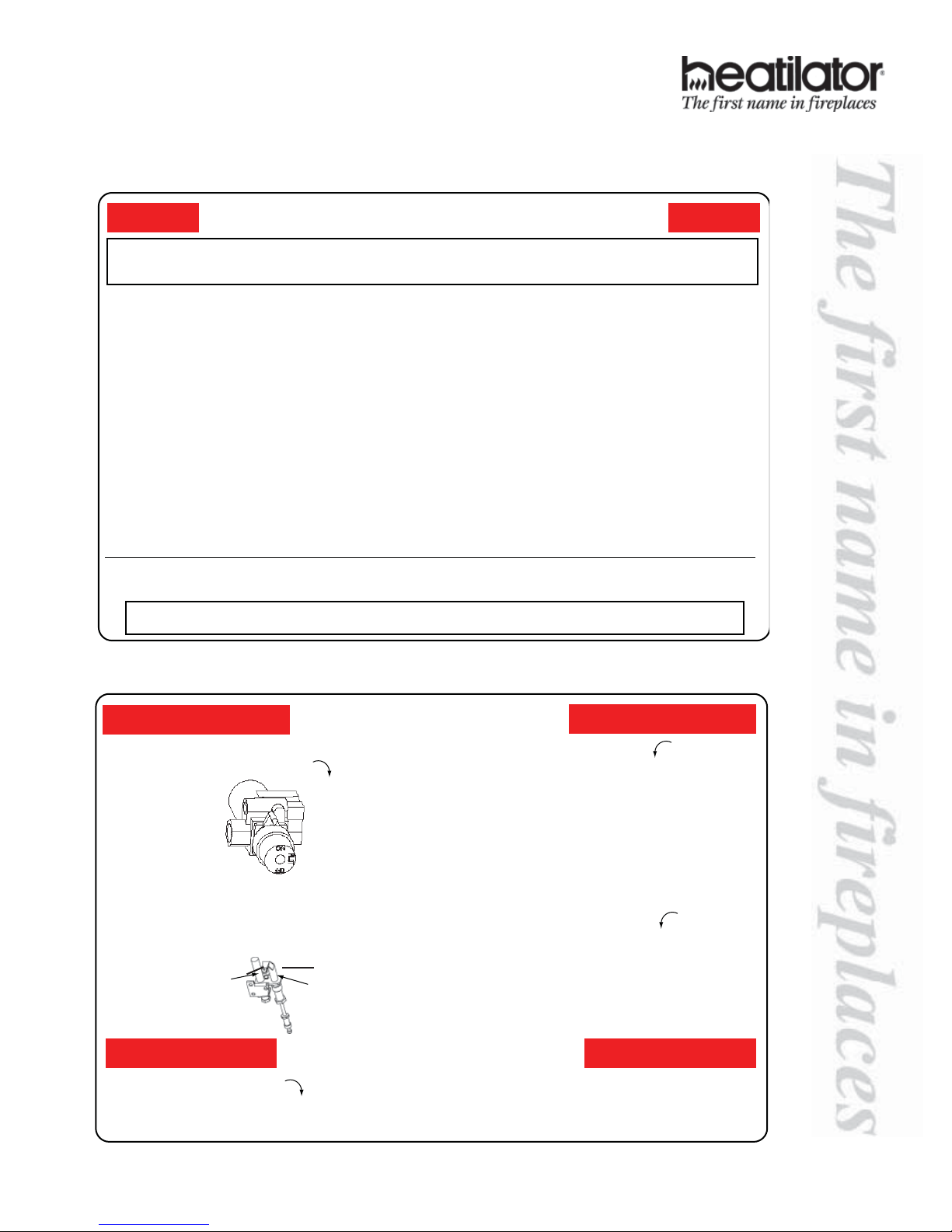

Lighting Instructions for the “S” Series

12 33734 Rev K 11/12
G. Glass Doors
If your fi replace is equipped with a glass door, the glass doors should be in the full open position when the appliance is
operating. Operating the fi replace with the glass doors closed will block the radiant heat output of the fireplace and may
cause incomplete combustion of the natural or propane gas fuel.
IMPORTANT! Always ensure that the wire fi replace screen is closed when the fireplace is operating.
Your gas logs require little care. Keep the burner assembly, logs and burner area surrounding the logs clean by vacuum-
ing or brushing with a dry paint brush at least twice a year.
• Always turn off the gas to the pilot before cleaning. For relighting, refer to lighting instructions located on
pages 10 and 11.
• Always keep the appliance clear and free from combustible materials, gasoline, and other flammable vapors
and liquids.
• Never obstruct the fl ow of combustion and ventilation air. Keep the front of the appliance clear of all obstacles
and materials.
• Leave clearance of at least 36” from the front of the fireplace.
• The air shutter should not be blocked.
CAUTION:
The logs can get very hot. Handle only when they
are cool.
CAUTION:
After burning, the log becomes fragile, so take care
in handling.
The fireplace venting system is designed and constructed to develop a positive fl ow adequate to remove flue gases to the
outside atmosphere. See vented fireplace installation instructions.
1. A spillage test must be made before the installed appliance is left with the consumer.
a. Close all doors and windows in the home.
b. Light the log set.
c. After three minutes, test with a smoke match, smoke candle, stick incense, or cigarette 1” below the top
of the opening (lintel) moving across the full width. See Figure 16. If spillage (smoke drawn into the room)
occurs, it will most likely be near the top, outside corners.
Figure 16 - Checking for Spillage
H. Cleaning
I. Inspecting the Venting System

11/12 33734 Rev K 13
2. Possible Cures
a. The damper needs to be opened further.
b. The fireplace opening needs to be reduced by adding a drop panel across the top under the lintel.
c. The air supply from outdoors needs to be increased. Open the outside air kit if the fi replace is so equipped,
or crack open a door or window.
d. If necessary, seek expert advice. Do not operate this appliance.
3. Cleaning
Periodic examination and cleaning of the venting system of the solid-fuel burning fireplace should be done before initial
use and at least annually by a qualified agency.
1. Other Fuels
a. Although your gas log set is very realistic in appearance, it is not a real woodburning fire and must not be
used for burning any fuel other than natural or propane gas.
b. To avoid irreparable damage to the appliance and/or personal injury, wood, matches, paper, garbage or any
other material must not be placed or thrown on top of the logs.
2. Fireplace Safety
a. To avoid personal injury, do not touch hot surfaces when the appliance is operating.
b. Always ensure that the fi replace screen is closed when the appliance is operating.
c. Close supervision is necessary when the appliance is being used near children.
• Repair and replacement work should be done by a qualified service technician.
• Always shut off the gas supply and make sure the appliance is cool before beginning any service
operation.
• Always check for gas leaks after servicing.
• Always check for proper venting.
M. Replacement Parts
Parts lists with exploded views follow. Always include correct name, part number and model number of the appliance
when ordering replacement parts. Contact your local dealer to order parts.
J. Important Safeguards
K. Servicing
L. Owner Registration/Warranty
Please complete and return your owner registration card to ensure proper warranty coverage. If you wish to communicate
with the factory, write to Heatilator Technical Services Dept., Hearth & Home Technologies Inc., 1915 W. Saunders Street,
Mt. Pleasant, Iowa 52641

14 33734 Rev K 11/12
Service Parts FI36M, FI36ML
Beginning Manufacturing Date: N/A
Ending Manufacturing Date: Active
Part number list on following page.
Log Set Assembly
Imperial 36” Gas Log Set
1
3
2
4
5
6
7
8
911
10
12 13
14 15
16
17
18
11/12

15 33734 Rev K 11/12
Service Parts FI36M, FI36ML
Beginning Manufacturing Date: N/A
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer. Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Back Log SRV32233
2 Front Log SRV32234
3 Top Right Log SRV33732
4 Top Left Log SRV33733
5 Grate Assembly 33743
6 Burner Assembly 33725 Y
7 Control Module 593-592 Y
8 Brass Connector 303-315/5 Y
9Valve NG 593-500 Y
Valve LP 593-501 Y
10 Brass Male Connector 13425
11 Gas Tube 33729
12 Orifi ce NG (.152) 32229 Y
Orifi ce LP (.093) 16752 Y
13 Bulkhead 13405A
14 Pilot Assembly NG 385-510A Y
Pilot Assembly LP 385-511A Y
15 Pilot Bracket 33375
16 Battery Pack 593-594A Y
17 ON/OFF Rocker Switch 060-511
18 Access Cover 32238
Damper Stop Assembly 14354 Y
10 in. Flexline 15696B Y
Dexen Wire Harness 593-590A Y
Wool, Rock, Vermiculite 34010
Lava Rock (2lb. Bag) 4021-296
Mineral Wool 14333B
Vermiculite 28746
"Z" Bracket 32228
Wire Harness Qty 2 req 33995
Conversion Kit NG DCKN Y
Conversion Kit LP DCKP Y
Pilot Orifi ce NG, .021 446-505 Y
Pilot Orifi ce LP, .011 446-517 Y
Regulator NG NGK-DXF Y
Regulator LP LPK-DXF Y
Installation Manual 33734

16 33734 Rev K 11/12
Service Parts FI36S, FI36SL
Beginning Manufacturing Date: Nov 2000
Ending Manufacturing Date: Nov 2006
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. All parts listed in this manual may
be ordered from an authorized dealer. Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Back Log SRV32233
2 Front Log SRV32234
3 Top Right Log SRV33732
4 Top Left Log SRV33733
5 Grate Assembly 33743
6 Burner Assembly 33725 Y
7Pilot Assembly NG 33993 Y
Pilot Assembly LP 33994 Y
8 Pilot Bracket No longer available 33735
9 Gas Tube No longer available 33989
10 Brass Male Connector 13425
11 Valve 33992 Y
12 Pipe Nipple 4021-041
13 Regulator 34028
14 Orifi ce NG (.169) 18742
Orifi ce LP (.093) 16752 Y
15 Brass Bulkhead 13405A Y
16 Brass Connector - 90 degree - Flex 4021-045
Brass Connector Pkg of 5 303-315/5 Y
Damper Stop Assembly 14354 Y
10 in. Flexline 15696B Y
Wool, Rock, Vermiculite 34010
Lava Rock (2lb. Bag) 4021-296
Mineral Wool 14333B
Vermiculite 28746
Conversion Kit NG No longer available CKMN
Conversion Kit LP No longer available CKMP
10/12
Log Set Assembly
Imperial 36” Gas Log set
5
6
7
8
9
10
11 12 13 14
15
16
1
3
2
4

17 33734 Rev K 11/12
Service Parts
Beginning Manufacturing Date: N/A
Ending Manufacturing Date: Active
FI42M, FI42ML
Part number list on following page.
Log Set Assembly
Imperial 42” Gas Log set
1
3
2
4
5
6
7
8
911
10
12 13
14 15
16
17
18
11/12

11/12 33734 Rev K 18
Service Parts
Beginning Manufacturing Date: N/A
Ending Manufacturing Date: Active
FI42M, FI42ML
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer. Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Back Log SRV32233
2 Front Log SRV32234
3 Top Right Log SRV33732
4 Top Left Log SRV33733
5 Grate Assembly 33743
6 Burner Assembly 33725 Y
7 Control Module 593-592 Y
8 Brass Connector Pkg of 5 303-315/5 Y
9Valve NG 593-500 Y
Valve LP 593-501 Y
10 Brass Male Connector 13425
11 Gas Tube 33729
12 Orifi ce NG (.182) 32230
Orifi ce LP (.110) 17235 Y
13 Bulkhead 13405A
14 Pilot Assembly NG 385-510A Y
Pilot Assembly LP 385-511A Y
15 Pilot Bracket 33375
16 Battery Pack 593-594A Y
17 ON/OFF Rocker Switch 060-511 Y
18 Access Cover 32238
Damper Stop Assembly 14354 Y
10 in. Flexline 15696B Y
Dexen Wire Harness 593-590A Y
Wool, Rock, Vermiculite 34010
Lava Rock (2lb. Bag) 4021-296
Mineral Wool 14333B
Vermiculite 28746
"Z" Bracket 32228
Wire Harness Qty 2 req 33995
Conversion Kit NG DCKN Y
Conversion Kit LP DCKP Y
Pilot Orifi ce NG, .021 446-505 Y
Pilot Orifi ce LP, .011 446-517 Y
Regulator NG NGK-DXF Y
Regulator LP LPK-DXF Y
Installation Manual 33734

19 33734 Rev K 11/12
Service Parts
Beginning Manufacturing Date: Nov 2000
Ending Manufacturing Date: Nov 2006
FI42S, FI42SL
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for
your appliance please provide model number and serial number. All parts listed in this manual may
be ordered from an authorized dealer. Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1 Back Log SRV32233
2 Front Log SRV32234
3 Top Right Log SRV33732
4 Top Left Log SRV33733
5 Grate Assembly 33743
6 Burner Assembly 33725 Y
7Pilot Assembly NG 33993 Y
Pilot Assembly LP 33994 Y
8 Pilot Bracket No longer available 33735
9 Gas Tube No longer available 33989
10 Brass Male Connector 13425
11 Valve 33992 Y
12 Pipe Nipple 4021-041
13 Regulator 34028
14 Orifi ce NG (.228) 33736
Orifi ce LP (.110) 17235 Y
15 Brass Bulkhead 13405A Y
16 Brass Connector - 90 degree - Flex 4021-045
Brass Connector Pkg of 5 303-315/5 Y
Damper Stop Assembly 14354 Y
10 in. Flexline 15696B Y
Wool, Rock, Vermiculite 34010
Lava Rock (2lb. Bag) 4021-296
Mineral Wool 14333B
Vermiculite 28746
Conversion Kit NG No longer available CKMN
Conversion Kit LP No longer available CKMP
2/12
Log Set Assembly
Imperial 42”Gas Log set
5
6
7
8
9
10 11 12 13 14
15
16
1
3
2
4

20 33734 Rev K 11/12
With proper installation and maintenance, your new decorative gas appliance should provide years of trouble-free service.
If you do experience a problem, refer to the troubleshooting guide below. This guide will assist you or a qualified service
technician in the diagnosis of problems and the corrective action to be taken.
N. Troubleshooting - “M” Series
Symptoms Possible Causes Corrective Action
1 Pilot sparks, but will not light
after repeated attempts. a. Main gas shutoff valve closed. Make sure that the shutoff valve located on the incoming gas line is open.
b. Air in the gas line. Bleed air out of the gas line. Retest for gas leaks
after bleeding.
c. Pilot orifi ce is plugged, not
allowing gas to fl ow.
This repair requires tools and some degree of
experience. Call a qualified service technician.
d. Misaligned electrode. Check spark gap; spark should be extending
approximately 1/8” to the pilot hood. Adjust gap to
give proper spark. Remove hands from electrode
before attempting to spark.
e. No gas supply to the appliance. Check plumbing to ensure the appliance has been
hooked up to the gas supply line.
The propane tank is empty.
f. Ground wire loose. Check that the black ground wire from the ignition
control box is securely attached to the ground.
g. Weak batteries. Replace with two new “D” sized batteries.
2 Pilot lights, but will not stay lit. a. Weak pilot flame. Pilot flame must engulf the fl ame sensor. Clean and/
or adjust pilot for maximum flame impingement on
flame sensor.
b. Loose wire connection Check for loose wires from the pilot to the ignition
control box.
c. Faulty fl ame sensor. Check the wire connection into the ignition control
box. If the connection is correct, replace sensor.
3 Pilot does not spark at all. a. Loose wire connection. Check for loose wires from On/Off switch to ignition
control and remote control.
b. Remote control. Make sure the switch located on the front of the
remote control is set to the “Remote” setting.
c. Weak batteries. Replace with two new “D” sized batteries.
