Heinner HCD-V804B User manual

CONDENSER DRYER
Model: HCD-V804B
Model: HG-150SS
www.heinner.ro
•Condenser dryer
•Loading capacity: 8 kg
•Energy class: B

www.heinner.com 8Kg, 220-240V~50Hz
1
Thank you for purchasing this product!
I. INTRODUCTION
Before using the appliance, please read carefully this instruction manual and keep it for future
reference.
This instruction manual is designed to provide you with all required instructions related to the
installation, use and maintenance of the appliance.
In order to operate the unit correctly and safety, please read this instruction manual carefully before
installation and usage.
II. CONTENT OF YOUR PACKAGE
➢Condenser dryer
➢User manual
➢Warranty card

www.heinner.com 8Kg, 220-240V~50Hz
2
III. SAFETY PRECAUTIONS
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children must not play with the appliance. Cleaning
and user maintenance must not be made by children without
supervision.
• This tumble dryer is intended only for household and indoor use. The
warranty will be void in case of commercial use.
• Use this product only for laundry with a label that indicates it is suitable
for drying.
• The manufacturer will not accept responsibility for damages resulting
from incorrect use or transport.
• Do not allow floor coverings to obstruct the ventilation openings.
• Installation and repair of the machine should only be made by an
authorised repair agent. The manufacturer cannot be held responsible
for damages resulting from un-authorised repairs. WARNING: Never
spray or pour water onto the dryer to wash it! There is risk of electric
shock!
• Leave at least 3 cm of space between the side and rear walls of the
product and above if you plan on placing your appliance under a
worktop.
• Assembly / disassembly for under-counter installation if neccessary
must be done by an authorised service agent.
• Before installation, check the product for visible damage. Never install
or operate a damaged product.
• Keep pets away from the dryer.
• Fabric softeners, or similar products, should be used in accordance with
the manufacturers instructions.
• Remove all objects from pockets such as lighters and matches.
• The appliance must not be installed behind a lockable door, a sliding
door or a door with a hinge on the opposite side to that of the tumble
dryer, if it prevents the door from being fully opened.
SAFETY INSTRUCTIONS
This section contains safety instructions that will help protect you from
risk of personal injury or property damage. Failure to follow these
instructions will void any warranty.

www.heinner.com 8Kg, 220-240V~50Hz
3
1.1. Electrical Safety
• The appliance must not be supplied through an external switching
device, such as a timer, or connected to a circuit that is regularly switched
on and off by a utility.
• Do not touch the power plug with wet hands. Always pull the plug to
unplug the product, otherwise, there will be risk of an electric shock.
• Connect the dryer to a grounded socket with fuse protection. Have the
earth connection installed by a qualified electrician. Our company cannot
be held responsible for damages/losses resulting from using the dryer
without an earth connection as required by local regulations.
• The voltage and the allowable fuse protection are indicated on the type
plate.(For the type plate, please see 3. Overview)
• Voltage and frequency values indicated on the type plate must be equal
to the mains voltage and frequency value in your house.
• Unplug the dryer when it is not used for an extended period, and
before installation, maintenance, cleaning and repair, otherwise, the
dryer may get damaged.
• The plug socket must be freely accessible at all times after installation.
a. A damaged power cord/plug can cause fire or give you an electric
shock. When damaged it must be replaced, this should only be done
by qualified personnel.
b. To avoid the risk or fire or electric shock, do not use extension cords,
multi sockets or adapters to connect the dryer to mains power.
1.2. Children's Safety
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children must not play with the appliance. Cleaning
and user maintenance must not be made by children without
supervision.
• Do not leave children unattended near the machine.
• Children might lock themselves in the machine resulting in risk of
death.
• Do not allow children to touch the glass door during operation. The
surface becomes extremely hot and may cause skin damage.
• Keep packaging material away from children.
• Poisoning and irritation may occur if detergent and cleaning materials
are consumed or come into contact with the skin and eyes.
• Keep cleaning materials out of the reach of children Electrical products
are dangerous for children.
• Keep children away from the product while it is running.
• To prevent children from interrupting the dryer cycle, you can use the
child lock to avoid any changes in the running programme.
• Do not allow children to sit/climb on or climb inside the product.

www.heinner.com 8Kg, 220-240V~50Hz
4
1.3. Product Safety
Due to risk of fire, the following laundry items and products should never
be dried in the dryer:
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and
wax removers should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
• Cleaning cloths and mats that have residues of flammable cleaning
agents or acetone, gas, patrol, stain remover, turpentine, candle, wax,
wax remover or chemicals.
• Laundry that has residues of hair sprays, nail polish remover and similar
substances.
• Laundry on which industrial chemicals have been used for cleaning
(such as chemical cleaning).
• Laundry that has any kind of foam, sponge, rubber or rubber-like parts
or accessories. These include latex foam sponge, shower caps,
waterproof fabrics, fitted clothes and foam pillows.
• Items with filling and damaged items (pillows or jackets). Foam
protruding from these items might catch fire during the drying process.
• Operating the dryer in environments that contain flour or coal dust may
cause explosion.
Attention: Underwear that contains metal reinforcements should not be
put in the dryer. The dryer may be damaged if metal reinfoircements
come loose ad break off during drying.
1.4. Correct Use
ATTENTION: Never stop a tumble dryer before the end of the drying cycle
unless all items are quickly removed and spread out so that the heat is
dissipated.
ATTENTION: Make sure that pets do not enter the dryer. Check the inside
of the dryer before using it.
ATTENTION: Superheating of clothes inside of the dryer can occur if you
cancel the programme or in the event of a power failure whilst the dryer
is running. This concentration of heat can cause self-combustion so
always activate the Refresh programme to cool down or quickly remove
all laundry from the dryer in order to hang them up and dissipate the
heat.
• Use the dryer only for household drying and to dry fabrics with a label
that indicates they are suitable for drying. All other uses are out of the
scope of intended use and are prohibited.
• The warranty will be void in case of any commercial use.
• This appliance is designed to be used inside domestic residences only,
and should be placed on a straight and stable surface.
• Do not lean against or sit on the door of the dryer. The dryer may tip
over.
• To maintain a temperature that will not harm the laundry (e.g. to
prevent the laundry from catching fire), a cooling process starts after the
heating process. After this, the programme ends. At the end of the
programme, always remove the laundry promptly.

www.heinner.com 8Kg, 220-240V~50Hz
5
ATTENTION: Never use the dryer without a lint filter or with a damaged
lint filter.
Lint filters must be cleaned after each use as indicated in 6.1. Cleaning the
Lint Filter.
• Lint filters must be dried after wet cleaning. Wet filters might cause
malfunction during the drying process.
• Lint accumulation must not to be allowed around the tumble dryer (not
applicable for appliances intended to be vented to the exterior of the
building).
IMPORTANT: The clearance between the dryer and the floor should not
be reduced with objects such as carpets, wood or panel, otherwise,
sufficient air intake cannot be ensured for the machine.
• The maximum load capacity is 8 kilograms (dry laundry).
• Do not install the dryer in rooms where there is risk of freezing. Freezing
temperatures negatively affect the dryers performance.Condensation that
freezes in the pump and hose may cause damage.
1.5. Installing On Top Of a Washing Machine
ATTENTION: A washing machine cannot be placed on the dryer. Pay
attention to the warnings below when installing the dryer on a washing
machine.
ATTENTION: The dryer can only be placed on washing machines that have
a same capacity and above.
• To use the dryer on the washing machine, a fixing part must be used
between the two products. The fixing part must be attached by an
Authorised Service Provider.
• When the dryer is placed on the washing machine, the total weight of
these products may reach almost 150 kilograms (when loaded). Place the
products on a solid floor that has a load bearing capacity!
Appropriate installation table for washing machine and tumble dryer
Tumble
dryer
(depth)
Washing machine
37 cm
42 cm
53 cm
56 cm
59 cm
85 cm
56 cm
x
x
ok
ok
ok
ok
61 cm
x
x
x
ok
ok
ok
In order to put the dryer machine onto the washing machine, a special stacking kit is
required as an optional extra. Please contact customer service to acquire. The
assembly instruction will be served together with the stacking kit.

www.heinner.com 8Kg, 220-240V~50Hz
6
1. Before contacting an Authorised Service Provider for the installation of the dryer, check
the information in the user manual to make sure that the electrical installation and
water outlet is suitable. If they are not, call a qualified electrician and a plumber to
have the necessary adjustments made.
2. It is the customer’s responsibility to prepare the dryer’s installation place, as well as
the electricity and waste water installation. Before installation, check the dryer for
damage. If damaged, do not have it installed. Damaged products may endanger your
health.
3. Install the dryer on a stable and flat surface.
4. Run the dryer in a dust-free environment where the air ventilation is good.
5. The clearance between the dryer and the floor should not be reduced with objects
such as carpets, wood or tape.
6. Do not block the ventilation grills found on the plinth of the tumble dryer.
7. The appliance must not be installed behind a lockable door, a sliding door or a door
with a hinge on the opposite side of the tumble dryer, in such a way that blocks the full
opening of the tumble dryer door.
8. Once the dryer has been installed, the connections must remain stable. When
installing the dryer, make sure that the rear surface is not leaning on anything (e.g. tap,
socket).
9. The operating temperature of the dryer is +5°C to +35°C. If operated out of thi
temperature range, the performance of the dryer will be affected negatively and the
product will be damaged.
10. Be careful when carrying the product since it is heavy. Always wear safety gloves.
11. Always install the product should be placed against a wall.
12. The rear surface of the product should be placed against the wall.
13. When the product is placed on a stable surface, use a water level to check if it is fully
stable. If not, adjust the feet until it becomes steady. Repeat this process every time
you relocate the product.
14. Do not place the dryer onto the power cable.
IV. INSTALLATION

www.heinner.com 8Kg, 220-240V~50Hz
7
Connection to water outlet (with optional drain hose, not included in the package)
In products with a condenser unit, water accumulates in the water tank during the drying
process. You must empty the accumulated water after each drying process. Instead of
periodically emptying the water tank, you can also use the water drain hose* to directly
drain the water outside.
Connecting the Water Discharge
Hose

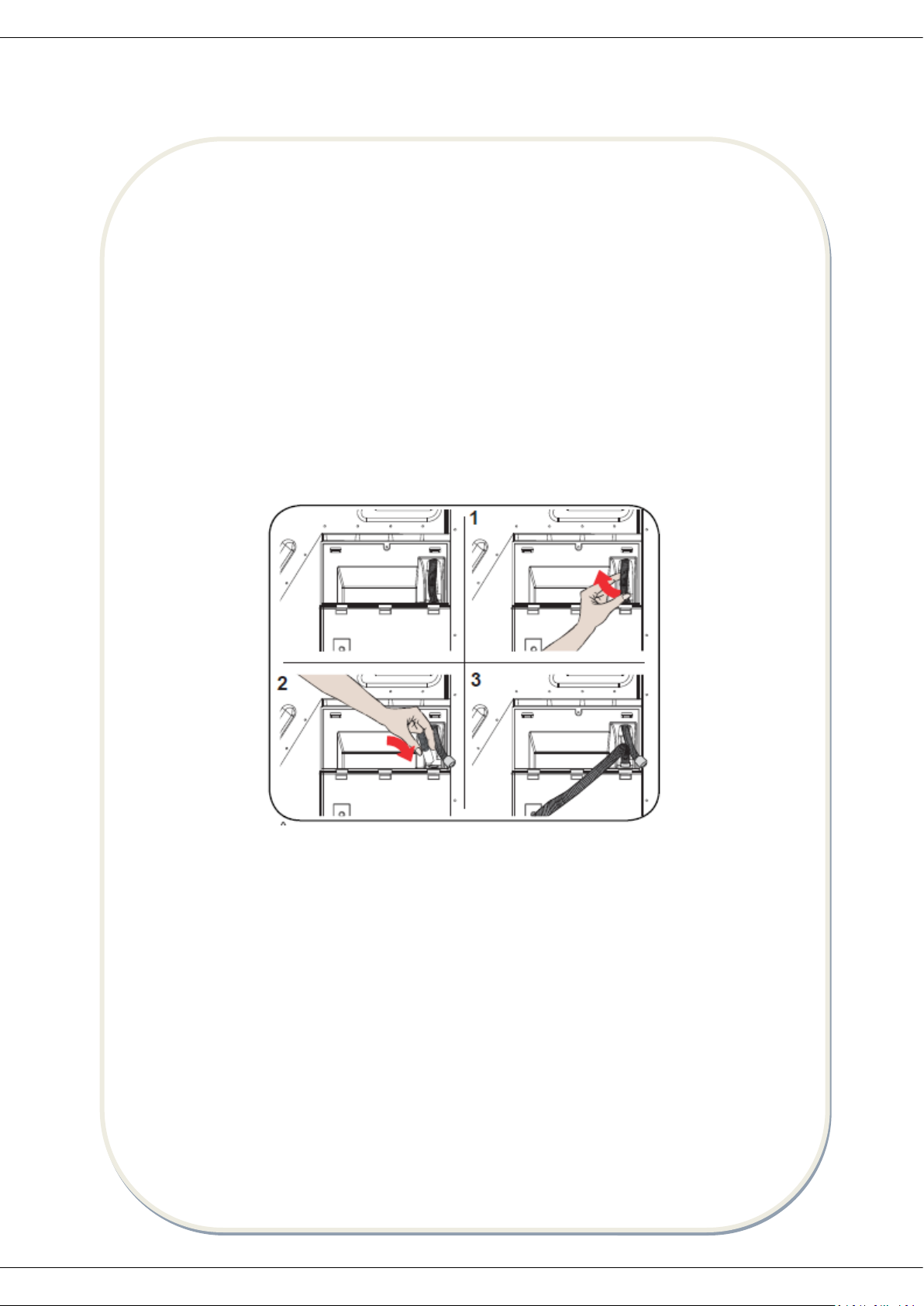

1. Pull and take out the end of the hose at the back of the dryer. Do not use any tools to
take out the hose.
2. Fit one end of the water discharge hose to the slot from which you have removed the
hose.
3. Fix the other end of the water discharge hose directly to the water outlet or sink.
ATTENTION: The hose must be connected in amanner that it cannot be displaced. If the
hose comes out during water discharge, there might be flooding in your house.
IMPORTANT: The water discharge house must be installed at a height of 80cm maximum.
IMPORTANT: The water discharge hose must not be sent between the outlet and the
product, folded or stepped over.
* The water drain hose can be purchased separately as a spare part
Adjusting the feet
1. For the dryer to work with less noise and vibration, it must be stable and balanced on
its feet. Adjust the feed to ensure that the product is balanced.
2. Rotate the feet to the right and to the left until the dryer is even and stable.
IMPORTANT: Never remove the adjustable feet.

www.heinner.com 8Kg, 220-240V~50Hz
8
Electrical connection
ATTENTION: There is risk of fire and electric shock.
1. Your dryer is set to 220-240 V and 50 Hz.
2. The mains cable of the dryer is equipped with a special plug. This plug must be connected
to an earthed socket protected by a fuse of 16 Amperes as indicated on the type plate.
The fuse current rating of the power line where the outlet is connected must also be 16
amperes. Consult a qualified electrician if you do not have such an outlet or fuse.
3. Our company cannot be held responsible for damages resulting from usage without
earthing.
IMPORTANT: Operating your machine at low voltage values will shorten the service life and
decrease the performance of your machine.
Under counter installation
1. Leave at least 3 cm of space between the side and rear walls of the product and the
underside of the worktop when installing your product under a counter.
2. Assembly / disassembly under the counter if neccessary must be done by authorized
service.

www.heinner.com 8Kg, 220-240V~50Hz
9
1. Upper tray
2. Control panel
3. Loading door
4. Plinth opening slot
5. Plinth
6. Adjustable feet
7. Plinth cover
8. Type cover
9. Lint filter
10. Drawer cover
11. Ventilation grills
V. PRODUCT DESCRIPTION

www.heinner.com 8Kg, 220-240V~50Hz
10
1. Sorting the laundry to be dried

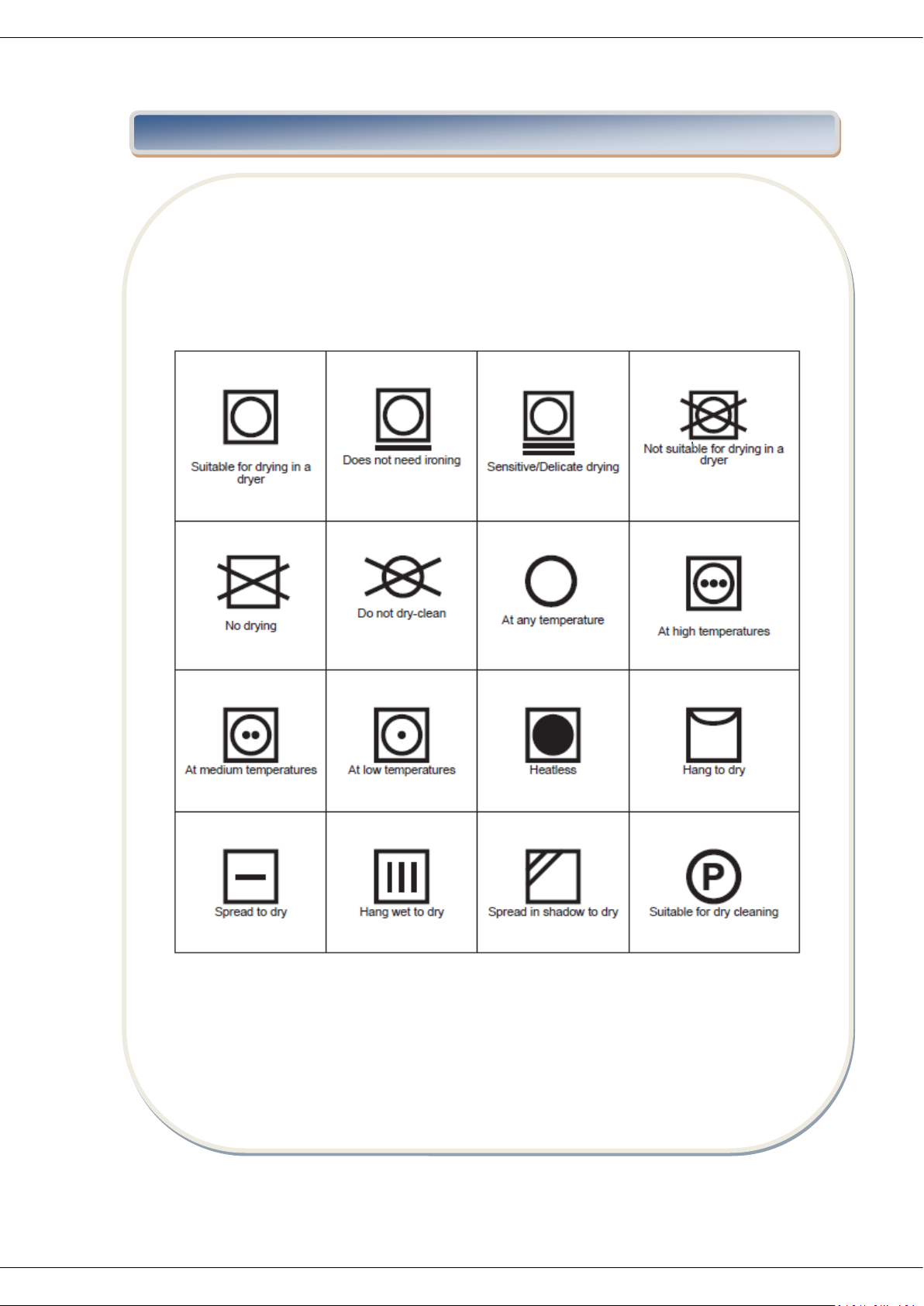

Follow the instructions on the labels of the laundry to be dried. Only dry items that have a
statement/symbol that indicates "they can be dried in a dryer".
• Do not operate the product with load amounts and laundry types other than those given
in 4.3. Load Capacity.
Do not dry thin, multi-layer or thick-layer fabrics together as they dry at different levels. For
this reason, dry clothes together that have the same structure and fabric type. This way,
you can get an even drying result. If you think that the laundry is still wet, you can select a
time programme for additional drying.
Please dry your big (like duvets) and small sizes of laundries seperately in order to not to
have a damp laundries.
VI. USING THE APPLIANCE

www.heinner.com 8Kg, 220-240V~50Hz
11
IMPORTANT: Delicate fabrics, embroided fabrics, woolen/silk fabrics, clothes made of
delicate and expensive fabrics, airtight clothes and tulle curtains are not suitable for drying
in the dryer.
2. Preparing the laundry to be dried
Risk of explosion and fire!
Remove all objects from pockets such as lighters and matches.
ATTENTION: The drum of the dryer and the fabrics may get damaged.
•The clothes may have become entangled during the washing process.
•Separate them from each other before placing them in the dryer.
• Remove all objects in the pockets of the clothes and apply the following:
• Tie fabric belts, apron laces etc. to each other or use a laundry bag.
• Lock the zips, clasps and fasteners, do up the buttons of covers.
• To get the best drying result, sort the laundry according to the textile type and drying
programme.
• Remove clips and similar metal parts from the clothes.
• Woven goods such as t-shirts and knit clothes generally shrink in the first drying. Use a
protective programme.
• Do not over-dry synthetics. This will cause creases.
•When washing the laundry to be dried, adjust the amount of softener according to the
data from the manufacturer of the washing machine.
3. Load capacity
Follow the instructions in the "Programme selection and consumption table". (See: 5.2
Programme selection and consumption table). Do not load the product with more laundry
than the capacity values specified in the table.
IMPORTANT: It is not recommended to load the dryer with more laundry than the amount
shown in the figure. When overloaded, the drying performance of the dryer will decrease
and the dryer and laundry might be damaged.
Laundry
Dry load weight (gr)
Bedsheet
725
Pillowcase
240
Bath towel
700
Hand towel
225
Shirt
190
Cotton shirt
200
Duvet
650
Fabric
400
T-shirt
120

www.heinner.com 8Kg, 220-240V~50Hz
12
1. Programme selection knob
2. Electronic indicator and additional functions
1. Programme selection knob
Use the programme selection knob to select the desired drying programme:
2. Electronic indicator and additional functions
VII. CONTROL PANEL

www.heinner.com 8Kg, 220-240V~50Hz
13
Display symbols:
Water tank indicator
Lint filter cleaning warning indicator
Condenser cleaning warning indicator

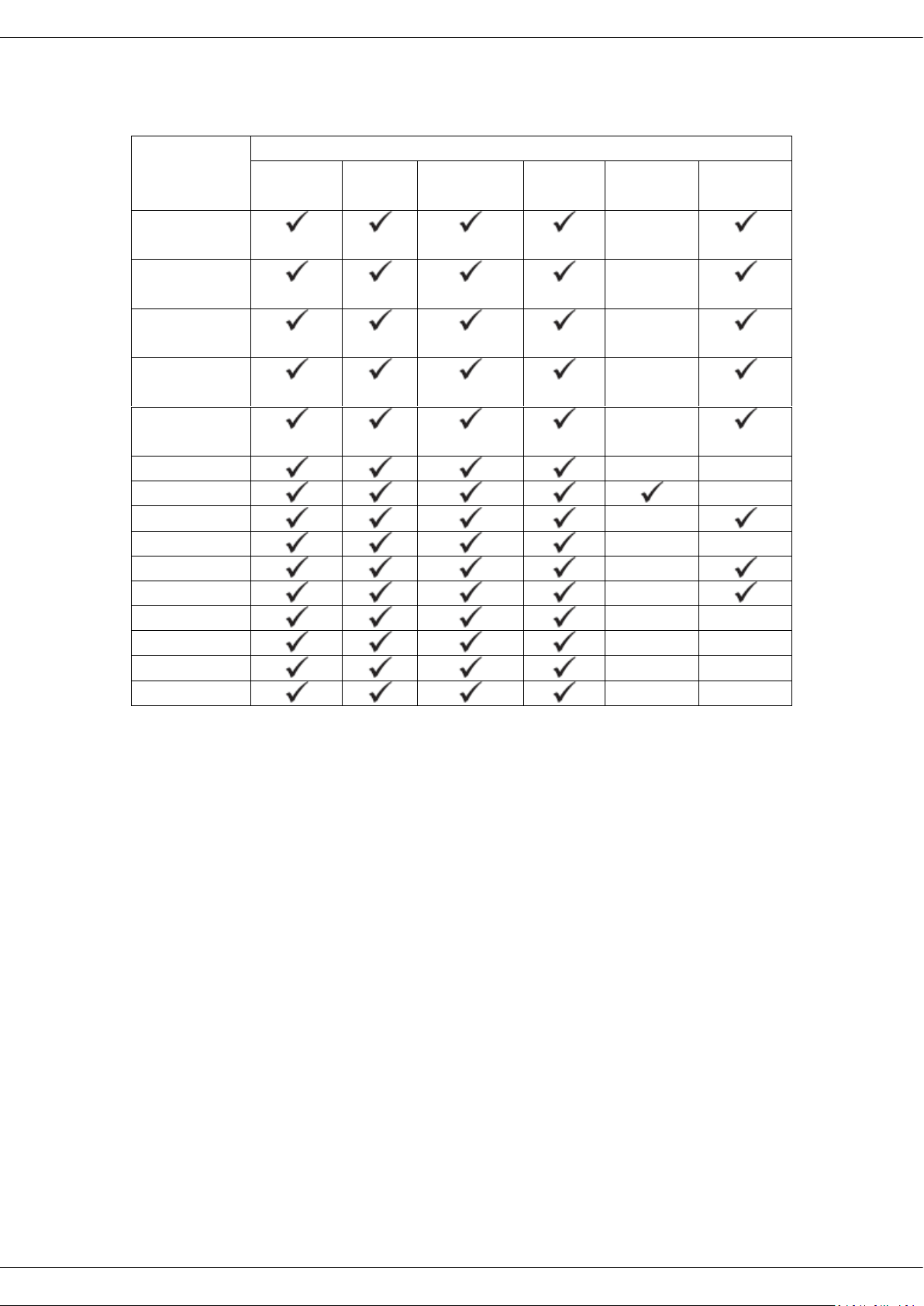

Programme selection and consumption table
Programme
Load
(kg)
Washing machine
spin speed
Approximate amount
of remaining humidity
Duration
(min)
Cotton extra dry
8
1000
60%
132
Cotton cupboard dry
8
1000
60%
129
Cotton iron dry
8
1000
60%
107
Synthetics cupboard
dry
4
800
40%
51
Synthetics iron dry
4
800
40%
38
Delicate
2
600
50%
39
Time drying
-
-
50%
-
Baby care
3
100
-
60
Duvet
2.5
800
60%
180
Sport
4
800
60%
55
Mix
4
1000
40%
75
Wool refresh
-
-
-
5
Refresh
-
-
-
10
Express 29’
2
120
50%
29
Shirts 12’
0.5
1200
50%
12
Energy consumption values
Programme
Load
(kg)
Washing machine
spin speed
Approximate amount
of remaining humidity
Energy
consumption
values (kWh)
Cotton cupboard dry
8
1000
60%
4.68
Cotton iron dry
8
1000
60%
4.1
Synthetiocs cupboard
dry
4
800
40%
1.58
Power consumption in the „off mode” P (w)
0.5
Power condumption in the „on mode” P (W)
1.0
The Cotton Cupboard Dry programme is the standard drying programme that can be run
with a full or half load and for which the information is given on the label and product
receipt. This programme is the most energy efficient programme to dry normal wet cotton
clothes.

www.heinner.com 8Kg, 220-240V~50Hz
14
3. Auxiliary functions
Options:
Drying Level - The humidity level obtained after drying can be increased by 3 levels. This way,
level of required dryness can be selected. The levels that can be selected other than the
standard setting: 1, 2, 3. After selection, the LED of the relevant drying level will turn on.
Anti-crease - If you select the "Anti-Crease" option and do not open the door of the dryer at
the end of the programme, the 1-hour anti-crease phase will extend to 2 hours. After
selecting the Anti Crease option, you will hear an audible warning. You can press the same
button again to cancel the option. If you open the door or press the Start/Pause key while
the anti-crease step is in progress, the said step will be cancelled.
Delayed start - You can delay the start time of the programme by selecting the 1-hour to
23-hour option. You can activate the desired delay time by pressing the Start/Pause button.
When the time is up, the selected programme will start automatically. During the delay time,
options compatible with the programme can be activated/deactivated. Long pressing on
Delayed Start button changes delay time continuously.
Buzzer Cancel - The dryer gives an audible warning when program selection knob is turned,
buttons are pressed and at the end of programme. To cancel the warnings, press and hold
the "Anti-Crease Option" button for 3 seconds. When you press the button, you will hear an
audible warning that the option has been cancelled.
Time drying - When knob is positioned to Time Drying programme, option can be selected
by pressing Time Drying option button and program starts by pressing Start/Pause button.
Long pressing on tme dyring button changes time continuously.
Child lock - There is a child lock option to avoid changes in the programme flow when keys
are pressed during the programme. To activate the child lock, press and hold the "Delayed
Start" and "Anti-Crease" keys simultaneously for 3 seconds. When the child lock is active, all
keys will be deactivated. Child lock will be deactivated automatically at the end of the
programme. When activating/deactivating the child lock, ‘‘CL’’ will visualize on display for 2
sec and then becomes off; and an audible warning will be heard. Warning; when the product
is running or the child lock is active, if you turn the programme selection knob, you will hear
an audible warning and ‘‘CL’’ will visualize on display for 2 sec and then becomes off. Even if
you set the programme knob to another programme, the previous programme will continue
running. To select a new programme, you need to deactivate the child lock and then set the
programme selection knob to ‘‘Off’’ position. Then, you can select and start the desired
programme.

www.heinner.com 8Kg, 220-240V~50Hz
15
The Start/Pause LED will flash during programme selection.Press the Start/Pause button to
start the programme. The Start/Pause LED that indicates that the programme has started
and the drying LED will come on.
Programme
Description
Cotton extra dry
This programme dries thick and multi-layer fabrics, such as cotton
towels, bedsheets, pillowcases, bathrobes, at a high temperature to
allow you to place them in a closet.
Cotton cupboard
dry
This programme dries cotton pyjamas, underwear, tablecloths etc. to
allow you to place them in a closet.
Cotton iron dry
This programme dries cotton laundry to prepare it for ironing.
Laundry removed from the machine will be damp.
Synthetics
cupboard dry
This programme dries synthetics, such as shirts, t-shirts, blouses, at a
lower temperature compared to the cottons programme to allow you
to place them in a closet.
Synthetics iron
dry
This programme dries synthetics, such as shirts, t-shirts, blouses, at a
lower temperature compared to the cottons programme to prepare
them for ironing. Laundry removed from the machine will be damp
Delicate
This programme dries thin clothes like shirts, blouses and silk
garments at a low temperature to make them ready to wear.
Time drying
To reach the required drying level at a low temperature, you can use
the time programmes of 10 min. to 180 min. Regardless of the drying
level, the programme stops at the desired time.
Baby care
This programme dries delicate infant clothes at a low temperature to
make them ready to wear.
Duvet
This programme is used to dry duvet
Sport
Sport program is used for synthetic sport laundries like shorts, t-shirts
at low temperature.
Mix
This programme dries cotton-synthetic mixed garments that do not
discolour to make them ready to wear
Wool refresh
Wool refresh helps wool textiles to remove excess water after
washing by applying low temperature and gentle movements of
drum.
Refresh
This programme provides ventilation for 10 minutes without applying
heat to help freshen up your garments
Express 29’
2 kg of cotton shirts spun at a high speed in the washing machine are
dried in 29 minutes.
Shirts 12’
2 to 3 shirts are ready for to be ironed in 12 minutes.
IMPORTANT: Do not open the loading door while the programme is running. If you have to
open the door, do not keep it opne for a long time.
VIII. USING PROGRAMMES

www.heinner.com 8Kg, 220-240V~50Hz
16
PROGRAMME PROGRESS
During the Programme
If you open the door when the programme is running, the product will switch to standby
mode. Once the door has been closed, press the Start/Pause key to resume the programme.
Do not open the loading door when the programme is running. If you have to open the door,
do not keep it open for a long time.
Programme End
Once the programme is over, the warning LEDs for Start/Pause, water tank level, filter
cleaning and condenser cleaning will turn on. Additionally, an audible warning will be given
at the end of the programme. You can remove the laundry to make the machine ready for a
new load.
IMPORTANT: Clean the lint filter after every programme. Empty the water tank after every
programme.
IMPORTANT: If you do not take out the laundry after the programme has ended, the 1-hour
Anti Crease phase will automatically be activated. This programme rotates the drum at
regular intervals to prevent creases.

www.heinner.com 8Kg, 220-240V~50Hz
17
Programmes
Options
Anti-crease
Delayed
start
End of cycle/
buzzer cancel
Child lock
Time
drying
Drying level
Cotton extra
dry
X
Cotton
cupboard dry
X
Cotton iron
dry
X
Synthetics
cupboard dry
X
Synthetics iron
dry
X
Delicate
X
X
Time drying
X
Baby care
X
Duvet
X
X
Sport
X
Mix
X
Wool refresh
X
X
Refresh
X
X
Express 29’
X
X
Shirts 12’
x
X

www.heinner.com 8Kg, 220-240V~50Hz
18
IMPORTANT: Do not use industrial chemicals to clean your dryer. Do not use a dryer that
has been cleaned with industrial chemicals.
1. Cleaning the lint filter
IMPORTANT: Do not forget to clean the lint filter after each use.
To clean the lint filter:
IX. CLEANING AND MAINTENANCE
1. Open the loading door.
2. Pull up the lint filter to remove it.
3. Use your hands or a soft cloth to clean
the lint.
4. Close and refit the lint filter.
After the dryer has been used for a certain
period of time, if you encounter a layer that
will cause obstruction on the filter surface,
wash the filter with warm water to clean the
layer. Dry the filter thoroughly before
reinstalling it again.

www.heinner.com 8Kg, 220-240V~50Hz
19
2. Emptying the water tank
3. Cleaning the condenser
IMPORTANT: Clean the condenser when you see the warning “Condenser Cleaning”.
IMPORTANT: EVEN IF THE “CONDENSER CLEANING WARNING LED” IS NOT ON: CLEAN THE
CONDENSER AFTER EVERY 30 DRYING PROCESSES OR ONCE A MONTH.
1. Pull the drawer cover and carefully
take out the tank.
2. Empty the water in the tank.
3. If there is lint accumulated on the
discharge cap in the tank, clean it with
water.
4. Refit the water tank.
IMPORTANT: Never remove the water
tank when the programme is running.
The water condensed in the water tank
is not suitable for human consumption.
IMPORTANT: Do not forget to empty the
water tank after each use.
If the drying process is completed, open
the loading door and wait for it to cool
down.
1. Open the plinth and release the 2 cover
locks of the condenser.
2. Hold the condenser by the plastic part
and pull it out.
3. Clean it with a showerhead and wait for
the water to drain off.
4. Fully insert the condenser into its seat
and lock the 2 locks.
5. Close the plinth cover.
