HeiSolar Angel Eye Series User manual

5
2
All In One Solar Street Light
Angel Eye
1. Connect the end of the bent pipe to unit main body with 1pc M8x50
screw, and another end to the anchor ear B with 1pc M8x50 screws.
2. Fix the anchor ear B to base by fastening 4pcs M8x100 screws.
3. Fix the anchor ear B to anchor ear A by fastening 4pcs M8x100 screws.
adjust the led source to be vertical with pole and setting a proper
direction.
4. Place the lamp onto the pole, then tighten the screws, tearing off the
protective PVC sheeting, adjust the led source to be vertical with pole
and setting a proper direction.
5. Finished the installation, press the switch button on the microwave
sensor, the lamp will light for 1 min then turn off automatically.
Installation Guide
15W-80W
Switch
1
34
User Manual
Microwave Sensor
What is microwave sensor?
Microwave sensor works by emitting high frequency electric
wave to detect objects’movement, such cases above may
result in not working well.
Why choose microwave for outdoor lighting?
What should be noticed when using microwave sensor?
The wrong working situations as below:
1. It can get through glass, wood, plastic and other non-
metallic object, so it can beinstalled inside and there is no
influence on lamp`s appearance.
2. It won`t be influenced by airflow, dust, temperature,
humidity like PIR.
Microwave has been improved a lot compared to PIR, but it
is still not perfect. It may be influenced by metallic things
and it`s very sensitive to some extension, may detect other
objects’ movement such as leaves’ movement.
1. Light flickers un-regularly.
2. The lamp is too sensitive, so it is always at 100% light, then
battery can`t last long.
3. Sensor does not work, not light when people come close.
NO METAL NO TREES NO magnetic field
Address: F4, 6th Building, Hengguangyao Industrial Park, Yonghe Road, Heping Village,
Fuyong Street, Bao'an District, Shenzhen City, Guangdong Province, China.
E-mail: [email protected] Website: www.heisolar.com

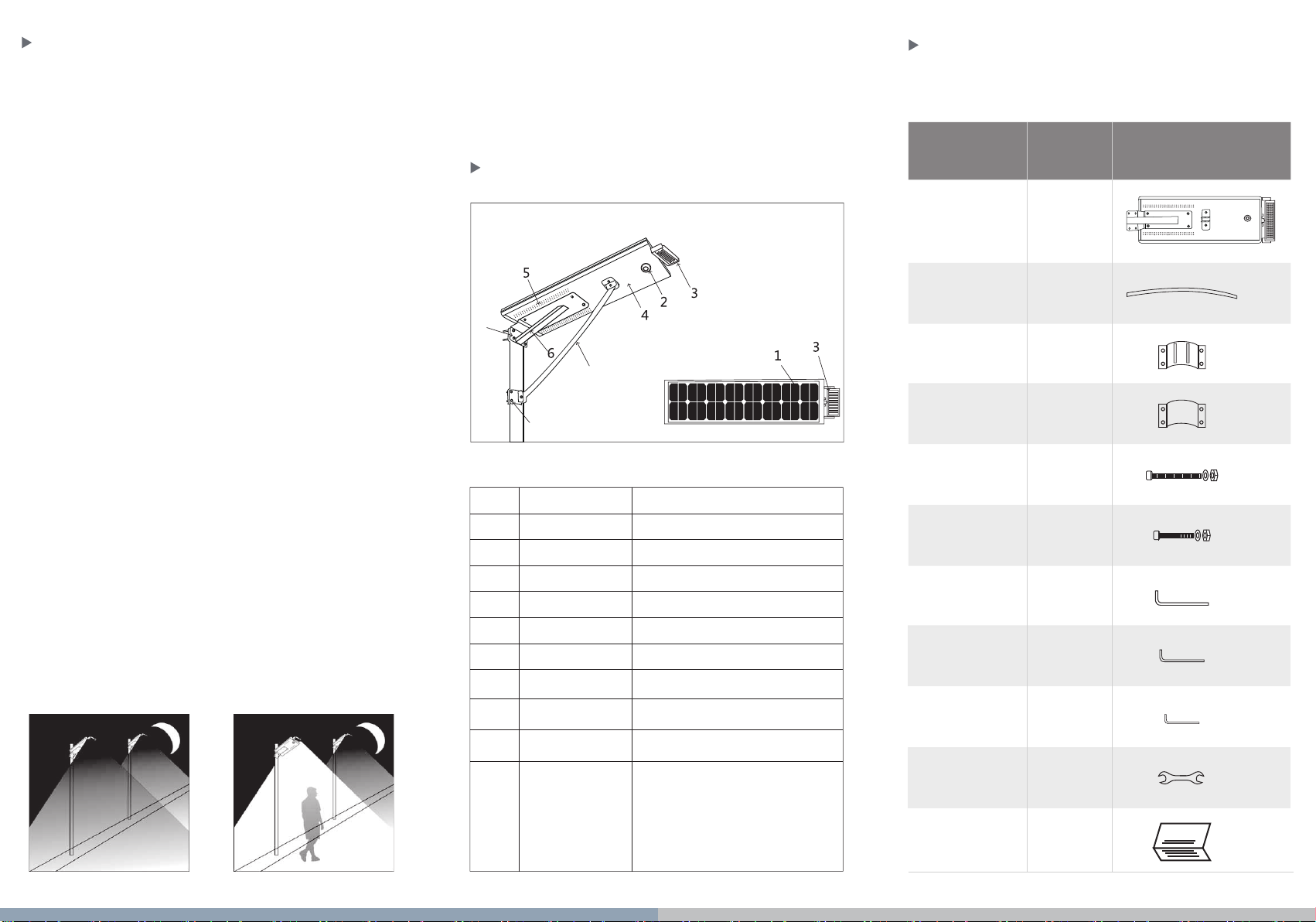

Part Description
Packing List
Product Description
The Angel eye series are consist of high-efficiency monocrystalline
silicon solar panel, LED lamp, Lithium battery, smart microwave
sensor, which achieve multiple features such as high luminance,
long lifespan, minimal maintenance and easy installation.
To avoid incorrect operation that may lead damage the
unit, please read the following instructions for integrated
solar light carefully before installation.
1. Angel eye units do not work without sunlight. Please choose
the right installation angle according to the installation position
of the sun at 2:00 PM.
2. Keep away from the shadow of trees, buildings etc.,
otherwise the internalattery will not be charged properly and the
efficiency of the solar panel will be minimized, influencing the working
time of unit and battery life.
3. By factory setting, units turn on at dusk and turn off at dawn
automatically. During the evening, unit works at dim mode( 30%) when
humans are not around and works at bright mode, it will increase light
output immediately when a motion is detected.
4. All internal parts of the angel eye solar street light are rated IP65 and
are waterproof. Metal parts are anodized rust-proof aluminum and
galvanized steel which can withstand high temperatures and humidity
weather , but still need to be far away from areas where it often suffers
heavy acid mist or salt influx.
The high strength structure design can withstand wind speed of
180km/h, speed over this may damage the units.
Unit works at dim mode when human are not around and works at bright mode,
it will increse light output immediately when you motion is detected by human
infrared sensor or microwave sensor.
Bent pipe Support lamp with pole
Anchor ear A Fix the pole
Anchor ear B Fix the base to hole
Microwave sensor Motion detection
Solar panel Charge battery
Name Brief functionNo.
1
2
3
4
5
6
7
8
9
10
LED light illumination
Controller Charging and Discharging control
Heat-sink hole Heat dissipation
Rectangular base
Base
fasten the anchor ear to pole
fasten the bent pipe to unit main body
fasten the M8x100 screws
adjustable the led source angel
adjustable the led source angel
M8x100 screw
M8x50 screw
Φ6mm Allen key
Φ4mm Allen key
Φ2mm Allen key
7
8
9
When open the package please confirm that all parts are received, the
parts are listed below:
Unit main body
Bent pipe
Anchor ear A
1pc
8sets
2sets
1pc
1pc
2pcs
Components
Anchor ear B
M8x100 screw
M8x50 screw
Open spanner
User Manual
Φ6mm Allen key
Φ4mm Allen key
Φ2mm Allen key
1pc
1pc
1pc
1pc
1pc
15W-80W Images
User Manual
