HeiSolar SWAN Series User manual

User Manual
All in Two Smart Solar Street Light
Thank you for choosing the Swan Series Solar Street Light.
Please refer to the actual products if the provided diagrams show slight differences.
Trouble Shooting
www.heisolar.com
SWAN SERIES
bluesmart
SWAN SERIES
No.Situation Trouble shooting steps Solution
1No light at night
Check that the battery have power
or not?
Let solar panel charging 6-8 hrs in driect
sunshine, check if have indicator light is
shining on motion sensor.
Check if the solar panel is blocked
from the sunlight by houses, trees and
other obstacles.
Clear obstructions or change installation
location.
Check if there is any artificial light
source(s) shining on the solar panel
during the night.
Remove the artificial light source(s) of
interference or change the installation
location.
Examine status of each component
based on the repair guide. Replace the damaged component(s).
2A serious shortage
of working time
Check if the solar panel is blocked
from the sunlight by houses, trees and
other obstacles.
Clear obstructions or change installation
location.
Check if the surface of the solar panel
is dusty or covered.
Clean the surface of solar panels as
detailed above.
Examine if the battery pack is
damaged as per the repair guide
instructions.
Replace damaged battery.
3
Lighting does not
follow the normal
operating mode of
turning on and off
Replace damaged battery.
4
Lights fail to turn
on properly when
humans approach
Check if the air temperature close to
human body temperature.
When the air temperature is close to human
temperature, motion detection may slow
down. It will return to normal after the air
temperature changes.
Check if the installation height is too
high.
It is out of motion detection range when
installation height exceeds 8m. It is
recommended to reduce the height or use
other operating modes.
Replace damaged motion sensor or
controllers.

*
*
*
*
*
*
*
*
*
2
Operating Conditions & Limitations:
Transportation & Storage:
Before using the Smart Solar Street Light, carefully read
the following precautions to avoid damage or errors.
Precautions
This product is rated as IP65 protection grade. Do
not exceed the stated operating limits. The
operating temperature range is from -20℃to 60℃
and the charging temperature limit is within 0 to
60℃. If equipped with heating features, it may be
used between -40℃and 60℃. The heavy-duty
structure will survive up to a Category 12 typhoon
or cyclone. (Storms above Category 12 may cause
damages to the product).
To ensure effective solar light absorbance, clean
the surface of the panels regularly with water and
a soft cloth. Do not use chemical solutions or
abrasives.
This Solar Street Light operates on a low voltage
DC current. Unless customized otherwise, do not
connect components or ports to an AC current or
any higher rated DC voltage.
Do not replace the original unit with unauthorized
third party parts as they may cause serious
damage to the product. To order replacement
parts or to have them fitted, please visit
www.obluesmart.com or contact your local
distributor.
This product contains lithium batteries. Please
It is not on the terms of warranty if clients does
modify or refit the light leading to no-proper working
without authorization of Bluesmart.
follow air transport regulations when shipping. It
should be regarded as potentially flammable and
explosive, and be isolated from other goods when
stored, so as to avoid any damage.
The solar panels of this product should be
considered as fragile. There should never be
more than 4 layers of boxes when stacked. To
avoid damage to the panels, make sure no heavy
pressure is applied to the boxes.
Please store the product in temperature between
0℃to 45℃.
If stored for a long period, the product should be
recharged every 6 months. Please only use the
special charger (purchased from manufacturer) to
avoid damage to the battery or device.
Product Maintenance:
Product Recycling:
This product is made from recyclable, high-
performance materials. All materials are compliant
to the ROHS standard. Do not dispose of this
product with other household waste.
Please check your local regulations on collection
and disposal of electronic items. Proper disposal
of used product helps prevent negative impacts
on the environment.
IP65
User Manual
1SWAN SERIES
Modification:
Introduction:
Product Manual
The Swan series is extremely versatile, robust Solar Street Light.
It features all of its components fully integrated within an attractive and compact design. It
combines a highly efficient solar panel with a ‘smart’ and ‘intelligent’ charge controller to energize
a high capacity lithium-ion battery that supplies power to the Super-Bright Bridgelux LEDs to
achieve multiple features such as high luminance, long lifespan, minimal maintenance and easy
installation.
By choosing a wireless module and wireless concentrator, user can wirelessly control the light,
monitor working status, set custom working mode or review historical charging data. Swan Light
brings you a easier way to control the outdoor lighting than even before.
Application:
Multi options & wide usage:
From 15w to 100w, all in one solar lighting system can be used for a wide range of area lighting.
Public areas & Parks & campuses
Residential & Community Center
Urban trunk road & Slow lane
Bike trails & Tourist attraction
City stadium & Office district
Parking lots & Entrance Lighting
Island & dock & Coastal
Industry & Mining Security & Perimeter
Refugee camp & Temporary Construction

43 User Manual
SWAN SERIES
No. Parts Functions
1 Solar panel Absorbs and converts solar energy into eletricity
2 Bracket Fixed the solar panel
Microwave motion sensor Detects movements
3 Adjustable Support Connect device between solar panel and pole
4
5
6
7
8 S Bracket Install the arm of pole
9 Maintaince channel Quickly maintaince channel
Parts & Functions Packing List
When open the package please confirm that all parts are received, the parts are listed below:
Notice:
If comes with wireless control system, you will find wireless concentrator + antanna together.
Components
Light body
Solar panel
Bracket
M6x10 screw
User Manual
1pc
1pc
1pc
Support
1pc
4set
1pc
15W-100W Images
M8x10 screw 4set
User Manual
LED light Lighting the area
Vents Heat dissipation
Smart controller MPPT solar charge controller
8
6
Vents
5
4
1
3
7
9
Solar Panel
2Bracket
Motion Sensor
LED Light
Adjustable Support
Smart Controller
S Bracket
Maintenance Channel
wireless concentrator antanna

Please select the appropriate product according to the installation site’s sunlight intensity and
required operating time. If you are in the northern hemisphere, face the solar panels towards
the south as far as possible when installing the swan series; if you are in the southern
hemisphere, face the solar panels towards the north.
2. Altitude and distance parameters:
Install according to the height and distance (between the lamps) restrictions as set by each
respective product type. Consult our product specialists for special lighting requirements.
Power
Bat wing light source Round beam light source
Height of pole Distance between
pole Height of pole Distance between pole
15W 3~5m 10~13m 3~5m 8~14m
20W 4~7m 13~16m 4~7m 10~18m
30W 5~8m 16~19m 5~8m 14~20m
40W 6~8m 19~23m 15~25m
50W 7~8m 23~27m 25~35m
60W 8~9m 27~31m 35~40m
80W
6~8m
7~8m
8~9m
8~10m31~35m 40~45m
8~10m
90W 8~10m 35~40m 35~40m
100W 8~10m
8~10m
8~10m35~40m 40~45m
1. Environment:
a
For maximum operation efficiency of the solar panels, make sure the sunlight is not blocked by
buildings or trees.
b
Installation
65
Factory settings and motion detection functions:
The factory setting of the swan series switch is light-controlled (at a threshold of 30 Lux). The
lamp automatically lights up when it is dark and turns off when there is light or at dawn. At night,
when no one is around, it operates under power saving mode. When anyone approaches, its
brightness increases by a factor of four. If the air temperature is close to human temperature, the
motion detection may reduce in sensitivity.
User Manual
SWAN SERIES
Power saving mode
(30% brightness)
Full-power mode
(100% brightness)

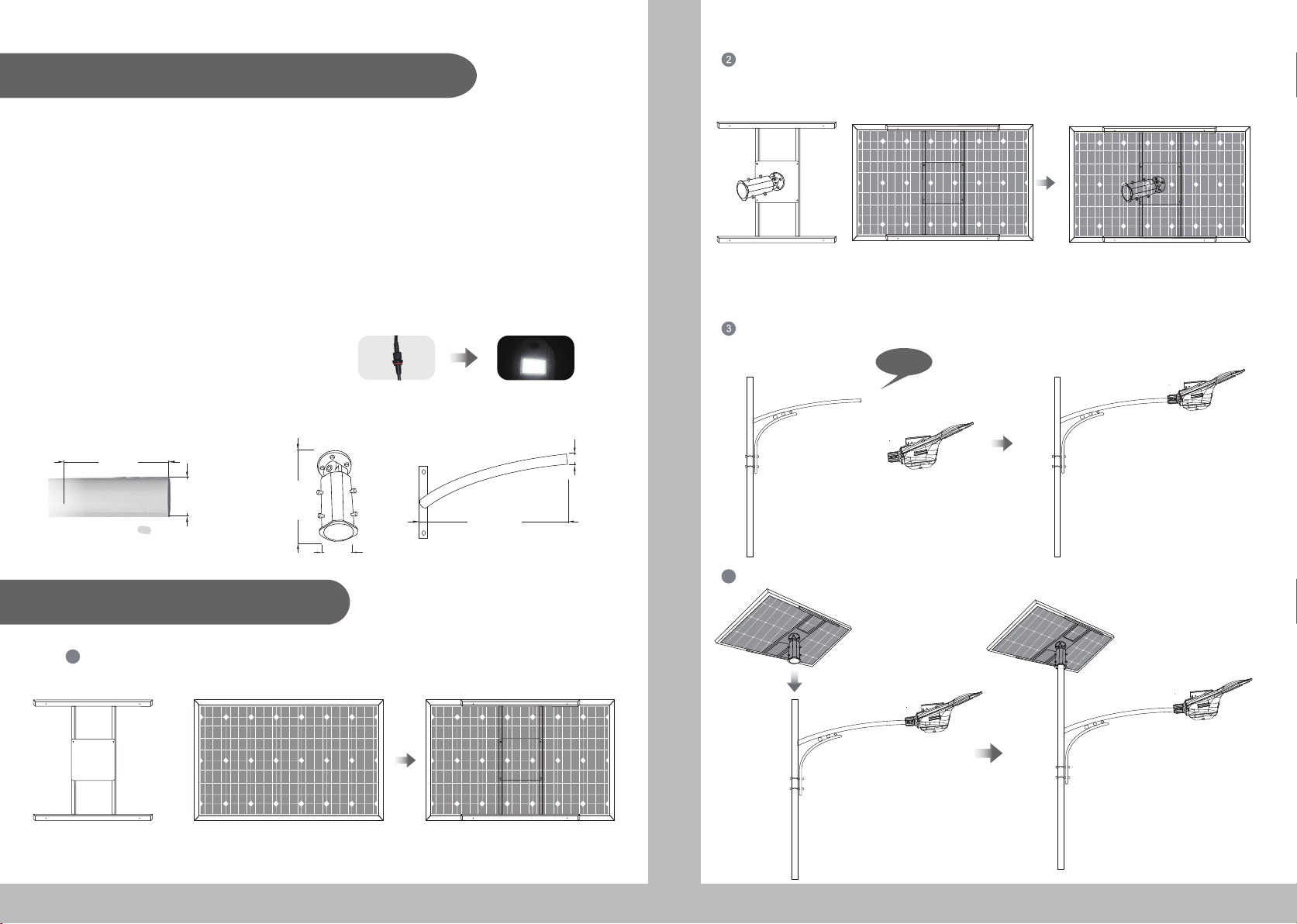

Fix the pole with support. ( suggest use 3mm thickness and 65mmdiameter of the pole. )
Install the solar lamp to the arm of pole, Connect the waterproof connector between
solar panel and lamp.
Fix the bracket on solar panel with 4pcs M6x10mm screws
1
Recommend use the upper diameter of pole: 76mm (see figure 1), recommend use 1m arm pole
(see figure 2)
200mm
200mm
Ø76mm
Ø80mm
Ø76mm
1000mm
Figure 2
87
Activation:
How to turn on our solar street lights ?
Notice: Please do not need Press ON button of the small blue remote to turn on the lamp,
because our solar lamps have Automatic Activation Function.
Remove the swan light from package box, let the solar panel absorb energy from sun, connect
the waterproof cable between solar panel and lamp, then the lighting system can be activated,
the swan light will be lighting automatically at night.
If you want to check whether the swan light are lighting during the daytime:
Cover the solar panels with shelters, the lamp will be lighting.
Press Demo Button after the lighting system has been activated, the lamp will be lighting
for a few mins then turn off automatically.
*
*
Figure 1 Figure 2
Installation:
Pole:
Fix the support on bracket with 4pcs M8x10mm screws
Figure 3
Figure 5
Figure 4
User Manual
SWAN SERIES
4
+
+
Ø76mm
+
