Heliospectra SIERA LB460PR User manual

SIERA
Quick Set Up Guide

When unpacking the luminaire make sure to have a
sturdy surface to work on. Damage to the unit can occur if
dropped.
Do not immerse the fi xture in water or clean the fi xture with
a high pressure water jet or strong detergents.
Never operate the fi xture with the lens directly on a fl at
surface (e.g. table) as this may damage the lens. A
minimum distance of 0.2m/8in should be kept to other
objects.
The product is for indoor use only.
Always allow a free fl ow of air around the fi xture.
This fi xture may only be serviced by a trained technician. In
the case of a suspected malfunction contact your
distributor or Heliospectra directly.
The light source contained in this luminaire shall only be
replaced by the manufacturer or his service agent or a
similar qualifi ed person.
The luminaire should be positioned so that prolonged
staring into the luminaire at a distance closer than 1 meter/
40 inches is avoided.
Do not stare into the light source. LED grow lights may
contain potentially harmful light radiation. Please use UV
blocking eyewear when working in and around the
illuminated area.
Only connect the fi xture to properly grounded mains that
complies with the voltage rating on the fi xture (see power
label).
Only operate the fi xture with an undamaged power cord,
power plug and electrical outlet.
Never unplug the fi xture by pulling on the power cord.
For proper performance of the unit the ambient air
temperature shall be no higher than 40° C.
Quand vous déballez le luminaire assurez-vous d’avoir une
surface solide sur laquelle travailler. L’appareil peut être
endommagé si on le fait tomber.
N’immergez pas l’appareil dans l’eau et n’essayez pas de le
nettoyer avec un jet d’eau à haute pression.
Ne pas mettre en marche l’appareil avec la lentille posée à
plat sur quelconque surface (par exemple : une table), cela
pourrait l’endommager.
Le produit ne s’utilise qu’en intérieur.
Assurez-vous qu’il y ait un minimum d’air autour de
l’appareil.
Cet appareil ne peut être entretenu que par un technicien
expérimenté. Si vous avez un soupçon sur le mauvais
fonctionnement de celui-ci, contactez votre distributeur ou
Heliospectra directement.
La source de lumière contenue dans ce luminaire ne
doit-être remplacée que par le fabricant ou ses agents de
services ou une personne similaire qualifi ée pour le faire.
Le luminaire doit être positionné de telle sorte que le fi xer
longuement à une distance d’1 mètre/ 40 pouces soit évité.
Ne pas fi xer la source de lumière. Les éclairages LED
pourraient potentiellement contenir des radiations
lumineuses nocives. Portez des lunettes anti-rayons UV
quand vous travaillez sous ou à proximité de l’endroit
éclairé.
Ne connectez l’appareil que sur une prise reliée à la terre et
dont le voltage correspond à celui de l’appareil.
L’appareil doit être mis en marche avec rien d’autre qu’une
prise, un cordon électrique ou une prise secteur non
endommagés.
Ne jamais déconnecter l’appareil en tirant sur le cordon
électrique.
Pour une utilisation optimale de l’appareil, la température
ambiante ne doit pas dépasser 40°C.
Precautions
Our product is an advanced and safe LED
fi xture. However, for proper operation and for
your safety, please read and follow the below
precautions:
Le produit est un appareil moderne et sûr.
Mais pour une bonne utilisation et pour votre
sécurité, veuillez lire les informations ci-des-
sous :
If you have any questions or queries regarding your light please visit our support
portal at support.heliospectra.com.
Alternatively contact us at suppor[email protected].

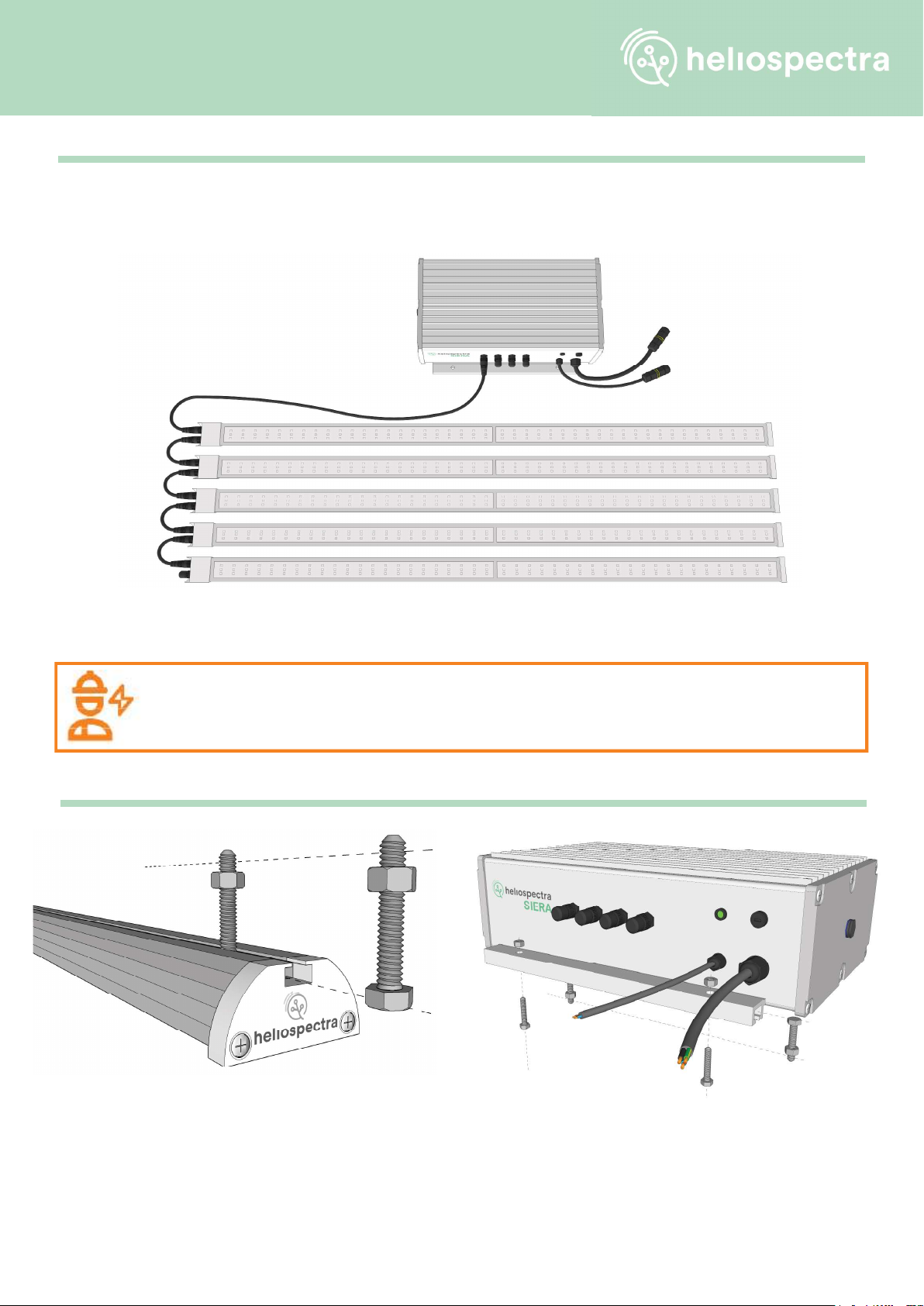

Your SIERA light bars need to be connected to the SIERA power supply unit with the connector cables provided. The SIERA
power supply unit has 4 connection channels. The SIERA light bar should be connected in series, no more than fi ve can
be connected to each channel and no more than twelve, in total, connected to the SIERA power supply unit.
Do not attach the light bars when the power supply is plugged in.
The SIERA power supply unit can be dimmed. To use the dimming functionality you will need to attach a 1-10V dimmer to
the dimmer cable. We would recommend that you get a licenced electrician to fi t the dimmer and to fi t the required plug to
the power cable.
The SIERA light bars have a T-slot which can be used to
accomodate your mounting solution.
The support structure needs to be sturdy enough to support
the weight of the SIERA light bar.
Electrical Installation
SIERA power supply units must be installed with adequate surge protection according to the
IEEE 1100-2005 recommended practice or, in Europe, the IEC 62305 standard, or local equivalent.
Ensuring you have the correct level of protection for your facility can be complex so it is strongly
recommended that you consult a certifi ed electrical engineer.
Mounting
The SIERA power supply unit has two T-slots on each side.
The SIERA power supply unit has a vent at each end. These
vents must not be blocked, air should be able to fl ow freely to
them at all times.

LB460PR - Propagation spectrum LB420IN - Indoor spectrum
Typical power consumption 0-46 W 0-42 W
Weight 1 kg (2.2lbs) 1 kg (2.2lbs)
Size 1165 x 50 x 25 mm (46in x 2in x 1in) 1165 x 50 x 25 mm (46in x 2in x 1in)
Temperature Operating: -10-40°C (14-104 F)
Storage: -20-70°C (-4-158 F)
Operating: -10-40°C (14-104 F)
Storage: -20-70°C (-4-158 F)
Humidity Operating: 90% (max) relative humidity, non condensing
Storage: 95% (max) relative humidity, non condensing
Operating: 90% (max) relative humidity, non condensing
Storage: 95% (max) relative humidity, non condensing
Warranty 3 years 3 years
Heat Value (BTU/h) Up to 157 BTUs/hr Up to 143 BTUs/hr
Certifi cation and compliance CE,RoHS CE, RoHS
Lifetime 50 000 hrs (rated life to 90% of initial photon fl ux) 50 000 hrs (rated life to 90% of initial photon fl ux)
Water resistance IP67 rated IP67 rated
Controllable No (Dimmable on power supply) No (Dimmable on power supply)
Cooling Passive - Convection cooled Passive - Convection cooled
VDC Cable length options
(to power supply)
3m (9ft 10in)
1.5m (4ft 11in)
0.5m (1ft 7in)
3m (9ft 10in)
1.5m (4ft 11in)
0.5m (1ft 7in)
Housing material Durable ABS plastic and Anodized Aluminium
Optics : Highly transmissive acrylic glass
Durable ABS plastic and Anodized Aluminium
Optics : Highly transmissive acrylic glass
LBPSU12 - Power Supply Unit
Max power consumption 600W
Operating Voltage 90-305 VAC
Frequency 47/63 Hz
Current 5A@120 VAC | 2.5A@ 240 VAC | 2.17A@ 277 VAC
Weight 8kg (17.64 lbs)
Size 358 x 315 x 103 mm (14 in x 12.4 in x 4 in)
Warranty 3 years
Heat value (BTU/h) Up to 2047 BTUs/hr
Certifi cation and compliance CE, cETLus,RoHS
Water resistance IP66 - Pending
Cooling Passive - Convection cooled
Housing Material Anodized Aluminium
More Information
Website
www.heliospectra.com
Telephone
[phone] (SWE) +1 (888) 942 GROW (US)
[phone](CAN)
Email
[e-mail]
[e-mail]
Heliospectra AB
Fiskhamnsgatan 2
SE-414 58 Göteborg
Sweden
For full product manuals visit support.heliospectra.com or scan the QR code to go straight there.
