HelloBaby HB6550-2 User manual

Ver: 1.2
2.4GHz Digital Wireless Video Baby Monitor
User Manual
The pictures are for reference only, please subject to practicality.
www.hellobaby.net.cn
[e-mail]
Model: HB6550-2

Thank you for purchasing the H B6550-2 Baby Monitor. With our baby monitor, you could see
and hear your baby sleeping or playing in their room anytime.
Please retain your original dated sales receipt for your records. For warranty service of your
product, you will need to provide a copy of your dated sales receipt to confirm warranty
status. Registration is not required for warranty coverage.
Please make sure the following included in your package
Parent unit x 1 Camera unit x 2 Power Adapter x3
User manual x 1 Wall-mounting kit x 2
1. SAFE TY I NSTRUCTIOINS
Keep the device away from children.CAUTION:
Children have ST RA NG LE D in cords. Keep this cord out of the reach ofStrangulation Hazard:
children (more than 3ft (0.9m) away). Never use extension cords with A C Adapters. Only use
the AC Adapters provided.
This product contains small parts, please be careful when unpack and Choking hazard :
assemble the product.
All the safety and operating in structions should be read Read and keep to instructions:
before the video baby monitor is operated. This product cannot replace responsible adult
supervision.
This product is designed for indoor use only. The unit should not be Water and moisture:
exposed to rain, moisture, dripping or splashing. No objects filled with liquid should be
placed on top of, or beside the product, such as a glass or vase. This item should not be used
near water.
Use the appliance if the cord or plug is damaged. If your baby monitor is not DO N OT:
operating properly or has suffered any damage, contact “Videotimes” service center to
request inspection and repair of the appliance in order to avoid any possible risk.
Do not attempt to repair or adjust any of the electrical or mechanical functions of DO N OT:
the unit. Otherwise, the guarantee will be made void.
This baby monitor should not be used on a bed, sofa, rug or similar surface that Ventilation:
may block the ventilation openings, or be placed in an enclosed area such as a bookcase or
drawer that may impede air flow.
This unit should not be exposed to direct heat sources Keep away from sources of heat:
such as a candle, radiator, heat register, stove or other appliance that emits heat. The unit
should not be left in direct sunlight.
This unit should only be used with the AC power adapters included in this Power source:
package (rated 5V DC 1A).
This unit should be serviced by qualified personnel only when:Damage requiring service:
. Objects have fallen or liquid has been spilled into the product;
. The units have been exposed to rain;

. The units do not appear to operate normally or exhibits a distinct change in performance;
. The units have been dropped or the enclosure damaged;
2. WARRANTY TE RM S
We offer one-year warranty from the original purchase date against defects in workmanship
and materials. If you have warranty or support issues, please contact our after-sales service
via email.
3.INSTA LLATION GUIDELINES
* To use your parent unit and camera unit together, you have to establish a radio
link between them, and the range will be affected by environmental conditions.
* Any large metal object, like a refrigerator, a mirror, a filling cabinet, metallic doors or
reinforced concrete between the baby and parent unit may block the radio signal.
* The signal strength may also be reduced by other solid structures, like walls, or by radio
or electrical equipment, such as TV, computers, cordless or mobile phones, fluorescent
lights or dimmer switches.
* Use of other 2.4GHz product, such as wireless networks (Wi-Fi routers), Bluetooth
systems, or microwave ovens, may cause interference with this product, so keep the baby
monitor away at least 5ft (1.5m) from such products, or turn them off if they cause
interferences.
4. PLAC EM EN T O F T HE BABY MONITOR
The camera can be placed on the desktop or mounted on the wall. Don't place baby monitor
on soft quilts or blankets or in the corners of cupboards, shelves, etc; Keep the baby monitor
away from heat sources such as radiators, chimneys, cookers and direct sunlight; Keep the
baby unit away from T V sets, microwave oven and radios. If interference occurs, move the
camera to elsewhere;
*Place the camera within6 feet (2 meters) of the area being monitored for optimum
performance.
Stand or Wall mounted. When using the wall mount kit, please follow the steps for proper
installation: Firstly, mount the black bracket on the wall using two long screws. Next, gently
screw the short, large screw onto the camera - it's very important not to tighten this screw
fully at this stage, or you will not be able to attach the black bracket later. Then, insert the
short thickscrew into the black bracket and rotate the camera to tighten up.
5. GET TING START ED
5.1 TURN ON THE BA BY U NI T:
1. Insert the DC plug of the power adapter into the D C jack in the rear of the Baby Unit;
2. Insert the other end of the power adapter into a suitable electrical outlet;
3. Once the adapter is connected, the power LED will light up;
4. keep the baby unit plugging in;
.2 TURN ON THE PARENT UNIT: 5
1. Insert the DC plug of the power adapter into the D C jack in the side of the parent Unit;

Charging LED
Power LED
Sound Level Indicator
Power key
5.0'' Diagonal TFT LCD
Exit/Two Way Talk
Menu/OK
Zoom / View / Scan
MIC
Right Key
Up key
Down Key
Left Key
3
6.2 PARENT UNIT OVERVIEW:
2.Insert the other end of the power adapter into a suitable electrical outlet;
3. Press and hold the power key 3 seconds on the side of the parent unit;
4.Once parent unit is on, the power LED will light upand the image will display on the LCD
5.3 INFRARED NIGHT VISION (AUTOMATIC)
The infrared night vision function allows the camera to pick up images in dark or low
light conditions. In this mode, only black and white images will be displayed on the
m The onitor,the optimum image lie in where baby unit is 6ft (2m) away from object.
camera is in night vision mode, the icon will be displayed on the top of screen.
6. PRODUCT OVERVIEW
6. 1 ICONS OVERVIEW:
Speaker
DC-jack
Stand
Reset Key
Antenna
--------
Signal Strength
Alarm
--------
Volume
--------
Brightness
--------
Zoom
--------
Two-Way Talk
--------
Lullaby
--------
Camera
--------
Battery Level
--------
Temperature
--------
Night vision
--------
--------
VOX mode

Lens
Speaker
Light sensor
MIC
Infrared LEDs
Power LED
Pair key
DC-Jack
Temperature
sensor
Antenna
4
6. 3 BABY UNIT OVERVIEW:
7. KEY OPERATION
7.1 TURN ON/OFF
Press and hold the power key for 3 seconds to turn on / off the parents unit.
7.2 UP ▲ KEY
Press once to tilt the camera up by one step. Press and hold to tilt continuously.
7.3 DOWN ▼ KEY
Press once to tilt the camera down by one step. Press and hold to tilt continuously.
7.4 LEFT ◀ KEY
Press once to pan the camera left by one step. Press and hold to pan continuously.
7.5 RIGHT ▶ KEY
Press once to pan the camera right by one step. Press and hold to pan continuously.
7.6 CAMERA VIEW/SCAN
Press scan key to view/scan camera; during scan mode, the scan icon will be displayed
on the top of screen. Each camera’s video will be displayed on the LCD around 10 seconds
then change to next camera;
7.7 DIGITAL ZOOM
Under full screen mode, press and hold the key around 2 seconds to operate zoom in/out;
7.8 Two Way Talk
Under full screen mode, Press and hold key to enter two way talk mode. A microphone
icon will be displayed in the corner of the LCD screen. Release the key to stop.
Note: When you are in the two-way talk mode, the parent unit speaker is muted.
8. MENU OPERATION
8.1 PAIRING THE CAMERA AND PARENT UNITS
The baby unit is pre-registered to your parent unit. You do not need to register it again unless
the baby unit loses its link with the parent unit. To re-register your baby unit, or register a
1

5
new baby unit, follow the procedure below:
Note : Camera icon with " "means it is well registered. You should select and pair with the
camera icon without " " sign.
8.1 .1 ADD CAMERA
1. Press the MENU key then the menu will pop up;
2. Press the◀/▶/▲/▼keyuntilthecameraicon isselectedbyredbox;
3. Press OK key to enter into sub-menu, then press ▲/▼ key to select your desired
camera;
4. Press key enter into sub-menu; Press ▲ / ▼ key to select then press key;
5. When the icon … displayed on the LCD screen, press the PAIR button on the back of
camera;
6. Once paired, Successful pairing icon shows on the LCD screen;
7. If fails, repeat the above steps.
8.1.2 DELETE CAMERA
1. Press the MENU key and the menu will pop up;
2. Press the◀/▶/▲/▼keyuntilthecameraicon isselectedbyredbox;
3. Press OK keytoenterintosub-menu,thenpress▲/▼ key to select the camera you
want to delete;
4. Press key enter into sub-menu; Press ▲ / ▼ key to select then press key;
5. Press ▼ key to select icon to delete the camera;
6. Press OK key to confirm the option.
8.2 VOLUME
1. Press the key then the menu will pop up;
2. Press the◀/▶/▲/▼key until the Volume icon is selected by orange box;
3. Press the key enter into sub-menu;
4. Press the◀/▶key to select the desired volume level from level 1 ~ 5.
8.3 DISPLAY BRIGHTNESS
1. Press the MENU key then the menu will pop up;
2. Press the ◀/▶/▲/▼key until the brightness icon is selected by orange box;
3. Press key enter into sub-menu;
4. Press ◀/▶ keys to select the desired brightness level from level 1 ~ 5.
(The default brightness level setting is level 3.)
8.4 TEMPERATURE UNIT SETTING
1. Press the MENU key then the menu will pop up;
2. Press the◀/▶/▲/▼ until the temperature icon is selected by orange box;
3. Press the key enter into sub-menu;
4. Press the◀/▶keytoselectthe℉ or ℃ for setting temperature unit.
5. Press key to confirm;
6. Press key to Exit.
The detected temperature range is 0~40 ℃ .Note:

6

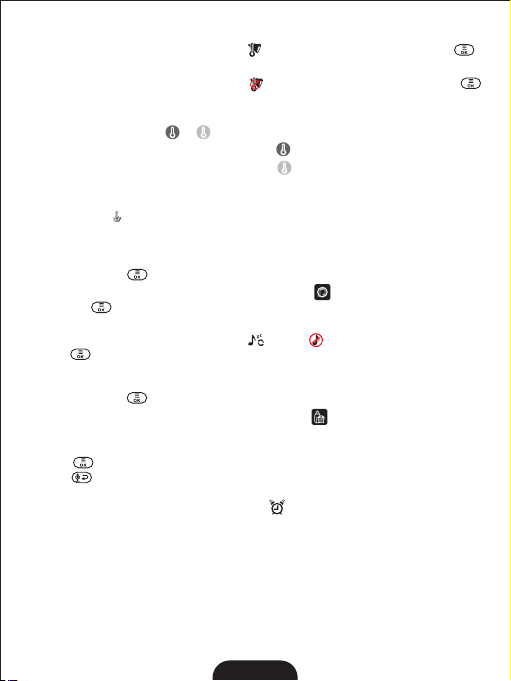

8.4.1 TEMPERATURE ALARM SETTING
1. Press the ◀/▶/▲/▼ key to select for turning on alarm function; Press key
to confirm;
2. Press the ◀/▶ / ▲/▼ key to select for turning off alarm function; Press key
to confirm;
8.4.2 SET TEMPERATURE HI/LO ALERT LIMITS
1. Press ◀/▶ to select or for Hi/Lo limits settings;
2. Press ▲/▼ keys to adjust the Hi limit when(red)is selected;
3. Press ▲/▼ keys to adjust the Lo limit when(green)is selected;
The high temperature alarm default setting is 36 ℃,and the low temperatureNote:
alarm default setting is 8℃.When the temperature goes above or below the settings, the
temperature icon will display on the screen. It will alert user by beeps. Press any key on
the parent unit to stop beeping and flashing.
8.5 LULLABY SETTING
You can soothe the baby to sleep by playing a gentle lullaby from the Camera unit.
1. Press the MENU key and the menu will pop up.
2. Press the◀/▶/▲/▼ keys until the lullaby iconis selected by red box;
3. Press the key enter into sub-menu;
4. Press the◀/▶/▲/▼key to select one of the 8 available lullabies, you can pick single
playback, loop (all 8 lullabies) playback or stop .
5. Presskey to confirm.
The lullaby default setting is OFF.Note :
8.6 ALARM SETTING
1. Press the MENU key and the menu will pop up.
2. Press the ◀/▶/▲/▼ key until the alarm iconis selected by red box.
3. Press the ▲ / ▼ key enter into sub-menu, Press the ◀/▶/▲/▼key to selected the
alarm time you need;
 4. Presskey to confirm;
5. Presskey to Exit.
The minimum unit is 0.5 hour. The maximum setting is 5 hours (7 levels).Note 1:
Once the alarm is turned on, alarm icon will display on the screen;Note 2:
The alarm default setting is OFF.Note 3:
When the alarm is ringing, press any key on the parent unit to turn the alarm off.Note 4:
If you don't turn off the alarm, the alarm will ring for 1 minute. After three minutes Note 5:
the alarm will ring again for 1 minute. The alarm will ring for three times in total, after this
the alarm goes off.
8.7 VOX SETTING
This mode allows you to control the sound activation of your baby unit. If there is no sound
around the baby unit within 30 seconds, it will stop audio transmission and turn off the

7
screen of the parent unit. When the baby unit detects any sounds louder than the sensitivity
level, it will start transmitting the signal to the parent unit again and turn on the screen of the
parent unit. To change the VOX level, please follow the below instructions.
1. Press the MENU key and the menu will pop up.
2.Press the◀/▶/▲/▼key until the VOX icon is selected by red box.
3.Press key enter into sub-menu, then press ▲/▼ key to select desired level;
4. Press keytoconfirm;
5.PresskeytoExit.
is Low sensitivity level, the baby have to make a lot of sound before the VOX Note:
function will be activate;
is middle sensitivity level;Note:
is High sensitivity level, the baby don't have to make a lot of sound before the VOX Note:
function will be activate;
8.8 LANGUAGE SETTING
1. Press the MENU key and the menu will pop up.
2. Press the◀/▶/▲/▼ keys until the language iconisselectedbyredbox;
3. Press key to enter into sub-menu, then press ◀/▶/▲/▼ key to select the
language you need;
4. Presskeytoconfirm;
5.Press keytoExit.
9. TECHNICAL DATA
2408MHz~2469MHz
Frequency
Power Adaptor
Parent Unit: Input: 100-240VAC 50/60Hz
Output: 5V DC 1A
Camera Unit: Input: 100-240VAC 50/60Hz
Output: 5V DC 1A
Operation
environment
Up to 1000ft (300m) outdoor (line of sight)
Up to 165ft (50m) indoor
Operating Range
Display 5.0'' Diagonal TFT LCD
Battery (Parent Unit)
Battery Life
Li-ion 3.7V 3500mAh (12.95Wh)
Up to 16 hours
RelativeHumidity:15%-85%
Maximum power
<19dBm
Operation Temperature: +32F~+104F (0℃~40℃)
Battery Charging Temperature: +50F~+104F(10℃~40℃)

8
11. MAINTENANCE
* Clean your baby monitor with a slightly damp or anti-static cloth.
* Never use cleaning agents or solvents.
12. DISPOSAL GUIDE FOR BATTERY AND PRODUCT
* Do not attempt to repair or adjust any of the electrical or mechanical functions of the
unit;
* Remember to dispose of the product in an environmentally responsible way;
* For proper collection and processing of these products, take them to the collection
points designated by local authorities. You can also contact the store where you
purchased the product.
Improper or incorrect use of batteries may cause corrosion or battery leakage, which
could cause personal injury or damage to property.Use only the types of the batteries
which are indicated in this manual.
CAUTION: Risk of Fire and Burns. Do Not Open, Crush, Heat Above 45 degree C or Incinerate.
Follow Manufacturer's Instructions.
- Disposal of a battery into fire or a hot over, or mechanically crushing or cutting of a battery,
that can result in an explosion;
- Leaving a battery in an extremely high temperature surrounding environment that can
result in an explosion or the leakage of flammable liquid or gas;
- A battery subjected to extremely low air pressure that may result in an explosion or the
leakage of flammable liquid or gas.
- The battery shall not be exposed to excessive heat such as sunshine, fire or the like;
Audio feedback
(high pitched noise)
Interference or poor
reception
* Move the monitor close to the camera;
* The camera or monitor may be placed too close to many metal objects;
* Other electronic devices may be interfering with the signal;
* The battery power may be too low;
* The camera and monitor may be placed too closed;
* The volume on the monitor may be set too high;
Frozen Picture on
Screen
* Repower the baby unit (plug out the adapter, then plug it into the
socket again);
* Press the RESET key at the back of parent unit
No reception on the
monitor
* The power adapters may not be properly connected;
* Confirm that the camera and monitor are ON;
* Camera may be far away from the monitor;
* Camera and monitor may not be properly paired; follow PAI RI NG instrucons;
10. TROUBL E S HO OTING

FCCAND IC REGULATIONS
FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
CC Caution:F
Changes or modifications not expressly approved by the part responsible for compliance
could void the user's authority to operate the equipment.
FCC Statement:
"This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or tel evision reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help."
Industry Canada
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil
ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
This equipment complies with Industry Canada radiation exposure limits set forth for an
uncontrolled environment.
Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites
établies pour un environnement non contrôlé.
This Transmitter must be installed to FCC/IC RF Radiation Exposure Statement Caution:
provide a separation distance of at least 20 cm from all persons.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
9

10
Product tested against EN62471
WARNING IR emitted from this product. Do not stare at operating lamp
Risk Group 1
End user must follow the specific operating instructions for satisfying RF exposure
compliance. this transmitter meets SA R limit 1.6w/kg when worn on body.
Cet émetteur doit être installé pour IC Radiation Déclaration d'exposition Attention:
fournir une distance de séparation d'au moins 20 cm de toute personne.
This equipment complies with IC RS S‐102 radiation exposure limits set forth for an
uncontrolled environment.
Cet équipement est conforme aux limites d'exposition aux radiations I C C NR‐102 établies
pour un environnement non contrôlé.
End user must follow the specific operating instructions for satisfying RF exposure
compliance. this transmitter meets SA R limit 1.6w/kg when worn on body.
L'utilisateur final doit se conformer à des spécifications spécifiques pour satisfaire aux
exigences de conformité en matière d'exposition aux radiofréquences.L 'émetteur a une
limite SAR de 16w / kg lorsqu' il est porté sur lui.
EU Declaration of Conformity (DOC)
Hereby, videotimes declares that the radio equipment type is in compliance with RED
Directive 2014/53/EU.
The full text of the EU declaration of conformity is available on the website:
www.hellobaby.net.cn
Model: HB6550-2
Responsible Party(US): Startline LLC
Add: 22 Hazelwood Drive, Jericho, NY 11753 Tel: [phone]
Authorized UK Representative(UK): APEX CE SPEC IA LI STS LIMITED
Add: 89 Princess Street,M14HT,U K [e-mail]
Shenzhen Videotimes Technology Co.,Ltd
Room 2106, Building 11, Tianan Yungu Phase I I , Gangtou Community, Bantian Street,
Longgang District, Shenzhen, Guangdong, China

Product tested against EN62471
WARNING IR emitted from this product. Do not stare at operating lamp
Risk Group 1
Strangulation Hazard: Children have STRANGLED
in cords. Keep this cord out of the reach of children
(more than 3 ft (0.9 m) away). Do not remove this tag.
WARNING
DANGER D’ÉTRANGLEMENT: Des enfants se sont
ÉTRANGLÉS avec des cordons électriques. Garde
le cordonélectrique hors de la portée des enfants(à
plus de 0.9m/3 pi du lit d’enfant). Ne pas enlever
cette étiquette.
AVERTISSEMENT
Made in China
