OPERATOR’S
MANUAL
REGISTER WARRANTY ONLINE AT WWW.HENNYPENNY.COM
HUMIDIFIED HOLDING CABINET
MODEL
AHC-990
AHC-993

Model AHC-990/993
iFeb 2012
TABLE OF CONTENTS
Section Page
Section 1. INTRODUCTION
  1-1. HumidiedHoldingCabinet................................................................................. 1-1
  1-2. Features................................................................................................................. 1-1
  1-3. ProperCare ........................................................................................................... 1-1
  1-4. Assistance ............................................................................................................. 1-1
  1-5. Safety .................................................................................................................... 1-2
Section 2. INSTALLATION
  2-1. Introduction........................................................................................................... 2-1
  2-2. Unpacking............................................................................................................. 2-1
  2-3. Location ................................................................................................................ 2-2
  2-4. ElectricalConnection............................................................................................ 2-2
  2-5. WaterCapacity&Connections............................................................................. 2-3
  2-6. WaterQualityRequirements................................................................................. 2-3
  2-7. CabinetDimensionsandWeights ......................................................................... 2-4
  2-8. AHC-993InstallationGuidelines ......................................................................... 2-6
  2-9. AHC-990InstallationGuidelines ......................................................................... 2-9
Section 3. OPERATION
  3-1. Introduction........................................................................................................... 3-1
  3-2. OperatingControls................................................................................................ 3-1
  3-3. Start-Up................................................................................................................. 3-3
  3-4. OperationwithProduct......................................................................................... 3-4
  3-5. CleaningProcedures ............................................................................................. 3-4
Section4. PROGRAMMING
  4-1. Introduction........................................................................................................... 4-1
  4-2. “HiddenButtons”.................................................................................................. 4-1
  4-3. ClockSet............................................................................................................... 4-1
  4-4. SpecialProgramming............................................................................................ 4-3
Section5. TROUBLESHOOTING
  5-1. TroubleshootingGuide ......................................................................................... 5-1
  5-2. ErrorCodesandWarnings .................................................................................... 5-2

Model AHC-990/993
1-1Dec. 2010
1-1. HUMIDIFIED
HOLDING CABINET
1-2. FEATURES
1-3. PROPER CARE
1-4. ASSISTANCE
TheHennyPennyhumidiedholdingcabinetsaredesignedto
keephotfoodsmoist,whilemaintainingpropertemperature.The
unitsareelectronicallycontrolledforeasyuseandforconsistent
operation.
AsofAugust16,2005,theWasteElectricalandElectronic
EquipmentdirectivewentintoeffectfortheEuropeanUnion.
OurproductshavebeenevaluatedtotheWEEEdirective.We
havealsoreviewedourproductstodetermineiftheycomplywith
theRestrictionofHazardousSubstancesdirective(RoHS)and
haveredesignedourproductsasneededinordertocomply.To
continuecompliancewiththesedirectives,thisunitmustnotbe
disposedasunsortedmunicipalwaste.Forproperdisposal,please
contactyournearestHennyPennydistributor.
•Electronicallycontrolledhumidityandtemperature
•Lift-offdoors
•Stainlesssteelconstruction
•Easilymaintained
•Lift-outtrayracks
•Fullperimetermagneticdoorseals
•Easyaccesstoelectricalcontrols
•Automaticwatertankll
Asinanyunitoffoodserviceequipment,theHennyPenny
humidiedholdingcabinetdoesrequirecareandmaintenance.
Requirementsforthemaintenanceandcleaningarecontainedin
thismanualandmustbecomearegularpartoftheoperationof
theunitatalltimes.
Shouldyourequireoutsideassistance,justcallyourlocal
independentHennyPennydistributorinyourarea,orcallHenny
PennyCorp.1-800-417-8405tollfreeor1-937-456-8405.
SECTION 1. INTRODUCTION

Model AHC-990/993
1-2Dec. 2010
1-5. SAFETY TheHennyPennyHumidiedHoldingCabinethassafety
featuresincorporated.However,toensureasafeoperation,
readandfullyunderstandtheproperinstallation,operation,and
maintenanceprocedures.Theinstructionsinthismanualhave
beenpreparedtoaidyouinlearningtheproperprocedures.
Whereinformationisofparticularimportanceorsafetyrelated,
thewordsWARNING,CAUTION,andNOTICEareused.Their
usageisdescribedbelow.
SAFETYALERTSYMBOLisusedwithDANGER,WARNING,or
CAUTIONwhichindicatesapersonalinjurytypehazard.
NOTICEisusedtohighlightespeciallyimportant
information.
CAUTION used without the safety alert symbol indicates a
potentially hazardous situation which, if not avoided, may
result in property damage.
CAUTION used with the safety alert symbol indicates a
potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.

Model AHC-990/993
2-1Dec. 2010
2-1. INTRODUCTION
2-2. UNPACKING
Installationofthisunitshouldbeperformedonlybya
qualiedservicetechnician.
Do not puncture the skin of the unit with drills or screws,
or component damage or electrical shock could result.
TheHennyPennyhumidiedholdingcabinethasbeen
tested,inspected,andexpertlypackedtoensurearrivalatits
destinationinthebestpossiblecondition.
Noteanyshippingdamageinthepresenceofthedelivery
agentandsignedpriortohisorherdeparture.
ToremovetheHennyPennycabinetfromcarton:
1. Carefullycutbandingstraps.
2. Liftcartonofftheunit.
3. Lifttheunitoffthecardboardpaddingandskid.
Full-size cabinets weigh approximately 300 lbs. (136 kg).
Care should be taken when lifting unit to prevent personal
injury.
SECTION 2. INSTALLATION

Model AHC-990/993
2-2April2012
2-2. UNPACKING
(Continued)
2-3. LOCATION
2-4. ELECTRICAL
CONNECTION
4. Opendoorsandremovepackingfrombehindracksandunder
thewatertankcoversandremovethetapefromthestandpipe
inthebottomoftheunit.
5. Peeloffallprotectivecoveringfromtheexteriorofcabinet.
6. Thecabinetisnowreadyforlocationanduse.
Placethehumidiedholdingcabinetinanareathatallowsthe
doorstobeopenedwithoutinterferenceofloadingandunloading
product.Also,keeptheunitlevelforproperoperation.
Nominimumclearancesarerequiredfortherearandsidesof
thecabinet.
To avoid electrical shock, the cabinet must be adequately
and safely grounded (earthed) according to local
electrical codes, and this appliance must be equipped
with an external circuit breaker which will disconnect all
ungrounded (unearthed) conductors. The main power
switch on this appliance does not disconnect all line
conductors.
(FOR EQUIPMENT WITH CE MARK ONLY!)
To prevent electric shock hazard this appliance must be
bonded to other appliances or touchable metal surfaces
in close proximity to this appliance with an equipotential
bonding conductor. This appliance is equipped with an
equipotential lug for this purpose. The equipotential lug is
marked with the following symbol .
Ifelectricalsupplytounitisacordandplug,thentheelectrical
receptaclefortheplug,mustbeeasilyaccessible.Refertothe
tablebelowfortheelectricalratingsforthecabinets.
AHC-993
 Volts Hertz Phase Amps Watts
100 50/60 1 18.6 1855
120 60 1 18.9 2267
208 60 1 10.9 2267
220-240 50/60 1 9.1 2179
240 50-60 1 9.4 2263

Model AHC-990/993
2-3Nov.2014
AHC-990
 Volts Hertz Phase Amps Watts
120 60 1 24.0 2880
120 60 1 22.3 2680
200 50-60 1 13.2 2649
208 60 1 13.8 2880
240 50-60 1 12.0 2876
240 50-60 1 11.2 2676
220-240 50/60 1 11.6 2792
2-4. ELECTRICAL
CONNECTION
(Continued)

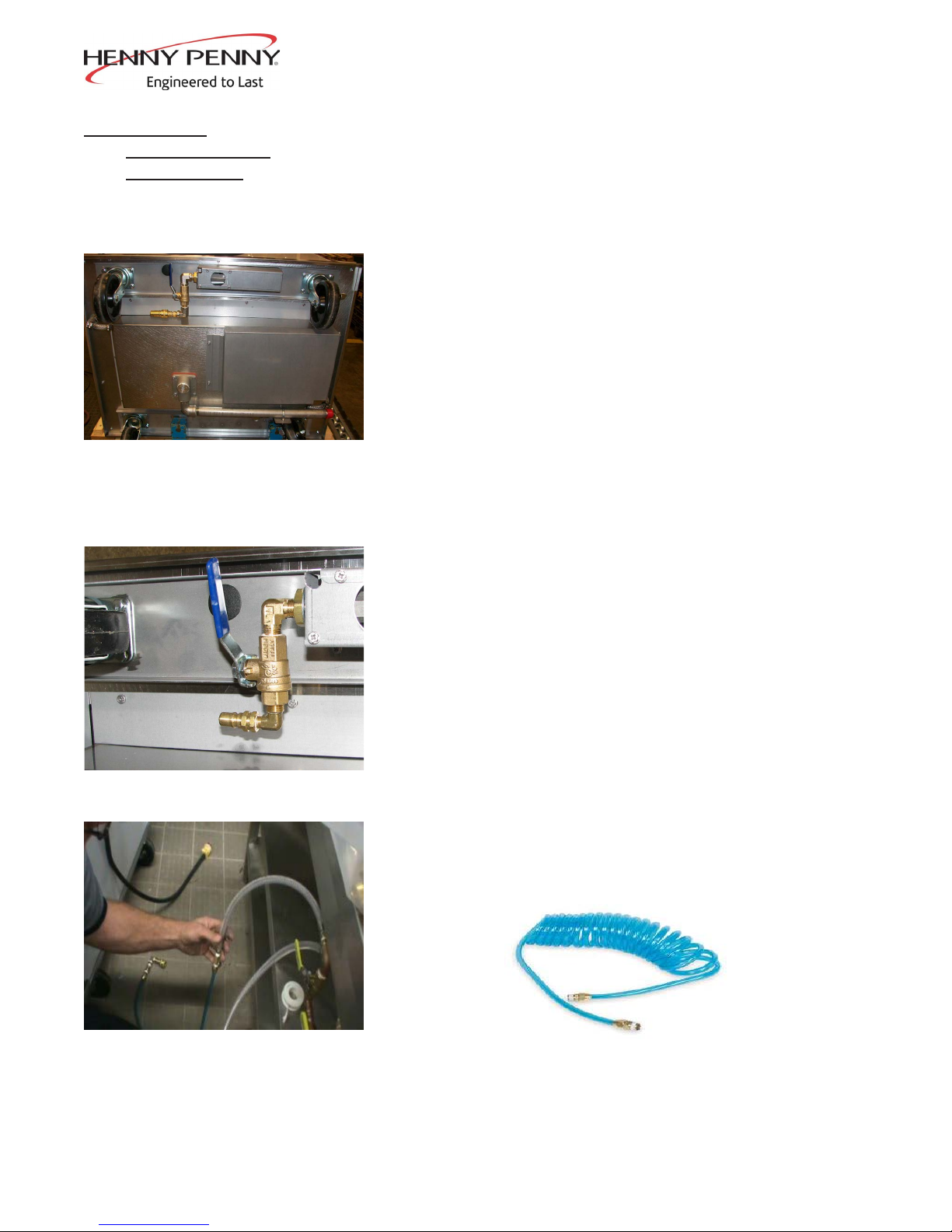

2-5. WATER CAPACITY &
CONNECTIONS
AppliestotheAHC-993&AHC-990
• WaterReservoir-3gal.(11.4liters)capacity
-
2gal.(7.6liters)wheninoperation
• 1/4in.coldwatersupply
• 1in.or3/4in.drainconnection
Tohelpensurecontinuedreliabilityofwatercomponents,shown
belowisHennyPenny’srecommendedwaterspecicationthat
should be adhered to:
Acceptable Element and Compound Levels
Fe(Iron)<.1mg/l
Cl(Chlorine)<.1mg/l
Cl2(ChloridesandSalts)<150mg/l
General Water Properties
PH 7-8
Silica<15ppm
Hardness<3grains
Alkalinity<20ppm
DissolvedSolids<60ppm
Un-dissolvedSolids<5microns
2-6. WATER QUALITY
REQUIREMENTS

Model AHC-990/993
2-4Feb 2012
2-7. CABINET
DIMENSIONS AND
WEIGHTS
Unit Height Width Depth Shipping Weight
AHC-993 38”(965mm) 24-3/4”(628mm) 31-3/4”(806mm) 220lbs(100kg)
AHC-993
Henny Penny Corporation
PO Box 60 Eaton OH 45320 USA
+1 937 456.8400 800 417.8417
+1 937 456.8434 Fax [phone] Fax
www.hennypenny.com
PROJECT DATE SECTION SUBSECTION
KFC 11-2010 Kitchen Equip. Holding Cabinet
Continuing product improvement may subject specifications to change without notice.
© 2010 Henny Penny Corporation, Eaton, OH 45320 USA Released 11/12/10
Laboratory certifications
Humidified holding cabinet
Automatic humidity control
MODEL AHC-993 Hal
f
-size
FRONT
24 3/4 in.
(
628 mm
)
31 3/4 in.
(
806 mm
)
38 in. (965 mm)
PLAN
Power cord (from top)
Electrical
Dimensions
Height: 38 in. (965 mm)
Width: 24 3/4 in. (628 mm)
Depth: 31 3/4 in. (806 mm)
Floor space: 5.5 sq. ft. (0.51 m
2)
Required clearances: N/A
Crated dimensions
Length: 39 1/2 in. (1000 mm)
Depth: 35 1/2 in. (900 mm)
Height: 31 in. (790 mm)
Volume: 25 cu. ft. (0.71 m³)
Crated weight: 220 lbs. (100 kg)
Water
3 gal. (11.4 liters) water pan; 2 gal. (7.6 liters)
for operational use
1/4 in. cold water supply
1 in. or 3/4 in. drain connection
Heating
160-210°F (71-99°C)
Humidity
OFF/ON 10-90% RH
Pan capacity
Accepts up to 5 standard sheet pans
18 x 26 in. (457 x 660 mm) on
3 3/4 in. (95 mm) centers.
Cold water
connection for
auto fill
External drain
(from bottom)
Voltage Phase Cycle/Hz Watts Amps Wire
100 1 50/60 1855 18.6 2+G
Optional power cord and plug
supplied for USA and Canada,
only. Plug type:
120 1 60 2267 18.9 2+G
208 1 60 2267 10.9 2+G
220-240 1 50/60 2179 9.1 1NG
240 1 50-60 2263 9.4 2+G
NEMA
5-20P
G
W
NEMA
5-30P
G
W
NEMA
6-15P
G

Model AHC-990/993
2-5Feb 2012
2-7. CABINET
DIMENSIONS AND
WEIGHTS (Continued)
24 3/4 in.
(
628 mm
)
Humidity: OFF/ON 10-90% RH
Pan capacity
Accepts standard sheet pans 18 x 26 in.
(457 x 660 mm). Please specify one of the
following configurations when ordering:
10 pans on 4 7/8 in. (124 mm) centers OR
13 pans on 3 3/4 in. (95 mm) centers OR
15 pans on 3 1/4 in. (83 mm) centers
Electrical
© 2006 Henny Penny Corporation, Eaton, OH 45320 USA Revised 03/25/11
Laboratory certifications
SmartHold
® holding cabinet
PROJECT ITEM NO
MODEL HHC-990 full-size
Dimensions
Height: 72 1/4 in. (1835 mm)
Width: 24 3/4 in. (628 mm)
Depth: 31 3/4 in. (806 mm)
Required clearances: N/A
Crated dimensions
Length: 74 3/4 in. (1900 mm)
Depth: 35 1/2 in. (900 mm)
Height: 31 in. (790 mm)
Volume: 46 cu. ft. (1.35 m³)
Crated weight: 367 lbs. (167 kg)
Water connections
3 gallon (11.4 liters) water pan, 2 gallons
(7.6 liters) for operational use.
External drain connection.
Heating
Proofing mode: 80-140°F (27-60°C)
Normal holding: 160-210°F (71-99°C)
Volts Phase Cycle/Hz Watts Amps Wire Plug type (optional)
120 1 60 2680 or 2880 22.3 – 24.0 2+G NEMA 5-30P
G
W
NEMA 5-50P
G
w
200 1 50/60 2649 13.2 2+G
208 1 60 2880 13.8 2+G
220-240 1 50/60 2792 11.6 1NG
NEMA 6-15P
G
NEMA 6-20P
G
240 1 50/60 2676 or 2876 11.2 – 12.0 2+G
Optional power cord and plug supplied for USA and Canada, only.
72 1/4 in.
(1835 mm)
31 3/4 in.
(
806 mm
)
FRONT
Bidding Specifications
•Provide Henny Penny Model HHC-990 full-
size SmartHold Humidified Holding
Cabinet. Units are designed to provide
ideal environment for safely holding a wide
variety of hot foods in quality condition for
very long periods of time.
•Unit features a patented closed loop control
system to regulate precise temperatures
and humidity levels.
•Unit shall have Proofing Mode, a lower
temperature range setting.
•Unit shall be of 300 grade stainless steel
construction throughout.
•Provide choice of 5 or 15 count-down
timers.
•Provide choice of right or left-hand doors,
solid back or pass-through design.
•Provide choice of racking configurations for
10, 13 or 15 pans.
•Unit shall include recessed 3 gal. (11.4
liters) stainless steel water pan.
•Unit shall have full perimeter door gasket and
fully insulated sidewalls and control module.
•Unit shall have 2 heavy-duty blower motors
and ventilated side racks.
•Unit shall be equipped with 4 casters 5 in.
(127 mm), 2 are locking.
PLAN
Power cord from back or top
External drain
Continuing product improvement may subject specifications to change without notice.
Henny Penny Corporation
PO Box 60 Eaton OH 45320 USA
+1 937 456.8400 800 417.8417
+1 937 456.8434 Fax [phone] Fax
www.hennypenny.com
Unit Height Width Depth Shipping Weight
AHC-990 72-1/4”(1835mm) 24-3/4”(628mm) 31-3/4”(806mm) 367lbs(167kg)
AHC-990

Model AHC-990/993
2-6Feb 2012
2-8. AHC-993

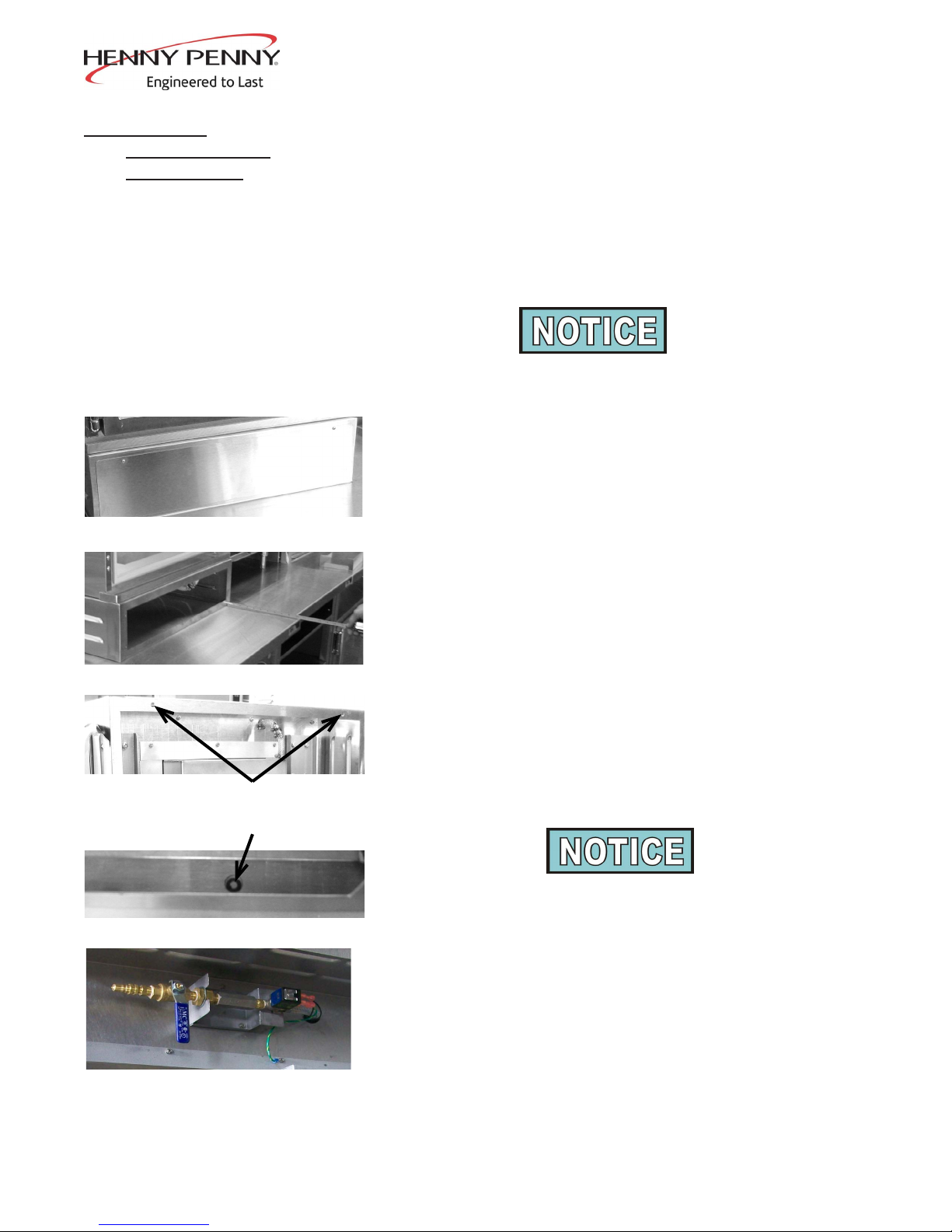

INSTALLATION
GUIDELINES
Duetothevariationsofequipmentinstallationsfromonestore
toanother,weareprovidingonlyageneralprocesswhichthe
installercanuseforreferenceorasachecklist.Allelectrical,
water,anddrainconnectionsmustcomplywithallfederal,state,
county,andlocalcodes.
1. Unpackcabinetusingparagraph2-2ofthismanual.
2. Positioncabinetsocontrolsfacethestore’sdrive-thruarea.
 Whenlocating,moving,orpositioningtheholding
cabinet,becarefulnottoscratchthetablesurface.
3. Remove2screwsandbottompanelatfrontofunit.
4. Remove2screwsandbottompanelatrearofunit.
5. Measureandcenterunitfronttorearonthetabletopwith
onesideushwiththetableend.
6. Usingtheholesinthecabinetbaseasguides,mark4mount-
ingholelocationsinthetabletop.
 ALLAHC-990&AHC-993unitsMUSThaveawatersupply
connectionandaplumbeddrain.
7. Layoutroutingof1/4inchlllinefromtheholdingcabinet
malequickdisconnectundertheunittoacoldwatersource.
Step 5
Step 6
Step 7
Steps 3 and 4
Cabinet Base Holes
(View from underneath cabinet)
Marked Hole on Table Top

Model AHC-990/993
2-7Feb 2012
2-8. AHC-993 INSTALLATION
GUIDELINES (Continued)
8. Layoutroutingofdrainlinefroma3/4”sideoutletor1”bot-
tomoutletindrainblockunderunittoanopendrain.
9. Layoutroutingofelectricalpowercordfromthetopofthe
cabinettotheproperreceptacle.
10. Measure,mark,anddrillorcutholesorotheropeningsin
tabletopand/orshelvesasdictatedbythisspecicinstalla-
tiontopermitroutingofwater,drain,andelectricallines.
11. Fabricatetheplanneddrainline.
12. Moveunittoexposetwomarksatthefront,centerpunch
eachmark,anddrill3/16”pilotholes.
13. Drillnalholesusinga5/16”bit.Cleanupalldebrisand
metalshavings.
14. Shiftcabinetpositiontoexposetwomarksattherear,
centerpuncheachmark,anddrill3/16”pilotholes.
15. Drillnalholesusinga5/16”bit.Cleanupalldebrisand
metalshavings.
16. Positionunitsotheholesinthetabletopalignwiththe
mountingholesinthebase.
17. Installfour1/4”stainlesssteelscrewsandatwashersfrom
underneathtableandinstallfourstainlesssteelatwashers
andlocknutsonscrewsfromabovethebaselip.
Steps 12 and 14
Steps 12 and 14
Steps 13 and 15
Step 8
3/4”
1”
Step 17

Model AHC-990/993
2-8Feb 2012
18. 993’sshouldhaveabout10”ofclearancebetween
 themtoaccommodatethepackagingshelvingtower(see
below).
      HPpartno.03559
18. Performanalpositioningofthecabinetwithonesideush
withthetableendandcenteredfronttobackonthetabletop.
Tightenthefoursboltsandnutssecurely.
19. Applyabeadofclearsiliconesealeraroundcabinetbaseto
llgapsbetweentabletopandbase.
20. Connectwaterlineanddrainlinetoholdingcabinet.
21. Connectelectricalpowertounit.
22. Operateholdingcabinetandadjustwaterowcontrolvalve
sowaterdoesnotoverowthelltrayandoodthecabinet.
Acceptableowisshowninphotoatleft.
 Ifnecessary,theshut-offvalveundertheunitcanbe 
usedtohelpregulatethewaterowintothewaterpan.
Normally,theseshouldbeopenedfully.
23. Besurelltrayanglesdownsowaterowsfreelyintopan.
24. Checkcabinetforproperoperationandrepairanywater
leaks.
25. Installbottompanelatfrontofunitwith2screws.
26. Installbottompanelatrearofunitwith2screws.
Steps 25 and 26
Step 19
Step 18
Step 22
2-8. AHC-993
INSTALLATION
GUIDELINES
(Continued)

Model AHC-990/993
2-9Feb 2012
2-9. AHC-990
INSTALLATION
GUIDELINES
Duetothevariationsofequipmentinstallationsfromonestore
toanother,weareprovidingonlyageneralprocesswhichthe
installercanuseforreferenceorasachecklist.Allelectrical,
water,anddrainconnectionsmustcomplywithallfederal,state,
county,andlocalcodes.
1. Unpackcabinetusingparagraph2-2ofthismanual.
2. Positioncabinetsocontrolsareaccessible.
3. Locatethecoldwaterlllineanddrainisundertheunit.See
photoatleft.
4. Layoutroutingof1/4inchlllinefromtheholdingcabinet
malequickdisconnectundertheunittoacoldwatersource.
 (Bothmale&femaledisconnectsaresuppliedwiththeunits)
5. Usingan1/8”to1/4”reducer,a1/4”x6ft.coiledhose(see
below)canbeattachedtothefemaledisconnectandthe
coiledhoseisthenconnectedtothein-comingwaterline.
Step 3
Step 4
Step 5

Model AHC-990/993
2-10Feb 2012
2-9. AHC-990
INSTALLATION
GUIDELINES
(Continued)
6. Layoutroutingofdrainlinefroma3/4”sideoutletor1”bot-
tomoutletindrainblockunderunittoanopendrain.
7. SeveraloptionsareavailablefortheAHC-990drains:
 a. Installcabinetoveroordrainfornightlydraining.
 b. Disconnectwaterlineandrollcabinettonearestoor
 drainfornightlydraining.
 c. UsetheHennyPennydrainkit,partno.03697fornightly
 draining.Seephotoatleft.
8. Connectwaterlinetoholdingcabinet.
9. Connectelectricalpowertounit.
10. Operateholdingcabinetandadjustwaterowcontrolvalve
sowaterdoesnotoverowthelltrayandoodthecabinet.
Acceptableowisshowninphotoatleft.
 Ifnecessary,theshut-offvalveundertheunitcanbe 
usedtohelpregulatethewaterowintothewaterpan.
Normally,theseshouldbeopenedfully.
11. Besurelltrayanglesdownsowaterowsfreelyintopan.
12. Checkcabinetforproperoperationandrepairanywater
leaks.
3/4”
1”
Step 6
Step 7
Step 10

Model AHC-990/993
3-1Dec. 2010
3-1. INTRODUCTION
3-2. OPERATING CONTROLS
Thissectionprovidesexplanationsofallcontrols,along
withoperatingproceduresanddailymaintenance.Readthe
Introduction,InstallationandOperationSectionsbeforeoperating
theunit.
SECTION 3. OPERATION
Fig.
No.
Item
No. Description Function
3-1 1 POWERSwitch Arockerswitchthatsendselectricalcurrenttothe
operatingcomponentswhenturnedon
3-1 2 TemperatureLED Lightswhenthecontrolcallsforheat,andtheunitshould
startheating;itgoesoutoncethetemperatureinsidethe
cabinetreachestheprogrammedtemperaturesetting
PresstheTEMPERATUREButtontosetthecabinet
temperature
3-1 3 DigitalDisplay Shows the cabinet temperature, humidity settings, and
the selections in the Program Mode; the temperature of
thecabinetisshownbypressingtheINFObutton;ifthe
temperature exceeds 300 °F (149°C), the display reads
“E-5”,TOOHOT”.
3-1 4 HumidityLED Lightswhenthecontrolcallsforhumidity;itgoes
outoncethehumidityinsidethecabinet,reachesthe
programmedhumiditysetting
PresstheHUMIDITYbuttontosettherelativehumidity
insidethecabinet,andtochoosebetweentheProong
andHoldingModes,whentheunitisturnedon
3-1 5 Presstoviewthecabinettemperatureandhumidity,
dateandtime;ifpressedintheProgramMode,shows
previoussettings;pressingthisalongwith accesses
theInformationModewhichhashistoricinformationon
thecabinet’sperformance
3-1 6&7 Usedtoadjustthevalueofthecurrentlydisplayedsetting
intheProgramMode

Model AHC-990/993
3-2Dec. 2011
3-2. OPERATING
CONTROLS
(Continued)
Fig.
No.
Item
No. Description Function
3-1 8 UsedtoaccesstheProgramModes;oncein
theProgramMode,itisusedtoadvancetothe
nextparameter;pressingthisalongwith
accessestheInformationModewhichhashistoric
informationonthecabinet’sperformance
Figure 3-1
Control Decal
1 2 3 4 5 6 7 8

Model AHC-990/993
3-3Jan.2011
3-3. START-UP
Beforeusingthehumidiedholdingcabinet,thoroughlyclean
theunitasdescribedintheCleaningProceduresSectionof
thismanual.
1. Plugunitintoelectricalreceptacle,orturnonwallcircuit
breaker.WiththePOWERswitchturnedtoOFFthedisplay
shows“POWEROFF.”
WithPOWERSwitchoff,displaymayshow“PURGING”.
Thismeanshumidityhasreached95%insideunitandthefan
runstohelpdropthehumidity.Oncethehumidityreaches
92%,“POWEROFF”againshowsinthedisplay.
Even though POWER switch is OFF, it does not
disconnect all electrical supplies to the controls. Unplug
power cord, or turn off wall circuit breaker before
servicing any electrical components, or electrical shock
could result.
2. Turnonwatersupply.
3. TurnthePOWERswitchtoON,andthedisplaycycles
throughacoupleitemsandstopswith“185°F”ontheleftand
“50%”ontheright.
4. Thecabinettemperatureispresetat185°F(85°C).Tochange
thetemperature,pressTEMPERATUREbuttonandwhilethe
LEDisashing,presstheUPandDOWNbuttonsuntilthe
desiredtemperatureshowsinthedisplay.
5. Thecabinethumidityispresetat50%.Tochangethe
humiditylevel(10to90%),pressHUMIDITYbuttonand
whiletheLEDisashing,presstheUPandDOWNbuttons
untilthedesiredhumiditylevelshowsinthedisplay.
6. Allowtheunittopreheatforabout1hourpriortoplacing
productinthecabinet.Thisallowstheinteriorconditionsto
stabilize.

Model AHC-990/993
3-4Feb 2012
3-4. OPERATION WITH
PRODUCT
ATTENTION
WhenusingtheAHC-990/993
HumidityControlledCabinets,
allOriginalRecipeproducts
mustuseanewMilkandEgg
packet(GIN27414)insteadof
thecurrentMilkandEgg(GIN
20131).
Standardholdtimesmustbe
observedifyouarenotusingthe
newMilkandEggpacket.
3-5. CLEANING
PROCEDURES
1. TheLEDsabovetheTEMPERATUREandHUMIDITY
buttonsgooutwhenthedesiredtemperatureandhumidityare
reachedinsidethecabinet.Placehotproductonpan.
Theminimumholdingtemperatureforpotentiallyhazardous
productis150°F(66°C).Also,thecabinetproductload
capacityforthehalfsizeunitis125lb.(57kg.).Viewthe
temperatureatanytimebypressing .
2.Slidepanswithhotproductontotheracksofthecabinet.
Ifoatswitchinwaterpansenseslow,ornowaterafter5
minutes,“WATERPANNOTFILLING,CHECKWATER
SUPPLY”showsindisplay.Checkwaterllsystem.
3. Opendoorsonlyasneededtoloadandunloadproduct.This
helpstokeepinteriorconditionsconstantandsavesenergy.
Daily:
1. Turncontrolsandwateroffanddisconnectelectricalsupply.
To avoid burns, allow the unit to cool before cleaning.
2. Opendoorsandremovealltraysandracksfromunit,andtake
themtoasinktothoroughlyclean.Figure3-2.
3. Removewaterpancoversandconcentrationringfromtop
 ofwaterpanandpullstandpipetodrainwaterpan.Take
 coversandconcentrationringtoasinktoclean.Figure3-3.
4. Cleanwaterpanandoatswitch.
5. Wipeinteriorandexteriorofcabinetwithdampcloth,soap
andwater.
Do not use steel wool, other abrasive cleaners or cleaners/
sanitizers containing chlorine, bromine, iodine or ammonia
chemicals, as these will deteriorate the stainless steel, and
glass material, and shorten the life of the unit.
Do not use a water jet (pressure sprayer) to clean the unit, or
component failure could result.
Figure 3-2
Figure 3-3
Covers
Concentration ring
