Henny Penny HHC-983 User manual

Model HHC-980/983
OPERATOR’S MANUAL
Henny Penny
Humidified Holding Cabinets
Model HHC-980
Model HHC-983

Model HHC-980/983
FM07-007-D
Revised 01-02-07
LIMITED WARRANTY FOR HENNY PENNY EQUIPMENT
Subject to the following conditions, Henny Penny Corporation makes the following limited warranties to the original
purchaser only for Henny Penny appliances and replacement parts:
NEW EQUIPMENT: Any part of a new appliance, except baskets, lamps, and fuses, which proves to be defective in
material or workmanship within two (2) years from date of original installation, will be repaired or replaced without
charge F.O.B. factory, Eaton, Ohio, or F.O.B. authorized distributor. Baskets will be repaired or replaced for ninety (90)
days from date of original installation. Lamps and fuses are not covered under this Limited Warranty. To validate this
warranty, the registration card for the appliance must be mailed to Henny Penny within ten (10) days after installation.
FILTER SYSTEM: Failure of any parts within a fryer filter system caused by the use of the non-OEM filters or
other unapproved filters is not covered under this Limited Warranty.
REPLACEMENT PARTS: Any appliance replacement part, except lamps and fuses, which proves to be defective in
material or workmanship within ninety (90) days from date of original installation will be repaired or replaced without
charge F.O.B. factory, Eaton, Ohio, or F.O.B. authorized distributor.
The warranty for new equipment covers the repair or replacement of the defective part and includes labor charges and
maximum mileage charges of 200 miles round trip for a period of one (1) year from the date of original installation.
The warranty for replacement parts covers only the repair or replacement of the defective part and does not include any
labor charges for the removal and installation of any parts, travel, or other expenses incidental to the repair or replacement of
a part.
EXTENDED FRYPOT WARRANTY: Henny Penny will replace any frypot that fails due to manufacturing or workmanship
issues for a period of up to seven (7) years from date of manufacture. This warranty shall not cover any frypot that fails due to
any misuse or abuse, such as heating of the frypot without shortening.
0TO3YEARS: During this time, any frypot that fails due to manufacturing or workmanship issues will
be replaced at no charge for parts, labor, or freight. Henny Penny will either install a new frypot at no cost or
provide a new or reconditioned replacement fryer at no cost.
3TO7YEARS: During this time, any frypot that fails due to manufacturing or workmanship issues will
be replaced at no charge for the frypot only. Any freight charges and labor costs to install the new frypot as
well as the cost of any other parts replaced, such as insulation, thermal sensors, high limits, fittings, and
hardware, will be the responsibility of the owner.
Any claim must be presented to either Henny Penny or the distributor from whom the appliance was purchased. No
allowance will be granted for repairs made by anyone else without Henny Penny’s written consent. If damage occurs during
shipping, notify the sender at once so that a claim may be filed.
THEABOVELIMITEDWARRANTYSETSFORTHTHESOLEREMEDYAGAINSTHENNYPENNYFORANYBREACH
OFWARRANTYOROTHERTERM. BUYERAGREESTHATNOOTHERREMEDY(INCLUDINGCLAIMSFORANYINCI-
DENTALORCONSEQUENTIALDAMAGES)SHALLBEAVAILABLE.
The above limited warranty does not apply (a) to damage resulting from accident, alteration, misuse, or abuse; (b) if the
equipment’sserialnumberisremovedor defaced; or (c)forlampsandfuses. THEABOVELIMITEDWARRANTYIS EXPRESSLY
INLIEUOFALLOTHERWARRANTIES, EXPRESS ORIMPLIED,INCLUDINGMERCHANTABILITYANDFITNESS,AND
ALLOTHERWARRANTIESAREEXCLUDED. HENNYPENNYNEITHERASSUMES NORAUTHORIZESANYPERSONTO
ASSUMEFORITANYOTHEROBLIGATIONORLIABILITY. Revised 01/01/07

Model HHC-980/983
TABLE OF CONTENTS
Section Page
Section 1. INTRODUCTION
1-1. HumidifiedHoldingCabinet ........................................................................................ 1-1
1-2. Features....................................................................................................................... 1-1
1-3. Proper Care................................................................................................................. 1-1
1-4. Assistance ................................................................................................................... 1-1
1-5. Safety .......................................................................................................................... 1-2
Section 2. INSTALLATION
2-1. Introduction.................................................................................................................. 2-1
2-2. Unpacking ................................................................................................................... 2-1
2-3. Location ....................................................................................................................... 2-2
2-4. ElectricalConnection................................................................................................... 2-2
2-5. Water Supply Connection ............................................................................................ 2-3
2-6. Cabinet Dimensions and Weights ................................................................................ 2-4
Section 3. OPERATION
3-1. Introduction.................................................................................................................. 3-1
3-2. Operating Controls ...................................................................................................... 3-1
3-3. Start-Up....................................................................................................................... 3-3
3-4. Operation with Product ............................................................................................... 3-4
3-5. Cleaning Procedures ................................................................................................... 3-4
Section 4. PROGRAMMING
4-1. Introduction.................................................................................................................. 4-1
4-2. Hidden Buttons ............................................................................................................ 4-1
4-3. Clock Set ..................................................................................................................... 4-1
4-4. SpecialProgramming................................................................................................... 4-3
Section 5. TROUBLESHOOTING
5-1. TroubleshootingGuide ................................................................................................. 5-1
5-2. Error Codes and Warnings .......................................................................................... 5-2
GLOSSARY ......................................................................................................................... G-1
i203

Model HHC-980/983
The Henny Penny humidified holding cabinets are designed
to keep hot foods moist, while maintaining proper tempera-
ture. The units are electronically controlled for easy use and
for consistent operation.
AsofAugust16, 2005,theWasteElectricaland Electronic
Equipmentdirectivewent intoeffectfor theEuropeanUnion. Our
productshave been evaluated totheWEEE directive. We have
alsoreviewedour productsto determineif theycomply withthe
RestrictionofHazardousSubstancesdirective(RoHS)andhave
redesignedour products as needed inorder to comply. Tocontinue
compliancewiththese directives,this unitmust notbedisposed as
unsortedmunicipal waste. For properdisposal, please contactyour
nearestHennyPennydistributor.
• Electronically controlled humidity and temperature
• Double-paned glass, lift-off doors
• Stainless steel construction
• Easily maintained
• Lift-out tray racks
• Full perimeter magnetic door seals
• Easy access to electrical controls
• Automatic water-fill
Asinanyunitoffoodserviceequipment, theHennyPennyhumidi-
fiedholdingcabinet doesrequire careand maintenance.Require-
mentsforthemaintenanceandcleaning arecontainedinthismanual
andmust becomearegular partofthe operationofthe unitatall
times.
Shouldyourequire outsideassistance, justcall yourlocalindepen-
dentHennyPenny distributorinyourarea,or callHennyPenny
Corp. 1-800-417-8405 toll free or 1-937-456-8405.
107 1-1
1-2. FEATURES
1-1. HUMIDIFIED HOLDING
CABINET
SECTION 1. INTRODUCTION
1-3. PROPER CARE
1-4. ASSISTANCE

Model HHC-980/983
The Henny Penny humidified holding cabinet has safety
features incorporated. However, to ensure a safe operation,
read and fully understand the proper installation, operation,
and maintenance procedures. The instructions in this manual
have been prepared to aid you in learning the proper proce-
dures. Where information is of particular importance or
safety related, the words NOTICE, CAUTION, and
WARNING are used. Their usage is described below.
SAFETYALERTSYMBOLisused withDANGER,WARN-
ING, orCAUTIONwhich indicatesa personalinjury
typehazard.
NOTICEisusedtohighlightespeciallyimportantinformation.
CAUTION used without the safety alert symbol indicates a
potentially hazardous situation which, if not avoided, may
result in property damage.
CAUTION used with the safety alert symbol indicates a
potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
ThewordWARNINGis usedtoalert you to aprocedure,
thatif not performed properly, mightcausepersonal
injury.
1-2 803
1-5. SAFETY

Model HHC-980/983
Installation of this unit should be performed only by a
qualified service technician.
Donotpuncturethetheskinoftheunitwithdrillsor
screwsascomponent damage or electricalshock could
result.
The Henny Penny humidified holding cabinet has been tested,
inspected, and expertly packed to ensure arrival at its desti-
nation in the best possible condition.
Any shipping damage should be noted in the presence
of the delivery agent and signed prior to his or her
departure.
To remove the Henny Penny cabinet from carton:
1. Carefully cut banding straps.
2. Lift carton off the unit.
3. Lift the unit off the cardboard padding and skid.
Take carewhenmoving the fryertopreventpersonal
injury. Full-size cabinets weigh about
300 lbs. (136 kg).
203 2-1
2-1. INTRODUCTION
SECTION 2. INSTALLATION
2-2. UNPACKING

Model HHC-980/983
4. Open doors and remove packing from behind racks and
the water pan in the bottom of the unit.
5. Peel off any protective covering from the exterior of the
cabinet.
6. The cabinet is now ready for location and use.
Place the humidified holding cabinet in an area that allows
the doors to be opened without interference of loading and
unloading product. Also, keep the unit level for proper
operation.
No minimum clearances are required for the rear and sides
of the cabinet.
To avoid electrical shock,thecabinet must beadequately
andsafelygrounded(earthed)accordingtolocalelectrical
codes,andthisappliancemustbeequippedwithanexter-
nalcircuitbreakerwhichwilldisconnectallungrounded
(unearthed)conductors. The mainpowerswitchonthis
appliancedoesnot disconnectall line conductors.
(FOREQUIPMENTWITHCEMARKONLY!)
Topreventelectric shock hazardthis appliancemust be
bondedtootherappliancesortouchablemetalsurfaces in
closeproximity to thisappliancewithanequipotential
bondingconductor.This applianceisequipped withan
equipotentiallugfor this purpose. The equipotential lug is
markedwiththefollowingsymbol
If the electrical supply to the unit is a cord and plug, then the
electrical receptacle, for the plug, must be easily accessible.
Refer to the table below for the electrical ratings for the
HHC-980 and 983.
Model Volts Phase Amps Watts
HHC-980 208 1 13.8 2880
240 1 12.0 2876
220-240-CE 1 11.6 2792
HHC-983 120 1 17.3 2080
220-240-CE 1 8.3 1992
2-2 1004
2-2. UNPACKING
(Continued)
2-3. LOCATION
2-4. ELECTRICAL
CONNECTION

Model HHC-980/983
Theautomaticwater-fillsystemrequiresa1/4inch,maximum
100psi (690 kPa), waterconnection. Awaterconditioner orfilter,
andashut-offvalveinthesupplylineisrecommended.
Followthesesteps whenmakingthe watersupplyconnection:
1. Flushincomingwaterline.
2. Using pipejointcompound on thethreads, screw thebrass
elbowintothe fittingon theleft sidethe cabinet. Usinga 1inch
wrench,securethefittingnutwhiletighteningtheelbow.
Figure2-1.
3. Connect1/4inchtubingtothefemalequick-disconnectfitting,
suppliedwith thecabinet. Figure 2-2
4. Attach femalequick-disconnect tothemale quick-disconnect
onthe elbow.
Thisunitasmanufactured requirestheinstallation ofanappro-
priateback-siphoningdevice (asper NationalPlumbing Code
ASA-A40:8-1955)to be connected to thewaterinlet line.
Thisdeviceto beconnected inaccordance withbasic plumbing
codeoftheBuildingOfficialsand CodeAdministratorsInterna-
tional,Inc. (BOCA),and theFoodService SanitationManual
oftheFood andDrugAdministration(FDA).
Figure 2-21
107 2-3
2-5. WATER SUPPLY
CONNECTION
Figure 2-1

Model HHC-980/983
2-6 CABINET DIMENSIONS
AND WEIGHTS
31-3/4” 24-3/4”
(806 mm) (628 mm)
HHC-980 HHC-983
Unit Height Width Depth ShippingWeight
HHC-983 38”(965 mm) 24-3/4”(628 mm) 31-3/4” (806 mm) 220 lbs (100 kg)
HHC-980 72-1/4”(1835 mm) 24-3/4” (628 mm) 31-3/4”(806 mm) 367 lbs (167 kg)
2-4 803
72-1/4”
(1835 mm)
24-3/4”
(628 mm)
38”
(965 mm)
31-3/4”
(806 mm)

Model HHC-980/983
3-1 1 PowerSwitch Arocker switchthat sendselectricalcurrent tothe operating
componentswhenturned on.
3-1 2 TemperatureLED Lightswhenthecontrol callsfor heat,andtheunitshould start
heating. Itgoes outonce thetemperatureinside thecabinet
reachestheprogrammed temperaturesetting.
PresstheTemperature Button to setthe cabinet temperature.
3-1 3 DigitalDisplay Showsthecabinet temperature,humidity settings,andtheselec-
tionsin theProgram mode.The temperatureof thecabinet
isshown by pressingtheINFO button. If thetemperature
exceeds 300 °F (149°C), the display reads “E-5”, TOO HOT”.
3-1 4 HumidityLED Lightswhenthe controlcalls forhumidity. Itgoesout oncethe
humidityinsidethecabinet,reachestheprogrammedhumidity
setting.
PresstheHumiditybuttontosettherelativehumidityinsidethe
cabinet,and tochoose between theProofing and Holdingmodes,
whentheunit isturnedon.
3-1 5 PresstheInfo buttonto displaythe currentcabinethumidityand
temperature,and time anddate. Also, in theprogrammode, it
stepsback to the previous parameter.
3-1 6 & 7 Areusedto adjustthe valueof thecurrently displayedsetting in
theProgram mode.
8 Thisbutton is used toaccess the Program modes.
Also,once in the Programmode, it is usedtoadvance
tothe nextparameter.
3-1 203
SECTION 3. OPERATION
3-1. INTRODUCTION
3-2. OPERATING CONTROLS
This section provides operating procedures for the humidfied
holding cabinet. Read the Introduction, Installation, and
Operation Sections before operating the unit.
This section also contains explanations of all controls, along
with operating procedures and daily maintenance.

Model HHC-980/983
1 2 3 4 5 6 7 8
Figure 3-1
Control Decal
803 3-2
3-2. OPERATING CONTROLS
(Continued)

Model HHC-980/983
Beforeusingtheheatedholdingcabinet,thoroughlycleanthe
unitasdescribedintheCleaningProceduresSectionofthis
manual.
1. Plug unit into electrical receptacle, or turn on wall circuit
breaker. With the Power Switch turned to OFF the
display shows “POWER OFF.”
Even though power switch is off, it does not dis-
connect all electrical supplies to the controls.
To avoid electrical shock or component damage,
unplug power cord, or turn off wall circuit breaker
before servicing any electrical components.
2. Connect or turn on water supply.
3. Turn the Power Switch to ON, and the display
shows “HHC-983” or “HHC-980”.
4. Press the Temperature button to set the desired cabinet
temperature. While the LED is flashing, press the UP and
DOWN buttons until the desired temperature shows in
the display. Preset at 165o F (74o C).
5. Press the Humidity button to set the desired cabinet
humidity (OFF, then 10% to 90%). While the LED is
flashing, press the UP and DOWN buttons until the
desired temperature shows in the display. Preset at
50%.
6. Allow the unit to preheat for about 1 hour prior to
placing product in the cabinet. This allows the interior
conditions to stabilize.
3-3 903
3-3. START-UP

Model HHC-980/983

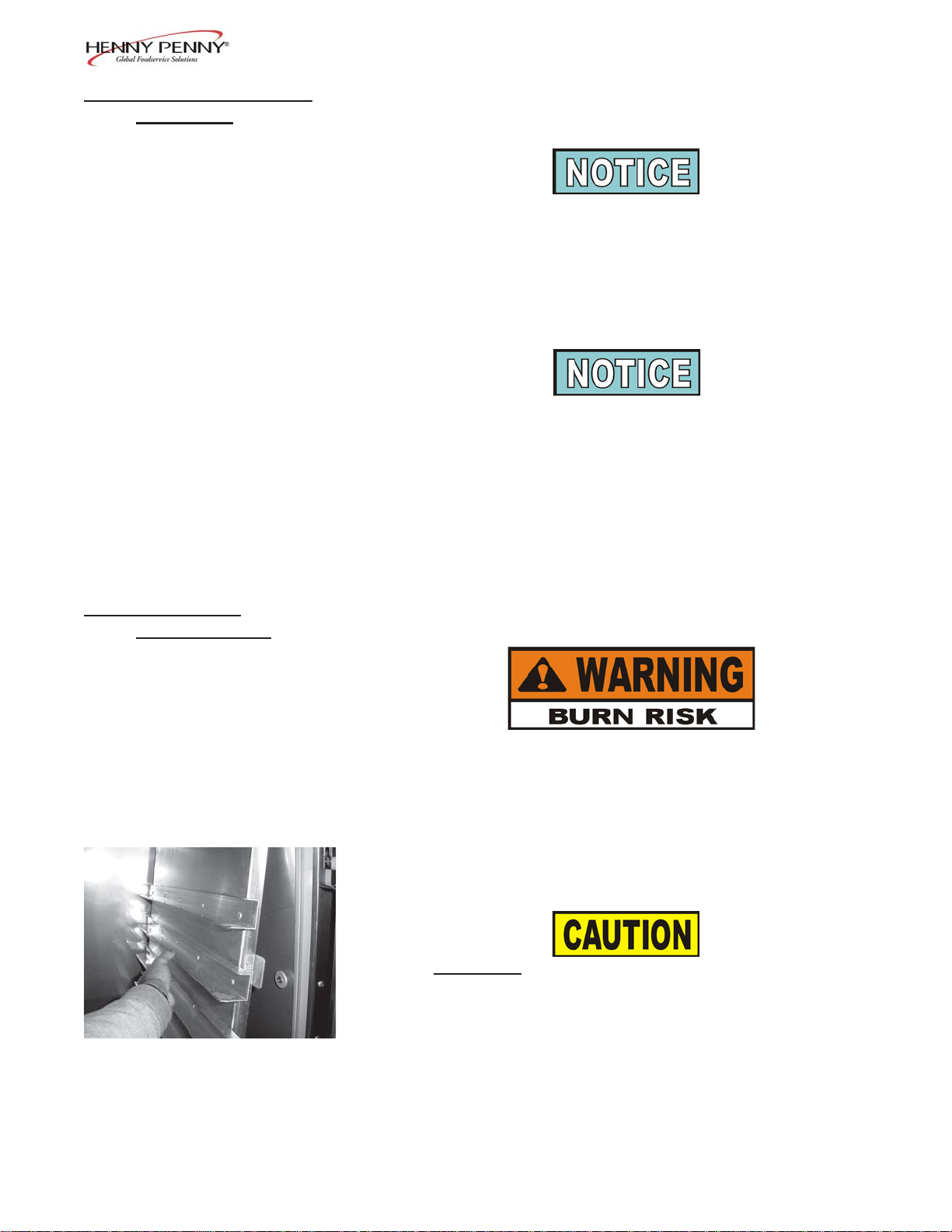

3-4. OPERATION WITH 1. The LEDs above the Temperature and Humidity
PRODUCT buttons go out when the desired temperature and
humidity are reached inside the cabinet.
The minimum holding temperature for potentially
hazardous product is 150o F (66o C). Also, the
cabinet product load capacity for the full size units
is 375 lbs. (170 kg.), and 125 lb. (57 kg.) for the
half-sized units.
2. Place product into cabinet.
If the float switch in the water pan senses low, or no
water after 5 minutes, “WATER PAN NOT
FILLING, CHECK WATER SUPPLY” shows in the
display.
Hint: Open the doors only as necessary to load and unload
product. This helps to keep the interior conditions
constant and saves energy.
3-5. CLEANING Daily:
PROCEDURES 1. Turn all controls off and disconnect electrical supply.
Toavoidburns, allow the unit to coolbeforecleaning.
2. Open doors and remove all pans and racks from
unit, and take them to a sink to thoroughly clean.
Figure 3-3.
3. Wipe interior and exterior of cabinet with damp cloth,
soap and water.
Do not use abrasive cleaners, or cleansers/
sanitizers containing chlorine, bromine, iodine, or
ammonia chemicals. These abrasives and chemi-
cals deteriorate the stainless steel and shorten the
life of the cabinet.
DO NOT use a water jet (pressure sprayer) to
clean the unit, or component failure could result.
803 3-4
Figure 3-3

Model HHC-980/983
3-5. CLEANING 4. Wipe the control panel with a damp cloth. Do not
PROCEDURES (Continued) splash water around controls.
5. Reinstall racks, and leave a door partially open over
night to allow interior cabinet to thoroughly dry.
Weekly:
1. Remove pans and racks from cabinet.
2. Disconnectwater supply atside of cabinet. Open drain
valve and empty water pan into a shallow pan or floor
drain. Figure 3-4.
HOT WATER! Do not place your hand under the
drain while draining the unit. Failure to follow this
warning could result in severe burns and injury.
3. Remove concentration ring assembly from water pan.
Figure 3-5.
Concentration ring could be HOT! Allow to cool
before removing, or burns could result.
4. Wash the concentration ring in a dishwasher or sink.
5. Liberally spray the water pan with a concentrated
deliming agent and let stand for 10 minutes.
6. Scrub the pan with a brush and flush with water.
7. Return the concentration ring assembly to the water
pan.
8. Reinstall the racks and pans.
9. Unit is now ready for use.
3-5 803
Figure 3-4
Figure 3-5

Model HHC-980/983
4-1. INTRODUCTION Thissectionexplainsthefollowingprogrammingfunctions.
• Clock-Set
• SpecialProgramming
4-2. “HIDDEN BUTTONS” Toprogramthe followingfeatures, 5hiddenbuttonsmustbe
pressed. SeeFigure 3-7before continuinginthis section.
4-3. CLOCK SET 1. Press and hold for 5 seconds, andLEVEL2, then
(Time-of-day,date,and
day of the week) “CLOCKSET” showsin display.
2. After 5seconds, “ENTER CODE”shows indisplay.
3. Press hidden buttons . See Section 4-2.
Atotal of 5hidden buttons exist. If thewrong code is
pressed,“INVALIDCODE”scrolls across the display,and
thecontrolsautomatically exitstheProgram Mode.
4. “CS-1, SET,HOUR”, and the timeofday (with the hour
flashing)showsinthedisplay.
5. Press the to change the hours.
4-1 803
SECTION 4. PROGRAMMING

Model HHC-980/983
4-3. CLOCK SET 6. Press and“CS-2, SET, MINUTE” shows in the
(Continued) display,withtheminutesflashing.
7. Press to change the minutes.
8. Press and“CS-3, SET, MONTH” shows in the
display,alongwiththedate(monthflashing).
9. Press to change the month.
10. Press and“CS-4,SET,DATE”shows in thedisplay,
withthedateflashing.
11. Press to change the date.
12. Press and “CS-5, SET,YEAR” shows in the display,
withtheyearflashing.
13. Press to change the year.
14. Pressand hold toexitprogramming.
402 4-2

Model HHC-980/983
4-4. SPECIAL PROGRAMMING Thismodeallowsyoutoprogramthefollowing:
SP-1 • Fahrenheit/Celsius
SP-2 • Lock/Unlock
SP-3 • AirTemperatureSetpoint
SP-4 • HumiditySetpoint
SP-5 • OutofWaterTripPoint
SP-6 • CleanWater Pan Setpoint
SP-7 • SystemIntialization
SP-8 • AudioVolume
SP-9 • AudioTone
SP-10 • AudioEffects
SP-11 • LanguageOptions
SP-12 • CEHeatRegulation
SP-13 • WaterFillOption
SP-1 Fahrenheit/Celsius 1. Press and holdthe until“LEVEL2”,then“CLOCKSET”
showsinthedisplay.
2. Press again,then “SPPROG”shows in display.
3. After 5seconds, “ENTER CODE”shows indisplay.
4. Press hidden buttons . See Section 4-2.
Atotal of 5hidden buttons exist. If thewrong code is
pressed,“INVALIDCODE”scrolls across the display,and
thecontrolsautomatically exitstheProgram Mode.
5. “SP-1,TEMP,UNITS” and “oF”or “oC” shows in the display.
6. Press the tochangetemperatureunits.
SP-2 Lock/Unlock 7. Press and “SP-2, LOCK/UNLOCK PROGRAMMING’
showsin display,along witheither LOCK orUNLOCK.
8. Press tochange lock theprogramming or unlock
theprogramming.
4-3 803

Model HHC-980/983
4-4. SPECIAL PROGRAMMING
(Continued)
SP-3 AirTemperatureSetpoint 9. Press and “SP-3,AIRTEMPSETPOINT,” and the
presetcabinettemperatureshowsin display.
10. Press to change theair temperature setpoint,
140oF (60o C) minimum,210o F(99o C)maximum.
SP-4 HumiditySetpoint 11. Press and “SP-4, HUMIDITYSETPOINT,” and the
presethumiditysetpointshowsindisplay.
12. Press tochange the humidity setpoint, 0 to 90%.
SP-5 OutofWaterTrip Point 13. Press and “SP-7, OUT OF WATER TRIPPOINT” and
thepreset trippoint temperature showsin display. If thefloat
switchfails, thetrip pointtemperature isthe waterpantempera-
tureat whichthe controlsenses the water pan is out ofwater.
We recommend a trippoint temperature of 450oF (232o C).
14. Press to change the out-of-water trip point.
SP-6 CleanWaterPanSetpoint 15. Press and “SP-8, CLEAN WATER PAN SETPOINT,”
andthe preset temperature,at which thecontrols senses that
thewater panneeds cleanedoflime, showsin thedisplay.
We recommend a setpoint temperature of 425oF (218o C).
16. Press to change the setpoint.
SP-7 SystemInitialization 17. Press and “SP-9, DO SYSTEM INIT” shows in display.
(FactorySettings)
18. Pressand hold untilthe display counts down from 3, and
thedisplay flashes“-INIT-,”then “INIT*DONE.” Thiscom-
pletestheinitialization,and setsthecontrol tofactorysettings.
402 4-4

Model HHC-980/983
4-4. SPECIAL PROGRAMMING
(Continued)
SP-8 AudioVolume 19. Press and “SP-10,AUDIO VOLUME,” and the volume
setting(1 to 10)shows in display. Press hidden button
totest volume. See Section 4-2.
20. Press to change the volume.
SP-9 AudioTone 21. Press and “SP-11,AUDIO TONE -(Hz)-” and the tone
setting(50 to2000)shows indisplay.
22. Press to change the tone setting.
SP-10 Audio Effects 23. Press and “SP-12,AUDIO EFFECT” and the effect
setting(0 to3) showsin display.
24. Press to change the pattern of the tone.
SP-11 LanguageOptions 25. Press and “SP-13, LANGUAGE,” and the preset
languageshowsinthedisplay.
26. Press tochangeto English, French, German,
Spanish,orPortuguese.
4-5 402
