English ( USA )
Safety
- The product must be installed in accordance with applicable
NEC standards by a qualified electrician familiar with the
installation of exterior lighting fixtures.
- The product must be operated under specified voltage at all
times.
- Do not install if parts are damaged.
- Power must be disconnected while installing or servicing to
avoid electrical shock.
- Failing to comply with warnings and installation steps in this
document might void warranty.
- Do not touch the light source.
- Make sure that temperature of the product is at a safe level before
touching.
- Do not allow cables to touch sharp edges of metal parts or other sharp
objects to avoid damage or abrasion.
- Check all of the cable connections including grounding before
powering the product.
- Check the proper grounding of the metal housing before powering the
product.
- Only use the product for its intended purposes.
- Do not use accessories not approved or recommended by
HEPER.
- Installation of inground luminaires shouldn't be done during periods
of excessive rain.
- The top surface of the plastic sleeve should not be allowed to sink
below finished grade and collect moisture. Also it shouldn't allowed to
be over finished grade to avoid any tripping hazard.
- Replace any broken/cracked protective surface with a new
one

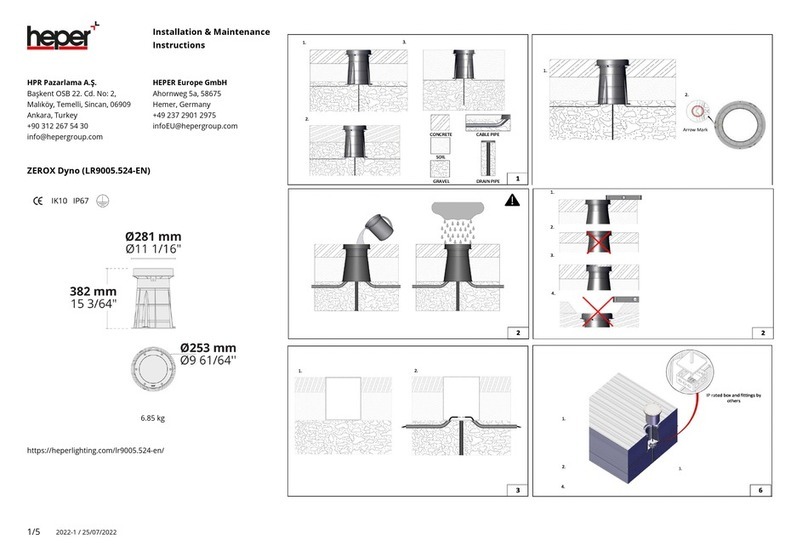

Installation
- Install a minimum of 12-18'' or 300mm depth of pea gravel below
luminaire to provide drainage. If the luminaire will be completely
encased in concrete or a substrate which has questionable drainage,
then the use of a drainage pipe to re-direct rain or water flowing into
the luminaire is required
- Prior to installing the luminaire into the plastic sleeve, fill the sleeve
with water and make certain it drains completely within 30 minutes.
- Prepare cavity and be sure that certain conduit and power supply
cable are accessible and have ample slack to make appropriate
connections.
- Install plastic sleeve into prepared cavity.
- Backfill the cavity around the plastic sleeve with the appropriate
medium. Make certain that the plastic collar remains level and flush
with finished grade or concrete.

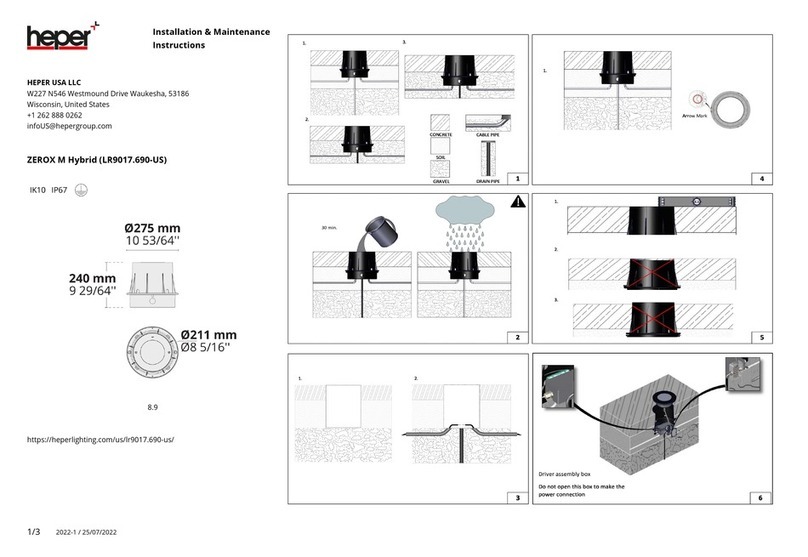

- Align the “HEPER” Logo on the luminaire, insert with an aiming arrow
on the plastic sleeve as shown on the visual.
- Secure the luminaire to plastic sleeve as shown on the visual.
- The final state of the luminaire will be as shown on the visual. The
luminaire can be removed using case removing vacuum accessory to
access electrical connection.
Cleaning - Maintenance
- The product was designed and manufactured to operate for a long
period of time. To ensure maximum lifespan of the product, regular (i.e.
every six months) visual inspection and cleaning with a solvent-free
cleaner using a soft cloth is recommended.
- Do not clean or service while the product is power connected.
Disposal
- In accordance with EU Directive WEEE (Waste Electrical and
Electronic Equipment), luminaires must not be disposed of with
other household waste. At the end of their life, luminaires must
be taken to the appropriate local facility available for the
disposal or recycling of electronic products.
USA Wire Colour Codes
- Ground - GREEN
- Line - BLACK
- Neutral - WHITE
- Dim(+) - RED/PURPLE
- Dim (-) - ORANGE
Disclaimer
- HEPER reserve the right to make technical and design changes.
