HEX Hixon User manual
Affix Serial Number
HERE
Hixon
Large Metal Storage Shed Assembly Guide
6 x 6 ft (1.8 x 1.8 m)
IMPORTANT: PLEASE REGISTER YOUR HEX LIVING PRODUCT BEFORE ASSEMBLY
Using the unique serial number, simply register your product at www.hexliving.co.uk
to access and download the HEX Living lifetime warranty and video assembly instructions.
Doc Ref: 699-0809/B
i
Hixon: Advisory Data

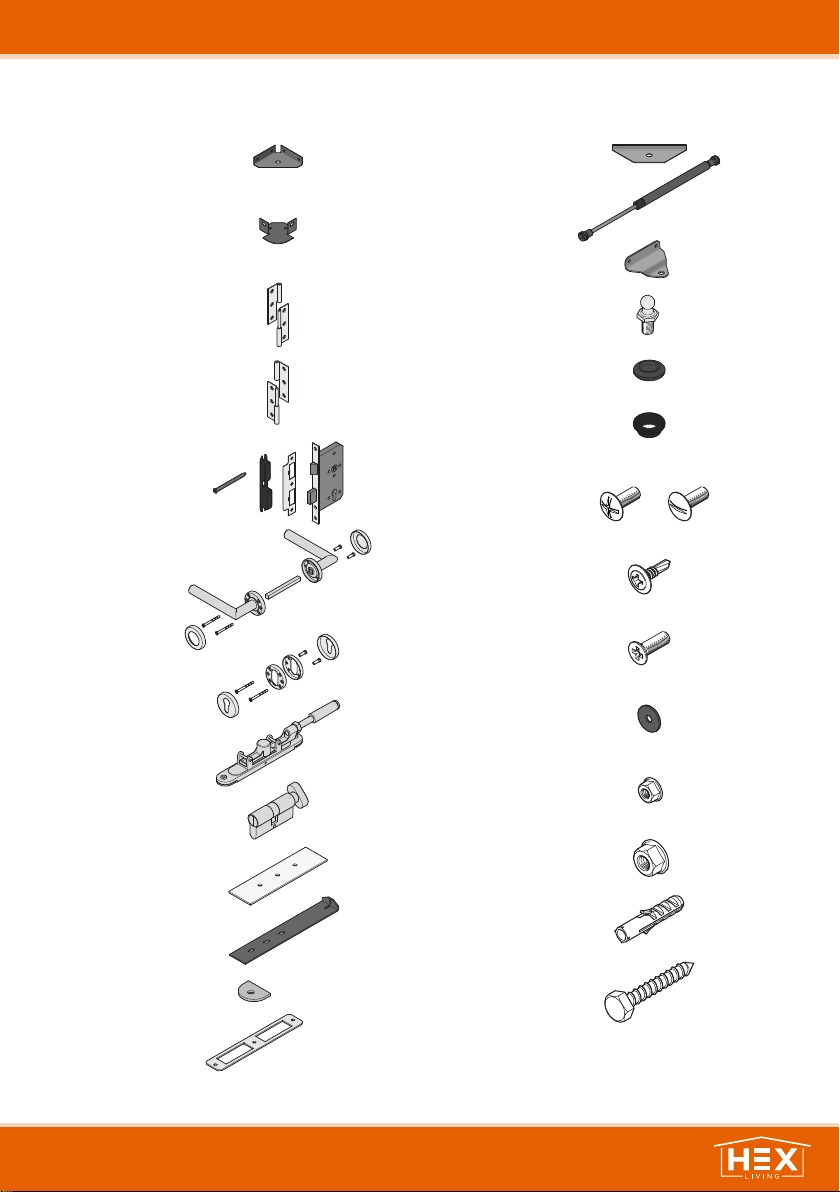

Part Ref: FK7
Expansion Plug
Qty: x4
Part Ref: FK8
M8 x 50mm Coach Screw
Qty: x4
IMPORTANT: IT IS ADVISABLE THAT THE PRODUCT IS ASSEMBLED AT, OR AS CLOSE AS POSSIBLE TO WHERE IT WILL BE FINALLY LOCATED
The objec�ve of this instruc�on is to illustrate the recommended assembly sequence for this product, any devia�on from this will be the sole
responsibility of whoever carries out the assembly.
GROUND ANCHOR KIT
A Ground Anchor Kit is supplied, this is to secure the product to a solid
concrete base, the shed has x4 clamp plates in each corner.
WE STRONGLY ADVISE THAT THE SHED IS ANCHORED USING THIS KIT
assembled, access the clamp brackets by removing the appropriate
be easier to have assistance. x2
Eye Protection Gloves
TWO PERSON ASSEMBLY
GROUND ANCHOR KIT
CARING FOR YOUR HEX LIVING PRODUCT
PRODUCT REGISTRATION
PERSONAL PROTECTION EQUIPMENT
PLEASE READ THIS DOCUMENT FULLY PRIOR TO STARTING ASSEMBLY PROCEDURE
Your HEX Living product is designed to stand the test of me, which is why we’re happy to oer a
With zero maintenance reuired, simply assemble your HEX
Periodically, you might want to give your product a clean, these simple care ps are not essenalto the performance of your product:
-
Remove surface dirt with plain water using a jet wash or sponge, the coang on our products will ensure dirt or mud simply
wipes away.
-
Periodically clear the roof of fallen leaves.
-If your product has guering, remove leaves and garden debris as you would on your home.
IMPORTANT: Prior to assembly, please ensure you have registered your HEX Living product using the uniue serial number found on
the cover of this document, please visit www.hexliving.co.uk to register your product and access the HEX Living lifeme warranty and
Ensure there is adequate clearance where the product is to be located:
1800 x 1836 x 2137mm
Footprint dimensions (W x D) 1700 x 1700mm
Clearance required for door to open (W x H) Doors open outwards 1454 x 1819mm
Exterior dimensions including overhang (W x D x H)
Part Ref: 0215-01
Qty: x2
Part Ref: 0212-01
Qty: x2
Part Ref: 0212-02
Qty: x3
Part Ref: 0215-08
Qty: x2
Part Ref: 0212-03
Qty: x3
Part Ref: 0205-11
Qty: x1
Part Ref: 0205-12 (1850 x 625mm)
Qty: x6
Part Ref: 0205-13 (1850 x 425mm)
Qty: x3
Hixon: Assembly Guide
1
2

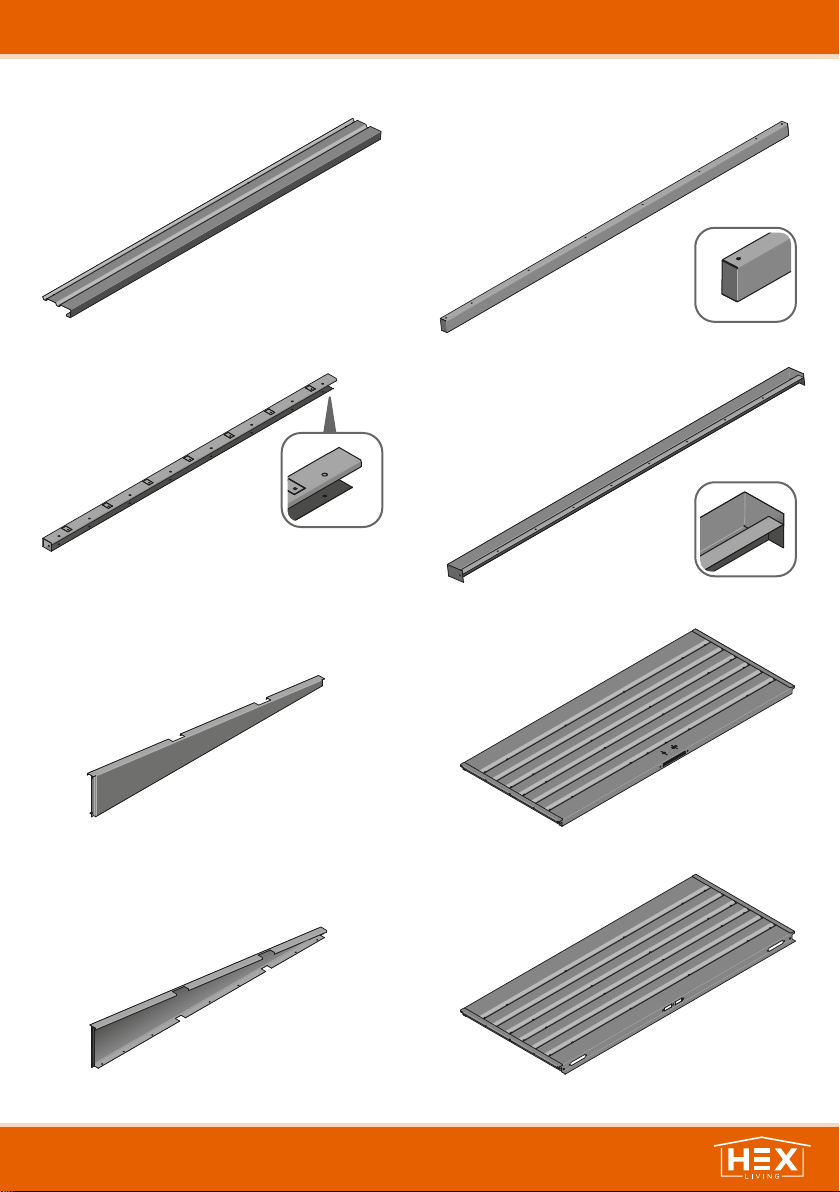

Part Ref: 0212-05 (1800 x 625mm)
Qty: x4
Part Ref: 0212-06 (1800 x 215mm)
Qty: x1
Part Ref: 0205-14 (1885mm Long)
Qty: x2
Part Ref: 0205-15 (2100mm Long)
Qty: x2
Part Ref: 0205-16 (R/H)
Qty: x1
Part Ref: 0205-17 (L/H)
Qty: x1
Part Ref: 0212-04
Qty: x2
Part Ref: 0212-14
Qty: x2
Part Ref: 0212-13
Qty: x2
Part Ref: 0215-02
Qty: x2
Part Ref: 0215-06
Qty: x2
Hixon: Assembly Guide
3
Part Ref: 0212-07
Qty: x2
Part Ref: 0215-11
Qty: x1
Part Ref: 0212-11
Qty: x1
Part Ref: 0215-03
Qty: x1
Part Ref: 0215-05
Qty: x1
Part Ref: 0205-36 (Right-hand)
Qty: x1
Part Ref: 0205-37
Qty: x1
Part Ref: 0212-12
Qty: x1
Hixon: Assembly Guide
Hixon: Assembly Guide
4
Part Ref: 0215-12
Qty: x1
Part Ref: 0215-13
Qty: x1
Part Ref: 0215-10
Qty: x2
Part Ref: 0215-09
Qty: x2
Part Ref: 0205-44
Qty: x1
Part Ref: 0215-15
Qty: x4
Part Ref: 0205-39
Qty: x4
Part Ref: 0205-38-01
Qty: x2
Part Ref: 0205-38-02
Qty: x2
Part Ref: 0215-04
Qty: x1
Part Ref: 0205-51
Qty: x1
ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE
SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION
5
Hixon: Assembly Guide
Part Ref: 0203-39
Qty: x4
Part Ref: 0205-66
Qty: x2
Part Ref: 0203-34 (Assembly)
Qty: x1
Part Ref: 0203-35
Qty: x2
Part Ref: 0203-36
Qty: x1
Part Ref: 0203-37
Qty: x4
Part Ref: 0203-32 (Assembly)
Qty: x1
Part Ref: 0203-27 (L/H Assembly)
Qty: x2
Part Ref: 0203-28 (R/H Assembly)
Qty: x2
Part Ref: 0203-33 (Assembly)
Qty: x1
Part Ref: 0203-40
Qty: x4
Part Ref: 0203-41
Qty: x1
Part Ref: FK7
Expansion Plug
Qty: x12
Part Ref: FK8
M8 x 50mm Coach Screw
Qty: x12
Part Ref: FK2
No.8 x 13mm Eco Fix
Qty: x32
Part Ref: FK3
M4 x 12mm C’Sunk Pozi Pan
Qty: x31
Part Ref: FK6
M8 Serrated Flange Nut
Qty: x5
Part Ref: FK4
M4 Rubber Washer
Qty: x34
Part Ref: 0203-03
Qty: x4
Part Ref: 0203-15
Qty: x4
Part Ref: 0205-57
Qty: x4
Part Ref: 0205-63
Qty: x2
Part Ref: 0205-68
Qty: x4
Part Ref: 0205-53
Qty: x1
Part Ref: 0205-52
Qty: x1
Part Ref: FK5
M4 Serrated Flange Nut
Qty: x261
Part Ref: FK1
Qty: x235
OR
ENSURE ALL ITEMS LISTED ARE PRESENT PRIOR TO STARTING ASSEMBLY PROCEDURE
SCALE OF ITEMS WILL VARY TO AID VISUAL IDENTIFICATION
6
Hixon: Assembly Guide
0203-03
PLEASE NOTE: SECTION VIEW OF TYPICAL FIXING METHOD
FK1

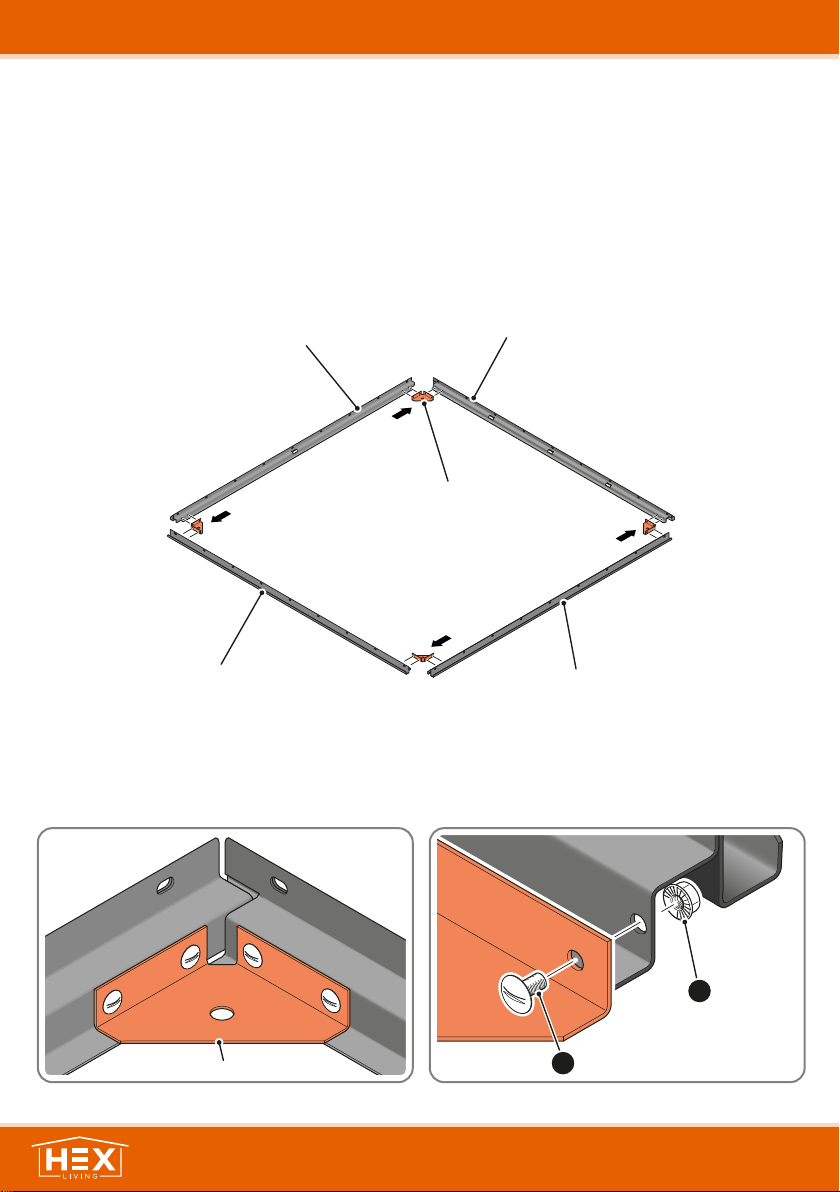

ASSEMBLY STAGE 1
FK5
0215-01
0203-03 (x4)
0205-01
0212-01
0212-01
7
Hixon: Assembly Guide
0212-02
PLEASE NOTE:
ASSEMBLY STAGE 2
0212-02 (x3)
Hixon: Assembly Guide
0215-08
PLEASE NOTE:
ASSEMBLY STAGE 3
3A 3B
3A
3B
3A
0215-08 (x2)
8
Hixon: Assembly Guide
9
IMPORTANT: DO NOT SECURE ANY FIXING POINTS OTHER THAN THOSE INDICATED.
LOOSELY ATTACH WALL PANEL AT x2 LOCATIONS INDICATED ONLY.
FK1
FK5
FK6
4B
FK5

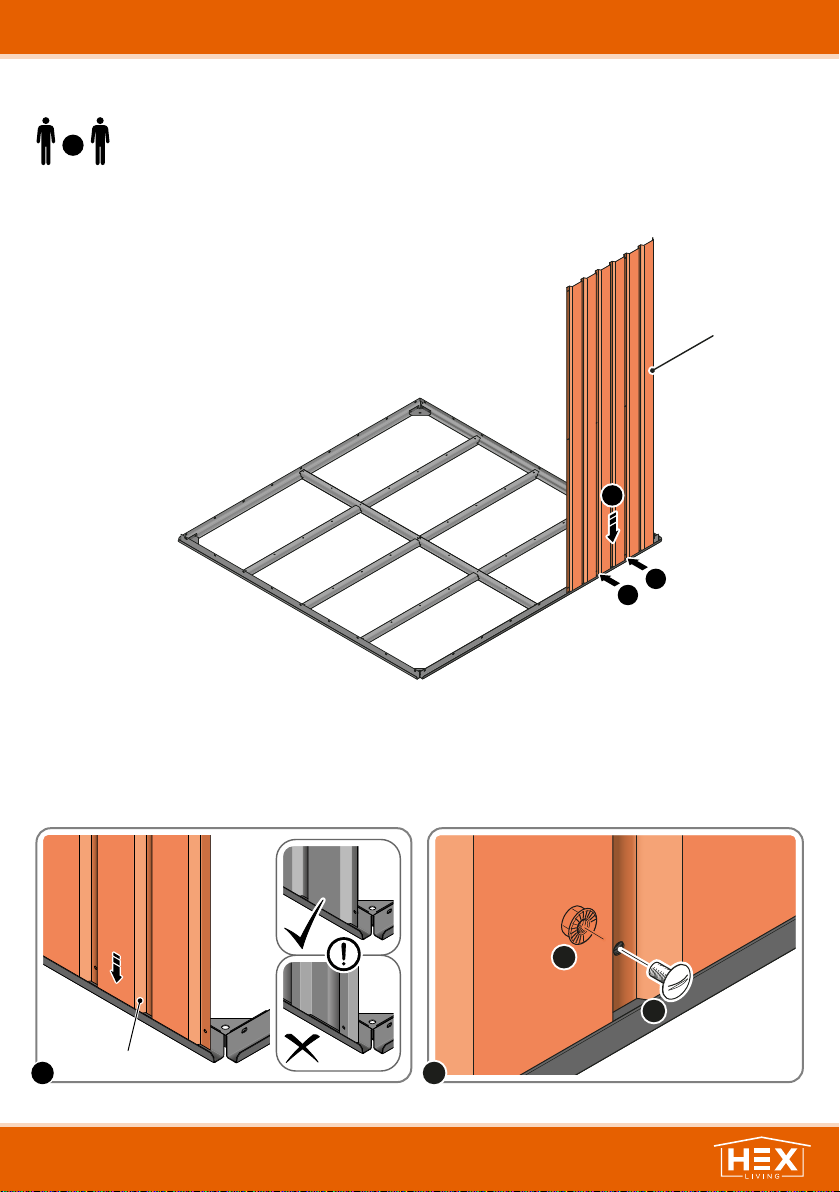

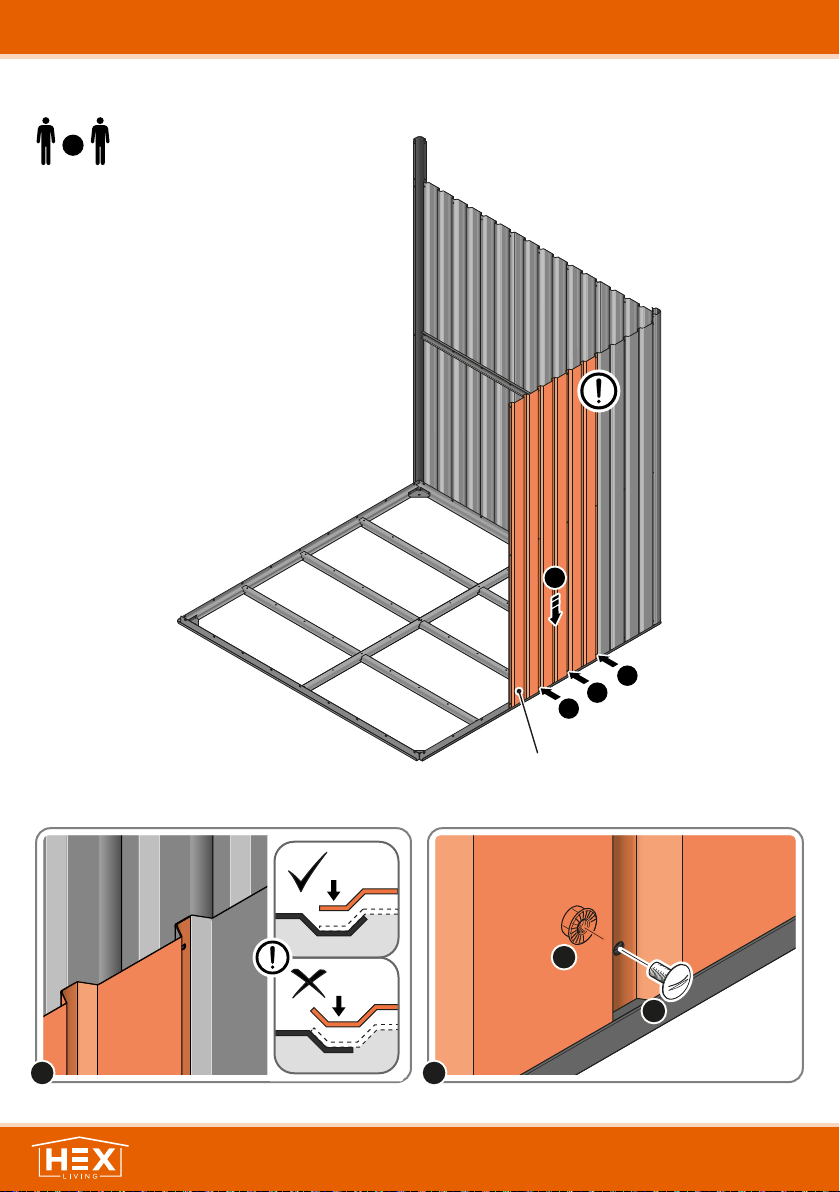

LOCATE AND LOOSELY ATTACH WALL PANEL 0205-12 (1850 x 625mm).
ASSEMBLY STAGE 4
x2
0205-12
4A
4B
4B
0205-12
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
4A
Hixon: Assembly Guide
10
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
LOCATE AND LOOSELY ATTACH CORNER POST 0205-15 (2100mm).
ASSEMBLY STAGE 5
x2
x3 HOLES AT TOP
0205-15
5B
5C
5A
FK1
FK5
FK6
IMPORTANT: DO NOT SECURE AT UPPER FIXING POINT AT THIS STAGE.
LOOSELY ATTACH CORNER POST AT LOCATION INDICATED ONLY.
FK5
OUTSIDE
INSIDE
OUTSIDE
INSIDE
5B 5C
Hixon: Assembly Guide
11
IMPORTANT: DO NOT SECURE AT OUTER FIXING POINT INDICATED.

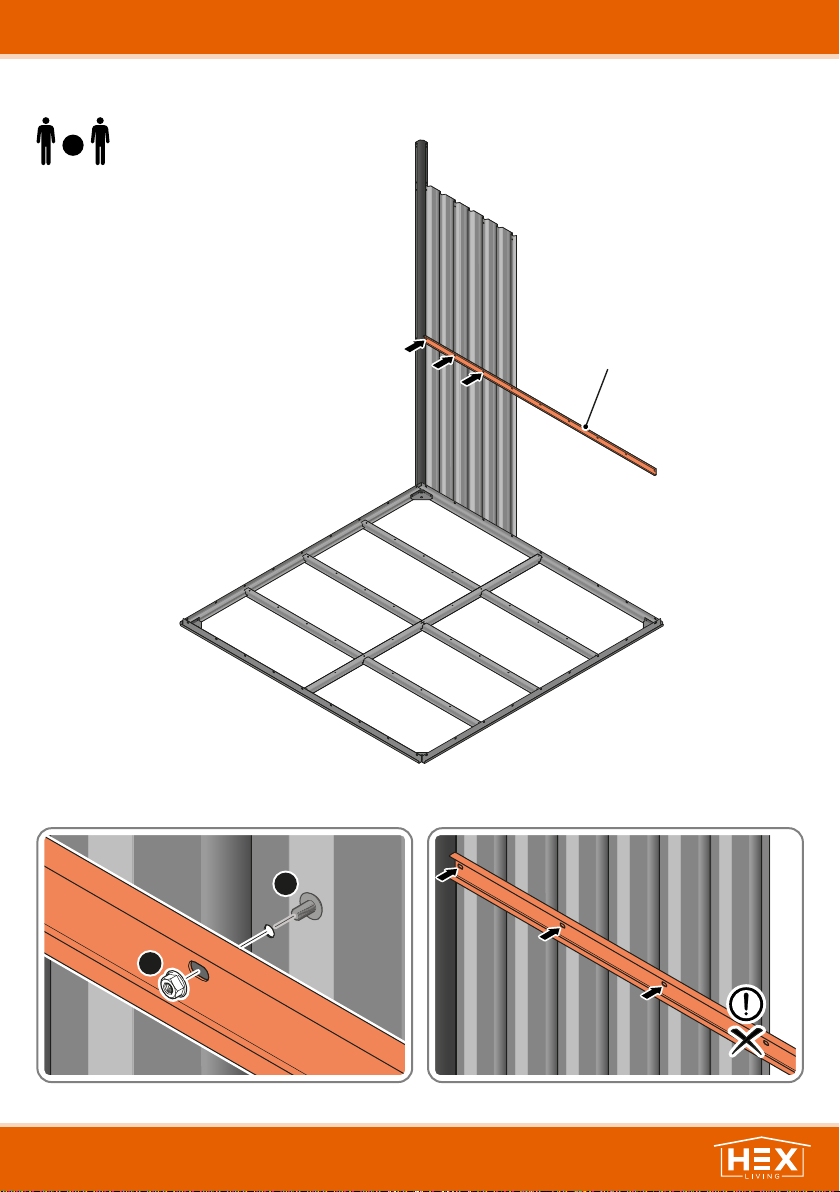

LOOSELY ATTACH AT x3 LOCATIONS INDICATED ONLY.
FK5
FK1
ASSEMBLY STAGE 6
x2
0212-03
Hixon: Assembly Guide
12
FK5
FK1
LOOSELY ATTACH AT x3 LOCATIONS INDICATED ONLY.
7B
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
LOCATE AND LOOSELY ATTACH WALL PANEL 0205-12 (1850 x 625mm).
ASSEMBLY STAGE 7
x2
0205-12
7A
7A
7A
7B
7B
7B
FK1
LOCATE AND LOOSELY ATTACH WALL PANEL AT x3 LOCATIONS INDICATED.
FK5
INSIDE
OUTSIDE
INSIDE
OUTSIDE
7A
Hixon: Assembly Guide
13
FK5
FK1
LOOSELY ATTACH AT x2 LOCATIONS INDICATED ONLY.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
8B

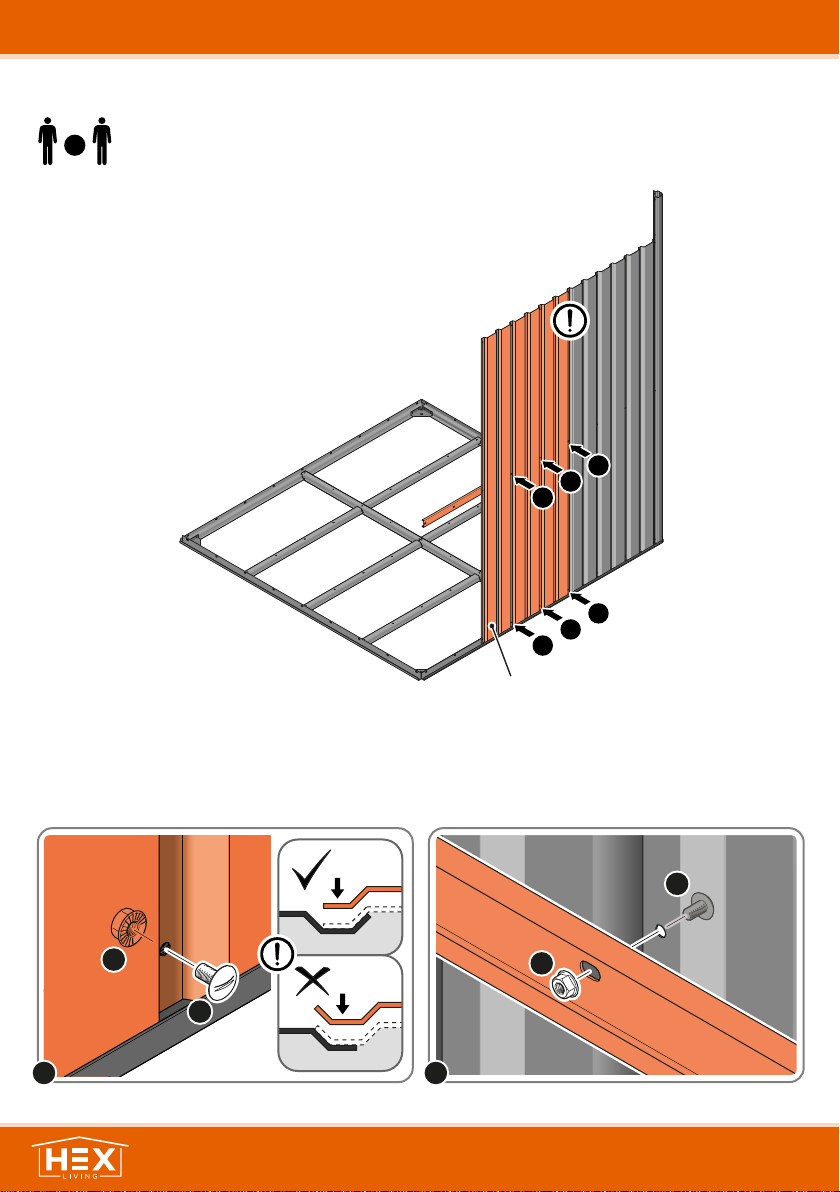

LOCATE AND LOOSELY ATTACH WALL PANEL 0205-12 (1850 x 625mm).
ASSEMBLY STAGE 8
x2
8B
8B
0205-13
8A
8A
FK1
LOCATE AND LOOSELY ATTACH WALL PANEL AT x2 LOCATIONS INDICATED.
FK5
INSIDE
OUTSIDE
INSIDE
OUTSIDE
8A
Hixon: Assembly Guide
14
FK1
FK5
FK6
IMPORTANT: DO NOT SECURE AT UPPER FIXING POINT AT THIS STAGE.
LOOSELY ATTACH CORNER POST AT x2 LOCATIONS INDICATED ONLY.
9A 9B

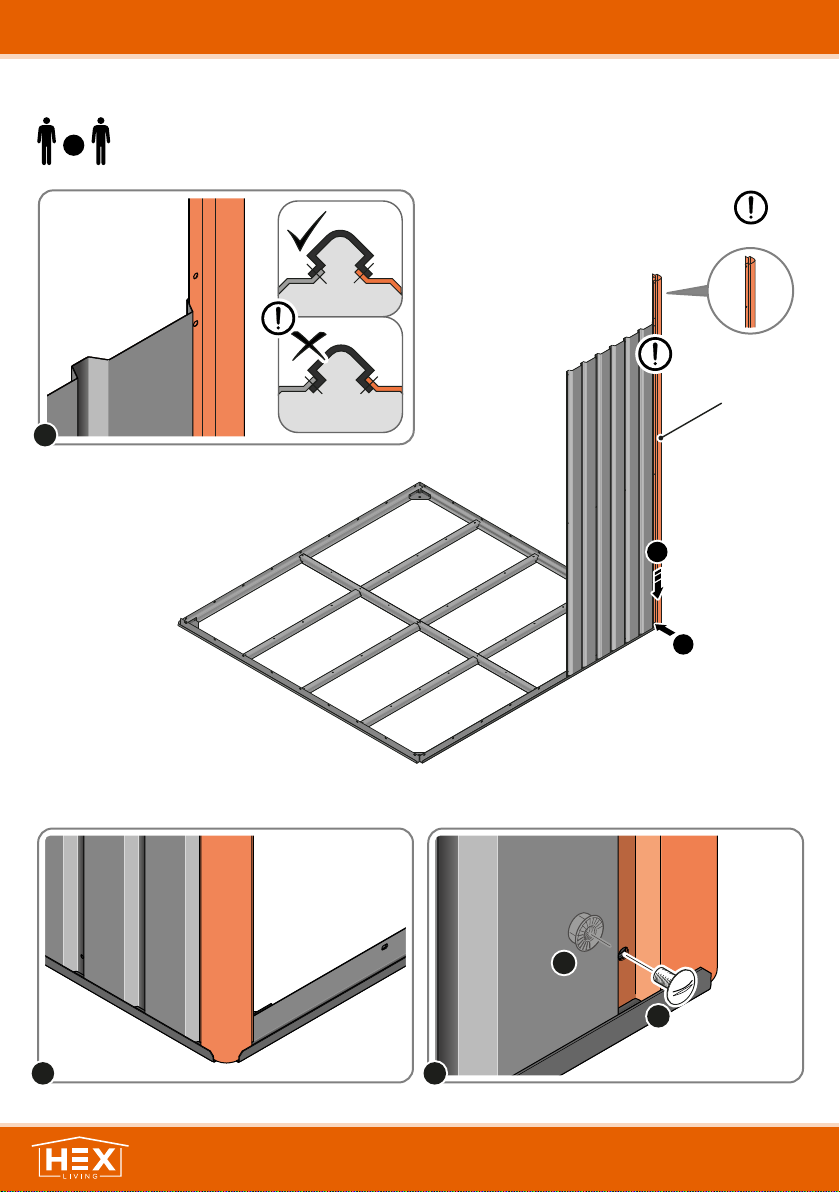

LOCATE AND LOOSELY ATTACH CORNER POST 0205-14 (1885mm).
ASSEMBLY STAGE 9
x2
FK5
9B
9B
9A
0205-14
x2 HOLES AT TOP
Hixon: Assembly Guide
15
IMPORTANT: DO NOT SECURE ANY FIXING POINTS OTHER THAN THOSE INDICATED.
LOOSELY ATTACH WALL PANEL AT x2 LOCATIONS INDICATED ONLY.
FK1
FK5
FK6
10B
x2
LOCATE AND LOOSELY ATTACH WALL PANEL 0205-13 (1850 x 425mm).
ASSEMBLY STAGE 10
FK5
10A
10B
10B
10A
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
OUTSIDE
INSIDE
OUTSIDE
INSIDE
0205-13
Hixon: Assembly Guide
16
IMPORTANT: DO NOT SECURE ANY FIXING POINTS OTHER THAN THOSE INDICATED.
FK1
FK5
FK6
11B
x2

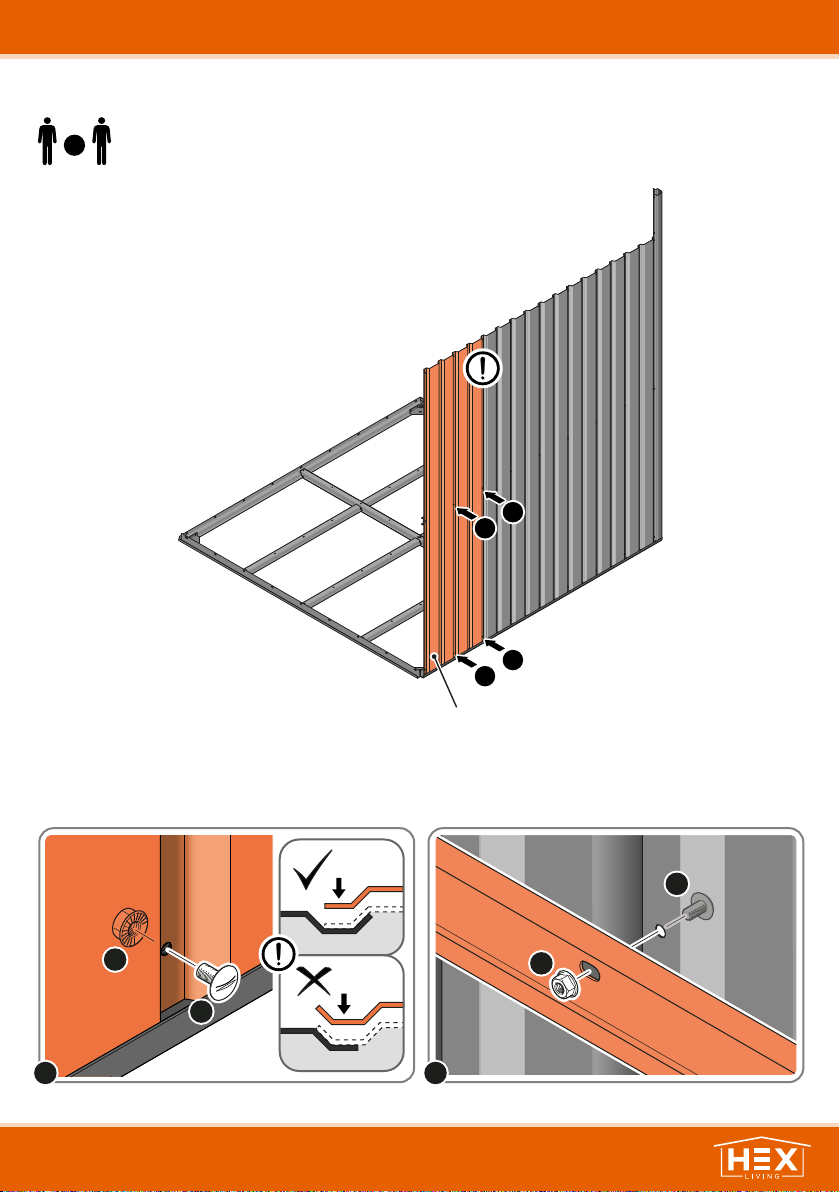

LOCATE AND LOOSELY ATTACH WALL PANEL 0205-12 (1850 x 625mm).
ASSEMBLY STAGE 11
FK5
0205-12
11A
11B
11B
11B
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
11A
INSIDE
OUTSIDE
INSIDE
OUTSIDE
Hixon: Assembly Guide
17
0212-03
IMPORTANT: DO NOT SECURE AT OUTER FIXING POINT INDICATED.
LOOSELY ATTACH AT x5 LOCATIONS INDICATED ONLY.
ASSEMBLY STAGE 12
FK5
FK1
Hixon: Assembly Guide
18
FK1
FK5
LOOSELY ATTACH AT x3 LOCATIONS INDICATED ONLY.
13B
LOCATE AND LOOSELY ATTACH WALL PANEL AT x3 LOCATIONS INDICATED.
IMPORTANT: ENSURE PANEL IS IN THE CORRECT ORIENTATION.
LOCATE AND LOOSELY ATTACH WALL PANEL 0205-12 (1850 x 625mm).
x2
ASSEMBLY STAGE 13
13B
13B
13B
0205-12
13A
13A
13A
FK1
FK5
INSIDE
OUTSIDE
INSIDE
OUTSIDE
13A
