HF 6850-75202B-80 User manual

A
B
C
D
Thank you for purchasing this quality product. Be sure to unpack carefully looking for small parts which may
have come loose during shipment.
Read all instruction and study the drawing carefully before starting the assembly process.

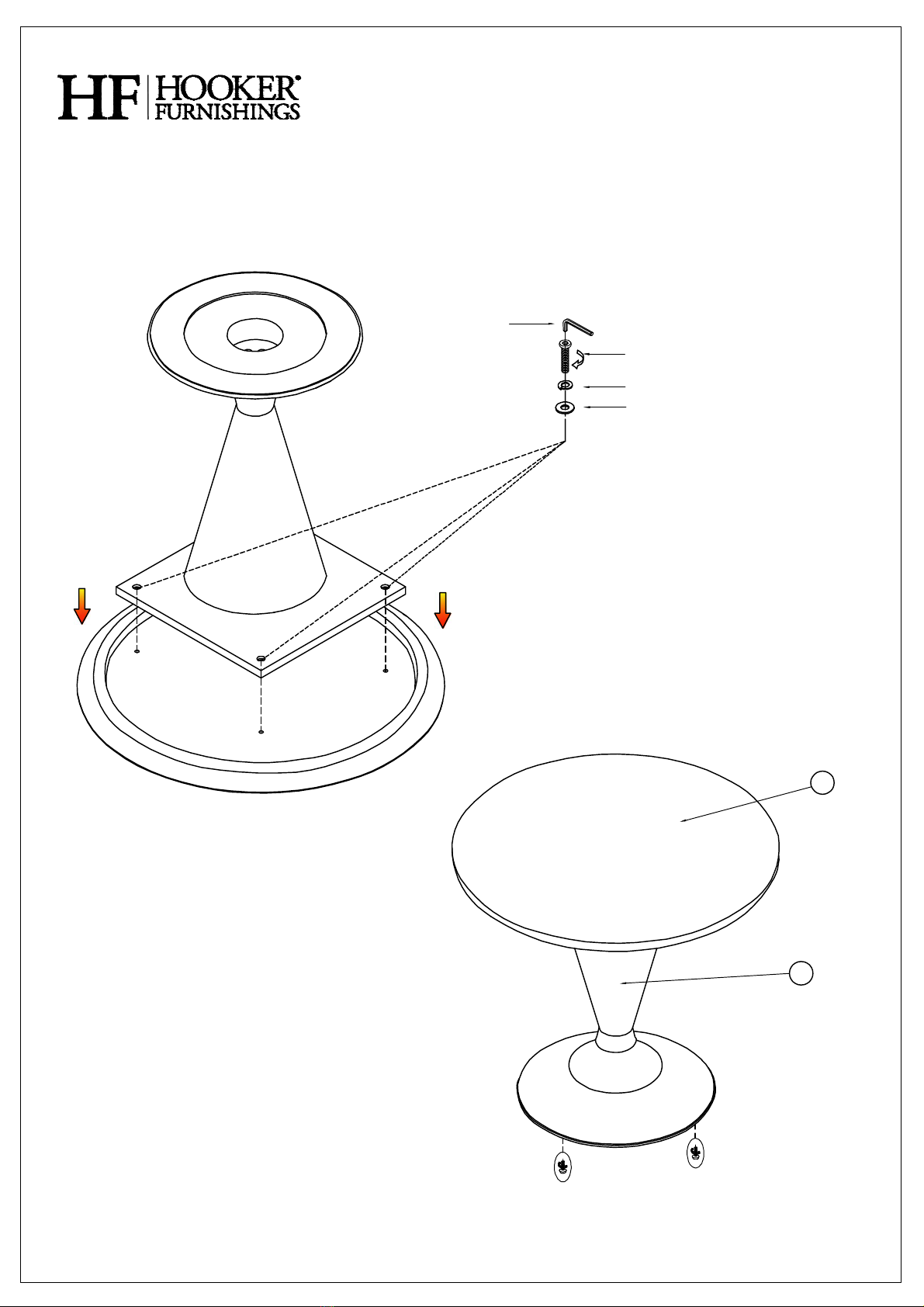

ASSEMBLY INSTRUCTION
Page 1 of 2
Adjust levelers if needed, to level case on uneven floor
5
16"×12×3
4pcs
5
16"×19×2
5
16"×1-1 2"
NO. QTY
A
B
C
Bolt
Flat washer
Lock washer
HARDWARE PACK
DRAWING DESCRIPTION SIZE
4pcs
D
NO. QTY
Table top
DRAWING DESCRIPTION
PART LIST
1pc
1
2
4pcs Base 1pc
5mm
Allen key 1pc
Remove
A
6850-75202T
6850-75202B
1
2
3
Step 1
Step 2
Item: 6850-75202B-80 Counter Height Table Base
6850-75202T-80 Counter Height Table Top

Step 3
Thank you for purchasing this quality product. Be sure to unpack carefully looking for small parts which may
have come loose during shipment.
Read all instruction and study the drawing carefully before starting the assembly process.
ASSEMBLY INSTRUCTION
Page 2 of 2
Adjustable leveler
Complete
1
2
1
2
3
A
Adjust levelers if needed, to level case on uneven floor
Item: 6850-75202B-80 Counter Height Table Base
6850-75202T-80 Counter Height Table Top
