HID identiCLASS 3300 User manual
identiCLASS® Reader Line
e-Government
SECURE identification.
3134-901, A.5
identiCLASS is a universal e-Government reader platform designed for integration
into OEM equipment, providing contact or contactless reading of electronic
documents.
The identiCLASS Developer Tool Kit contains three reader boards, the 3300 Reader
Core, 3500 Reader Board and 3700 Enhanced Reader Board. In addition, the kit
includes Antennas, Smart Card Adapters, interconnecting cables and sample media.
R identiCLASS
Access all the latest drivers, software and documentation by registering your product
straight away.
Visit www.hidglobal.com/main/identiclass. You need the product part number and
license key found on the box.
D T K C
Quick Start Guide
Layer One
1 - Sample e-passport
1 - Sample Dual-Interface Card
(National ID Card)
1 - USB Memory Stick
(Drivers, Software,
Documentation,
Release Notes)
Layer Two
1 - 3500 Reader Board
1 - Smart Card Adapter -
Full Card Size
1 - Smart Card Adapter -
SIM Card Size
2 - 15 cm Smart Card
Adapter Cable
2 - 10 cm Antenna Cable
(Standard)
Layer Three
1 - 3300 Reader Core
1 - ID1 Antenna (Standard)
1 - ID3 Antenna (Standard)
Layer Four
1 - 3700 Enhanced Reader
Board
1 - ID1 Antenna (Enhanced)
1 - ID3 Antenna (Enhanced)
Layer Five
1 - USB Cable
2 - 1 m Coax Antenna Cable
(Enhanced)
Page 2 July 2011
© 2010, 2011 HID Global Corporation. All rights reserved.
identiCLASS Quick Start Guide 3134-901, A.5
3300 Reader Core
The identiCLASS 3300 Reader Core
is a small board for space-restricted or
mobile devices using an external antenna.
• 1 - External Antenna
• 1 - External SAM / SC Socket
• USB Connection
• Power through USB
3500 Reader Board
The identiCLASS 3500 Reader Board
is a large board with built-in antenna for
terminals. Included are required accessories
(such as cables, drivers and software).
• 1 - Built-in Antenna
• 1 or 2 External Antennas
• Built-in SAM Socket
• USB Connection
• Power through USB
3700 Enhanced Reader Board
The identiCLASS 3700 Enhanced Reader Board is
intended for use when the Antenna(s) are positioned
away from the reader.
• 2 - External Antennas
• 1 - External SAM / SC Socket
• USB Connection
• Power through USB
identiCLASS Quick Start Guide 3134-901, A.5
July 2011 Page 3
© 2010, 2011 HID Global Corporation. All rights reserved.
S
Depending on the reader board, select the appropriate setup.

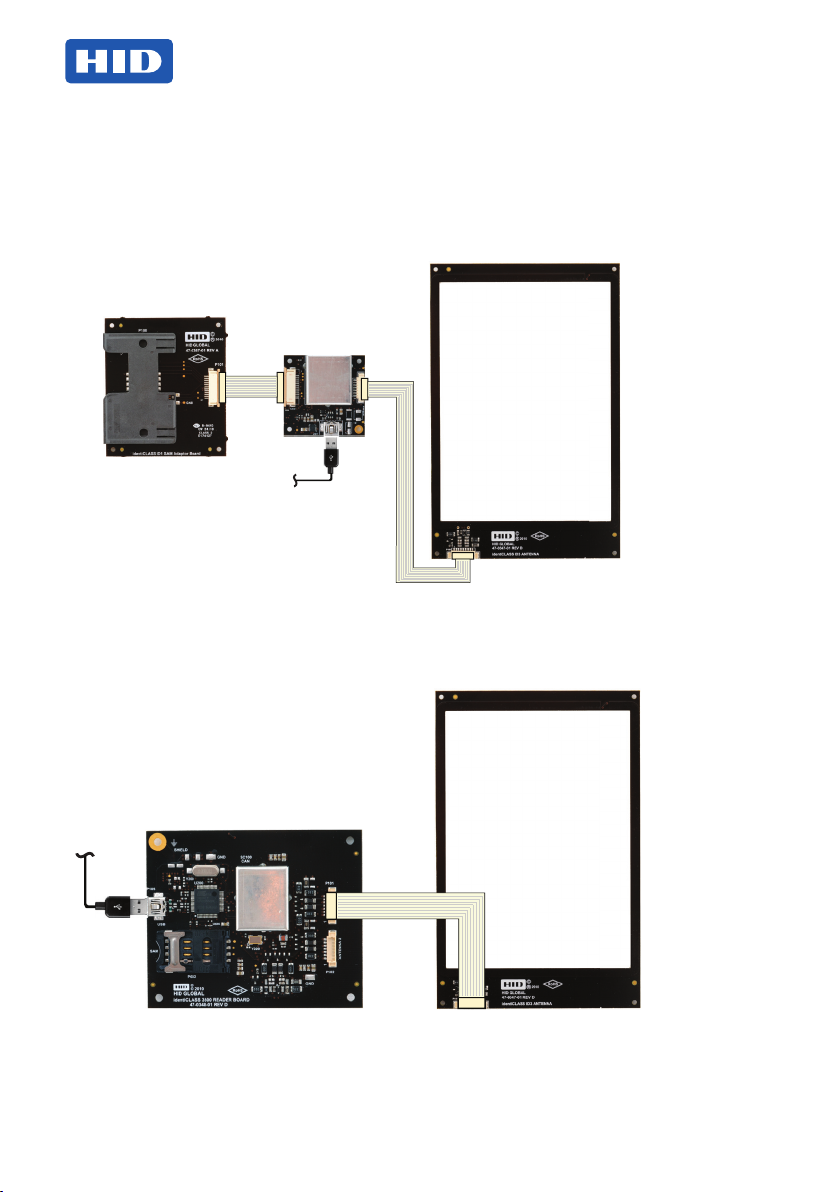

3300 Reader Core Setup
Connect the 3300 Reader Core to the ID3 Antenna. Then, connect the Smart Card
Adapter to the 3300 Reader Core. This layout provides a contact card and contactless
card reader. Optionally, mount an optical reader in the center of the ID3 Antenna.
3300 Reader
Core
Smart Card Adapter
(Full Size)
ID3 Large Antenna
USB
3500 Reader Board
Connect the 3500 Reader Board to the ID3 Large Antenna. This layout provides for two
antennas next to each other. Present a passport in either orientation with this layout.
Optionally, mount an optical reader in the center of the ID3 Antenna.
ID3 Large Antenna3500 Reader Board
USB
Page 4 July 2011
© 2010, 2011 HID Global Corporation. All rights reserved.
identiCLASS Quick Start Guide 3134-901, A.5
3700 Enhanced Reader Board
Connect the 3700 Enhanced Reader Board to the ID1 Enhanced Antenna. Then, connect
the Smart Card Adaptor to the 3700 Enhanced Reader Board.
3700 Enhanced
Reader
Board
Smart Card Adapter
(SIM Size)
ID1 Enhanced Antenna
USB
Coaxial
Cable
1 m (3.28 ft)
identiCLASS C
System Requirements
Computer/Processor 1 GHz 32-bit (x86) or 64-bit (x64)
USB Port
Operating System Windows XP SP3 plus .NET Framework 3.5 SP1.
Note: The identiCLASS DTK installs the .NET
framework if not available.
Memory 1 GB
Hard Disk 1 GB
Internet Browser Mozilla Firefox
Microsoft Internet Explorer
Installing Drivers
1 Insert the USB Flash Drive and installation starts automatically. The drivers are
installed on your computer. If the installation does not start automatically, open
My Computer, navigate to the USB Flash Drive identiCLASS DTK and click
start.bat.
2 Connect the reader board to your computer using the provided USB cable.
3 Once the drivers are installed, verify the reader is operational using the
identiCLASS Software Conguration Tool.
identiCLASS Quick Start Guide 3134-901, A.5
July 2011 Page 5
© 2010, 2011 HID Global Corporation. All rights reserved.
C
The following is the standard default conguration settings for identiCLASS readers.
3300 Reader Core DG3300A00 Single antenna, ID3
3500 Reader Board DG3500A00 Integrated antenna enabled, two
external antenna’s, both ID3
3700 Enhanced Reader Board DG3700A00 Two external antennas, both ID3
Note: Alter these conguration settings using the identiCLASS software conguration
tool (refer to the identiCLASS Developer Tool Kit Software Conguration Tool User
Guide), or the identiCLASS production conguration tool (refer to the identiCLASS
Production Conguration Tool User Guide)
Page 6 July 2011
© 2010, 2011 HID Global Corporation. All rights reserved.
identiCLASS Quick Start Guide 3134-901, A.5
identiCLASS S C T

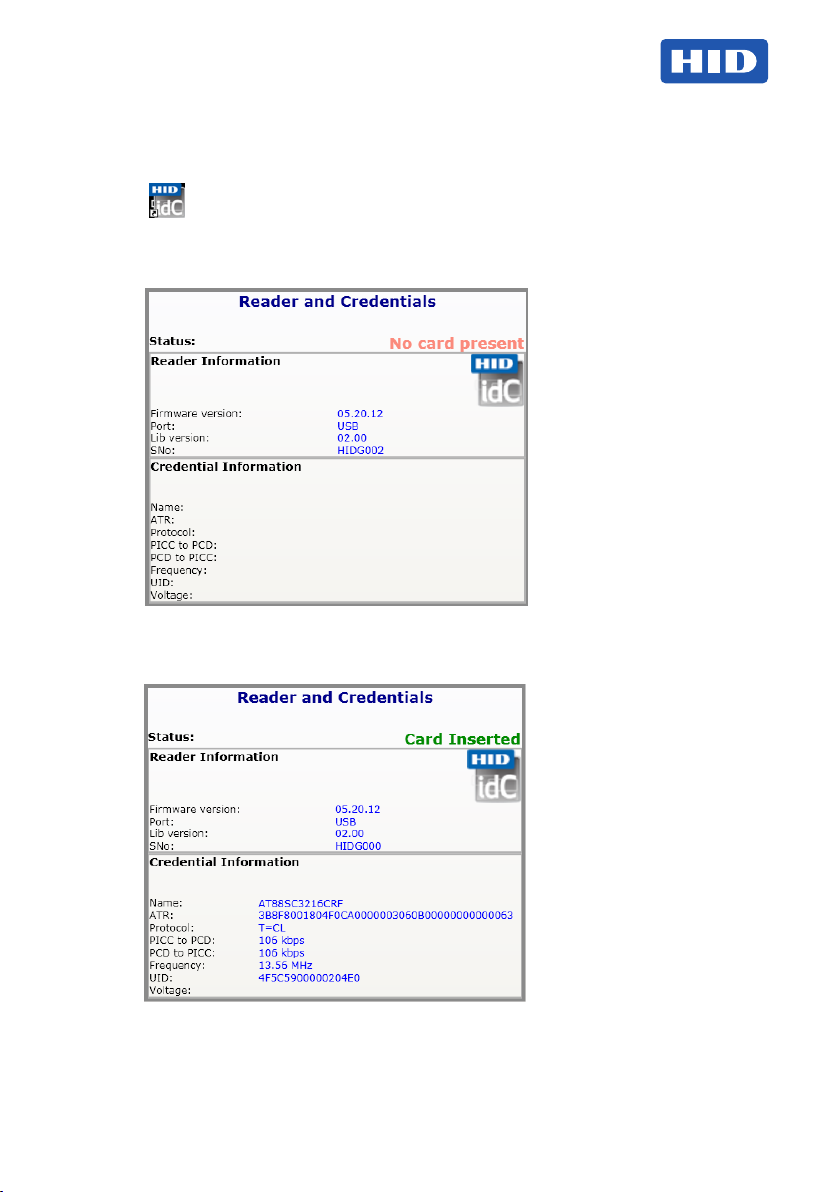

1 Start the Software Conguration Tool by double-clicking the identiCLASS icon
( ) on your desktop.
2 With the reader board connected through the USB port to the computer, the
Reader Information screen displays.
3 Present a sample card or passport to the reader. If the card or passport are
read, the Reader and Credentials screen displays Connected.
4 Reference the identiCLASS Software Conguration Tool User Guide (USB
Flash Drive or Web site) for system conguration details.
identiCLASS Quick Start Guide 3134-901, A.5
July 2011 Page 7
© 2010, 2011 HID Global Corporation. All rights reserved.
G R T

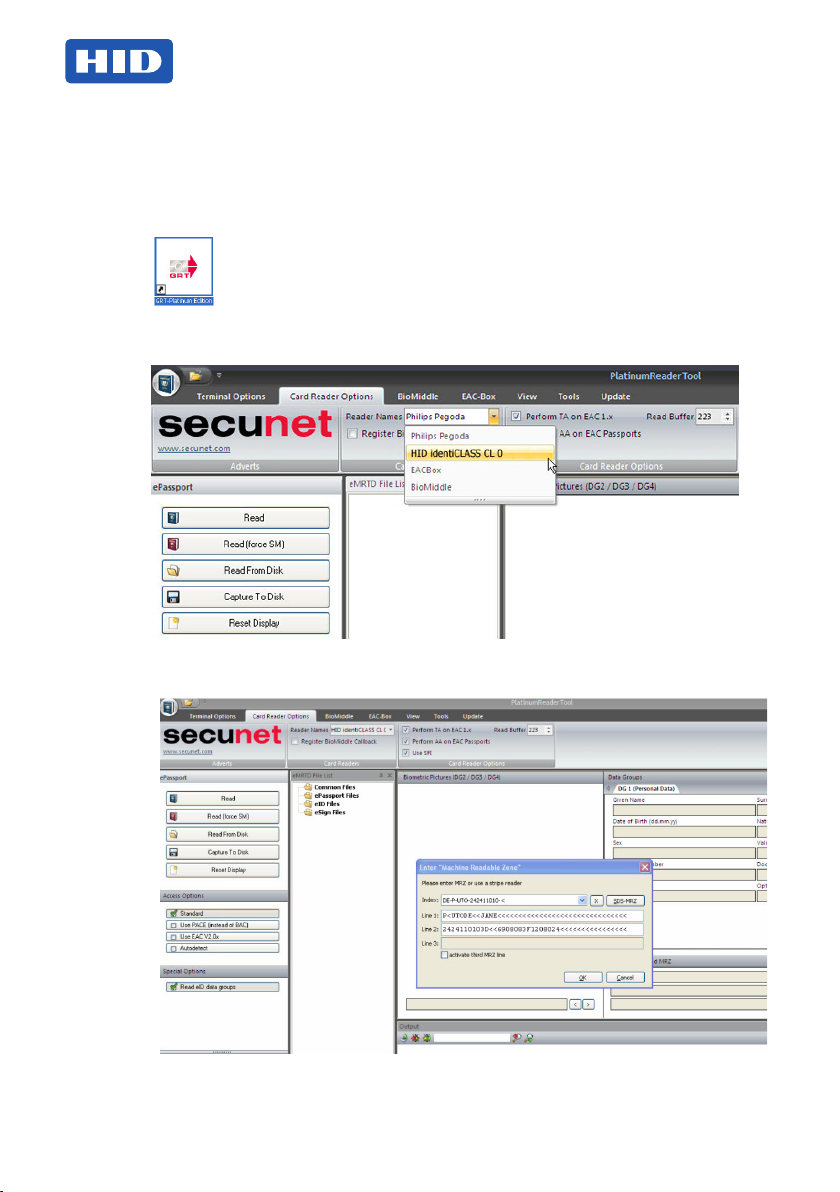

The following illustrates reading an ePassport with the Golden Reader Tool (GRT).
1 Initiate the Golden Reader Tool by double-clicking the GRT Platinum Edition
icon from within the identiCLASS DTK folder on your desktop.
2 Click Card Reader Options. From the Reader Names drop-down list, select
HID identiCLASS CL 0. Selected is the identiCLASS reader contactless slot.
3 Place the passport over the reader, click Read. The following screen appears.
Page 8 July 2011
© 2010, 2011 HID Global Corporation. All rights reserved.
identiCLASS Quick Start Guide 3134-901, A.5
4 Enter the MRZ (Machine Readable Zone) from the passport. The MRZ is
entered once and stored in memory. Click OK.
CAUTION: Enter the two-line MRZ carefully.

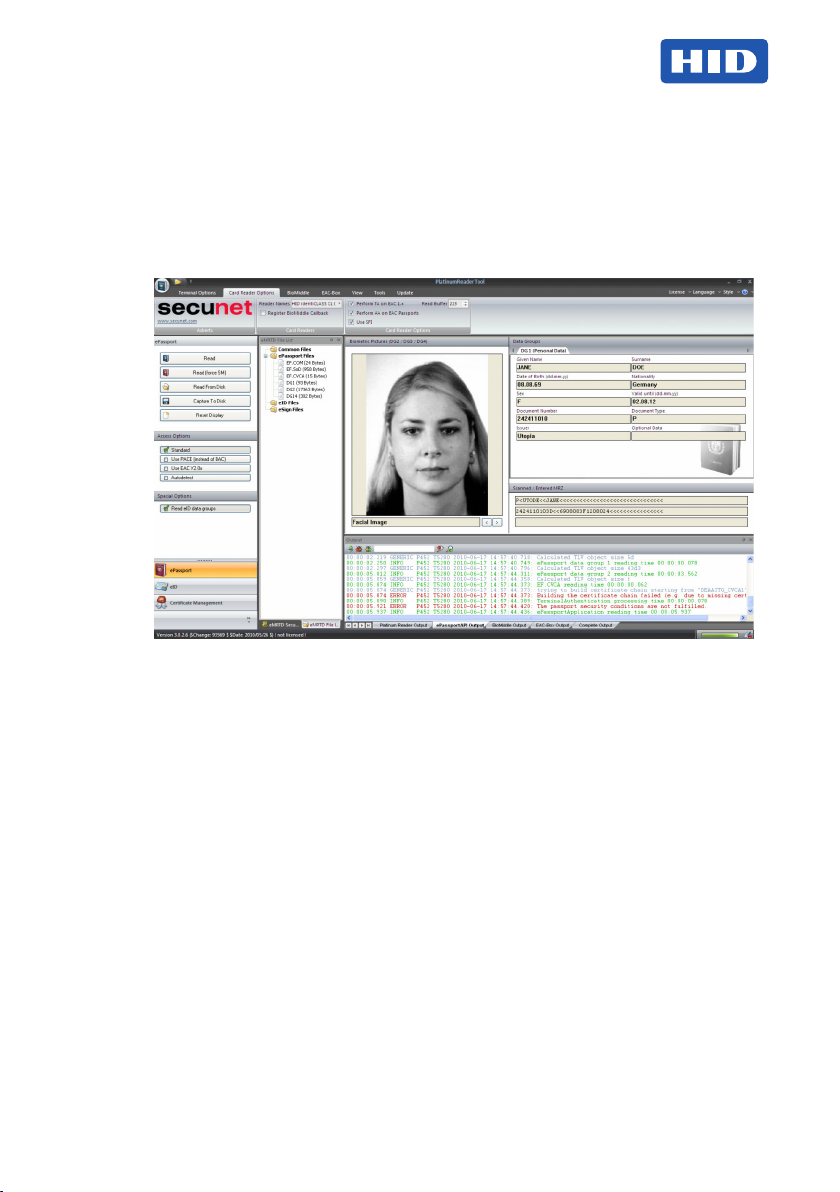

5 The secure data from the passport is read by identiCLASS and displayed.
Read time is approximately 5 to 7 seconds.
identiCLASS Quick Start Guide 3134-901, A.5
July 2011 Page 9
© 2010, 2011 HID Global Corporation. All rights reserved.
P G O
Description Part Number
Readers
HID identiCLASS 3300 Reader Core DG3300A00
HID identiCLASS 3500 Reader Board DG3500A00
HID identiCLASS 3700 Enhanced Reader Board DG3700A00
Antennas
HID identiCLASS ID1 Antenna
(includes 10 cm Antenna cable, P/N 4091A01)
4090A01
HID identiCLASS ID3 Antenna
(includes 10 cm Antenna cable, P/N 4091A01)
4090A02
HID identiCLASS ID1 Enhanced Antenna
(includes 1 m Coax Antenna Cable, P/N 4091A03)
4090A03
HID identiCLASS ID3 Enhanced Antenna
(includes 1 m Coax Antenna Cable, P/N 4091A03)
4090A04
Antenna Cables
HID identiCLASS 10cm Antenna Cable (pack of 10) 4091A01
HID 1 m Coax Antenna Cable (pack of 10) 4091A03
Smart Card Adaptor Cables
HID identiCLASS 15cm Smart Card Adapter Cable (pack of 10) 4091A04
Smart Card Adaptors
HID identiCLASS Smart Card Adapter - Full Card Size
(includes 15 cm Smart Card Adaptor Cable, P/N 4091A04)
4093A01
HID identiCLASS Smart Card Adapter - SIM Card Size
(includes 15 cm Smart Card Adaptor Cable, P/N 4091A04)
4093A02
Contact egovernment@hidglobal.com for Sales inquiries.
Page 10 July 2011
© 2010, 2011 HID Global Corporation. All rights reserved.
identiCLASS Quick Start Guide 3134-901, A.5
R
The following identiCLASS products have been tested and certied compliant to the
appropriate standards for European (EC), Industry Canada (IC) and FCC Modular
Approval.
3300 Reader Core (DG3300A00)
3500 Reader Board (DG3500A00)
For use with
• ID1 Antenna (4090A01)
• ID3 Antenna (4090A02)
• Antenna Cable – 10cm (4091A01)
And (for the 3300 Reader Core) with
• Smart Card Adaptor – Full Size (4093A01)
• Smart Card Adaptor – SIM Card Size (4093A02)
• Smart Card Adaptor Cable – 15cm (4091A04)
The 3700 Enhanced Reader Board (DG3700A00) is pending certication.
FCC / Canada Radio Certification
CAUTION: Any changes or modications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with Industry Canada license-exempt RSS standard(s). Operation
is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any
interference, including interference that may cause undesired operation of the device.
identiCLASS Quick Start Guide 3134-901, A.5
July 2011 Page 11
© 2010, 2011 HID Global Corporation. All rights reserved.
CE Marking
HID Global hereby declares that these proximity readers are in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Por el presente, HID Global declara que estos lectores de proximidad
cumplen con los requisitos esenciales y otras disposiciones relevantes de
la Directiva 1999/5/EC.
HID Global déclare par la présente que ces lecteurs à proximité sont conformes aux
exigences essentielles et aux autres stipulations pertinentes de la Directive 1999/5/CE.
A HID Global, por meio deste, declara que estes leitores de proximidade estão em
conformidade com as exigências essenciais e outras condições da diretiva 1999/5/EC.
HID Global bestätigt hiermit, dass die Leser die wesentlichen Anforderungen und
anderen relevanten Bestimmungen der Richtlinie 1999/5/EG erfüllen.
HID Global dichiara che i lettori di prossimità sono conformi ai requisiti essenziali e ad
altre misure rilevanti come previsto dalla Direttiva europea 1999/5/EC.
Download copies of the R&TTE Declaration of Conformity (DoC) at http://certications.
hidglobal.com.
ACCESS experience.
HID GLOBAL, HID, the HID logo and identiCLASS are the trademarks or registered trademarks
of HID Global Corporation, or its licensors, in the U.S. and other countries.
© 2010, 2011 HID Global Corporation. All rights reserved.
3134-901 Rev A.5
For further assistance, consult the FAQ from www.hidglobal.com or contact Technical Support.
North America
15370 Barranca Parkway
Irvine, CA 92618
USA
Phone: 800 237 7769
Fax: 949 732 2120
Europe, Middle East and Africa
AM Klingenweg 6a
65396 Walluf
Germany
Tel: +49 6123 7910
Fax: +49 6123 791 199
support.hidglobal.com
