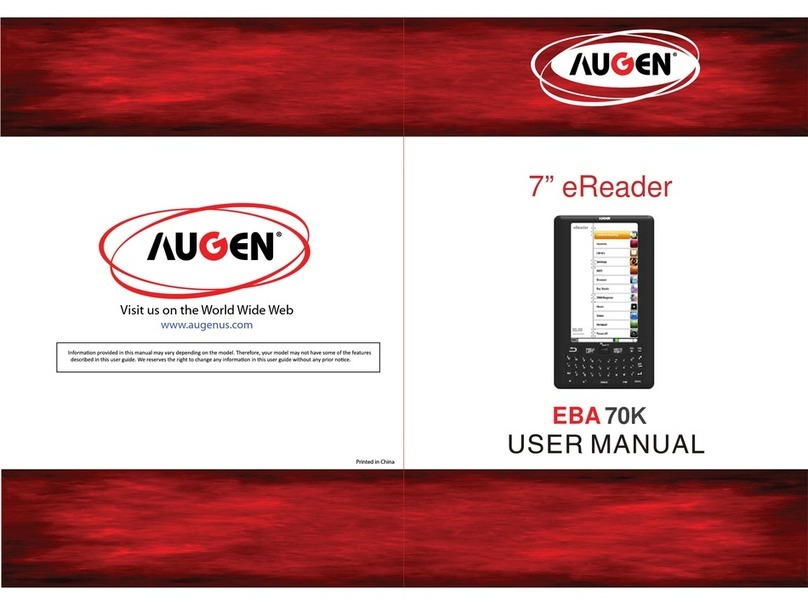

Augen Eba701 User manual

Redefining the Sound of Symphony™

7” eReader

EBA701

Visit us on the World Wide Web

www.augenus.com

Printed in China

Redefining the Sound of Symphony™

Table of Contents

Safety Information & What is inside the box .....

Introduction and Specifications .........................

eReader Control Panel ...................................

Main Menu ..........................................

Settings ......................................................

Wi-Fi ...............................................................

Congratulations

Thank you for your purchase of an Augen product.Your business

is very appreciated.

Our goal is that you will be completely satisfied with this

product’s quality and performance.We offer warranties on all

our products

Since 2004,Augen Electronics has shared the fun of discovering

innovative products that make life better and more enjoyable.

We strive to deliver outstanding customer service that exceeds

your expectations.

Enjoy your purchase!

4-5

7-11

12-17

Augen Customer Service and Support ............ 27

FCC Statement of Compliance .......................... 28

>1<

Browser ............................................................... 19

Buy Books............................................................... 20

Music ............................................................... 22

Video,Notepad ......................................................... 23

USBConnection ................................................ 24

HowtoTransferFiles ............................................ 25

Help Reference .................................................... 26

ChargingtheeReader ............................. 6

PowerOff .......................................................... 24

DRM Register ............................................................... 20-21

The information contained in this document is provided“as is”and is subject to

alteration without notice.

Augen Electronics makes no warranty of any kind with regard to this manual,including,

but not limited to,the implied warranties of merchantability and fitness for a particular

purpose.

Augen Electronics shall not be liable for any errors contained herein or for incidental or

consequential damages in connection with the furnishing,performance,or use of this

manual or the examples herein.

•Avoid using the eReader in exteme weather conditions, as it may

damaged by extreme temperature

•

1. eReader 1 Pc

2. Usb Cable 1 Pc

3. User Manual 1 Pc

eReader USB Cable User Manual AC adapter

4. AC Adapter 1 Pc

Product introduction:

Specifications

Safety Information

What’s in the box

Read all safety information carefully before using the eReader

WARNING: Failure to comply with this safety information could result in fire,

electric-shock, or other injuries and damages

Never attempt to repair the eReader yourself.

The eReader should be repaired only by an Augen Technical Service Provider

NOTICE: Failure to follow these handling instruction could result in damage to

your eReader:

Avoid wet locations. In case the eReader gets wet, unplug all cables, turn

the device off and allow it to dry thoroughly before turning it back on

Keep the eReader clean; avoid dusty and damp conditions

Do not bend, puncture, incinerate, or open the eReader

Avoid dropping the eReader

Use clean cloth for cleaning the eReader, do not use liquid or aerosol type

of cleaners

>2< >3<

● Display: 7 inch, TFT

● Resolution: 800 x 480

● Processor : ARM9 , 400 Mhz

● RAM memory: SDRAM 64MB

● Operating system: Linux2.6.24

● Reader formats supported: TXT ,PDF,HTML,CHM,RTF,FB2

EPUB, WORD,TCR,PAML DOC.,OPEN E-BOOK,OPEN

READER,MOBI, etc.

● Music format supported: MP3,WMA

●Image formats supported: JPG, PNG, GIF, BMP

● Video formats supported: AVI, MPEG-4

● Office file format support: Notepad

● Support E-bookmark

● Support TEXT to Speech function

● G-Sensor for Book and picture file

● Support recent reading record

● Compatible to SD card up to 32G

● Language: English

● Dimensions: 226 x 130 x 13mm

5. Leather Case 1 Pc

LeatherCase CD

5. 1 Pc

6. CD 1 Pc

eReader Control Panel eReader Control Panel

Front View Bottom View

13. DC jack

14. USB slot

15. Headphone Jack: uses 3.5mm jack

16. SD Card Slot

17. Power Button

Back View

10 11 12 13 14

18. Speaker

19. Reset

1. Previous page/ + Volume increase

2. Next Page / - Volume decrease

3. Home

4. Next Page

5. Menu

6. Joystick Button

7. Back

8. Enter Button

9. Sleeping Screen / Renew

10. Lower Case

11. ALT: Press ALT key with any key together.

Example: ALT + key “1” = “!” ALT + key “Q” = “+”

ALT + key “2” = “@”

12. Zoom In/Out

911 12

Main Menu

>6< >7<

Charging the eReader

♦ Use the AC adapter and plug the adapter to the DC jack of

the eReader

♦ Battery Indicator will show:

eReader is charging

Battery is full

Note: Please charge the eReader at least 4 hours.

Note: eReader’s Main Menu contains:

Continue Reading , Favorite, Library, Settings, WIFI, Browser,

Buy books, DRM Register, Music, Video, Notepad, Power off

Use the “Joystick” to scroll/highlight the menu and press

the “Enter” button to enter to the desired menu

Main Menu Main Menu

>8< >9<

♦ Select this option to go back to the last state or page where you

left your ebook file.

♦ Use the “Joystick” to highlight “Continue Reading” option

♦ Press the “Enter” button to open the option. Press “Home” button

to go back to the Main Menu

Favorite

♦ Use the “Joystick” to highlight “Favorite” Menu and press

the “Enter” button to open the menu

♦ The Favorite menu list the websites that is saved to your eReader

♦ Press “Back” button to go back to the HOME menu

Library

♦ Use the “Joystick” to Highlight “Library” menu and press the “Enter” button,

the submenu will be listed on the right. Library Submenu contains:

Back to Parent, Audio, Digital Editions, Download, Free eBook, Picture,

Video

>10< >11<

Main Menu

Back to Parent

♦ Select “Back to Parent” to go back to the HOME menu

♦ Use the “Joystick” to highlight on the following options:

♦ Press the “Enter” button to open the selected option.

♦ Once done, Press the “Back” button to go back to the submenu or

press “Home” button to go to the Main Menu

Digital Editions

♦ contains DRM eBooks file. You can save your DRM eBook in this

folder.

Download

♦ Can save any ebook files to this folder

Free eBooks - contains free E-book files (may vary)

My Books - All files downloaded from the internet will be save to this folder

Picture - contains picture files

Audio - contains Mp3 files, Audio files saved into the eReader

Video- contains video files saved into the eReader

Read Files/Books

♦ After opening an eBook file, press “ Menu” button.Menu options

contains :

Font, GotoPage, Zoom(for PDF format),RefreshMode,Pronounce(Text to speech),

Bookmark,Rotate,Favorite,Style,Outline(for PDF format),Time, Exit.

Press “Exit” or “ Back” button to exit to this option.

Note: To change screen orientation while reading from Portrait view,

to Landscape bview use G-sensor function

Main Menu

View Pictures:

After opening a picture,press“ Menu” button. Menu option contains

Zoom, Rotate functions

Press“Exit” or “ Back” button to exit thisoption.

To change display orientation from Portrait view to Landscape view,

Movereader’sdirection,use G-sensor function.

Read PDF format file UI: Read other formats file UI:

Settings

>13<

Back to Parent

♦ Select “Back to Parent” to go back to the HOME menu

Use the “Joystick” button to highlight on the following options:

U Disk

♦ Use the U Disk Option if your computer did not recognize your

eReader automatically

♦ While the eReader is connected to USB. On the Settings Menu,

use the “Joystick” button to highlight the U Disk option and press

“Enter” button. The display will appear as shown in page 22.

Upgrade

♦ For Upgrade options: NOT available on this model

Default

♦ Use to restore the settings of the eReader to factory Default

Settings

♦ Use the “Joystick” button to highlight the buttons. Highlight

restore button and press “enter” button to restore back to default

or highlight Cancel button to abort the operation

Settings

>12<

♦ Use the “Joystick” button to highlight the “Settings” menu

♦ Press the “Enter” button to open “Settings” menu,

Settings Submenu contains:

Back to Parent, U Disk, Upgrade, Default, Format, Time,

Help, System Info, Backlight, Language.

Settings

>15<

Time

♦ Use the “Joystick” button to highlight “Time” option and press the

“Enter” button to open the menu

♦ Press “Joystick” button(left/right) for adjust the month,

Date ,year and time, press “Joystick” button(up/down) for line

option

♦ Press the “Enter” button to complete the settings.

Settings

>14<

Format

♦ Use to format the entire device.

Caution: Formatting the device will erase all data on the device

♦ Use the “Joystick” button to (left/right) to highlight the buttons

“Format and Cancel”. Press “Enter” button to complete the

operation

>17<

>16<

Settings Settings

Language

Bright

♦ Use “Joystick” to scroll Up/Down for “Language” selection,

English and Simplified Chinese are available

♦ Press “Enter” button to select the desired Language

Use “Joysick” to adjust backlight to “ Low “ or “ High”

Press “ Enter” button to complete the settings

Help

♦ Press“Joystick” to highlight “Help ” menu,UM soft copy will be

available

System Info

♦ Press “Joystick” to highlight “System Info ” and press “Enter”

button to open the menu. Detailed information of the device will

be provided;

>19<

>18<

♦ Use the “Joystick” button to highlight “Browser” option and

press “Enter” button to open the browser

♦ Press “Menu” button, 3 lines options will be shown in the

lower left:

1. Favorite- saving links to Favorite,

2. Open Url- opens a new link

3. Exit

Browser

Note:It needs to connected to Wifi first,then this option will work.

Wi-Fi

♦ Use the “Joystick” to highlight the “Wi-Fi” option and

press “Enter” button.

Note: Please make sure to have the wireless password/key

to be able to connect to Internet. Call your ISP/network

provider for the wireless settings

♦ If Wi-Fi is “OFF”, put a check on “Enable Network” box by

pressing “Enter” button. Once enabled, the Wi-Fi will scan

for available networks.

♦ Use the “Joystick” to highlight the wireless network and

press “Enter” button. If your wireless network is secured,the

password prompt will appear. Enter the wireless password and

press “Enter” button

♦ Once connected, it will automatically go back to the Main

>20<

DRM Register - Continued

Once you activated the DRM, it will display “Device has been

activated”. If you want to deactivate it, you must do hard reset.

Step 4: eReader is now ready to download DRM ebooks. You can

visit ebooks sites to purchase and download DRM ebooks.

Step 5: Downloaded files will be saved into Digital Editions folder

under Library

Note: Once you downloaded the DRM ebooks to the eReader. You will

not be able to copy it from another device.

DRM Hard Reset

Step 1: Please press z, y, j, Number “3” key consecutively. The Testing

window will appear, please select "DRM Hard Reset", then press

“Enter” button

Step 2: On screen Keyboard will pop up, please input the code "8299",

press OK. Press the “Back” button and you can now input or

activate a differentAdobe ID

>21<

Buy Books

♦ Select this option to go to buy books website directly

(ebooksmedia.com)

♦ Use " Joystick" to highlight " Buy books" option

♦ Press" Enter" button to open this option

♦ Press " Home" button to go back to the Main Menu.

Note:It needs to connect to Wi-Fi first,then this option will work.

DRM Register

♦ There are two ways for you to read the DRM file:

1. Using Adobe Digital Edition:

For details on how to install and use the Digital Edition Software,

please visit the link below:

http://www.adobe.com/products/digitaleditions/help

Note: Please create an Adobe ID before downloading the Adobe

Digital Edition Software.

2. Using your eReader:

Prior to downloading ebooks, you need to create an Adobe ID and

Step 1: Please Create an Adobe ID.

Visit the link: www.adobe.com

Click the “Your account” link on the upper right hand corner

of the website and click “Create an Adobe Account” button

in the next page. A registration form will show.

Please provide all necessary information and submit.

Step 2: On the eReader, Connect to Wi-Fi

Step 3: On the eReader’s Main Menu, Use the Joystick to highlight

“DRM Register” option and press “Enter”.

Input your Adobe ID and password and select “Activate”.

press Enter.

Note:If you are experiencing issues with creating a new Adobe ID go to

support and search for "Adobe account, password, and login FAQ"

>23<

Music

♦ Use “Joystick” button to highlight “Music” option and press

“Enter” button.

♦ Use the “Joystick” button (up/down) to select the desired

audio file on the list

♦ Press “Enter” button for PLAY/PAUSE, Press “Back” button

to go back to the Main Menu

♦ Press “+ Volume/ - Volume” button to adjust the volume

>22<

Video

♦ Use the “Joystick” to highlight “Video” option and press the

“Enter ”button open the video menu, Use the “Joystick” button

(up/down direction) to choose your desired video file

♦ Press “enter” button to PLAY/PAUSE,Press “Back” button to go

back to the Main Menu

♦ Press “+ Volume/- Volume” button to adjust the volume

♦ Use the “Joystick” to highlight “Notepad” menu. Press “Enter”

button to open the Notepad.

♦ Press “Back” button to go back to the Main Menu

Note: File is automatically saved once any text typed on the notepad or

you can press” Menu” choice “ Export” save files to SD card

Notepad

>24< >25<

USB Connection

♦ Connect the USB cable to your computer

♦ Pop up window will appear on the device "The usb is connected. Are

you sure to start Udisk?”

♦ Press OK

♦ Computer will recognize the eReader as a “Removable disk”

Power-Off

♦ Use the “Joystick” to highlight the “Power Off” option and

Press “Enter” button to shutdown the eReader

♦ Another way to shutdown the eReader is to press and hold the

Power button till it shutdown.

Note: If the computer using Windows 98 operating system,

Please install windows 98 2.0 USB driver from the CD in first.

How to Transfer Files (Music,Video,Photo,etc)

♦ Press “Complete” button on the bottom part of the eReader after

transferring files. The eReader will be automatically disconnected

from the computer

♦ Windows Operating system recognizes the eReader as “removable

disk”. Choose “open folder to view files”

Note: Some operating systems are not set for AutoPlay window. In this

case, go to “My Computer” and look for “Removable Disk” and

double click to enter

♦ Simply locate your files (songs, photos etc...) on your “Local Disk”

using “my computer” function. Once found, drag and drop your

desired files into the disk drive (removable disk) assigned to the

eReader

>26< >27<

Help Reference

1. CD comes with Windows 98 USB 2.0 driver

2. “Calibre” is asoftware that can manage files downloaded to library

database, convert eBooks file to different file formats.

3. Install Calibre toyour computer

4. Use Calibre .msi for installation using windows operating system

5. Use Calibre .dmg for installation using to Mac operating system

Augen Service & Support

250 N.Dixie Hwy. #13

Hollywood, FL 33020

If you have questions, please feel free tocontact our customer service

representatives at 1-877-AUGENOK or by email at support@augenus.com

Augen Electronics Corporation

250 N.Dixe Hwy. #13

Hollywood, FL 33020

Shop online: www.augenus.com

Augen Customer Service Team hours of operations:

MON-FRI 10:00AM – 5:00 PM (EST)

Augen Technical Support Team

>28<

FCC regulations

FCC Declaration of Conformity Statement

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference; and (2) this device must accept any

interference received, including interference that may cause

undesired operation.• Radio and Television Interference: This

equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communi-

cations. However, there is no guarantee that interference will not

occur in a particular installation.•If this equipment does cause

interference to radio or television reception, which can be

encour aged to try to correct the interference by one or more of

the following measures:

• Increase the separation between the equipment and receiver.

•

• Consult the dealer or an experienced radio/TV technician for

expressly approved by Augen could

void the user’s authority to operate the equipment.

FCC Statement of Compliance

Redefining the Sound of Symphony™

Table of contents

Augen EBA701 User manual

Popular Ebook Reader manuals by other brands
