Hides BD-300 User manual

Easy HD Expressway!
WWW.HIDES.COM.TW 1
BD-300
BD-300 Dual-Band (1.2G/2.4G) Programmable LO Down Converter
Quick Installation Guide
PACKAGE CONTENTS 2
ANTENNA PORTS 2
BLOCK DIAGRAM 3
INPUT FREQUENCY BAND SUPPORT 3
H/W INSTALLATION 4
LO (LOCAL OSCILLATOR) CONFIGURATION 6
DRIVER INSTALLATION ON WINDOWS 7
SETUP TOOL “4BAND RX CONTROLLER” 7
CONFIGURE LO 8
SCHEMATICS 11

Easy HD Expressway!
WWW.HIDES.COM.TW 2
Package Contents
BD-300 x1
CD with drivers and LO Configuration tool
Quick installation guide
Antenna Ports
*Default LO for 1.2GHz band=1050MHz, LO for 2.4GHz band=1800MHz. (LO is configurable)
*Connect antennas to the proper ports. The antennas can be connected simultaneously.
1.2GHz band
Antenna Port
RF-output
(with optional
12V DC-in)
2.4GHz
band
Antenna
Port
1.2GHz/2.4G
band switch
USB 5V
DC-in

Easy HD Expressway!
WWW.HIDES.COM.TW 3
Block Diagram
Input Frequency Band Support
Basically BD-300 can support any frequency input under from 100MHz~2.6 GHz, it only
depends on the performance of the front end pre-AMP LNA. There are two LNA’s, the
low frequency band MAX2691 and the high frequency band MAX2644.

Easy HD Expressway!
WWW.HIDES.COM.TW 4
Refer to the specifications of the pre-AMPLNA Maxim MAX2644 / MAX2691 for further details.
The following range is for reference based on >10dB gain for the pre-AMP LNAaccording to the
LNAspec. However, it should be much wider in the real test.
Frequency Range*
2.4GHz LNA
2200
2600
MHz
Frequency Range*
1.2GHz LNA
1100
1350
MHz
H/W installation
1. Connect the RF-in to; Depending the band of the RF-in, please connect the RF-in to either 1.2G
or 2.4G SMA connector.
2. Depending on the input frequency of the RF-in, set LO band switch properly,
(Select the LO which is nearest to the input frequency)

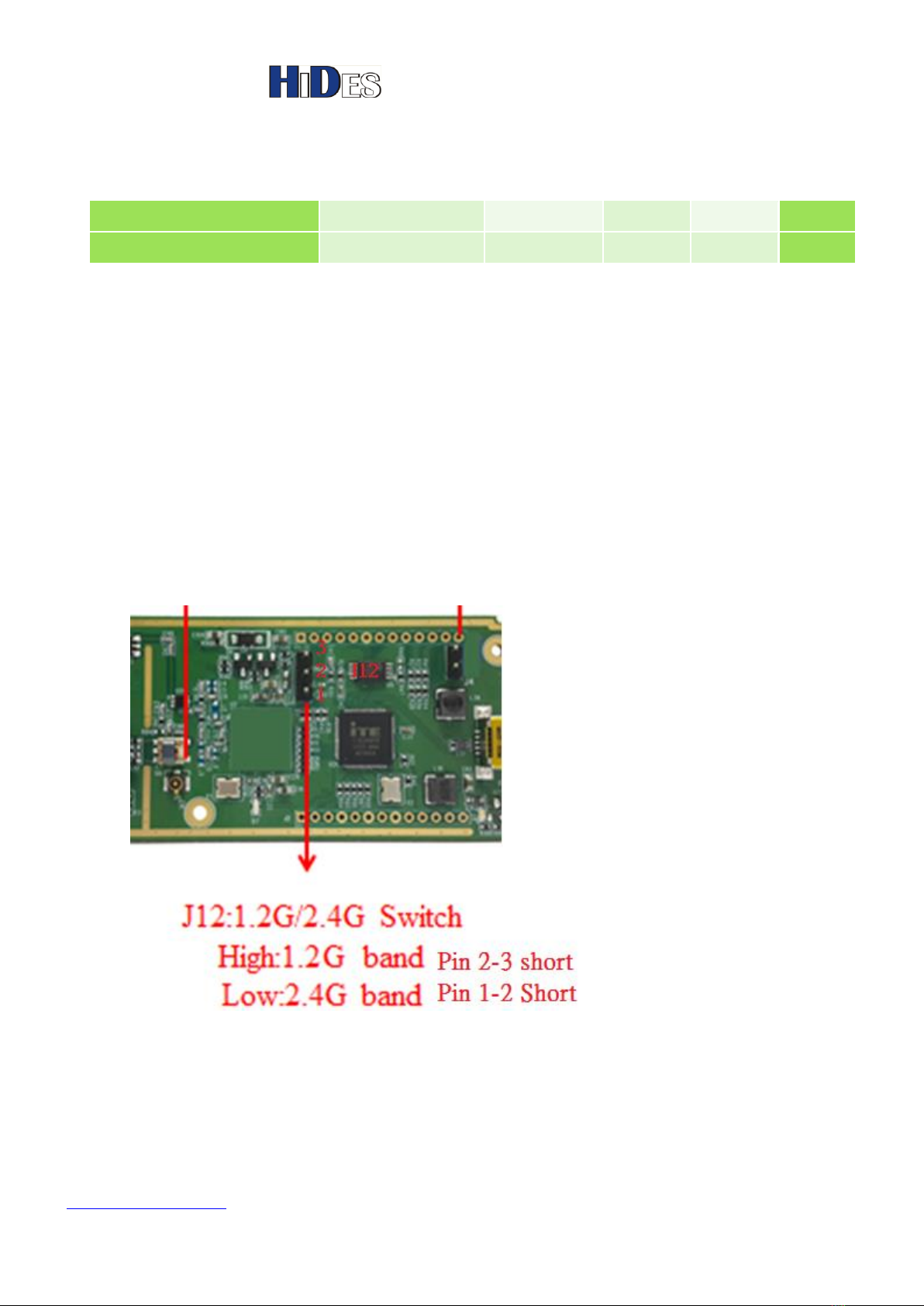

If you set by J12 jumper,
A. J12 HIGH (short pin 2 & 3):1.2G band (default LO=1050 MHz)
B. J12 Low (short pin 1 & 2) :2.4G band (default LO=1800 MHz)
If you set by external switch,
A. Set switch toward 1.2G RF-in connector if 1.2G band (default LO=1050 MHz)
B. Set switch toward 2.4G RF-in connector if 2.4G band (default LO=1800 MHz)

Easy HD Expressway!
WWW.HIDES.COM.TW 5
3. Make sure the Config Switch J4 is open.
4. Apply power, there are two ways to apply DC power, you may select one (and only one)
A. USB power adaptor (5V DC in)*1
B. Use 12V DC power on cable (from the RF-output SMA connector)*2
5. When the power is on, the down converted RF is present on the RF-output connector.
*1Note: When using USB power, the USB cable should be as short as possible and don’t use thin USB cable.
Because of high power consumption, long USB cable will cause high voltage drop and BD-300 may become
unstable.
*2Note: when 12V DC power input from the RF-output port, there is a PWM noise from 0~250MHz while
USB connector (+5V) power input does not have this issue. It’s recommended to use USB connector (+5V)
power input if the target converted channel frequency is <300MHz. Refer to the picture below.

Easy HD Expressway!
WWW.HIDES.COM.TW 6
LO (Local Oscillator) Configuration
BD-300’s LO can be configured with a PC Windows tool.
There are two LO settings, one for 1.2G band, and the other for 2.4G band.
Configurable LO range 1050~2300MHz
First of all, please set J4 Config Switch ON
Then, connect the USB port to a Windows laptop PC.

Easy HD Expressway!
WWW.HIDES.COM.TW 7
Driver Installation on Windows
1. Click on the file \Driver_Windows\DrvInstall.exe to install the driver
2. Click on next and you will see the following after it’s finished.
3. If necessary , you can check if the device “IT9300 BDA Device”is listed in device manager
Setup tool “4Band Rx Controller”
Click on “Setup.exe”in the folder “\Controller”to setup BD-300 configuration tool “4Band Rx Controller”.

Easy HD Expressway!
WWW.HIDES.COM.TW 8
Configure LO
After installation, click on “4Band Rx Controller”in Start menu to launch the tool,
If BD-300 is attached, and detected well, it shows “VID_048D&PID_9306\AF0102020700001”.
Click on “Next”to continue.

Easy HD Expressway!
WWW.HIDES.COM.TW 9
Note: if there are multiple devices listed (UT-100, UT-200…), please remove all other devices except
BD-300.
Or else, it may pops up error message when “Connect”.
If device connected well, click on “Read EEPROM”to retrieve the original settings.
Input 1.2G or 2.4 G LO frequencies properly, and click on “Write EEPROM”.
Valid LO range is from 1050~2300MHz.

Easy HD Expressway!
WWW.HIDES.COM.TW 10
After writing the new settings to EEPROM, please unplug and remove J4.
After writing the new settings to EEPROM, please unplug and remove J4 config switch.

Easy HD Expressway!
WWW.HIDES.COM.TW 11
Schematics
