HiFiMAN BLUEMINI User manual

www.hifiman.com
Owner’s Guide Customer Service Tel: [phone]
E-mail: customerser[email protected]
Website: www.HIFIMAN.com

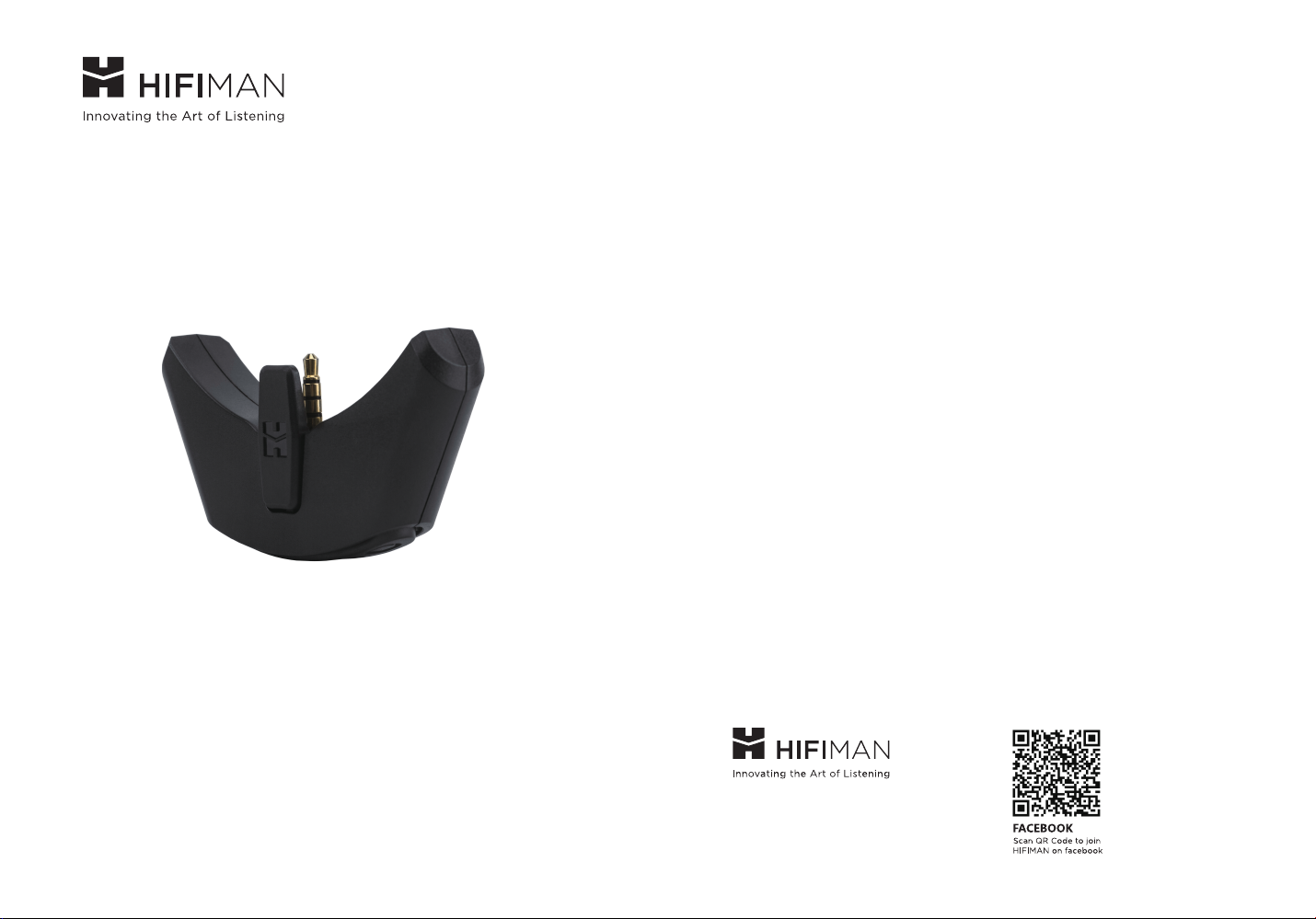

Bluemini
FCC ID: 2ATP3-BLUEMINI

Small, powerful and versatile with maximum functionality. Bluemini
turns the DEVA into a wireless Bluetooth headphone offering superb
dynamics and crystal-clear audio. You can also use Bluemini as an
integrated amp and DAC by connecting to a phone or computer via a
USB-C cable. Bluemini will act as the perfect companion integrated
amplifier and DAC for true audiophile grade sonics. Superb dynam-
ics, clarity and an analog tube-like smoothness to satisfy the most
demanding music fans.
The Bluemini supports the current mainstream HD music transmission
protocols, including HWA, LDAC™, aptX™,aptX-HD™ and more, ensuring it is
fully compatible with the majority of HD playback devices on the market.
* HWA is the next generation of high-quality wireless music standard
supported by LHDCTM.
LHDCTM is a low-latency HD audio decoder released by Savitech.
* LDACTM and the LDACTM logo are registered trademarks of Sony
Corporation.
* aptXTM and aptX-HDTM and their logo are registered trademarks of
Qualcomm Incorporated.
* Bluetooth and its logo are registered trademarks of Bluetooth SIG.
aptXTM
ualcomm
aptX HD
TM
ualcomm
Bluetooth/USB Dongle Multiple HD Audio Protocols
01 02
Bluemini Bluemini

When first connecting to a source via Bluetooth, press the power
button for 1 to 2 seconds to turn it on. Once the blue light flashes twice
to indicate that the power is turned on successfully, press the power
button twice to enter the pairing mode. The light will alternately flash
blue and green. At this point, check for it in the device's Bluetooth
connection list. Click Connect to complete the pairing.
To connect a paired Bluetooth audio output device, simply press the
power button for 1 to 2 seconds to turn it on. The blue light will continue
to flash at intervals. If the previously paired Bluetooth device is turned
on, it will try to connect automatically (the maximum number of
memory connected devices is 8; if no device is connected for more
than 10 minutes after the Bluemini is turned on, it will automatically
shut down).
Press power button for 5 seconds to turn it off.
To charge, connect the USB charging cable to the power supply and
Bluemini then it will charge automatically. While charging the light will
flash red and white and once fully charged the light will flash green and
white.
If the battery is low, a red light will flash.
To enable the USB playback mode, connect the audio device with a
USB cable to enter USB play mode. The light will flash red and white in
this mode.
When you would like to save the battery of portable devices and enter
USB mode without charging, press the charge button for 2 seconds
before connected to the devices. The red light will flash once. After that
you can connect the Bluemini with other devices without charging.
Please pay attention to the remaining battery for the Bluemini.
N.B.: USB playback mode can be used only if the audio playback
device and USB cable support audio playback. The choice of USB
cable may affect playback quality.
In playback mode, tap the power button once to start/pause playback.
To answer a call, press the power button once to answer. To reject,
please press and hold the power button 2 seconds. Press twice quickly
to finish the call.
Press power button for 8 seconds continuously to reset the
headphones when it cannot pair normally.
Operation Guide
03 04
LED Light
USB Charging/Play Socket
Charging Button
Power Button
3.5mm Balance Plug
When using a computer as the audio input device, there is no need to install
drivers when the OS is WIN10 or MacOS. For WIN 8 and older, please turn to
hifiman.com service & support to download a suitable driver. If connected to
portable devices including mobile phones, the lack of a power supply may result
in faster than usual battery drainage. Not all devices can be connected by USB
mode.
In order to connect Bluemini to the Apple smartphone via USB cable, an
Apple-certified converter is necessary. And you can only turn to “USB mode
without charging” because of the limits of Apple devices’ limits.
*
*
Bluemini Bluemini

03 04
Bluemini Bluemini
Bluetooth Version: Bluetooth 4.2
Frequency Response: 20-20kHz
Battery Life: 4 Hours
Weight: 25g
With Built-in Microphone
Bluetooth range is approximately 10 meters but will be affected by
environmental conditions.
Due to the limitation of Bluetooth wireless technology, the audio of the
media playback device may have a certain delay. Sound and images
may not be synchronized when watching a video or playing a game.
Please charge using the supplied USB cable. The battery may deplete
if unused for a long time. Batteries wear out over time. if you need to
replace the battery, please contact HIFIMAN customer services.
Use the Bluemini only in locations that allow Bluetooth wireless
transmission.
Bluetooth wireless technology works within 10 meters normally. The
longest communication distance is affected by factors such as
obstacles, electromagnetic environment, indoor and outdoor.
The Bluemini is Bluetooth compliant and the device connected to
the Bluemini must also comply with the Bluetooth standard. The
Bluemini does not guarantee that all Bluetooth devices will be
connected.
The time for connecting the Bluemini to a different Bluetooth
device may vary.
Due to the limitation of Bluetooth wireless technology, the audio of
the media playback device may have a certain delay. Sound and
images may not be synchronized when watching a video or playing
a game.
The Bluemini can only be charged using the supplied USB cable.
The battery may be exhausted if the Bluemini is not used for a long
time. If the battery is running out too fast, replace the battery. If you
need to replace the battery, please contact your nearest HIFIMAN
dealer.
The battery should also be charged periodically (about every 3
months).
Includes electronic components and batteries. When handling
recycling, please contact your local management for disposal and
recycling.
Safety Instructions
Product Safety Instructions
Precautions for Use
Specifications

HIFIMAN Limited Warranty
Your Bluemini is warranted for a period of one year beginning with the
original date of purchase. Your dated sales or delivery receipt is your
proof of purchase. You may be required to provide proof of purchase as
a condition of receiving warranty service so please keep it handy.
If your product is under warranty and some malfunctions appear, please
contact HIFIMAN customer service or your authorized dealer. If neces-
sary, and at our discretion, we will provide a warranty repair or replace-
ment of your product.
Caution: do not disassemble or modify the product in any way. Tamper-
ing with or modifying your HIFIMAN product will void its warranty.
This Limited Warranty does not apply to :
1. Defective or discolored parts if the damages are caused by
fluids, dirt, missing keys, broken plastic parts or improper use.
2. Damage caused by misuse with another product.
3. Use of the product for other than its normal intended use,
including, without limitation, failure to use the product in
accordance with the supplied “Owner’s Guide”
4. Damage caused by accident, abuse, neglect or misuse.
5. If you do not have a valid dated receipt showing proof of purchase.
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interfer
ence that may cause undesired operation.
2. Changes or modifications not expressly approved by the party respon
sible for compliance could void the user’s authority to operate the
equipment.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without RF striction.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital, pursuant to Part 15 or the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may casue harmful interference to
radio communications, However, there is no guarantee that interference
will not occur in a particular installation. If the equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
--- Reorient or relocate the receiving antenna.
--- Increase the separation between the equipment and receiver.
--- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
--- Consult the dealer or an experienced radio/ TV technician for help.
FCC STATEMENT
FCC Radiation Exposure Statement:
05 06
Bluemini Bluemini

For any further information or questions, please contact your authorized
HIFIMAN dealer. Or email us directly at customerservic[email protected].
HIFIMAN guarantees your satisfaction and will do everything reason-
able to achieve that. If you have any questions or concerns with your
product, simply contact your authorized dealer or HIFIMAN directly (if
purchased from us) and explain the issue in detail. Should a return be
required, a RA# will be issued. Return shipping to HIFIMAN or
authorized service facility will be at the owner’s expense.
The warranty applies to the first purchaser and is not transferable.
Should you need warranty service please contact your authorized
HIFIMAN dealer. Or email us directly at customerservice@
HIFIMAN.com
If you have any concerns with your product: please contact us to
explain the issue in detail. If a return/refund is required, a RA# will be
issued. Return shipping to HIFIMAN or authorized service facility is
done at the owner’s expense.
6. Damage caused by services/repairs or other modifications to the
system carried out by anyone other than HIFIMAN or an authorized
HIFIMAN distributor or dealer.
7. Damage caused by self-repair or if the unit has been disassembled
or modified in any way.
07 08
