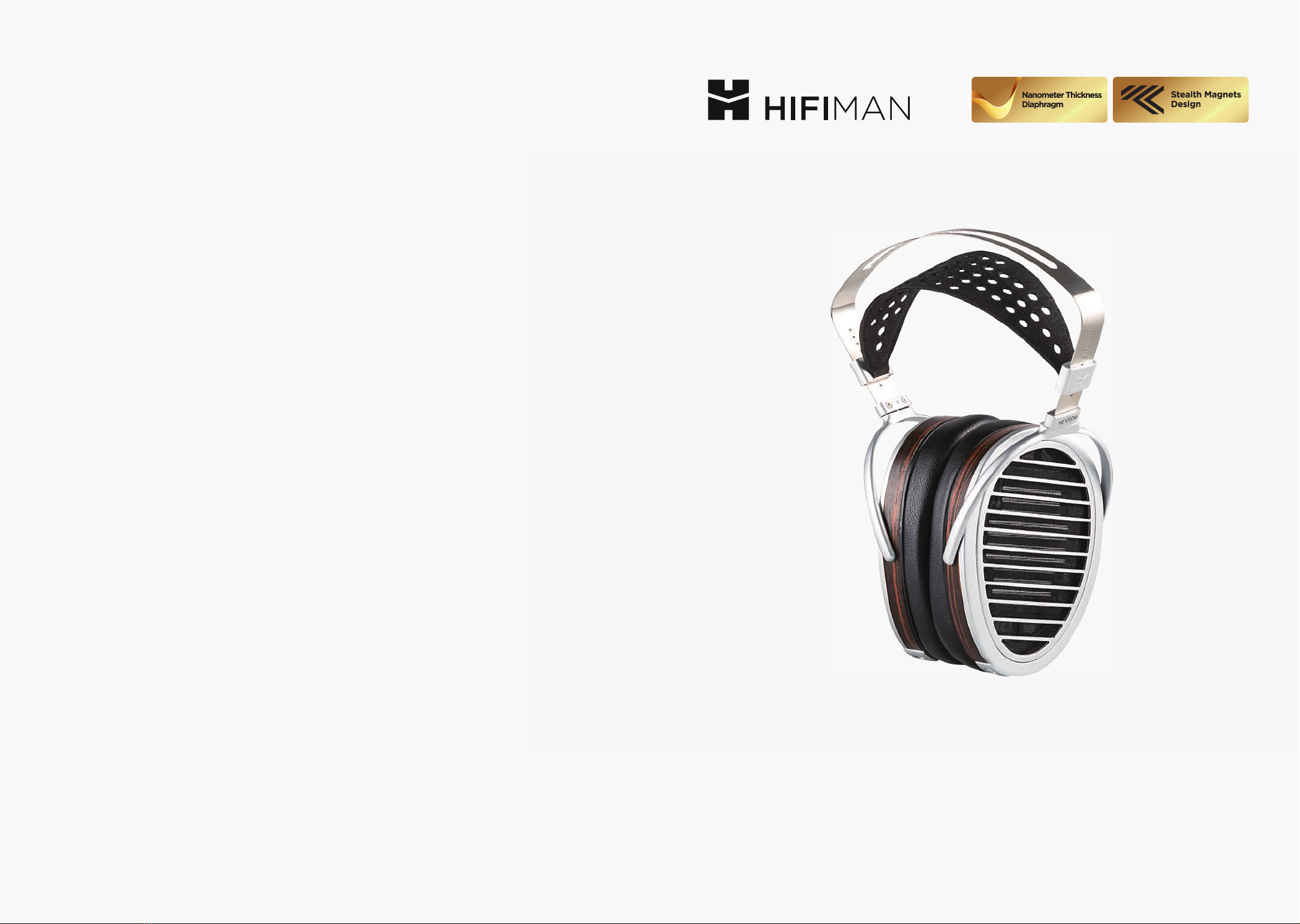

HiFiMAN HE1000se User manual

HE1000se
Owner’s Guide

Thank you for purchasing the HIFIMAN HE1000se planar magnetic
headphone. HIFIMAN is one of the leading designer and manufacturer
of high performance audio products. The HE1000se incorporates our
latest design concepts, including patented technologies that will
provide you with exceptional pleasure for years to come.
This guide is intended to share important information with you about
the special design, technologies and care that went into the HE1000se
and how you can maximize your enjoyment.
Hello

Mariinsky Theatre, St. Petersburg

Nanometer Thickness
Diaphragm
Assures Remarkable Reproduction
HE1000se uses planar magnetic technology to create sound. Unlike conventional dynamic
drivers,HIFIMAN planar headphones utilize a very thin film in proximity to a magnet to create
sound that is detailed and lifelike with outstanding clarity. Generally, the thinner the film means
lower mass, yielding faster response and lower distortion which in turn are key elements that
create natural sound reproduction.
In the HE1000se, the film we use is so thin, it is a diaphragm in nanometer thickness which is a
breakthrough core technology developed by HIFIMAN. To give you an idea how thin the film is,
if you were to view it from the side, it would be invisible to the naked eye. Working with this
advanced material is extremely challenging yet the successful incorporation of this film as the
HE1000se’s planar driver is the cornerstone of its remarkable sound.

The latest innovation in the world of planar magnetic headphones is the development of a new
design of magnet. We have called these “Stealth Magnets” after the core principle of anything
stealth, to be as invisible as possible. Thus, the advanced magnet design used on the
HE1000se aims to be as acoustically transparent, or invisible as possible. In traditional designs
the magnets get in the way of the sound waves, by reflection and diffraction. This creates
constructive and destructive interference and as these points shift with frequency changes
there is a mass of wave interference taking place.
The use of “Stealth Magnets” on the HE1000se means the sound wave reproduction can take
place without the necessary magnets getting in their own way ruining the sonic purity of their
output.
The Stealth Magnets

A conventional dynamic driver’s frequency response can be altered due to distortions and
vibrations across the diaphragm surface.
Degradation of sound quality in a conventional planar magnetic headphone is caused by the
magnets getting in the way of the sound wave.
Unlike the sound waves created by a conventional magnet, the special shape of stealth
magnet of HE1000se enables the waves to pass through the magnet without generating
interference.
Conventional electrostatic headphone sees degradation of sound quality caused by the
stator's interference.
90
O
S
N
S
N
N
S
N
S
N
N
N
S
N
90
O
S
N
S
N
S
N
N
S
N
S
N
S
N
N
90
O

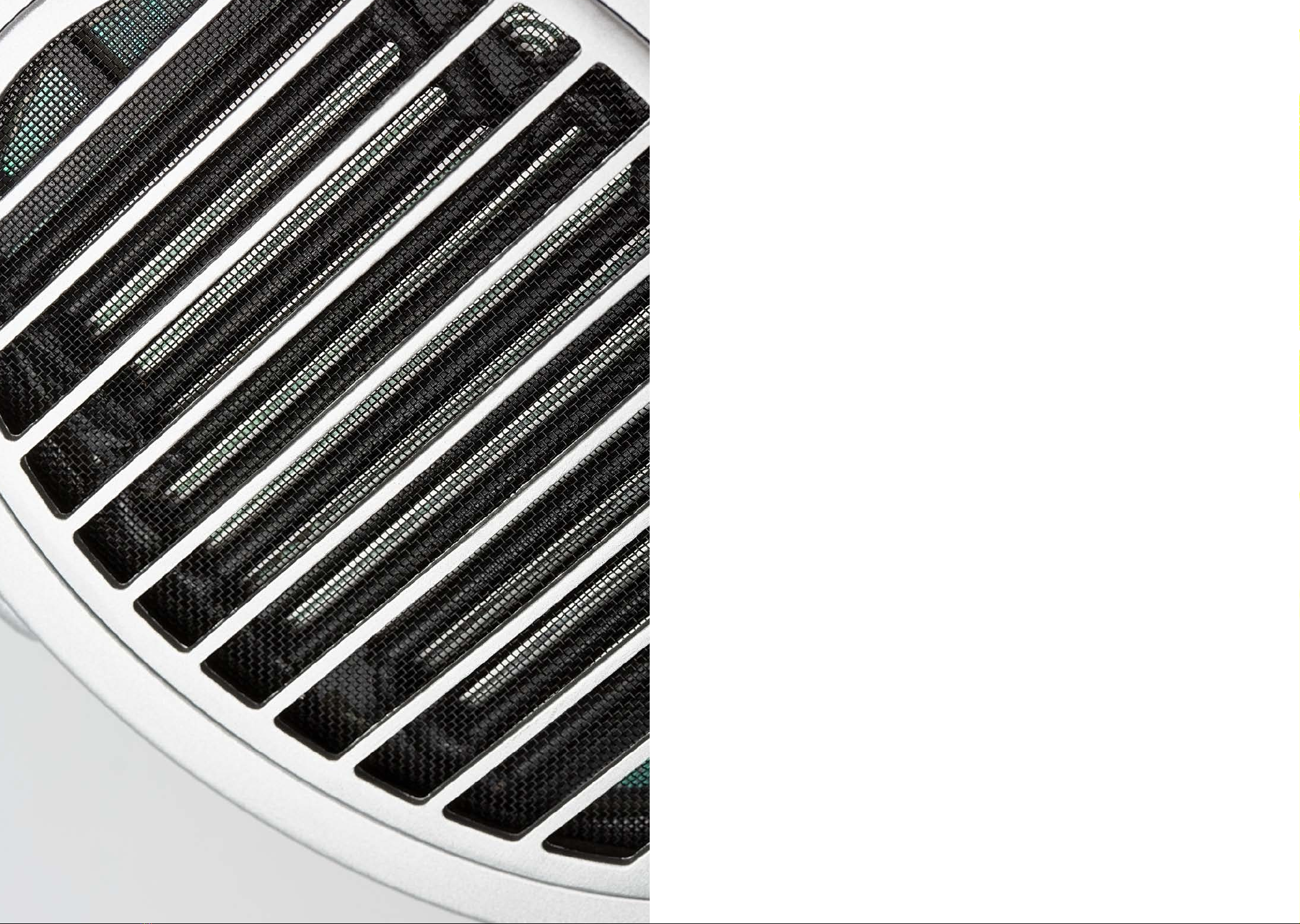

The Technology Under the Grill

Patented “Window Shade” System
Created to meet the need for driver protection
and optimized open-back design
HIFIMAN utilizes an “Open Back” design for best possible sound. With HE1000se, a patented
“Window Shade” is precisely structured to gain greater openness in the headphone design. It
keeps the sound waves from second refraction to avoid unwanted vibration and distortion.
Result is a wider soundstage, outstanding imaging and remarkable clarity.
Aesthetically, the “Window Shade” also provides a unique, high-tech look to HE1000se.

Metropolitan Opera,New York

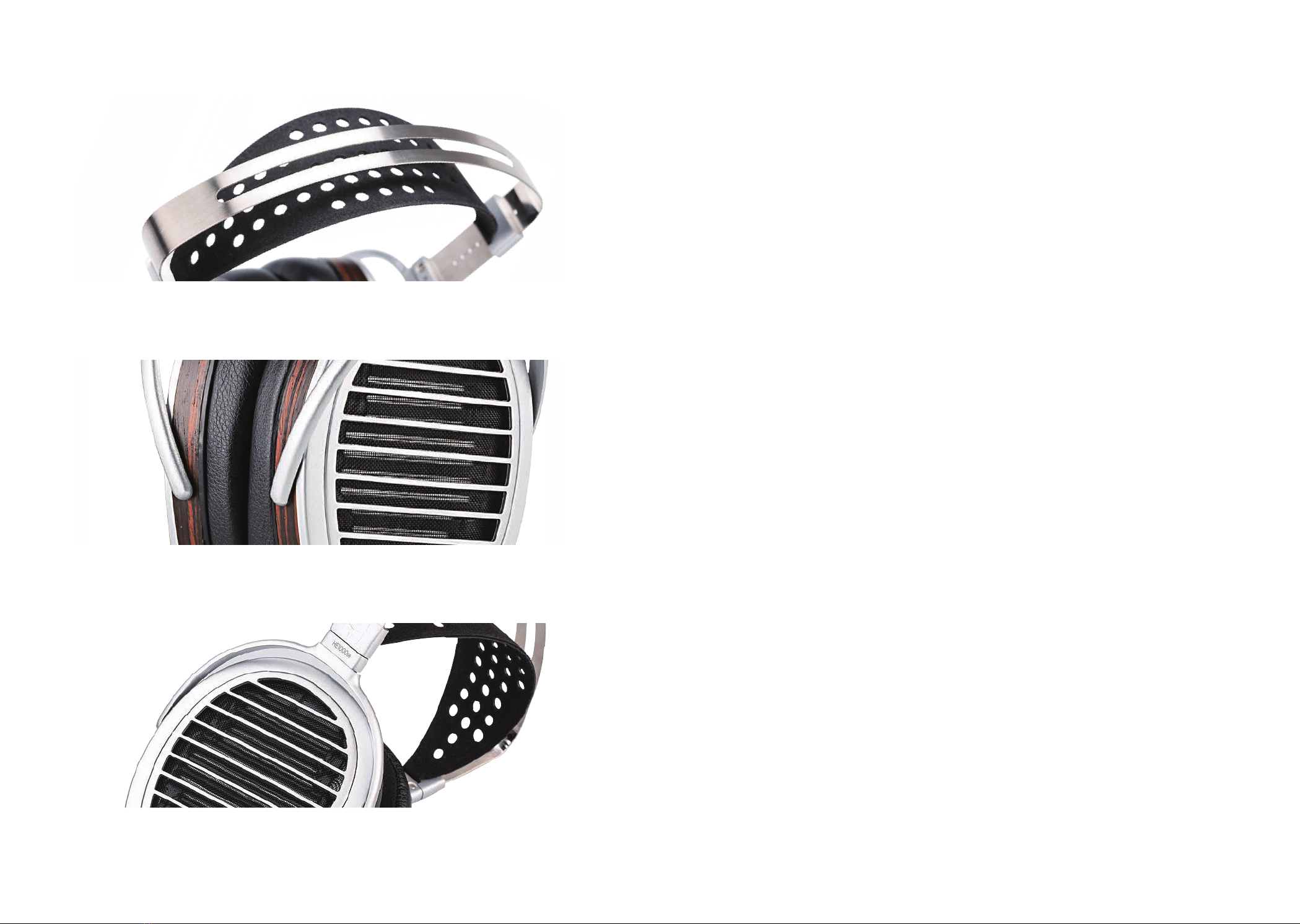

The Headband
Ergonomic and comfortable headband design
for most people, with greater reliability and durability
The metal headband structure is created via CNC milling and hand polishing. To adjust the
headband, simply move each ear cup up or down until the top of the headband rests
comfortably on your head and the ear cups surround your ears.

The Cables and Channel Orientation
HE1000se is supplied with a newly upgraded cable made of further refined conductor (higher
grade crystalline copper and crystalline silver) with improved stronger structure. The new
cable delivers better sound quality with wider frequency range and lower signal loss.
The cables are user-replaceable and have channel orientation for left and right. A “L” and “R”
are indicated inside the headband. Once the cable is installed with correct channel orientation,
an easy way to tell left and right is the cable is connected toward the front of the ear cup. The
cable will drape on the user’s chest for greater comfort.
The Plugs
The HE1000se includes three different cable options: 3.5mm, 6.35mm, and balanced XLR, for
compatibility with the widest variety of audio sources, amplifiers, and professional audio
equipments.

Wiener Staatsoper

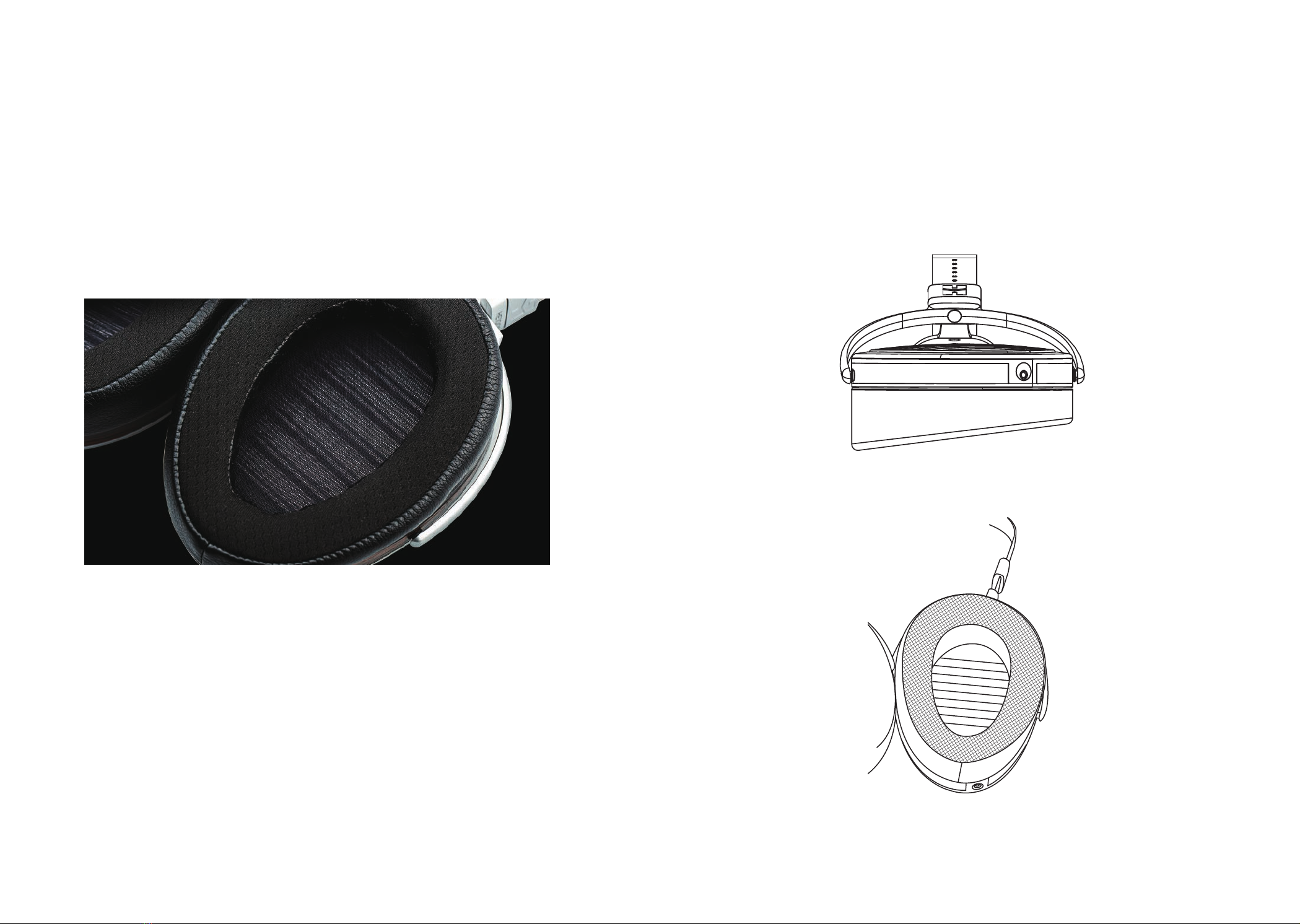

The Ear Pads
The elegant asymmetry of the ear pads on the HE1000se follows the natural shape of the
human ear. The pads themselves are gently beveled, contouring to the shape of your head for
superb comfort and extended listening.

HE1000se

The Craftsmanship
The Weight
Meticulously crafted and quality-checked by hand.
Each HE1000se is assured to be perfect.
Each one of our HE1000se headphones is assembled and repeatedly quality-checked by hand
throughout the entire manufacturing process. To meet the critical standard set out by HIFIMAN,
the surface finishing is handled and refined by meticulous craftsmen.
With its unique design, exceptional function and exquisite craftsmanship, the HE1000se is an
ultimate luxury item that will redefine the audio landscape.
The weight of the HE1000se has been reduced to 15.5oz (440g),
10% less of the original HE1000’s 16.9oz (480g).

Bayerische Staatsoper

Planar headphones benefit from break-in to achieve optimum performance. Usually this
takes up to 150 hours however there is nothing special you need to do other than enjoy your
headphones.
Wipe the surfaces (ear pads, cups) with a microfiber cloth and store the headphone in a dry,
cool and safe place (away from dust, heat, humidity, sunlight, younger kids and pets if
possible.) For the headband, wipe it periodically to remove any dust.
Do not expose the headphone to excessive heat or cold temperatures.
Do not use any headphone while driving or operating machinery.
Do not use volatile substances alcohol, acetone, gasoline or dish deterg ent to clean the
headphone.
Care and Maintenance
To help fit the headphone to your head, you may use the two adjustment blocks to change
the position of the headband strap to better accommodate your head.
Headband Adjustment
To remove the ear pads, locate the clips on the inside of the pad, and use two fingers to
gently bend them in and slip them out. To install new pads, simply align the ear pad with the
mounting ring, and gently bend the clips so they slot in their appropriate locations.
Replacing Ear Pads
①
②
③
HE1000se
Thick Thin

Technical Data
Package Contents
Specifications
Impedance: 35 Ω
Sensitivity: 96 dB
Frequency response: 8Hz-65kHz
Weight: 440g (15.5oz)
(1) Pair of headphone
(1) 1.5m headphone cable (3.5mm)
(1) 3m 4 pin XLR balanced cable
(1) 3m headphone cable (6.35mm)
(1) Pair of ear pads (mounted on headphone)
(1) Owner’s Guide

Customer Service Tel: [phone]
E-mail: [email protected]
Website: www.HIFIMAN.com
www.hifiman.com store.hifiman.comhifimanelectronics hifimanofficial
HIFIMAN Limited Warranty
Your HE1000se is warrantied for a period of three years beginning with the original date of
purchase. The dated sales or delivery receipt is your proof of purchase.You may be required to
provide proof of purchase as a condition of receiving warranty service so please keep it handy.
If your product is under warranty and malfunctions occur, please contact HIFIMAN customer
service or your authorized dealer.If necessary, and at the discretion of HIFIMAN, the company
will provide a warranty repair or replacement of your product. 
Caution: do not disassemble or modify the product in any way. Tampering with or modifying
your HIFIMAN product will void its warranty.
This Limited Warranty does not apply to :
1. Defective or discolored parts if the damages are caused by fluids, dirt,missing keys, broken
plastic parts or improper use.
2. Damage caused by misuse with another product.
3. Use of the product for other than its normal intended use, including, without limitation, failure
to use the product in accordance with the supplied “Owner’s Guide”
4. Damage caused by accident, abuse, neglect or misuse.
5. If you do not have a valid dated receipt showing proof of purchase.
6. Damage caused by services/repairs or other modifications to the system carried out by
anyone other than HIFIMAN or an authorized HIFIMAN distributor or dealer.
7. Damage caused by self-repair or if the unit has been disassembled or modified in any way.
HIFIMAN greatly desires your satisfaction and will do everything reasonable to achieve that. If you
have any questions or concerns with your product, simply contact your authorized dealer or
HIFIMAN directly (if purchased from us) and explain the issue in detail. Should a return be required,
a return authorization (RMA) number will be issued. Return shipping to HIFIMAN or authorized
service facility will be at the owner’s expense.
The warranty applies to the first purchaser and is not transferable. Should you need warranty
service please contact your authorized HIFIMAN dealer. Or email us directly at
[email protected]
