HighPoint NA381TB User manual

Address: 1161 Cadillac Court, Milpitas, CA 95035
Email: [email protected]
HighPoint Technologies, Inc.

Before installing this unit, verify the package contains the following items.
1. HDD Power LED
。White - Power On Indicator
2. HDD Status LED
。Flash Blue - HDD Accessing Indicator, Red - HDD Failure Indicator
3. PSU power button
。“I” for enable, “0” for disable
4. Power cord receptacles
5. Thunderbolt connectors
。Connecting ThunderboltTM cables to host and downstream device
6. Mute Button
。Reset for buzzer beeping
7. Fan Status LED
。Normal – Green
。Failure – Red (too slow RPM or stop)
8. Temperature LED
。Normal – Green
。Over 50°C – Red
9. Cooling fans
10. Swappable integrated plate drawer for
Mac mini/Mac mini Server
4. Hardware Configuration
5. Building Up Procedures
Power cord x 2
E
ThunderboltTM cable
D (2 meters) x 1
C
HDD Tray x 24
(installed in chassis)
B
Notify your sales representative if any of the above items is missing or
damaged.
Based on the latest ThunderboltTM technology and PCIe architecture,
the creative, innovative design of NA381TB features RAID level protection
and high-performance with PCIe expansion ability to Mac mini or Mac
mini Server through the blazing-fast ThunderboltTM interface. Moreover,
the ThunderboltTM NA381TB enclosure accommodates SAS/SATA
6G/3Gbps hard drives and can be installed with FC/10GbE network card
for high-speed SAN application.
1. Place NA381TB chassis on a level surface of a stable table.
2. Open the chassis by removing the top cover.
3. Three PCIe slots on rear of NA381TB are covered by removable
L-shape metal brackets. Unscrew the screw of the removable
L-shape metal bracket, and the PCIe slots are ready for installation
of PCIe cards.
4. Install one SAS/SATA RAID controller card and other PCIe cards into
proper PCIe slots of NA381TB and tighten them with screws on the
brackets of the PCIe cards.
5. Connect the cable between the topmost mini-SAS connector on
backplane and the mini-SAS connector Channel 1~4 on RAID card,
and connect the rest cables subsequently to the bottommost one on
backplane and Channel 21~24 on RAID card.
6. Loosen the two thumbscrews on swappable integrated plate drawer,
and pull it out. Use a tool to bend the metal board on plate drawer to
separate the metal board from drawer.
1. Overview
2. Package Checklist
3. Panel Layout
1
2
Key for HDD tray
x 2
GManual CD-ROM
x 1
H
HDD mounting
screw x 96
F
Internal mini-SAS
(SFF-8087) to
mini-SAS (SFF-8087)
cable 30 cm x 6
Green IT makes
Green Earth
NetStor Technology Co. Ltd.
www.netstor.com.tw
Enclosure x 1
A
3 96
5 7 84 10
slot 4 slot 3 slot 2 slot 1
Slot 1 : ThunderboltTM target card
(already fixed in the chassis)
Slot 2 : PCIe x8 slot (Support PCIe card x1/x4/x8/x16.
in this slot because it is closest to the connectors
of backplane)
Slot 3 : PCIe x8 slot (Supports PCIe card x1/x4/x8)
Slot 4 : PCIe x4 slot (Supports PCIe card x1/x4)
RAID HBA
mini-SAS cable
Enclosure
RAID HBA
Slot 2
D
TM
RAID controller card is recommended to be installed

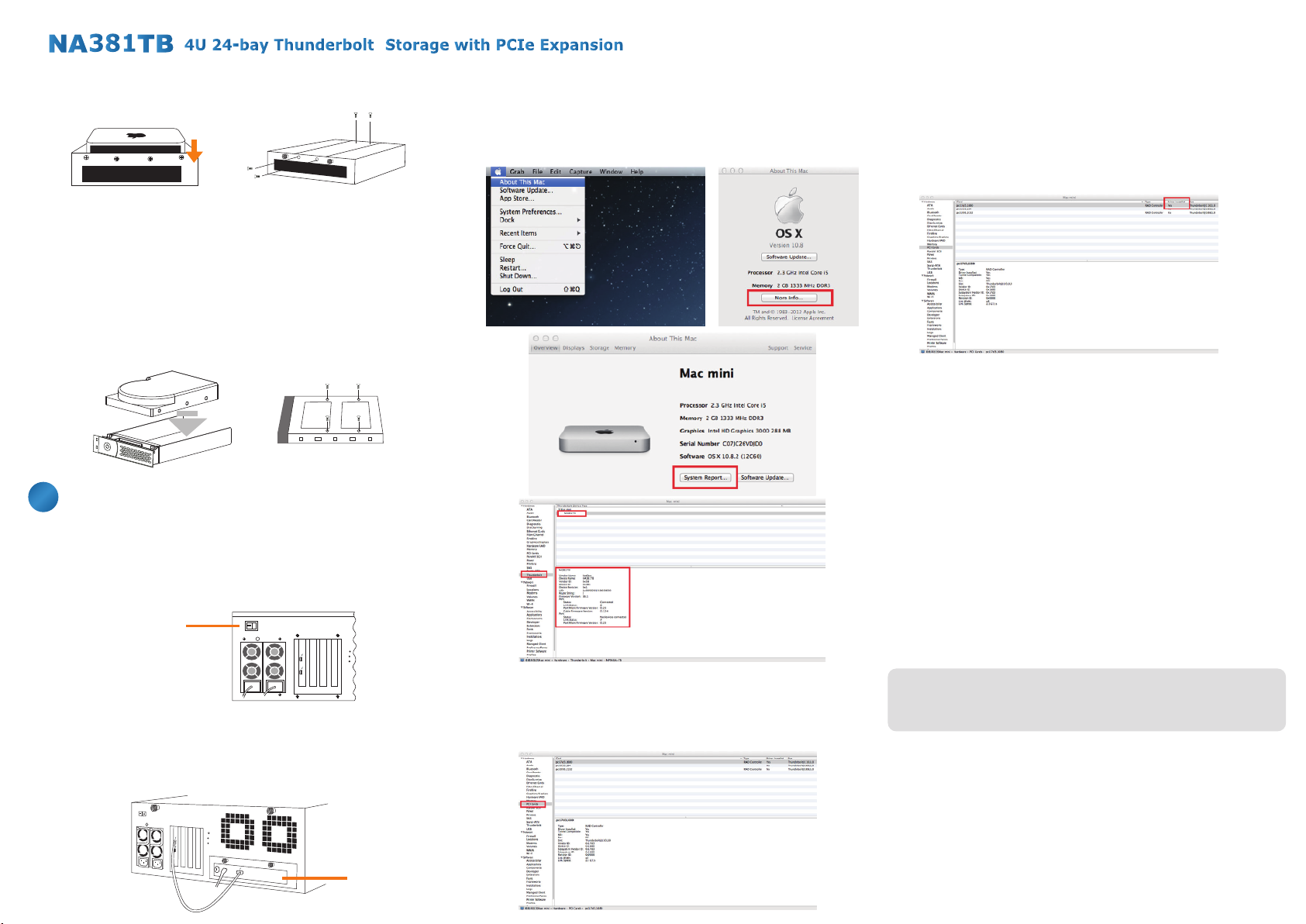

7. Unscrew the four screws on L-type bracket on plate drawer, place
the Mac mini Server into drawer, and restore the L-type bracket to
fasten Mac mini Server with drawer.
8. Connect NA381TB and Mac mini Server with ThunderboltTM cable
9. Restore the top cover of NA381TB and immobilize the chassis on a
server rack or proper place.
10. Connect NA381TB with power source.
11. Take out the HDD trays.
12. Place the HDDs in the trays and fix them with hard drive mounting
screws. Put the trays with HDDs back to NA381TB.
1. When NA381TB is connected to the power source with two power
cords connecting to PSU of NA381TB, turn on the power switch of
PSU (turn the switch to “I” position to enable the power supply).
4.
Verify the PCIe cards installed in NA381TB. After the verification of
HighPoint ThunderboltTM target card, click PCI Cards on left side of the
pane, and then all the PCIe cards installed in NA381TB will be shown in
the information area in the pane. (For RAID controller card, from starting
up, it will take more time for its info to be displayed.)
3.
Verify HighPoint ThunderboltTM target card is recognized by Mac mini
Server. Click the Apple icon on top left of the screen, select About This
Mac, and then select More Info.Next, click System Report,and a pane
will pop up. Select ThunderboltTM on left side of the pane, and if
NA381TB can be selected to see the information, then the HighPoint
ThunderboltTM target card is recognized by Mac mini Server.
2. The NA381TB is designed to be powered on/off simultaneously with
Mac mini Server when NA381TB is connected to Mac mini Server by
ThunderboltTM cable. Therefore, power on Mac mini Server first, and
then NA381TB will be powered on automatically. (NA381TB also
supports hot-plug and hot-unplug for powering-on and powering-off.)
•The following verification steps are for Mac OS X.
6. Operation and Verification
turn the switch to
position “ I ”
Mac mini Server
If you have any questions, please contact your regional
distributor, or HighPoint Technologies, Inc.
5.
Verify that the drivers of RAID controller card and PCIe cards are
installed on OS X. When seeing all the PCIe cards listed from the last
step, there will be a column Driver Installed which indicates the status
of PCIe cards’ drivers. If it shows “No” in the status, then find and install
the ThunderboltTM-aware driver of the PCIe card, and then the status
will become “Yes” to show the driver of the PCIe card has been
installed successfully.
6. After verifying that the driver of the RAID controller card is installed,
follow the operation procedure instructed by the manufacturer of the
RAID card to set up the RAID volume.
7.
While NA381TB is connected to Mac mini Server by ThunderboltTM
cable, when shutting down Mac mini Server, the NA381TB will be shut
down simultaneously as well.
Notice: The NA381TB chassis supports SGPIO. When any HDD fails, the red
LED indicator on that tray will light. The SGPIO function will be effective when
the SAS/SATA RAID card supports SGPIO function (for example, Areca’s RAID
controller card).
HighPoint Technologies, Inc.
Address: 1161 Cadillac Court, Milpitas, CA 95035
E-mail: [email protected]
Phone: [phone] (Monday~ Friday, from 9am~6pm)
Skype: Highpoint.Thunderbolt
Support: www.highpoint-tech.com/websupport
TM
