OWNER’S MANUAL
PATIO HEATER
MODEL #
DANGER
WARNING:
For Outdoor Use Only
Precaution!
The Powder Coating paint process has become the most
common widely used application in the outdoor furniture
category. Unfortunately powder coating is extremely
sensitive to Humidity and Moisture. A simple process to
protect your furniture, especially flat surfaces is to apply a
simple coat of good quality car wax prior to using. If this
process is done every few months it will protect your
furniture for years to come.
WA ING
ANS Z83.26-2014 •CSA 2.37-2014 Gas-Fired Outdoor Infrared Patio Heaters
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-775-1330, 7 a.m. - 4 p.m., PST, Monday – Friday. Or email us
at war[email protected].
WH17/01
GFT-68043
C
US
R

Read the instruction before use. This appliance must be installed in accordance with such
regulations as are enforced.
CAUTION
Installer: Leave the manual with
the user for future use.
Consumer: Please keep this
manual for future
reference.
WARNINGS AND CAUTIONS
WARNING
Do not try to light this appliance
without reading the “LIGHTING”
instructions section of this
manual.
Do not store or use gasoline or
other flammable liquids or vapors
in the vicinity of this or any other
appliance. An LP cylinder not
connected for use must not be
stored in the vicinity of this or any
other appliance. If the information
in these instruction is not
followed exactly, a fire or
explosion may result, causing
property damage, personal injury
or death.
DANGER
IF YOU SMELL GAS:
•Shut off gas to the appliance.
•Extinguish any open flame.
•If odor continues, keep away
from the appliance and
immediately call your gas supplier
or fire department.
WARNING
FOR OUTDOOR USE ONLY!
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide, which has no
odor.
Using it in an enclosed space can
cause injury or death. Never use
this appliance in an enclosed
space such as a camper, tent or
building.
WARNING
Improper installation, adjustment,
alteration, service or maintenance
can cause property damage,
injury or death. Read the
installation, operating and
maintenance instructions
thoroughly before installing or
servicing this gas appliance.
WARNING
Never leave fire pit unattended
when hot or in use.
Keep out of reach of children.
1

TABLE OF CONTENTS
•Warnings and Cautions…………..……………..……………..……1
•Table Of Contents…….……………………………..………….……2
•Tools and Parts… ………………………………..………….…5-6
•Assembly……………………………………………………………7-9
•Lighting Operation………………………………….………..…10-12
•Maintenance and Storage………………………...….….…….13-14
•Trouble Shooting……………………………………………………15
BEFORE ASSEMBLY
Verify that all parts are included with your gas fire pit BEFORE you begin assembly by
checking the Parts and Hardware List. For your convenience, some parts may be pre-
assembled or attached to heater components.
If some parts are not included, do not attempt to assemble the gas fire pit. Call the free
number on the cover page for replacement parts.
Leave hardware installed HALF-TIGHTENED on the gas fire pit during assembly until unit is
completely assembled, then finish tightening all hardware installed.
YOUR OWNER’S MANUAL
Keep and store this Owner’s Manual for future reference-It contains important instructions and
procedures for safety and maintenance.
2
•Warnings……………………………………………………………3-4
•Warranty ……………………………………………………………16

You must provide propane gas and propane cylinder. Use a standard 20 lb. propane
cylinder only.
Use this heater only with a propane vapor withdrawal supply system. See Chapter 5 of the
Standard for Storage and Handling of Liquefied Petroleum Gas, ANSI/NFPA 58. Your local
library or fire department should have this book.
The pressure regulator and hose assembly supplied with the appliance must be used.
The installation must conform with local codes, or in absence of local codes, with National
Fuel Gas Code, ANSI Z223.1.
A dented, rusted or damaged propane cylinder may be hazardous and should be checked
by your cylinder supplier. Never use a propane cylinder with a damaged valve connection.
The LP-gas supply cylinder must be constructed and marked in accordance with the
U.S.Department of Transportation (D.O.T) Specifications for LP-Gas Cylinders, or the
standard for Cylinders, Spheres and Tubes for Transportation of Dangerous Good and
Commission, CAN/CSA-B339, as applicable.
The LP-gas supply cylinder must be provided with a cylinder connection device
compatible with the connection for the appliance.
The cylinder used must include a collar to protect
the cylinder valve.
Warnings
3
WARNING :Fuels used in wood or charcoal burning appliances ,and the products of
combustion of such fuels,contain chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
The LP-gas supply cylinder must be provided with
a listed overfill protection device(OPD).
Do not store a spare LP Gas cylinder under or
near this appliance.
Never fill the cylinder beyond 80 percent full.
For appliances designed to use a CGA No. 791I
QCC connection:
Place the dust cap on the cylinder valve outlet
whenever the cylinder is not in use.
Note: Gas supply pressure: 25 to 250 PS1.

WARNING:
The unit is not for use with solid fuel.
The installation must conform with local
codes or, in the absence of local codes, with
the National Fuel Gas Code, ANSI Z223.
1/NFPA 54, NFPA58 Natural Gas and
Propane Installation Code, CSA B149.1, or
Propane Storage and Handling CODE,
B149.2.
The heater, when installed, must be
electrically grounded in accordance with
local codes or, in the absence of local codes,
with the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
Prior to use, check for damaged parts such
as hosed, regulators, pilot or burner.
Inspect the fuel supply connection for signs
of leakage (including the hose for LP models)
before each use of the appliance.
All leak tests should be done with a soapy
solution. NEVER USE AN OPEN FLAME TO
CHECK FOR LEAKAGE.
Children and adults should be alerted to the
hazards of high surface temperatures and
should stay away to avoid burns or clothing
ignition.
Young children should be carefully
supervised when they are in the area of the
heater.
Clothing or other flammable materials should
not be hung from the heater, or placed on or
near the heater.
Warnings
4
NOTE: PLEASE READ THE FOLLOWING SAFETY RULES
Any guard or other protective device
removed for servicing the heater must be
replaced prior to operating the heater.
Installation and repair should be done by
a qualified service person. The heater
should be inspected before use and at
least annually by a qualified service
person.
More frequent cleaning may be required
as necessary. It is imperative that control
compartment, burners and circulating air
passageways of the heater be kept clean.
Keep the appliance area clear and free
from combustible materials, gasoline and
other flammable vapors and liquids.
DO NOT OBSTRUCT the flow of
combustion and ventilation air.
Keep the ventilation opening(s) of the
cylinder enclosure free and clear from
debris.
The appliance shall be used only in a
well-ventilated space and shall not be
used in a building, garage or any other
enclosed area.
An appliance may be installed with
shelter no more inclusive than: With
walls on all sides, but with no
overhead cover.
Within a partial enclosure which includes
an overhead cover and no more than two
side walls. These side walls may be
parallel, as in a breezeway, or at right
angles to each other.

5
A
J
B
C
E
G
D
H
K
F
I
L
DD
BB

Hardware
M6 X12 bolt 22
6
Parts List
Tools Required (Not included)
1
Adjustable open end wrench
2 Phillips screwdriver
1
1
A
B
E
G
I
K
Cover
Glass (8.0kgs)
Door
Gas Tank Support
1
C
D
F
H
J
L
Table Top With Burner
1
1
1
1
1
1
1
1
2
Front Leg
Front Leg
Back Leg
Back Leg
Side Panel
Side Panel with window
Handle
BB M4 X10 bolt
1
AA
CC
AAA Battery
1
2
M6 Nut
1
EE
DD Washer

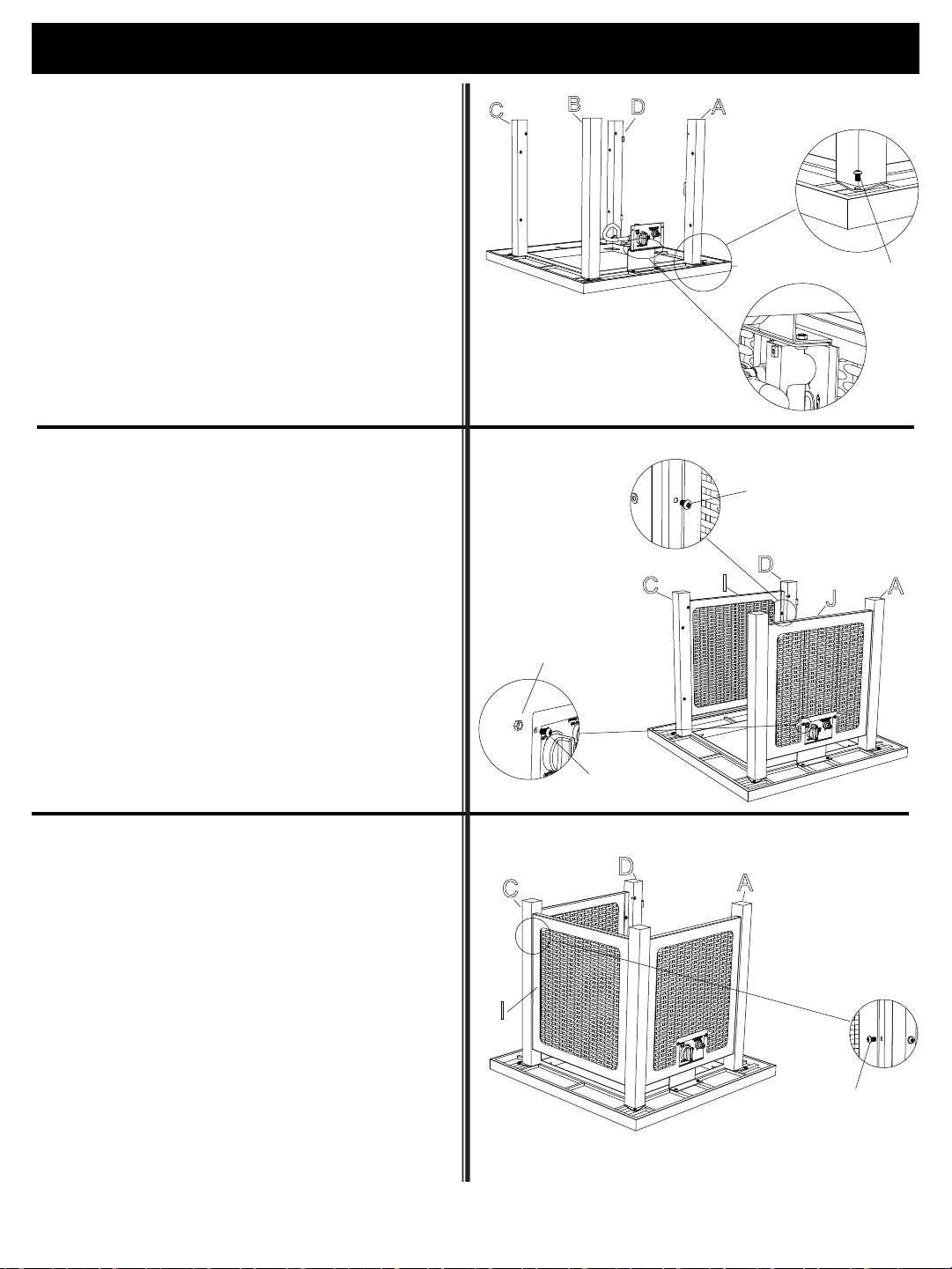

Assembly Instructions
Step 1:
Step 2:
Step 3:
7
Connect all four Legs (A,B,C,D) to the Table
Top with Burner (G) by using four M6 x12
Bolts (AA).
NOTE: PLACE TABLE TOP TO
NON-ABRASIVE SURFACE.
Connect Side Panel With window (J) to
Front Leg (A) and Back Leg (B) by using
four M6
Connect Side Panel (I) to Back Leg (C) and
Back Leg (B) by using four
PLEASE DON’T TIGHTEN THE
HARDWARE AT THIS TIME.
x 12 Bolts (AA).
Connect Side Panel (I) to Front Leg (D)
and Back Leg (C) by using four M6 x12
Connect Control Panel to Side Panel with
M6 x12
Bolts (AA).
Window (J) by using two M6 x12 Bolts (AA)
Bottls (AA).
AA
AA
AA
IJA
CD
A
CD
I
G
DA
B
C
AA
Don’t tighten the hardware.
and two M6 Nuts (CC).
CC

8
Assembly Instructions
Step 4:
Connect Gas Tank Support (K) to the
semi-assembled body by using four
M6x12 Bolts(AA).
Step 5:
Connect Door (H) to Front Leg (D) by
inserting the door pin into the leg hinge
as depicted in graphic
NOTE: PLEASE TIGHTEN THE
HARDWARE AT THIS TIME.
D
H
Ignition
L
Step 6:
Connect Handle(L) to Cover (E) by using
one M4x10 Bolts(BB)and one Washer
(DD). Place the Glass (F) into the fire bowl.
Note: Ensure no lava rock is placed on
the ignition portion of the burner.
Then place the Cover (E) on.
Note: The cover must be removed when
the burner is in operation. Wait until the
unit cools before installing the cover.
E
F
AA
AA
BB
Please tighten the hardware.
DD
D
A
B
CK

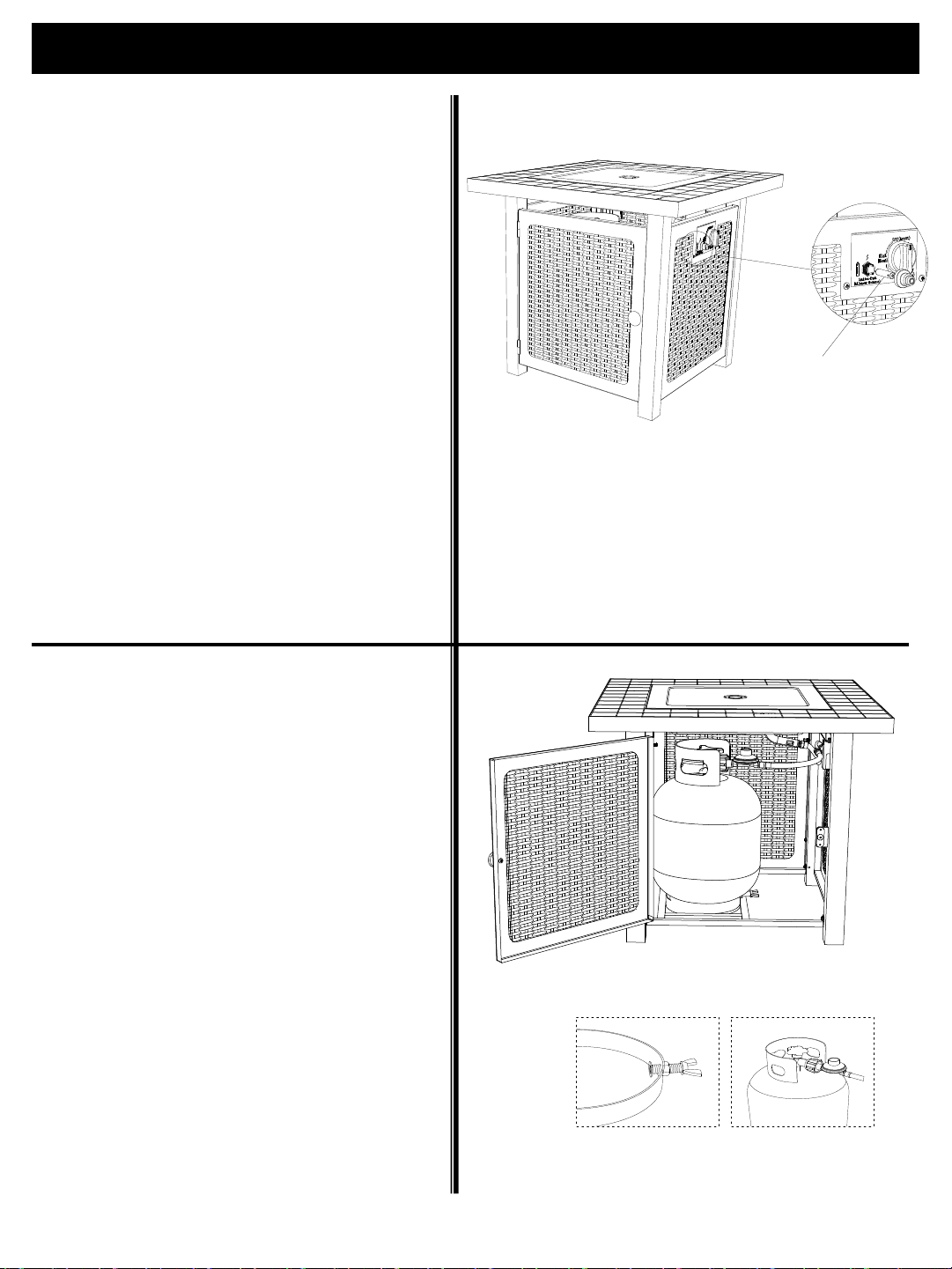

Assembly Instructions
Step 7:
9
Step 8:
Put the cylinder into the Gas Tank Support
(K), and secure the cylinder by tightening
the screw in the gas tank support.
Connect the hose and regulator to cylinder.
The propane cylinder is sold separately.
Use a standard 20 lbs propane cylinder
only.
AAA Battery
Unscrew the igniter counterclockwise
and put the AAA battery (EE) in, tighten
clockwise.

OPERATION
WARNING: Never use this appliance for other than the intended use. Do not use this
appliance to prepare food.
Initial Lighting: When lit for the first time, the appliance emits a slight odor. This is normal
temporary condition caused by the “burn –in” of internal paints and lubricants used in the
manufacturing process and does not occur again. Simply run the main burner on high for
approximately one-half hour.
WARNING:
•Children and adults should be alerted to the hazards of high surface temperatures
and should stay away from the appliance to avoid burns or clothing ignition.
•Children should be carefully supervised when they are in the area of the appliance.
•Clothing or other flammable materials should not be hung from the appliance, or placed
on or near the appliance. The area above the enclosure may be extremely
hot. Direct contact with these surfaces should be avoided in order to prevent burns
or clothing ignition.
•Any guard or protective device removed for servicing the appliance must be restored prior
to operating the appliance.
•Installation and repair should be done by a qualified service person.
•The appliance should be inspected before each use and at least annually by a qualified
service person. More frequent cleaning may be required as necessary. It is imperative that
the control compartment, burners and circulating air passageways of the appliance be kept
clean.
10
WARNING:
•Never use the appliance while it is raining. Always turn the appliance off when raining.
•Never use the appliance if the burner is damaged. Inspect the burner before each use.
Ensure that no debris such as leaves; grass or other objects have entered or are on the
appliance. If the burner is damaged it must be replaced prior to using the appliance with a
replacement burner specified by your dealer.
•Inspect the hose assembly before each use. If there is evidence of excessive abrasion
or wear, or if the hose is damaged,it must be replaced prior to using the appliance with a
replacement hose assembly specified by your dealer.
WARNING: Any modification to the appliance may compromise the safety
of this appliance. Special concern is as follows:
Do not bypass thermocouple safety.
Do not operate the appliance if any parts has been under water. Immediately call a
qualified service technician to inspect the appliance and replace any part of the control
system and any gas control, which has been underwater.

OPERATION
WARNING: A leak test must be performed annually, or if a part of the gas system is
replaced.
Leak testing: This must be done before initial use, annually, and whenever any gas
components are replaced or serviced. Do not smoke while performing this test, and remove
all sources of ignition. See Leak Testing Diagram for areas to check. Turn all burner
controls to the off position. Turn gas supply valve on. Brush a half-and-half solution of liquid
soap and water onto all joints and connections of the regulator, hose, manifolds and valves.
Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with
one recommended by your dealer and have the appliance inspected by a certified gas
installer.
If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have
the appliance inspected by a certified gas installer or dealer. Do not use the appliance until
the leak has been corrected.
DO NOT USE AN OPEN FLAME.
11
Leak Testing Operation
WARNING: Never use an open flame to check for gas leaks. Be certain no sparks or
open flames are in the area while you check for leaks. Sparks or open flames will result in
a fire or explosion, damage to property, serious bodily injury, or death.

OPERATION
Lighting instructions
1. Press and hold electronic igniter
button.
2. Turn the burner control to the high
position, press and hold in. When
the burner lights, release the
electronic igniter button.
3. Continue to depress the burner
control knob for 30 seconds and
then release. If the flame goes
out, repeat the procedure.
4. Adjust the flame to the desired
height with the burner control
knob.
5. If the burner will not light with the
electronic igniter, hold a lit long
match or lit long butane lighter to
the ignition area of the burner and
continue with step 2.
6. To shut down the burner turn the
burner control knob clockwise to
the off position. Then turn the gas
off at the source (propane
cylinder valve or natural gas
supply valve).
WARNING
FOR YOUR SAFETY:
If the burner does not light within
10 seconds, turn the valve off and
wait 5 minutes for any gas to
dissipate before repeating the
procedure.
WARNING
FOR YOUR SAFETY:
Keep face and body away from
burner area when lighting.
Ensure burner controls are in the
off position. Slowly turn on the
gas supply valve.
WARNING
FOR YOUR SAFETY:
The propane cylinder is equipped
with an excess flow device.
Unless burners are turned off
prior to turning the cylinder on,
only small flames and low heat
will be achievable.
12

MAINTENANCE AND STORAGE
CLEANING AND MAINTENANCE:
To enjoy years of outstanding performance from your heater , make sure you perform
the following maintenance activities on a regular basis:
•Keep exterior surface clean.
•Use warm soapy water for cleaning. Never use flammable or corrosive cleaning
agents.
•While washing your unit, be sure to keep the area around the burner dry at all times.
If the gas control is exposed to water in any way, do
NOT try to use it. It must be replaced.
•Keep the appliance area free and clean from combustible materials, gasoline
or other flammable vapors and liquids.
•Visually check burner flames.
•At least once a year, the unit should be inspected for the presence of
spiders, spider webs or other insects.
• Air flow must be unobstructed. Keep controls, burner, and circulating air
passageways clean. Signs of possible blockage include:
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noises.
•Spiders and insects can nest in burner or orifices. This dangerous condition can
damage heater and render it unsafe for use. Clean burner holes by using
a heavy-duty pipe cleaner. Compressed air may help clear away smaller particles.
•Carbon deposits may create a fire hazard. Clean reflector, thermocouple and
emitter screen with a dry cloth if any carbon deposits develop.
•The burner is made from stainless steel, but extreme heat and a corrosive
environment can cause surface corrosion to occur. This can be removed with a brass
wire brush. Inspect the burner at least annually for cracks, insect nests, excessive
corrosion or any other damage. If the burner is damaged, it must be replaced with a
burner specified by the manufacturer before the appliance is put into operation.
13
Normal

MAINTENANCE AND STORAGE
During periods of extended inactivity or when transporting
•Turn the control knob to “OFF” position.
•Disconnect LP source and move to a secure, well ventilated location
outdoors. DO NOT store in a location that will exceed 125 degrees F.
•Store heater upright in an area sheltered from direct contact with inclement
weather (such as rain, sleet, hail, snow, dust and debris).
•If desired, cover heater to protect exterior surfaces and to help prevent build
up in air passages.
NOTE: Wait until heater is cool before covering.
STORAGE:
Between uses:
•Turn the control knob to “OFF” position.
•Disconnect LP source.
•Store heater upright in an area sheltered from direct contact with inclement
weather (such as rain, sleet, hail, snow, dust and debris).
•If desired, cover heater to protect exterior surfaces and to help prevent build
up in air passages.
Note: Wait until heater is cool before covering.
14

TROUBLE SHOOTING
PROBLEM PROBABLE CAUSE SOLUTION
Low heat / Low flame
when valve turned to
high.
For propane- improper lighting
procedure.
Ensure lighting procedure is followed carefully. The
valve must be in the off position when the tank valve is
turned on. Turn tank on slowly to allow pressure to
equalize. See lighting instruction.
Pipe must be sized according to installation code.
Burners burn with yellow
flame, accompanied by
the smell of gas.
Possible spider web or other
debris.
Thoroughly clean burner venturi. See general
maintenance instructions.
Burner will not light with
the igniter, but will light
with a match.
Remove battery / or installed
incorrectly.
Loose electrode wire or switch
terminal wires.
Replace with heavy duty battery.
Check that the electrode wire is firmly pushed onto the
terminal on the back of the igniter. Check that the lead
wires from the module to the ignition switch (if equipped)
are firmly pushed onto their respective terminals.
Burner will not stay lit
when control knob is
released.
Knob not being held in long
enough.
Too windy.
Lava rock or debris in ignition
area of the burner preventing
thermocouple from being fully
engulfed in flame.
Dirty thermocouple or
thermocouple connection.
Faulty thermocouple or valve.
Thermocouple must have time to heat up:hold the knob
in for 30 seconds after the burner lights, then release.
Unit will shut down if winds are greater than 10mph
(16km/h). Either locate to different area or use when it is
less windy.
Ensure there is no lave rock or other debris in ignition
area, and that the small hole bellow the thermocouple is
unobstructed.
Clean the thermocouple and clean the connection
between the valve and thermocouple. Ensure the
connection is properly tightened.
Replace thermocouple and / or valve.
Humming regulator. Normal occurrence on hot days. This is not a defect. It is caused by internal vibrations in
the regulator and does not affect the performance or
safety of the gas heater.
Humming regulators will not be replaced.
Burner output on “high”
setting is too low.
(Rumbling noise and
fluttering blue flame at
burner surface.)
Lack of gas.
Supply hose is pinched.
Dirty or clogged orifice.
Spider webs or other matter in
venturi tube.
Propane regulator in “low flow”
state.
Check gas level in propane cylinder.
Reposition supply hose as necessary.
Clean burner orifice.
Clean out venturi tube.
Ensure lighting procedure is followed carefully. All
valves must be in the off position when the tank valve is
turned on. Turn tank on slowly to allow pressure to
equalize. See lighting instructions.
15

ONE-YEAR LIMITED WARRANTY
CUSTOMERS IN USA
Do not return this product to the store where you purchased it. Please call
1-888-775-1330 for assistance.
CUSTOMERS IN CANADA
Only return this product to the store if it was purchased within 90 days. If you
have problems after 90 days of purchase, please CALL 1-888-775-1330. Or
email the warranty department at [email protected]. DATED
PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE.
This product is inspected, tested and carefully packaged to minimize the
chance of damage during shipment. If a part (excluding light bulbs and fuses*)
within one year from the date of purchase proves to be defective in material or
fabrication under normal use, the part will be repaired or replaced. The
Company's obligation under the warranty is to replace or repair defective parts
at our discretion. Any expenses or damage resulting from the installation,
removal or transportation of the product will the responsibility of the owner and
are not covered by this warranty. The owner assumes all other risks arising out
from the use or misuse of the product. The warranty will be void if the product
damage or failure is deemed by the Company to be caused by accident,
alteration, misuse, abuse, incorrect installation or removal, or connection to an
incorrect power source by the owner. The Company neither assumes, nor
authorizes any person or entity to assume for it any obligation or liability
associated with its products.
* Light bulbs and fuses are not covered under this warranty.
If you have any questions regarding the warranty or service, please call our toll
free number: 1-888-775-1330, or email us at [email protected].
Distributed by:
AZ Patio Heaters, LLC
Toll Free Number 1-888-775-1330
Sales Service and Repair
www.azpatioheaters.com
16
