Morris MPH-16315 User manual

Keep the instructions for future reference
MODEL: MPH-16315
OUTDOOR PATIO HEATER
User manual
22
0063 

WARNlNG SAFETY RULES
PLEASE READ THE FOLLOWING SAFETY RULES PRlOR
TO OPERATION OF THE HEATER
FOR YOUR SAFETY
If you smell gas:
1．Shut off gas to the appliance.
2．Extinguish any open flame.
3．If odor continues, immediately call your gas supplier or your
Fire Department.
FOR YOUR SAFETY
1.Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance．
2.An LP cylinder not connected for use shall not be stored in the
vicinity of this or any other appliance．
WARNlNG
1) For use outdoors or in amply ventilated areas.
2) An amply ventilated area must have a minimum of 25 % of the
surface area open.
3) The surface area is the sum of the walls surface.
WARNING: Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage. Read the
installation, operating and maintenance instructions thoroughly
before installing or servicing this equipment.

Warning
Read the instructions before installation and use.
-This appliance must be installed and the gas cylinder stored
in accordance with the regulations in force;
-Do not obstruct the ventilation holes of the cylinder housing;
-Do not move the appliance when in operation;
-Shut off the valve at the gas cylinder or the regulator before moving
the appliance;
-The tubing or the flexible hose must be changed within the
prescribed intervals;
-Use only the type of gas and the type of cylinder specified by the
manufacturer;
The LP tank used with your patio heater must meet the following
requirements:
Purchase LP tanks only with these required measurements:
31.8cm (diameter) x 58cm (tall) with 15kg capacity maximum.
-In case of violent wind particular attention must be taken against
tilting of the appliance;
Keep the appliance at least 1m from the gas cylinder.
-The injector is installed by the manufacturer only.
-Do not connect the gas cylinder directly to the appliance without
regulator.
-Use only the type of gas and the type of cylinder specified in the
instructions.
A regulator compliees with EN16129:2013 and the national regulation of
the correct pressure corresponding to the appliance category.
Use 30mbar regulator for butane/propane under the category I3B/P(30).
Use 30mbar regulator for butane under the category I3+(28-30/37).
Use 37mbar regulator for propane under the category I3+(28-30/37).
Use 50mbar regulator for butane/propane under the category I3B/P(50).
It's recommended to use flexible hose that approved by EN16436: 2014.

i
TABLE OF CONTENTS
Caution ………………………………………………………. 1
Heater Stand and Location ………………………………… 2
Gas Requirements ………………………………………….. 2
Leakage Test ………………………………………………… 3
Operation and Storage ……………………………………... 3
Cleaning and Care ………………………………………….. 4
Parts and Specifications ..………………………………….. 4
Assembly Parts and Procedures …………………………. 6-10
Problems Check List………………………………….......... 11

- 1 -
CAUTION
PLEASE READ CAREFULLY THE FOLLOWING SAFETY GUIDELINES
BEFORE OPERATION
Do not use the patio heater for indoors, as it may cause personal injury or property damage.
This outdoor heater is not intended to be installed on recreational vehicles and/or boats.
Installation and repair should be done by a qualified service person.
Improper installation, adjustment, alteration can cause personal injury or property damage.
Do not attempt to alter the unit in any manner.
Never replace or substitute the regulator with any regulator other than the factory-suggested
replacement.
Do not store or use gasoline or other flammable vapors or liquids in the heater unit.
The whole gas system, hose, regulator, pilot or burner should be inspected for leaks or
damage before use, and at least annually by a qualified service person.
All leak tests should be done with a soap solution. Never use an open flame to check for
leaks.
Do not use the heater until all connections have been leak tested.
Turn off the gas valve immediately if smell of gas is detected. Turn Cylinder Valve OFF.
- If leak is at Hose/Regulator connection: tighten connection and perform another leak test. If
bubbles continue appearing should be returned to hose’s place of purchase.
- If leak is at Regulator/Cylinder Valve connection: disconnect, reconnect, and perform
another leak check. If you continue to see bubbles after several attempts, cylinder valve is
defective and should be returned to cylinder’s place of purchase.
Do not transport heater while it’s operating.
Do not move the heater after it has been turned off until the temperature has cooled down.
Keep the ventilation opening of the cylinder enclosure free and clear of debris.
Do not paint the radiant screen, control panel or top canopy reflector.
Control compartment, burner and circulation air passageways of the heater must be kept
clean. Frequent cleaning may be required as necessary.
The LP tank should be turned off when the heater is not in use.
Check the heater immediately if any of the following occurs:
- The heater does not reach temperature.
- The burner makes popping noise during use (a slight noise is normal when the burner is
extinguished).
- Smell of gas in conjunction with extreme yellow tipping of the burner flames.
The LP regulator/hose assembly must be located out of pathways where people may trip
over it or in area where the hose will not be subject to accidental damage.
Any guard or other protective device removed for servicing the heater must be replaced
before operating the heater.
Adults and children should stay away from high temperature surface to avoid burns or
clothing ignition.
Children should be carefully supervised when they are in the area of the heater.
Clothing or other flammable materials should not be hung on the heater or placed on or
near the heater.
To change the gas cylinder, make it in a amply ventilated area, away from any ignition
source (candle, cigarettes or other flame producing appliances);
Always check that the regulator seal is correctly fitted and able to fulfill its function.

In the event of gas leakage, the appliance shall not be used or if alight, the gas supply
shall be shut off and the appliance shall be investigated and rectified before it is used again;
Check the hose at least once per month, each time the cylinder is changed or each time before
long time with no use.
If the hose shows signs of cracking, splitting or other deterioration it shall be replaced with a new
hose of same length and of equivalent quality;
The use of this appliance in enclosed areas can be dangerous and is PROHIBITED;
Read the instructions before using this appliance. The appliance must be installed in accordance
with the instructions and local regulations.
Do not obstruct the ventilation holes of the cylinder housing;
Close the gas supply at the valve of the gas cylinder or the regulator after use;
-2-
HEATER STAND AND LOCATION
The heater is primarily for outdoor use only. Always ensure that
adequate fresh air ventilation is provided.
Always maintain proper clearance to non protected combustible materials
i.e. top 100 cm and sides 100 cm minimum.
Heater must be placed on level firm ground.
Never operate heater in an explosive atmosphere like in areas where
gasoline or other flammable liquids or vapors are stored.
To protect heater from strong wind, anchor the base securely to the
ground with screws.
CEILING
W A L L
100 cm
100 cm
GAS REQUIREMENTS
Use propane, butane or their mixtures gas only.
The pressure regulator and hose assembly to be used must conform to local standard codes.
The installation must conform to local codes, or in the absence of local codes, with the standard for the
storage and handling of liquid petroleum gases.
A dented, rusted or damaged tank may be hazardous and should be checked by your tank
supplier. Never use a tank with a damaged valve connection.
The tank must be arranged to provide for vapor withdrawal from the operating cylinder.
Never connect an unregulated tank to the heater.

-3-

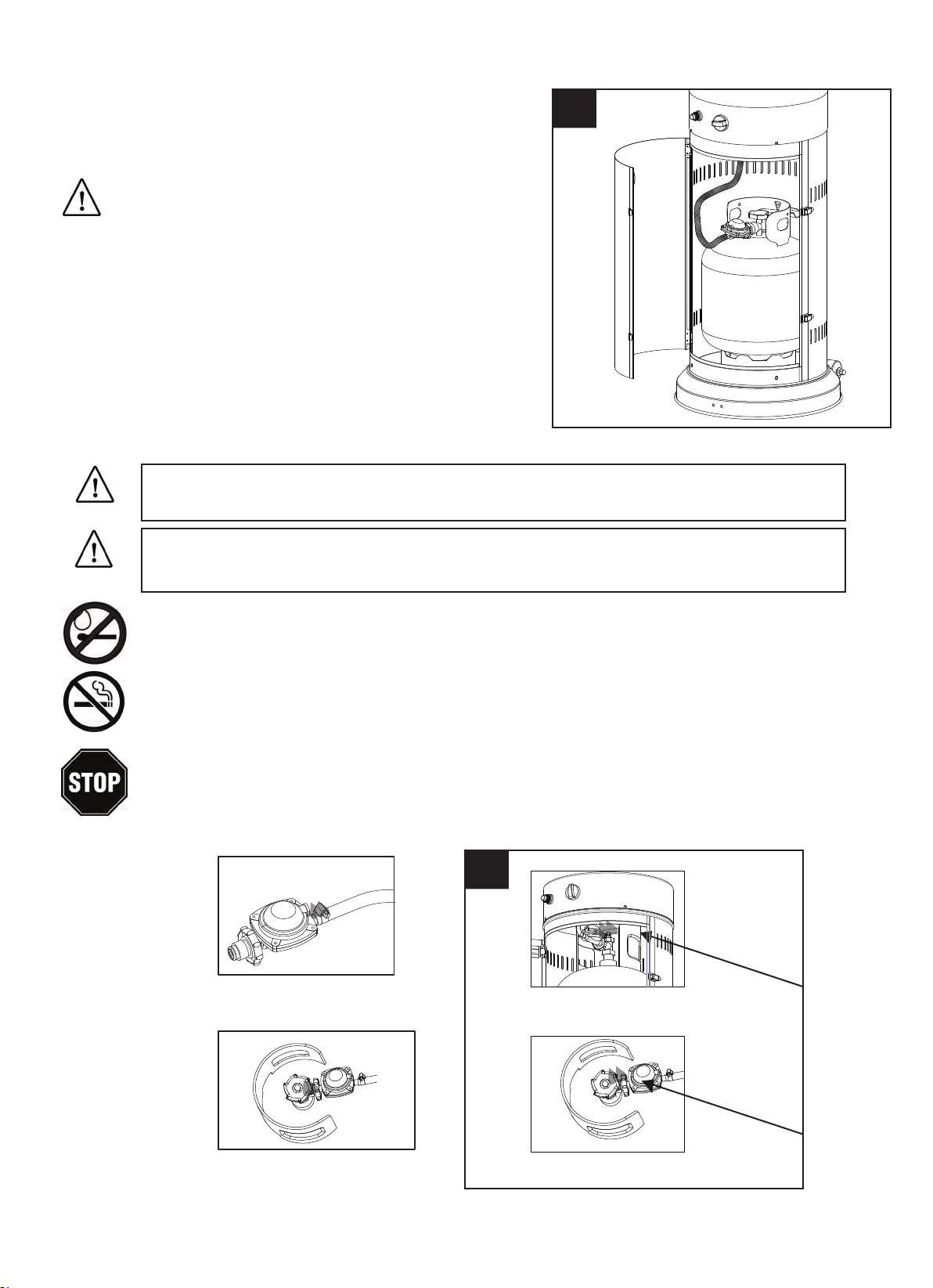

LEAKAGE TEST
Gas connections on the heater are leak tested at the factory prior to shipment. A complete gas tightness
check must be performed at the installation site due to possible mis handling in shipment or excessive
pressure being applied to the heater.
Make a soap solution of one part liquid detergent and one part water. The soap solution can be applied
with a spray bottle, brush or rag. Soap bubbles will appear in case of a leak.
The heater must be checked with a full cylinder.
Make sure the safety control valve is in the OFF position.
Turn the gas supply ON.
In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply on and re-
check.
Never make the leakage test while smoking.
maximum
Igniter
OFF: The heater stops working
HIGH: Maximum temperature position
LOW: Minimum temperature position
Variable control knob
lgniter
PILOT
LOW
HIGH
OFF

regulator
-4-
CLEANING AND CARE
•Wipe off powder coated surfaces with soft, moist rag. Do not clean heater with cleaners that
are combustible or corrosive.
•Remove debris from the burner to keep it clean and safe for use.
•Cover the burner unit with the optional protective cover when the heater is not in use.
PARTS AND SPECIFICATIONS
1360 mm
880 mm
370 mm
460 mm
Flame screen guard
Burner assembly
Base of control housing
Tank housing
Base

-5-
A. Construction and characteristics
Transportable terrace/garden heater with tank housing.
Casing in steel with powder-coating or in stainless steel.
Gas hose connections with metal clamp (screw caps for Germany).
Heat emission from reflector.
B. Specifications
Use propane,butane or their mixtures gas only.
Max. wattage: 11000 watts
Min. wattage: 5000 watts
Consumption:
The hose and regulator assembly must conform to local standard codes.
Regulator outlet pressure should meet the corresponding appliance category in B. Specification.
The appliance requires approved hose in 0.6m length.
Using the proper regulator according to outlet pressure of regulator as showed in the table above.
C. Table of injector
APPLIANCE CATEGORY:
TYPES OF GAS: Butane Propane
GAS PRESSURE: 28-30mbar 37 mbar 30 mbar 50mbar 37mbar
TOTAL HEAT
INPUT (Hs): (Qn) 11kW (G30: 800g/h; G31: 786g/h)
INJECTOR SIZE:
The marking for example，1.75 on the injector, indicates that the size of injector is 1.75 mm
1.75 mm for main burner
0.22 mm for pilot burner
1.55 mm for main burner
0.22 mm for pilot burner
1.60 mm for main burner
0.22 mm for pilot burner
APPLIANCE CATEGORY:
TYPES OF GAS: Butane Propane
GAS PRESSURE: 28-30mbar 37 mbar 30 mbar 50mbar 37mbar
30mbar 37 mbar 30 mbar 50mbar 37mbar
Butane, propane
or their mixtures
Butane, propane
or their mixtures
Butane, propane
or their mixtures
Butane, propane
or their mixtures
Butane, propane
or their mixtures
Butane, propane
or their mixtures
OUTLET PRESSURE
OF REGULATOR:
3+(28-30/37)
I
3+(28-30/37)
I
II
3B/P(30)
I3B/P(30)
3B/P(50)
I3B/P(50)
I3B/P(37)
I3B/P(37)
12.0kW (873g/h)

-6-

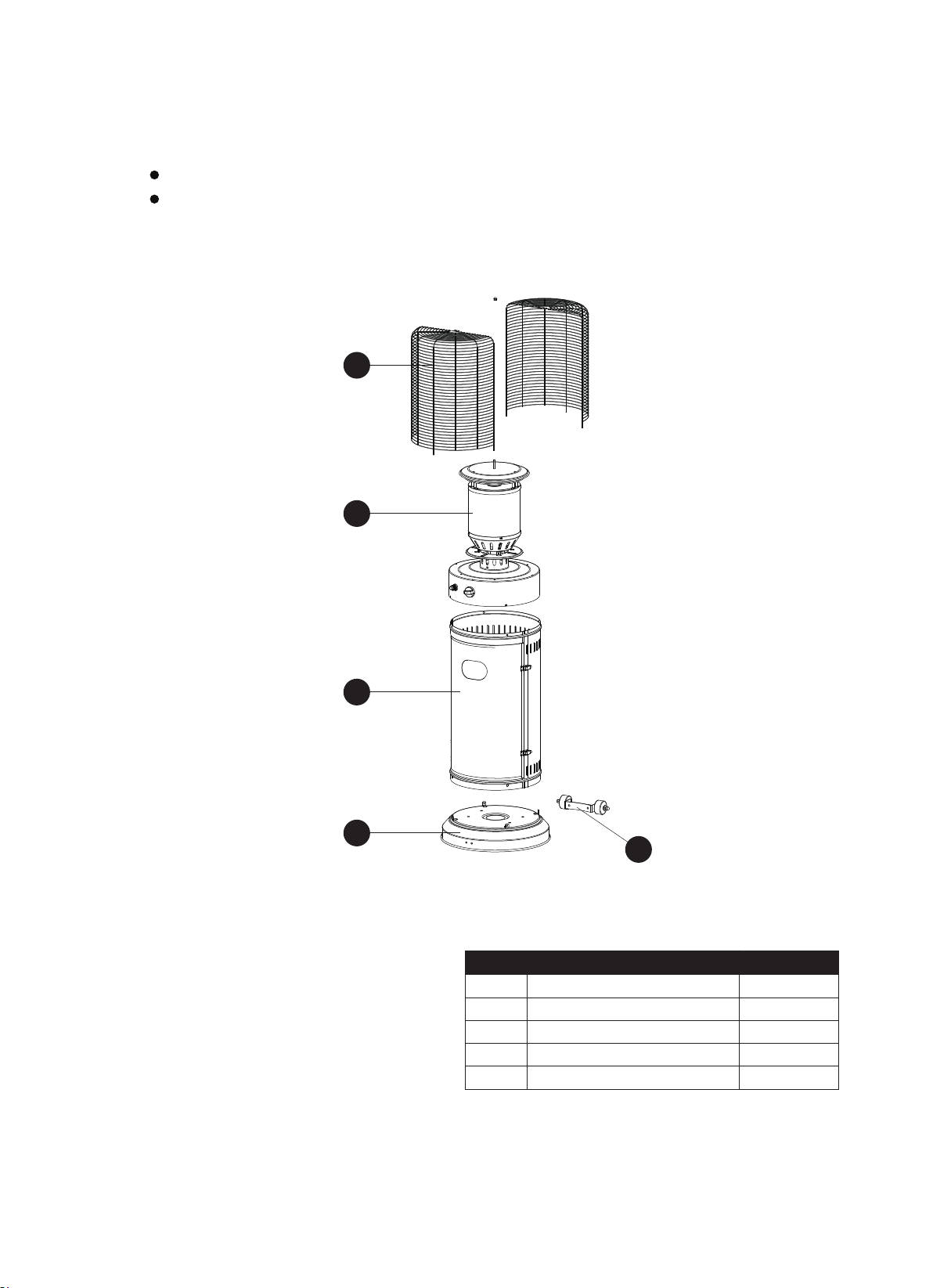

ASSEMBLY PARTS
Tools needed:
Philips screwdriver w/ medium blade
Spray bottle of soap solution for leakage test
Parts List:
Burner assembly
NOITPIRCSEDTRAP QUANTITY
A Flame screen guard 1
B 1
Cylinder Housing
C 1
D
Base
E
Wheel
1
1
Flame screen guard A
Burner assembly B
Cylinder Housing C
Base D
Wheel
E

- 7 -
ASSEMBLY PARTS
HARDWARE CONTENTS (shown actual size)
AA BB DD
CC
Screw M5 X 8
Qty. 8
M6 Dome Nut
Qty. 1
Philips
screwdriver
Qty. 1
EE
Wrench
Qty. 1
FF
Bolt M8 X 16
Qty. 2
M8 Flange nut
Qty. 2
(not actual size)

- 8 -

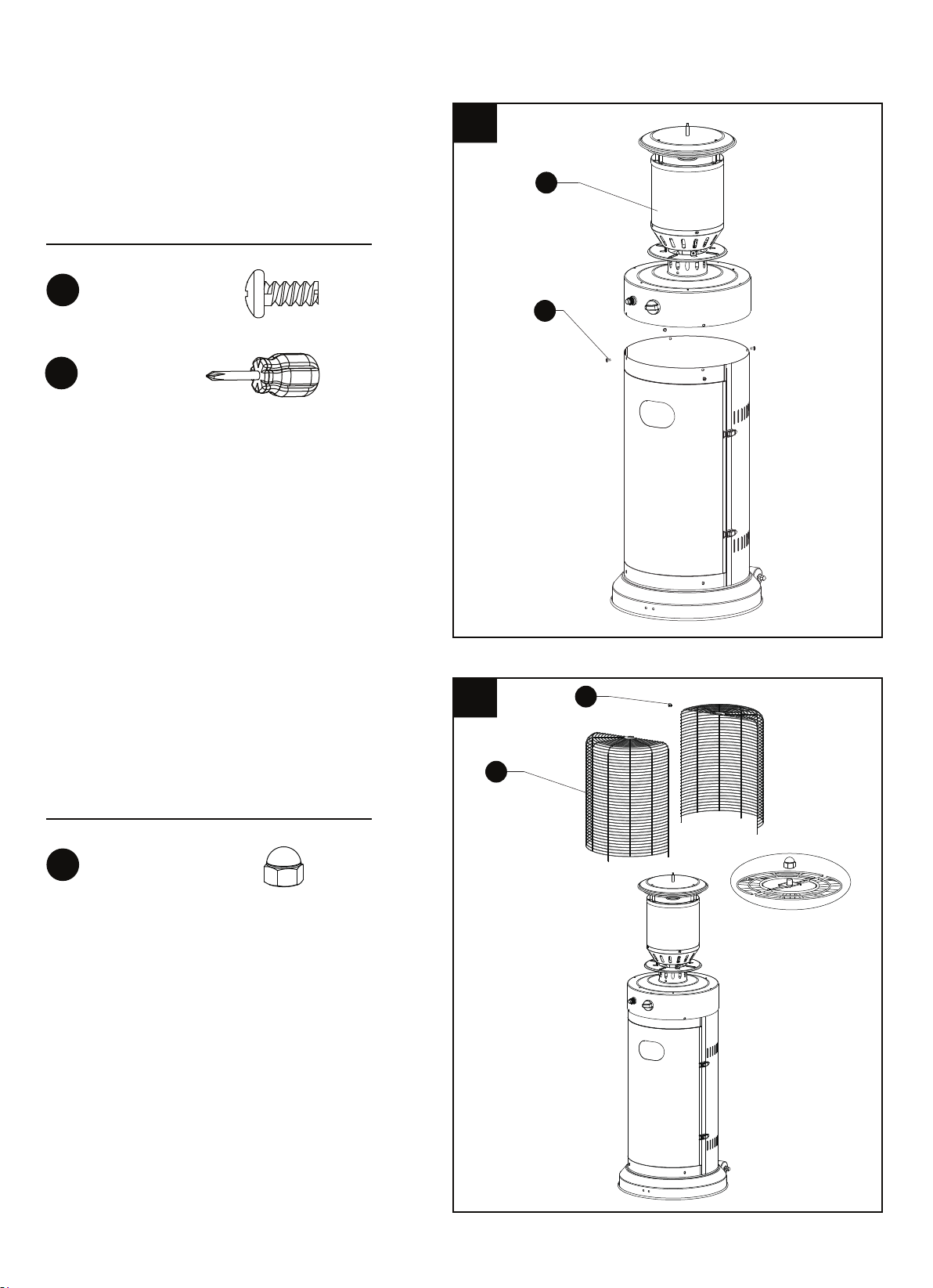

ASSEMBLY PROCEDURES
D
AA
EBB
C
CC
AA
BB x 2
M8 X16 mm Bolts
M8 Flange Nut
x 2
FF Wrench x 1
Hardware Used
1
2
1. Use 2pcs M8X16mm bolts and 2pcs M8 nuts
to connect bracket with wheel to the base.
CC
EE
x 4
x 1
Philips
screwdriver
Screw M5 X 8
Hardware Used
2. Use 4pcs M5X8 screw to join the tank
housing base and stand.

- 9 -
Hardware Used
3
3. Use 4pcs M5X8 screw to join the burner
head and tank housing body.
CC
EE
x 4
x 1
Philips
screwdriver
Screw M5 X 8
Hardware Used
4
4. Use the M6 Dome Nut to connect the two
half safety guards to the burner head.
DD x 1
M6 Dome Nut
B
A
CC
DD

- 10 -
5.Propane Only - Proper Hose Connection.
WARNING! Ensure the hose does not contact
any high temperature surfaces, or it may melt
and leak causing a fire.
After the cylinder is placed inside the heater, secure the
cylinder with block belt tightly.
The heater must be fixed on a stable and strong table with
a minimum height of 40cm from the floor level.
6.Leakage Check
5
Regulator / Cylinder
connecon
Hose / Regulator
connecon
WARNING! A leakage test must be performed annually and each time a cylinder is hooked up or if a part
of the gas system is replaced.
WARNING! Never use an open flame to check for gas leaks. Be certain no sparks or open flames are
in the area while you check for leaks. Sparks or open flames will result in a fire or explosion, damage to
property, serious bodily injury, or death.
Leakage testing: This must be done before initial use, annually,and whenever any gas components are
replaced or serviced. Do not smoke while performing this test, and remove all sources of ignition. See Leak
Testing Diagram for areas to check. Turn all burner controls to the off position. Turn gas supply valve on.
Brush a half-and-half soluon of liquid soap and water onto all joints and connecons
of the regulator, hose, manifolds and valves.
Bubbles will indicate a gas leak. Either ghten the loose joint or have the part replaced with one recommended
by the Customer Care department and have the pao heater inspected by a cerfied gas installer.
If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the patio heater
inspected by a certified gas installer or dealer. Do not use the patio heater until the leak has been corrected.
6

- 11 -
PROBLEMS CHECK LIST
PROBLEM POSSIBLE CAUSE SOLUTION
Pilot will not light Gas valve may be OFF Turn the gas valve ON
Tank fuel empty Refill LPG tank
Opening blocked Clean or replace opening
Air in supply system Purge air from lines
Loose connections Check all fittings
Pilot will not stay on Debris around pilot Clean dirty area
Loose connections Tighten connections
Thermocouple bad Replace thermocouple
Gas leak in line Check connections
Lack of fuel pressure Tank near empty. Refill LPG tank.
Burner will not light Pressure is low Tank near empty. Refill LPG tank.
Opening blocked Remove and clean
Control not ON Turn valve to ON
Thermocouple bad Replace thermocouple
Pilot light assembly bent Place pilot properly
Not in correct location Position properly and retry
If the appliance is in case of any defaults or problems of assembly or use, please don’t try to modify it by
yourself. Contact your supplier or distributor to solve it.

EXCLUSIVE DISTRIBUTOR
AMIRIDIS - SAVVIDIS S.A.
Substreet 87A, 17th November Str.
P.C. 55535 - Pylea - Thessaloniki
T: [phone] | F: [phone]
www.amiridis-savvidis.gr
NOTICE ABOUT RECYCLING
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-of-life,
should be disposed of separately from your household waste. Please dispose of
this equipment at your local community waste collection/ recycling centre.
In the European Union there are separate collection systems for used electrical
and electronic products.
Please help us to conserve the environment we live in!
DECLARATION OF CONFORMITY
This product complies with the requirements of the directives:
GAR (EU) 2016/426
