Electrical Motor ll, Likorall
Elmotor ll, Likorall
Assembly Instruction
Monteringsanvisning
Prod. No. 31290090
3SE690207-01
2011-08-30
© Copyright Liko AB www.liko.com
Tools required:
Contains: Qty:
Motor 1
Gear 1
Fits:
Likorall 200
Likorall 242
Likorall 243
Likorall 250
Spare Part No. 31290090 replaces 31290069.
5.484
3 mm & 2,5 mm
10 mm
10 mm
1. Dismount the two end covers. 2. Dismount the locking screw
from side cover.
4. Dismount the side cover.
3. Dismount the locking screw
from the locking rail.
3mm
3mm
2,5 mm
5. Disconnect the motor cable. 6. Press the battery and the
battery holder to the right.

© Copyright Liko AB www.liko.com
NOTE
- Make sure the spare part is mounted according to the assembly instruction.
- Check all functions related to the changed spare part.
- Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts.
Electrical Motor ll, Likorall
Elmotor ll, Likorall
Assembly Instruction
Monteringsanvisning
Prod. No. 31290090
5.484

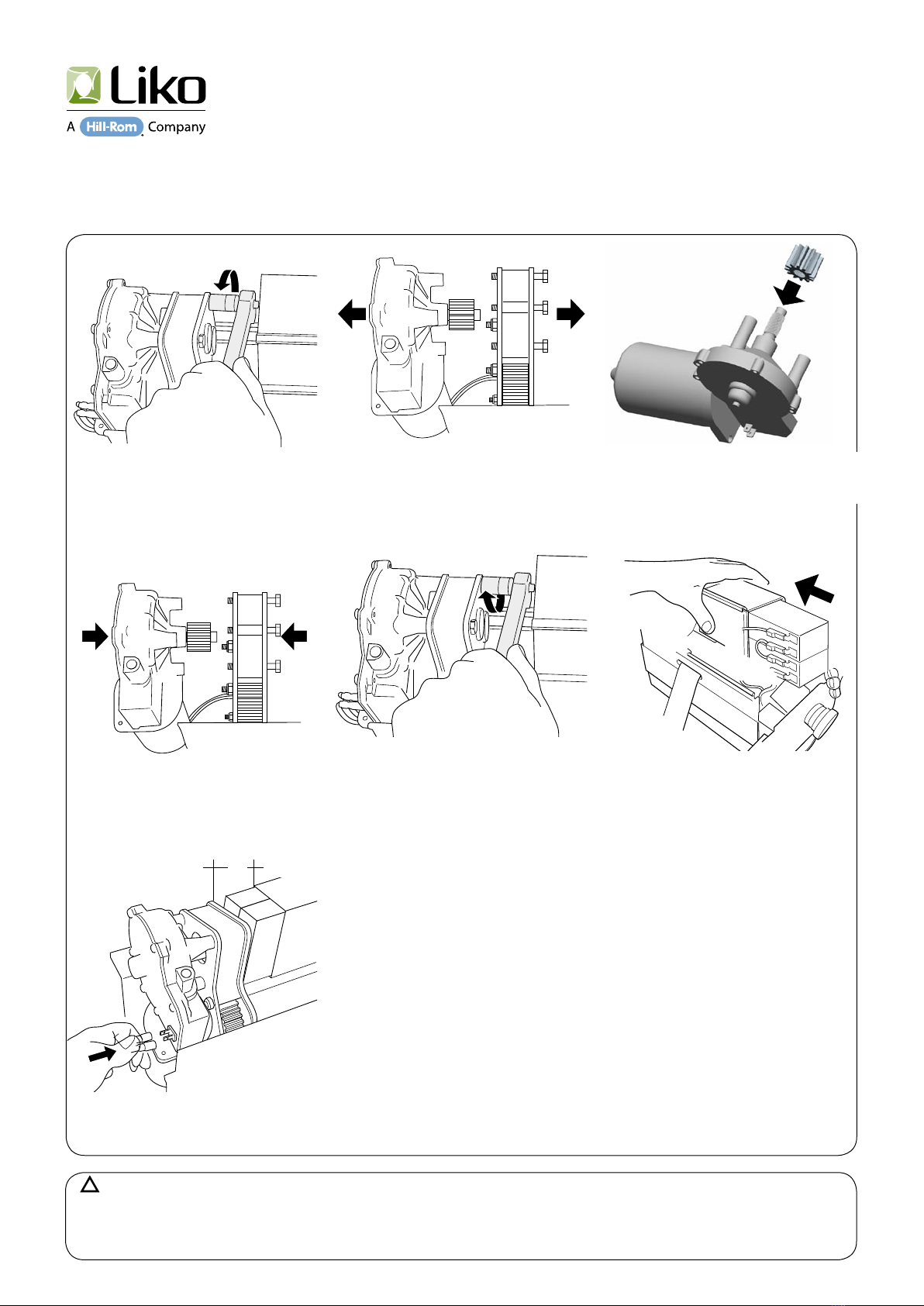

9. Assemble the new gear wheel
on the new motor. (New design)
D
8. Dismount the motor.
11. Tighten the motor screws with
tightening torque 9,5 Nm±5%
12. Press the battery and the
battery holder to the left.
13. Connect the motor cable. 14. Reassemble according to picture 4, 3, 2 and 1.
D= 34 ± 5 mm
7. Dismount the motor screws.
10. Reassemble the motor.
