Hills Reliance TouchNav User manual
User reference guide
V1.0 Main Menu
Speaker
System
Away Arm
System
Disarm
Status Bar
System
Stay Arm
Chime
ON / Off
Help Menu Emergency
Overview.
The Hills Reliance TouchNav is an intuitive
graphical touch screen interface for users of the
Hills Reliance security system. Offering simple
ngertip control, via its clear 3.5” touch screen
with easy to understand graphic icons.
Away Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Away Icon”, this will arm
the security system fully. The system will not arm
if the status bar is displaying “Not Ready”, all
sensors must be closed.
Disarming the security system.
To disarm the security system, tap the “Off Icon”,
a pin pad will display, enter a valid pin code.
Chime mode.
Chime allows sensors to sound a “beep” at the
TouchNav whenever they are tripped. Chime is
only available whilst the security system is in the
disarmed state.
Tap the “Chime Icon” to toggle chime mode on/off.
**This feature needs to be enabled by your
security provider**
SOS (Emergency keys)
Only press these keys in a situation that requires
a response by emergency personnel. Your system
may not be programmed for these activation
keys, so check with your security provider. If your
system is programmed for these functions, the
following reports can be sent.
**This feature needs to be enabled by your
security provider**
Fire Key – When touched for two seconds,
this key will sound the audible re alarm, with a
steady alarm sound. If your system is connected
to a monitoring centre, a re report could be sent.
Medical Key – When touched for two
seconds, this key will sound the TouchNav
sounder. If your system is connected to a
monitoring centre, a medical report could be sent.
Police (Panic) Key – When touched for two
seconds, this key will sound the audible panic
alarm, with a yelping alarm sound. If your system
is connected to a monitoring centre, a panic
report could be sent.
Some Panic alarms are programmed to be
silent at the protected site while reporting an
alarm to the monitoring centre, check with your
security provider on how your system has been
congured.
To acknowledge / cancel an alarm, tap the Off
Icon and enter a user pin code.
Stay Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Stay Icon”, this will
partially arm the security system. Predetermined
sensors will be isolated, and all remaining
sensors will be active.
User reference guide
V1.0 Main Menu
Speaker
System
Away Arm
System
Disarm
Status Bar
System
Stay Arm
Chime
ON / Off
Help Menu Emergency
Overview.
The Hills Reliance TouchNav is an intuitive
graphical touch screen interface for users of the
Hills Reliance security system. Offering simple
ngertip control, via its clear 3.5” touch screen
with easy to understand graphic icons.
Away Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Away Icon”, this will arm
the security system fully. The system will not arm
if the status bar is displaying “Not Ready”, all
sensors must be closed.
Disarming the security system.
To disarm the security system, tap the “Off Icon”,
a pin pad will display, enter a valid pin code.
Chime mode.
Chime allows sensors to sound a “beep” at the
TouchNav whenever they are tripped. Chime is
only available whilst the security system is in the
disarmed state.
Tap the “Chime Icon” to toggle chime mode on/off.
**This feature needs to be enabled by your
security provider**
SOS (Emergency keys)
Only press these keys in a situation that requires
a response by emergency personnel. Your system
may not be programmed for these activation
keys, so check with your security provider. If your
system is programmed for these functions, the
following reports can be sent.
**This feature needs to be enabled by your
security provider**
Fire Key – When touched for two seconds,
this key will sound the audible re alarm, with a
steady alarm sound. If your system is connected
to a monitoring centre, a re report could be sent.
Medical Key – When touched for two
seconds, this key will sound the TouchNav
sounder. If your system is connected to a
monitoring centre, a medical report could be sent.
Police (Panic) Key – When touched for two
seconds, this key will sound the audible panic
alarm, with a yelping alarm sound. If your system
is connected to a monitoring centre, a panic
report could be sent.
Some Panic alarms are programmed to be
silent at the protected site while reporting an
alarm to the monitoring centre, check with your
security provider on how your system has been
congured.
To acknowledge / cancel an alarm, tap the Off
Icon and enter a user pin code.
Stay Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Stay Icon”, this will
partially arm the security system. Predetermined
sensors will be isolated, and all remaining
sensors will be active.
User reference guide
V1.0 Main Menu
Speaker
System
Away Arm
System
Disarm
Status Bar
System
Stay Arm
Chime
ON / Off
Help Menu Emergency
Overview.
The Hills Reliance TouchNav is an intuitive
graphical touch screen interface for users of the
Hills Reliance security system. Offering simple
ngertip control, via its clear 3.5” touch screen
with easy to understand graphic icons.
Away Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Away Icon”, this will arm
the security system fully. The system will not arm
if the status bar is displaying “Not Ready”, all
sensors must be closed.
Disarming the security system.
To disarm the security system, tap the “Off Icon”,
a pin pad will display, enter a valid pin code.
Chime mode.
Chime allows sensors to sound a “beep” at the
TouchNav whenever they are tripped. Chime is
only available whilst the security system is in the
disarmed state.
Tap the “Chime Icon” to toggle chime mode on/off.
**This feature needs to be enabled by your
security provider**
SOS (Emergency keys)
Only press these keys in a situation that requires
a response by emergency personnel. Your system
may not be programmed for these activation
keys, so check with your security provider. If your
system is programmed for these functions, the
following reports can be sent.
**This feature needs to be enabled by your
security provider**
Fire Key – When touched for two seconds,
this key will sound the audible re alarm, with a
steady alarm sound. If your system is connected
to a monitoring centre, a re report could be sent.
Medical Key – When touched for two
seconds, this key will sound the TouchNav
sounder. If your system is connected to a
monitoring centre, a medical report could be sent.
Police (Panic) Key – When touched for two
seconds, this key will sound the audible panic
alarm, with a yelping alarm sound. If your system
is connected to a monitoring centre, a panic
report could be sent.
Some Panic alarms are programmed to be
silent at the protected site while reporting an
alarm to the monitoring centre, check with your
security provider on how your system has been
congured.
To acknowledge / cancel an alarm, tap the Off
Icon and enter a user pin code.
Stay Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Stay Icon”, this will
partially arm the security system. Predetermined
sensors will be isolated, and all remaining
sensors will be active.
User reference guide
V1.0 Main Menu
Speaker
System
Away Arm
System
Disarm
Status Bar
System
Stay Arm
Chime
ON / Off
Help Menu Emergency
Overview.
The Hills Reliance TouchNav is an intuitive
graphical touch screen interface for users of the
Hills Reliance security system. Offering simple
ngertip control, via its clear 3.5” touch screen
with easy to understand graphic icons.
Away Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Away Icon”, this will arm
the security system fully. The system will not arm
if the status bar is displaying “Not Ready”, all
sensors must be closed.
Disarming the security system.
To disarm the security system, tap the “Off Icon”,
a pin pad will display, enter a valid pin code.
Chime mode.
Chime allows sensors to sound a “beep” at the
TouchNav whenever they are tripped. Chime is
only available whilst the security system is in the
disarmed state.
Tap the “Chime Icon” to toggle chime mode on/off.
**This feature needs to be enabled by your
security provider**
SOS (Emergency keys)
Only press these keys in a situation that requires
a response by emergency personnel. Your system
may not be programmed for these activation
keys, so check with your security provider. If your
system is programmed for these functions, the
following reports can be sent.
**This feature needs to be enabled by your
security provider**
Fire Key – When touched for two seconds,
this key will sound the audible re alarm, with a
steady alarm sound. If your system is connected
to a monitoring centre, a re report could be sent.
Medical Key – When touched for two
seconds, this key will sound the TouchNav
sounder. If your system is connected to a
monitoring centre, a medical report could be sent.
Police (Panic) Key – When touched for two
seconds, this key will sound the audible panic
alarm, with a yelping alarm sound. If your system
is connected to a monitoring centre, a panic
report could be sent.
Some Panic alarms are programmed to be
silent at the protected site while reporting an
alarm to the monitoring centre, check with your
security provider on how your system has been
congured.
To acknowledge / cancel an alarm, tap the Off
Icon and enter a user pin code.
Stay Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Stay Icon”, this will
partially arm the security system. Predetermined
sensors will be isolated, and all remaining
sensors will be active.
User reference guide
V1.0 Main Menu
Speaker
System
Away Arm
System
Disarm
Status Bar
System
Stay Arm
Chime
ON / Off
Help Menu Emergency
Overview.
The Hills Reliance TouchNav is an intuitive
graphical touch screen interface for users of the
Hills Reliance security system. Offering simple
ngertip control, via its clear 3.5” touch screen
with easy to understand graphic icons.
Away Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Away Icon”, this will arm
the security system fully. The system will not arm
if the status bar is displaying “Not Ready”, all
sensors must be closed.
Disarming the security system.
To disarm the security system, tap the “Off Icon”,
a pin pad will display, enter a valid pin code.
Chime mode.
Chime allows sensors to sound a “beep” at the
TouchNav whenever they are tripped. Chime is
only available whilst the security system is in the
disarmed state.
Tap the “Chime Icon” to toggle chime mode on/off.
**This feature needs to be enabled by your
security provider**
SOS (Emergency keys)
Only press these keys in a situation that requires
a response by emergency personnel. Your system
may not be programmed for these activation
keys, so check with your security provider. If your
system is programmed for these functions, the
following reports can be sent.
**This feature needs to be enabled by your
security provider**
Fire Key – When touched for two seconds,
this key will sound the audible re alarm, with a
steady alarm sound. If your system is connected
to a monitoring centre, a re report could be sent.
Medical Key – When touched for two
seconds, this key will sound the TouchNav
sounder. If your system is connected to a
monitoring centre, a medical report could be sent.
Police (Panic) Key – When touched for two
seconds, this key will sound the audible panic
alarm, with a yelping alarm sound. If your system
is connected to a monitoring centre, a panic
report could be sent.
Some Panic alarms are programmed to be
silent at the protected site while reporting an
alarm to the monitoring centre, check with your
security provider on how your system has been
congured.
To acknowledge / cancel an alarm, tap the Off
Icon and enter a user pin code.
Stay Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Stay Icon”, this will
partially arm the security system. Predetermined
sensors will be isolated, and all remaining
sensors will be active.
User reference guide
V1.0 Main Menu
Speaker
System
Away Arm
System
Disarm
Status Bar
System
Stay Arm
Chime
ON / Off
Help Menu Emergency
Overview.
The Hills Reliance TouchNav is an intuitive
graphical touch screen interface for users of the
Hills Reliance security system. Offering simple
ngertip control, via its clear 3.5” touch screen
with easy to understand graphic icons.
Away Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Away Icon”, this will arm
the security system fully. The system will not arm
if the status bar is displaying “Not Ready”, all
sensors must be closed.
Disarming the security system.
To disarm the security system, tap the “Off Icon”,
a pin pad will display, enter a valid pin code.
Chime mode.
Chime allows sensors to sound a “beep” at the
TouchNav whenever they are tripped. Chime is
only available whilst the security system is in the
disarmed state.
Tap the “Chime Icon” to toggle chime mode on/off.
**This feature needs to be enabled by your
security provider**
SOS (Emergency keys)
Only press these keys in a situation that requires
a response by emergency personnel. Your system
may not be programmed for these activation
keys, so check with your security provider. If your
system is programmed for these functions, the
following reports can be sent.
**This feature needs to be enabled by your
security provider**
Fire Key – When touched for two seconds,
this key will sound the audible re alarm, with a
steady alarm sound. If your system is connected
to a monitoring centre, a re report could be sent.
Medical Key – When touched for two
seconds, this key will sound the TouchNav
sounder. If your system is connected to a
monitoring centre, a medical report could be sent.
Police (Panic) Key – When touched for two
seconds, this key will sound the audible panic
alarm, with a yelping alarm sound. If your system
is connected to a monitoring centre, a panic
report could be sent.
Some Panic alarms are programmed to be
silent at the protected site while reporting an
alarm to the monitoring centre, check with your
security provider on how your system has been
congured.
To acknowledge / cancel an alarm, tap the Off
Icon and enter a user pin code.
Stay Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Stay Icon”, this will
partially arm the security system. Predetermined
sensors will be isolated, and all remaining
sensors will be active.
User reference guide
V1.0 Main Menu
Speaker
System
Away Arm
System
Disarm
Status Bar
System
Stay Arm
Chime
ON / Off
Help Menu Emergency
Overview.
The Hills Reliance TouchNav is an intuitive
graphical touch screen interface for users of the
Hills Reliance security system. Offering simple
ngertip control, via its clear 3.5” touch screen
with easy to understand graphic icons.
Away Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Away Icon”, this will arm
the security system fully. The system will not arm
if the status bar is displaying “Not Ready”, all
sensors must be closed.
Disarming the security system.
To disarm the security system, tap the “Off Icon”,
a pin pad will display, enter a valid pin code.
Chime mode.
Chime allows sensors to sound a “beep” at the
TouchNav whenever they are tripped. Chime is
only available whilst the security system is in the
disarmed state.
Tap the “Chime Icon” to toggle chime mode on/off.
**This feature needs to be enabled by your
security provider**
SOS (Emergency keys)
Only press these keys in a situation that requires
a response by emergency personnel. Your system
may not be programmed for these activation
keys, so check with your security provider. If your
system is programmed for these functions, the
following reports can be sent.
**This feature needs to be enabled by your
security provider**
Fire Key – When touched for two seconds,
this key will sound the audible re alarm, with a
steady alarm sound. If your system is connected
to a monitoring centre, a re report could be sent.
Medical Key – When touched for two
seconds, this key will sound the TouchNav
sounder. If your system is connected to a
monitoring centre, a medical report could be sent.
Police (Panic) Key – When touched for two
seconds, this key will sound the audible panic
alarm, with a yelping alarm sound. If your system
is connected to a monitoring centre, a panic
report could be sent.
Some Panic alarms are programmed to be
silent at the protected site while reporting an
alarm to the monitoring centre, check with your
security provider on how your system has been
congured.
To acknowledge / cancel an alarm, tap the Off
Icon and enter a user pin code.
Stay Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Stay Icon”, this will
partially arm the security system. Predetermined
sensors will be isolated, and all remaining
sensors will be active.
User reference guide
V1.0 Main Menu
Speaker
System
Away Arm
System
Disarm
Status Bar
System
Stay Arm
Chime
ON / Off
Help Menu Emergency
Overview.
The Hills Reliance TouchNav is an intuitive
graphical touch screen interface for users of the
Hills Reliance security system. Offering simple
ngertip control, via its clear 3.5” touch screen
with easy to understand graphic icons.
Away Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Away Icon”, this will arm
the security system fully. The system will not arm
if the status bar is displaying “Not Ready”, all
sensors must be closed.
Disarming the security system.
To disarm the security system, tap the “Off Icon”,
a pin pad will display, enter a valid pin code.
Chime mode.
Chime allows sensors to sound a “beep” at the
TouchNav whenever they are tripped. Chime is
only available whilst the security system is in the
disarmed state.
Tap the “Chime Icon” to toggle chime mode on/off.
**This feature needs to be enabled by your
security provider**
SOS (Emergency keys)
Only press these keys in a situation that requires
a response by emergency personnel. Your system
may not be programmed for these activation
keys, so check with your security provider. If your
system is programmed for these functions, the
following reports can be sent.
**This feature needs to be enabled by your
security provider**
Fire Key – When touched for two seconds,
this key will sound the audible re alarm, with a
steady alarm sound. If your system is connected
to a monitoring centre, a re report could be sent.
Medical Key – When touched for two
seconds, this key will sound the TouchNav
sounder. If your system is connected to a
monitoring centre, a medical report could be sent.
Police (Panic) Key – When touched for two
seconds, this key will sound the audible panic
alarm, with a yelping alarm sound. If your system
is connected to a monitoring centre, a panic
report could be sent.
Some Panic alarms are programmed to be
silent at the protected site while reporting an
alarm to the monitoring centre, check with your
security provider on how your system has been
congured.
To acknowledge / cancel an alarm, tap the Off
Icon and enter a user pin code.
Stay Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Stay Icon”, this will
partially arm the security system. Predetermined
sensors will be isolated, and all remaining
sensors will be active.
Main Menu
Tap Menu to access additional feature’s for
controlling / customising the Hills Reliance
security system.
**This feature needs to be enabled by your
security provider**

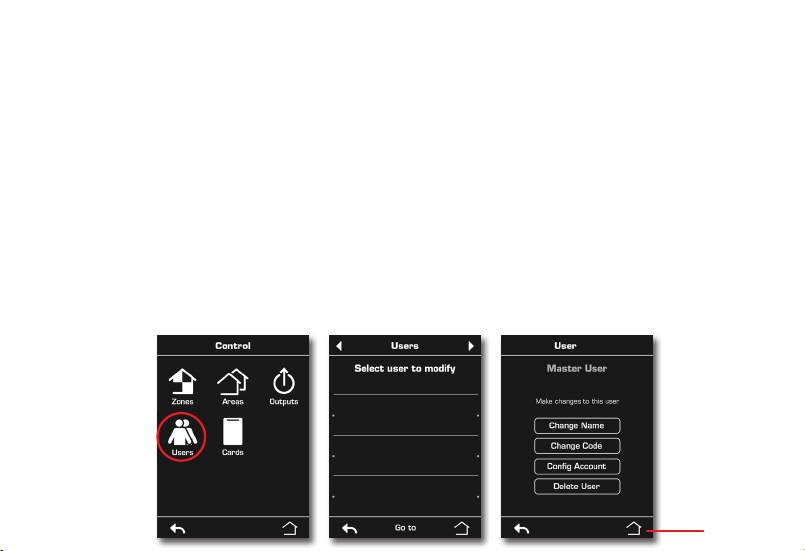

User Menu
Tap Menu > Control > Users > Select user to modify > follow prompts
A user is a person that has been allocated a PIN code to arm and disarm areas within the
security system. A standard user has the ability to change their pin code, whilst a master
user has the ability to create, delete and modify all
Change Name – Type name of user
Change Code – Select new user pin code
Congure Account – User authority level and Area control (only if required)
Delete User – Remove user pin from system
Settings Menu
Tap Menu > Settings to access the following
features located within the settings menu.
Controls Menu
Tap Menu > Controls to access the following
features located within the control menu.
Zones (Bypassing)
Tap Menu > Control > Zones Select > Zone >
Bypass
User - Examples Quick guide - Examples
Selected zones (sensors) within the security
system can be bypassed (isolated) manually. A
bypassed zone is not capable of activating an
alarm, as it is temporarily removed from your
system. All bypassed zones are reset and cleared
from memory when the security system is next
armed / disarmed.
Modify user pin code (EG: user 1)
Menu > Control > Users > (Master pin code)
Select user 1
Change Code > Type new pin code > Enter
Home to exit
Create new user ( EG: user 2)
Menu > Control > Users > (Master pin code)
Select user 2
Create Code > Type new pin code > Enter
Change Name > Type new user name > Enter
Home to exit
Delete user (EG: user 2)
Menu > Control > Users > (Master pin code)
Select user 2
Delete User
Home to exit
Set system time and date Zone / sensor control. Bypass, add to
chime group
Show system status
Display system history
Display installer
contact details
Clean touch panel
System testing
Smoke detector reset
Zone, area, user,
output naming and
message centre
Adjust system entry and exit times Arm / Disarm single or multiple areas
within the security system
SMS and alarm phone numbers.
(Additional equipment required for SMS) Control up to 16 separate outputs
Text input for zones, areas , users, outputs
and messages Add, create or delete user pin codes
Speaker volume Add, create or delete access cards
Adjust display touch and brightness
?
Zone Name
Master User
No Name
1.
2.
3.
Add User
No Name
Add User
No Name
Home to exit
Main Menu
Tap Menu to access additional feature’s for
controlling / customising the Hills Reliance
security system.
**This feature needs to be enabled by your
security provider**
User Menu
Tap Menu > Control > Users > Select user to modify > follow prompts
A user is a person that has been allocated a PIN code to arm and disarm areas within the
security system. A standard user has the ability to change their pin code, whilst a master
user has the ability to create, delete and modify all
Change Name – Type name of user
Change Code – Select new user pin code
Congure Account – User authority level and Area control (only if required)
Delete User – Remove user pin from system
Settings Menu
Tap Menu > Settings to access the following
features located within the settings menu.
Controls Menu
Tap Menu > Controls to access the following
features located within the control menu.
Zones (Bypassing)
Tap Menu > Control > Zones Select > Zone >
Bypass
User - Examples Quick guide - Examples
Selected zones (sensors) within the security
system can be bypassed (isolated) manually. A
bypassed zone is not capable of activating an
alarm, as it is temporarily removed from your
system. All bypassed zones are reset and cleared
from memory when the security system is next
armed / disarmed.
Modify user pin code (EG: user 1)
Menu > Control > Users > (Master pin code)
Select user 1
Change Code > Type new pin code > Enter
Home to exit
Create new user ( EG: user 2)
Menu > Control > Users > (Master pin code)
Select user 2
Create Code > Type new pin code > Enter
Change Name > Type new user name > Enter
Home to exit
Delete user (EG: user 2)
Menu > Control > Users > (Master pin code)
Select user 2
Delete User
Home to exit
Set system time and date Zone / sensor control. Bypass, add to
chime group
Show system status
Display system history
Display installer
contact details
Clean touch panel
System testing
Smoke detector reset
Zone, area, user,
output naming and
message centre
Adjust system entry and exit times Arm / Disarm single or multiple areas
within the security system
SMS and alarm phone numbers.
(Additional equipment required for SMS) Control up to 16 separate outputs
Text input for zones, areas , users, outputs
and messages Add, create or delete user pin codes
Speaker volume Add, create or delete access cards
Adjust display touch and brightness
?
Zone Name
Master User
No Name
1.
2.
3.
Add User
No Name
Add User
No Name
Home to exit
Main Menu
Tap Menu to access additional feature’s for
controlling / customising the Hills Reliance
security system.
**This feature needs to be enabled by your
security provider**
User Menu
Tap Menu > Control > Users > Select user to modify > follow prompts
A user is a person that has been allocated a PIN code to arm and disarm areas within the
security system. A standard user has the ability to change their pin code, whilst a master
user has the ability to create, delete and modify all
Change Name – Type name of user
Change Code – Select new user pin code
Congure Account – User authority level and Area control (only if required)
Delete User – Remove user pin from system
Settings Menu
Tap Menu > Settings to access the following
features located within the settings menu.
Controls Menu
Tap Menu > Controls to access the following
features located within the control menu.
Zones (Bypassing)
Tap Menu > Control > Zones Select > Zone >
Bypass
User - Examples Quick guide - Examples
Selected zones (sensors) within the security
system can be bypassed (isolated) manually. A
bypassed zone is not capable of activating an
alarm, as it is temporarily removed from your
system. All bypassed zones are reset and cleared
from memory when the security system is next
armed / disarmed.
Modify user pin code (EG: user 1)
Menu > Control > Users > (Master pin code)
Select user 1
Change Code > Type new pin code > Enter
Home to exit
Create new user ( EG: user 2)
Menu > Control > Users > (Master pin code)
Select user 2
Create Code > Type new pin code > Enter
Change Name > Type new user name > Enter
Home to exit
Delete user (EG: user 2)
Menu > Control > Users > (Master pin code)
Select user 2
Delete User
Home to exit
Set system time and date Zone / sensor control. Bypass, add to
chime group
Show system status
Display system history
Display installer
contact details
Clean touch panel
System testing
Smoke detector reset
Zone, area, user,
output naming and
message centre
Adjust system entry and exit times Arm / Disarm single or multiple areas
within the security system
SMS and alarm phone numbers.
(Additional equipment required for SMS) Control up to 16 separate outputs
Text input for zones, areas , users, outputs
and messages Add, create or delete user pin codes
Speaker volume Add, create or delete access cards
Adjust display touch and brightness
?
Zone Name
Master User
No Name
1.
2.
3.
Add User
No Name
Add User
No Name
Home to exit
Main Menu
Tap Menu to access additional feature’s for
controlling / customising the Hills Reliance
security system.
**This feature needs to be enabled by your
security provider**
User Menu
Tap Menu > Control > Users > Select user to modify > follow prompts
A user is a person that has been allocated a PIN code to arm and disarm areas within the
security system. A standard user has the ability to change their pin code, whilst a master
user has the ability to create, delete and modify all
Change Name – Type name of user
Change Code – Select new user pin code
Congure Account – User authority level and Area control (only if required)
Delete User – Remove user pin from system
Settings Menu
Tap Menu > Settings to access the following
features located within the settings menu.
Controls Menu
Tap Menu > Controls to access the following
features located within the control menu.
Zones (Bypassing)
Tap Menu > Control > Zones Select > Zone >
Bypass
User - Examples Quick guide - Examples
Selected zones (sensors) within the security
system can be bypassed (isolated) manually. A
bypassed zone is not capable of activating an
alarm, as it is temporarily removed from your
system. All bypassed zones are reset and cleared
from memory when the security system is next
armed / disarmed.
Modify user pin code (EG: user 1)
Menu > Control > Users > (Master pin code)
Select user 1
Change Code > Type new pin code > Enter
Home to exit
Create new user ( EG: user 2)
Menu > Control > Users > (Master pin code)
Select user 2
Create Code > Type new pin code > Enter
Change Name > Type new user name > Enter
Home to exit
Delete user (EG: user 2)
Menu > Control > Users > (Master pin code)
Select user 2
Delete User
Home to exit
Set system time and date Zone / sensor control. Bypass, add to
chime group
Show system status
Display system history
Display installer
contact details
Clean touch panel
System testing
Smoke detector reset
Zone, area, user,
output naming and
message centre
Adjust system entry and exit times Arm / Disarm single or multiple areas
within the security system
SMS and alarm phone numbers.
(Additional equipment required for SMS) Control up to 16 separate outputs
Text input for zones, areas , users, outputs
and messages Add, create or delete user pin codes
Speaker volume Add, create or delete access cards
Adjust display touch and brightness
?
Zone Name
Master User
No Name
1.
2.
3.
Add User
No Name
Add User
No Name
Home to exit
Main Menu
Tap Menu to access additional feature’s for
controlling / customising the Hills Reliance
security system.
**This feature needs to be enabled by your
security provider**
User Menu
Tap Menu > Control > Users > Select user to modify > follow prompts
A user is a person that has been allocated a PIN code to arm and disarm areas within the
security system. A standard user has the ability to change their pin code, whilst a master
user has the ability to create, delete and modify all
Change Name – Type name of user
Change Code – Select new user pin code
Congure Account – User authority level and Area control (only if required)
Delete User – Remove user pin from system
Settings Menu
Tap Menu > Settings to access the following
features located within the settings menu.
Controls Menu
Tap Menu > Controls to access the following
features located within the control menu.
Zones (Bypassing)
Tap Menu > Control > Zones Select > Zone >
Bypass
User - Examples Quick guide - Examples
Selected zones (sensors) within the security
system can be bypassed (isolated) manually. A
bypassed zone is not capable of activating an
alarm, as it is temporarily removed from your
system. All bypassed zones are reset and cleared
from memory when the security system is next
armed / disarmed.
Modify user pin code (EG: user 1)
Menu > Control > Users > (Master pin code)
Select user 1
Change Code > Type new pin code > Enter
Home to exit
Create new user ( EG: user 2)
Menu > Control > Users > (Master pin code)
Select user 2
Create Code > Type new pin code > Enter
Change Name > Type new user name > Enter
Home to exit
Delete user (EG: user 2)
Menu > Control > Users > (Master pin code)
Select user 2
Delete User
Home to exit
Set system time and date Zone / sensor control. Bypass, add to
chime group
Show system status
Display system history
Display installer
contact details
Clean touch panel
System testing
Smoke detector reset
Zone, area, user,
output naming and
message centre
Adjust system entry and exit times Arm / Disarm single or multiple areas
within the security system
SMS and alarm phone numbers.
(Additional equipment required for SMS) Control up to 16 separate outputs
Text input for zones, areas , users, outputs
and messages Add, create or delete user pin codes
Speaker volume Add, create or delete access cards
Adjust display touch and brightness
?
Zone Name
Master User
No Name
1.
2.
3.
Add User
No Name
Add User
No Name
Home to exit
Main Menu
Tap Menu to access additional feature’s for
controlling / customising the Hills Reliance
security system.
**This feature needs to be enabled by your
security provider**
User Menu
Tap Menu > Control > Users > Select user to modify > follow prompts
A user is a person that has been allocated a PIN code to arm and disarm areas within the
security system. A standard user has the ability to change their pin code, whilst a master
user has the ability to create, delete and modify all
Change Name – Type name of user
Change Code – Select new user pin code
Congure Account – User authority level and Area control (only if required)
Delete User – Remove user pin from system
Settings Menu
Tap Menu > Settings to access the following
features located within the settings menu.
Controls Menu
Tap Menu > Controls to access the following
features located within the control menu.
Zones (Bypassing)
Tap Menu > Control > Zones Select > Zone >
Bypass
User - Examples Quick guide - Examples
Selected zones (sensors) within the security
system can be bypassed (isolated) manually. A
bypassed zone is not capable of activating an
alarm, as it is temporarily removed from your
system. All bypassed zones are reset and cleared
from memory when the security system is next
armed / disarmed.
Modify user pin code (EG: user 1)
Menu > Control > Users > (Master pin code)
Select user 1
Change Code > Type new pin code > Enter
Home to exit
Create new user ( EG: user 2)
Menu > Control > Users > (Master pin code)
Select user 2
Create Code > Type new pin code > Enter
Change Name > Type new user name > Enter
Home to exit
Delete user (EG: user 2)
Menu > Control > Users > (Master pin code)
Select user 2
Delete User
Home to exit
Set system time and date Zone / sensor control. Bypass, add to
chime group
Show system status
Display system history
Display installer
contact details
Clean touch panel
System testing
Smoke detector reset
Zone, area, user,
output naming and
message centre
Adjust system entry and exit times Arm / Disarm single or multiple areas
within the security system
SMS and alarm phone numbers.
(Additional equipment required for SMS) Control up to 16 separate outputs
Text input for zones, areas , users, outputs
and messages Add, create or delete user pin codes
Speaker volume Add, create or delete access cards
Adjust display touch and brightness
?
Zone Name
Master User
No Name
1.
2.
3.
Add User
No Name
Add User
No Name
Home to exit
Main Menu
Tap Menu to access additional feature’s for
controlling / customising the Hills Reliance
security system.
**This feature needs to be enabled by your
security provider**
User Menu
Tap Menu > Control > Users > Select user to modify > follow prompts
A user is a person that has been allocated a PIN code to arm and disarm areas within the
security system. A standard user has the ability to change their pin code, whilst a master
user has the ability to create, delete and modify all
Change Name – Type name of user
Change Code – Select new user pin code
Congure Account – User authority level and Area control (only if required)
Delete User – Remove user pin from system
Settings Menu
Tap Menu > Settings to access the following
features located within the settings menu.
Controls Menu
Tap Menu > Controls to access the following
features located within the control menu.
Zones (Bypassing)
Tap Menu > Control > Zones Select > Zone >
Bypass
User - Examples Quick guide - Examples
Selected zones (sensors) within the security
system can be bypassed (isolated) manually. A
bypassed zone is not capable of activating an
alarm, as it is temporarily removed from your
system. All bypassed zones are reset and cleared
from memory when the security system is next
armed / disarmed.
Modify user pin code (EG: user 1)
Menu > Control > Users > (Master pin code)
Select user 1
Change Code > Type new pin code > Enter
Home to exit
Create new user ( EG: user 2)
Menu > Control > Users > (Master pin code)
Select user 2
Create Code > Type new pin code > Enter
Change Name > Type new user name > Enter
Home to exit
Delete user (EG: user 2)
Menu > Control > Users > (Master pin code)
Select user 2
Delete User
Home to exit
Set system time and date Zone / sensor control. Bypass, add to
chime group
Show system status
Display system history
Display installer
contact details
Clean touch panel
System testing
Smoke detector reset
Zone, area, user,
output naming and
message centre
Adjust system entry and exit times Arm / Disarm single or multiple areas
within the security system
SMS and alarm phone numbers.
(Additional equipment required for SMS) Control up to 16 separate outputs
Text input for zones, areas , users, outputs
and messages Add, create or delete user pin codes
Speaker volume Add, create or delete access cards
Adjust display touch and brightness
?
Zone Name
Master User
No Name
1.
2.
3.
Add User
No Name
Add User
No Name
Home to exit
Other manuals for TouchNav
2
Table of contents
Other Hills Reliance Security System manuals
