ORIGINAL OPERATING INSTRUCTIONS
SIW 18TA cordless impact wrench
It is essential that the operating instructions are read before the power tool
is operated for the first time.
Always keep these operating instructions together with the power tool.
Ensure that the operating instructions are with the power tool when it is
given to other persons.
Contents
1 Generalinformation ........................... 2
2 Safetyinstructions ............................ 3
3 Description ................................. 8
4 Technicaldata .............................. 10
5 Beforeuse................................. 11
6 Operation ................................. 11
7 Careandmaintenance......................... 13
8 Troubleshooting ............................. 14
9 Disposal .................................. 15
10 Manufacturer’swarranty-tools................... 15
1These numbers refer to the illustrations. You can find the illustrations at
the beginning of the operating instructions.
In these operating instructions, the designation “power tool” refers to the
SIW 18T-A cordless impact wrench with battery fitted.

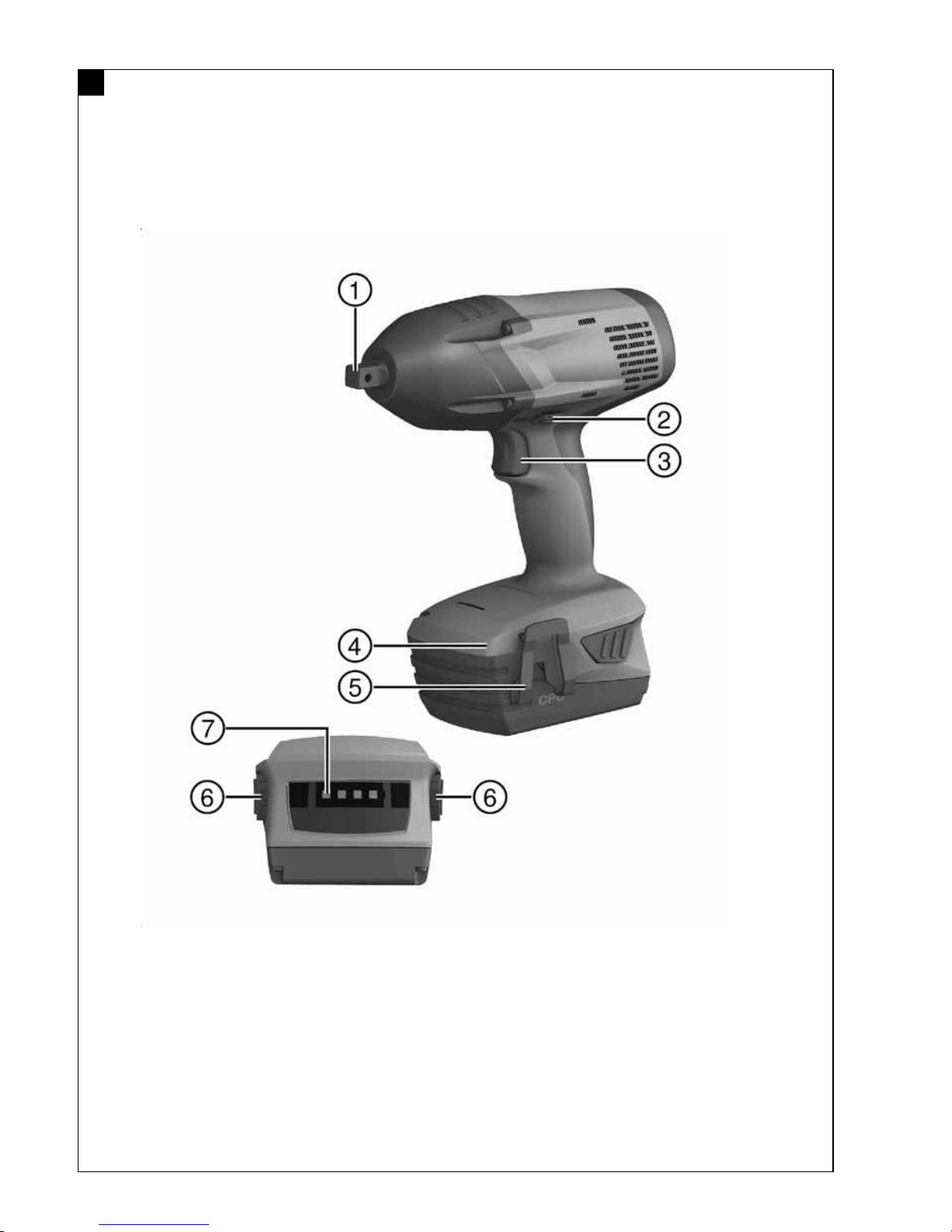

Product overview 1
@Chuck
;Forward / reverse selector switch with transport lock
=Control switch (with electronic speed control)
%Type identification plate
&Belt hook (optional)
(Battery release buttons (also used to activate the charge status dis-
play)
)Charge status and fault display (Li-ion battery)
Printed: 20.05.2015 | Doc-Nr: PUB / 5136087 / 000 / 03

en
2
1 General information
1.1 Safety notices and their meaning
DANGER
Draws attention to imminent danger that will lead to serious bodily injury or
fatality.
WARNING
Draws attention to a potentially dangerous situation that could lead to
serious personal injury or fatality.
CAUTION
Draws attention to a potentially dangerous situation that could lead to slight
personal injury or damage to the equipment or other property.
NOTE
Draws attention to an instruction or other useful information.
1.2 Explanation of the pictograms and other information
Warning signs
General warning
Obligation signs
Read the operating
instructions before
use.
Printed: 20.05.2015 | Doc-Nr: PUB / 5136087 / 000 / 03
