Hinkley INDY FLUSH 901058FBN-NDD User manual

CEILING FAN INSTRUCTION MANUAL
INDOOR / OUTDOOR LED FAN
58" INDY FLUSH™

SO WE’REHEREIF YOU HAVE A QUESTION, NEED SOME
HELP OR WANT TO CHAT ABOUTOUR PRODUCTS. SEND
SUGGESTIONS OUR WAY TOO—WE’REALWAYS LOOKING TO
MAKE YOUR EXPERIENCE WITH HINKLEY A POSITIVE ONE.
This manual contains complete instructions for the
installation and operation ofthis fan. It has been
designed to make the installation process as easy as
possible. If you are unfamiliar or uncomfortable with
wiring, please contact a qualified electrician. If you
need additional assistance or have any questions,
please reach out to us.
For warranty information,visit hinkley.com.
> [e-mail]
> 800.HINKLEY
> LET’S SEE THAT HINKLEY STYLE @HINKLEY
#HINKLEYSTYLE
WE WANT YOU TO LOVE YOUR NEW FAN

WARNING:
Read and follow these instructions carefully and be mindful of all warnings shown throughout.
©2021 Hinkley Lighting, Inc. |hinkley.com |01
TABLE OF CONTENTS
02
GENERAL INSTALLATION & OPERATING
INSTRUCTIONS
03 IMPORTANT SAFETY PRECAUTIONS
03 TOOLS & MATERIALS REQUIRED
04 UNPACKING YOUR FAN
05 PREPARATION
05 INSTALLING THE HANGING BRACKET
06 HANGING THE FAN
07 ELECTRICAL CONNECTIONS
08 FINISHING THE INSTALLATION
09 INSTALLING THE BLADES
10 INSTALLING THE DECORATIVE COVER
11 INSTALLING THE WALL CONTROL
13 OPERATING
15 CARE AND CLEANING
15 TROUBLESHOOTING
16 ENERGY GUIDE
16
17
SPECIFICATIONS
SMART BY BOND

GENERAL INSTALLATION &OPERATION INSTRUCTIONS
02 |hinkley.com
1
2
3
4
5
6
7
8
9
10
11
12
13
14
To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning.
To avoid possible electric shock, be sure electricity is turned off at the main power box before wiring. All electrical connections
must be made in accordance with local codes, ordinances and/or the National Electric Code. If you are unfamiliar with the
methods of installing electrical wiring and products, secure the services of a qualified and licensed electrician as well as
someone who can check the strength of the supportive ceiling members and make the proper installation(s) and connections.
WARNING: To reduce the risk of fire, electric shock, or other personal injury, mount fan only on an outlet box or supporting system
marked acceptable for fan support of 50 lbs (22.7 kg) or less and use mounting screws provided with the outlet box. Most outlet
boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
Make sure that your installation site will not allow rotating fan blades to come in contact with any object. Blades should be at least
7 feet from floor.
Blades should be attached after motor housing is hung and in place. Fan motor housing should be kept in the carton until ready
to be installed to protect its finish. If you are installing more than one ceiling fan, make sure that you do not mix fan blade sets, as
each blade is part of a weighted set.
After making electrical connections, spliced conductors should be turned upward and pushed carefully up into outlet box. The
wires should be spread apart with the common conductor and the grounding conductor on one side of the outlet box, and the
"HOT" wires on the other side.
Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL listed and should be installed
per the light kit's installation instructions.
After fan is completely installed, check to make sure that all connections are secure to prevent fan from falling and/or causing
damage or injury.
The fan can be made to work immediately after installation - the bearings are adequately charged with grease so that, under
normal conditions, further lubrication should not be necessary for the life of the fan.
To operate the reverse function on this fan, press the reverse button while the fan is running.
CAUTION: Do not ingest battery - Chemical bum hazard. Keep new and used batteries away from children.
The remote control supplied with a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe
internal bums in just 2 hours and can lead to death.
If the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

IMPORTANT SAFETY PRECAUTIONS
TOOLS &MATERIALSREQUIRED
WARNINGS:
•PHILLIPS SCREWDRIVER
•FLAT SCREWDRIVER
•WRENCH OR PLIERS
•WIRE CUTTER
•STEPLADDER
•WIRINGSUPPLIES AS REQUIRED BY
ELECTRICAL CODE
©2021 Hinkley Lighting, Inc. |hinkley.com |03
• Disconnect power by removing fuse or turning off circuit breaker before installing the fan and/or optional lighting.
• Support directly from building structure.
• To reduce the risk of fire, electric shock or personal injury, mount to outlet box marked "acceptable for fan support" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan
support and may need to be replaced. Consult a qualified electrician if in doubt.
• Do not use an incandescent light dimmer. Do not use this fan with any transformer type fan speed control device.
• To reduce the risk of personal injury, do not bend the blade arms when installing them, balancing the blades or cleaning the fan.
Do not insert any object(s) between rotating fan blades.
NOTE:
The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible conditions
and situations that may occur. It must be understood that common sense, caution and carefulness are factors which cannot be
built into this product. These factors must be supplied by the person(s) installing, caring for and operating the unit.

UNPACKING YOUR FAN
UNPACK YOUR FAN AND CHECK THE CONTENTS.
04 |hinkley.com
• Do not discard the carton. If warranty replacement or repair is ever necessary, the fan should be returned in original packing.
Remove all parts and hardware. Do not lay motor housing on its side, or the decorative housing may shift, be bent or damaged.
• Examine all parts. You should have the following:
PACKAGE CONTENT
1Blade Set of 3
2
Mounting Bracket
3
Fan Motor Assembly
4
5
6
7
8
9
1
5
26
3
4
9
NOTE: Design of parts shown above may look slightly different for
your specific model of fan.
Blade Arm Set of 3
Decorate Cover
Receiver (Pre-Installed on top of
the motor )
Bracket Mounting Hardware
(wood screws, screws, lock
washers, star washers, flat washers,
wire nuts), Blade to Motor Screws
with Lock Washers, Balance Kit,
Safety cable hardware
(wood screw, flat washer)
Hardware Bag
Motor Housing
MH901058Fxx
980014FWH-R
LW901072Fxx
HS901072Fxx
x
x
BLA901058Fxx
BL901058Fxx
CN901058
XX=FAN FINISH
Cradle B (for flat wall use only)
Cradle A, Wall Plate, Face Plate,
2 Mounting Screws,
Wall Control w/2032 Battery,
7
8
+

PREPARATION
INSTALLING THEHANGINGBRACKET
PREPARATION:
Parts identification on assembled fan.
©2021 Hinkley Lighting, Inc. |hinkley.com |05
Verify you have all parts before beginning the
installation. Check foam insert closely for missing
parts. Remove motor from packing. To avoid
damage to finish, assemble motor on soft padded
surface or use the original foam inset in motor box.
DO NOT LAY MOTOR HOUSING ON ITS SIDE AS
THIS COULD RESULT IN SHIFTING OF
MOTOR IN DECORATIVE ENCLOSURE.
Fig. 1
Blade
Decorate Cover
Motor Housing
1
2
3
CAUTION: To avoid possible electrical shock, be sure electricity is turned off
at the main power box before wiring. All wiring must be in accordance with
National and Local Electrical Codes and the ceiling fan must be grounded as
a precaution against possible electric shock.
Locate ceiling joist where fan is to be mounted, being sure location
agrees with the requirements in the minimum clearance section of this
guide. Wood joist must be sound and of adequate size to support 35
lbs. (See Page 1, Items 3 and 4).
If not already present, mount a cUL listed outlet box marked "suitable for
fan support" following the instructions provided with the outlet box. The
outlet box must be able to support a minimum of 35 pounds.
Attach mounting bracket to outlet box using screws provided with the
outlet box.
Outlet box
Mounting
bracket
Screws

06 |hinkley.com
INSTALLING THE FAN
Fig. 1
REMEMBER to turn off the power. Follow the steps below to hang your
fan properly.
Carefully lift fan motor assembly (without the blades) into position by
hanging the motor assembly onto the hook from the ceiling adapter
plate allowing it to hang freely. (Fig. 1)
Fan
Motor
Outlet Box
Attach the wood screw and the flat washer to the ceiling joist as
shown (do not fully tighten). Slide the cable clamp onto the
safety cable from the fan.Loop the safety cable around the
wood screwthat was just attached to ceiling joist. Feed the end
of the cable into the clamp and pull as much cable through as
possible. Firmly tighten screw in the clamp. Cut offffexcess cable.
(Fig. 2)
You are now ready to make the electrical connections.
INSTALLATION OF SAFETY CABLE SUPPORT
Fig. 2
Safety Cable Clamp
Safety Cable
Wood Ceiling Joist
Safety Cable Loop
Wood Screw
And Washer

07
©2021 Hinkley Lighting, Inc. |hinkley.com
ELECTRICAL CONNECTIONS
1
2
Motor to Receiver Electrical Connections:
Connect the black wire from the fan to the black wire
marked "TO MOTOR L" on the receiver. Connect the
white wire from the fan to the white wire marked "TO
MOTOR N" on the receiver. Connect the blue wire from
the fan to the blue wire marked "FOR LIGHT" on the
receiver. Secure all the wire connections with the plastic
wire nuts provided.
Receiver to House Supply Wires Electrical Connections:
Connect the black (hot) wire from the ceiling to the black
wire marked "AC in L" from the receiver. Connect the
white(neutral) wire from the ceiling to the white wire
marked "AC in N" from the Receiver. Secure the wire
connections with the plastic wire nuts provided.
REMEMBER -Turn off the power! NOTE - Control must be installed
within 30 feet of fan.
WARNINGS: Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire nuts, except for
the ground wire.
CAUTION: To reduce the risk of electric shock, this fan must be
installed with an isolating wall control/switch.
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
Outlet box
Black (hot)
Black ("AC IN L")
Receiver
White (neutral)
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Black ("to motor L")
Blue (for light)
Blue (for light)
Black (motor)
Fig. 1

08 hinkley.com
|
FINISHING THE INSTALLATION
Remove the four washers and nuts from mounting bracker,
move the motor into position over the four mounting studs and
secure with the nuts and washers previously removed. (Fig. 1)
1
Raise the motor housing up against the mounting bracket, the
four supports inside the motor housing should be placed
against the four studs on mounting bracket, twist the motor
housing clockwise until snug. (Fig. 2)
2
Fig. 2
Nuts
Washers
Motor
Mounting studs
Mounting
Bracket
Fig. 1
Motor
Housing
Motor
Bracket
Studs
Supports

©2021 Hinkley Lighting, Inc. |hinkley.com |09
INSTALLING THE BLADES
Fig. 1
NOTE:
Cordless power screwdrivers are NOT recommended,
as they usually strip the heads of the screws and
usually will not fully compress the lock washers on
the motor screws. Use a large flat blade screwdriver
for final tightening to fully compress the washers. This
will help ensure proper alignment of the blades and
noise-free, wobble-free running.
Nut
Blade Arm
Blade
Screw & rubber washer
Screws
Place blade over blade arm and align blade with
mounting holes in blade arms. Repeat this procedure
without tightening the screw until all 3 screws and
nuts have been started into the blade arm.
Tighten each screw starting with center screw.
Fasten blade assembly to motor with provided
screws and rubber washers by uses Blade Arm
Wrench. Repeat procedure for remaining blades.
Make sure screws are TIGHT! Loose motor screws
can contribute to unnecessary hum during operation.
1
2
3

10 |hinkley.com
Fig. 1
INSTALLATION THE DECORATIVE COVER
NOTE: Be sure the power is off before installing.
Attach the lower cover to the mounting hub by turn
the cover clockwise until tight.
Turn the power on. Your Hinkley Ceiling Fan is now ready
to enjoy!
1
2
Decorative
Cover
Mounting Hub

©2021 Hinkley Lighting, Inc. |hinkley.com |11
INSTALLING THE WALL CONTROL
Fig. 1
REMEMBER to turn off the power before you begin.
NOTE - Secures to any surface or application: flat wall, single gang
box, multi gang box.
1
2
3
4
Option 1. Flat Surface Installation
Select a desired location. Use the wall plate to mark the
location of the mounting holes. Plastic wall anchors or
mounting screws are needed for this application. (Fig. 1)
Seat the cradle B into the wall plate. Secure the wall plate
to the wall using the provided hardware.
Snap the face plate cover onto the wall bracket.
Remote transmitter will be held in place with built in magnets.
Remove the existing wall plate and the old switch from the
wall outlet box.
Seat the cradle A into the wall plate. (Fig. 2)
Connect the black lead wires from the switch in the cradle A
to the black wires in the switch box. Hot input wire to one of
the cradle A switch leads. Power lead to the fan is connected
to the remaining switch lead.
Connect the wall plate / cradle A assembly to the wall outlet
box using the supplied hardware.
Snap the face plate cover onto the wall bracket.
Remote transmitter will be held in place with built in magnets.
1
2
3
4
5
6
Option 2. For single gang box
Transmitter
Face plate
Wall plate Cradle B
Wall
Plastic
anchor
Fig. 2
Outlet box
Transmitter
Face plate
Wall plate
Cradle A
HIRO Control System

12 |hinkley.com
Fig. 3
Remove the existing wall plate and old switch from the wall outlet box. (Fig. 3)
Connect the black lead wires from the switch in the cradle A to the black wires in the switch box. Hot input wire to one of the cradle
switch leads. Power lead to the fan is connected to the remaining switch lead. (Fig. 4)
Attach the cradle A to the wall switch box using the supplied hardware.
Attach the multi-gang faceplate to the switch set in the wall outlet box. Cradle A of Hinkley switch will fit in any standard decora
face plate.
Remote transmitter will be held in place with built in magnets.
1
2
3
4
5
Option 3. Multi Gang Wall Switch Box Installation
Outlet box
Face plate
Switch
Fig. 4
Outlet box
Transmitter
Face plate
Cradle A
HIRO Control System

©2021 Hinkley Lighting, Inc. |hinkley.com |13

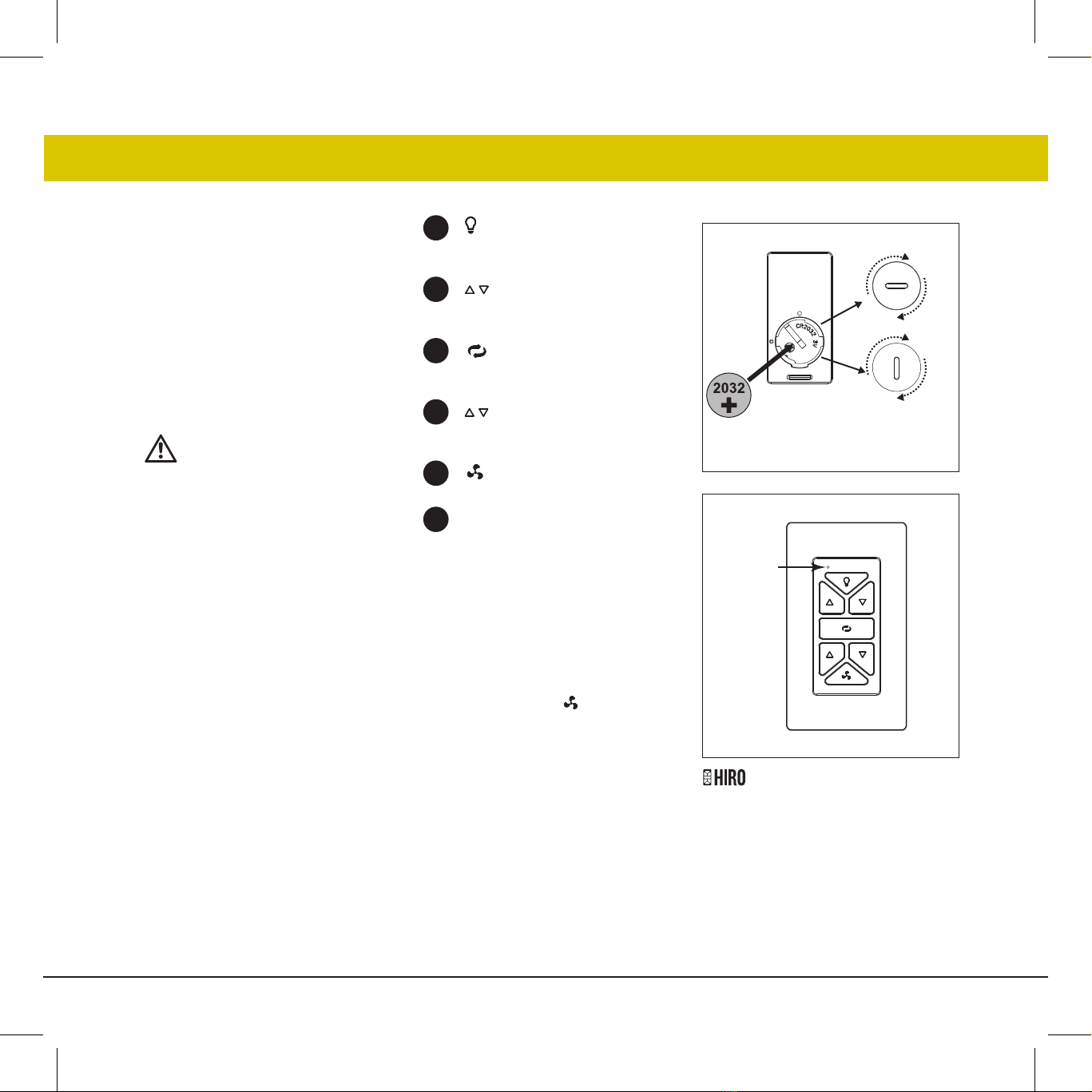

OPERATION
This ceiling fan is equipped with an
automatically learned type remote control.
There is no frequency switches on the
receiver or transmitter. The fan can start to
use once the pairing process is done.
Remove the panel from the transmitter and
then install one 2032 battery (included). You
need to use a coin to open or close the battery
cover. To prevent damage to transmitter,
remove the battery if not use for long periods
of time (Fig. 1)
Fig. 1
Fig. 2
Signal light
ON
OFF
Pairing Process
NOTE: If installing/pairing more than
one fan in an area, the power must be
disconnected from all fans except the
one fan being paired.
With the fan’s power off, restore power to
the fan. Press and hold “ ” button for about
5 seconds and release. If optional light kit is
installed, the light kit will flash three times
and the motor spin up for 10 seconds on low
speed. The fan has completed the pairing
process with the wall control and is ready
for use.
NOTE: A single fan can be controlled with as
many as 3 wall controls in one room. Every
control will need to repeat the pairing
process based on instructions above and
all controls must be within 30 feet of the fan.
1
2
3
4
5
button:
Press this button and release instantly
to turn on or off the light.
button:
Press and hold to dim or brighten
lights to the desired level and release.
button:
Press this button to set fan wind
direction up or down.
button:
Press button for turn on and setting
1-3 fan speed.
button:
Press this button to turn the fan off.
Signal light (Fig. 2)
6
WARNING: Chemical Burn Hazard.
Keep batteries away from children.
This product contains a lithium button/coin
cell battery. If a new or used lithium button
/coin cell battery is swallowed or enters the
body, it can cause severe internal burns
and can lead to death in as little as 2 hours.
Always completely secure the battery
compartment. If the battery compartment
does not close securely, stop using the
product, remove the batteries, and keep it
away from children. IF you think batteries
might have been swallowed or placed inside
any part of the body, seek immediate medical
attention.
The batteries shall be disposed of properly,
including keeping them away from children;
Even used cells may cause injury.
HIRO Control System

14 |hinkley.com
Fig. 3 Fig. 4
SUMMER MODE
(COUNTERCLOCKWISE DIRECTION)
WINTER MODE
(CLOCKWISE DIRECTION)
7
8
Summer Mode and Winter Mode Operation
Summer Mode (forward):
A DOWNWARD airflow creates a cooling effect as shown in Figure 3. This allows you to set your air conditioner on a warmer setting
without affecting your comfort.
Winter Mode (Reverse):
An UPWARD airflow moves warmer air off the ceiling area as shown in Figure 4. This allows you to set your heating unit on a cooler
setting without affecting your comfort.

©2021 Hinkley Lighting, Inc. |hinkley.com |15
CARE AND CLEANING
TROUBLESHOOTING
CAUTION:
Switch off power supply before carrying out any of these checks.
PROBLEM SOLUTION
Periodically it may be necessary to re-tighten blade to blade arm screws or blade arm to motor screws to prevent clicking or humming
sound during operation. This is especially true in climates with broad temperature and humidity ranges.
When dusting the blades, you must support the blade to prevent bending - no pressure should be applied to the blades. If you experience
any flaws in the operation of your fan, please check the following points.
FAN WILL
NOT START
FAN SOUNDS
NOISY
FAN WOBBLES
1. Check circuit fuses or breakers.
2. Check wall control LED indicator light. If LED is not illuminated when pushing a button, it is not transmitting a
signal. Please check power to wall control/circuit breaker and all electrical connections.
3. Assure there are no more than 2 fans operating on a circuit through the wall control. Assure that there are no
more than 12 fans operating on a circuit through an on/off wall switch or a breaker (not through a wall control).
4. Assure that the fan in within range of the WiFi (150 ft.) or wall control (30 ft.).
1. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan will disappear during this time.
2. Make sure all motor housing screws are securely fastened.
3. Make sure the screws that attach the fan blade to the fan are tight.
4. Make sure your ceiling box is secure and rubber isolator pads are used between the mounting bracket and outlet
box.
1. Check that all blade and blade arm screws are secure.
2. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight
and possibly result in smoother operation.
3. Check to assure all dowrods to motor hardware and/or hanger ball are tight.
4. Make sure ceiling box is secure.

16 |hinkley.com
ftc.gov/energy
• The higher the airflow, the
more air the fan will move
• Airflow Efficiency: 199Cubic
Feet Per Minute Per Watt
Airflow
3,781
Cubic Feet Per Minute
• Based on 12 cents perkWh and 6.4 hours use perday
• Your cost depends on rates
• Energy Use: 19 Watts
and use
$
3$34
Cost Range of Similar Models (19” – 84”)
$5
Estimated
Yearly Energy Cost
All estimates based on typical use, excluding lights
ENERGY GUIDE SPECIFICATIONS
AVERAGE PERFORMANCE AND ENERGY INFORMATION
856
6361
28.6 1.8
223 465
PERFORMANCE
SPECIFICATIONS
STANDARD
HIGH SPEED LOW SPEED
Airflow (CFM)
Energy Use (Watts)
Airflow Efficiency (CFM/W)
Energy Costs (Yearly)
Amps
0.39 0.04
RPMs
155 27
5
$
1
$
Airflow Shown Is a Weighted Average of High and Low Cubic Feet per Minute Based on Close to Ceiling

©2019 Hinkley Lighting, Inc. |hinkley.com |17
SMART BY BOND (SOLD SEPARATELY)
How to correct "Fan paired to wrong transmitter" on Smart by
Bond fans supporting multiple transmitters:
a) Open the Bond Home app.
b) Tap on the Fan you want to modify.
c) Tap the settings icon in the upper right corner.
d) Scroll down and tap "Manage Remotes".
e) Delete just the remotes in question; or, use the triple-dot menu
and select "Forget all remotes".
f) Tap "Learn a new remote".
g) Follow on-screen prompts to (re) learn the desired remotes into
the fan.
a) Turn mains power OFF to all fans.
b) Turn mains power ON only for the fan needing code correction.
c) Within 15 seconds of turning on, hold down the Speed 1 button
on any compatible transmitter for 20 seconds.
d) The fan light should blink 5 times and may spin up on low speed
for 10 seconds.
e) Wait 10 seconds.
f) Hold down the Power button on the transmitter you wish to pair.
The fan light should flash three times and the motor spin up for
10 seconds on low speed.
g) If you were using the fan on Wi-Fi, you will need to reconnect to
Wi-Fi.
• Smart Phone Method (recommended)
• Factory Reset Method
a) Turn mains power OFF to the fan.
b) Turn mains power back ON on the fan.
c) Hold down the Power button on the transmitter for 5 seconds,
until the fan light flashes 3 times.
d) Repeat steps a--c above 4 more times.
e) The fan's memory is now totally overwritten, and it has forgotten
all other remotes.
• Brute Force Method
https://bondhome.io/app
HINKLEY SMART FAN OPTIONS:
In addition to the included wall control, you can control your Hinkley
fan through the Bond app.
• To use the app, download it for free from the App Store or Google
Play.
• Open the app to create your account. You can also login with
your Facebook or Google account.
• Next, set up a WiFi connection. You will need the SSID and WiFi
password for the network you want to connect to.
• You will receive a prompt to choose the finish of your fan and
name your fan device.
• The app will walk you through the main screen and show you
how to change fan speeds, dim the light, set timers or utilize
breeze mode.
NOTE: Maximum of 2 fans can operate on a circuit through the
wall control. Maximum of 12 fans can operate on a circuit through
an on/off switch or breaker when utilizing the app for the fan
control (without the wall control in the circuit).

HINKLEY IS PROUD TO PROVIDE YOU WITH CEILING FAN
PRODUCTS THAT ENHANCE YOUR SPACE WITH COMFORT,
PURPOSE AND STYLE. AS A FAMILY COMPANY, WE ARE
COMMITTED TO DESIGN, PERFORMANCE AND QUALITY,
AND WHAT’S IMPORTANT TO YOU IS PARAMOUNT TO US.
FOR A COMPLETE ASSORTMENT OF OUR PRODUCTS AND
SOURCE BOOKS, VISIT HINKLEY.COM.
