Hinkley IVER 56 User manual

PAIR WITH HINKLEY APP
HINKLEY
DOWNLOAD ON APP STORE or GOOGLE PLAY
INDOOR / OUTDOOR LED FAN
56" IVER™
CEILING FAN INSTRUCTION MANUAL
LEDWIFI
DC
DC MOTORWET

SO WE’REHEREIF YOU HAVE A QUESTION, NEED SOME
HELP OR WANT TO CHAT ABOUTOUR PRODUCTS. SEND
SUGGESTIONS OUR WAY TOO—WE’REALWAYS LOOKING TO
MAKE YOUR EXPERIENCE WITH HINKLEY A POSITIVE ONE.
This manual contains complete instructions for the
installation and operation ofthis fan. It has been
designed to make the installation process as easy as
possible. If you are unfamiliar or uncomfortable with
wiring, please contact a qualified electrician. If you
need additional assistance or have any questions,
please reach out to us.
For warranty information,visit hinkley.com.
> [e-mail]
> 800.HINKLEY
> LET’S SEE THAT HINKLEY STYLE @HINKLEY
#HINKLEYSTYLE
WE WANT YOU TO LOVE YOUR NEW FAN

|hinkley.com |01
WARNING:
Read and follow these instructions carefully and be mindful of all warnings shown throughout.
©2023 Hinkley Lighting, Inc.
TABLE OF CONTENTS
02 GENERAL INSTALLATION & OPERATING
INSTRUCTIONS
03 IMPORTANT SAFETY PRECAUTIONS
03 TOOLS & MATERIALS REQUIRED
04 UNPACKING YOUR FAN
05 PREPARATION
05 INSTALLING THE HANGING BRACKET
06 HANGING THE FAN
08 ELECTRICAL CONNECTIONS
09 FINISHING THE INSTALLATION
10 BLADE ATTACHMENT
11 INSTALLING THE LED ASSEMBLY
12 INSTALLING THE WALL CONTROL
14 OPERATION
16 CARE AND CLEANING
16 TROUBLESHOOTING
17
17
18
SPECIFICATIONS
DOWNLOADING THE HINKLEY APP
ENERGY GUIDE

02 |hinkley.com
GENERAL INSTALLATION &OPERATION INSTRUCTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning.
To avoid possible electric shock, be sure electricity is turned off at the main power box before wiring. All electrical connections
must be made in accordance with local codes, ordinances and/or the National Electric Code. If you are unfamiliar with the
methods of installing electrical wiring and products, secure the services of a qualified and licensed electrician as well as
someone who can check the strength of the supportive ceiling members and make the proper installation(s) and connections.
WARNING: To reduce the risk of fire, electric shock, or other personal injury, mount fan only on an outlet box or supporting system
marked acceptable for fan support of 35 lbs (15.9 kg) or less and use mounting screws provided with the outlet box. Most outlet
boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
Make sure that your installation site will not allow rotating fan blades to come in contact with any object. Blades should be at least
7 feet from floor.
Blades should be attached after motor housing is hung and in place. Fan motor housing should be kept in the carton until ready
to be installed to protect its finish. If you are installing more than one ceiling fan, make sure that you do not mix fan blade sets, as
each blade is part of a weighted set.
After making electrical connections, spliced conductors should be turned upward and pushed carefully up into outlet box. The
wires should be spread apart with the common conductor and the grounding conductor on one side of the outlet box, and the
"HOT" wires on the other side.
Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL listed and should be installed
per the light kit's installation instructions.
After fan is completely installed, check to make sure that all connections are secure to prevent fan from falling and/or causing
damage or injury.
The fan can be made to work immediately after installation - the bearings are adequately charged with grease so that, under
normal conditions, further lubrication should not be necessary for the life of the fan.

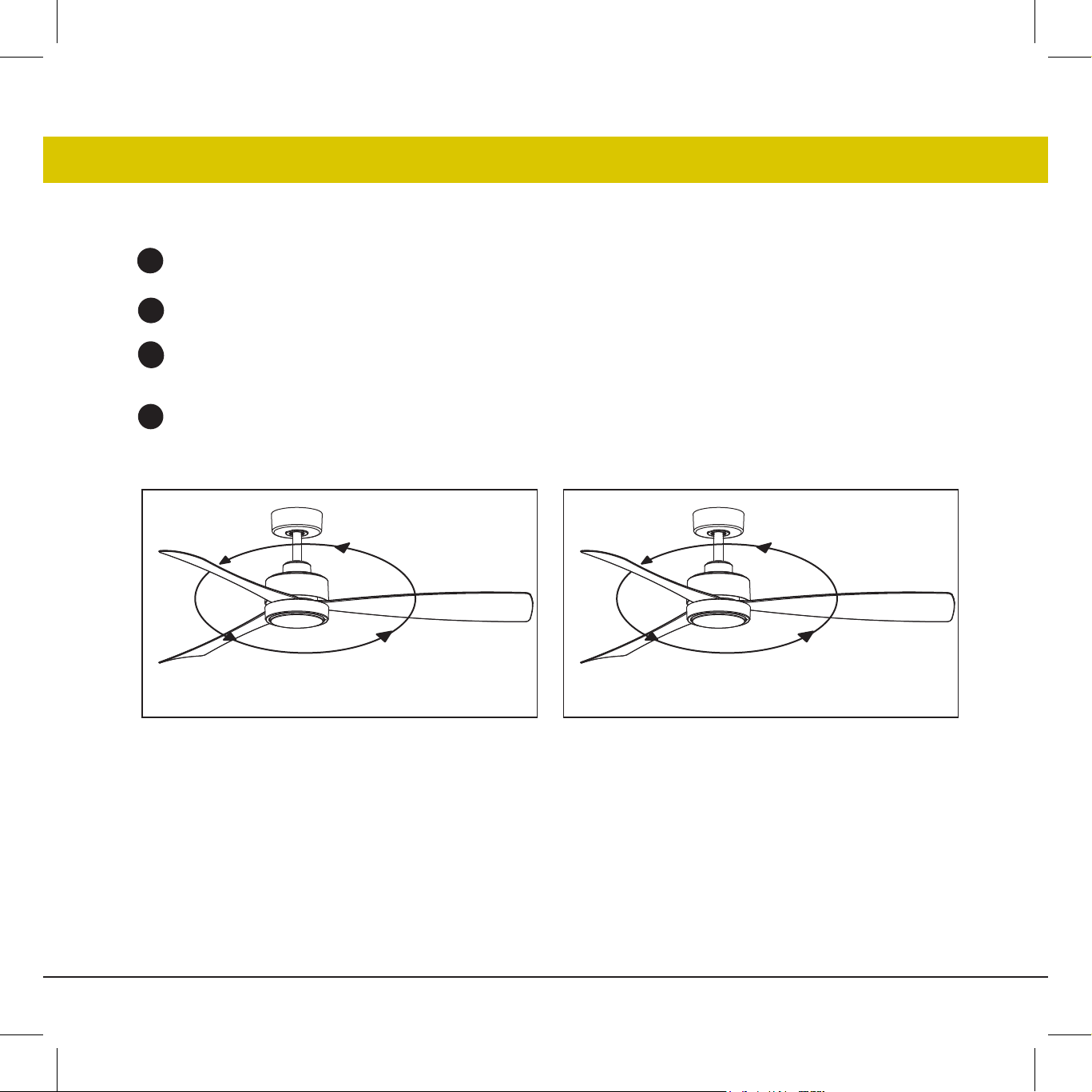

To operate the reverse function on this fan, press the reverse button while the fan is running.
CAUTION: Do not ingest battery - Chemical bum hazard. Keep new and used batteries away from children.
The remote control supplied with a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe
internal bums in just 2 hours and can lead to death.
If the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

IMPORTANT SAFETY PRECAUTIONS

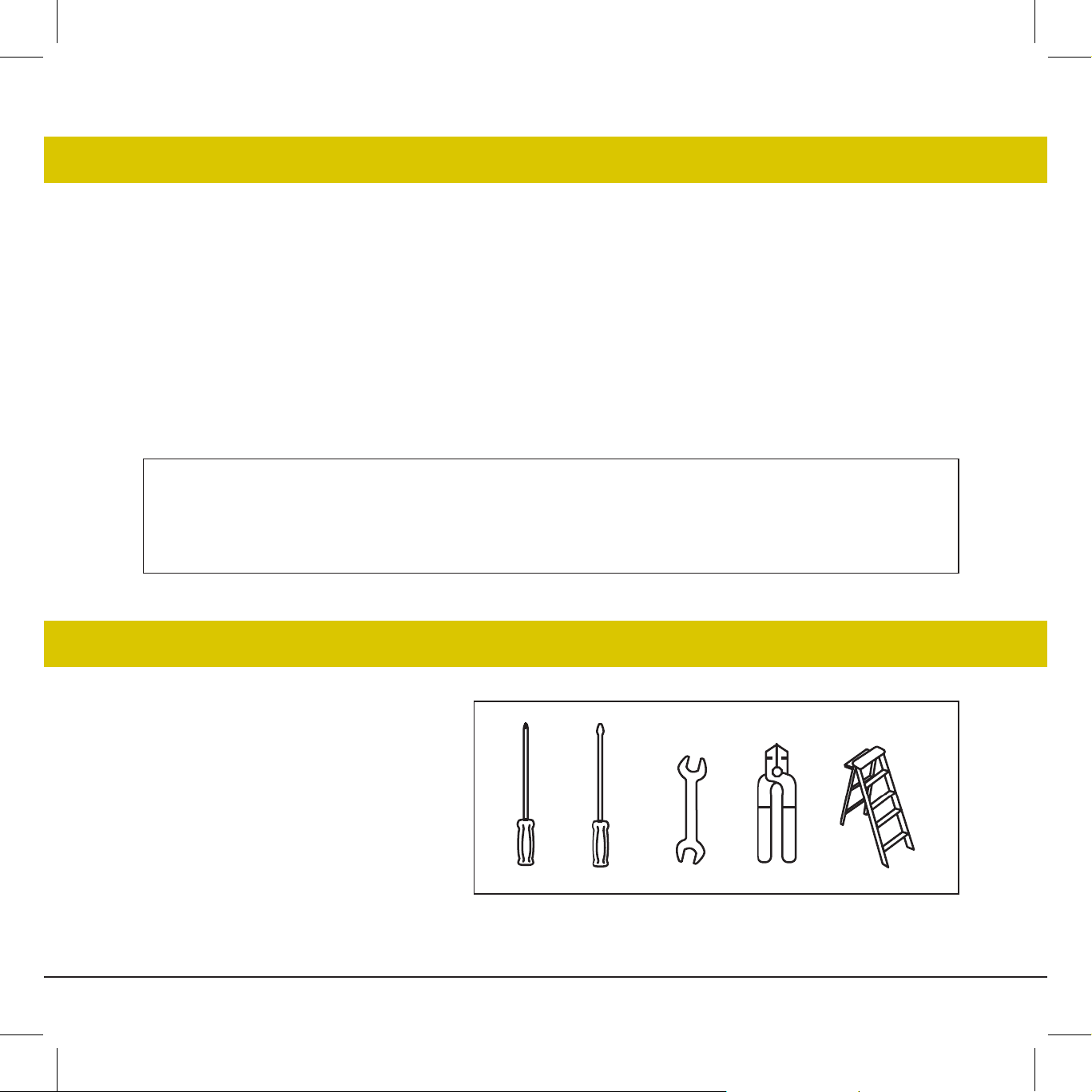

TOOLS &MATERIALSREQUIRED
WARNINGS:
•PHILLIPS SCREWDRIVER
•FLAT SCREWDRIVER
•WRENCH OR PLIERS
•WIRE CUTTER
•STEPLADDER
•WIRINGSUPPLIES AS REQUIRED BY
ELECTRICAL CODE
|hinkley.com |03
• Disconnect power by removing fuse or turning off circuit breaker before installing the fan and/or optional lighting.
• Support directly from building structure.
• To reduce the risk of fire, electric shock or personal injury, mount to outlet box marked "acceptable for fan support" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan
support and may need to be replaced. Consult a qualified electrician if in doubt.
• Do not use an incandescent light dimmer. Do not use this fan with any transformer type fan speed control device.
• To reduce the risk of personal injury, do not bend the blade arms when installing them, balancing the blades or cleaning the fan.
Do not insert any object(s) between rotating fan blades.
NOTE:
The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible conditions
and situations that may occur. It must be understood that common sense, caution and carefulness are factors which cannot be
built into this product. These factors must be supplied by the person(s) installing, caring for and operating the unit.
©2023 Hinkley Lighting, Inc.

04 |hinkley.com

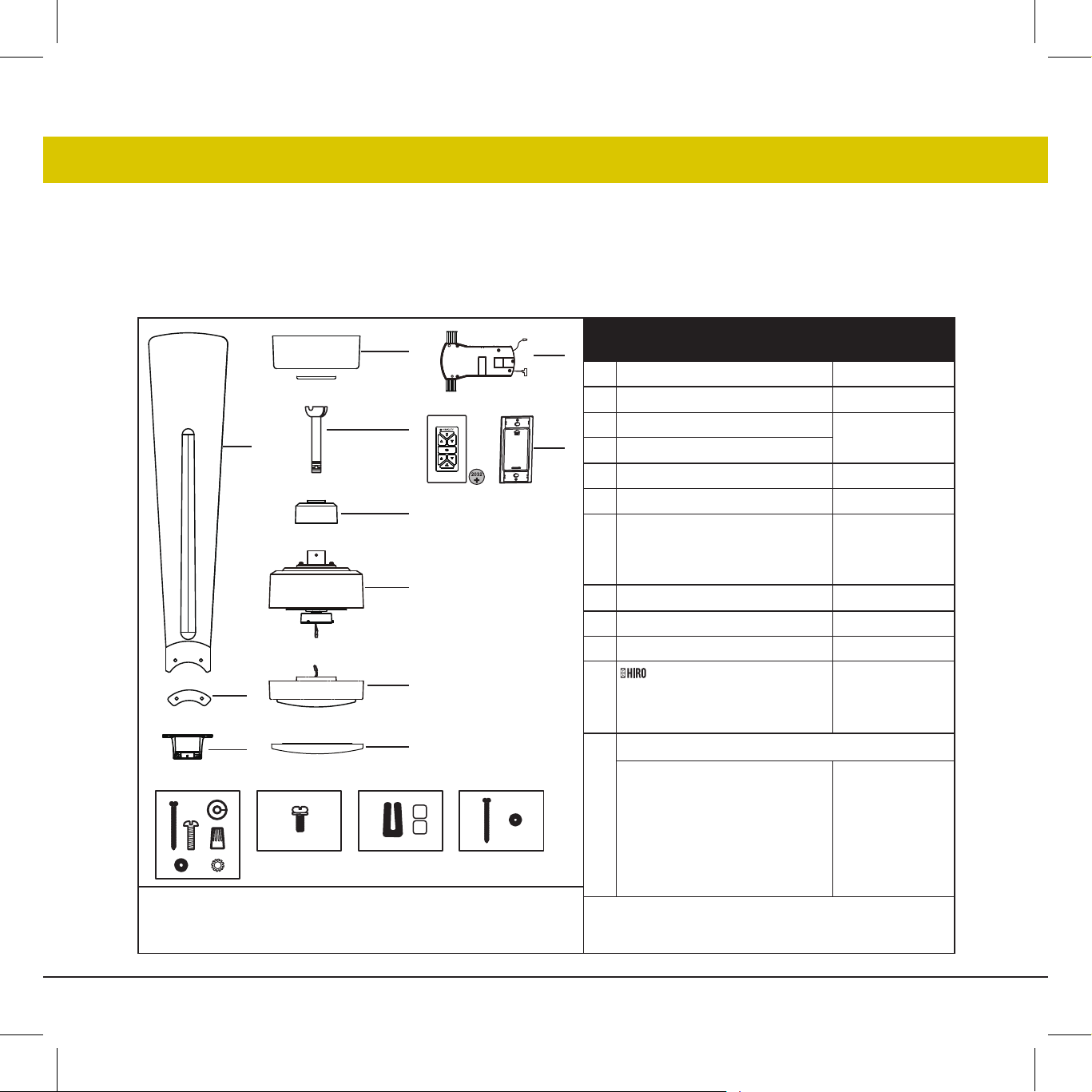

UNPACKING YOUR FAN
UNPACK YOUR FAN AND CHECK THE CONTENTS.
VERGE PACKAGE CONTENT
1Blade Set of 3
2
Hanging Bracket
Blade support plates
3
Ceiling Canopy and Trim Ring4
5
6
7
8
9
10
11
12
12
• Do not discard the carton. If warranty replacement or repair is ever necessary, the fan should be returned in original packing.
Remove all parts and hardware. Do not lay motor housing on its side, or the decorative housing may shift, be bent or damaged.
• Examine all parts. You should have the following:
NOTE: Design of parts shown above may look slightly different for
your specific model of fan.
Downrod Asm.
Yoke cover
16W LED Assembly
Decorative cover (for optional use)
Hardware Bag
Fan Housing with Motor
*Remove rubber shipping
supports around motor, if
applicable. Save the screws.
Bracket Mounting Hardware
(wood screws, screws, lock
washers, star washers, flat washers,
wire nuts),
Blade to Motor Screws
w/Lock Washers,
Balance Kit,
Safety cable hardware
(wood screw, flat washer)
In Hardware Bag
X
LKC905756Fxx
CWT905756
980014FWH-R
MH905756
BL905756Fxx
AP905756Fxx
YC905756Fxx
DR94016Fxx
CA905756Fxx
XX=FAN FINISH
Receiver Incl. 5 Wire Nuts
Cradle B (for flat wall use only)
Cradle A, Wall Plate, Face Plate,
2 Mounting Screws,
Wall Control w/2032 Battery,
1
6
3
5
8
10
9
2
11
7
4
+

|hinkley.com |05©2023 Hinkley Lighting, Inc.
PREPARATION
INSTALLING THEHANGINGBRACKET
PREPARATION:
Parts identification on assembled fan.
1
2
3
Ceiling Fan
Outlet Box
Hanger
Bracket
Outlet Box
Screw
Flat Washer
Spring Washer
Fig. 1
Verify you have all parts before beginning
the installation. Check foam insert closely for
missing parts. Remove motor from packing.
To avoid damage to finish, assemble motor
on soft padded surface or use the original
foam inset in motor box.
DO NOT LAY MOTOR HOUSING ON ITS SIDE
AS THIS COULD RESULT IN SHIFTING OF
MOTOR IN DECORATIVE ENCLOSURE.
CAUTION: To avoid possible electrical shock, be sure electricity is turned off
at the main power box before wiring. All wiring must be in accordance with
National and Local Electrical Codes and the ceiling fan must be grounded as
a precaution against possible electric shock.
Locate ceiling joist where fan is to be mounted, being sure location
agrees with the requirements in the minimum clearance section of this
guide. Wood joists must be sound and of adequate size to support 35
pounds (See page 2, items 3 and 4).
If not already present, mount a UL listed outlet box marked "suitable for
fan support" following the instructions provided with the outlet box. The
outlet box must be able to support a minimum of 35 pounds.
Attach hanging bracket to outlet box using screws provided with the
outlet box.
Blade
Yoke cover
Downrod
Canopy
Motor Housing
LED Light Kit

06 |hinkley.com
HANGING THE FAN
1
2
3
4
5
Fig. 1
Fig. 2
Downrod
Cross pin
Hanger
ball Set screw
Downrod
Hook-up
(3) Wires
Mounting Collar
Downrod Pin
Security Screws
Cotter Pin
Top of
Fan Body

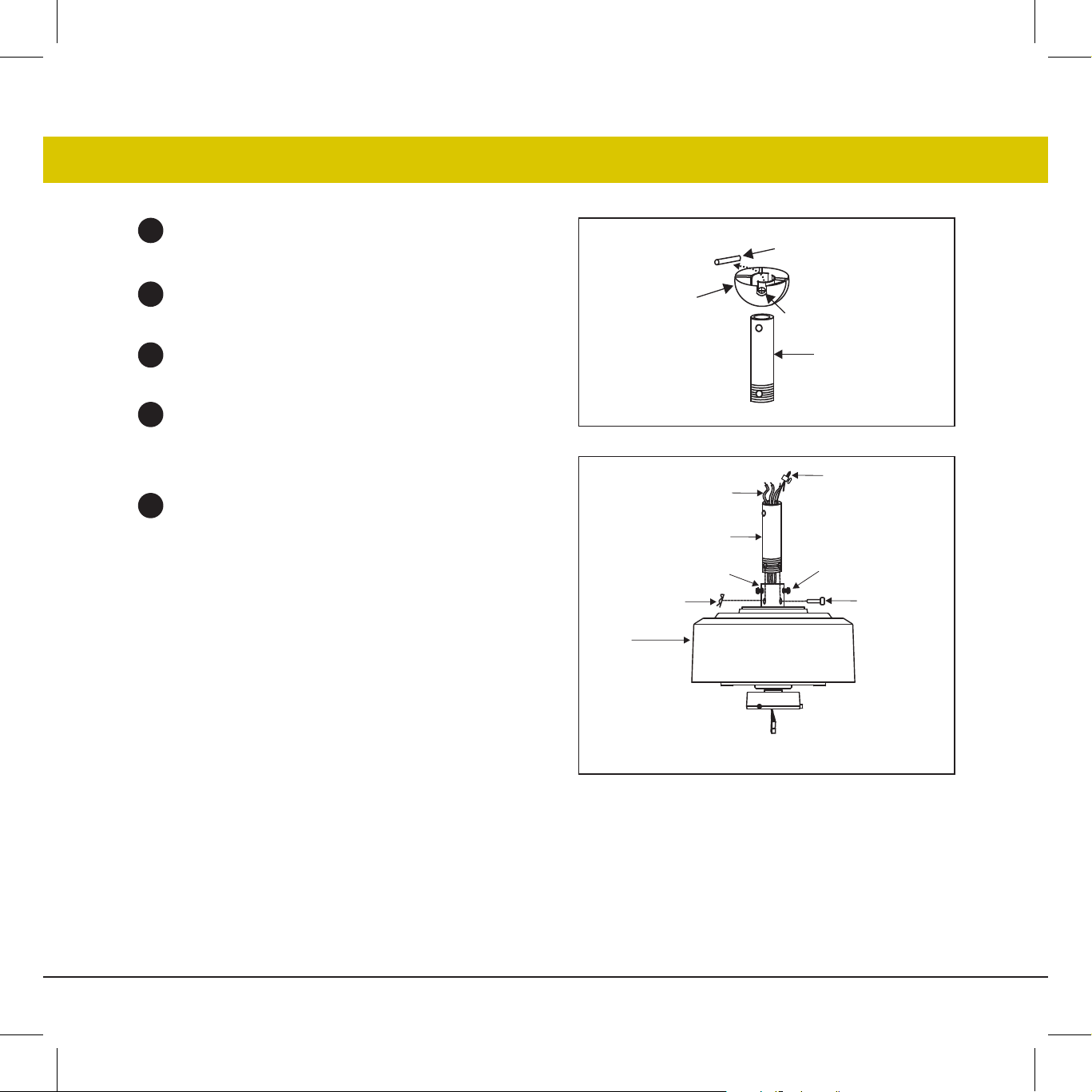

Remove ball from downrod by loosening set screw in the
side of the ball. Slide ball down and remove cross pin;
remove ball. (Fig. 1)
Carefully support fan body (motor) in its styrofoam packing
with the mounting collar (where the wires come out) facing
upward.
Loosen the two security set screws and remove the downrod
pin and cottor clip from the coupling on top of the motor
assembly. (Fig. 2)
Carefully feed the electrical lead wires and safety cable from
the fan through the downrod. Thread downrod into coupler
until holes align. Insert downrod pin through holes in
mounting collar and downrod; clip cotter pin through small
hole in end of downrod pin to hold downrod in place.
Tighten security set screws against downrod using a large
flat blade screwdriver to ensure a tight fit against downrod.
Safety Cable

07
|hinkley.com
©2023 Hinkley Lighting, Inc.
Fig. 3
Ground Wire
Top of
Fan Body
Hook-up (3) Wires
Yoke Cover
Downrod
Canopy
Hanger ball
Set screw
Cross Pin
Ball Moisture Cap
REMEMBER to turn off the power before you begin.
To properly install your ceiling fan, follow the steps below.

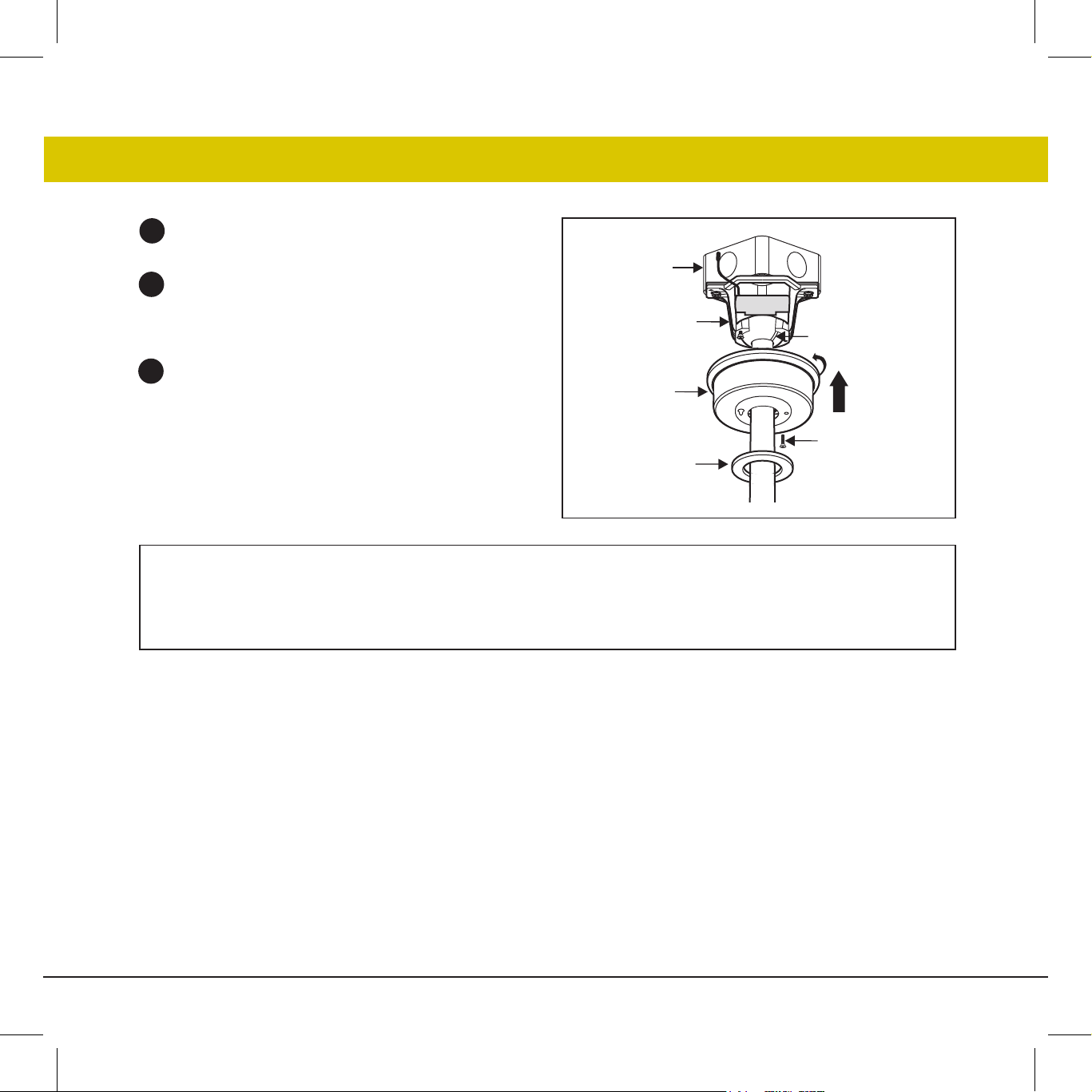

Slip the yoke cover, trim ring and canopy onto the downrod. (Fig. 3)
Slide the hanger ball onto the downrod, insert the cross pin through
the downrod and tighten. Tighten the set screw.
Feed wires through holes in rubber ball moisture cap and slide cap
down over top of ball. (Fig. 3)
Lift ball/downrod/fan into hanger bracket opening.
NOTE: The tab opposite hanger bracket opening should fit in slot
on ball. (Fig. 4)
6
7
8
9
NOTE:
6 feet of lead wire is supplied on the fan for use with
longer downrods.
Trim Ring
Safety Cable
Fig. 4
Attach the wood screw and the flat washer to the ceiling joist as
shown (do not fully tighten). Slide the cable clamp onto the
safety cable from the fan.Loop the safety cable around the
wood screwthat was just attached to ceiling joist. Feed the end
of the cable into the clamp and pull as much cable through as
possible. Firmly tighten screw in the clamp. Cut off excess cable
and tighten the wood screw to ceiling joist.
INSTALLATION OF SAFETY CABLE SUPPORT
Safety Cable Clamp
Safety Cable
Wood Ceiling Joist
Safety Cable Loop
Wood Screw
And Washer

08 hinkley.com
|
ELECTRICAL CONNECTIONS
Fig. 1 Fig. 2
YELLOW / GRN (hanger bracket)
Receiver
Fan
Outlet box
Ceiling
WH (AC IN)
GROUND
WH
BLK
BLK (AC IN)
YELLOW / GRN
YELLOW / GRN
WHITE
(For light)
RED
RED
YELLOW
YELLOW
GRAY
BLUE
WHITE
GRAY
BLUE (For light)
YELLOW / GRN (downrod)
REMEMBER -Turn off the power! NOTE - Control must be installed within
30 feet of fan.
WARNINGS: Check to see that all connections are tight, including ground,
and that no bare wire is visible at the wire nuts, except for the ground wire.
CAUTION: To reduce the risk of electric shock, this fan must be installed with
an isolating wall control/switch.
1. Insert the receiver into the ceiling mounting bracket with the flat side of
the receiver facing the ceiling. (Fig. 1) For best performance, make sure
the Black Antenna and WIFI Antenna, on the end of the receiver, remains
extended and not tangled with any of the electrical wires.
2. Make wire connections from the fan to the receiver unit. For this
step use the bundle of 5 wires on the receiver. (Fig. 2)
Connect the YELLOW fan wire to the YELLOW receiver wire.
Connect the GRAY fan wire to the GRAY receiver wire.
Connect the RED fan neutral wire to the RED receiver neutral wire.
Connect the WHITE neutral light kit lead from the fan to WHITE receiver
lead marked “ For Light”.
Connect the BLUE light kit lead from the fan to BLUE receiver lead
marked “For Light”.
Wire colors out of the fan are blue/white for the light kit. Light kit leads
from the controller/receiver are blue/white.
3. Connect the wiring from the ceiling to the receiver unit. (Use the 2 wire
bundle on the receiver.) Secure with supplied wire nuts.
Connect the BLACK building supply wire to the BLACK receiver wire.
Connect the WHITE receiver neutral wire to the WHITE building neutral
wire.
Connect the COPPER building ground wire to the 4 YELLOW/GREEN
ground wires from the fan and receiver.
Receiver
Hanger
bracket

|hinkley.com |09©2023 Hinkley Lighting, Inc.
FINISHINGTHE INSTALLATION
1
2
3
Tuck connections neatly into ceiling outlet box.
Remove one screw on bracket and slide the canopy up
to mounting bracket and place the key hole on screw
on the mounting bracket, turn canopy until it locks in
place at the narrow section of the key holes.
Align the circular hole on canopy with the remaining
hole on the mounting bracket, secure by tightening the
two set screws.
NOTE: Adjust the canopy screws as necessary until the
canopy and trim ring are snug.
WARNING:
Make sure the hook on the hanging bracket properly sits in the groove in the hanger ball before
attaching the canopy to the bracket by turning the housing until it drops into place.
Canopy
Screws
Trim Ring
Ceiling Fan
Outlet Box
Hanger
Bracket Groove

10 |hinkley.com
Insert the blade through the slot on the housing. Align the holes
on the blade and the fan motor assembly and secure with the
blade support plates and blade attachment screws.
NOTE:
Cordless power screwdrivers are NOT recommended,
as they usually strip the heads of the screws and
usually will not fully compress the lock washers on
the motor screws. Use a large flat blade screwdriver
for final tightening to fully compress the washers. This
will help ensure proper alignment of the blades and
noise-free, wobble-free running.
BLADE ATTACHMENT
Blades
Blade support plates
Screws

|hinkley.com |11©2023 Hinkley Lighting, Inc.

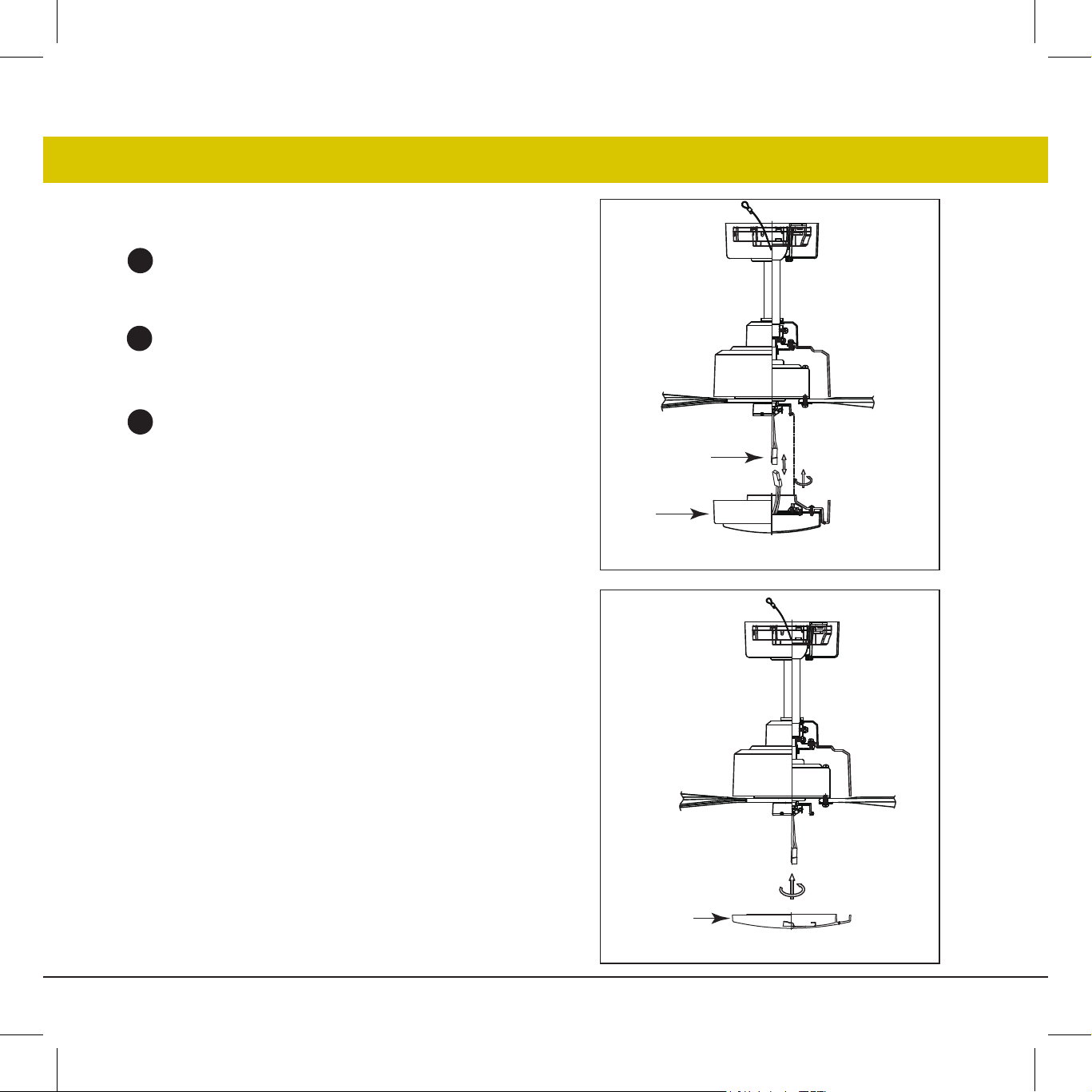

INSTALLING THELED ASSEMBLY
1
2
3
NOTE: Be sure the power is off before installing.
While holding the LED assembly under your fan, make the
polarized plug connections: (Fig. 1)
- White to white
- Black to black
Position the notches on the inner edge of the LED light kit so
they match the tabs on the outside of the rim on the light kit
mounting plate. Carefully lift the LED light kit inside the light
kit mounting plate and secure it to the fan by turning the LED
light kit clockwise until snug. (Fig. 1)
Restore power and your LED assembly is ready for operation.
NOTE: The decorative cover included with your fan is an option
to replace the led assembly for the light in the event that you
prefer not to use the light feature of your fan. The decorative
cover is not necessary for the light operation; it can be saved for
later use if desired. (Fig. 2)
Decorative
cover
Fig. 2
Fig. 1
LED
assembly
Wire connectors

12 |hinkley.com
INSTALLING THE WALL CONTROL
Fig. 1
REMEMBER to turn off the power before you begin.
NOTE - Secures to any surface or application: flat wall, single gang
box, multi gang box.
1
2
3
4
Option 1. Flat Surface Installation
Select a desired location. Use the wall plate to mark the
location of the mounting holes. Plastic wall anchors or
mounting screws are needed for this application. (Fig. 1)
Seat the cradle B into the wall plate. Secure the wall plate
to the wall using the provided hardware.
Snap the face plate cover onto the wall bracket.
Remote transmitter will be held in place with built in magnets.
Remove the existing wall plate and the old switch from the
wall outlet box.
Seat the cradle A into the wall plate. (Fig. 2)
Connect the black lead wires from the switch in the cradle A
to the black wires in the switch box. Hot input wire to one of
the cradle A switch leads. Power lead to the fan is connected
to the remaining switch lead.
Connect the wall plate / cradle A assembly to the wall outlet
box using the supplied hardware.
Snap the face plate cover onto the wall bracket.
Remote transmitter will be held in place with built in magnets.
1
2
3
4
5
6
Option 2. For single gang box
Transmitter
Face plate
Wall plate Cradle B
Wall
Plastic
anchor
Fig. 2
Outlet box
Transmitter
Face plate
Wall plate
Cradle A
HIRO Control System

|hinkley.com |13©2023 Hinkley Lighting, Inc.
Fig. 3
Remove the existing wall plate and old switch from the wall
outlet box. (Fig. 3)
Connect the black lead wires from the switch in the cradle A
to the black wires in the switch box. Hot input wire to one of
the cradle switch leads. Power lead to the fan is connected
to the remaining switch lead. (Fig. 4)
Attach the cradle A to the wall switch box using the supplied
hardware.
Attach the multi-gang faceplate (not provided) to the switch
set in the wall outlet box. Cradle A of Hinkley switch will fit in
any standard decora face plate.
Remote transmitter will be held in place with built in magnets.
1
2
3
4
5
Option 3. Multi Gang Wall Switch Box Installation
Outlet box
Face plate
Switch
HIRO Control System
Fig. 4
Outlet box
Transmitter
Face plate
Cradle A

14 |hinkley.com
OPERATION
Your DC brushless motor is equipped with
an automatically learned type remote control.
There is no frequency switches on the
receiver or transmitter. The fan can start to
use once the pairing process is done.
Remove the panel from the transmitter and
then install one 2032 battery (included). You
need to use a coin to open or close the battery
cover. To prevent damage to transmitter,
remove the battery if not use for long periods
of time (Fig. 1)
Fig. 1
Fig. 2
Signal light
ON
OFF
Pairing Process
NOTE: If installing/pairing more than
one fan in an area, the power must be
disconnected from all fans except the
one fan being paired.
With the fan’s power off, restore power to
the fan. Press and hold “ ” button for about
5 seconds and release. If optional light kit is
installed, the light kit will flash three times
and the motor spin up for 10 seconds on low
speed. The fan has completed the pairing
process with the wall control and is ready
for use.
NOTE: A single fan can be controlled with as
many as 3 wall controls in one room. Every
control will need to repeat the pairing
process based on instructions above and
all controls must be within 30 feet of the fan.
1
2
3
4
5
button:
Press this button and release instantly
to turn on or off the light.
button:
Press and hold to dim or brighten
lights to the desired level and release.
button:
Press this button to set fan wind
direction up or down.
button:
Press button for turn on and setting
1-6 fan speed.
button:
Press this button to turn the fan off
or on.
Signal light (Fig. 2)
6
WARNING: Chemical Burn Hazard.
Keep batteries away from children.
This product contains a lithium button/coin
cell battery. If a new or used lithium button
/coin cell battery is swallowed or enters the
body, it can cause severe internal burns
and can lead to death in as little as 2 hours.
Always completely secure the battery
compartment. If the battery compartment
does not close securely, stop using the
product, remove the batteries, and keep it
away from children. IF you think batteries
might have been swallowed or placed inside
any part of the body, seek immediate medical
attention.
The batteries shall be disposed of properly,
including keeping them away from children;
Even used cells may cause injury.
HIRO Control System

|hinkley.com |15
©2023 Hinkley Lighting, Inc.
Fig. 3 Fig. 4
SUMMER MODE
(COUNTERCLOCKWISE DIRECTION)
WINTER MODE
(CLOCKWISE DIRECTION)
7
8
9
7
8
9
10
Summer Mode and Winter Mode Operation
IMPORTANT: To prevent damage or cause injury, be sure that fan is switched to off and blades have stopped moving completely
before attempting to change direction of rotation.
The reverse switch is located on the top of the motor housing. Slide the switch to the right for winter mode operation. Slide the
switch to the left for summer mode operation. Make sure switch is not stuck between forward and reverse positions.
Summer Mode (forward):
A DOWNWARD airflow creates a cooling effect as shown in Figure 3. This allows you to set your air conditioner on a warmer setting
without affecting your comfort.
Winter Mode (Reverse):
An UPWARD airflow moves warmer air off the ceiling area as shown in Figure 4. This allows you to set your heating unit on a cooler
setting without affecting your comfort.

16 |hinkley.com
CARE AND CLEANING
TROUBLESHOOTING
CAUTION:
Switch off power supply before carrying out any of these checks.
PROBLEM SOLUTION
Periodically it may be necessary to re-tighten blade to blade arm screws or blade arm to motor screws to prevent clicking or humming sound during
operation. This is especially true in climates with broad temperature and humidity ranges.
When dusting the blades, you must support the blade to prevent bending - no pressure should be applied to the blades. If you experience any flaws in
the operation of your fan, please check the following points.
FAN WILL
NOT START
FAN SOUNDS
NOISY
FAN WOBBLES
1. Check circuit fuses or breakers.
2. Check wall control LED indicator light. If LED is not illuminated when pushing a button, it is not transmitting a
signal. Please check power to wall control/circuit breaker and all electrical connections.
3. Assure there are no more than 2 fans operating on a circuit through the wall control. Assure that there are no
more than 12 fans operating on a circuit through an on/off wall switch or a breaker (not through a wall control).
4. Assure that the fan in within range of the WiFi (150 ft.) or wall control (30 ft.).
1. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan will disappear during this time.
2. Make sure all motor housing screws are securely fastened.
3. Make sure the screws that attach the fan blade to the fan are tight.
4. Make sure your ceiling box is secure and rubber isolator pads are used between the mounting bracket and outlet
box.
1. Check that all blade and blade arm screws are secure.
2. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight
and possibly result in smoother operation.
3. Check to assure all dowrods to motor hardware and/or hanger ball are tight.
4. Make sure ceiling box is secure.

|hinkley.com |17©2023 Hinkley Lighting, Inc.
2375
6155
33.6 4.4
183 535
ftc.gov/energy
• The higher the airflow, the
more air the fan will move
• Airflow Efficiency: 183 Cubic
Feet Per Minute Per Watt
Airflow
4,383
Cubic Feet Per Minute
• Based on 12 cents perkWh and 6.4 hours use perday
• Your cost depends on rates
• Energy Use: 24 Watts
and use
$
3$34
Cost Range of Similar Models (19” – 84”)
$7
Estimated
Yearly Energy Cost
All estimates based on typical use, excluding lights
Airflow Shown Is a Weighted Average of High and Low Cubic Feet per Minute Based on Downrod
ENERGY GUIDE SPECIFICATIONS
AVERAGE PERFORMANCE AND ENERGY INFORMATION
PERF OR MANCE
SPECIFICAT IONS
STANDARD
HIGH SPEED LOW SPEED
Airflow (CFM)
Energy Use (Watts)
Airflow Efficiency (CFM/W)
Energy Costs (Yearly)
Amps 0.46 0.07
RPMs 116 46
7
$
1
$

DOWNLOADING THE HINKLEY APP
SCAN FOR ADDITIONAL DETAILS
HINKLEY APP INSTRUCTIONS:
In addition to the included wall control, you can control
your Hinkley fan through the Hinkley app.
• To use the Hinkley app, download it for free from the
App Store or Google Play.
• Open the Hinkley app where you will be prompted to
create an account.
• Enter all necessary information to create an account.
• After account is created you will receive a verification
code email to finish setting up the Hinkley app (Check
spam folder if email is not received.)
• Confirm Bluetooth is enabled to allow the fan and
Hinkley app to connect to each other.
• Click add a device on the home screen and select
desired fan.
• The Hinkley app will then have you enter in WiFi name
and password.
• Click done on the Hinkley app to complete connecting
the fan.
• The Hinkley app will have options on the main screen
for fan speeds, dimming and setting timers
• Scan the QR code below for more information on the
Hinkley app opperation.
18 |hinkley.com
