Hisense 42K611W User manual

42K611W
⢟ᯏφ
ᶗᖘ⸷ᇐփṼ[PP
ES-G

I
The lightning flash with arrowhead symbol, within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
SURGXFWVHQFORVXUHWKDWPD\EHRIVXI¿FLHQWPDJQLWXGH
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
Hisense and associated logos where applicable are registered trademarks of Hisense Group in the United States and/or other
countries. All other trademarks are property of their respective owners. 2011 Hisense USA, Corporation. All Rights Reserved.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
6SHFL¿FDWLRQVVXEMHFWWRFKDQJHZLWKRXWQRWLFH
7KLV79LQFRUSRUDWHV+LJK'H¿QLWLRQ0XOWLPHGLD,QWHUIDFH+'0,TM) technology.
+'0,WKH+'0,ORJRDQG+LJK'H¿QLWLRQ0XOWLPHGLD,QWHUIDFHDUHWUDGHPDUNVRUUHJLVWHUHGWUDGHPDUNVRI+'0,/LFHQVLQJ//&
FCC Statement
NOTE:
This equipment has been tested and found to comply with
the limits for a class B digital Device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio Communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the
receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
FCC ID Number WiFi Module: WWMMN421V1
The WiFi Module complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This device
should be installed and operated with a minimum distance of
20 centimeters between the radiator and your body.
WARNING
The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to
this equipment. Such modifications could void the user's
authority.
Energy Star
Your Hisense TV is ENERGY
STAR ®qualified in the “Energy
Saving” mode. It meets strict energy
efficiency guidelines set by the U.S.
Environmental Protection Agency
and Department of Energy. ENERGY
STAR is a joint program of these
government agencies, designed to
promote energy efficient products and practices. Changes to
certain features, settings, and functionalities of this TV (i.e.
TV Guide, Picture, Sound) can increase or change the power
consumption. Depending upon such changed settings, the
power consumption may exceed the limits required for the
ENERGY STAR qualification in the “Energy Saving” mode.
NOTE
Where the MAINS plug or an appliance coupler is used
as the disconnect device, the disconnect device shall
remain readily operable.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby
Laboratories.

II

III
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories
specified by the manufacturer.
12. Use only with cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.
15. Apparatus should not be exposed to dripping or
splashing, and objects filled with liquids, such as vases,
should not be placed on the apparatus.
16. An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines
or circuits. When installing an outside antenna system,
extreme care should be taken to keep from touching
such power lines or circuits, as contact with them might
be fatal.
17. Do not overload wall outlets and extension cords, as this
can result in a risk of fire or electric shock.
18. Do not push objects through any openings in this unit,
as they may touch dangerous voltage points or short out
parts that could result in fire or electric shock. Never spill
or spray any type of liquid into the unit.
19. If an outside antenna or cable system is connected to the
unit, be sure the antenna or cable system is grounded to
provide some protection against voltage surges and built-
up static charges, Section 810 of the National Electrical
Code, ANSI/NFPA 70, provides information with respect
to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
20. When replacement parts are required, be sure the service
technician uses replacement parts specified by the
manufacturer or those that have the same characteristics
as the original part. Unauthorized substitutions may result
in fire, electric shock or other hazards.
21. Upon completion of any service or repairs to this unit,
ask the service technician to perform safety checks to
determine that the unit is in proper operating condition.
22. When you connect the product to other equipment, turn
off the power and unplug all of the equipment from the
wall outlet. Failure to do so may cause an electric shock
and serious personal injury. Read the owner's manual of
the other equipment carefully and follow the instructions
when making any connections.
23. Sudden high volume sound may cause hearing or
speaker damage. When you use headphones, (if the unit
is equipped with a headphone jack) keep the volume at a
moderate level. If you use headphones continuously with
high volume sound, it may cause hearing damage.
CONDENSATION:
Moisture will form in the operating section of the unit if the
unit is brought from cool surroundings into a warm room or
if the temperature of the room rises suddenly. When this
happens, unit's performance will be impaired. To prevent
this, let the unit stand in its new surroundings for about an
hour before switching it on, or make sure that the room
temperature rises gradually.
Condensation may also form during the summer if the unit is
exposed to the breeze from an air conditioner. In such cases,
change the location of the unit.

IV
Important Safety Instructions
HOW TO HANDLE THE LCD PANEL:
Do not press hard or jolt the LCD panel. It may cause the
LCD panel glass to break and injury may occur.
If the LCD panel is broken, make absolutely sure that you
do not touch the liquid in the panel. This may cause skin
inflammation.
If the liquid gets in your mouth, immediately gargle and
consult with your doctor. Also, if the liquid gets in your eyes
or touches your skin, consult with your doctor after rinsing
for at least 15 minutes or longer in clean water.
Possible Adverse Effects on LCD Panel:
If a fixed (non-moving) pattern remains on the LCD Panel
for long periods of time, the image can become permanently
engrained in the LCD Panel and cause subtle but permanent
ghost images. This type of damage is NOT COVERED BY
YOUR WARRANTY. Never leave your LCD Panel on for long
periods of time while it is displaying the following formats or
images:
Fixed Images, such as stock tickers, video game patterns,
TV station logos, and websites.
Special Formats that do not use the entire screen. For
example, viewing letterbox style (16:9) media on a normal
(4:3) display (black bars at top and bottom of screen); or
viewing normal style (4:3) media on a widescreen (16:9)
display (black bars on left and right sides of screen).
The following symptoms are not signs of malfunction
but technical limitation. Therefore we disclaim any
responsibility for these symptoms.
LCD Panels are manufactured using an extremely high
level of precision technology, however sometimes parts
of the screen may be missing picture elements or have
luminous spots.
This is not a sign of a malfunction.
Do not install the LCD Panel near electronic equipment that
produces electromagnetic waves. Some equipment placed
too near this unit may cause interference.
Effect on infrared devices - There may be interference
while using infrared devices such as infrared cordless
headphones.
Declaration of Conformity
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and (2)
This device must accept any interference received, including
interference that may cause undesired operation.
Your TV also contains material that can be recycled and
reused. For disposal or recycling information, contact your
local authorities or the Electronic Industries Alliance at
www.eia.org to find a recycler in your area.
TO USE AC POWER
1. The power cord is attached to the TV at the factory.
2. Connect the AC cord into an AC outlet.
End of life directives
Power source
WARNING
Do not connect this unit to the power using any device
other than the supplied AC cord. This could cause fire,
electrical shock, or damage.
Do not use with a voltage other than the power voltage
specified. This could cause fire, electrical shock, or
damage.
CAUTION
When this unit is not used for a long time, (e.g., away on
a trip) in the interest of safety, be sure to unplug it from
the AC outlet.
Do not plug/unplug the AC cord when your hands are
wet. This may cause electrical shock.
The LCD panel contains almost 3 million thin film transistors,
which provide exceptionally sharp video quality. Occasionally,
a few non-active pixels may appear on the screen as a
fixed black (in the case of a dead pixel), blue, green, or red
point. These non-active pixels do not adversely affect the
performance of your TV, and are not considered defects.
Non-active pixels

1
Contents
Getting Started
Accessories List...............................................................................................3
Installing the Stand..........................................................................................3
Installing a Wall-Mount Bracket ....................................................................... 4
When Installing the TV Against a Wall or Enclosed Area ................................ 5
Viewing the Control Panel ...............................................................................6
Viewing the Remote Control............................................................................7
Pairing the Remote..........................................................................................8
Installing Batteries in the Remote Control .......................................................9
Making Connections........................................................................................9
Basic Features
Turning the TV on or off..................................................................................16
Changing Channels / Volume ......................................................................... 16
Turning the TV On for the First Time .............................................................. 16
Accessing Home Menu...................................................................................17
Home Menu Options.......................................................................................18
Settings
Accessing the Main Menu ..............................................................................19
Setting up channels........................................................................................20
Network ..........................................................................................................20
DLNA Settings ................................................................................................21
Media Share Settings in Computer.................................................................21
Adjusting aspect ratio .....................................................................................22
Selecting the Input Source .............................................................................23

2
Contents
Illustrations are for your reference only!
Applications
Google Account ..............................................................................................24
Google Chrome .............................................................................................. 24
Play Store.......................................................................................................25
Search ............................................................................................................26
TV & Movies ...................................................................................................26
HiMedia ..........................................................................................................27
Digital Media Receiver ..................................................................................28
Network Function............................................................................................28
Netflix..............................................................................................................29
YouTube .........................................................................................................29
Network Apps Service Information .................................................................30
Other Information
Trouble Shooting ............................................................................................ 31
General...........................................................................................................33

3
Getting Started

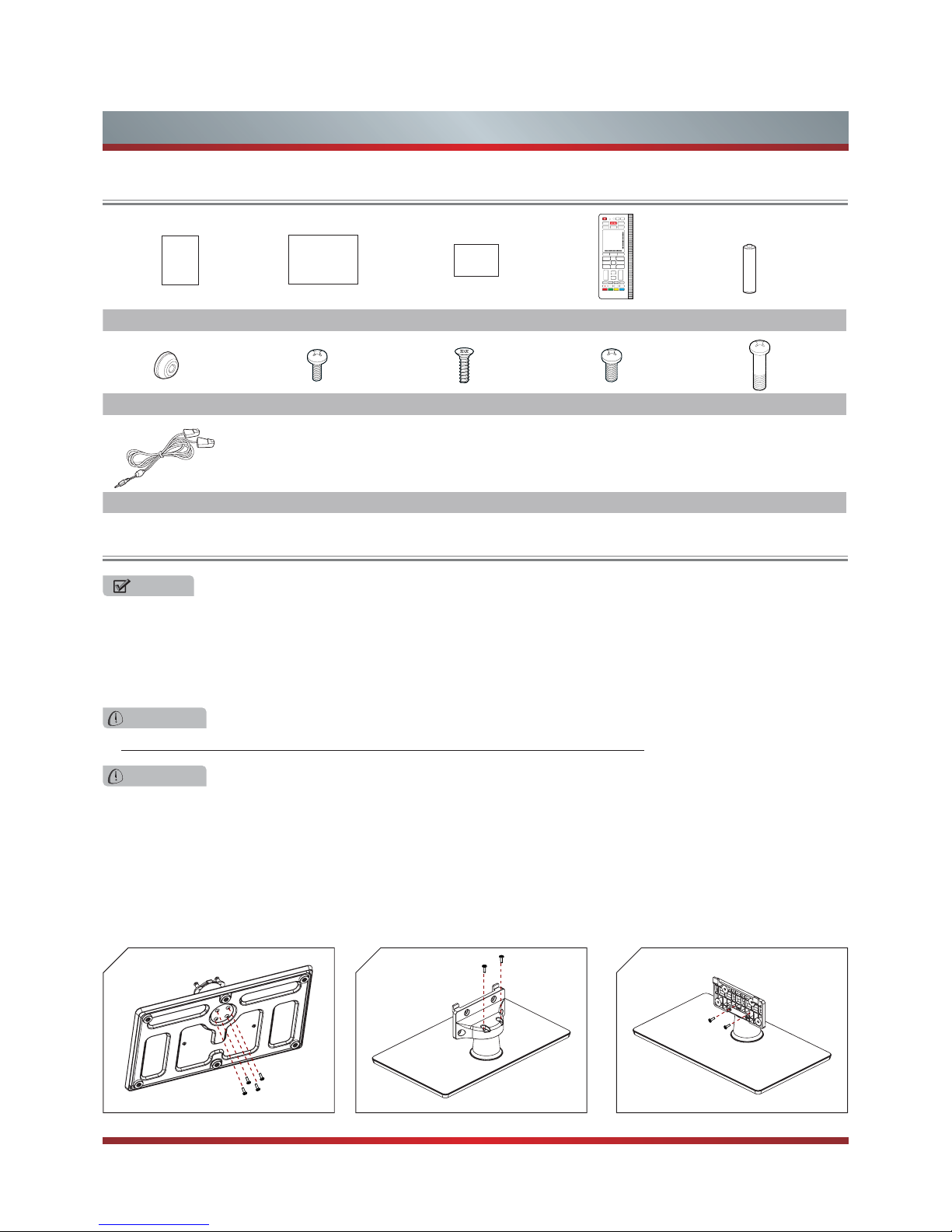

Accessories List
Installing the Stand
USER MANUAL Quick Setup Guide
User Manual Quick Setup Guide Warranty Card Remote Control Battery ×3
NOTES
1. The LCD display is very fragile, and must be protected at all times when removing the base stand. Be sure that no hard or
sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure
on the front of the TV at any time because the screen could crack.
2. For tabletop use, the TV must be attached to the provided stand as shown on this page.
3. To Wall-Mount, brackets (not provided) must be attached to the TV as shown on next page.
Follow the illustrations below to complete the installation steps:
1. Secure the stand column to the base plate with the 4 screws (M4 × 12mm) provided. See Figure 1.
2. Secure the stand cover to the stand column vertically with the 2 screws (M4 × 12mm) provided. See Figure 2.
3. Secure the stand cover to the stand column horizontally with the 2 screws (ST4 × 14mm) provided. See Figure 3.
WARNING
Be sure to disconnect the AC power cord before installing a stand or Wall-Mount brackets.
CAUTION
Use a covered table or bench to lay the TV on and handle the TV carefully to prevent damage to the TV screen or cabinet
during assembly.
231
Screw (M4 × 12mm)
Screw (M4 × 12mm)
Screw (ST4 × 14mm)
Spacer×4 Screw (M4×12mm)×6 Screw (ST4×14mm)×2 Screw (M5×12mm)×4 Screw (M6×30mm)×4
IR Blaster cable
Warranty Card
MIC
POWER
Link
Social
Input
VOL CH
3D
HiMedia
DVR
LiveTV
History
Tools
AB CD
OK
Voice
Guide
Back Home

4
Getting Started

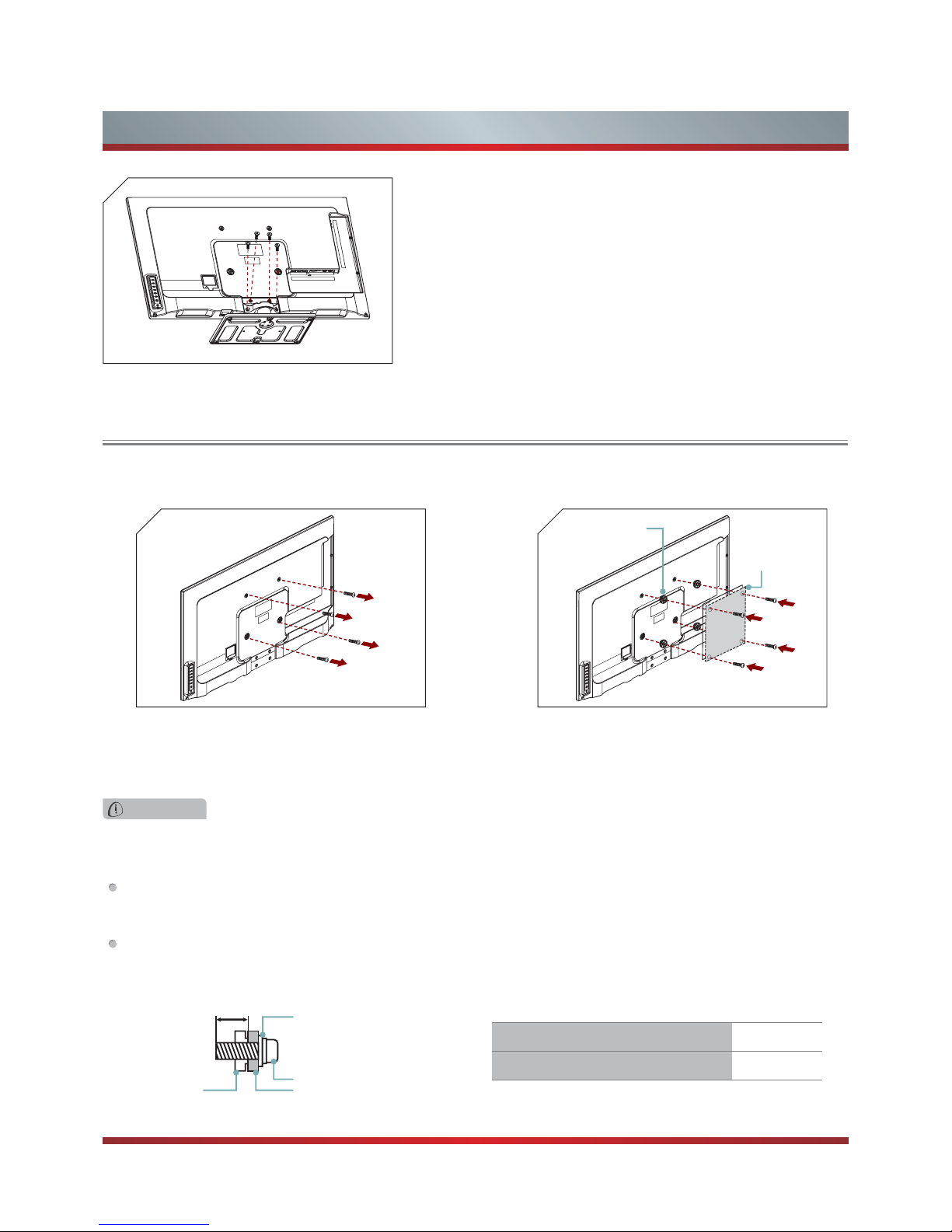

Installing a Wall-Mount Bracket
4. Carefully place your TV on a soft, cushioned, surface to
prevent damage to the screen.
Secure the stand to the TV with the 4 screws (M5 ×
12mm) provided. See Figure 4.
4
Screw (M5 × 12mm)
If you want to attach the TV to a Wall-Mount bracket (not provided), you should first remove the stand if it is pre-attached .
1. Make sure the TV is laid face-down on a clean, safe, and
cushioned space, remove the original screws if it is pre-
attached in the bracket holes on the TV back over.
3. Follow instructions provided with the Wall-Mount bracket.
If you are not sure of your ability to do complete the installation, contact a professional installer or service technician for
assistance. The manufacturer is not responsible for any damages or injuries that occur due to mishandling or incorrect
assembly.
The selected screws are 9.5 ~ 11 mm in length when measured from the attaching surface of the TV's rear cover. The
diameter and length of the screws differ depending on the Wall-Mount Bracket model.
2. Place the provided spacers in the corresponding bracket
holes. Attach purchased bracket (1.5~2.5 mm thickness)
on the TV with 4 screws (M6 h30mm) provided. Follow
instructions provided with the wall bracket.
1
WARNING
Use only the 4 screws (M6 h30mm) provided with the TV to prevent internal damage to the TV set or cause it to fall.
Wall-Mount Bracket
9.5 ~ 12.5 mm
Screw
Spacerthe TV's rear cover
Wall-Mount hole pattern VESA (mm) 200 × 200
Wall-Mount screw size (mm) M6
Screw (M6 × 30mm)
2
Spacer × 4
Bracket
(1.5~2.5mm)

5
Getting Started
When Installing the TV Against a Wall or Enclosed Area
Install with stand
Never install the TV set as follows:
Install on the wall
Make sure that your TV has adequate air circulation. Allow enough space around the TV as shown below. Avoid operating the
TV at temperatures below Inadequate air 41°F (5°C).
Leave at least this much
space around the set.
Leave at least this much
space around the set.
4 inches
(10cm)
4 inches
(10cm) 4 inches
(10cm)
4 inches
(10cm)
4 inches
(10cm)
23»8inches
(6cm)
12 inches
(30cm) 12 inches
(30cm)
Wall Wall
Air circulation is blocked.
Inadequate air circulation can lead to overheating of the TV and
PD\FDXVHGDPDJHWR\RXU79RUFDXVHD¿UH

6
Getting Started
Viewing the Control Panel
Remote sensor Power indicator
Item Description
Power indicator Light up when the power is on.
Remote sensor Receives remote signals from the remote control.
Do not put anything near the sensor, as its function may be affected.
TOOLS Display an on-screen menu to setup your TV’s features.
OK Confirm selections.
VOL + / VOL - Adjust the volume.
Navigation Buttons.
ޔޕ Select the channel.
Navigation Buttons.
Power button
Turn on the TV or put the TV in standby mode.
Caution: The TV continues to receive power even in standby mode.
Unplug the power cord to disconnect power.
NOTES
FOR ILLUSTRATION ONLY.
Powering up or down the TV requires several seconds of processing time. Do not rapidly turn the TV on/off as
abnormal operation may occur.
TOOLS
OK
TOOLS
OK
VOL +
VOL -
&+ޔ
&+ޕ

7

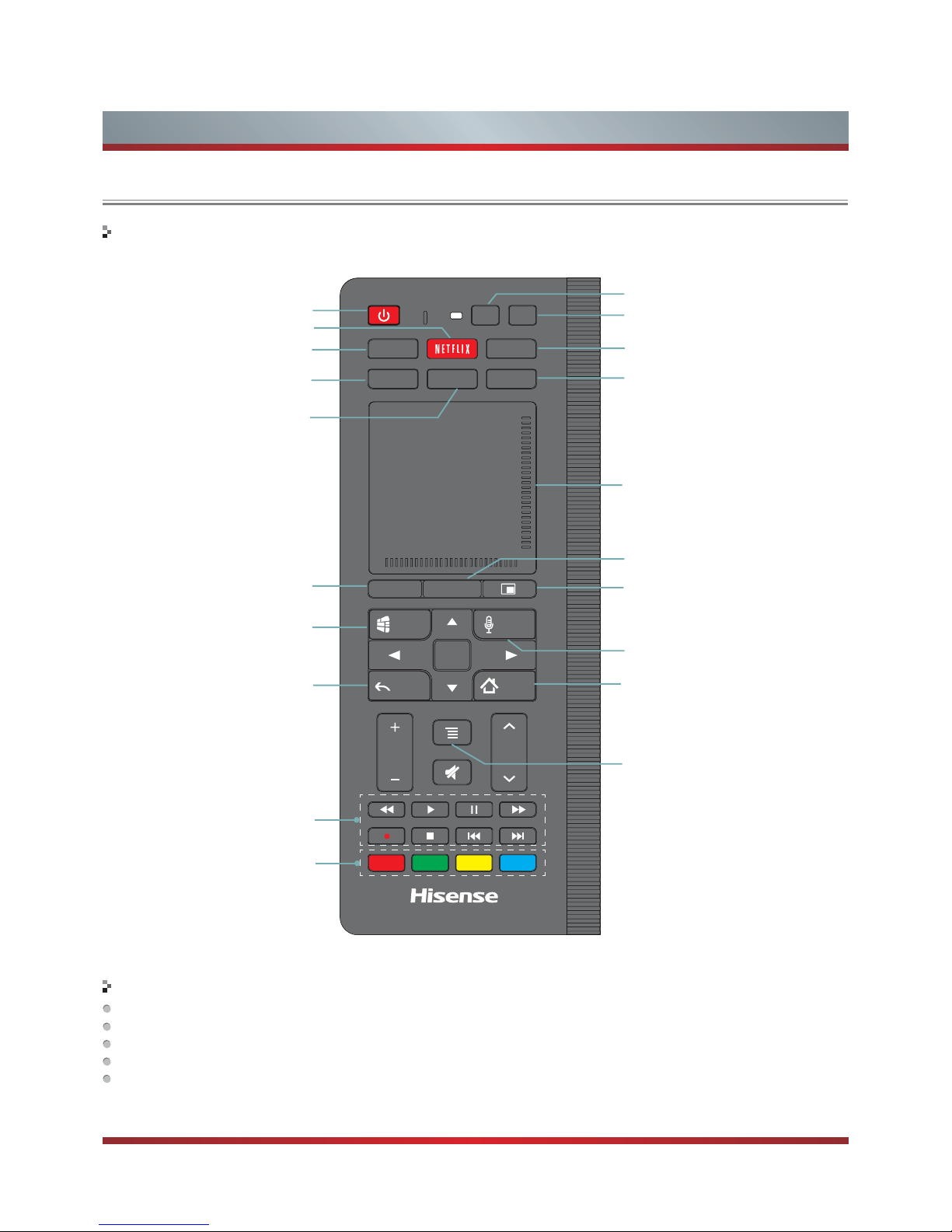

Viewing the Remote Control
Getting Started
Power Off/On
Launch the Tools menu
Launch the Social TV application. For
details, to see the following part of this
VSHFL¿FDWLRQ$SSOLFDWLRQ6RFLDO79
Displays the Live TV
Displays the TV program guide or
information of the current input
Returns to the previous display,
or exits the application
6SHFL¿HGIXQFWLRQVRIHDFK
application
HiMedia control functions for
playing videos, music or pictures
/DXQFKWKH1HWÀL[DSSOLFDWLRQ
Launch the Multi-Media player
Launch the network settings menu.
Displays the DVR(Digital Video
Recorder) menu
This function button is invalid.
Select inputs
MIC
POWER
Link
Social
Input
VOL CH
3D
HiMedia
DVR
Live TV
History
Tools
OK
Voice
Guide
Back Home
Launch the History application
Display the home screen, long
press to open task switcher.
Launch the PIP function to allow you
to display the TV screen in an inset
window. For details, to see the following
SDUWRIWKLVVSHFL¿FDWLRQ798VLQJ3,3
Voice search
Touch pad with mouse cursor and click.
Displays special options associated
with each feature
Keys at the front of the remote control
The LED on the remote control will blink with each button press and while the touchpad is in use.
In pairing mode, the LED will light continuously for about 60 seconds.
When pairing is complete, the LED will flash three times.
The LED light will blink continuously when the battery is low, please change batteries in the remote control.
Sleep Mode can conserve battery life, the remote control will automatically go into sleep mode thirty seconds after the last key
press. Any movement or key press will immediately wake up the remote.
Green LED indicator
A
CDB

8
Getting Started
Viewing the Remote Control
Pairing the Remote
Keys at the back of the remote control
Launch the ‘Favorite’
application to access your
favorite channels and
apps. For details, to see
the following part of this
VSHFL¿FDWLRQ)DYRULWHOLVW
Some of the buttons on the remote control support the IR remote and the Bluetooth remote, and some buttons only supports
the Bluetooth remote. The buttons that only support the Bluetooth remote (e.g., the touch pad and the buttons on the back)
should not be used before code matching. For convenience in using these buttons, you should carry out code matching
operations during startup navigation. When these keys are not available and other buttons are available, you need to carry out
code matching again. The code matching methods are shown as follows.
If the remote failed to automatically pair with the TV, you can manually pair the devices by following the steps below:
Functions keys
printed in orange
are accessed by
pressing the ‘Fn’
(Function) key.
Launch Google Chrome Launch the Quick Search
1. Press [POWER] button, your TV turns on.
2. Press and hold the red color [A] and [OK] remote control buttons simultaneously for 3 seconds.
3. When the green LED lights, release the buttons and wait for the TV to pair with the remote.
7KHJUHHQ/('RQWKHUHPRWH FRQWUROZLOOÀDVKWKUHHWLPHVZKHQWKH SDLULQJLVVXFFHVVIXOO\
completed.
1. Press [Home] button.
2. Use [ŻŹ] buttons to highlight Settings and press [OK] button.
3. Use [Ÿ
Ÿ
] buttons to highlight Network and press [OK] button.
4. Use [Ÿ
Ÿ
] buttons to highlight Bluetooth settings and press [OK] button.
5. Use [Ÿ
Ÿ
] buttons to highlight Remote (if the remote had been previously paired) or Find nearby devices (if the remote
has not previously been paired) and press [OK] button.
+
Q
`
W
~
T
[
Y
]
U
{
I
}
O
\
P
|
A
S
GHJ
=-
+
ˈ
ZXCVM
;
:
/
?
Fn
Esc
έ
1@ 2#
3$
45%
^
6&
78*(
9 0 )
Tab
'
Enter
-
.
Fn
Caps
Shift
Web .com
Shift
<
PgUp PgDn
OK
<
VOL-VOL+
Zoom+
Zoom
-
ή
EXT3WR
Ctrl
EXT23WR
Fav
EXT EXT
RE
DF
BN
KL

9
Making Connections
Getting Started
NOTE
Some external devices impossible insert to this set for individual difference. Please replace with
appropriate external signal cable or increase the adapter to match with the port in such case.
Item Description
ANT/CABLE Connect an antenna or cable TV to this jack.
HDMI
HDMI (High-Definition Multimedia Interface)provides an uncompressed,
all digital audio/video interface between this TV and any HDMI-device,
such as a set-top box, Blu-ray disc player, or A/V receiver.

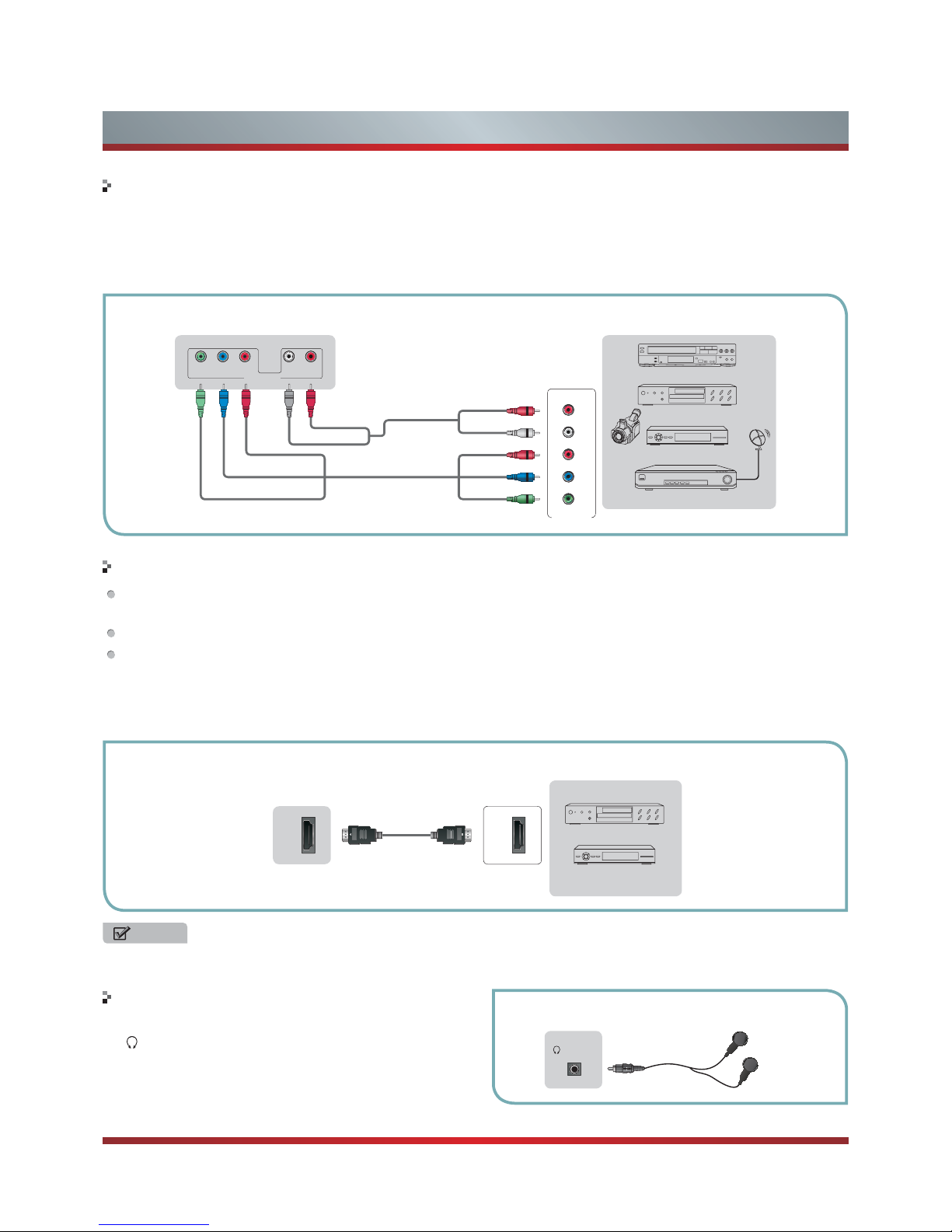

COMPONENT Connect to a DVD player, Digital Set-Top-Box, or other A/V devices with
component (YPBPR) video and audio output jacks.
VIDEO/AUDIO(L,R) Connect to the composite video and audio (L/R) output jacks on external
video devices.
VGA
PC/DVI AUDIO IN Connect to a PC or other devices with a VGA interface.
/HEADPHONE Connect headphone or analog sound system using RCA Y-cable
(1/8”-stereo mini to L/R phono-not provided).
DIGITAL AUDIO OUT Connect an optical cable from an external digital audio system.
USB Port for Digital Media Player.
LAN Connect an ethernet cable to access a network or the Internet.
Power input
ANT/CABLE
HDMI 2
HDMI 1(ARC)
/HEADPHONE
USB 2 USB 1 VIDEO L
AV IN
R
Y PBPR
COMP IN
LAN HDMI 4
USB 3 IR BLASTER HDMI 3(DVI)
PC/DVI
AUDIO IN
PC IN
DIGITAL
AUDIO OUT

10
Getting Started
NOTES
Check the jacks for position and type before making any connections. Loose connections can result in image or color
problems. Make sure that all connections are tight and secure.
Not all A/V devices have the ability to connect to a TV, please refer to the user’s manual of your A/V device for compatibility
and connections procedure.
Always unplug the power cord when connecting external equipment.
Connecting an antenna, cable or cable/satellite box
Connecting an A/V Device with Composite Cable
or ANT OUT
Cable
VHF/UHF Antenna
EXTERNAL DEVICESTV JACK
1. Turn off the TV before connecting the antenna.
2. Connect one end of a coaxial cable (not included) to the RF OUT jack on the antenna, cable or cable/satellite box. If you are
using an antenna with twin-lead cable, you may need a 300-75 ohm adapter (not provided) to connect it to the back of your
TV. Likewise, if you are using several antennas, you may need a combiner (not provided).
3. Connect the other end of the cable to the ANT/CABLE IN jack on the side of your TV.
1. Use the audio and video cables to connect the external A/V device’s composite video/audio jacks to the TV’s jacks. (Video =
yellow, Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket before switching on the TV.
3. Select the corresponding source from the TV.
ANT/CABLE
IN
Equipment with A/V jacks
DVD Player/Recorder
Video
Camera
EXTERNAL DEVICES
Set-top box
Satellite Receiver
Satellite
antenna
cable
VCR
A/V OUT
Video
L
R
White(L)
White(L)
Yellow(Video)
Yellow(Video)
Red(R)
Red(R)
TV JACK
VIDEO
AV IN
L R

11
Getting Started
Connecting an A/V Device with Component (YPBPR) Cable
1. Use a component cable to connect the external A/V device’s component output jacks to the TV’s YPBPRjacks. Use an audio
cable to connect the external A/V device’s component audio jacks to the TV’s AUDIO (L/R) jacks.
2. Plug the connected devices into the mains socket before switching on the TV.
3. Select the corresponding source from the TV.
Y PBPR
COMP IN
L R
Equipment with A/V jacks
DVD Player/Recorder
Video
Camera
EXTERNAL DEVICES
Set-top box
Satellite Receiver
Satellite
antenna
cable
VCR
White(L)
White(L)
Red(R)
Red(R)
TV JACK
Component
R
L
PR
PB
Y
PR/CR
PR
PB/CB PB
YY
Connecting an A/V Device with HDMI Cable
Support digital connections between HDMI - enabled AV devices such as PVR, DVD, Blu-Ray, AV receiver and digital
devices.
Some devices such as PVR or DVD player require HDMI signal to be set to output in the device's settings.
Please consult your device user manual for instructions.
1. Use an HDMI cable to connect the A/V device’s HDMI output jack to the TV’s HDMI jack.
2. Plug the connected devices into the mains socket before switching on the TV .
3. Select the corresponding source from the TV.
HDMI
HDMI
TV JACK
EXTERNAL DEVICES
DVD
Set-top Box
NOTE
The HDMI connector provides both video and audio signals, it’s not necessary to connect an audio cable.
Connecting a headphone
Headphones or an analog sound bar can be connected to
the /HEADPHONE jack on your set. (While the headphone
is connected, the sound from the built-in speakers will be
disabled.)
EXTERNAL DEVICESTV JACK
/HEADPHONE

12
Getting Started

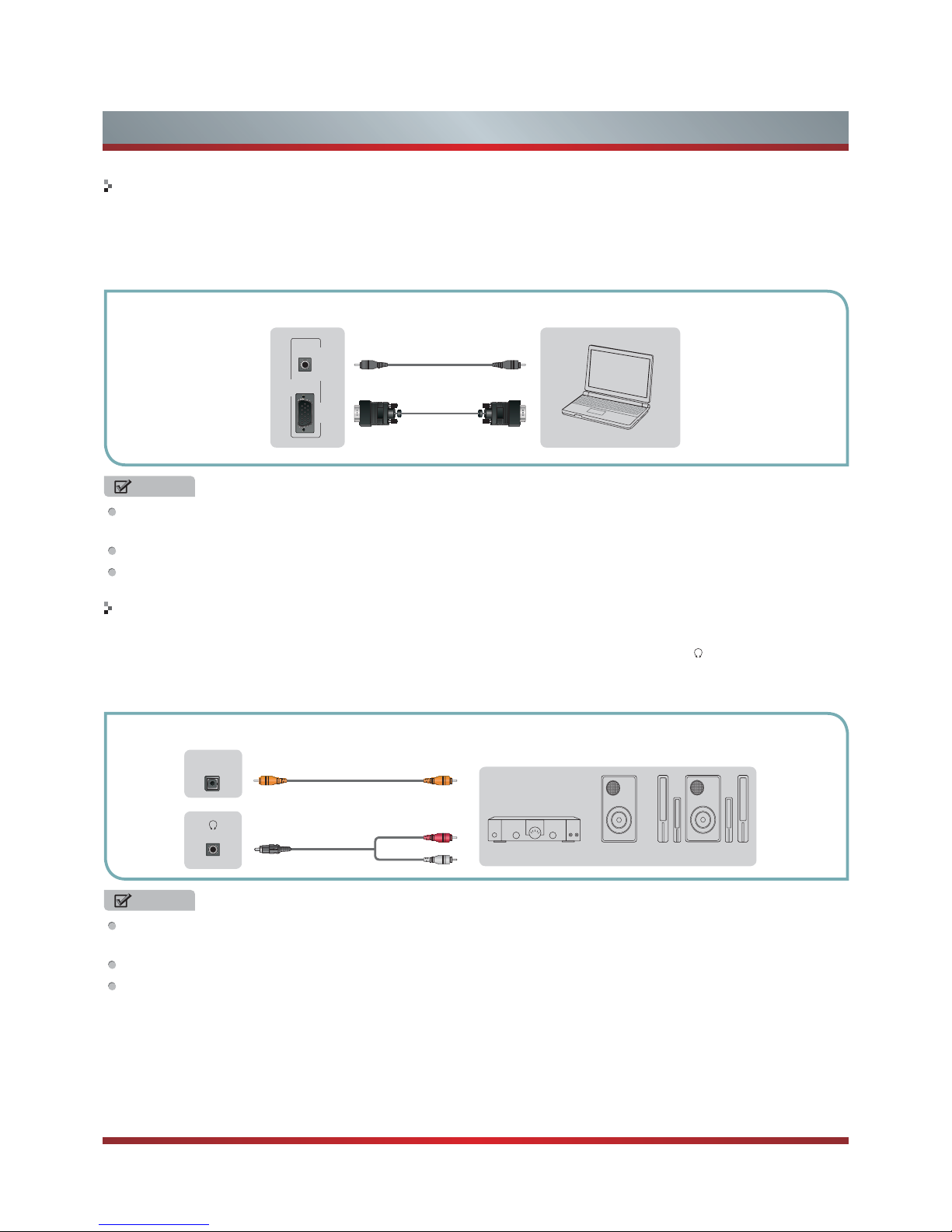

Connecting a PC with VGA Cable
1. Use a VGA cable to connect the PC’s VGA output jack to the TV’s VGA jack. Use an audio cable to connect the PC’s audio
output jack to TV’s PC/DVI AUDIO IN jack.
2. Plug the connected devices into the mains socket before switching on the TV.
3. Select the corresponding source from the TV.
NOTES
Primarily this unit is intended for use as an LCD TV. If you want to use it as a monitor, please contact the manufacturer of the
PC Video/Graphic's card for further support. Perfect compatibility is not guaranteed.
The VGA cable will not supplied with the product.
We strongly recommend to use VGA cable with 2 ferrite cores as shown in the figure.
EXTERNAL DEVICES
Computer
TV JACK
VGA
PC
PC/DVI
AUDIO IN
Connecting an Audio Receiver with Audio cable
1. Use an audio cable to connect the A/V device’s digital audio in jack to the TV’s DIGITAL AUDIO OUT jack. Or use an RCA
Y-cable (1/8”-stereo mini to L/R phono - not provided) to connect analog sound system to the TV’s /HEADPHONE jack.
2. Plug the connected devices into the mains socket before switching on the TV.
3. Select the corresponding source from the TV.
NOTES
When a digital audio system is connected to the DIGITAL AUDIO OUT jack, decrease the volume of both the TV and the
system.
5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.
When the receiver (home theater) is set to on, you can hear sound output from the TV’s digital audio out jack. When the TV
is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is connected to the
TV via HDMI, only 2 CH audio will be heard from the home theater receiver. If you want to hear 5.1 CH audio, connect the
digital audio out jack from your DVD/Blu-ray player/cable box/STB satellite receiver directly to an amplifier or home theater.
TV JACKS
EXTERNAL DEVICES
Powerless
Bass Speaker
Speaker
$XGLR$PSOL¿HU
DIGITAL
AUDIO OUT
/HEADPHONE
White(L)
Red(R)
Audio Cable
(not included)
Audio Cable
(not included)

13
You can attach your TV to your LAN by one of the three following ways:
You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat 5
LAN cable. See the diagram below.
You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an IP Sharer which is connected
to an external modem. Use LAN cable for the connection. See the diagram below.
Depending on how your network is configured, you may be able to attach your TV to your LAN by connecting the LAN port
on the back of your TV directly to a network wall outlet with a Cat 5 cable. See the diagram below. Note that the wall outlet
is attached to a modem or router elsewhere in your house.
If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Configuration Protocol
(DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS, so
you don’t have to enter them manually. Most home networks are Dynamic Networks.
Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address, subnet
mask, gateway, and DNS values manually on your TV’s Cable Setup Screen when you set up the network connection. To get
the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP).
If you have a Windows computer, you can also get these values through your computer.
The Modem Port on the Wall
Modem Cable LAN Cable
LAN Port on TV
External Modem
(ADSL / VDSL / Cable TV)
LAN
The Modem Port on the Wall
Modem Cable LAN Cable LAN Cable
LAN Port on TV
External Modem
(ADSL / VDSL / Cable TV)
IP Sharer (Router)
(with DHCP server)
LAN
The LAN Port on the Wall LAN Port on TV
LAN Cable
LAN
NOTE
You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that support
DHCP also let you use Static IP addresses.
Connecting to a Wired Network
Getting Started

14
Getting Started
To connect your TV to your network wirelessly, you need a wireless router or modem. See the illustration below.
Hisense’s built-in Wireless LAN Adapter supports the IEEE 802.11 b/g/n communication protocols. Hisense recommends using
IEEE 802.11n router. When you play the video over a IEEE 802.11b/g connection, the video may not play smoothly.
NOTES
You must use the Hisense’s built-in Wireless LAN Adapter to use a wireless network, the set doesn’t support external USB
network adapter.
To use a wireless network, your TV must be connected to a wireless IP sharer. If the wireless IP sharer supports DHCP, your
TV can use a DHCP or static IP address to connect to the wireless network.
Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer is
currently being used by another device nearby, this will result in interference and communication failure.
If you apply a security system other than the systems listed below, it will not work with the TV.
If Pure High-throughput (Greenfield) 802.11N mode is selected and the Encryption type is set to WEP, TKIP or TKIP-
AES (WPS2 Mixed) for your Access Point (AP), Hisense TVs will not support a connection in compliance with new Wi-Fi
certification specifications.
If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button Configuration) or
PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode.
Connection Methods: You can setup the wireless network connection three ways.
-Scan
-Manual
-Auto

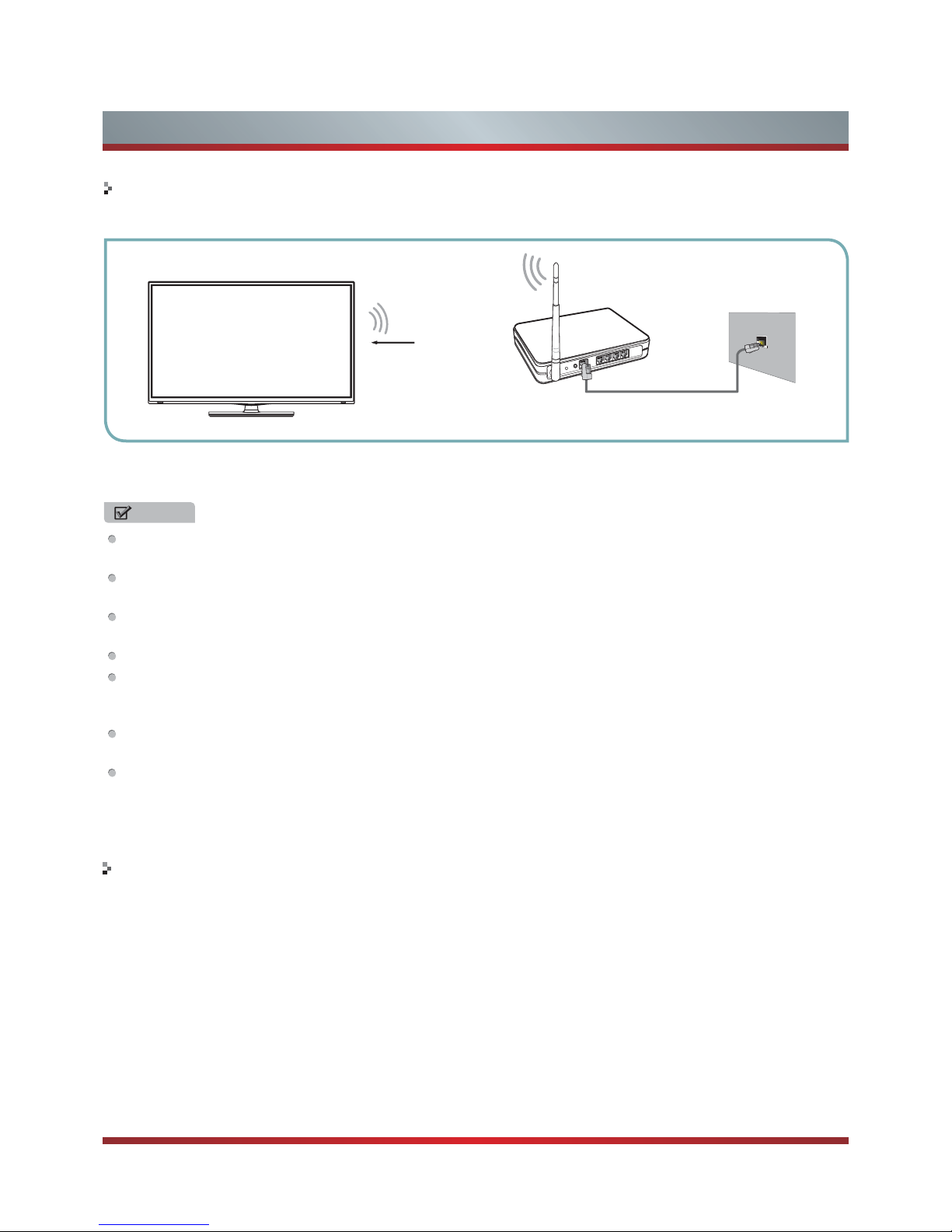

Connecting to a Wireless Network
To control other device
Wireless IP Sharer(Router)
(with DHCP Server)
LAN Cable
Wireless LAN Adapter
built-in TV set
The LAN Port on
the Wall
You can control connected devices with TV remote control without using the remote control of each individual device.
You can use CEC function or connect an IR Blaster to do this. We recommend the second way. CEC function can only use when
your device is compatible with Control for HDMI.
CEC
1. Connect the TV to the AV receiver with HDMI connections.
2. Set the CEC function of the Connected device.
3. Enter Settings < Local settings < HDMI settings.
4. Press [OK] button to set Control for HDMI enabled.
Device auto power off: To turn the AV Receiver off when turning off the TV
TV auto power on: To turn the TV on when turning the AV Receiver on
System audio control: Control the volume of the AV receiver with the volume key of TV remote control.
Device list: List HDMI-controllable devices.

15
Getting Started
IR BLASTER
5. Enter Settings < Video input < Configure the device, Select the input corresponding to the device and press the [OK]
button, selecting make default TV. Or press the [input] button on the remote control, selecting the input corresponding to the
device and then press the [menu] button and selecting set Live TV.

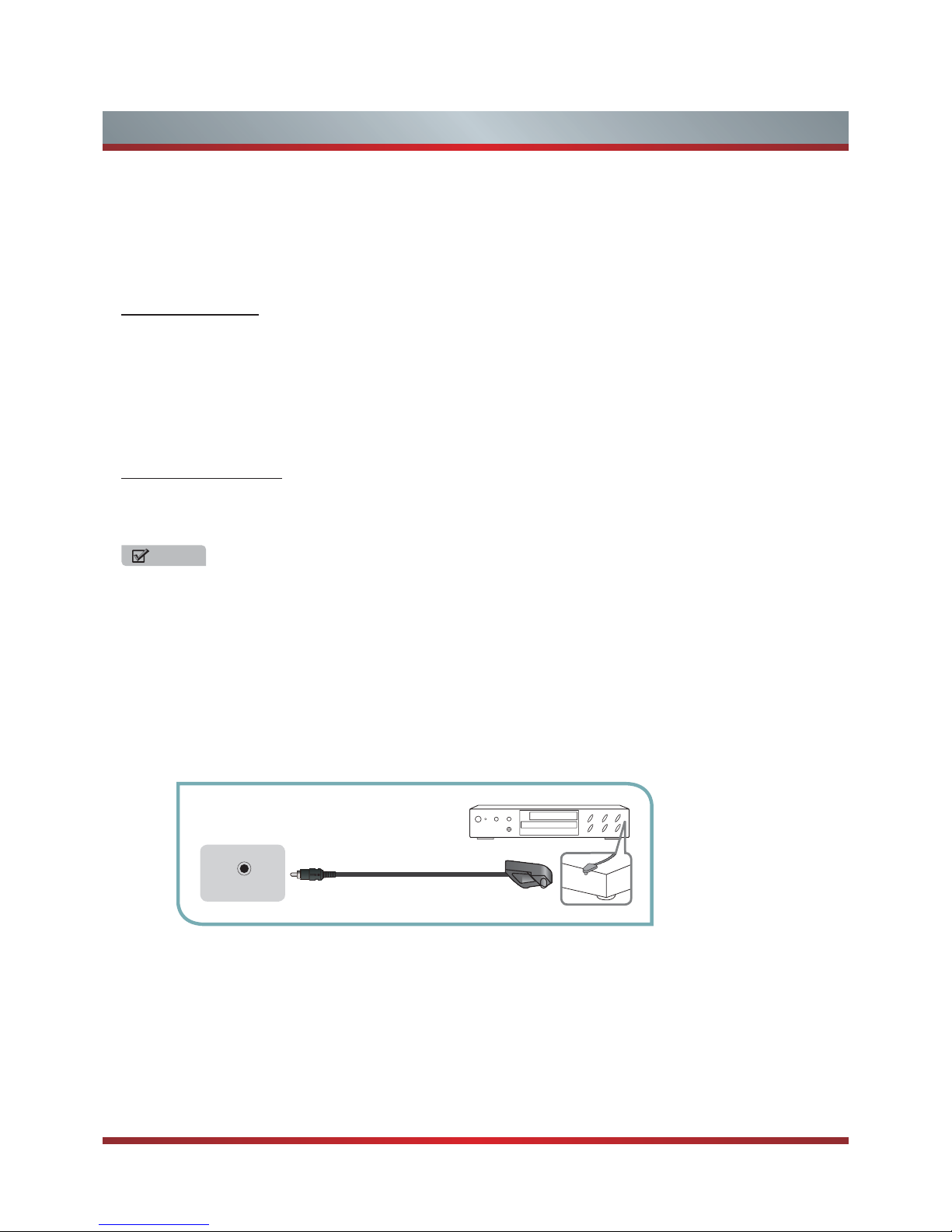

IR Blaster
You can connect an IR Blaster to control the video input and audio amplifier
To control video input
1. Connect an IR Blaster to the TV and place it properly on the device.
2. Enter Settings < Video input.
3. Select Add device manually, then follow the on-screen instructions.
4. Enter Settings < Video input < Configure the device, Select the input corresponding to the device and press the [OK]
button, selecting make default TV. Or press the [input] button on the remote control, selecting the input corresponding to the
device and then press the [menu] button and selecting set Live TV.
5. Then, you can control the connected device with the remote control of the TV.
To control audio amplifier
1. Connect an IR Blaster to the TV and place it properly on the AV receiver.
2. Enter Settings < Local settings < AV Receiver setting.
3. Then you can set the IR Blaster to control your AV Receiver. The details will show on the options below.
NOTE
Two or more video input devices or two or more audio amplifiers/AVRs cannot be controlled simultaneously with IR Blaster.
If you want to control a video input device and an audio amplifier/AVR simultaneously, please place the two devices close to
each other.
Device implementations MUST support at least one external IR blaster, so that the Google TV device may control upstream
devices, such as DVRs, PayTV set-top-boxes and A/V receivers. Google TV devices SHOULD have an integrated IR blaster
to simplify the user experience by avoiding the complexities of configuring an external IR blaster.
Device implementations MUST have an IR code library able to provide Universal Remote Control functionality, and able to
control PayTV set-top-boxes, TVs, AVRs, BD/DVDs and other devices prevalent in the geography where the Google TV
device is sold.
Device implementations SHOULD have an IR receiver to enable learning IR codes that are missing in the built-in IR code
library.
