Hisense 65R8 User manual

English
65R8
75R8
ES-A190803-1
QUICK SETUP GUIDE
Before using the TV, please read this guide thoroughly
and retain it for future reference. For more detailed
instructions, please see the User Manual.

A
Declaration

B
Important Safety Precautions
This symbol alerts user about the
presence of a dangerous voltage not
isolated inside the product which can
be sufficiently powerful to constitute a
risk of electrocution.
This symbol alerts user about the
presence of important operating
instructions and maintenance in the
document enclosed in the package.
Disposal of Used Electrical & Electronic Equipment
ATTENTION
RISK OF SHOCK
ELECTRIC
Packaging and electrical goods should be recycled appropriately, and
not treated as household waste. Please dispose of this equipment at
your applicable collection point for the recycling of electrical & electronic
equipment waste. By ensuring the correct disposal of this product,
you will help prevent potentially hazardous to the environment and to
human health, which could otherwise be caused by unsuitable waste
handling of this product. The recycling of materials will help conserve
natural resources. Please do not therefore dispose of your old electrical
and electronic equipment with your household waste. For more detailed
information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.
Do not open the back cover.
In no case the user is allowed to operate
inside the TV set. Only a qualified
technician is entitled to operate.
Class II product: This symbol indicates that it does not require a safety
connection of protective earthing (ground).
AC voltage: This symbol indicates that the rated voltage marked with the
symbol is AC voltage.

C
Important Safety Precautions
Warning
Never place a television set in an unstable location. A television set may fall, causing
serious personal injury or death. Many injuries, particularly to children, can be avoided
by taking simple precautions such as:
Using stands recommended by the manufacturer of the television set.
Only using furniture that can safely support the television set.
Ensuring the television set is not overhanging the edge of the supporting furniture.
Not placing the television set on tall furniture (for example, cupboards or
bookcases) without anchoring both the furniture and the television set to a suitable
support.
Not placing the television set on cloth or other materials that may be located
between the television set and supporting furniture.
Educating children about the dangers of climbing on furniture to reach the television
set or its controls.
If your existing television set is being retained and relocated, the same considerations
as above should be applied.

D
Important Safety Precautions
Safeguards
Please read the following safeguards for your TV and retain for future reference.
Always follow all warnings and instructions marked on the television.
1. A note about safety and operating instructions
Read and follow all safety and operating instructions, and retain them safely for future
reference.
2. Heed Warnings
Adhere to all warnings on the appliance and in the operating instructions.
3. Cleaning
Unplug the TV from the wall outlet before cleaning. Do not use liquid, abrasive, or
aerosol cleaners. Cleaners can permanently damage the cabinet and screen. Use a
lightly dampened cloth for cleaning.
4. Wall Bracket
After market brackets may be available to purchase locally. Please refer to the
specification page for dimensions.
5. Water and Moisture
Avoid dripping or splashing of liquids onto the product. Objects filled with liquids, such
as vases, should not be placed on the product.
6. Setting
Do not place this TV on an unstable cart, stand or table. Placing the TV on an unstable
base can cause the TV to fall, resulting in serious personal injuries as well as damage
to the TV. Use only a cart, stand, bracket or table recommended by the manufacturer
or salesperson.
7. Ventilation
Slots and openings in the cabinet are provided for ventilation, to ensure reliable
operation of the TV and to protect it from overheating. Do not cover the ventilation
openings in the cabinet and never place the set in a confined space such as built-in
cabinet unless proper ventilation is provided. Leave a minimum 10cm gap all around
the unit, the rear of the TV should be 6cm away from the wall.
8. Power Source
This TV should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supplied to your home, consult
your appliance dealer or local power company.

E
Important Safety Precautions
9. Power-Cord Protection
Power- supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cords at
plug, wall outlets, and the point where they exit from the TV. MAIN plug is used as the
disconnect device, the disconnect device shall remain readily operable.
10. Lightning
For added protection for this TV during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage to the TV due to lightning or power-
line surge.
11. Power Lines
An outside antenna system should not be located in the vicinity of overhead power
lines or other electric light or power circuits, or where it can fall into such power lines or
circuits. Where installing an outside antenna system, extreme care should be taken to
keep from touching such power lines or circuits as contact with them might be fatal.
12. Overloading
Do not overload wall outlets and extension cords as this can result in a risk of fire or
electric shock.
13. Object and Liquid Entry
Never push objects of any kind into this TV through openings as they may touch
dangerous voltage points or short-out parts that could result in fire or electric shock.
Never spill liquid of any kind on or into the TV.
14. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the TV, be sure the antenna or
cable system is grounded so as to provide some protection against voltage surges and
built-up static charges.
15. Servicing
Do not attempt to service this TV yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
16. Damage Requiring Service
Unplug the TV from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
(a) When the power - supply cord or plug is damaged.
(b) If liquid has been spilled, or objects have fallen into the TV.

F
Important Safety Precautions
(c) If the TV has been exposed to rain or water.
(d) If the TV does not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions as an improper
adjustment of other controls may result in damage and will often require extensive
work by a qualified technician to restore the TV to its normal operation.
(e) If the TV has been dropped or the cabinet has been damaged.
(f) When the TV exhibits a distinct change in performance - this indicates a need for
service.
17. Replacement Parts
When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or have the same characteristics as
the original part. Unauthorized substitutions may result in fire, electric shock or other
hazards.
18. Safety Check
Upon completion of any service or repair to the TV, ask the service technician to
perform safety checks to determine that the TV is in safe operating condition.
19. Heat
The product should be situated away from heat sources such as radiators, heat
registers, stoves, or other products (including amplifiers) that produce heat.
20. Fire
The product should be situated away from naked flame sources such as lighted candle.
21. Off-gassing
The TV smells of plastic is normal and will dissipate over time.
To fully disconnect the TV, remove power plug from wall socket. Be sure
to have the wall socket and power plug readily accessible.
Do not mix and use new batteries with old batteries, or batteries with
different types. Do not expose batteries to heat such as direct sunlight or
fire. Make sure the batteries' positive and negative ends are facing the
correct direction.
The device should not be exposed to dripping and spraying and it cannot
be placed under objects filled with liquids.

1
Contents
Accessories List
The following accessories are included with TV:
Contents
Figures and illustrations in this manual are provided for reference only and may
differ from actual product appearance.
Parts of the software function changes with the system upgrade.
Accessories List..............................................................................................................1
Installing the Stand or Wall mount bracket .....................................................................2
TV Front..........................................................................................................................4
TV Rear ..........................................................................................................................5
Making Connections.......................................................................................................6
Remote Control ............................................................................................................ 11
Turning the TV on for the First Time.............................................................................15
Specifications ...............................................................................................................16
Screw × 4(75")
(Actual product may
vary in appearance)
TV × 1 Quick Setup Guide × 1 AAA Battery × 4 Remote Control × 2
Power Cord × 1 Terminal Cover Plate × 1 Spacer × 2
Base Stand(65") Base Stand(75")Screw × 2(65")
※The accessories may be different from the list above due to different models,
countries/regions, please refer to the actual accessory bag.

2
CAUTION
Be sure to disconnect the A/C power cord before removing a base stand or
installing Wall-Mount brackets.
The screen display is very fragile, and must be protected at all times when installing
the base stand. Be sure that no hard or sharp object, or anything that could scratch
or damage the screen display, comes into contact with it. DO NOT exert pressure
on the front of the TV at any time because the screen could crack.
Follow the illustrations and textual instructions below to complete the installation steps:
Installing the Stand
Installing the Stand or Wall mount bracket
1Carefully place your TV facedown on a soft, flat surface to prevent damage to the
TV or scratching to the screen.
2Take out the 2 stands from the accessory bag and then insert the stands into the
bottom slots of the TV.
Tip: Make sure to insert the stands according to the 'L' and 'R' directional marks
that are shown on the surface.
3 Secure the Base Stand to the TV with the screws in the accessory bag tightly.
65"
2 Screws: M4 × 12
BASE STAND

3
Installing the Stand or Wall mount bracket
Wall-Mount hole pattern (mm) 400 × 200 (65")
600 × 300 (75")
Wall-Mount screw size M6
9.5~11.5mm
Wall-Mount Bracket (not included)
Screw (not included)
Spacer (not included)
The TV's rear cover
NOTE
Follow instructions provided with the Wall mount bracket.
The back cover of the TV is slightly curved. When attaching a flat mount to the TV,
please put an extra spacer(provided) between the top mounting hole and the wall
mount bracket.
Installing the wall mount bracket (not included)
75"
4 screws: M4 × 12
BASE STAND

4
TV Front
TV Front
NOTE
Powering on the TV requires several seconds to load program. Do not rapidly turn
the TV off as it may cause the TV to work abnormally.
Item Description
Remote sensor
Receive remote signals from the remote control.
Do not put anything near the sensor, as its function may be
affected.
Power indicator The light is red in standby mode.
Standby / Source
Press the single button when in standby mode, TV will be turned
on. Press the single button to call up the menu, when the focus
is on "Power Off", wait for 3 seconds, then the TV will go into
standby mode automatically.
Press the single button to call up the menu and then select
among the different input signal sources. Press and hold the
button to adjust the volume.
Single button (Remote sensor / Power indicator / Standby)

5
TV Rear
TV Rear
NOTES
Check the jacks for position and type before making any connections. Loose
connections can result in image or color problems. Make sure that all connections
are tight and secure.
The TV may not be compatible with all external devices. To check compatibility,
please refer to the user manual of external device.
Do not connect external equipment while TV's power cord is plugged in. It may
cause electric shock.
Service jack is not available for you to connect an external device. It can only be
used by our factory for testing purposes.
ANT
HDMI 3(4K@60Hz) HDMI 1(4K@60Hz)
DIGITAL
AUDIO OUT
DC 5V 0.5A(MAX)
USB 2 HDMI 2(4K@60Hz)
ARC
DC 5V 0.5A(MAX)
USB 1
SERVICE HEADPHONE
VIDEO L R
AV IN
LAN
HDMI 4(4K@60Hz)
Power Input

6
Making Connections
ANT Connect an outdoor VHF/UHF antenna or cable.
TV JACK
Outdoor
Antenna
Antenna Cable (75Ω)
or ANT OUT
Cable
VHF/UHF Antenna
ANT
(not included)
HDMI / AV
Connect a HDMI / AV cable from an external AV equipment. No sound connection
is needed for HDMI to HDMI connection. If the signal resolution does not match the
specification table, you need to change the setting of device according to the table.
Please consult your device user manual for instruction.
·To select the HDMI / AV
Press the [INPUT] button, when the list of input Source appears, press the [
/ / < / >
]
buttons to select the source [HDMI] / [AV], then press the [OK] button to connect.
BETTER (HDMI)
Video Effect:
Video Camera/
Set-top Box/
Satellite Receiver
TV JACK
(Cables are not included)
White(L)
Red(R)
Yellow(Video)
GOOD (AV)
Video Effect:
TV JACK
HDMI cable (not included)
HDMI
VIDEO L R
AV IN
The terms HDMI and HDMI High-Definition Multimedia Interface, and
the HDMI Logo are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United States and other countries.

7
Making Connections
DIGITAL AUDIO OUT Connect to an external digital audio system.
Before connecting a digital audio system to the DIGITAL AUDIO OUT jack, you
should decrease the volume of both the TV and the system to avoid that the
volume suddenly becomes bigger.

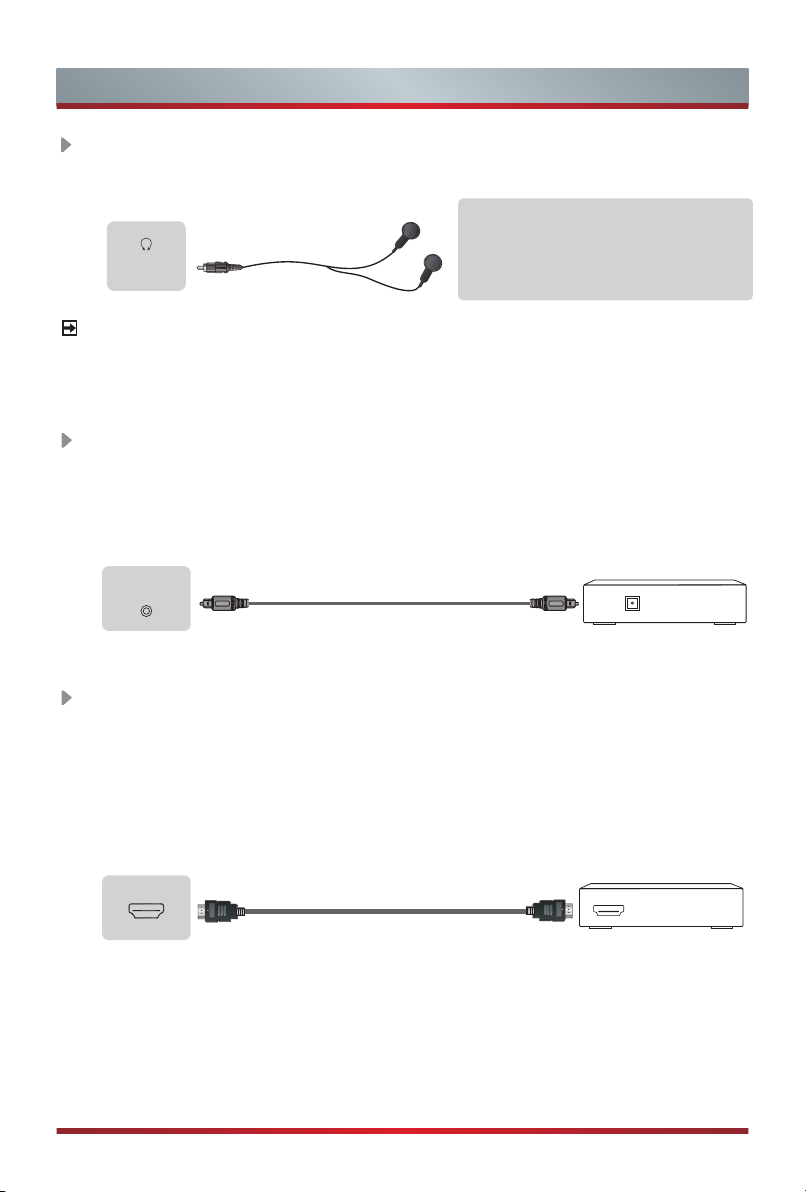

HEADPHONE Connect Headphone for audio out of the TV.
TV JACK
Headphone (not included)
HEADPHONE
ATTENTION
Excessive sound pressure from
earphones and headphones can
cause hearing loss.
NOTE
Please make sure that the headphone you plug in is without microphone function, or it
may not be supported.
ARC Connect an HDMI cable from an external digital audio system.
ARC enables the TV to directly output the digital sound through an HDMI cable.
Please note that it works only when the TV is connected to the audio receiver that
supports the ARC (Audio Return Channel) function.
When this port is used as the ARC function, it can't be used as signal input at the
same time.
TV JACK
DIGITAL AUDIO cable (not included)
Audio Amplier/Speaker
DIGITAL
AUDIO OUT
TV JACK
HDMI cable (not included)
HDMI
Audio Amplier/Speaker
ARC
HDMI

8
Making Connections
LAN (Wired setup)
Connect your TV to your network by connecting the LAN port on the back of your
TV to an external modem or router using a LAN (Ethernet/Cat 5) cable. See the
illustration below.
·We recommend you to use a modem or router that supports Dynamic Host
Configuration Protocol (DHCP). Modems and routers that support DHCP
automatically provide the IP address, subnet mask, gateway, and DNS, so you
don’t have to enter them manually. Most home networks already have DHCP.
TV JACK
Modem CableLAN CableLAN Cable
External Modem
(ADSL / VDSL / Cable TV)
IP Sharer (Router)
(with DHCP server)
LAN
USB
Connect the USB1.1 and USB2.0 devices such as hard drives, USB sticks and
digital cameras for browsing photos, listening music and watching movies.
TV JACK
DC 5V 0.5A(MAX)
USB 1 USB 2
DC 5V 0.5A(MAX)
NOTE
When connecting a hard disk or a USB hub, always connect the mains adapter of
the connected device to the power supply. If a USB 1.1 or USB2.0 device requires
more than 500mA or 5V, the USB device may not be supported. Max supported
current for USB 3.0 device is 1A (only for some models). Exceeding the max
supported current may result in damage or data loss.

9
Making Connections
Wireless setup
Connect your TV to your wireless network, you need a wireless router or modem.
See the illustration below.
·The TV’s built-in Wireless LAN Adapter supports the IEEE 802.11 b/g/n
communication protocols.
NOTES
You must use the built-in Wireless LAN Adapter to use a wireless network because
the set doesn’t support external USB network adapter.
If the wireless router supports DHCP, your TV can connect more easily to the
wireless network.
If you apply a security system which is not listed below, it will not work with the TV.
Security system : WPA, WEP, WPA2.
In order to guarantee smooth network, the distance between router and TV should be
less than 10 meters.
Wireless LAN Adapter
built-in TV set
Wireless router with DHCP
LAN Cable

10
Making Connections
What is Freeview Plus?
Freeview Plus is a new television service delivered via broadband providing a state of
the art Electronic Program Guide (EPG) and seamless access to catch-up TV across
the free-to-air networks with the simple press of a button.
How does it work?
First ensure the TV is connected to internet and an antenna system. Then when you’re
watching TV, you’ll briey see a prompt at the top left of the screen. Press the ‘Green’
button on your remote to launch Freeview Plus. More information about Freeview Plus
can be found on http://www.freeview.com.au/
NOTE
Freeview Plus service only available in Australia territories.

11
OK
T.Shift
Remote Control
Power Standby button:
Power on/ Standby
Turn on/off the teletext
function
Enter the Live TV screen
Select picture mode
Select sound mode
Select input sources
Select a channel or input
numbers
Adjust the volume Switch channel
Display the Electronic
Program Guide
(DTV mode)
Display the current
program information
Display the Settings menu Display the Quick setup
menu
Return to the
previous menu Exit the menu or exit
the application
Special function buttons
Display the channel
list on the screen
Navigation buttons
(Up/Down/Left/Right) Conrm button / Display
the on-screen keyboard
Media content control
function buttons
Start Timeshift
Display subtitles in the
Live TV
Record the current
program (DTV mode)
Fast access buttons to
apps
Enter the media mode
: Fast access to all
applications
prime video: Fast access
to prime video
Mute or restore sound Display the Home screen
APP APP
REC.List: View a list of
recorded programs
AD: Set the Audio
Description on or off (only
for Thailand)
NOTE
The included remote control will vary depending on model, country. Check information according to the
actual remote control in the accessory bag.

12
Remote Control
Conrm button / Display
the on-screen keyboard
Select input sources
Display the channel
list on the screen
Display the Quick setup menu
Select a channel or input
numbers
Power Standby button:
Power on/ Standby
Turn on/off the teletext
function
Adjust the volume Switch channel
Playpad keys
Return to the
previous menu
Enter the media mode
Special function buttons
Navigation buttons
(Up/Down/Left/Right)
Fast access buttons to
apps
Voice command Mute or restore sound
Display subtitles in the
Live TV
Power Indicator and
Microphone
All Apps
Display the current
program information
Custom button to launch
input or apps quickly
Display the Electronic Program
Guide Mode (DTV mode)
Display the Home screen
Bluetooth remote control module
specifications
WNF150
Frequency Range:
2.400~2.4835GHz
Output Power(Max.): +4dBm
NOTE
The included remote control will vary depending on model, country. Check information according to the
actual remote control in the accessory bag.

13
Remote Control
Installing Batteries in the Remote Control
NOTES
Product image is only for reference, actual product may vary in appearance.
Dispose of your batteries in a designated disposal area. Do not throw the batteries into fire.
Do not mix battery types or combine used batteries with new ones.
Remove depleted batteries immediately to prevent battery acid from leaking into
the battery compartment.
If you do not intend to use the remote control for a long time, remove the batteries.
Batteries should not be exposed to excessive heat, such as sunshine, heat
registers, or fire.
Battery chemicals can cause a rash. If the batteries leak, clean the battery
compartment with a cloth. If chemicals touch your skin, wash immediately.
1. Slide the back cover to open the battery compartment
of the remote control.
2. Insert two AAA size batteries. Make sure to match the
(+) and ( - ) ends of the batteries with the (+) and ( - )
ends indicated in the battery compartment.
3. Close the battery compartment with the cover.
1. Press the switch and the battery case will pop up
automatically.
2. Insert two AAA size batteries. Make sure to match the
(+) and ( - ) ends of the batteries with the (+) and ( - )
ends indicated in the battery compartment.
3. Push the battery case back to the remote control.
NOTE
Check information according to the actual remote control in the accessory bag.
