Hisense GM642XF User manual

GM642XF
GM643XF
GM772XF
GM773XF
GM973XF

1
Please first read this manual!
Dear Customer,
We desire you get the most out of this product which is produced in the
modern facilities on basis of high-quality.
For this reason, please read this manual carefully and thoroughly prior to
using the product and keep it for future reference. If you assign the product
to anybody else, please give it together with the user’s manual. When using
the product, taken into consideration all information and cautions specified
in the manual and comply with the instructions.
Symbols used in the user’s manual and their corresponding meanings:
The user’s manual helps you use the product quickly and safely.
• Please read the user’s manual prior to installation and operation of it.
• Always comply with the safety-related instructions.
• Keep the user’s manual at an easily accessible place as you may need it
for reference in future.
• Please read the other documents provided with the product as well.
Please remember that this user’s manual may also be applicable for other
versions. Differences between the versions are clearly indicated in the
manual.

2
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS ........................................................................... 3
1.1. General Safety ........................................................................................................... 3
1.2. Safety for children ...................................................................................................... 5
1.3. Safety of the electric-related works ............................................................................ 5
1.4. Intended use .............................................................................................................. 5
2. INSTALLATION ............................................................................................................ 6
2.1. Prior to use of the product ......................................................................................... 6
2.2. Installation and connections ....................................................................................... 7
2.3. Wiring ...................................................................................................................... 10
2.4. Gas connection ........................................................................................................ 11
2.5. Sealing inspection .................................................................................................... 13
2.6. Final inspection ........................................................................................................ 13
2.7. Disposal of the product ............................................................................................ 14
3. ABOUT PRODUCT: .................................................................................................... 15

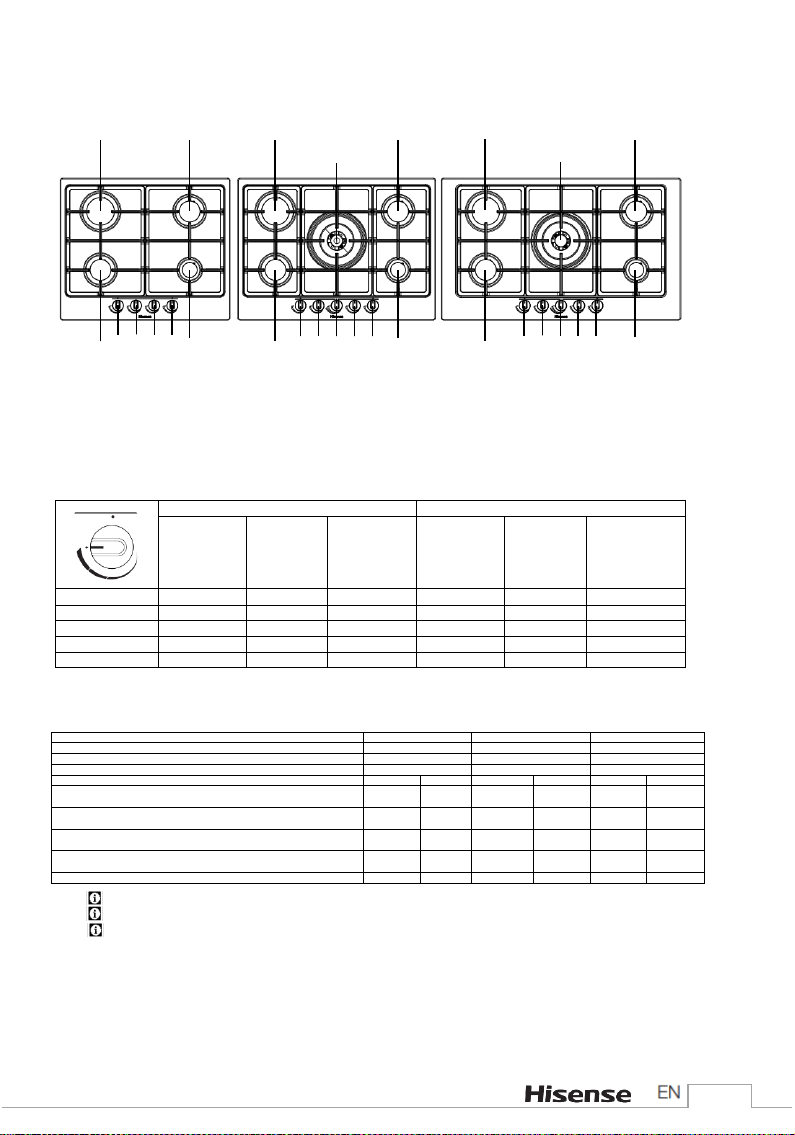

3.1. General view ............................................................................................................ 15
3.2. Technical specifications of your built-in range ........................................................... 15
4. Use of the range ....................................................................................................... 16
4.1. First use ................................................................................................................... 16
4.2. First cleaning ............................................................................................................ 16
4.3. Description of use of the gas range: .......................................................................... 16
4.4. Gas cut-off safety apparatus ..................................................................................... 17
5. Maintenance and cleaning ........................................................................................ 17
5.1. General information ................................................................................................. 17
5.2. Cleaning the control panel ........................................................................................ 18
5.3. Cleaning the range ................................................................................................... 18
6. Suggested solutions for problems ............................................................................. 19

3
1. IMPORTANT SAFETY INSTRUCTIONS
This section contains safety instructions to help prevention of physical
injury or material damage. Failure to comply with these instructions makes
any warranty invalid.
1.1. General Safety
This product is not designed for use by persons (including children)
who are lack of knowledge or experience and have deficient physical,
sensual or cognitive skills unless they are attended by a person to take
care of their safety or give necessary instructions for use of the
product. The children should be supervised and never be allowed
playing with the product.
Plug the product to an outlet/mains protected by a fuse of such value
as given in the table “Technical specifications”. In case of use with or
without transformer, remember to get the earthing installation done
by a qualified electrician. If the product is used without proper
earthing as per the applicable local regulations, our firm shall not be
responsible for any resulting loss.
If the power cable/plug is damaged, do not operate the product.
Contact with the Authorized Service Center.
If the product is damaged and has a noticeable damage, do not
operate the product.
Do not perform any repair or modification on the product. However,
you may remedy some troubles; see suggested solutions for the
problems, page 18.
Never wash the product by spraying or pouring water on it! There is
risk of electric shock!
Do not use the product under the conditions when your judgement is
affected due to effect of medical drug and/or alcohol.
Disconnect the product with the mains during the installation,
maintenance, cleaning and repair operations.
Always get the installation and repair operations done by an
authorized service center. The manufacturing firm may not be held
responsible for any loss that may arise due to operations performed by
any unauthorized persons and consequently the product warranty
becomes invalid.

4
Be careful when using alcohol in the food. The alcohol evaporates at
high temperature and when it contacts with hot surfaces, it may
inflame and cause fire.
Do not heat the sealed cans and glass jars. The resulting pressure may
cause burst of the jar.
As the edges of the product will be hot when working, do not put any
flammable substances near it.
Keep open all around the ventilation channels.
The product may be hot during use. Do not touch the hot parts and
heating elements, etc.
Make sure the product is switched off after each use.
Product and accessible parts of the product are hot during use of it.
Do not touch the product in use.
Do not use sharp and piercing tools when cleaning the glass; such
materials may give harm to your product.
As superheated oil may cause fire, always keep watch when the
product is in use.
In case of possible fire, do not attempt to extinguish the fire with
water; disconnect the power connection of the product immediately
and cover the fire by help of a wet blanket.
Do not use steam cleaner.
If the glass of the product is broken: switch off all burners and any
electric heater element immediately and disconnect power supply of
the equipment; do not touch the surface of the equipment and do not
use the equipment.
To clean the glass of the range, never you abrasive agents or sharp
metal scrapers that may destroy the surface and cause the glass to be
broken.
Do not use the product on the nylon, flammable and heat-sensitive
materials.
Pots placed on the heaters of the range should be in proper sizes.
Do not scrub the buttons and inox surfaces of the range by means of
scrapping objects; do not use Scotch-Brite.
If the flame of burner is accidentally off, the burner is switch off in
controlled manner and it is not fired for minimum 1 minute.

5
1.2. Safety for children
The exposed parts of the product will get heated during use and after
use until it cools down; keep children away.
CAUTION: During use of the grill, the accessible parts may be hot. You
should keep the children away from the product.
The children under 8 eight years old should not touch the product
when they are unattended by a adult.
This equipment may be used by children above 8 years old and/or
persons who are handicapped physically, sensually or cognitively if
they are duly informed about risks and safe use of the product.
The children should not play with the product. Cleaning and
maintenance of the equipment may not be performed by the children
unattended.
Packaging materials may be dangerous for the children. Keep the
packaging materials at a place not accessible by the children or thrown
in the garbage by sorting out according to the instructions on waste.
1.3. Safety of the electric-related works
All Works on the electric equipment and systems should be performed
by an authorized and qualified person.
This product is not suitable for you with a remote system.
In case of any damage, switch off the product or disconnect the power
supply. To this end, switch of the fuse of the house.
Make sure the fuse rated value is same with the current of the
product.
1.4. Intended use
This product is designed for domestic use. It is not allowed for industrial
use.
“CAUTION: this product should be used for cooking only. It should not be
used for different purposes such as heating a room, etc.”
The producer may not be held responsible for any loss that may occur due
to improper use or during transportation. The service life of the product
you purchase is 10 years. This is the time during which the producer should
make available spare parts necessary for operation of the product in the
specified way.

6
2. INSTALLATION
2.1. Prior to use of the product
Make sure the power and/or gas installation is suitable. If not, make
the necessary arrangements by means of qualified technical and installer.
The customer shall be responsible for preparation of the place where
the product shall be placed as well as the power and/or gas installation.
For installation of the product, you should comply with the rules
specified in the local standards concerning power and/or gas
Control the product prior to installation to find out whether there is
any damage or not. If the product is damaged, do not make the installation.
The damaged products may cause risk for your safety.
Any works on the gas equipment and system should be performed by
authorized and qualified persons.
The products have no system for discharge of gas that may occur as a
result of burning. The product should be installed and connected as per the
applicable regulations concerning installation. You should observe the
requirements regarding ventilation.
Air necessary for burning is taken from the room air and the emitted
gases are directly given to the room.
A good ventilation is required in the room for safe operation of your
product. If there is no window or door to be used for ventilation of the
room, an additional ventilation system should be installed.
The floor area of the kitchen should be bigger than 8m².
Kitchen volume should be bigger than 20m³.
The chimney outlet should be at height of 1.80m from the floor and
in diameter of 150mm directly opening to the atmosphere.

7
Air vent should be near the kitchen floor and minimum75cm²,
opening to the outer atmosphere
2.2. Installation and connections
2.2.1. Preparation of the built-it range prior to installation
Place the mounting
legs as shown in the
figure.
Figure 4
Turn upside down
range in the
Styrofoam in the
package and apply
the silicon.
In case of inox products, apply
the silicon on inox surface,
and in case of glass range
products apply to the glass
surface.
Apply the silicon
supplied in the
package around the
range as shown in the
figure.
Mounting legs
connection holes.
Figure 5
Figure 1
Figure 2
Figure 3

8
1. Glass 5. Upper Tray
2.Silicon Seal 6.Silicon Seal
3.Tray 7.Counter Surface
4.Connection Element 8.Connection Clips
9.Screw
The range is equipped with a seal to prevent the liquids through the
cavities into the cabinet. In order to place this seal, adhere the seal as
shown in the figures above. Turn the range upside down and remove the
protective tape of the rubber seal and adhere it to the range; both ends of
the seal should meet each other. Install the mounting sheets as shown in
figure 5 by help of screw. And place the range in the opening on the
counter.
Appliance dimensions
Figure 6
1
2
3
4
5
6
7
8
9
Figure 7
GM643XF GM773XF
GM973XF
GM642XF
GM772XF

9
Figure 7 shows the size to which the counter will be cut for installation of
the range. Place the prepared range into the counter cut to these sizes. If
you will use the range on the built-in oven, observe the figures 8 and 9 for
proper air circulation between the oven and range.
Start to use after you remove the protective film on Inox surface.
Figure 7
Figure 8
Figure 9

10
2.3. Wiring
You should definitely use an earthed line for the product!
The manufacturing firm shall not be responsible for any damages
that may occur if the product is used without the earth.
Electric shock, short-circuit or fire risk arising from the installation
performed by any unprofessional persons! The product should be
connected to the mains only by an authorized and qualified person and
the warranty of the product starts only after correct installation.
Power shock, short-circuit or fire risk arising from damaged power
cable! The power cable should be crushed, crinkled or pinched or should
not contact with the hot parts of the product. If the power cable gets
damaged, it should be replaced by a qualified electrician.
The mains supply data should be same on the data indicated on the
nameplate of the unit. You may find the nameplate at the back of
or under the product.
The connection cable of the product should comply with the
technical specifications and power consumption.
Risk of electric shock! Before performing any work on the electric
installation, please disconnect the power supply of the product.

2.4. Gas connection
Any work on the gas equipment and systems should be performed
by the qualified and authorized persons.
Prior to installation, make sure the conditions of local distribution (gas type
and gas pressure) comply with the settings of the product.
11
Connect the product to a grounded cable or line protected by a fuse according to the table of
Technical Specifications. The manufacturer cannot be held responsible for any damages when used
without grounding in accordance with the applicable regulations.
WARNING
Connection of the product to the mains may be carried out only by an
authorized person and product guarantee only starts upon correct
installation.
WARNING
Power cable should not be crushed,, pressed or contact with hot ports of
the product. In case of damaged electric wiring, necessary replacement
should be performed by an authorized electrician.
Connection cable of the product can be supplied by our company as indicated in the
chapter of Technical Specifications. Mains voltage should comply with 220-240
VAC as indicated in the table of Technical Specifications and product nameplate.
Wiring for Hobs
Brown Cable: L (Phase)
Blue Cable: N (Neutral)
Green/Yellow Cable: E (Grounding)

12
2.4.1. LPG connection
Make sure the gas hose and gas pressure-reducing valve you use on the
range are safe. Connect the gas delivery hose with the hose behind the
range and tighten it by using a clamp and screwdriver (figure 10). Make
sure it is firmly tightened.
Gas delivery hose of the equipment should not be longer than 1500mm.
The pressure of the pressure-reducing valve to be used for LPG should be
300mmSS and certificated.
Gas delivery hose should not pass through the hot part behind the
equipment. Temperature of the gas hose should not exceed 90°C
(degree).
Prior to use, make sure the system does not leak any gas.
1- G1/2 Nipple)
2- Silicon seal
3- G1/2 Hose inlet ( gas inlet)
4- Metal clamp
5- Gas hose (inner diameter 8mm)
Figure 10
2.4.2. NG (natural gas) connection
1- G1/2 Nipple)
2- Silicon seal
3- G1/2 NG hose (EN 14800 compliant natural gas hose)
If your equipment is set for natural gas, get the equipment connected by
the installation firm of the concerned natural gas distribution
company. Natural gas connection of your equipment is ½”. If you desire to
convert your equipment from LPG to natural gas or from natural gas to LPG,
contact with the nearest service centre and make them do the required gas
conversion settings.
Figure 11

13
2.5. Sealing inspection
Open the pressure-reducing valve or natural gas valve and control by
application of much foamy water on the connection to find out any gas
leakage.
Never control by flame.
2.6. Final inspection
1. Plug the power cable into the socket and activate the fuse of the
equipment.
2. Control the functions.
2.6.1. LPG-NG / NG-LPG conversion
Figure 12
Figure 12.1
Figure 12.2
Figure 12.3
Figure 12.4
Remove the burner cover and burner as shown in in the Figure
12.
Remove the injector by help of 7’s socket screwdriver as
shown in the Figure 12.1
Fix the injector (D) to be converted as shown in the Figure
12.2.
(see table 1).
Replace the burner as shown in the Figure 12.3.
Turn on the burners respectively after conversion and
remove the button on the control panel and set the flame
length by tightening or loosening the screw on the gas
valve (12.4 cock) or in the valve shaft.

14
2.7. Disposal of the product
2.7.1. Destruction of the package
Packaging materials are dangerous for the children. Keep the packaging
materials at a place not accessible by the children.
The packaging of the product is made of the recycled materials. And throw
them in the garbage by shorting out as per the instructions on waste. Do
not dispose them together with the normal domestic waste.
2.7.2. Future transportation operations
• Keep the product in its original box and carry the product in this box.
Comply with the instructions given on the box. If the original cartoon is not
available, wrap the product with the blister packaging material or a thick
paperboard and tape it firmly.
Fix the heads and pot supports firmly with a tape.
Do not put any object on the product. The product should be
carried upright.
Control the general appearance of the product for any damage that
might have occurred during transportation.
2.7.3. Disposal of the old product
Dispose the old product in such a way that it will not give damage to the
environment.
A mark (WEEE) is present on this product, indicating that the electric and
electronic equipment waste should be collected separately. This means that
the equipment should be dealt with as per EU Directive 2002/96/EC to
recycle or disintegrated into parts for minimising its effect on the
environment. For further information, please contact with the local and
regional authorities.
The electronic products which are not kept subject to the controlled waste
gathering process constitute potential risk for both environment and
human health due to the harmful substances they contain.
You may contact with your authorized dealer or the municipal waste
collection centre to get information about how you may dispose of the
product.
Before you throw the product into the garbage, cut the electrical plug and
break the cover lock, if any, in order that the children are not exposed to
any risk.

15
3. ABOUT PRODUCT:
3.1. General view
Aa - Auxiliary burner Bb - Semi-rapid burner Cc - Rapid burner
3.2. Technical specifications of your built-in range
Consumption values
Information according regulation (EU only) 66/2014 Measurements acc. EN60350-2 (G30-30
mbar)
The firm may make change in the technical specifications to improve quality of the product without prior notice.
The figures given in the manual are schematic and may not be exactly same with your product.
The values given on the markings on the product or in the other printed documents provided with the product are values obtained under the laboratory
conditions as per the applicable standards. These values may
vary depending on the use and ambient conditions of the product.
C B1 C B1 C B1
D D
B2 c b2 b1 a A B2 c b2 d b1 a A B2 c b2 d b1 a A
GM642XF
GM773XFGM973XF
Dd - Wok burner
LPG G30 30 mbar NG G20 20 mbar
Ø0,50 1 73 Ø0,72 1 0,095
Ø0,72 2 145 Ø1,03 2 0,190
Ø0,85 2,9 211 Ø1,24 2,9 0,276
Wok Burner* Ø1,00 3,8 276 Ø1,50 3,8 0,362
Wok Burner** Ø1,03 4,2 305 Ø1,55 4,2 0,400
Auxillary Burner
Semi-rapid Burner
Rapid Burner
Injector (mm) Power (kW) Consumption (g/h) Injector (mm) Power (kW) Consumption (g/h)
“Wok **” for gas hob 90 cm / “wok *” for gas hob 70 cm
GM643XF-GM642XF GM773XF - GM772XF GM973XF
4 5 5
G20 G30 G20 G30 G20 G30
56,79 58,51 56,79 58,51 56,79 58,51
54,45 54,07 54,45 54,07 54,45 54,07
- - 53,55 53,12 - -
- - - - 53,55 53,12
56 57 55,39 56 55,39 56
Model identification
Type of hob
Number of gas burners
Heating technology
Type of gas
Energy efficiency per gas burner
(EEgas burner) in % Semi-rapid Burner
Energy efficiency per gas burner Energy efficiency per gas burner
(EEgas burner) in % Rapid Burner
Energy efficiency for the gas hob (EEgas hob) in %
Energy efficiency per gas burner Energy efficiency per gas burner
(EEgas burner) in % Wok Burner
Energy efficiency per gas burner Energy efficiency per gas burner
(EEgas burner) in % Wok Burner
Gas hob
Gas burner
Gas hob
Gas burner
Gas hob
Gas burner
Energy efficiency per gas burner Energy efficiency per gas burner
(EEgas burner) in % Wok Burner
GM643XF
GM772XF

16
4. Use of the range
4.1. First use
Start to use the equipment after removal of the protective film on Inox surface.
4.2. First cleaning
Some detergents or cleaning agents may give harm to the surface.
1. Remove all packaging materials.
2. Wipe the product surface with a damp cloth or sponge and wipe dry
with a dry cloth.
4.3. Description of use of the gas range:
Container size and gas flame should match with each other.
Gas flame should be set in such a way that it should not spread out
from the container base.
Put the container as centered on the pot bearer.
1: Push and turn anticlockwise the gas range button for setting high
flame.
2: Turn on the lighter depending on the characteristics of your range.
3: Set to the desirged flame position.
4: When the desired cooking operation is over, bring the range button to
the top point by turning it clockwise to turn off the burner.

17
4.4. Gas cut-off safety apparatus
5. Maintenance and cleaning
5.1. General information
If the product is cleaned regularly, its service life extends and the frequently
encountered problems reduce.
Risk of electric shock!
Prior to cleaning, switch off the power of the product to avoid risk of
electric shock.
Hot surfaces may cause burns!
Wait for the product to cool down prior to cleaning the product.
You should clean the product thoroughly after you use it each time.
Thus the food remnants are easily cleaned and you prevent these
remnants from being burnt when the product is used later on.
Thermal element activetas the safety
mechanism activates and cuts off the
gas immediately against
extinguishment of the top burners due
to liquid overflown.
1: Push and turn anticlockwise the gas range button for setting high flame.
2: Turn on the lighter depending on the characteristics of your range.
3: After it turns on, hold pressed the button for 3-5 seconds and ensure the
safety mechanism to activate.
4: If it does not turn on after you push and release the button, repeat the
same action by holding the button pressed for 15 seconds.
5: Set to the desired flame position.
6: When the desired cooking is completed, bring the range button to the top
point by turning it clockwise to turn off the burner.

18
No special cleaning agent is required for cleaning the product.
Clean the product by use of dishwashing liquid, lukewarm water
and a soft cloth or sponge and wipe clean with a dry cloth.
Make sure you completely wipe off any liquid left after the cleaning
and clean immediately any food around splashed during the
cooking.
Do not use any cleaning agent containing acid or chlorine for
cleaning the stainless steel or inox surfaces and handle. Clean by
wiping in single direction by help of a soft cloth with soap and liquid
(non-scratching) detergent.
Some detergents or cleaning agents may give harm to the surface.
Do not use abrasive detergents, cleaning powders/creams or sharp objects.
Do not use steam cleaning agents for cleaning.
5.2. Cleaning the control panel
Clean the control panel and control button with a damp cloth and wipe dry
with a dry cloth.
The control panel may get damaged! Do not remove the control
button to clean the control panel.
5.3. Cleaning the range
There is no need for any range cleaner
or other special cleaning agent to clean
the range. It is recommended to qipe
the range with a damp cloth when it is
stil likewarm.

19
6. Suggested solutions for problems
Product does not operate.
The product is not plugged (earthed) to the socket. Make sure the
equipment is plugged.
The fuse is burn or broken. Check the fuse in the fuse box. If the
fuse is burnt, activate it again.
The product ignites, but does not burn.
Gas is over.
Cylinder valve or natural gas valve is closed.
In case of houses with natural gas supply, if there is gas leakage
detector, the leak may be detected and gas cut off.
Injector is clogged.
Flame burns low.
Cylinder is over.
Injector is clogged.
When the product heats and cools down, metallic sounds are heart.
Metal parts expand when heated and cause sound. This is not a
cause of failure.
If you cannot eliminate the problem although you performed the
instructions given in this section, call your service to get support. Never
attempt to repair the product that does not operate.
