Hisense HE32M2160HTS User manual

English
QUICK SETUP GUIDE
Before using the TV, please read this guide thoroughly
and retain it for future reference. For more detailed
instructions,please see the User Manual.
HE32M2160HTS
HE40M2160FTS

1 English
Contents
Contents
Accessories List
The Pictures are Only for Reference !
Accessories List..............................................................................................................1
Installing the Stand.........................................................................................................
........................................................................................................
2
TV Front..........................................................................................................................3
TV Rear ..........................................................................................................................4
Making Connections.......................................................................................................5
Remote Control ..............................................................................................................9
Specifications
Other Information
............................................................................................................... 1
12
1
Product image is only for reference, actual product may vary in appearance.
Parts of the software function changes with the system upgrade.
User Manual Quick Setup Guide Remote Control Battery × 2
Screw × 4 YPbPr cable × 1 AV INPUT Cable × 1

English
2
Installing the Stand
Installing the Stand
NOTES
The TV screen is very fragile,and must be protected at all times when removing the
base stand. Be sure that no hard or sharp object, or anything that could scratch or
damage the screen, come into contact with it.DO NOT exert pressure on the front
of the TV at any time because the screen could crack.
For tabletop use, the TV must be attached to the provided stand as shown on this
page.
Product images are only for reference, actual product may vary in appearance.
WARNING
Be sure to disconnect the AC power cord before installing a stand or wall-mount
brackets.
CAUTION
Carefully place your TV facedown on a soft,cushioned surface to prevent damage
to the TV or scratching to the screen.

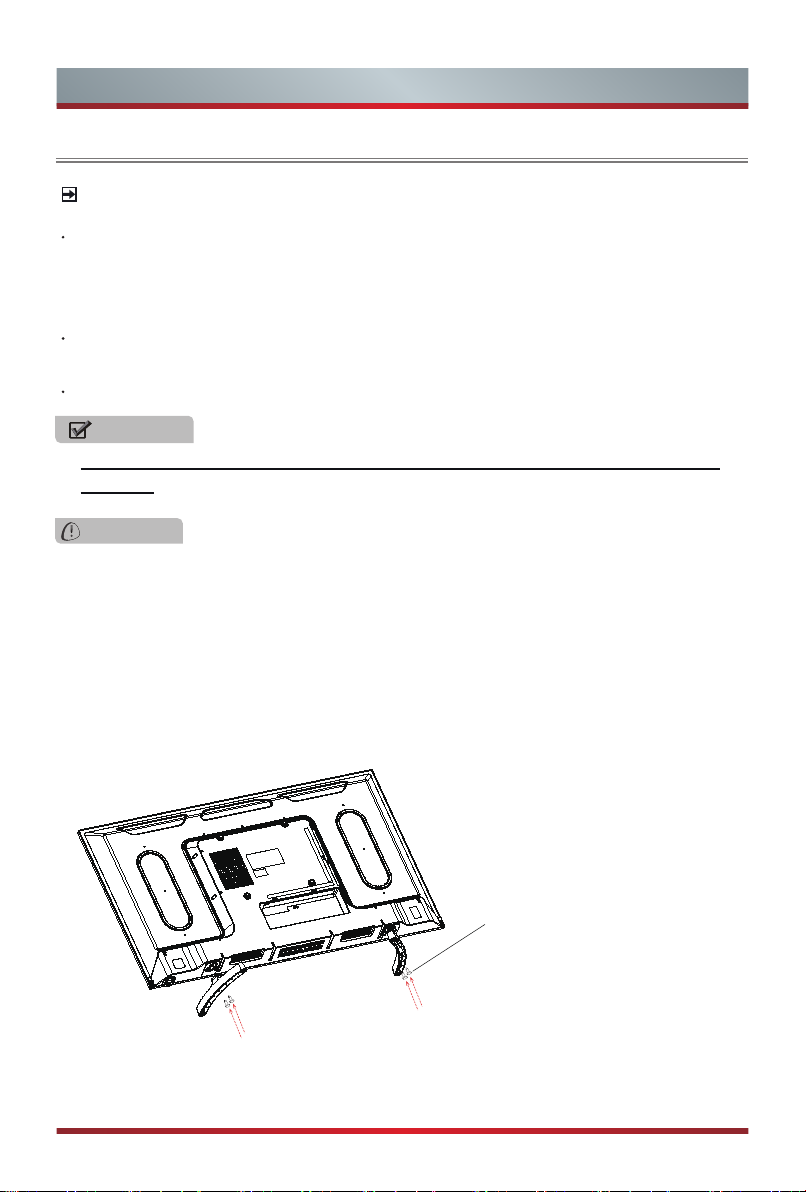

Follow the illustrations and textual instructions below to complete the installa-
tion steps:
1. Attach the stand to the TV set as shown in the picture.
2. Use the screws to fix the stand tightly.
40″ Screws: (ST4 × 14F) × 4
32″ Screws: (ST4 × 12F) × 4

3 English
TV Front
TV Front
NOTES
The Picture is Only for Reference.
Powering on the TV requires several seconds to load program. Do not rapidly turn
the TV off as it may cause the TV to work abnormally.
Item Description
Remote sensor
Receive remote signals from the remote control.
Do not put anything near the sensor, as its function may
be affected.
Remote indicator Red light up in standby mode. Blue light up in power on
mode.
Touch to select among the different signal sources.
STANDBY/ SOURCE
Press the button to turn on the TV,Press the button for a
few seconds to put the TV in standby mode.
Remote Sensor
Remote Indicator
STANDBY /

English 4
TV Rear
TV Rear
NOTES
The Picture is Only for Reference.
Check the jacks for position and type before making any connections. Loose
connections can result in image or color problems. Make sure that all connections
are tight and secure.
Not all A/V devices have the ability to connect to a TV, please refer to the user’s
manual of your A/V device for compatibility and connections procedure.
Before connecting external equipment, remove the mains plug
from the wall socket. This may cause electric shock.
TV Bottom Panel
TV Side View

English 5
Making Connections
HDMI Connect an HDMI cable from an external A/V equipment.
Some devices such as DVD player require HDMI signal to be set to output in the
device's settings. Please consult your device user manual for instructions.
Please note that the HDMI connector provides both video and audio signals, it’s
not necessary to connect an audio cable.
·Press [Source] button, when the list of Input Source appears, press [▲/▼] to
select the source [HDMI], then press [OK] to connect.
TV JACK
(not included) HDMI
DVD/Blu-Ray/AV receiver/
Set-top Box
HDMI

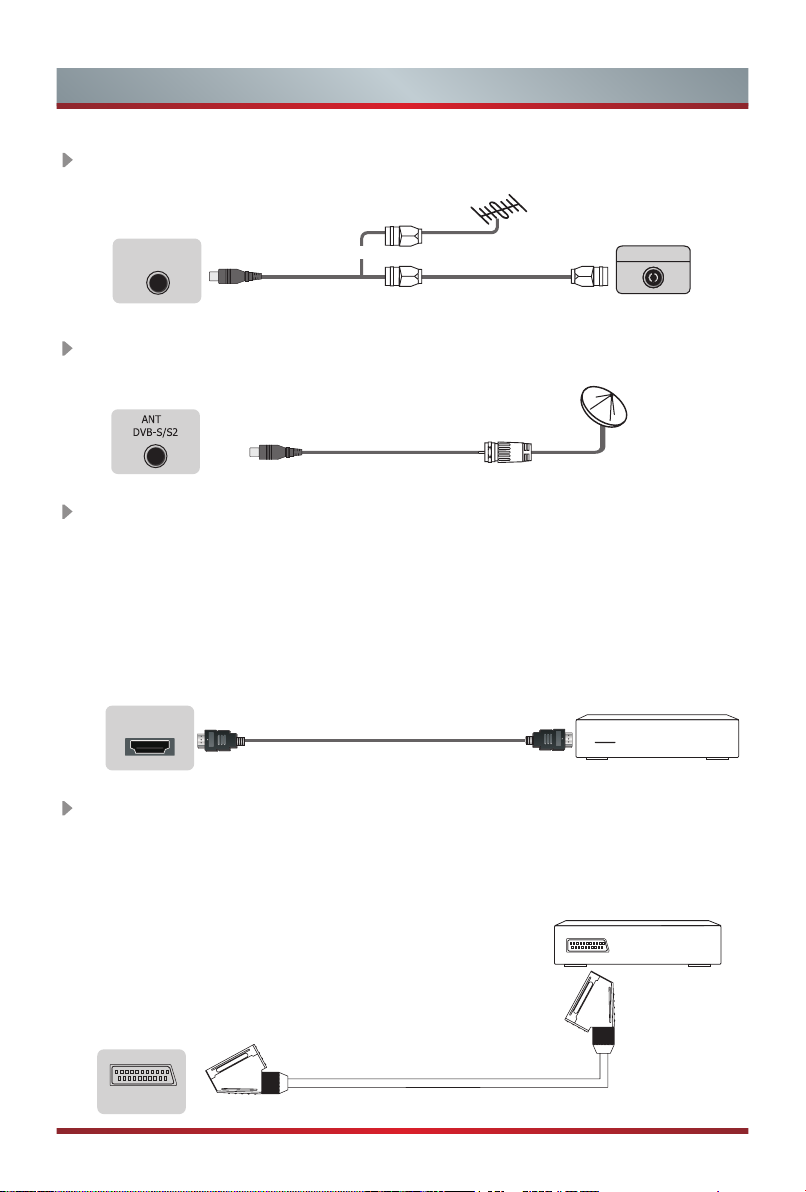

ANT1 Connect an outdoor VHF/UHF antenna or cable.
TV JACK
Outdoor
Antenna
Antenna Cable (75Ω)
or ANT OUT
Cable
VHF/UHF Antenna
ANT1
DVB-T2/C
(not included)
SCART Connect the Scart cable from an external A/V Device.
·Press [Source] button, when the list of Input Source appears, press [▲/▼] to
select the source [Scart] and press [OK] to connect.
TV JACK
VCR/DVD Player/Recorder/
Set-top box/Satellite Receiver
(not included)
SCART
ANT2 Connecting a satellite antenna.
TV JACK
2

6English
Making Connections
USB
Connect the USB devices such as hard drives, USB sticks and digital cameras for
browsing photos, listening music and watching recorded movies. At the same time
update is also an easy thing and will be done just by plugging the USB with the
updating files into the same interface.
NOTES
When connecting a hard disk or a USB hub, always connect the mains
adapter of the connected device to the power supply. Exceeding a total current
consumption may result in damage. The maximum current consumption is
500mA.
For individual non-standard high-capacity mobile hard disk, if it's impulse current
is greater than or equal 500mA, it may cause TV-rebooting or self-locking. So
the TV does not support it.
The USB port supports a voltage of 5V.
The maximum supported storage space of the hard disk is 1T.
If you want to store the video streaming of a DTV program, the transfer rate of
the USB storage device must not be less than 5MB/s. At lease a mobile storage
with more than 20G is required to Timeshift and record a 2.5 hour HD video.
TV JACK
PC Connect a VGA cable and an audio cable from the PC.
·Press [Source] button, when the list of Input Source appears, press [▲/▼] to
select the source [PC] and press [OK] to connect.
DC 5V 0.5A(MAX)
USB
(not included)
(not included)
PC
VGA AUDIO
Computer

7 English
Making Connections
COMMON INTERFACE
Insert the CI+ module for watching scrambled services like pay-tv channels or
some HD channels.
NOTES
Before you insert/remove the CI+ module, ensure that the TV is switched off.
Then insert the CI card into the CI+ module in accordance with the Service
Provider’s instructions.
Do not repeatedly insert or remove the Common Access Module as this may
damage the interface and cause a malfunction.
You must obtain a CI+ module and card from the service provider of the
channels you want to watch.
Insert the CI+ module with the SmartCard in the direction marked on the module
and SmartCard.
CI+ is not supported in some countries and regions; check with your authorized
dealer.
OPTICAL Connect to an external digital audio device.
Before connecting a digital audio system to the OPTICAL jack, you should
decrease the volume of both the TV and the system to avoid that the volume
suddenly become bigger.
TV JACK
OPTICAL cable (not included)
SMART CARD
CAM CARD
TV JACK
12
COMMON INTERFACE(CARD FACE FRONT)
HEADPHONE Connect Headphone for audio out of the TV.
TV JACK
Headphone (not included)
HEADPHONE

English 8
Making Connections

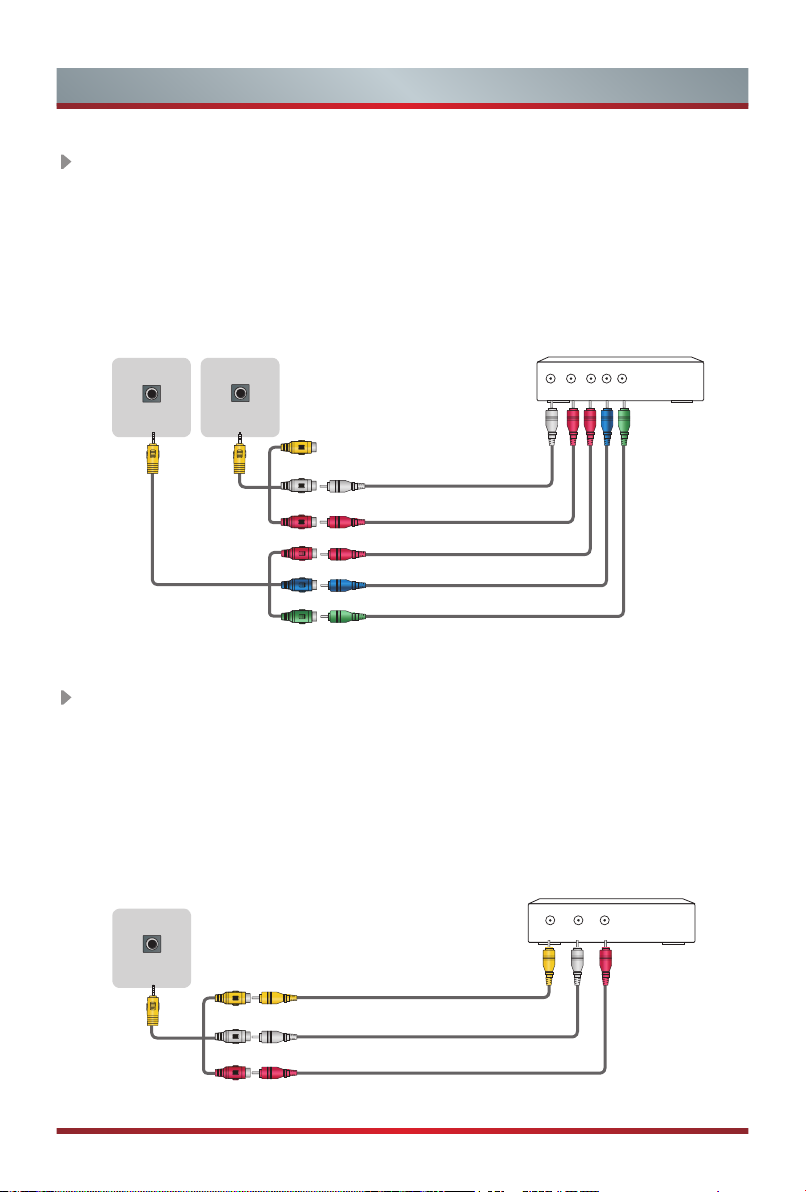

AV Connect the Composite cable from an external A/V Device.
Use the audio and video cables to connect the external A/V device’s composite
video/audio jacks to the TV’s jacks. (Video = yellow, Audio Left = white, and Audio
Right = red)
·Press [Source] button, when the list of Input Source appears, press [▲/▼] to
select the source [AV] and press [OK] to connect.
YPbPr Connect acomponent cable and an audio cable from an external A/V Device.
The component output ports Y, PBand PRon the VCD or DVD can sometimes be
identified as Y, CBand CR.
·Press [Source] button, when the list of Input Source appears, press [▲/▼] to
select the source [YPbPr] and press [OK] to connect.
TV JACK
TV JACK
VCR/DVD Player/
Recorder/Set-top box/
Satellite Receiver/Video Camera
Video L
A/V OUT
R
RL PRPBY
Component
VCR/DVD Player/Recorder/
Set-top box/Satellite Receiver/
Video Camera
AV/COMP(L/R)
AV/COMP(L/R)
COMP(Y/Pb/Pr)
Blue(PB)
Green(Y)
Red(PR)(not included)
(not included)
(not included)
Blue(PB/CB)
Green(Y)
Red(PR/CR)
White(L)
White(L)
Red(R)
Red(R)
(not included)
(not included)
(not included)
(not included)
(not included)
White(L)
White(L)
Yellow(Video)
Red(R)
Red(R)
Yellow(Video)
Yellow(Video)

English 9

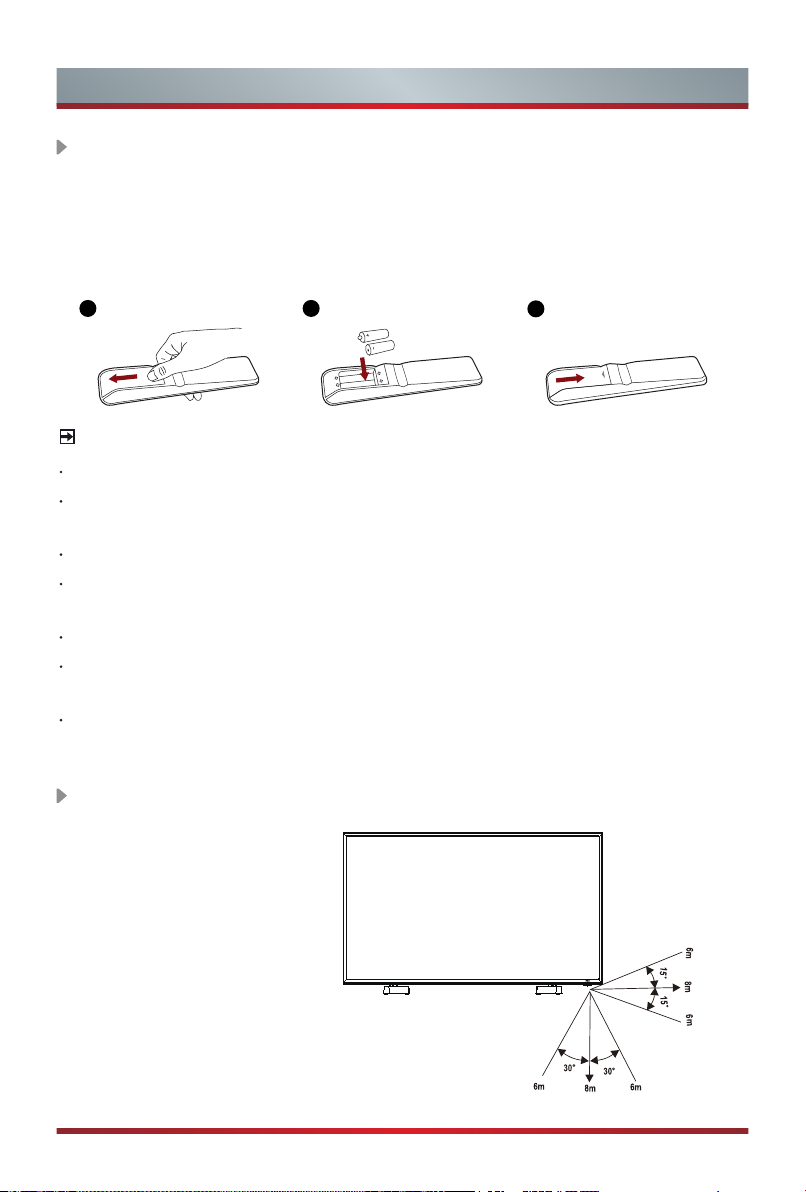

Remote Control
Remote sensing Window
Power button
Switch to DTV Radio
program
Available source selection
Zoom image
Mute the sound
Set the sleep time
Select Audio language
Display the subtitle content
of the signal
Fast access to your saved
favorite programs
Red, Green, Yellow and Blue
are used in media mode
Exit: Exit all menu display
Enter or confirm the
operation, ▲/▼/◄/► Up/
Down/Left/Right
Electronic program guide
Picture mode selecting
Volume Up / Volume Down
1,2,...numbers: For
direct channel access
To return to the last
view program
Text, Size, Reveal, Hold,
Index, Subpage (refer to
teletext function)
Play/ Pause, Stop, etc.
are used in media mode
Analog / Digital TV
Select USB-Digital Media
player mode
Mono/Stereo
operation,Audio select
button
Display the main menu/
Back menu display
Display informations
Channel Up/ Channel
Down
Sound mode selecting
Freeze picture
