Hisense LEDN32K300M User manual

English
Model:
LEDN32K300M

A B
snoitcurtsnIytefaStnatropmIsnoitcurtsnIytefaStnatropmI
The flash with the symbol of arrowhead,
inside an equilateral triangle alerts the
user about the presence of a dangerous
tension not isolated inside the product
which can be sufficiently powerful to
constitute a risk of electrocution.
The point of exclamation inside an
equilateral triangle alerts the user about
the presence of important operating
instructions and maintenance in the
document enclosed in the package.
Do not open the back cover.
In no case the user is allowed
to operate inside the TV set.
Only a qualified technician
from the manufacture is
entitled to operate.
Disposal of Used Electrical &ElectronicEquipment
The meaning of the symbol on the product, its accessory or packaging
indicates that this product shall not be treated as household waste.
Please, dispose of this equipment at your applicable collection point
for the recycling of electrical & electronic equipments waste. In the
European Union and Other European countries which there are separate
collection systems for used electrical and electronic product. By ensuring
the correct disposal of this product, you will help prevent potentially
hazardous to the environment and to human health, which could otherwise be caused
by unsuitable waste handling of this product. The recycling of materials will help
conserve natural resources. Please do not therefore dispose of your old electrical and
electronic equipment with your household waste. For more detailed information about
recycling of this product, please contact your local city of�ce, your household waste
disposal service or the shop where you purchased the product.
Please read the following safeguards for your TV and retain for future reference.
Always follow all warnings and instructions marked on the television.
1. Read, Retain, Follow All Instructions
Read all safeties and operations about the TV. Retain them safely for future reference.
Follow all operations and instructions accordingly.
2. Heed Warnings
Adhere to all warnings on the appliance and in the operating instructions.
3. Cleaning
Unplug the TV from the wall outlet before cleaning. Do not use liquid, abrasive, or
aerosol cleaners. Cleaners can permanently damage the cabinet and screen. Use a
soft dampened cloth for cleaning.
4. Attachments and Equipment
Never add any attachment and/or equipment without approval of the manufacturer as
such additions may result in the risk of fire, electric shock or other personal injury.
5. Water and Moisture
The apparatus shall not be exposed to dripping of splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus.
6. Setting
Do not place this TV on an unstable cart, stand or table. Placing the TV on an
unstable base can cause the TV to fall, result in serious personal injuries as well
as damage to the TV. Use only a cart, stand, bracket or table recommended by the
manufacturer or salesperson.
7. Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure reliable
operation for the TV and to protect it from overheating. Do not cover the ventilation
openings in the cabinet and never place the set in a confined space such as built-in
cabinet unless proper ventilation is provided. Leave a minimum 10 cm gap all around
the unit.
8. Power Source
This TV should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supplied to your home, consult
your appliance dealer or local power company.
9. Grounding or Polarization
This TV is equipped with a polarized alternating current line plug (a plug having one
blade wider than the other). This plug will fit into the power outlet only one way. This is
a safety feature. If you are unable to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the polarized plug.
Main plug is used as the disconnect device, the disconnect device shall
remain ready for operating.
Incorrect replacement of the battery may lead to the risk, including the
replacement of another similar or the same type. Do not expose batteries to
heat such as sun or fire or something like that.
The device should not be exposed to dripping and spraying and it can not
be placed under objects filled with liquids.

C D
snoitcurtsnIytefaStnatropmIsnoitcurtsnIytefaStnatropmI
10. Lightning
For added protection for this TV during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will protect the TV from damage due to lightning and
power-line surge.
11. Power Lines
An outside antenna system should not be located in the vicinity of overhead power
lines or other electric light or power circuits, or where it can fall into such power lines or
circuits. Where installing an outside antenna system, extreme care should be taken to
keep from touching such power lines or circuits as contact with them might be fatal.
12. Overloading
Do not overload wall outlets and extension cords as this can result in a risk of fire or
electric shock.
13. Object and Liquid Entry
Never push any kinds of object into this TV through openings as they may come up
against dangerous voltage points or short-out parts that could result in fire or electric
shock. Never spill any kinds of liquid on or into the TV.
14. Outdoor Antenna Grounding
If an outside antenna or cable system is connected with the TV, be sure the antenna
or cable system is grounded so as to provide protection against voltage surges
and built-up static charges. Section 810 of the National Electric Code, ANSI/NFPA
No. 70-1984,provides information with respect to proper grounding of the mast and
supporting structure, grounding of the lead in wire to an antenna discharge unit,
connection to grounding electrodes, and requirements for the grounding electrode.
15. Servicing
Do not attempt to service this TV yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
16. Damage Requiring Service
Unplug the TV from the wall outlet and refer servicingto qualified service personnel
under the following conditions:
(a) When the power - supply cord or plug is damaged.
(b) If liquid has been spilled, or objects have fallen into the TV.
(c) If the TV has been exposed to rain or water.
(d) If the TV operates abnormally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions as an improper
adjustment of other controls may result in damage and will often require extensive
work by a qualified technician to restore the TV to its normal operation.
(e) If the TV has been dropped or the cabinet has been damaged.
17. Replacement Parts
When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or have the same characteristics as
the original part. Unauthorized substitutions may result infire, electric shock or other
hazards.
18. Safety Check
Upon completion of any service or repair to the TV, ask the service technician to
perform safety checks to determine that the TV is in safe operating condition.
19. Heat
The product should be situated away from heat sources such as radiators, heat
registers, stoves, or other products (including amplifiers) that product heat.
20. Attention
Excessive sound pressure from earphones and headphones can cause hearing loss.

1 2
Contents
Getting Started
Installing the Stand...............................................................................2
Viewing the Control Panel ....................................................................3
Remote Control ....................................................................................5
Installing Batteries in Remote Control ..................................................5
Making Connections.............................................................................6
Shortcuts Instructions..........................................................................12
Ba
Other Information
sic Features
To Use the Menu .................................................................................14
Using the Channel Menu ....................................................................14

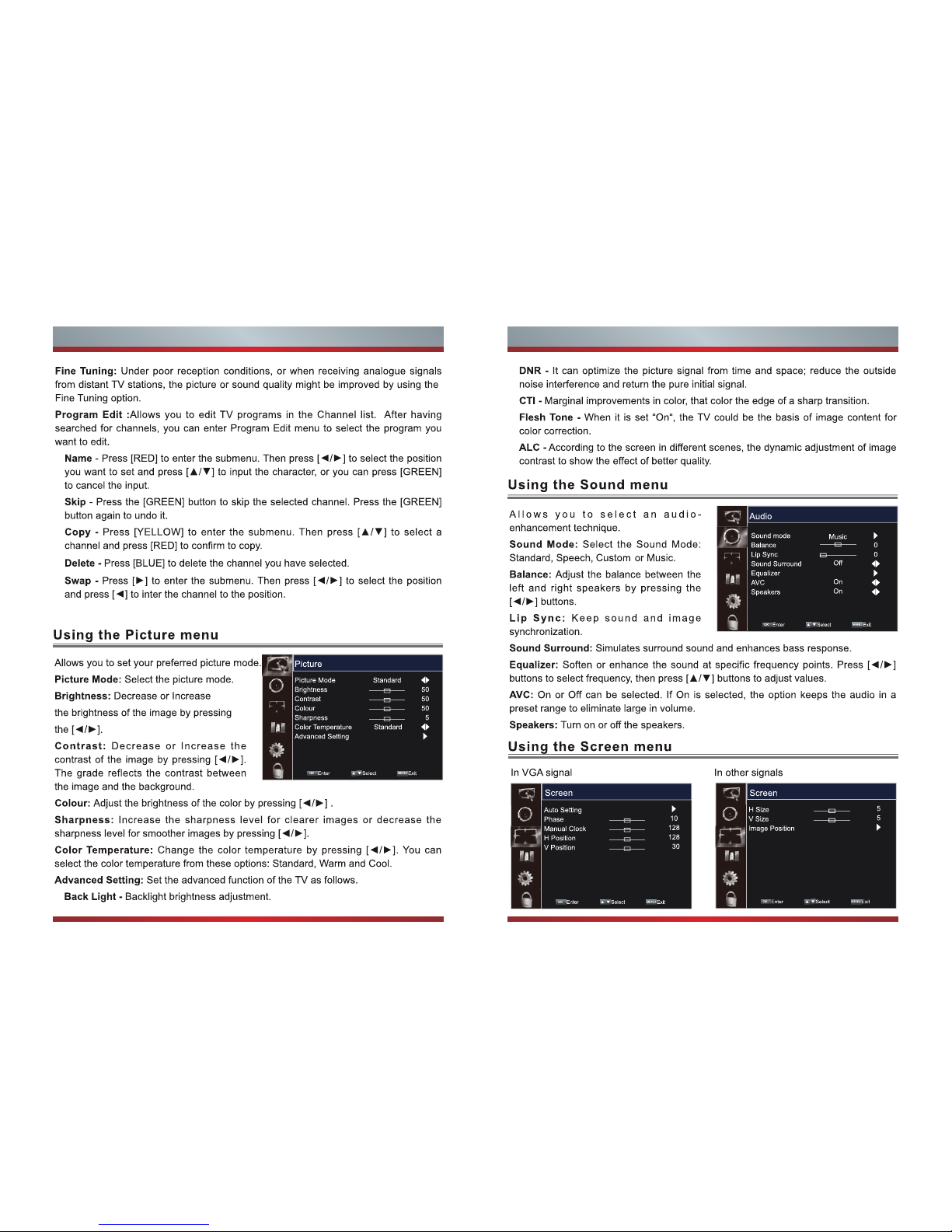

Using the Picture Menu .......................................................................15
Using the Sound Menu .......................................................................16

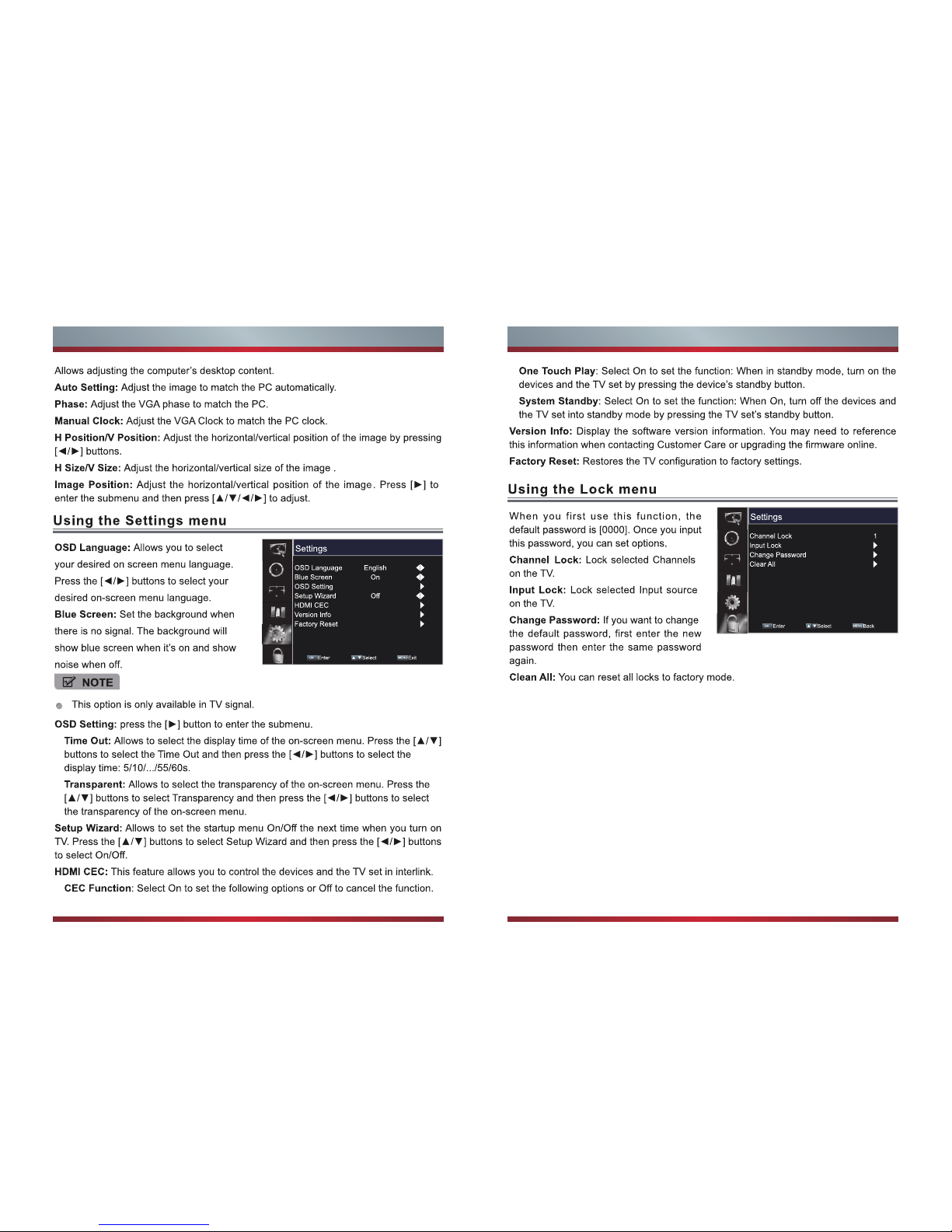

Using the Settings Menu .....................................................................17
Using the Screen Menu........................................................................16
Using the Lock Menu ........................................................................18
PC Setting ...........................................................................................19
Brief function introduction....................................................................19
Digital multimedia interface .................................................................20
Enjoy video files...................................................................................20
Enjoy mp3 audio files ..........................................................................22
Browse the JPEG pictures...................................................................22

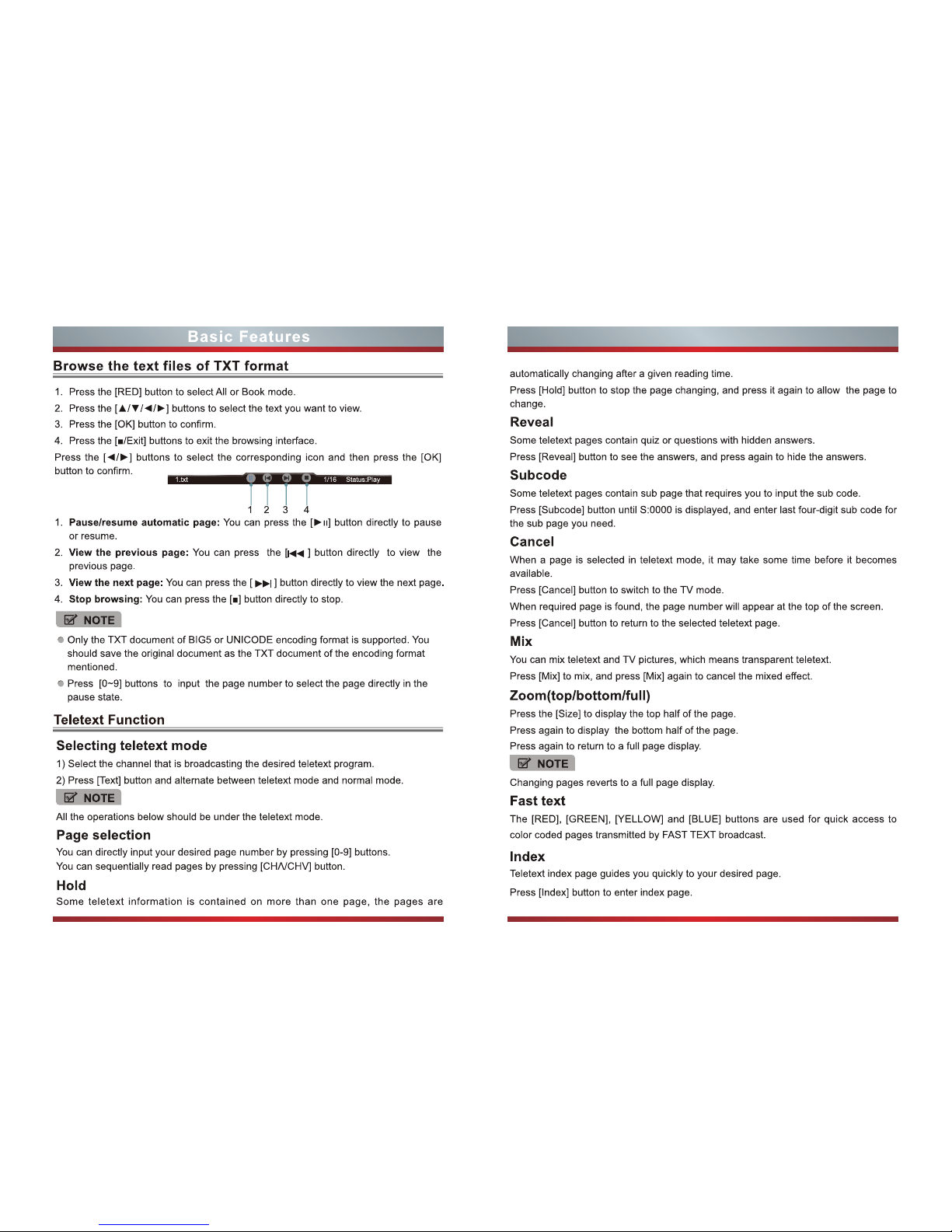

Browse the text files of TXT format .....................................................23
Teletext Function ................................................................................23
Trouble Shooting .................................................................................25
General................................................................................................26
Getting Started
Installing the Stand
NOTES
The LCD display is very fragile, and must be protected at all times when removing
the base stand. Be sure that no hard or sharp object, or anything that could scratch
or damage the LCD display, comes into contact with it. Do not exert pressure
on the front of the TV at any time because the screen could crack.
Follow the illustrations below to complete the installation steps:
1. Attach the stand to the TV set as shown in the picture.
2. Use the screws (ST4X12F)X4 to fix the stand tightly.
NOTES
WALL MOUNTING INSTALLATION GUIDELINES
Please refer to the Wall Bracket Installation Instruction(inside the Wall Bracket Box)

3 4
Getting Started
Viewing the Control Panel
Remote Sensor
Remote Indicator
AC Power ON/OFF
POWER
MENU
SOURCE
CH
V
CH
V
VOL
V
VOL
V
Remote Sensor
Receives remote signals from the remote control.
Do not put anything near the sensor, as its function may be
affected.
Remote Indicator Red light up in standby mode. Blue light up in power on mode.
MENU Open the OSD menu
SOURCE Select among the different signal sources.
CH
V
/
V Select the channel
VOL
V
/ V
Adjust the volume.
POWER Turn on the TV or put the TV in standby mode.
Getting Started

5 6
Getting Started
Installing Batteries in the Remote Control
1. Slide the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends of the
batteries with the (+) and ( - ) ends indicated in the battery compartment.
3. Close the battery compartment cover.
1Gently push and slide
Change the batteries
2Insert the batteries 3Gently push and slide
NOTES
1. Dispose of your batteries in a designated disposal area. Do not throw the batteries
into a fire.
2. Do not mix battery types or combine used batteries with new ones.
3. Remove depleted batteries immediately to prevent battery acid from leaking into
the battery compartment.
4. If you do not intend to use the remote control for a long time, remove the batteries.
5. Batteries should not be exposed to excessive heat, such as sunshine, heat
registers, or fire.
6. Battery chemicals can cause a rash. If the batteries leak, clean the battery
compartment with a cloth. If chemicals touch your skin, wash immediately.
7. Do not mix old and new batteries.
Getting Started
Making Connections
Item Description
ANT CABLE Connect an antenna or cable TV to this jack.
HDMI HDMI (High-Definition Multimedia Interface)provides an
uncompressed.Support: 480i\480p\576i\576p\1080i\1080p
COMP
Connect to a DVD player, Digital Set-Top-Box, or other A/
V devices with component (YP
B
P
R
) video and audio output
jacks.
Component audio Jack share AV IN audio Jack.
Support: 480i\480p\576i\576p\1080i\1080p
AV IN Connect to the composite video and audio (L/R) output
jacks on external video devices.
VGA
PC AUDIO IN Connect to a PC or other devices with a VGA interface.
HEADPHONE Connect headphone for private listening.
COAXIAL Connect to an external digital audio device.
USB Video , MP3, Jpeg play and software update.
HDMI1 HDMI2 HDMI3 PC AUDIO VGA ANT HEADPHONE USB
Remote Control

7 8
Getting Started
NOTES
Check the jacks for position and type before making any connections. Loose
connections can result in image or color problems. Make sure that all connections
are tight and secure.
Not all A/V devices have the ability to connect to a TV, please refer to the user
manual of your A/V device for compatibility and connections procedure.
Always unplug the power cord when connecting external equipment.
Connect to broadcast antenna or the cable TV
1. To have an optimal picture quality, it is strongly recommended to have an external
antenna or a cable TV.
NOTES
It is recommended that coaxial cable (75Ω) be used to eliminate the interference
caused by the mismatched impedance.
The antenna cable should not be bound together with the power cord.
When using the cable TV, please insert the plug of the coaxial cable (75 Ω) directly
into the antenna outlet.
TV JACK
ANT 75
Connect to devices with USB interface
1. This unit has standard USB interface and can be connected to the standard USB1.1
and USB2.0 disks.
2. You can either use the USB connection cord or directly insert the USB into the USB
port at the side of the TV.
TV JACK
USB
Making Connections
Connecting Component Devices (DVD/PVR)
1. Component video(Y, Pb, Pr)transmits video as separate Y, Pb, Pr signals. Use this
connection for high-definition video signals from a DVD or other equipment.
2. Connect Component inputs (“PR ”,“PB ”, “Y”) and audio(R/L) of your set with
Component video and audio cables to the corresponding component video and
audio (R/L)out connectors on the PVR or DVD. Component audio Jack common AV
IN audio Jack.
Connect to AV devices
1. Connect video terminal to an appropriate external terminal on A/V device such as
a VCR, DVD or Camcorder with a video cable.
2. Connect“R -AUDIO - L” on your set to the corresponding audio terminal with audio
cables on the A/V device.
Equipment with A/V jacks
DVD Player/Recorder
Video
Camera
EXTERNAL DEVICES
Set-top box
Satellite Receiver
Satellite
antenna
cable
VCR
TV JACK
A/V OUT
White(L)White(L)
Yellow(Video)Yellow(Video)
Red(R)Red(R) AV Cable
(not included)
VIDEO LR
AV IN
VIDEO LR
AV OUT
Y PBPR
COMP
LR
Equipment with A/V jacks
Video
Camera
EXTERNAL DEVICES
Satellite
antenna
VCR
White(L)
White(L)
Red(R)
Red(R) Audio Cable
(not included)
Component Cable
(not included)
TV JACK
Component
R
L
PR
PB
Y
PR/CR
PR/CR
PB/CB
PB/CB
Y
Y
Getting Started

9 10
NOTE
The “Y, PB and PR ” connectors on your component devices (PVR or DVD) are
sometimes marked with Y, B-Y and R-Y or Y, CB and CR. (Colors for inputs and
cables must correspond on both devices.)
Getting Started
NOTE
The HDMI connector provides both video and audio signals, it’s not necessary to
connect the audio cable.
Connect to devices with HDMI interface
Support digital connections between HDMI - enabled AV devices such as PVR,
DVD, Blu-Ray, AV receiver and digital devices.
Some devices such as PVR or DVD player require HDMI signal to be set to output
in the device's settings.
Please consult your device user manual for instructions.
1. Use an HDMI cable to connect the A/V device’s HDMI output jack to the TV’s HDMI
jack.
2. Plug the connected devices into the mains socket before switching on the TV .
3. Select the corresponding source from the TV.
HDMI
HDMI
TV JACK
EXTERNAL DEVICES
DVD Player/Recorder
Set-top box
Equipment with HDMI jacks
HDMI Cable
(not included)
Connecting a PC with VGA Cable
1. Use a VGA cable to connect the PC’s VGA output jack to the TV’s VGA jack. Use
an audio cable to connect the PC’s audio output jack to TV’s PC AUDIO IN jack.
2. Plug the connected devices into the mains socket before switching on the TV.
3. Select the corresponding source from the TV.
Getting Started
EXTERNAL DEVICES
Computer
TV JACK
VGA PC AUDIO IN
Audio Cable
(not included)
VGA Cable
(not included)
NOTES
Primarily this unit is intended for use as an LCD TV. If you want to use it as a
monitor, please contact the manufacturer of the PC Video/Graphic's card for further
support. Perfect compatibility is not warranted.
The VGA cable will not be supplied with the product.
We strongly recommend to use VGA cable with 2 cores as shown in the figure.
COAXIAL audio
1. Use a coaxial cable to connect the A/V device’s digital audio in jack to the TV’s
DIGITAL AUDIO OUT jack.
2. Plug the connected devices into the mains socket before switching on the TV.
3. Select the corresponding source from the TV.
TV JACK
EXTERNAL DEVICES
Powerless
Bass Speaker
Speaker
Audio Amplifier
COAXIAL
Coaxial Cable
(not included)
NOTE
When a digital audio system is connected to the DIGITAL AUDIO OUT (COAXIAL)
jack, decrease the volume of both the TV and the system.
Connecting a headphone
Headphones can be connected to the HEADPHONE output on your set. (While the

11 12
Getting Started
headphone is connected, the sound from the built-in speakers will be disabled.)
NOTE
To prevent possible hearing damage, do not listen at high volume levels for long
periods
HEADPHONE
EXTERNAL DEVICESTV JACK
Getting Started

13 14
Getting Started
Selecting the picture mode
Press [Picture] one or more times to select the picture mode which you want. You
can select Standard, Bright, Soft, Vivid and Custom (a mode that you defined) mode.
Selecting the aspect ratio
Setting the sleep timer
Press [Zoom] to select the aspect ratio among Normal, Auto, Zoom1, Zoom2,
Panoramic and Full.
1. You can specify the time you want your TV to wait before it automatically turns off.
Press [Sleep] one or more times until the remaining time which you want appears.
2. You can select Off, 10 Min, 20 Min, 30 Min, 40 Min, 50 Min, 60 Min, 70 Min, 80 Min,
90 minutes, 100 Min, 110 Min, 120 Min.
NOTE
The option of aspect is varies with different source.
NOTE
If there are no input signal, the TV set will turn to standby mode automatically after
about 15 minutes.
Basic Features

15 16
Basic Features Basic Features

17 18
Basic Features Basic Features

19 20
Basic Features Basic Features

21 22
serutaeFcisaBserutaeFcisaB
All

23 24
serutaeFcisaB

25 26
TroubleShooting
Other Information
When there is something wrong with your TV, you can try turning off the TV
and then restart it. You can also operate according to the following chart. If the
problem still cannot be solved,please contact the professional technicians.
SYMPTOMS POSSIBLE SOLUTIONS
No sound or picture.
Check if the power line is in the outlet and if it has
electricity.
Check if you have pressed Power button on the TV or
Power button on the remote control.
Check the setting of picture brightness and contrast.
Check the volume.
The picture is normal
but there is no sound.
Check the volume.
Check if Mute mode is set.
No picture and white
or black picture.
Adjust Picture Setting.
Check Color System.
The sound and
picture are interfered.
Try to find the appliance affecting TV set, and move it
far away from the TV set.
Try to insert the power plug of the TV set into another
outlet.
Unclear picture or
picture with snow.
Check the direction, position and connection of your
antenna.
Adjust the direction of your antenna or reset or fine
tune the channel.
The remote control
does not work.
Change the batteries in the remote control.
Clean the upper side of the remote control.(radiating
window)
Check the contacting points of the batteries.
Check if there is obstruction between the remote
control and the monitor.
Check if the batteries are correctly installed.
SYMPTOMS POSSIBLE SOLUTIONS
H/V strip or the
picture shaking.
Check if there is interfering source nearby, such as
appliance or electric tools.
The cabinet of the TV
makes “Click” sound.
Sometimes the room temperature change can cause the
television cabinet to inflate or contra, which makes the
sound. This does not mean the TV breaks down.
Other Information
Dimension
With Stand
Width: 755 mm
Height: 512 mm
Depth: 180mm
Without Stand
Width: 755 mm
Height: 463 mm
Depth: 70 mm
Weight Without Stand 7.5 kg
With Stand 9 kg
LCD Panel Minimum size
(diagonal) 32 inches
Screen resolution 1366 × 768
Audio power 8 W + 8 W
Power consumption 50W
Power supply
USB supply
100--240 V ~ 50 / 60 Hz
DC 5V, Max 500mA
Receiving
systems Analog PAL SECAM
Environmental conditions
Temperature: 5°C~ 45°C
Humidity: 20%-80% RH
Atmospheric pressure: 86 kPa - 106
kPa
General
NOTE
Features, appearance and specifications are subject to change without notice.
