Hisense HHO60TAMI Mounting instructions

MODEL NO.: HO60 AMIH T

CONTENT
SAFETY INSTRUCTIONS…………………………………..…………………1
…………………………………..………3INSTALLATION (VENT OUTSIDE)
START USING YOUR CHIMNEY EXTRACTOR……………………………8
TROUBLESHOOTING…………………………………..……………………9
MAINTENANCE AND CLEANING…………………………………..………9
ENVIRONMENTAL PROTECTION…………………………………..………12
WARRANTY CONDITIONS…………………………………..………………13

1
SAFETY INSTRUCTIONS
Never to do:
●
Always to do:
●
This manual explains the proper installation and use of your chimney extractor, please read
it carefully before using even if you are familiar with the product. The manual should be
kept in a safe place for future reference.
Do not try to use the chimney extractor
without the grease filters or if the filters are
excessively greasy!
Do not install above a cooker with a high
level grill.
Do not leave frying pans unattended during
use because overheated fats or oils might
catch fire.
Never leave naked flames under the
chimney extractor.
If the chimney extractor is damaged, do not
attempt to use.
Do not flame under the chimney extractor.
CAUTION: Accessible parts may become
hot when used with cooking appliances.
The minimum distance between the
supporting surface for the cooking vessels
on the hob and the lowest part of the
chimney extractor. (When the chimney
extractor is located above a gas appliance,
this distance shall be at least 65 cm)
The air must not be discharged into a flue
that is used for exhausting fumes from
appliances burning gas or other fuels.
Important! Always switch off the electricity
supply at the mains during installation
and maintenance such as light bulb
replacement.
The chimney extractor must be installed
in accordance with the installation
instructions and all measurements
followed.
All installation work must be carried out
by a competent person or qualified
electrician.
Please dispose of the packing material
carefully. Children are vulnerable to it.
Pay attention to the sharp edges inside
the chimney extractor especially during
installation and cleaning.
When the chimney extractor is located
above a gas appliance,the minimum
distance between the supporting surface
for the cooking vessels on the hob and
the lowest part of the chimney extractor
that distance must be:
Gas cookers: 75 cm
Electric cookers: 65 cm
Coal or oil cookers: 75 cm
Make sure the ducting has no bends
sharper than 90 degrees as this will
reduce the efficiency of the chimney
extractor.
Warning: Failure to install the screws or
fixing device in accordance with these
instructions may result in electrical
hazards.
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●

Always to do:
Always put lids on pots and pans when
cooking on a gas cooker.
When in extraction mode, air in the room is
being removed by the chimney extractor.
Please make sure that proper ventilation
measures are being observed. The
chimney extractor removes odours from
room but not steam.
Chimney extractor is for domestic use only.
●
●
●
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
th e a p p l i a n ce i n a s a f e wa y a n d
understand the hazards involved. Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made
by children without supervision.
●
●
Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.
●
●Caution: The appliance and its accessible
parts can become hot during operation.
Be careful to avoid touching the heating
elements. Children younger than 8 years
old should stay away unless they are
under permanent supervision.
There shall be adequate ventilation of the
room when the chimney extractor is used
at the same time as appliances burning
gas or other fuels.
There is a fire risk if cleaning is not
carried out in accordance with the
instructions
Regulations concerning the discharge of
air have to be fulfilled.
Clean your appliance periodically by
following the method given in the chapter
MAINTENANCE.
For safety reason, please use only the
same size of fixing or mounting screw
w h i c h a r e r e c o m m e n d e d i n t h i s
instruction manual.
Regarding the details about the method
and frequency of cleaning, please refer to
maintenance and cleaning section in the
instruction manual.
Cleaning and user maintenance shall not
be made by children without supervision.
When the c h i mney e xtract o r and
appliances supplied with energy other
than electricity are simultaneously in
operation, the negative pressure in the
room must not exceed 4 Pa (4 x 10-5
bar).
Always to do:
●
●
●
●
●
●
●
●
2

INSTALLATION (VENT OUTSIDE)
This appliance must be installed by a qualified electrician.
If you have an outlet to the outside, your chimney extractor can be connected as below picture
by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with
an interior diameter of 150mm)
1. Before installation, turn the unit off and unplug it from the outlet.
2. The chimney extractor should be placed at a distance of 65~75cm above the cooking plane
for best effect.
3. Attention! Observe the warning in the instruction sheet concerning the operation of the
appliance when air is discharged from the room.
When the range hood and appliance supplied with energy other than electricity are
simultaneously in operation, the negative pressure in the room must be not exceed 4 Pa
(4×10-5 Bar)
Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall
with the screws & screw plugs provided.
3

4. Put the cooker hood on the hook. See Pic 3.
4
Screw plug
Wall bracket
Screw
(4mm x30mm)
Holes on wall
Pic 2
Pic3
5.By Put the inner chimney into upper chimney .Then pulling out the upper chimneyupwards.
Adjust to reach the height required.See Pic 4
6.Fix the lower chimney with 2 pcs of 4x8mm screws.See Pic 5
Pic 4
Pic 5
Note: The two safety vents are positioned on the back housing.

5

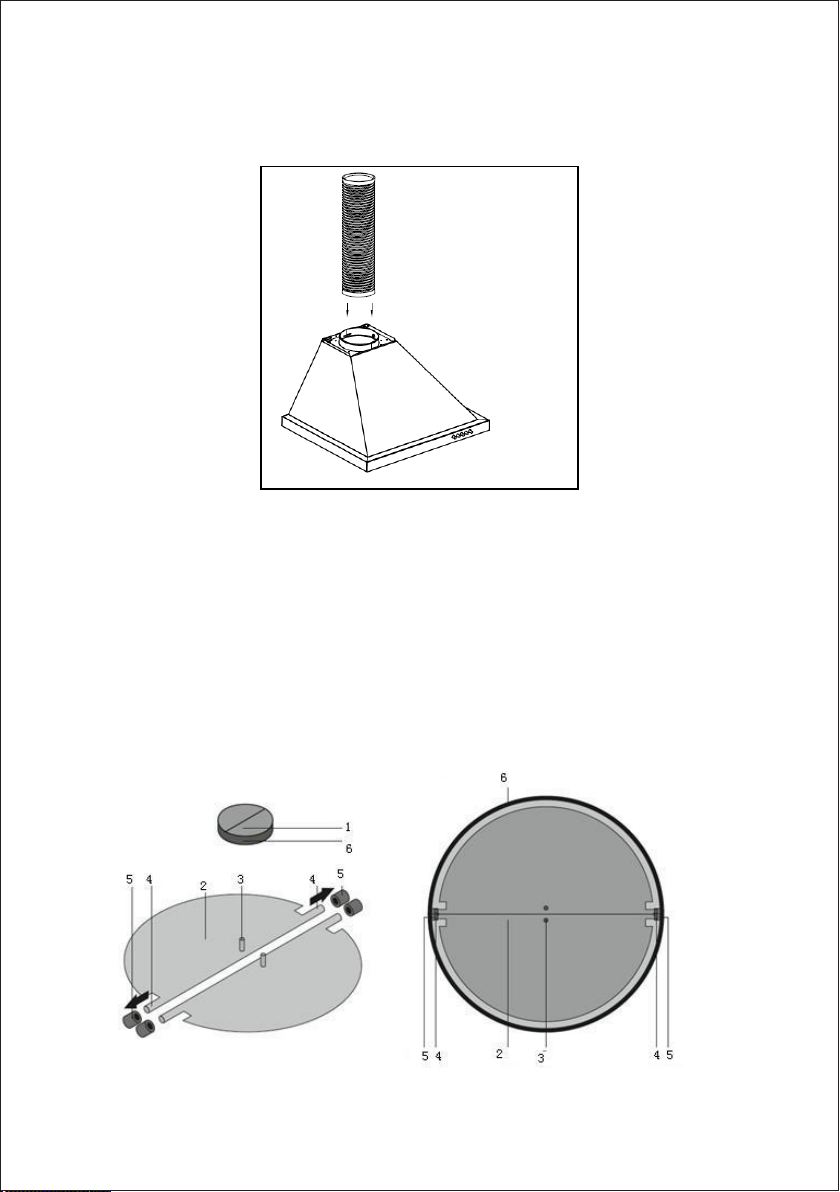

If the chimney extractor does not have an assembled V-flap 1, you should mount the half-parts
to the its body.
To mount the V-flap 1 you should:
Mount two half-parts 2 into the body 6;
a pin 3 should be top oriented;
the axis 4 should be inserted in the holes 5 on body;
repeat all the operations for the 2nd half-part.
MOUNTING OF THE V-FLAP
●
●
●
●
7.Lay the expansion pipe to the wall outlet. Fix the expansion pipe with the cable tie on the
wall-outlet.See Pic 6
Pic 6

6
Installation (Vent inside)
If you do not have an outlet to the outside, exhaust pipe is not required andthe installation is
similar to the one show in section “Installation (Vent outside)”.
HINTS FOR EXHAUST DUCT INSTALLATION
The following rules must be strictly followed to obtain optimal air extraction:
Keep expansion pipe short and straight.
Do not reduce the size or restrict expansion pipe.
When using expansion pipe always install the pipe pulled taut to minimize pressure loss.
Failure to observe these basic instructions will reduce the performance and increase noise
levels of the chimney extractor.
Any installation work must be carried out by a qualified electrician or competent person.
Do not connect the ducting system of the hood to any existing ventilation system which is
being used for any other appliance ,such as warmer tube, gas tube , hot wind tube.
The angle of the bend of the expansion pipe should not be less than 120º; you must direct
the pipe horizontally, or, alternatively, the pipe should go up from the initial point and
should be led to an outer wall.
After the installation ,make sure that the chimney extractor is level to avoid grease
collection at on end.
Ensure the expansion pipe selected for installation complies with relevant standards and is
fire retardant.
●
●
●
●
●
●
●
●
●

7
CARBON FILTER-buy separately
Activated carbon filter can be used to trap odors. Normally the activated carbon filter should
be changed at three or six months according to your cooking habit. The installation procedure
of activated carbon filter is as below.

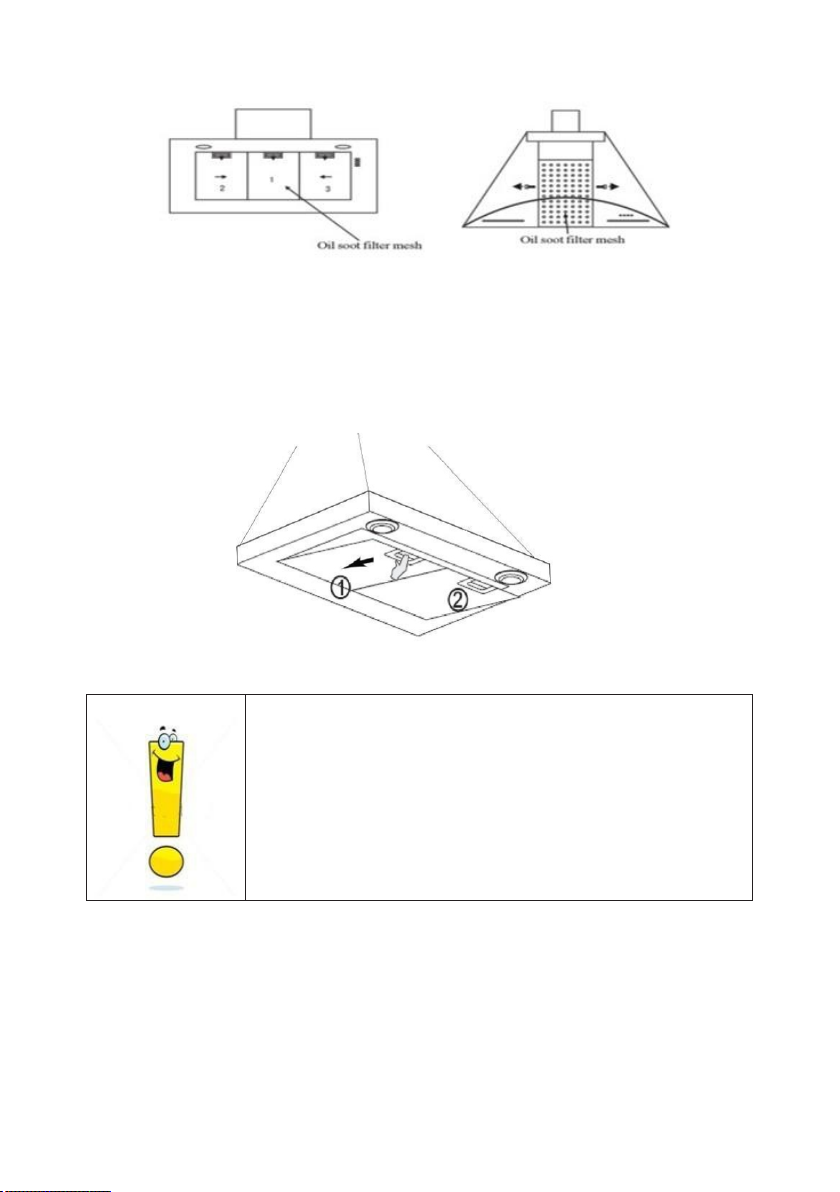

In order to install the activated carbon filter, the aluminium filter should be detached first.
Firstly open carefully the stainless steel cover, then press the lock of aluminium filter and
remove it.
NOTE:
Make sure the filter is securely locked. Otherwise, it would loosen and cause
dangerous.
When activated carbon filter attached, the suction power will be lowered.
●
●
WARNING:
For safety reason, please use only the same
size of fixing or mounting screw which are
recommended in this instruction manual.
Failure to install the screws or fixing device
in accordance with these instructions may
result in electrical hazards.
●
●

8
START USING YOUR CHIMNEY EXTRACTOR
Push button/Electronic button 1
Off button
It's used for turning off the fan.
Low Speed button
It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do
not make much steam.
Medium Speed button
Airflow speed is ideally for ventilation in standard cooking operation.
High Speed button
When high density of smoke or steam produced, press high-speed button for highest
effective ventilation.
Light button
