Hitachi G 10SG User manual

MODELS G 10SG/G 12SG
1. PRECAUTIONS IN DISASSEMBLY AND REASSEMBLY
The [Bold] numbers in the descriptions below correspond to the numbers in the Parts List and exploded
assembly diagram for G 10SG and the numbers <Bold> to those in the Parts List and exploded assembly
diagram for G 12SG.
1-1. Disassembly
1-1-1. Replacement of theArmature and Stator
(1) Remove the Brush Caps [47] <46> and take off theCarbon Brushes [48] <47>.
(2) Loosenthefour D5 x25Tapping Screws [1] <1> which fix the Gear Cover Ass'y [4] <4>, andtakeoff
Inner Cover [9] <9>together with the Armature [10] <10> from theHousing Ass'y [38] <38>.
At this time, make sure that the Rubber Bushing [16] <16> is fitted in the housing ball bearing chamber.
If the Rubber Bushing comes off the housing ball bearingchamber or adheres tothe Ball Bearing [15]
<15> reassemble the disc grinder according to 8 - 2. Reassembly.
(3) Loosen the two Tapping Screws (W/Flange) D4 x45 [58] <57> securing the Tail Cover [55] <54> and
remove the Tail Cover [55]<54>.
(4) Remove thefour internalwires from the Stator [13] connected with the Brush Holder [49] <48>, the Pillar
Terminal [44]<44>(or Connector [45]) and the Switch [50] <49>.
(5) Loosen the two Hex. Hd. Tapping Screws D4 x 70 [12] <12> securing the Stator [13] <13> and remove
the Stator [13] <13> from the Housing Ass'y [38] <38>. Ifyou have any trouble with removing the Stator
[13] <13>, heat the Housing Ass'y [38] <38> to about 60 C for easier dismantling.
1-1-2. Replacement of theRubber Busing
Insert the J-201 Spring HookH - 75 (Special Repair Tool) betweenthe RubberBushing [16] <16>
assembled in the Housing Ass'y [38] <38>and the housing ball bearing chamber and pull outthe
Rubber Bushing [16] <16>.
1-1-3. Replacement of theDust Seal
(1) Insert the hooks of the J-204 Bearing Puller (Special Repair Tool, Code No. 970982) between the Ball
Bearing [15] <15> and the Dust Seal [14] <14> and fix the hooks with the wing bolts.Be careful not to
insert thehook too much.
(2) Put the Bearing Puller on an appropriate stand. Push down the armature shaft with a hand press and
pull out the Ball Bearing [15] <15>.
(3) Pull out the Dust Seal[14] <14> from the armatureshaft.
−1−

1-1-4. Disassembly of the Pinion and Gear
(1) Loosen the M7 Special Nut[5] for G 10SG (M6
Special Nut <5> forG12SG)on theArmature [10]
<10>, and removethePinion[6] <6>.
(2) Loosen the four M4 x 12 Seal Lock Screws[24]
<24>which fix the Packing Gland [23]<23>, and
remove the Gear Cover Ass'y [4] <4>.
(3) As illustrated in Fig. 5, support the outer
circumferenceof the Gear[18] <18> with a J-129
Gear Puller
(Special Repair Tool, Code No. 970905), and push
down on the upper portion of the Spindle[26] <27>
with a hand press to separate the Gear [18] <18>
from theSpindle[26] <27>.
1-2. Reassembly
Put the parts together in the reverse order of disassembly, with the precautions given below.
(1) Generously lubricatetheteethofGear [18] <18> and Pinion [6] <6> with grease.Rubgrease onto the
teeth with yourfingers so that the grease reaches each tooth bottom. Note that the Gear[18] <18>and
Pinion [6] <6>if under-lubricated may wear at an faster rate.
(2) Be sure to soak the inner diameter of the Felt Packing [22] <22> with machineoil. Otherwise, its
dust-sealing function will fail to work properly, resulting in anearlier damage of the Ball Bearing [21] <21>.
(3) When replacing the ArmatureAss'y [10] <10>and the Ball Bearing [15] <15> on the commutator side,
press inward on the Dust Seal[14] <14> while taking care of itsdirection until the end face of the Dust
Seal [14] <14>hits against the a butting surface of the Armature Ass'y [10] <10> and make sure that Dust
Seal [14] <14> cannotturn freely. Keep the end face of the armature shaft approximately 0.2mm
(reference) distance inward of the end face of the Ball Bearing [15]<15>. (SeeFig. 6)
The Dust Seal [14] <14> is an important element for improved dust protection of the Ball Bearing [15]
<15>. Be sure to use a new one upon replacement.
Fit the Rubber Bushing [16] <16> into the housing ball bearing chamber before installing the Armature
Ass'y [10] <10>. (SeeFig. 7)
−2−

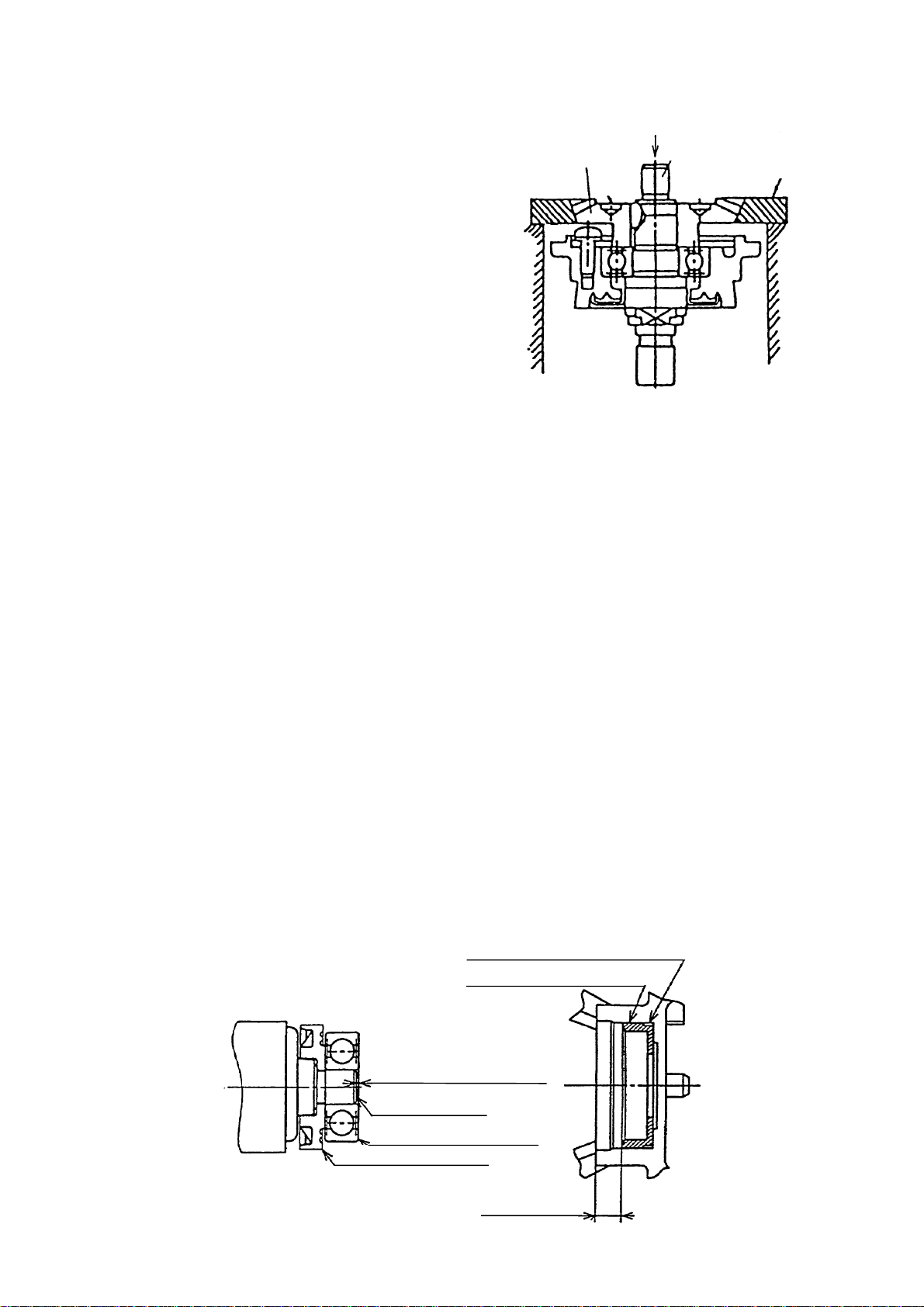

[18] J-129 Gear Puller
Fig. 5
[26]
<18> <27>
About 0.2mm (reference)
Armature shaft
Ball Bearing[15] <15>
Dust Seal [14] <14>
Fig. 6
Housing ball bearing chamber
Rubber Bushing [16] <16>
About 4.5mm
Fig. 7

(4)When installing the Stator[13] <13> into the Housing Ass'y[38] <38>, insert it while takingcare of the
placement of the internal wires of the Stator [13] <13> as indicated in Fig. 8.
Connect the four internal wires of Stator [13] <13> with the parts indicatd in Fig. 8
(5) When connecting the Earth Terminal [40] <40> to the internal wire (the middle wire among three) of the
Noise Suppressor[42] <42>, strip theinsulation sheath on the internal wire by about 6 mm andpress
connect it together with the Earth Terminal [40]<40>with a clamping tool on the market.
(6) When replacing the Gear Cover Ass'y [4] <4>, lubricate the metal part with mixed oil.
Mixed oil: Mixture of Hitachi power tool grease No. 2 (Unilube No.00) and tubine oil
* Mixure ratio....1:1(weight ratio) * Volume....0.5cc
−3−
Connect to the Brush Holder
[49] <48> (onthesamesideas the
Name Plate[39] <39>.)
Connect to the Brush Holder
[49] <48> (on the samesideas the
Hitachi Label [46] <45>.)
Connect to the Cord [59] <58> with a Pillar
Terminal [44] <44> or clamp totheCord [59]
<58>with a Connector [45].
Fig. 8
Both the internal wire of the Noise
Suppressor [42] <42> and this wire
are connected to the Terminal [41]
with solderless connection and
connect it totheSwitch[50] <49>
(if the Noise Suppressor [42]is not
used, connect this internal wire to
the Switch [50] <49> After
clamping the Terminal [41] <41>
with solderless connection.
Fig. 9
Solderless connection

1-3. Lubrication Points andTypes ofLubricant
* Pinion chamber of Gear Cover Ass'y [4] <4>...........Nippekogrease (SEP-3A) 10 g
* Metal...................................................................Mixedoil 0.5cc
Mixed oil: Mixture of Hitachi power tool grease
No.2
(Unilube No. 00) and turbine oil
Mixture ratio.....1:1(weight ratio)
1-4. Tightening Torque
D4 Tapping Screw [12] <12> [53] <52> [58] <57>........2.00.5 Nm (20 5kgfcm, 1.50.4ft-lbs)
M4 Slotted Hd. Screw (Seal Lock) [7] <7>.....................1.80.4 Nm (18 4kgfcm, 1.30.3 ft-lbs)
M4 Seal Lock Screw (W/SP. Washer)[19] <19> [24] <24>
........................1.80.5 Nm (18 4kgfcm, 1.30.3 ft-lbs)
D5 Tapping Screw [1] <1>.............................................2.90.5 Nm (30 5kgfcm, 2.20.4 ft-lbs)
M5 Machine Screw (W/SP. Washer)[28] <28>..............1.6 0.4Nm (164 kgfcm, 1.2 0.3 ft-lbs)
Special Nut M7 [5].........................................................6.4 1.0Nm (6510 kgfcm, 4.7 0.7 ft-lbs)
Special Nut M6 <5>.......................................................6.4 1.0Nm (6510 kgfcm, 4.7 0.7 ft-lbs)
Brush Cap [47] <46>.....................................................0.6 0.2Nm (62 kgfcm, 0.4 0.1ft-lbs)
−4−
Generously rub grease onto the Gear and Pinion.

1-5. WiringDiagrams
−5−
For China
Stator [13]<13>
Black
Switch [50] <49>
Brown
Blue Cord [59] <58>
Pillar Terminal [44] <44>
For Hong Kong and Indonesia
Stator [13] <13> Switch [50] <49>
Cord [59] <58>
Connector [45]
For Other Countries
Stator [13] <13> Switch [50] <49>
Pillar Terminal [44] <44>
Black
or
Brown
Black Black
Black
White
or
Blue
Black
Black
Black
Black
Black
Black Black
Black
Cord [59] <58>

1-6. Insulation Tests
On completion of disassembly and repair, measure the insulation resistance, and conduct the dielectric
strength test.
Insulation resistance : 7 MΩor more with 500 V DC Megohm Tester
Dielectric strength test : AC 4,000 V/1 minute, with no abnormalities............220V - 240 V
(and110 Vfor U.K. products)
AC 2,500 V/1 minute, with no abnormalities............110V - 127 V
(expect U.K. products)
1-7. No-Load CurrentValue
After no-load operation for 30 minutes, the no-load current value should be as follows.
−6−
Voltage
Current (A) max.
110 V 115 V 220 V 230 V 240 V
2.72.7 1.35 1.351.38
