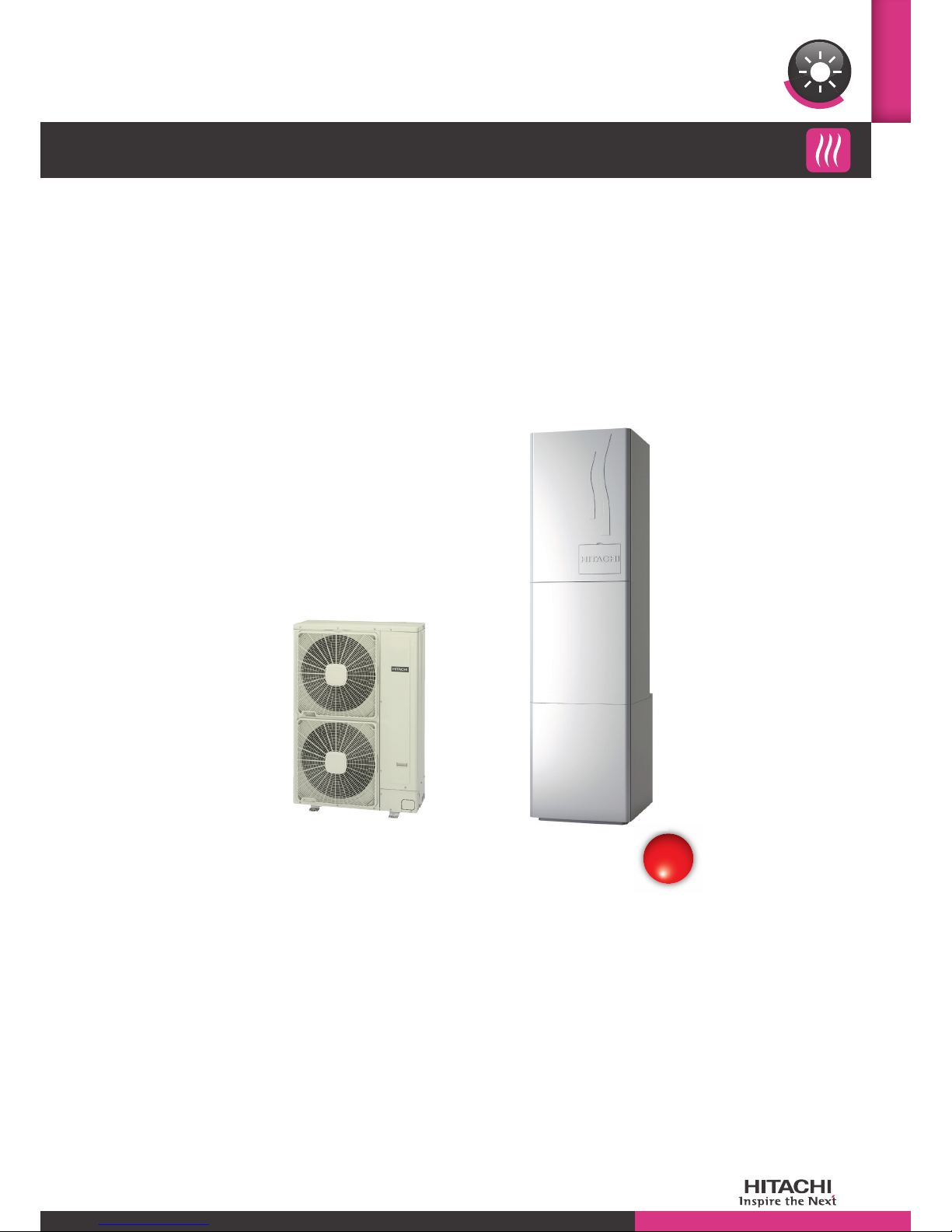

Hitachi YUTAKI S80 Manual

The Yutaki S80 high temperature heat pump is the ideal solution
for replacing boilers. It suits all existing installations and provides
heating and domestic hot water.
OUTDOOR UNIT
RAS 4-6HVRNME AF
INDOOR UNIT
RWH 4.0-6.0FS(V)NFE
COMFORT & PERFORMANCE
YUTAKI S80
4.36
COP
235
Domestic Heating

COP
4,36
COP
4,27
COP
4,05
SCOP
A+
SCOP
A+
SCOP
A+
RWH 4.0FSN(V)FE RWH 5.0FSN(V)FE RWH 6.0FSN(V)FE
13,5 kW 16 kW 18 kW
SINGLE PHASE / THREE PHASE RANGES
CONTROL
RADIO THERMOSTAT
«ACCESSORY»
Ideal solution for boiler replacement
The YUTAKI S80 heat pump is able to produce hot water at 80°C
with -20°C outdoor temperature (without supplementary power
supply), it is thus ideal for the refurbishment market and adapts to
all types of existing installation.
One of the best COP on the Market
YUTAKI S80 has one of the best COP on the Market: 4.36
(RWH 4.0FSVNFE - conditions 7°C/35°C). Its unique design
allows it to maintain high performance year-round with
extremely high SCOP (seasonal COP)
Wide Power
The wide range of Yutaki
S80 can address all heating
and domestic hot water
production needs in
the residential market
(refurbishment + new build).
Easy maintenance
Yutaki S80 has been designed
to make the professional's work
easier (installation + maintenance).
All main components are
accessible from the front.
For instance, the electrical panel
may be easily removed.
Complete adjustment
Complete adjustment
. HP operation only or combined with a
Boiler
. Water output adjustment on 2 heating zones
(panel + radiators)
. Control Timer for DHW production, and
Wireless Ambient Thermostat
. Pricing contact for Functions linked to
differentiated pricing control
. Swimming pool heating
Constant Power
Power and output temperatures are maintained
YUTAKI S80 assures the utmost comfort in the most demanding conditions.
Its unique design allows it to maintain its nominal Power and
Produce hot water at 80 °C even with outdoor temperature at -20 °C.
Jusqu'à -15°C extérieur
236
Domestic Heating
OUTDOOR
UNIT
HEATING
CIRCUIT
DOMESTIC
COLD WATER
DOMESTIC HOT
WATER OUTPUT
C
IC
HOT
T
I
UTPUT
O
HEATING
PIPING
INDOOR
UNIT
REFRIGERANT
PIPING
WIRELESS
THERMOSTAT
0
2
4
6
8
10
12
14
16
Power Curve
t°
kW
-20 -15 -10 -5 0 5 10 15 20 25 30 35
6 CV 5 CV 4 CV
0
10
20
30
40
50
60
70
80
5
15
25
35
45
55
65
75
85
Water progress
t° Outdoor air
t° Water Output
-25 -20 -15 -10 -5 0 5 10 15 20 25 30 35
80°C also -20° outside
8
8

Easy installation
1 2 3 4
1Hydraulic Module (Heating Only).
2Hydraulic Module (Heating + DHW on top).
3Hydraulic Module (Heating + DHW next to it).
4Hydraulic Module (Heating + DHW standard).
Air
Water
Air- R410A
EVI
A431RA014R
R410A - H2O
R410A - R134A
R134A - H2O

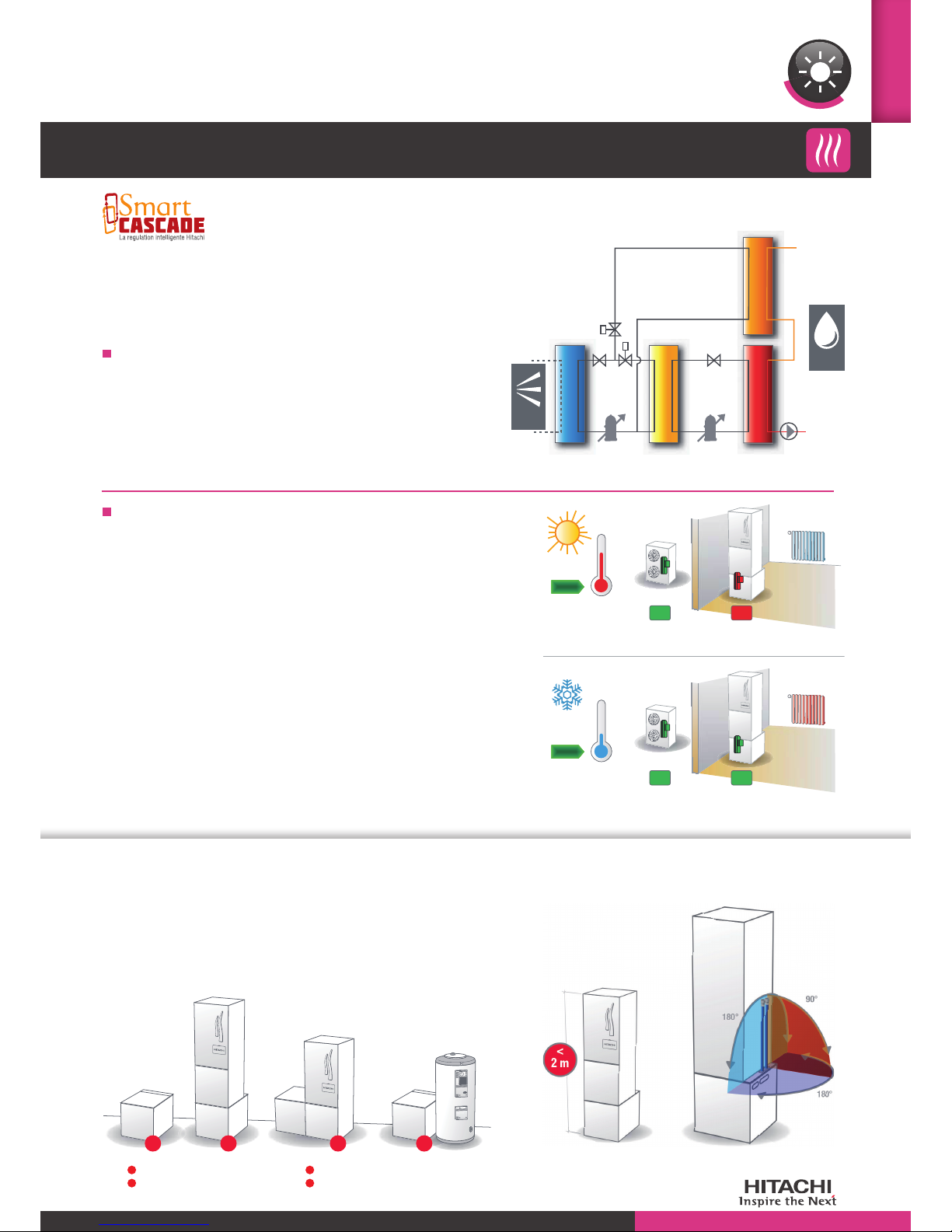

“SMART CASCADE” basic diagram
7°
-7°
35°
65°
ON
OFF
ON ON
SCOP
A+
SCOP
A+
Operation with verylowoutside temperature!
Operation with mild outside temperature!
Exclusive adjustment system
YUTAKI S80 has an “intelligent” control able to adapt its
operation (with R410A refrigerant cycle or using the second
R134A refrigerant stage) by using an algorithm that takes
into account: the outdoor temperature condition (heating
and/or domestic hot water), performance optimisation and
defrosting cycles.
High yearly performance
During less cold periods (e.g. mid-season) or when heating
requirements are lower, Yutaki-S 80 adapts its operation to
optimise its performance.
The second refrigerant stage is thus by-passed, and hot water
production is thus assured through the first refrigerant stage,
avoiding useless simultaneous operation of two compressors
to the advantage of better seasonal energy efficiency.
During very cold periods (e.g. in the middle of winter) or
when heating requirements are high, Yutaki-S 80 adapts its
operation to optimise its performance.
The By-pass of the first stage is then closed and the second
refrigerant stage is activated, thus satisfying the requirement
for high temperature hot water production.
« SMART CASCADE » Hitachi is a unique
and intelligent concept which optimises
heat pump efficiency. Depending on a
number of parameters, the controller decides whether
one or both compressors should operate. This translates
into considerable energy savings.
YUTAKI S80 has standard dimensions (l x D: 595 x 695 mm) to easily integrate
in all types of homes. When it is installed underneath the DHW module, YUTAKI
S80 is in any case shorter than 2 m (mod. 195L). Plumbing connections with
standard supplied flexible hoses, designed to reduce and aid the installer's
workload.
237
Domestic Heating
Smart cascade: Hitachi's intelligent adjustment

4.36
COP
238
Domestic Heating
Yutaki S80
Guaranteed
Hot Water
Up to -20°C
I
D
E
A
L
F
O
R
NEW INSTALLATIONS
PC-S80TE CONTROL
RAS 4-6H(V)RNME AF
“OPTIONAL” WIRELESS
THERMOSTAT
High temperature water production
New Hitachi Intelligent Adjustment.
One of the best COP on the market: 4.36
The choice of an Economical solution.
BMS Control option via Konnex with
specific interface.
Power is maintained constant even at
temperature of -15°C. For optimal comfort
throughout the winter operation period.
chi Intelligent A
80°C
Il controllo Intelligente Hitachi
Jusqu'à -15°C extérieur
80°C HOT ONLY
Exclusive
Hitachi
RWH 4.0-6.0FS(V)NFE
DHWS 195S-2.0H1E
DOMOTICA
COMPATIBILE
A
C
A
E
COM
P
A
P
P
TIBILE
A
-20
+40
+15
+46

239
Domestic Heating
Outdoor Unit
MOD. RAS 4H(V)RNME-AF RAS 5H(V)RNME-AF RAS 6H(V)RNME-AF
COP (1) 4.36 4.27 4.05
Noise pressure level (Sound power level)
(2)
dB(A) 44 (65) 46 (67) 48 (69)
Dimensions (H × L × l) mm 1380 × 950 × 370
Weight (single / three phase) kg 103 / 107 104 / 108
Power Supply 230V / 1Ph / 50Hz - 400V / 3Ph + N / 50Hz
Max Current (1Ph) A 18 26
Max Current (3Ph) A 7 11 13
Refrigerant piping diameter (Liq-Gas) Inches 3/8 - 5/8”
Piping Length / Max Lift m 30 / 20
Pre-charge (standard length) m 30 (3)
Operating range °C Cooling: 10°C BS / +46°C BS - Heating: -20°C BU / 35°C BU
Type of Refrigerant Gas R410A
Type of Compressor SCROLL
INDOOR UNITS
Heat Only Unit Model MOD. RWH 4.0FSVNFE RWH 5.0FSVNFE RWH 6.0FSVNFE RWH 4.0FSNFE RWH 5.0FSNFE RWH 6.0FSNFE
Price 8,384 9,067 9,875 9,330 9,920 10,992
1. The nominal cooling and heating capacity represent the combined capacity of the Hitachi YUTAKI-S80 system and are based on the EN14511 Standard.
(*): The test is performed based on flow obtained during the test of standard nominal conditions.
2. The sound pressure level is based on the following conditions:
At 1 metre distance from the unit's front surface. Mains power supply voltage 400V-230V. The above data have been measured in an anechoic chamber. See table above for Cooling/Heating conditions.
OUTDOOR UNITS
Outdoor Unit Model SINGLE PHASE RAS 4HVRNME AF RAS 5HVRNME AF RAS 6HVRNME AF
Price 2,820 3,116 3,466
Outdoor Unit Model
THREE PHASE RAS 4HRNME AF RAS 5HRNME AF RAS 6HRNME AF
Price 2,968 3,360 3,731
Compulsory First Start-up by HITACHI Service SEE DESCRIPTION OF THE START-UP SERVICE IN THE ACCESSORIES PAGE
NET PRICE PER SYSTEM € 200
Indoor Unit
REF. RWH 4.0FSVNFE RWH 5.0FSVNFE RWH 6.0FSVNFE RWH 4.0FSNFE RWH 5.0FSNFE RWH 6.0FSNFE
Max power (7°C ext / 35°C water) kW 13.50 16.00 18.00 13.50 16.00 18.00
Max power (-7°C ext / 65°C water) kW 11.00 14.00 16.00 11.00 14.00 16.00
Nom power (7°C ext / 35°C water) kW 10.00 12.00 14.00 10.00 12.00 14.00
Nom power (-7°C ext / 65°C water) kW 10.00 12.00 14.00 10.00 12.00 14.00
Nom power (-15°C ext / 65°C water) kW 10.00 12.00 14.00 10.00 12.00 14.00
Min power (7°C ext / 35°C water) kW 4.50 5.50 6.00 4.50 5.50 6.00
Weight kg 157 162 162 162 167 167
Dimensions (H x L x P) mm 706 × 595 × 695
Noise Pressure Level dB(A) 39 41 41 39 41 41
Sound Power Level dB(A) 55 57 57 55 57 57
Expansion vessel L 12
Nominal water flow rate m3/h 1.70 2.10 2.40 1.70 2.10 2.40
Minimum water flow rate m3/h 1.00 1.10 1.20 1.00 1.10 1.20
Maximum water flow rate m3/h 2.90 3.10 3.10 2.90 3.10 3.10
Minimum water content in the system L 40 50 50 40 50 50
Maximum Current A 32 15
Hydraulic Connections mm G 1"
Water output temperature range °C 20°C / 80°C
Power Supply V 230V / 1Ph / 50Hz 400V / 3Ph / 50Hz
R-134A Refrigerant Charge kg 2.5
Compressor SCROLL
Yutaki S80 Control Panel
PC-S80TE (available as accessory, if the DHW Tank kit is not installed Code DHWS 195S-2.0H1E & DHWS 260S-2.0H1E)

HITACHI
HITACHI
HITACHI
Chauffage Individuel Centralisé
Cascade ApplicaƟon Chauīage Individuel
Centralisé (ChaƵīage seul)
HITACHI HITACHI

HITACHI
HITACHI
HITACHI
HITACHI
HITACHI
HITACHI
HITACHI



HITACHI

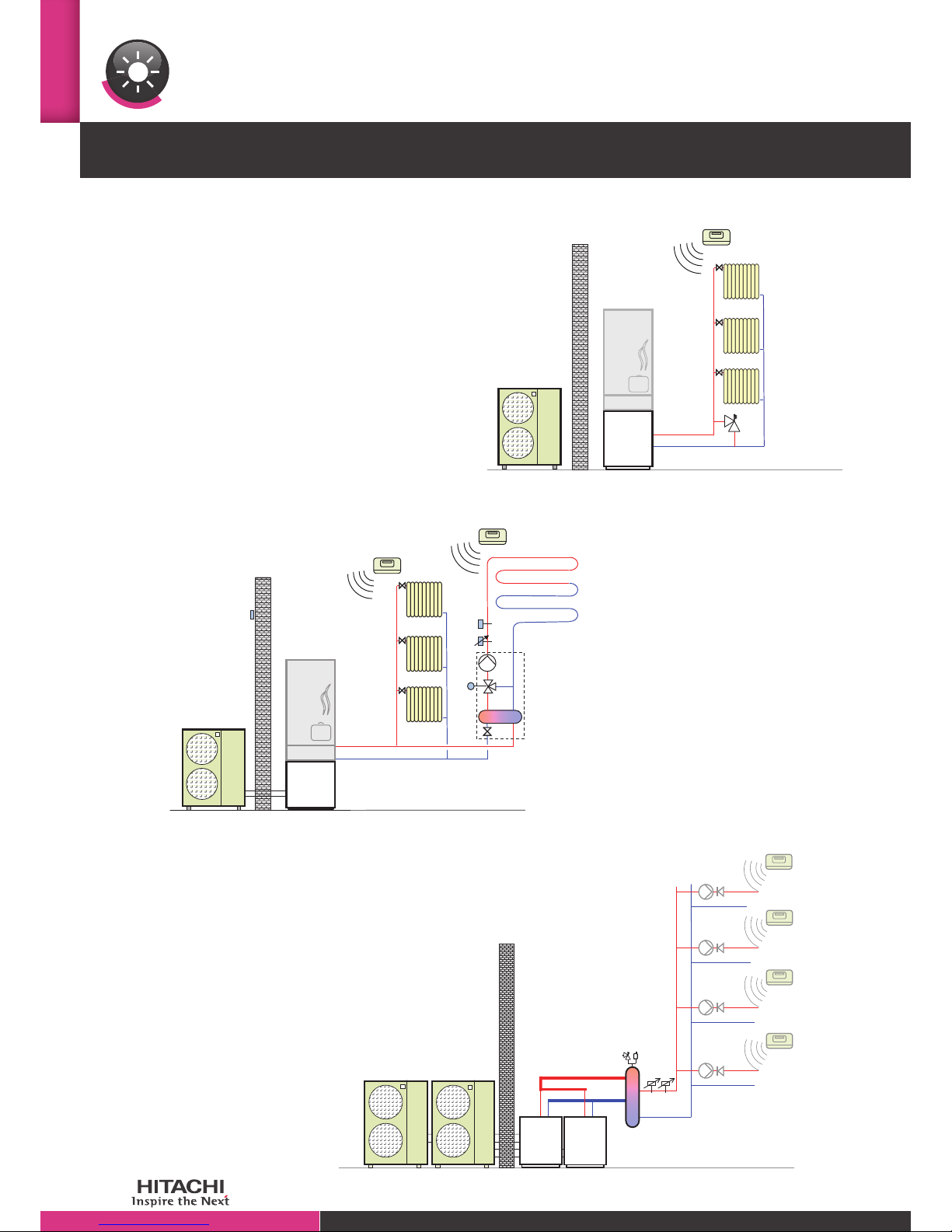

Application for domestic hot water production and heating with 1 circuit
Application for domestic hot water production and heating with 2 circuits
Modular centralised application for heating
(with and without DHW)
240
Domestic Heating
Yutaki S80

241
Domestic Heating

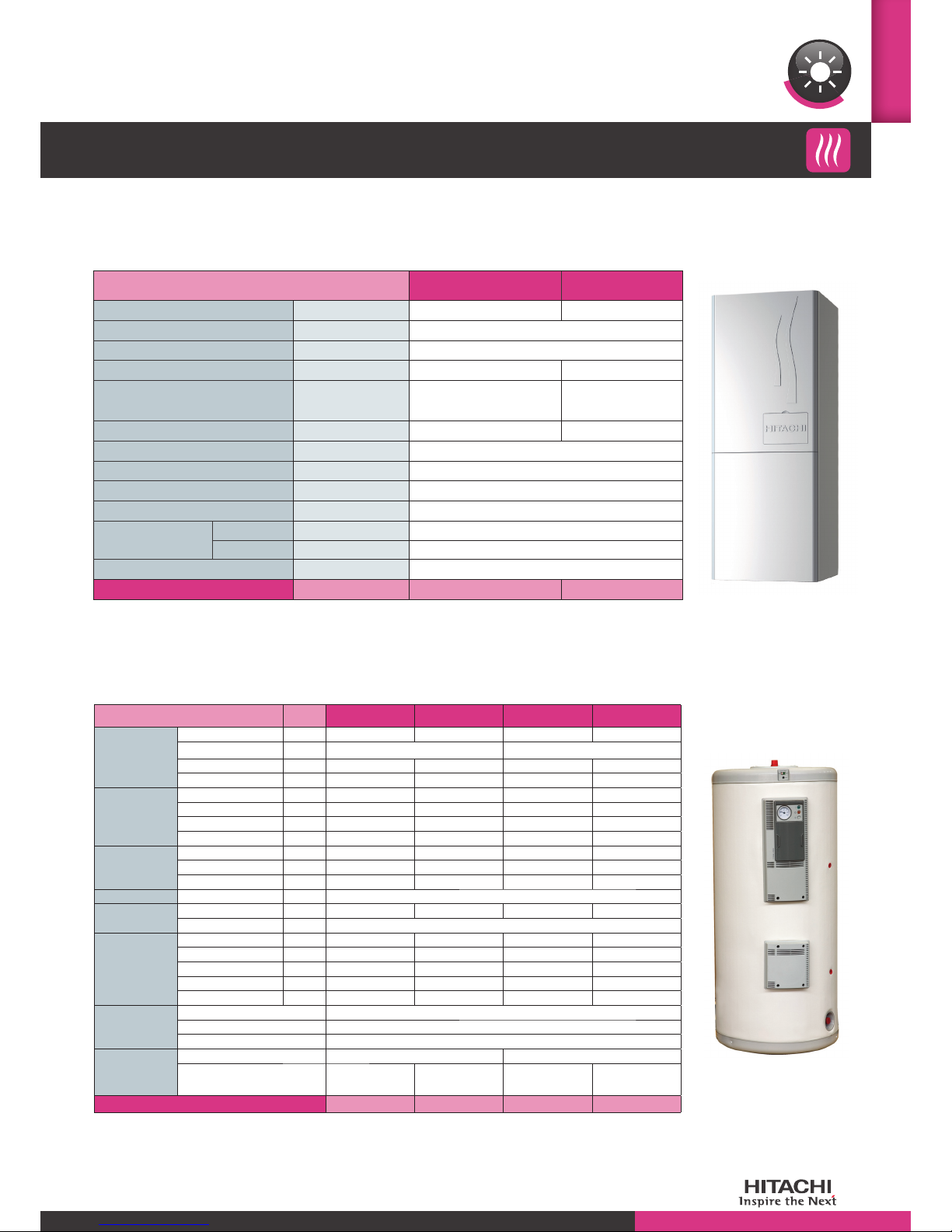

DHW STORAGE TANK
(For installation on top or next to YUTAKI-S80) DHWS 195S 2.0H1E DHWS 260S 2.0H1E
Domestic Hot Water Volume L. 185 250
Storage tank material - AISI 444
Insulating Material NEOPRENE Thickness 50mm
Storage Tank Dimensions alone (H x L x l) mm 1272 x 595 x 600 1602 x 595 x 600
Storage Tank Dimensions if on top of
Yutaki S80 Module (H x L x l)
mm 1940 x 595 x 600 2270 x 595 x 600
Empty weight kg 72 87
Colour - RAL 9016 White
Exchange coil surface m² 1.4
Immersed Electrical Heater kW 2.0
DHW Temperature Probe Included (Code ATW-WTS 02Y)
Hydraulic Connections
In / Out DHW
Inches 3/4" (Gas / M)
Coil In / Out
Inches 3/4" (Gas / M)
Yutaki S80 Control Panel -PC-S80TE (Already Included and installed in the DHW storage tank panel)
PRICE € 2,736 3,011
Yutaki-S80Accessories
Domestic hot water
DHW STORAGE TANK (Standard) CODE DHWT200E - 2.5H1E DHWT300E - 2.5H1E DHWT200S - 2.5H1E DHWT300S - 2.5H1E
Domestic Hot
Water Storage
Tank
Water Volume Litres 200 300 195 287
Material Internally Vitrified Steel (DIN 4753) Stainless Steel (DIN 14521)
Temp. Max. Steel °C 90 90 90 90
Max. Pressure bar 8 8 8 8
Dimensions and
Weights
Height mm 1205 1685 1205 1685
Length mm 620 620 620 620
Depth mm 620 620 620 620
Weight kg 85 130 60 85
Heat Exchanger
Temp. Max. Coil °C 200 200 200 200
Max. Pressure Coil bar 25 25 25 25
Surf. Exchanger m22.40 3.10 1.10 1.40
Insulation type Polyurethane mm 50
Auxiliary Heater Power kW 2.50 2.50 2.50 2.50
Power supply V 220V 1Ph
Hydraulic Con-
nection
In. DHW in. Ø1” m Ø1” m Ø1” m Ø1” m
Out. DHW in. Ø1” m Ø1” m Ø1” m Ø1” m
REC. DHW in. Ø1” m Ø1” m Ø1” m Ø1” m
In. Coil Water in. Ø1” f Ø1” f Ø1” f Ø1” f
Out. Coil Water in. Ø1” f Ø1” f Ø1” f Ø1” f
Included Acces-
sories
Thermometer YES
Safety Thermostat YES
DHW Temperature Probe SI (ATW-WTS 02Y)
Protection
Standard With Magnesium anode NO
Optional with
accessory
DHWT-CP-01
(permanent catode)
DHWT-CP-03
(permanent catode)
DHWT-CP-02
(permanent catode)
DHWT-CP-04
(permanent catode)
PRICE 2,260 2,855 2,939 3,788

242
Domestic Heating

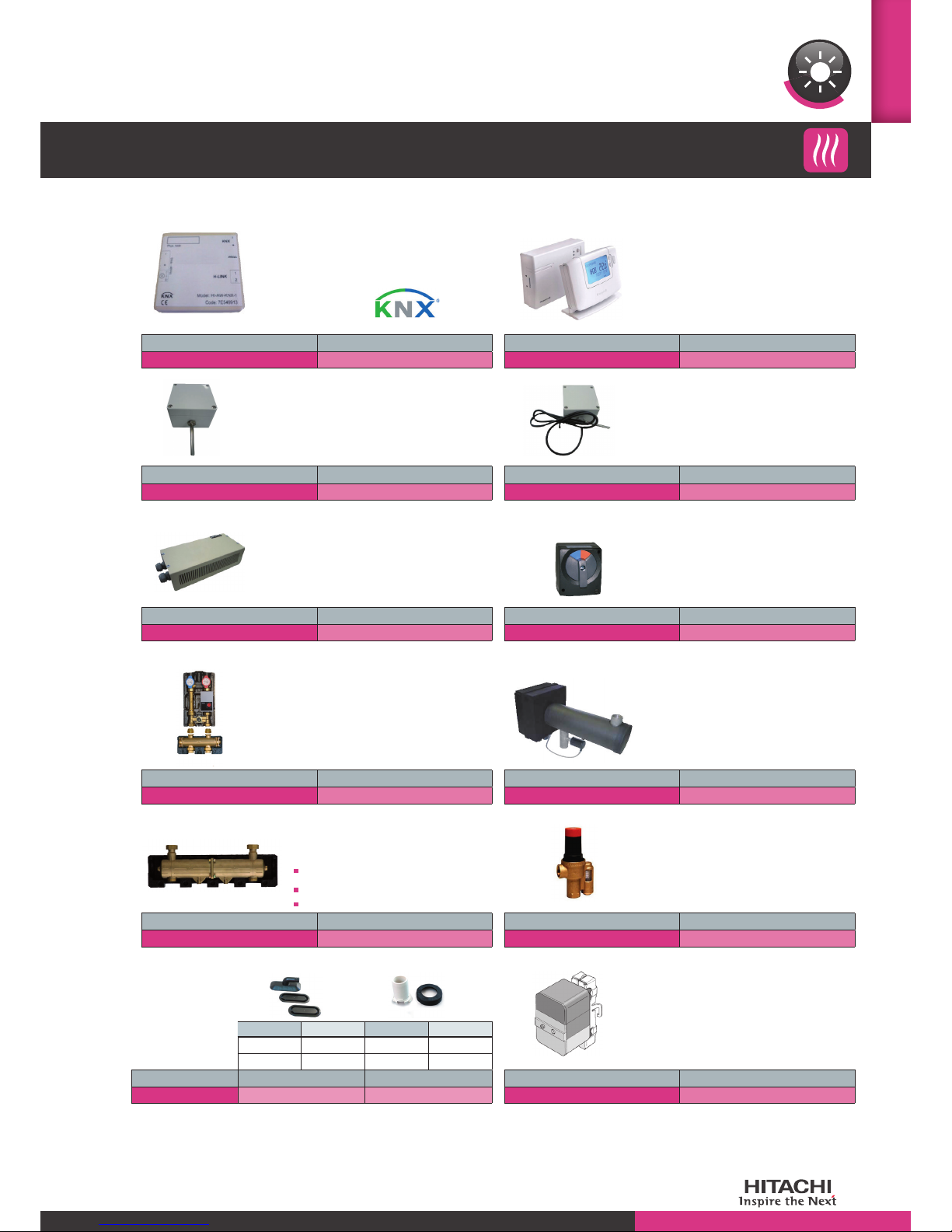

YUTAKI-S80Accessories
Water temperature sensor
Water temperature sensor
(2nd Mixed Zone and Boiler
Combination)
3-Way valve
3-Way diverter valve (Type 1) with
Internal thread, spring return and 220V
voltage. (for DHW or Swimming Pool)
“Intelligent” Thermostat
Kit consisting of WIRELESS
ambient thermostat and radio
receiver to control one Zone.
“Intelligent 2nd Zone” Thermostat
Thermostat to control the second
Zone (thermostat only)
*It can only be combined with a system
fitted with “Intelligent ATW-RTU-02”
thermostat
Water temperature sensor
Universal temperature sensor (DHW Storage
Tank, Boiler combination (THMwo3), 2nd
mixed zone (THMwo2)
Contact the Area Agency for correct selection.
Yutaki S80 Control Panel
LCD Control Panel for YUTAKI S80
OBLIGATORY in applications where no DHWS
195S-2.0H1E or DHWS 260S-2.0H1E DHW
tanks are provided.
ATW-FWP-01
Kit - Flexible hose extension and
connecting electrical cable extension
to install the DHW storage tank
(DHWS 260S-2.0H1E; DHWS
195S-2.0H1E) next to the
Yutaki-S80 module
3-Way valve
3-Way diverter valve (Type 2) with external
thread, electrical return and 220V voltage.
(for DHW or Swimming Pool)
Note Please contact the head office or area agency regarding compatibility of the various products
DESCRIPTION OF FIRST START-UP SERVICE (COMPULSORY)
Operations performed by Hitachi TS:
Checking Vacuum of refrigerant piping and opening Gas R410A Piping Cocks. Checking correct Hydraulic Circuiting of the YUTAKI-S80 system according to Hitachi specifications.
Checking Correct wiring and checking safety device tripping. Checking correct water flow. Setting operation parameters based on design requirements.
Filling in the First Start-up form and providing useful operation information to the customer.
Operations performed by the installer:
Complete connection of refrigerant piping between outdoor unit and indoor module. Leakage test of the refrigerant piping with nitrogen pressurisation and vacuum operation (according to
Hitachi Technical specifications). Full hydraulic system charge. Performing all wiring connections between Yutaki-S80 and installed accessories.
NET PRICE 200
DHW Storage Tank Separator
This accessory is a safety valve to protect
the DHW storage tank from over-pressure
Drainage pan siphon
With 3/4 “ shut-off valve
Fixed cathode protection
Type single-phase 220V
DHWT-CP-01 200l Vitrified Tank.
DHWT-CP-02 200lt Steel Tank.
DHWT-CP-03 300l Vitrified Tank.
DHWT-CP-04 200l Steel Tank.
CODE DHWT-SWG-01
PRICE 119
CODE ATW-3WV-01
PRICE 186
CODE ATW-WTS 02Y
PRICE 76
CODE ATW-FWP-01
PRICE 285
CODE ATW-RTU-02
PRICE 467
CODE DHWT-CP-01 DHWT-CP-02 DHWT-CP-03 DHWT-CP-04
PRICE 120 577 408 832
CODE ATW-3WV-02
PRICE 190
CODE ATW-WTS 02
PRICE 91
CODE PC-S80TE
PRICE 285
CODE ATW-RTU-03
PRICE 271

243
Domestic Heating
Swimming Pool temperature sensor
To be used to control the
temperature of a Swimming Pool
(Optional)
Servomotor for
2nd temperature Kit
it is required in the kit to control the
2nd mixed temperature
Code: ATW-2KT-02
Signal container of auxiliary outputs
RELAY box FOR ADDITIONAL OUTPUT
SIGNALS: Alarm; ON Status; Cold Status;
Direct Zone Valve Control
2nd temperature Kit
Temperature Mixing Kit to control 2nd ERP
Zone.
It must be used together with Servomotor
code ATW-MVM01 and 2nd mixed Zone
sensor
Hydraulic separator
it is required to hydraulically separate the
YUTAKI-S circuit
Stainless
4 connection ways
Insulated
Note Please contact the head office or area agency regarding compatibility of the various products
Heater
Type 6 kW Single/Three-phase
3 Control stages
Internal power relays
External insulation
Body in insulated steel
ON-OFF Thermostat
KIT consisting of WIRELESS
ambient thermostat and radio receiver to
control one Zone.
Outer temperature sensor
To be used to take the
ambient temperature in a different place
from the outdoor unit's position.
(Optional)
Differential By-pass Valve
AUTOMATIC DIFFERENTIAL BYPASS Pressure
Valve with D 3/4” flow gauge.
BMS KONNEX Interface
With the Konnex Interface, operation
settings can be controlled also remotely. It
is easily matched to the KNX protocol.
Safety Thermostat
Radiating Zone Maximum Output
temperature Safety Thermostat to interrupt
radiating zone water circulation.
Outdoor Unit
Accessory
Condensate drain
fitting. Power QUANTITY Power QUANTITY
Outdoor unit in HP 2HP 1 3-6 HP 1
8-10 HP 2
CODE DBS 12L DBS 26
PRICE 25 25
YUTAKI-S80 Accessories
CODE ATW-KNX-01
PRICE 449
CODE ATW-2OS 01
PRICE 366
CODE ATW-AOS 01
PRICE 366
CODE ATW-2KT 02
PRICE 1396
CODE ATW-HSK-01
PRICE 443
CODE ATW-RTU-01
PRICE 374
CODE ATW-SPS 01
PRICE 370
CODE ATW-MVM 01
PRICE 311
CODE WEH-6E
PRICE 841
CODE ATW DPOV-01
PRICE 120
CODE ATW AQT-01
PRICE 183
