HJM NOOR User manual

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
1/19
ORIGINAL OPERATING INSTRUCTIONS
Read carefully and retain for future reference
Towel Rail
Model
NOOR
Type : NOOR500 / NOOR750

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
2/19
IMPORTANT WARNINGS
Dear Customer:
Thank you for your confidence in us by purchasing this Towel Rail.
These appliances are extremely safe, silent and easy to install.
They do not require special maintenance. They are made of
aluminum, a material of high durability. Before starting it for the first
time, carefully read these instructions. Retain them for future
references.
GENERAL SAFETY INSTRUCTIONS
1. Please read carefully these instructions before starting the device
for the first time.Keep these instructions, as well as the
guarantee, your invoice and if possible, the complete packing with
all the elements inside.
2. The guarantee will cease to be valid in the case of not
following the recommendations of this manual.
3. Before connecting the appliance, make sure the mains voltage is
the 230 Volts, and correspond to the marked on the nameplate of
the appliance.
4. Check that the power is sufficient to supply the appliances. The
total draw of the Towel Rail currents must not exceed the
capacity of the circuit breaker that protects them.
5. This Towel Rail cannot be used in rooms with presence of gases
or other flammable products (glues, etc...).
6. WARNING: To prevent overheating, do not cover the device. Do
not use the device to dry clothes.
7. Make sure the power cable or other objects do not come into
contact with the Towel Rail surface while in operation.
8. If the power cable becomes damaged it must be replaced by the
manufacturer or a suitably qualified trades person. Failure to
comply may danger your safety and voids your warranty.
9. Check the device and the supply cord regularly. Do not turn the
device on if it is damaged.
10. PRECAUTION: Some parts of this product can reach very
high temperatures and cause burns. Pay special attention
when children or vulnerable people are around.
11. Do not place the device straight under a power socket.

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
3/19
12. Children under the age of three should not be allowed to touch or
play with the Towel Rail and should be supervised at all times.
13. This device can be used by children under 8 years of age, as well
as by people with reduced physical, sensory or mental
capabilities when suitably supervised and only when they have
been provided the instructions regarding the use of the device
and have understood the risks that could derive from it. Cleaning
must only be carried out by an appropriate adult.
14. Children between3 and 8 years should not turn on or off the
device, unless this is installed or placed in a normal position and
that children are under proper supervision or have received
instructions regarding the use of the device as security and they
have perfectly understood the potential dangers. Children
between 3 and 8 years old should not connect, adjust or clean the
appliance or perform any maintenance measure.
15. Warning: Do not use this heater near baths, showers or
swimming pools. It should not be possible to access the device's
controls from the bath, shower or any other surface that is in
contact with water.(Its use in zones 0 or 1 in bathrooms is totally
prohibited: seek advice from a qualified electrician).
16. For greater safety, this appliance is provided with a device that
interrupts its operation in the case of overheating.
17. This Towel Rail has been designed exclusively to be fixed to the
wall. For further information on the fixing systems, consult the
section "INSTALLATION ANDWALL MOUNTING" of this manual.
18. Do not use accessories that have not been recommended by the
manufacturer, as they could entail a potential risk to the user, and
damage the device. Use only original accessories.
19. Keep all the packaging elements (plastic bags, cardboard and
polyethylene)out of the reach of children, as they can cause
potentially dangerous situations.
20. Use this device only for domestic / light commercial use and the
tasks for which it has been designed. This device has not been
designed for industrial use. It must not be used outdoors, in
greenhouses or for animal husbandry. Keep it away from heat,
direct sunlight, humidity and cutting tools. Do not under any
circumstances immerse in water or use this device with wet

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
4/19
hands. In the case of humidity or water in the device, immediately
disconnect the power supply and do not touch the wet parts.
21. Do not attempt to service the device yourself. Contact a qualified
technician.
22. To disconnect the transmitter from the mains pull the plug, never
of the supply cord.
22. Respect the "SPECIFIC SAFETY INSTRUCTIONS FOR THIS
APPLIANCE" listed below.
23. WARNING: In order to avoid danger to very young children, this
appliance should be installed so that the lowest heated tube is at
least 600 mm above the ground.
24. WARNING: This appliance is only intended for drying clothes
washed with water.
SPECIFIC SAFETY INSTRUCTIONS FOR THIS DEVICE
 The appliance must remain in a vertical position.
 Make sure the appliance is secured at all times. Please adhere to
the installation distances indicated in this guide.
 This Towel Rail is designed to be connected by plug to the
electric installation and fixed to the wall installation. Follow the
instructions in "INSTALLATION".
 The guarantee will not apply if these instructions have not
been observed.
INSTALLATION
 During the first use and for a few minutes, could occur smells and noise due to
the dilatation of some internal parts. This is normal, so you must provide
adequate ventilation. The smells are momentary and quickly will dissipate.
 Fix the Towel Rail to a firm wall and make sure it is well-levelled.
 The Towel Rail must be away, at a minimum distance of 15cm from any
combustible material, etc.
 Allow for a minimum distance of 1 m, from the front of the unit to any obstacles
that could hinder its operation.
 Also keep a minimum distance of 15 cm between the appliance and the side
walls and any other obstacles (walls, for example) that may affect its function.
 WARNING: If this appliance is installed in a bathroom, it must be installed only
within Zones 2 or Outside Zones (Zone3), according BS 7671 Requirements
for Electrical Installations, Section 701. The installation of this appliance within
Zones 0 or 1 of a bathroom is totally prohibited. The figure 2 bellow is only for
information purposes, we suggest you contact a professional electrician.

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
5/19
Zone 1: Appliances supplied to Safety Extra Low Voltage (SELV).
Zone 2: Electrical Appliances Class II – IP X4
Zone 3: Electrical Appliances protected by RCD 30mA
Fig.2
WALL-MOUNTING
The towel radiator is equipped with the following elements:
- 4 towel radiator suspension brackets (Fig. 1).
Fig. 1
1. Place the template at a minimum recommended height of 1 m,
against the wall where the towel radiator will be placed.
2. Mark the location of the 4 holes on the wall.
3. Drill four holes for 8 mm plugs.
4. Place on the wall the larger diameter brackets ( 26) (as shown in
the figure) with the 4 screws for the 8 mm plugs and the
corresponding 4 washers (Fig. 2).
Fig. 2

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
6/19
5. Place the smaller diameter brackets ( 19) on the device with the
4 M4 screws and 4 M4 washers according to figure 3.
Fig. 3
6. Insert the brackets ( 19) fixed in the appliance into the brackets
( 26) fixed on the wall and screw the fastening screw of the wall
bracket, as shown in figures 4 and 5.
Fig. 4

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
7/19
Fig. 5

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
8/19
ELECTRIC SUPPLY CONNECTION
This appliance is equipped with a supply cord H05V2V2-F 2x1.0mm² and bipolar
plug without earthing. Connect the plug to the base outlet.
Check the condition of your electrical installation and connection cables.
This appliance doesn't require earthing connection, due it has double electrical
insulation.
Contact a licensed electrician for assistance.
TECHNICAL CHARACTERISTICS
Type
NOOR 500
NOOR 750
Rated Voltage
230 V~
230 V~
Rated
Frequency
50 Hz
50 Hz
Rated Power
Input
500 W
750 W
Electrical
Protection
Class
II
II
IP Protection
Deg.
IP24
IP24
Dimensions
(LxHxD) (mm)
505x785x100
505x1100x100
Weight (kg)
2.95
5
HOW TO PLACE TOWELS
The towels will hang on the horizontal towel rail, letting them hang
from the back and the front.
It is recommended that it be in the upper horizontal tube of each tube
set.

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
9/19
PROGRAMMABLE DIGITAL THERMOSTAT
Introduction
•Seven operational modes: Comfort, Night, Antifreeze, Fil-Pilote, Chrono, Timer-
2h, Stand-by.
"Comfort" mode: The thermostat keeps the room temperature at the value set by
the user.
"Night" mode: The electronic control keeps the room temperature to a level below
the configured “Comfort” value.
"Antifreeze' mode: The electronic control keeps the room temperature above 7°C.
"Fil-Pilote" mode: The operations of device are controlled through the signal
received from the "Fil-Pilote" system.
"Timer-2h" mode: The electronic control powers the heating element for a period
of 2 hours independently of the configured temperature. At the end of the 2 hours
time period, the device returns to previous operational mode. For safety reasons,
during the 2 hours time period the room temperature is automatically controlled in
order not to exceed 32°C.
"Chrono" mode: The electronic control operates according to a daily/weekly
program. The program is user defined.
-In "Stand-by": The electric resistance is not powered and all lights are turned off,
however the device is still operative.
Further features:
•Large display showing the configured temperature, time, program and current
operational mode.
•The user according to his needs can configure the daily/weekly program.
•The “Open Window Detection” function enables detecting of an open window by
sensing a sudden decrease of the temperature in the room. In such a case, the
device deactivates the heating element for a maximum of 30 minutes or until an
increase of the room temperature reveals that the window has been closed.

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
10/19

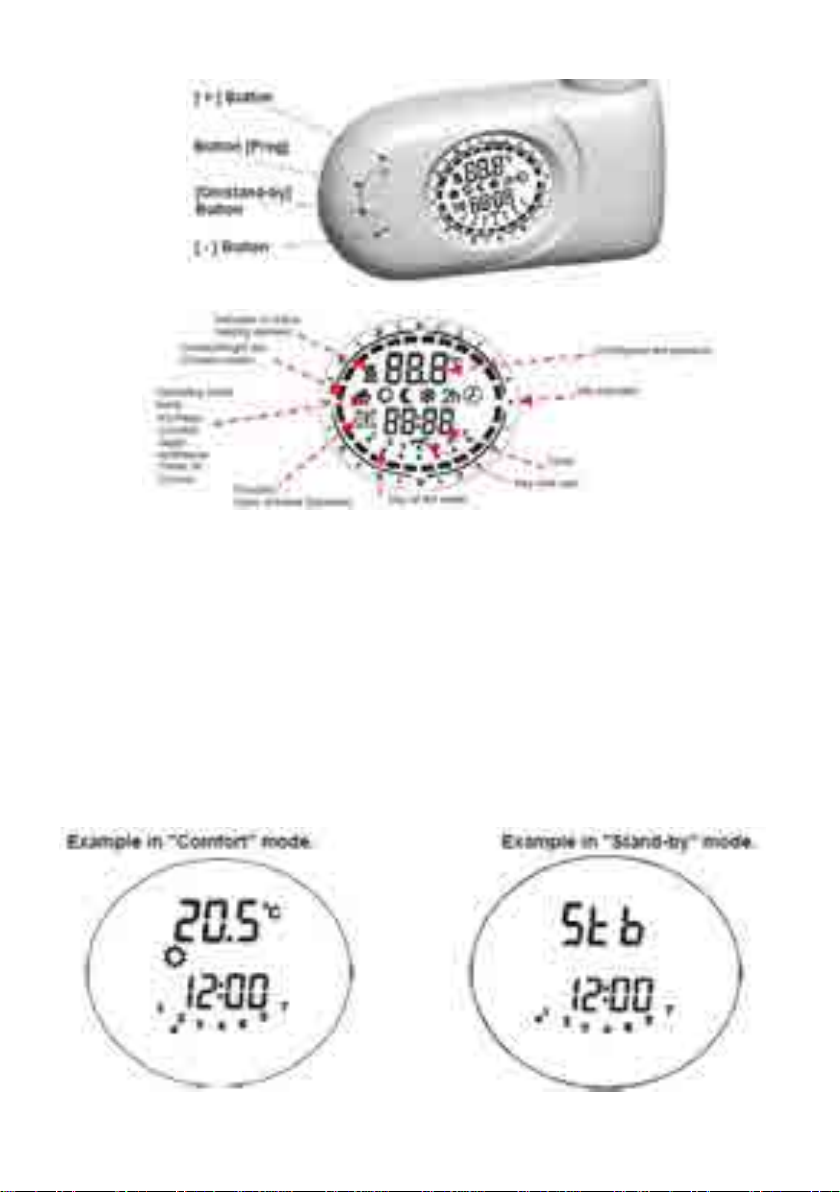

1. MISE EN MARCHE/STAND-BY
1.POWER ON / STAND-BY
Press the [On/Stand-by] key to turn on the device or to enter the "Stand-by" mode.
When activated, the bottom part of the display shows the current time, while the
configured operative mode and
the temperature are shown in the upper part. When in "Stand-by" mode current
time, day of the week and the
message: " Stb" are displayed.
NOTE: When the device goes into "Stand-by" mode it beeps twice for 0.5s.
When the device is activated it beeps once for 1s.

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
11/19
2.“COMFORT” and “NIGHT” MODES
Two different levels of temperature can be set:
-"COMFORT" temperature: It is the temperature used for "Chrono", "Fil-Pilote" and
"Comfort" modes.
-"NIGHT" temperature: It is the temperature used for the "Night" and "Chrono"
modes.
The desired temperature can be set pressing the [+] e [-] buttons. The range of
configurable temperature is 7°C - 32°C.
IMPORTANT!
The temperature of "Night" mode must be below to the “Comfort” mode
temperature. For this reason the
“Night” mode temperature can be set to a value between 7°C and the (configured
"Comfort" mode temperature - 0.5°C).
The temperature of "Comfort" mode can be configured in the whole (Night
temperature + 0.5°C) ÷ 32°C range.
3. OPERATING THE DEVICE
Press the [PROG] button to select the desired operative mode. An icon on the
display indicates the selected operating mode, according to the following table:
COMFORT MODE
The "Comfort" stably maintains the room temperature to a selected value. To set
this operative mode:
-Press the [Prog] button until the display shows the “Comfort” icon
-Set the desired temperature through [+] and [-] buttons.
NIGHT MODE
The "Night" mode sets a value of temperature below the "Comfort" temperature
value.
It is suggested to set this operating mode during the night or when the room is not
occupied for 2 or more hours.
-Press the [Prog] button until the display shows the " Night" icon
-Set the desired temperature through [+] and [-] buttons.
ANTIFREEZE MODE
In "Antifreeze" mode the temperature is fixed to 7°C. The device activates the
heating element when the room temperature falls below 7°C. It is suggested to set

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
12/19
this operating mode when the room is not occupied for several days. Press the
[Prog] button until the display shows the "Antifreeze" icon
TIMER-2H MODE
The "Timer 2h" mode can be used to quickly warm up the room or to speed up
towel drying.
-Press the [Prog] button until the display shows the "2h" icon.
The device is activated at the maximum power for 2 hours, up to a maximum room
temperature of 32°C. The
“Timer-2h” mode is automatically deactivated after a period of 2 hours and the
device returns to the operative
mode previously set. The user can switch to another operative mode at any time by
simply pressing the [PROG] button.
FIL-PILOTE MODE (Only for product versions equipped with "Fil-Pilote". Only
France)
In "Fil-Pilote" mode the device is managed by a central control system that sets the
operating mode for all the
connected devices. The device operates with the most advanced "Fil-Pilote" system
with six commands, which
allows the following functions:
1.Standby: power off the heating element, the device remains active.
2.Comfort: maintains the "Comfort" temperature set by the user.
3.Eco: maintains the room temperature 3,5°C below the "Comfort" temperature.
4.Anti-freeze: maintains the room temperature at 7°C.
5.Eco-1: maintains the room temperature 1°C below the "Comfort" temperature.
6.Eco-2: maintains the room temperature 2°C below the "Comfort" temperature.
The user can set the desired temperature on the device:
-Press the [Prog] button until the "Fil-Pilote" icon is displayed.
Set the desired temperature through the [+] and [-] buttons.
CHRONO MODE
This operating mode allows the user to configure different temperature values for
each hour of each day of the week. The “Comfort” / “Night” temperatures and the
related time intervals can be thus programmed.
-To activate this function, press the [PROG] button until the “Chrono” icon is
displayed.
Programming the “Chrono” mode
a) Setting the current day of the week and time
- Enter into “Stand-by” mode and press the [-] button at least 3 seconds.
- On the upper part of the display the message “Set” will be displayed
- To set the day and time press the [+] button until the bottom part of the
display the message “TED” is displayed (see picture).

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
13/19
Press the [Prog] button to enter the editing mode
- The blinking arrow indicates the currently selected day: Pressing the [+] / [-]
buttons the desired day can then be set
- Press again the [Prog] button to confirm the selected day. After that, the
procedure for entering the time starts and the display shows the currently selected
time. “Hours”: Use the [+] and [-] buttons to set the correct hour and confirm the
selected value pressing the [Prog] button.
Minutes: Same procedure as for the hours. Confirm the selected value by pressing
the [Prog] button.
- At the end of the procedure, the thermostat returns into “Stand-by” mode.
b) Setting the program for the “Chrono” mode
- Enter into “Stand-by” mode and press the [-] button at least 3 seconds.
- On the upper part of the display the message “Set” will be displayed
- To set the day and time press the [+] button until the bottom part of the display the
message “Prog” is displayed (see picture).
- Press the [Prog] button to enter the editing mode
- Now a time sequence can be defined for each day of the week.
The procedure starts with day 1, and the desired sequence can be configured with
the [+] and [-] buttons:
For each hour of the day, it is then possible to assign either the “Comfort”
temperature (full bar indication displayed) by pressing the [+] button or the “Night”
temperature (empty bar) by pressing the [-] button (see picture).

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
14/19
Press [PROG] to confirm the entered configuration for day 1, and repeat the same
procedure for the remaining 6 days of the week.
KEY LOCK
It is possible to lock the buttons of the device to avoid inadvertent modifications of
the settings.
Press together the [PROG] buttons for 3 seconds to lock all the buttons except the
[On/Stand-by] button. The key-lock icon is activated on the display.
To unlock the buttons press again together the [PROG] buttons for 3 seconds.
The key-lock icon disappears on the display
“Open Window Detection” function
The “Open Window Detection” function enables detecting of an open window by
sensing a sudden decrease of the temperature in the room. In such a case, the
device deactivates the heating element for a maximum of 30 minutes or until an
increase of the room temperature reveals that the window has been closed.
To activate this function:
- Enter into “Stand-by” mode.
- Press the [+] button for 3 seconds.
- Press the [+] button to activate / deactivate the function
- Press the [Prog] button to commit and return into “Stand-by” mode.

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
15/19

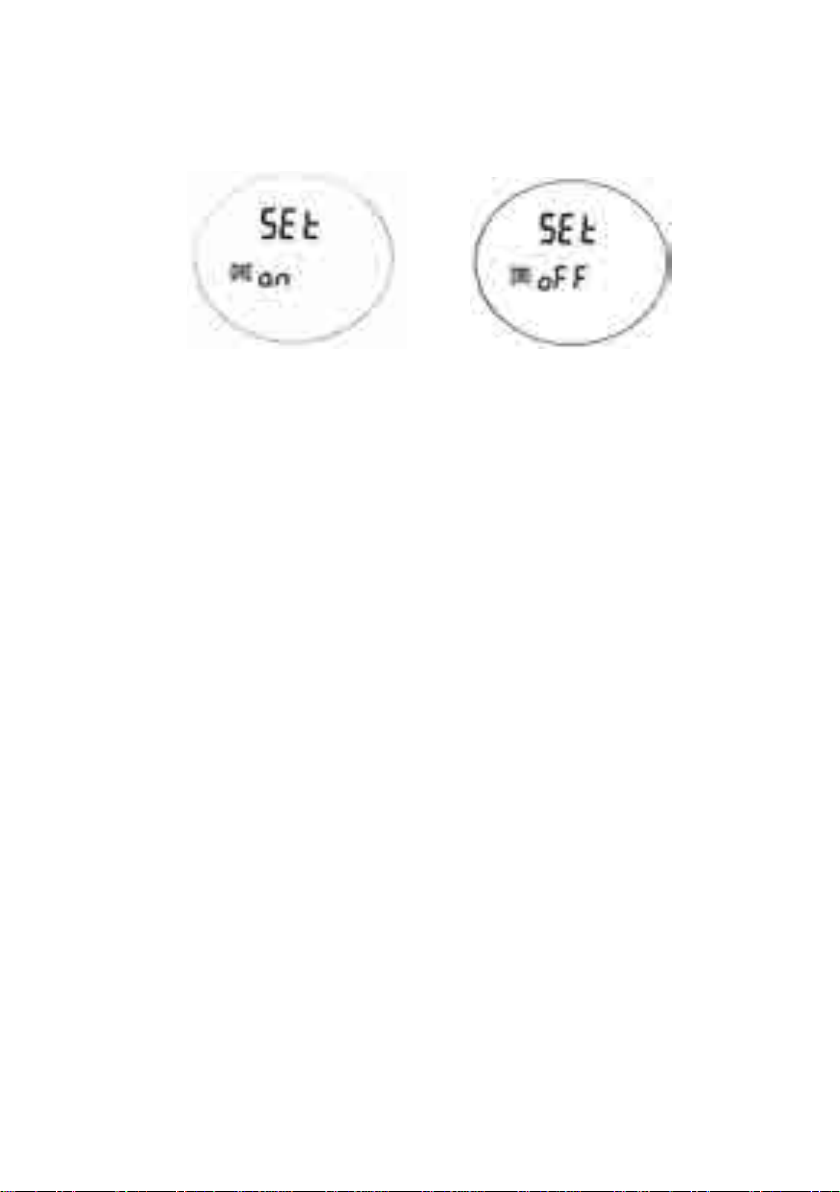

When this function is enabled, the “Open Window” icon on the display is lit.
When the device detects that the window is potentially opened, the “Open Window”
icon starts blinking
When the function is disabled the “Open Window” icon is not shown on the display.
Note: The device could fail in detecting an opened window e.g. if the thermostat is
located on an isolated area of the room and far from air currents or if the thermostat
is placed close to an external heating source, or if the temperature variation in the
room is too slow.
THERMAL SAFETY
In the case of overheating, a safety device automatically cuts the radiators
operation. After cooling the radiator will automatically reset.
MAINTENANCE
Your radiator requires no regular maintenance, however, to ensure its good
operation:
Always disconnect the device from the mains before performing any cleaning or
maintenance operation.
Let it cool down before cleaning.
Do not use detergent, solvent, abrasive products or any other chemical product to
clean the radiator.
NEVER immerse the device in water or any other liquids.
You can use a vacuum or flexible brush to clean the air grilles. This maintenance
must be carried out regularly to ensure optimum performance. Ensure the radiator
is totally dry before turning it back on.

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
16/19
EU Declaration of Conformity
Product:
Towel Rail
Trademark:
Models:
NOOR 500, NOOR 750
Batch & Serial No.:
Mx YYDDD-XXX (1)
(1) Explanation of code "Lot & Serial No."
Batch = Mx YYDDD; where: Mx = Assembly Line No. YY = year (15,16,17...99) DDD = Correlative day (001,..., 365)
Serial No. = XXX (001,..., 999)
Nosotros / Nous / We / Nós:
HERMANOS JULIÁN M., S.L.
Head Office: Esposos Curie,44 / Factory: Gutenberg,91-93
Polígono Industrial “Los Villares” . 37184 Villares de la Reina . Salamanca . España
Tf.+34 923 222 277 [phone] . Fax [phone]
http://www.calorhjm.es
Hereby declare, that the following equipment complies with all the essential requirements for health and safety of
European Directives.
2014/30/EC EMC DIRECTIVE 2014/35/EC LV DIRECTIVE
2011/65/UE RoHS DIRECTIVE 2009/125/EC (ErP Directive)
With reference to the application of the followinf standards: / Em aplicação das seguintes normas:
2014/30/EC EMC DIRECTIVE
EN 55014-1:2006 + A1:2009 + A2:2011
EN 55014-2:1997 + A1:2001 + IS1:2007 + A2:2008 ===> Cat. 2
EN 61000-3-2:2014
EN 61000-3-3:2013
2014/35/EC LV DIRECTIVE
EN 60335-2-30:2009 + CORR:2010 +A11:2012
EN 60335-1:2012 +AC:2014 +A11:2014 + A13:2017
EN 60335-2-43:2004
EN 62233:2008 +CORR:2008
2011/65/UE RoHS DIRECTIVE
EN 62321-1:2013
2009/125/EC (ErP Directive)
(2005/32/EC)
UE 2015/1188

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
17/19
Models: NOOR
Item
Symbol
Value
Unit
Item
Unit
Heat output
750
Type of heat output/room temperature
control (select one)
Nominal heat
output
Pnom
0.75
KW
single stage heat output
and no room temperature
control
NO
Maximum
continuous heat
output
Pmax,c
0.75
KW
Two or more manual
stages, no room
temperature control
NO
Auxiliary
electricity
consumption
with mechanic thermostat
room temperature control
NO
At nominal heat
output
elmax
0.75
KW
with electronic room
temperature control
NO
In standby
mode
elSB
0.0005
KW
electronic room
temperature control plus
day timer
NO
Heat output
500
electronic room
temperature control plus
week timer
YES
Nominal heat
output
Pnom
0.5
kW
Other control options (multiple
selections possible)
Maximum
continuous heat
output
Pmax,c
0.5
KW
room temperature control,
with presence detection
NO
Auxiliary
electricity
consumption
room temperature control,
with open window
detection
YES
At nominal heat
output
elmax
0.5
KW
with distance control
option
NO

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
18/19
In standby
mode
elSB
0.0005
KW
with adaptive start control
YES
with working time
limitation
YES
with black bulb sensor
NO
Contact
details
HERMANOS JULIAN M., S.L.
Gutenberg,91-93 Polígono Industrial “Los Villares”
ES-37184 Villares de la Reina . Salamanca . Spain
[phone] - [phone] 
Fax: [phone]
Web: www.calorhjm.es
ESB-37295664
Requirements regarding ecodesign for local heating:
S =S,on -10%+F(1)+F(2)+F(3)-F(4)-F(5)
= 40 -10%+0+7+2-0-0 = 39%

HJM-NOOR_ENG-Rev.2-25-11-2019
Made in Spain
19/19
RECYCLING (Disposal of the product at the end of its useful life)
According to European Directive 2012/19/UE, on waste electrical and
electronic equipment (WEEE), old electrical household appliances cannot
be disposed of in the usual municipal containers; they have to be collected
separately to optimise the recycling of the components and materials that
comprise it, and reduce the impact on human health and the environment.
The crossed-out wheeled bin is marked on all Electrical and Electronic
products, to remind the consumer of their obligation dispose of them
separately.
The consumer must contact the local authority or the vendor to learn about
the correct disposal of his/her old electrical household appliance.
Fabriqué par
HERMANOS JULIAN M., S.L.
Usine: Gutenberg,91-93
Polígono Industrial “Los Villares”
ES-37184 Villares de la Reina . Salamanca . Spain
[phone] - [phone]
Fax: [phone]
Web: www.calorhjm.es
ESB-37295664
