PierDeco AQUAMASSAGE PD-879 User manual

-
,,
,
,AG
13
Y
PierDeco
d e s i g n
PD-879
Owner's
manual
I
i '
-/
' I
I
• I
I




0







 



PD-879
 58 ¼"
 6¾11
 

   
FUNIONS
     
  

 

    
 



  


     15 20 30


PierDeco
Page 2 design

Pi er De co
des i gn

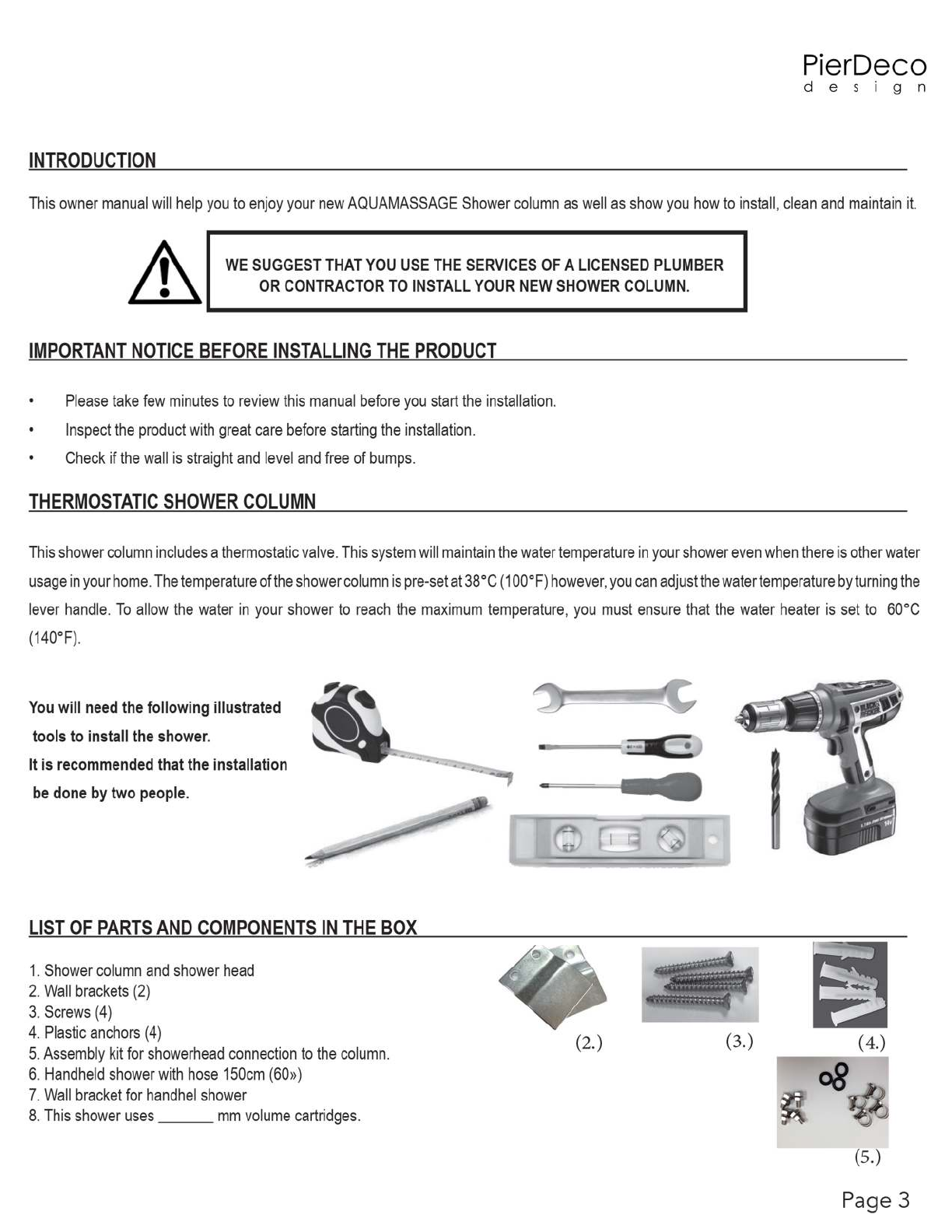

INTRODUCTION
This owner manual will help you to enjoy your new AQUAMASSAGE Shower co l umn as wel l as show you how to install , clean and maintain it.
WE SUGGEST THAT YOU USE THE SERVICES OF A LICENSED PLUMBER
OR CONTRACTOR TO INSTALL YOUR NEW SHOWER COLUMN .
IMPORTANT NOTICE BEFORE INSTALLING THE PRODUCT
Pl ease take few minutes to review this manua l before you start the installation .
Inspect the product with great care before starting the instal l ation.
Check if the wall is straight and l evel and free of bumps .
THERMOSTATIC SHOWER COLUMN
This shower column includes a thermostatic va l ve . This system wi ll maintain the water temperature in your shower even when there is other water
usage in your home. The temperature of the shower co l umn is pre-set at 38°C (100°F) however , you can adjust the water temperature by turning the
lever handle . To allow the water in your shower to reach the maximum temperature , you must ensure that the water heater is set to 60°C
(140°F) .
You will need the follo wi ng illustrated
to o ls to install the sh ow er.
It is recommended that the ins t allatio n
be done by two pe o ple .
LIST OF PARTS AND COMPONENTS IN THE BOX
1. Shower co l umn and shower head
2. Wall brackets (2)
3. Screws ( 4)
4. Plastic anchors (4)
5. Assembly ki t for showerhead connection to the column.
6. Handheld shower with hose 150cm (60»)
7. Wall bracket for handhe l shower
8. This shower uses ___ mm vo l ume cartridges.
1
-
~
(2.) (3.) (4.)
o8 r/.,6
0
(5.)
P age 3

INSTALLATION
1. During the installation manipulate the tools and shower column with
great care to avoid damages and scratches. Shut off the water at the
main before starting the installation .
2. Step 1 is to connect the shower head to the body of the
co l umn . Simply pass the water supply through the hole and
then fix the head by means of 4 nuts and bolts supplied in
your assembly kit. Connect the shower head water supply
to the respective connector on the rough inside the column.
3. We recommend to install the column at 33" (83 .8 cm) from the lever
handle (thermostatic valve) to the floor . Determine if the height is
suitable and appropriate for yourself and the other users.
4. Install the water lines at 30" (76.2 cm) from the floor and leave a
gap of 4" (10.2 cm) between the hot and cold water line. Use 1/2"
diameter pipe with 90° 1/2" male adaptor (adaptors not included).
5. On the back of the shower co l umn , where the water supply line
comes out of the wall , it is important to seal the space between the
ceramic and the pipe with silicone to prevent water seepage into the
wall.
6. Install each wall bracket at the desired height. Use a pencil and a
leveller before drilling each hole, then install the two brackets. (your
wall structure may require additional anchors and screws.) Please
make sure the bottom brackets don't interfere with the supply lines .
7. Connect the hot and cold flex i ble stainless steel hoses to the water
adaptors previously installed on your water supply line and slide
the shower column in place. Do not replace the flexibles for it will
automatically void your warranty .
8. Turn on the main water supply line and check carefully for leaks
*****Apply a few thin spots of lear silicone on each side
of the shower column to secure it in place. *****
Page 4
INSTALLATION DIAGRAM
2''''''"''''''''''''''''''''''''''''''''"'''''''''''''''''''''''''''''''''''''''''''''''"'''~
z z
z z
~ Note· ~
z . z
z z
z z
z z
z z
~ Be careful not to squeeze the two stainless ~
~ steel flexible hoses during the repositioning so ~
z z
~ as not to damage them or restri ct the water flow. ~
~ z
z z
z z
z z
7~"""""""'"""""""""""""""""""""""'""""""""""""""'"~
Pie rD eco
design

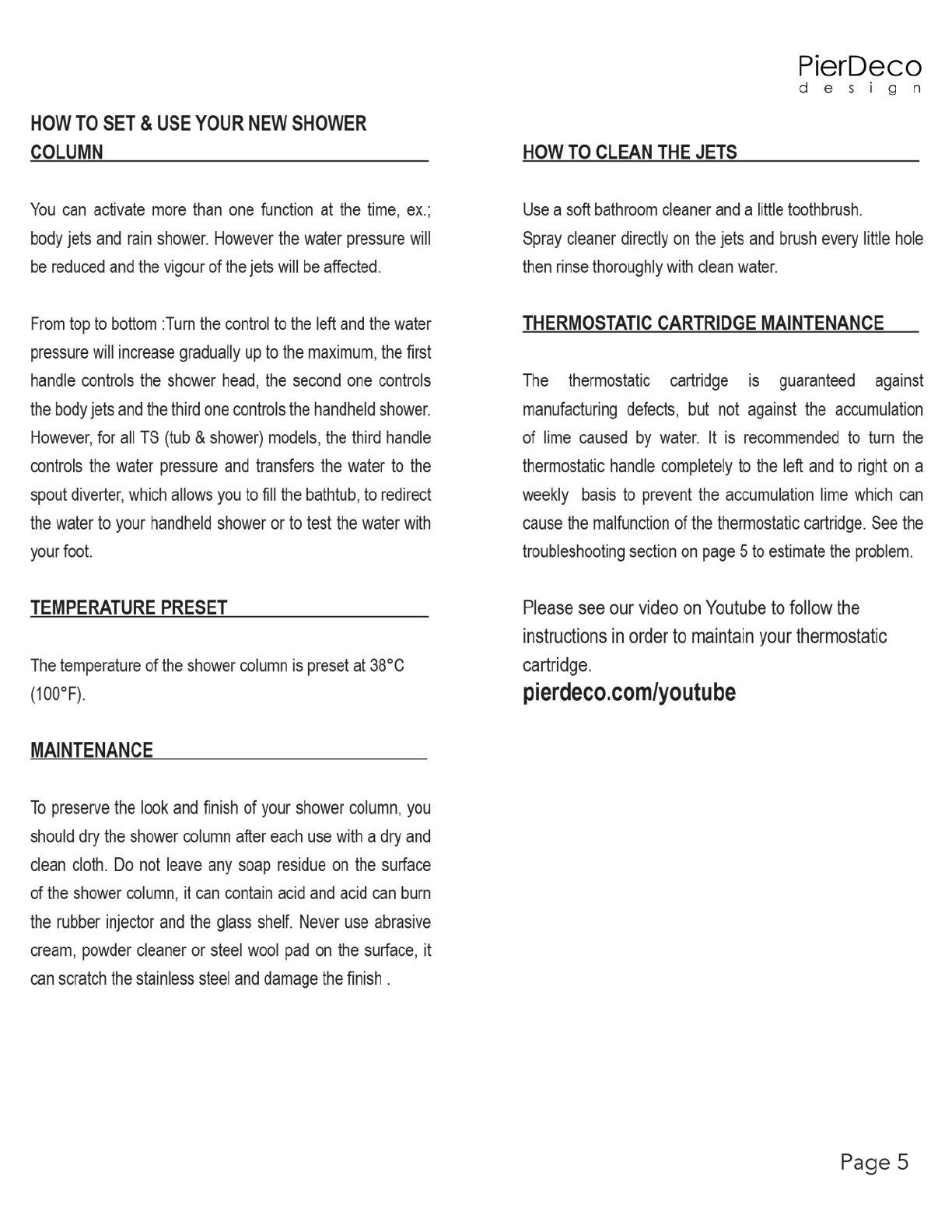

HOW TO SET & USE YOUR NEW SHOWER
COLUMN
You can activate more than one function at the time, ex. ;
body jets and rain shower . However the water pressure will
be reduced and the vigour of the jets will be affected.
From top to bottom :Turn the control to the left and the water
pressure will increase gradually up to the maximum , the first
handle controls the shower head, the second one controls
the body jets and the third one controls the handheld shower.
However , for all TS (tub & shower) models , the third handle
controls the water pressure and transfers the water to the
spout diverter , which allows you to fill the bathtub, to redirect
the water to your handheld shower or to test the water with
your foot.
TEMPERATURE PRESET
The temperature of the shower co l umn is preset at 38°C
(100°F).
MAINTENANCE
To preserve the look and finish of your shower column , you
should dry the shower column after each use with a dry and
clean cloth. Do not leave any soap residue on the surface
of the shower column, it can contain acid and acid can burn
the rubber injector and the glass she lf . Never use abrasive
cream , powder cleaner or steel woo l pad on the surface , it
can scratch the stainless stee l and damage the finish .
PierDeco
design
HOW TO CLEAN THE JETS
Use a soft bathroom cleaner and a little toothbrush.
Spray cleaner directly on the j ets and brush every li ttle hole
then rinse thoroughly with clean water.
THERMOSTATIC CARTRIDGE MAINTENANCE
The thermostatic cartridge is guaranteed against
manufactur i ng defects , but not against the accumulation
of lime caused by water. It is recommended to turn the
thermostatic handle completely to the left and to right on a
weekly basis to prevent the accumulation lime which can
cause the malfunction of the thermostatic cartridge. See the
troubleshooting section on page 5 to estimate the problem.
Please see our video on Yo u tube to follow the
instructions in order to maintain your thermostatic
cart rid ge .
pierdeco.com/youtube
Page 5

TROUBLESHOOTING
PROBLEM DIAGNOSTIC
Water temperature is not hot 1. Press on the push buton on the top of the thermostatic handle and
enough. turn counter lockwise.
2. T he water heater temperature is set at 60 °C (140° F).
3. Make sure that there is no air in the water pipes.
Noise is coming from the water 1. Look for air pockets in your plumbing .
line when the shower column is 2. Look for upside-down "U" in all the pipes go i ng to the shower, make
in function. sure that they are not kinked or twisted
Water temperature gets T he problem is probably coming from your water heater, try this little test:
increasingly colder. Turn
on the hot water faucet of the sink and see if the water is hot, if the
water is cold the prob l em is coming from the water heater. the tank may
be empty, wait 30 min and try the test again.
Cold water comes out when the Check the two stainless steel hoses at the back of the shower column, the
faucet is set on hot water. hot and cold are probably reversed.
The water pressure is going 1. Verify the filtres in the gaskets at the water entry as well as on the
down gradually. thermostatic cartridge.
2. Look for upside-down "U" in all the pipes go i ng to the shower, make
sure that they are not kinked or twisted.
The temperature is hard to The thermostatic cartr i dge probably needs to be soaked in a deliming
adjust when the thermostatic is solution. Please refer to the maintenance section on Page 5 of your
turned. owner's manual.
ATTENTION
Page 6
Any warranty will be void and ine ff ective in t he case ofa modification of the interna l
mechanism or any other component of the product. If this troubleshooting guide does not help
you to fi nd or fix the problem . Please call: 450-417-3740 .
