Hobby King 9070000015 User manual

Manual of the SPEED METER
Thank you for purchasing our product, which is the best choice for car enthusiasts. This speed tester is reliable, small in volume,
light in weight, easy to install and do not affect the performance of the car. With high accuracy, concise control and good
instantaneity, it is well received by a lot of people.(This product applies only to the cars which are using sensored motor.)

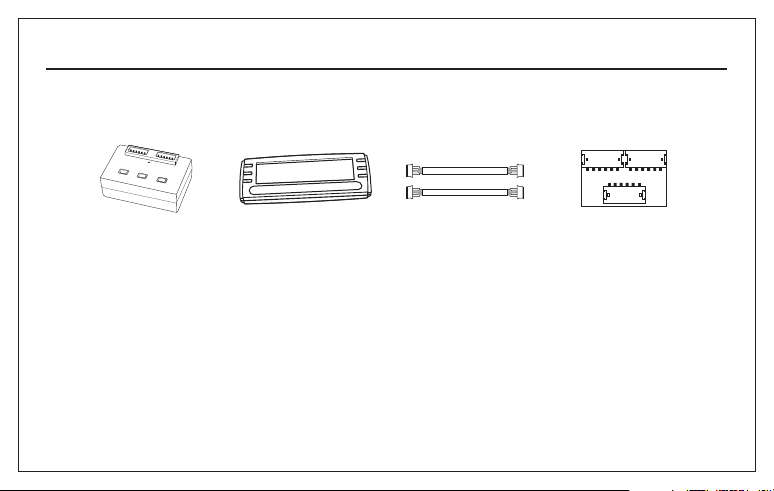

【Item includes】
Tester Display module Hoare lines Adaptor board
【Product features】
1. Users can handle the display module flexible. (unloading after setting parameters; checking data after vehicles running and
then connecting up again).
2. Record the braking distance automaticly.
3. Record the mileage and time of the car running.
4. Record the average speed, maximum speed, maximum rotational speed, maximum acceleration and maximum deceleration of the car.
5. The user could calculate the KV value by themselves (KV = RPM speed/ voltage).
6. The user can monitor the speed, rotational speed, acceleration and mileage of the car.
7. Support the imperial and international unit conversion.
【Specification】
1. The working voltage: 5 V; 2. Working current: 20 mA; 3. Weight: 50 g.
-1-

【Connect diagram】
【Product set up】(This manual adopt international unit: KPH means: kilometers per hour, MPH means: miles per hour.)
-2-
Manual of the SPEED METER
Display module Tester Adaptor board
ESC
LCD SENSOR
MENU UP ENTER
Motor
Please move 4m
0.0/m m oving
Round Setting
6.0/m
Please move 4m
6.0/m
UP
ENTER
ENTER
ENTER
0.00KPH 0RPM
+0.0G 4.463KM
Unit Setting
Metric
MENU
MENU
MENU
Unit Setting
Metric
Unit Setting
Imperial
UP
UP
UP
38.0KPH 23070RPM
+0.71G -0.58G MX
ENTER Save
ENTER Save
ENTER Save
NS num Setting
NS:01 Pair
NS num Setting
NS:01 Pair
NS num Setting
NS:02 Pair
0m17s 0.114KM
Avg24.1KPH Sd01m
UP
SPEED FOR CARS
0.00PH 0RPM
+0.0G 0.000KM
0.00KPH 0RPM
+0.00G -0.00G MX
ENTER 3 seconds ENTER 3 seconds ENTER 3 seconds
0m0s 0.000KM
Avg0.00KPH Sd00m

【Product operation steps】
Three buttons respectively is MENU/UP/ENTER.
MENU: The function in the main interface is ENTER, and the function in setting parameters state is exit/cancel;
UP: Switching over the status page displays when in the State interface, and under the state of setting, is a button of changing parameters.
ENTER: It may delete all state values, if pressing for a long time in the state of display. Such as maximum speed, maximum
rotational speed, mileage, time, accelerate. It is the button of setting up and saving in the state of setting.
Connect the line and press UP and get into the display state:
Interface of power on.
1. Press the key MENUE can enter the option of round setting, the Motor pole logarithm setting, the unit setting:
①. Motor pole logarithm setting.
Press ENTER to Motor pole logarithm setting.
Press UP to set value.
(According to the actual magnetic pole of different Moter to set up, the typical set up is 1 pair.)
Press ENTER to save the value.
Manual of the SPEED METER
SPEED FOR CARS
-3-
NS num setting
NS:01 Pair
NS num setting
NS:01 Pair
NS num setting
NS:02 Pair

Manual of the SPEED METER
Please move 4m
36.4/m
Round setting
36.4/m
Please move 4m
0.0/m Moving
Unit setting
Metric
Unit setting
_Metric
Unit setting
_Imperial
38.0KPH 23070RPM
+0.71G -0.58G MX
②.round setting.
In this state, press ENTER to round setting.
In this state, press UP to measure (make the car slow forward for 4 M), after arriving 4 M,
press ENTER to save the current set and return to the state interface.
③.Unit set
Press ENTER to unit setting.
Press UP to select the unit.
(There are imperial and metric unit to choose.)
And then press ENTER to save.
2. In the state interface , the operation of UP can check the recorded data:
Display the maximum speed, the maximum rotational speed, the maximum acceleration and the
maximum deceleration.
-4-

Manual of the SPEED METER
Clear the interface by holding on "ENTER" 3 seconds.
Display running time, running mileage, average speed, braking distance.
Notes: After the car drove back, operate "UP" to recall back display when the screen reconnect to tester.
【Cautions】
1. Please read this operating manual carefully before install the product.
2. Please do not use the power supply beyond the safe voltage.
3. Please do not use this product in the rain to avoid a short circuit.
4. Please keep this operating manual for inspection at any time.
【The warranty terms】
The quality of our products' warranty is 1 year (12 months) since the date of purchase. This warranty only applies to product
quality problems in the purchase. During the product warranty, with proof of purchase (invoice or receipt), all products have
quality problems can be freely repaired or replaced. However, due to wear and tear, overloading, damage caused by the
misuse of man-made improper operation or accessories, do not be a free repair or replacement.
-5-
0m17s 0.114KM
Avg24.1KPH Sd01m
0.00KPH 0RPM
+0.00G -0.00G MX
