Hobie H-Crate Instruction manual

Hobie H-Crate Assembly and Installation Instructions

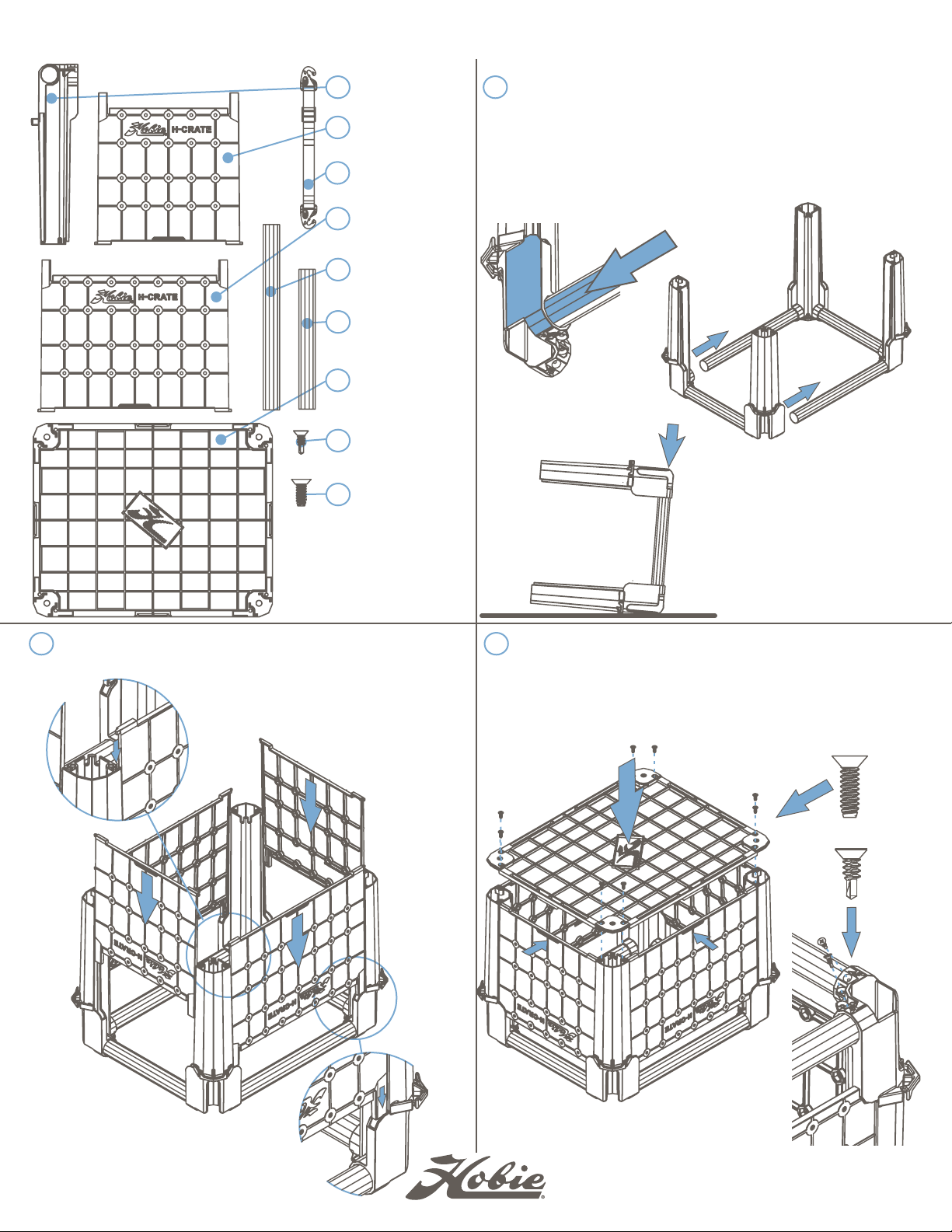

1 4 x Corner With the flat surfaces aligned, insert 2 long and 1
short H-Rail section into two upside down corner
pieces. Then connect the remaining corners using
the short H-Rail segment sliding both assemblies
together. Ensure the rails go all the way into the
corners. You may need to push them together using
a flat surface for leverage.
Parts List
2 x Short Wall
4 x Strap
2 x Long Wall
2 x Long H-Rail
2 x Short H-Rail
1 x Bottom
8 x Self Drilling
Screws
8 x Thread
FormingScrews
Tools needed:
Phillips Screwdriver
(optional) Drilland
Driver Bit
3
2
4
5
6
7
8
9
1
Slide the wall sections into the corners using the
tabs at the top and bottom to align.
2 Align the bottom of the crate. To secure it, first push
in the centers of the walls to clear the center snaps
and install the thread forming screws in the corners.
(optional) To add extra ridgitiy, you may install the self
tapping screws into the holes on top of the corners
using a drill.
thread
forming
self
tapping
3
REV 141203

Attach the straps to the pad eyes on each corner of
the crate. Install H-Crate in tankwell of kayak and
attach clips to available pad eyes. Tighten straps by
pulling the loose end of the strap.
5
4To interlock the tabs in the bottom, turn crate right
side up and push the bottoms of the walls outward
until the tabs are interlocked.
To secure rods, pull bungie handle over reel handle
and secure in slot next to pad eye.
6 Customize your H-Crate! Here are a few ideas:
H-Rail Tackle Bin
Vertical Rod
Holder
For more tips, tricks and videos go to:
HobieFishing.com
H-Rail Ram Mounts
1” and 1.5” Ball
H-Rail Mounting
Plate
7
