LOOP Q REEL Series User manual

LOOP QREEL MANUAL MODEL 4/6 - 6/8 - 7/9
CONVERSION LEFT/RIGHT HAND RETRIEVE:
1. Rotate spoolcap (27) anticlockwise to release spool
2. Pull spool (25) straight out
3. Release stopscrews (2) ½ turn with enclosed Allen wrench
4. Pull drag knob (1) straight out
5. Rotate draw bar(24) anticlockwise with flat screwdriver and remove
draw bar nut (3)
6. Pull bearing holder (22), with internal, straight out
7. Remove and turn the clicker plate (15)
8. Remove seal ring (16)
9. Remove cup springs (23), bearing (17), disc washer (18), carbon brake
disc (21) and one way clutch assy (20
10. Turn one way clutch assy (20)
11. Wipe clean
12. Assemble the reverse way
LOOP Tackle Design AB Sweden
Ph: [phone]
E: [email protected]
THIS FLY REEL IS A QUALITY product from the LOOP tackle assortment of
fly fishing gear. The design, craftmanship and testing behind this reel are
all on the cutting edge of fly fishing product development. As a part of our
commitment, our sta of anglers are constantly on the water designing,
using, adjusting and perfecting the gear. We at LOOP are uniquely able to
do this because our capabilities extend well beyond just manufacturing.
For more information about this fly reel and the complete line of LOOP
tackle and gear, please visit us at looptackle.com.
MAINTENANCE OF THE REEL:
• This reel is contructed so that maintenance is kept to a minimum.
However, be sure to check on the level of grease on the O-ring (26)
inside the spool cap (27), after using the reel for some time. We
recommend Molykote 111C grease or similar.
• Put grease on locking screws #2 and the threads on drag knob #1
before use in saltwater.
• Rinse reel after use in saltwater. Do not remove the spool, water may
penetrate the drag system.
• After fishing or when stored, make sure to release the pressure on the
drag system.
CAUTION! Do not touch any moving parts of the reel when a fish is running.

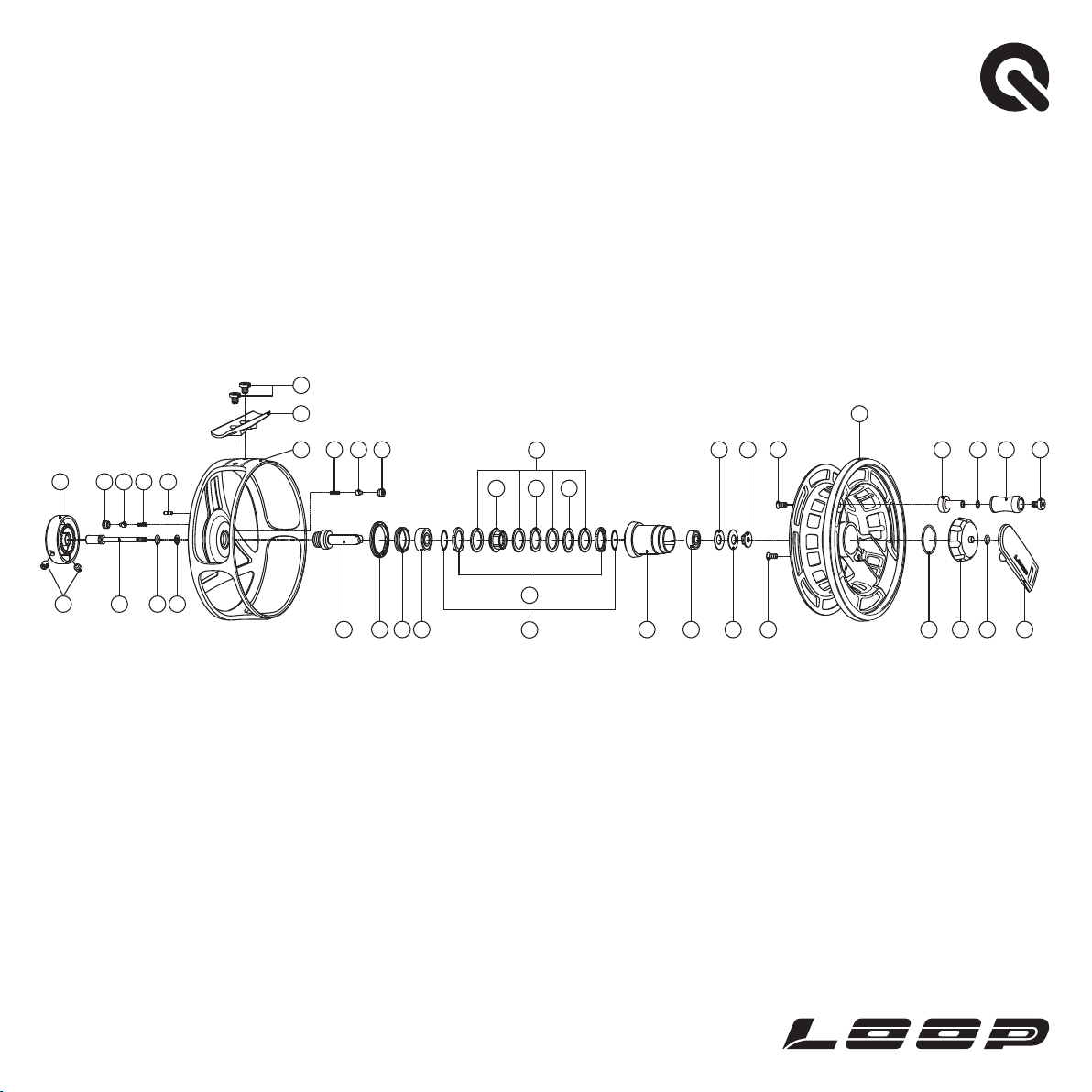

1
2
13
12
876
678 9
24 33 5
10 15 16 17 22 19 23
23 3 28
28
25
29 30 31 32
26 27 4 14
11
20
18
21 34
1. Drag knob
2. Locking screw
3. Draw nut
4. O-ring
5. Draw bar washer
6. Clicker bush
7. Clicker pin
8. Clicker spring
9. Stop pin
10. Main shaft
11. Frame
12. Foot
13. Foot screw
14. Spool cover
15. Clicker plate
16. Seal ring
17. Ball bearing
18. Disc washer
20. One way clutch ass'y
21. Brake disc
22. Bearing holder
23. Spring washer
24. Draw bar
25. Spool
26. O-ring
27. Spool cap
28. Handle shaft/Spool cover screw
29. Handle shaft
30. Handle knob washer
31. Handle knob
32. Handle knob screw
33. O-ring
34. Bearing Washer
19. Ball bearing

LOOP QREEL MANUALMODEL 8/11
CONVERSION LEFT/RIGHT HAND RETRIEVE:
1. Rotate spoolcap (27) anticlockwise to release spool
2. Pull spool (25) straight out
3. Release stopscrews (2) ½ turn with enclosed Allen wrench
4. Pull drag knob (1) straight out
5. Rotate draw bar(24) anticlockwise with flat screwdriver and remove
draw bar nut (3)
6. Pull bearing holder (22), with internal, straight out
7. Remove and turn the clicker plate (15)
8. Remove seal ring (16).
9. Remove cup springs (23), bearing (17), disc washer (18), carbon brake
disc (21) and one way clutch assy (20
10. Turn one way clutch assy (20)
11. Wipe clean
12. Assemble the reverse way
LOOP Tackle Design AB Sweden
Ph: [phone]
E: [email protected]
THIS FLY REEL IS A QUALITY product from the LOOP tackle assortment of
fly fishing gear. The design, craftmanship and testing behind this reel are
all on the cutting edge of fly fishing product development. As a part of our
commitment, our sta of anglers are constantly on the water designing,
using, adjusting and perfecting the gear. We at LOOP are uniquely able to
do this because our capabilities extend well beyond just manufacturing.
For more information about this fly reel and the complete line of LOOP
tackle and gear, please visit us at looptackle.com.
MAINTENANCE OF THE REEL:
• This reel is contructed so that maintenance is kept to a minimum.
However, be sure to check on the level of grease on the O-ring (26)
inside the spool cap (27), after using the reel for some time. We
recommend Molykote 111C grease or similar.
• Put grease on locking screws #2 and the threads on drag knob #1
before use in saltwater.
• Rinse reel after use in saltwater. Do not remove the spool, water may
penetrate the drag system.
• After fishing or when stored, make sure to release the pressure on the
drag system.
CAUTION! Do not touch any moving parts of the reel when a fish is running.
1
2
13
12
876
678 9
24 33 5
10 15 16 17 22 19 23
23 3 28
28
25
29 30 31 32
26 27 4 14
11 21
20 18 35
34
36
1. Drag knob
2. Locking screw
3. Draw nut
4. O-ring
5. Draw bar washer
6. Clicker bush
7. Clicker pin
8. Clicker spring
9. Stop pin
10. Main shaft
11. Frame
12. Foot
13. Foot screw
14. Spool cover
15. Clicker plate
16. Seal ring
17. Ball bearing
18. Disc washer
20. One way clutch ass'y
21. Brake disc
22. Bearing holder
23. Spring washer
24. Draw bar
25. Spool
26. O-ring
27. Spool cap
28. Handle shaft,Spool cover screw
29. Handle shaft
30. Handle knob washer
31. Handle knob
32. Handle knob screw
33. O-ring
34. Disc washer outer
35. Disc washer inner
36. C-clip
19. Ball bearing
