HOLDEN Equinox LS User manual

MY19 EQ Equinox
MY19 EQ Equinox
Owner’s Manual
holden.com.au

GM Holden Ltd, ABN 84 006 893 232, Holden New Zealand Ltd., Company Number 1602 (hereinafter Holden)
Change of name, address or ownership
If you drive a pre-owned Holden, have moved house or changed any of your details, we’d like to hear from you!
Holden uses your details to keep your vehicle’s factory provided RoadsideAssistance and Warranty details up to date.
It also helps us let you know if there is an existing rework action required on your vehicle. To update your details, please
take a few minutes to ll in and mail the form at the back of the Service & Warranty Booklet or visit Holden’s website at:
www.holden.com.au/forms/change-of-owner-details
GM Holden Ltd (Holden) is collecting the new owner’s personal information in order to process the request for
transfer for the specied vehicle. We may disclose your personal information to our related companies and third
parties who provide us with (or help us provide) products and services, including to overseas locations such as the
USA, and other countries in Europe, Oceania and Asia.
Holden’s privacy policy (available at: www.holden.com.au/privacypolicy) states how you can seek to access or correct
any personal information Holden holds about you, how to complain about a privacy breach by Holden and how
Holden will deal with a privacy complaint.
You can contact Holden on 1800 033 349 or alternatively, you may prefer to email Holden at:
[email protected]
Note: Please refer to the inside front cover of the Service & Warranty Booklet for the Vehicle Identication Certicate.
© 2018 GM Holden Ltd.
© 2018 Holden New Zealand Ltd.
Printed in Australia Reproduction in whole or part is
Part No. 92510130 prohibited without written approval from
July 2018 GM Holden Ltd., ABN 84 006 893 232 (Australia) or
(MY19 EQ Equinox. Print 1) Holden New Zealand Ltd., Company Number 1602 (New Zealand)

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
Contents Introduction . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . 23
Seats and Restraints . . . . . . . . . . . 47
Storage . . . . . . . . . . . . . . . . . . . . . . . . . 74
Instruments and Controls . . . . . . . 81
Lighting . . . . . . . . . . . . . . . . . . . . . . . 120
Infotainment System . . . . . . . . . . 127
Climate Controls . . . . . . . . . . . . . . 180
Driving and Operating . . . . . . . . . 187
Vehicle Care . . . . . . . . . . . . . . . . . . 252
Service and Maintenance . . . . . 313
Technical Data . . . . . . . . . . . . . . . . 315
Customer Information . . . . . . . . . 323
Index .................... 336

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
2 Introduction
Introduction

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
Introduction 3
Introduction
This Owner’s Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of
accident and injury which may result
from improper use of the vehicle.
Using this Manual
.This manual describes all
options and features available
for this model. Certain
descriptions, including those
for display and menu
functions, may not apply to
your vehicle due to model
variant.
.The In Brief section will give you
an initial overview.
.The table of contents at the
beginning of this manual and
within each chapter shows
where the information is located.
.The index will enable you to
search for specific information.
.Directional data, e.g. left or right,
or front or back, always relate to
the direction of travel.
.For a complete list of the
registered trademarks contained
in this manual Trademarks and
Licence Agreements 0171 or
Trademarks and Licence
Agreements 0323.
Danger, Warning, and
Caution
{Danger
Text marked {Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
{Warning
Text marked {Warning
provides information on risk of
accident or injury. Disregarding
this information may lead to injury.
Caution
Text marked Caution provides
information on possible damage
to the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated
with 0.
This indicates 'see page'.

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
4 Introduction
2NOTES

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
In Brief 5
In Brief
Instrument Panel
Instrument Panel . . . . . . . . . . . . . . . . 6
Initial Drive Information
Initial Drive Information . . . . . . . . . . 8
Stop/Start System . . . . . . . . . . . . . . . 8
Remote Keyless Entry (RKE)
System . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Vehicle Start . . . . . . . . . . . 8
Door Locks . . . . . . . . . . . . . . . . . . . . . 9
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . 10
Windows . . . . . . . . . . . . . . . . . . . . . . . 11
Seat Adjustment . . . . . . . . . . . . . . . 11
Memory Features . . . . . . . . . . . . . . 13
Heated and Ventilated Seats . . . 14
Head Restraint Adjustment . . . . 14
Seat Belts . . . . . . . . . . . . . . . . . . . . . 14
Mirror Adjustment . . . . . . . . . . . . . . 15
Steering Wheel Adjustment . . . . 15
Interior Lighting . . . . . . . . . . . . . . . . 16
Exterior Lighting . . . . . . . . . . . . . . . 16
Windshield Wiper/Washer . . . . . . 17
Climate Controls . . . . . . . . . . . . . . . 19
Transmission . . . . . . . . . . . . . . . . . . 20
Parking . . . . . . . . . . . . . . . . . . . . . . . . 21
Getting Started . . . . . . . . . . . . . . . . 21

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
6 In Brief

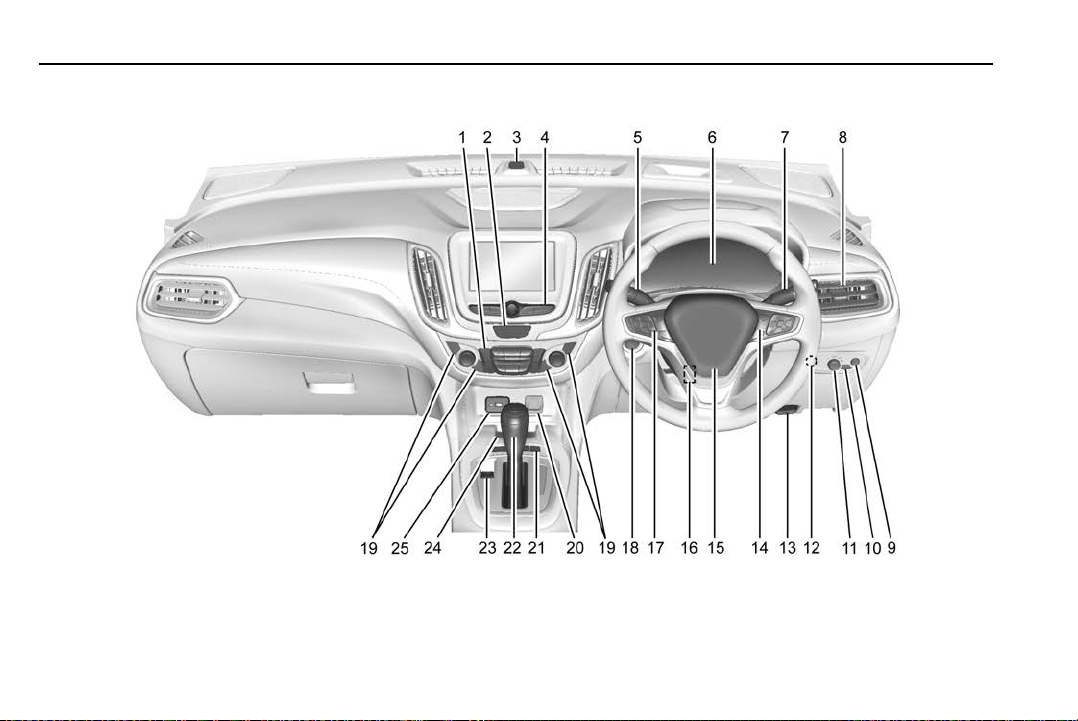

Instrument Panel

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
In Brief 7
1. Air Conditioning System 0180.
Dual Automatic Climate Control
System 0182.
2. Hazard Warning Flashers
0123.
3. Light Sensor. See Automatic
Headlamp System 0122.
4. Infotainment System. See
Overview 0127.
5. Windshield Wiper/Washer 084.
6. Instrument Cluster 093.
Driver Information Centre (DIC)
Display. See Driver Information
Centre (DIC) 0107.
7. Turn Signal Lever. See Turn
and Lane-Change Signals
0124.
High Beam Assist. See Exterior
Lamp Controls 0120.
8. Air Vents 0186.
9. Headlamp Leveling Control
0123.
10. Fog Lamps 0124.
11. Exterior Lamp Controls 0120.
12. Instrument Panel Illumination
Control 0125 (Out of View).
13. Bonnet Release. See Bonnet
0255.
14. Steering Wheel Controls 082.
Traction Control/Electronic
Stability Control 0210.
15. Horn 084.
16. Steering Wheel Adjustment
082 (Out of View).
17. Cruise Control 0213.
Forward Collision Alert (FCA)
System 0228.
Lane Keep Assist (LKA) 0236.
Heated Steering Wheel 083.
18. ENGINE START/STOP Button.
See Ignition Positions 0191.
19. Heated and Ventilated Front
Seats 055.
20. Power Outlets 087.
21. Parking Assist 0222.
Advanced Parking Assist
0226.
Hill Descent Control (HDC)
0212.
All-Wheel Drive 0206.
22. Shift Lever. See Automatic
Transmission 0202.
Manual Transmission 0204.
23. Electric Parking Brake 0207.
24. Wireless Charging 090.
25. USB Port. See USB Port
0137.
Auxiliary Input Jack. See
Auxiliary Jack 0141.

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
8 In Brief
Initial Drive
Information
This section provides a brief
overview about some of the
important features that may be fitted
to your vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner's manual.
Stop/Start System
The vehicle has a fuel saving
engine Stop/Start system to shut off
the engine (perform an Auto Stop)
and help conserve fuel and reduce
emissions when the vehicle is at a
standstill, e.g. at traffic lights.
When conditions allow, the vehicle
is at a complete stop and the brake
pedal is pressed (automatic), or the
transmission is shifted to neutral
and the clutch pedal released
(manual), the engine may turn off.
When the brake pedal is released
(automatic), the clutch pedal is
released (manual), or the
accelerator pedal is pushed, the
engine will restart. See Starting the
Engine 0193.
Remote Keyless Entry
(RKE) System
The Remote Keyless Entry (RKE)
transmitter may operate up to 60 m
from the vehicle.
With Remote Start and Power
Liftgate Shown
K:Press to unlock the driver door
or all doors depending on vehicle
personalisation settings. The liftgate
and fuel door will also be unlocked.
Q:Press to lock all doors and the
liftgate. The fuel door will also be
locked.
Lock and unlock feedback can be
personalised. See Vehicle
Personalisation 0114.
b:If equipped, press twice
quickly to open or close the power
liftgate.
/:Remote vehicle start,
if equipped. See “Remote Vehicle
Start”further in this Section.
A button on the side of the RKE
transmitter can be pressed to
remove the mechanical key. The
key can be used to unlock the
door's if the remote keyless entry
system does not operate.
See Keys 023 and Remote Keyless
Entry (RKE) System Operation 024.
Remote Vehicle Start
If equipped, the engine can be
started from outside of the vehicle.

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
In Brief 9
Starting the Vehicle
1. Press and release Qon the
RKE transmitter.
2. Immediately press and hold /
for at least four seconds or until
the turn signal lamps flash.
When the engine starts, the park
lamps will turn on. The vehicle's
doors will be locked.
Unlock the vehicle and press the
ENGINE START/STOP button
before driving.
Remote start running time can be
extended.
Cancelling a Remote Start
To cancel a remote start, do one of
the following:
.Press and hold /until the park
lamps turn off.
.Turn on the hazard warning
flashers.
.Press the ENGINE START/
STOP button twice.
See Remote Vehicle Start 028.
Door Locks
To lock or unlock the vehicle from
the outside, press Qor Kon the
Remote Keyless Entry (RKE)
transmitter.
To lock or unlock the vehicle from
inside:
Q:Press to lock the doors. The
indicator in the switch will illuminate
when the door is locked.
K:Press to unlock the doors.
See Door Locks 029.
To manually unlock a door from
inside the vehicle, pull once on the
door handle to unlock it, and a
second time to open it.
Keyless Entry
Press the button on a door handle
when the RKE transmitter is within
1 m of the door handle. When
unlocking from the driver door, the
first press unlocks that door; press
again within five seconds to unlock
all passenger doors. This can be
changed.
See Remote Keyless Entry (RKE)
System Operation 024.

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
10 In Brief
Liftgate
Manual Liftgate Operation
Unlock the vehicle before opening
the liftgate. Alternately, have the
RKE transmitter within 1 m of the
liftgate handle.
To open the liftgate, press the touch
pad under the liftgate handle and
lift up.
Do not press the touch pad while
closing the liftgate. This may cause
the liftgate to be unlatched.
Power Liftgate Operation
If equipped, to operate the power
liftgate, the vehicle must be in
P (Park). The tail lamps flash when
the power liftgate moves.
Choose the power liftgate mode by
turning the dial on the switch to
either the 3/4 or MAX position.
Press 8or press bon the RKE
transmitter twice quickly to open or
close the liftgate.
Alternatively, to open the liftgate,
press the touchpad on the
underside of the liftgate handle after
the doors have been unlocked.
If they are locked, the RKE
transmitter needs to be within 1 m of
the handle. To close, press lon
the bottom of the liftgate, next to the
pull cup.
Hands-Free Liftgate
If equipped, the liftgate can be
operated with your foot when the
RKE transmitter is within 1 m.
Kick Zone
The 'kick zone' is under the rear
bumper, between the left exhaust
pipe and the number plate. To
operate the hands-free liftgate,
move your foot towards the 'kick
zone' under the rear bumper and
then pull it back in one swift motion
See Liftgate 033.

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
In Brief 11
Windows
Power windows work when the
ignition is on, in Accessory mode,
or in Retained Accessory Power
(RAP). See Retained Accessory
Power (RAP) 0194.
Using the window switch, press to
open or pull to close the window.
The windows may be temporarily
disabled if they are used repeatedly
within a short time.
See Power Windows 042.
Seat Adjustment
Manual Front Seats
To adjust a manual seat:
1. Pull the handle at the front of
the seat.
2. Slide the seat to the desired
position and release the
handle.
3. Try to move the seat back and
forth to be sure it is locked in
place.
Seat Height Adjuster
Move the lever up or down to
manually raise or lower the seat.
See Seat Adjustment 050.

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
12 In Brief

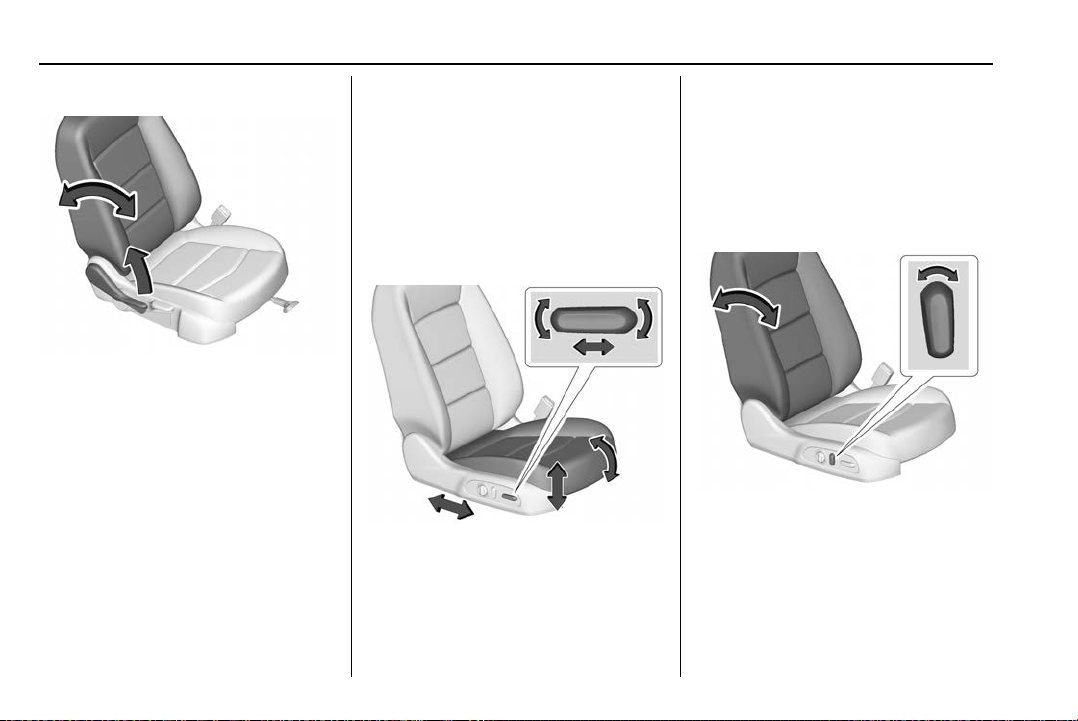

Reclining Seat Backs
To recline the manual seat back:
1. Lift the lever.
2. Move the seat back to the
desired position, then release
the lever to lock the seat back
in place.
3. Push and pull on the seat back
to make sure it is locked.
To return the seat back to an upright
position:
1. Lift the lever fully without
applying pressure to the seat
back, and the seat back returns
to the upright position.
2. Push and pull on the seat back
to make sure it is locked.
See Reclining Seatbacks 052.
Power Driver Seat
To adjust a power driver seat,
if equipped:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the front part of
the seat cushion by moving the
front of the control up or down.
.Raise or lower the entire seat by
moving the rear of the control up
or down.
See Power Seat Adjustment 051.
To recline a power seat back,
if equipped:
.Tilt the top of the control
rearward to recline.
.Tilt the top of the control forward
to raise.
See Reclining Seatbacks 052.

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
In Brief 13
Lumbar Adjustment
If equipped, press and hold the
control switch forward or rearward to
increase or decrease lumbar
support.
See Lumbar Adjustment 052.
Memory Features
If equipped, memory seats allow two
drivers to store and recall their
unique seat positions for driving the
vehicle, and a shared exit position
for getting out of the vehicle. For
seat entry memory recalls, the
positions are linked to both RKE
transmitters.
To manually recall these positions,
press and hold 1, 2, or Bon the
memory seat switch until the saved
position is reached.
When Seat Entry Memory is
enabled in vehicle personalisation,
the positions previously stored to
memory buttons and the RKE
transmitters are recalled when the
ignition is changed from off to on or
Accessory mode.
When Seat Exit Memory is enabled
in the personalisation menu, the
feature automatically recalls the
previously stored exit position when
exiting the vehicle. See Memory
Seats 053.

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
14 In Brief
Heated and Ventilated
Seats
If available, the driver or front
passenger seats can heated or
cooled. To operate, the engine must
be running.
To heat the driver or passenger
seat, press Lor M. Indicator lights
on the button show the current
setting.
To ventilate the driver or passenger
seat, press {or C. Indicator lights
on the button show the current
setting.
Press the heated or ventilated seat
button once for the highest setting.
With each subsequent press of the
button, the heating or ventilation
setting will reduce and then turn off.
Three lights indicate the highest
setting and one indicates the lowest.
See Heated and Ventilated Front
Seats 055.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
See Head Restraints 047 and Seat
Adjustment 050.
Seat Belts
Pull the metal tongue across your
body and insert it into the buckle
until it clicks into place.
The belt should not be twisted.
It should lie flat and fit firmly across
your hips.
To remove, press the release button
on the buckle and allow the seat
belt to retract.
See How to Wear Seat Belts
Properly 060.

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
In Brief 15
Mirror Adjustment
Exterior
To adjust the mirrors:
1. Press jor |to choose the
driver or passenger mirror.
2. Press the arrows on the control
pad to move the selected
mirror in the desired direction.
See Power Mirrors 040.
Interior
Adjustment
Adjust the rear view mirror to clearly
view the area behind the vehicle.
Manual Rear view Mirror
If equipped, push the tab forward for
daytime use and pull it rearward for
night time use to avoid glare of the
headlamps from behind. See
Manual Rearview Mirror 042.
Automatic Dimming Rear View
Mirror
If equipped, the mirror will
automatically reduce the glare of the
headlamps from behind. The
dimming feature comes on when the
vehicle is started. See Automatic
Dimming Rearview Mirror 042.
Steering Wheel
Adjustment
{Warning
Do not attempt to adjust the
steering wheel while driving.
To adjust the steering wheel:
1. Move the lever down.
2. To adjust, move the steering
wheel up or down.
3. Pull or push the steering wheel
closer or away from you.
4. Push the lever up to lock the
steering wheel in place.
Ensure the steering wheel is
locked in position before
driving.

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
16 In Brief
Interior Lighting

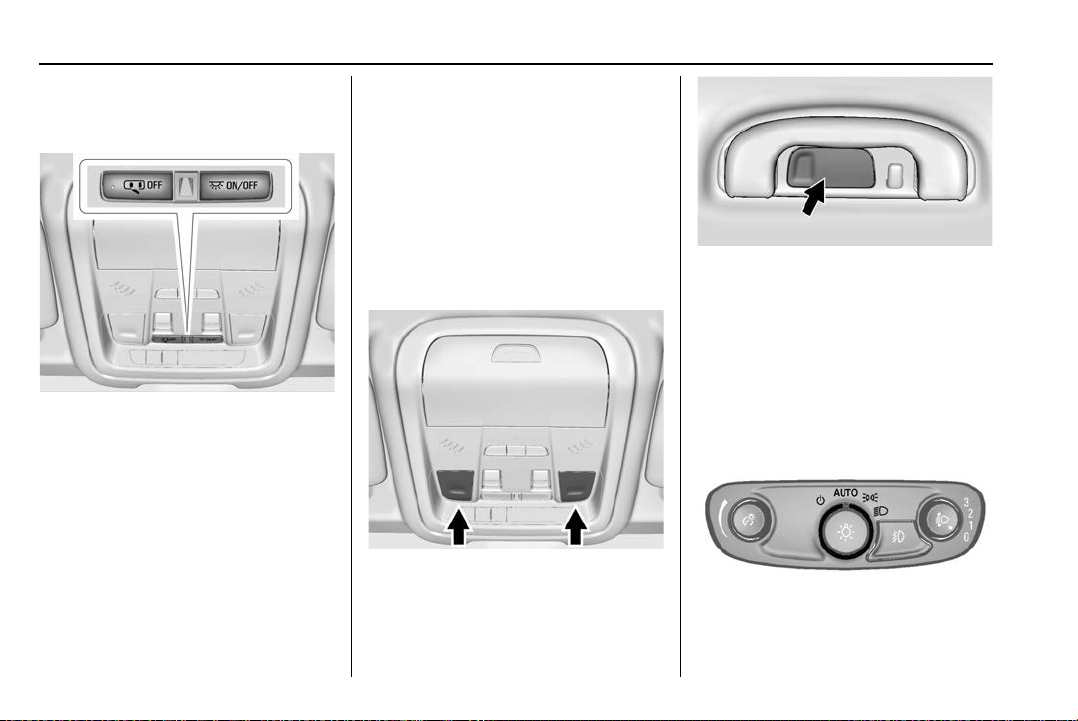

Dome Lamps
The dome lamp controls are in the
overhead console.
To operate, press the following
buttons:
jOFF : Press to turn off the
dome lamps when a door is open.
An indicator light on the button will
turn on when the dome lamp
override is activated. Press j
OFF again to deactivate this feature
and the indicator light will turn off.
The dome lamps will come on when
doors are opened.
+ON/OFF : Press to turn the dome
lamps on manually.
Reading Lamps
There are reading lamps in the
overhead console and over the rear
passenger doors. These lamps
come on when any door is opened.
Front Reading Lamps
Press the lamp lenses to turn the
front reading lamps on or off.
Rear Reading Lamps
Press the lamp lens to turn the rear
passenger reading lamps on or off.
See Instrument Panel Illumination
Control 0125.
Exterior Lighting

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
In Brief 17
The exterior lamp control is located
on the instrument panel on the
outboard side of the steering
column.
There are four positions.
O:Turns the exterior lamps off and
deactivates the AUTO mode. Turn
to Oagain to reactivate the
AUTO mode.
AUTO : Turns the exterior lamps on
and off automatically depending on
outside lighting.
;:Turns on the park lamps
including all lamps, except the
headlamps.
5:Turns on the headlamps
together with the park lamps and
instrument panel lights.
See Exterior Lamp Controls 0120.
Windshield Wiper/Washer

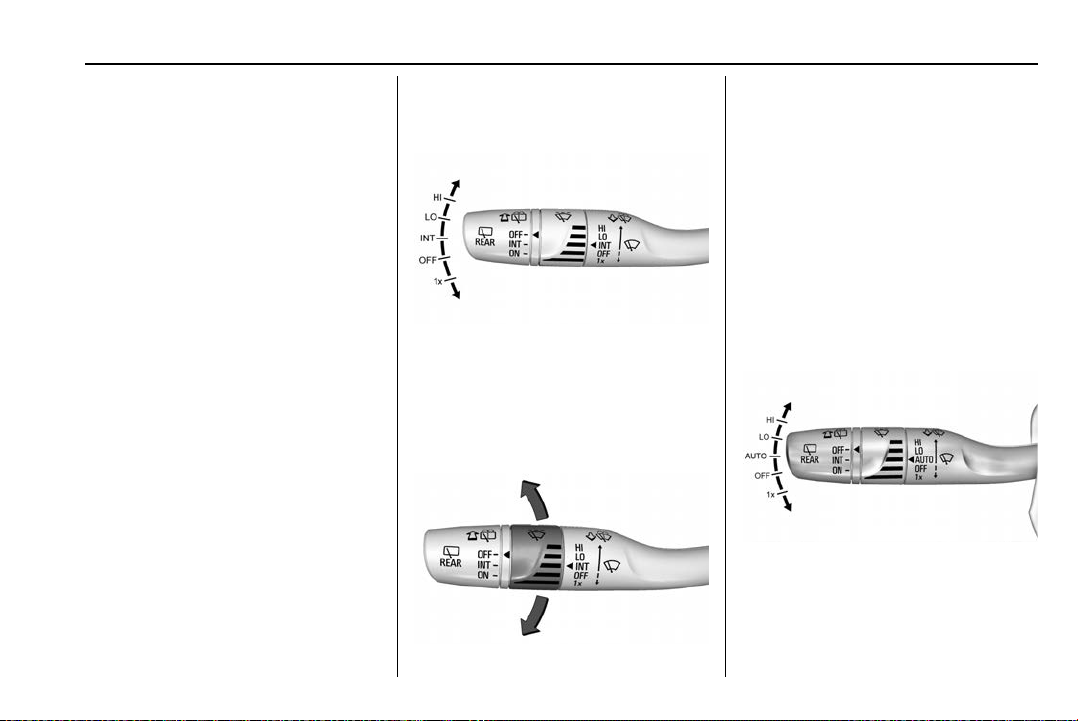

Intermittent Wipers
With the ignition on or in Accessory
mode, move the windscreen wiper
lever to select the wiper speed.
HI : Fast wipes.
LO : Slow wipes.
INT : Intermittent wipes. Turn the
band up for more frequent wipes or
down for less frequent wipes.
OFF : Turns the system off.
1X : Single wipe. Briefly move the
wiper lever down. For several
wipes, hold the wiper lever down.
f:Pull the windscreen wiper
lever toward you to spray
windscreen washer fluid and
activate the wipers.
Rain Sensing Wipers
With the ignition on or in Accessory
mode, move the windscreen wiper
lever to select the wiper speed.
HI : Fast wipes.

Holden Equinox Owner Manual (Holden-Localizing-Holden-12561772) -
2019 - crc - 6/26/18
18 In Brief
LO : Slow wipes.
AUTO : Rain sensing is on.
Automatic wipes with the rain
sensor. Turn the band up for higher
sensitivity or down for lower
sensitivity.
OFF : Turns the system off.
1X : Single wipe. Briefly move the
wiper lever down. For several
wipes, hold the wiper lever down.
f:Pull the windscreen wiper
lever toward you to spray
windscreen washer fluid and
activate the wipers.
Rear Window Wiper/Washer
Turn the end of the windscreen
wiper lever to operate the rear
window wiper/washer.
OFF : Turns the system off.
INT : Intermittent wipes.
ON : Slow wipes.
1:Push the windscreen wiper
lever forward to spray washer fluid
on the rear window. The lever
automatically returns to its original
position when released.
See Windshield Wiper/Washer 084
and Rear Window Wiper/Washer
086.
