TK Barina Owner’s Handbook
TK Barina
TK Barina

GM Holden Ltd, ABN 84 006 893 232 (hereinafter Holden)
Change of name, address or ownership
In the event of a Safety Recall, or for various reasons,
Holden may need to contact you as the owner of this vehicle.
If you have recently changed your address, or name, or purchased this
vehicle second-hand, please help us to help you by taking a few minutes
to ll in and mail the forms at the beginning of the Service/warranty booklet.
For information about GM Holden’s privacy policy or to update owner
details online, please visit Holden’s website at www.holden.com.au
Note Please refer to the inside front cover of the Service/
warranty booklet for the Vehicle Identication Certicate.
Printed in Australia
Part No. 92228312
April 2009 (MY09 TK Barina. Print 4)
© 2009 GM Holden Ltd
Reproduction in whole or part is prohibited
without written approval from GM Holden Ltd,
ABN 84 006 893 232
T255 IFC MY9.0.indd 1 2/04/2009 9:14:06 AM

CHAPTERS
Dashboard ........................................... 1A
Audio system ....................................... 1B
Locks ......................................................2
Know your vehicle ..................................3
Driving ....................................................4
Fuel .........................................................5
Emergencies ...........................................6
Weekly checks ........................................7
Specications .........................................8
Tow and load ..........................................9
Cleaning ...............................................10
Index
T255 Barina MY9.0 book.indb 1 5/14/2008 3:04:43 PM

We thank you for choosing Holden and want to assure
you of our continuing interest in your motoring pleasure
and satisfaction and compliment you on your choice.
This handbook applies to all Barina models.
Due to different models and options, you may nd
reference in this handbook to some equipment not
installed in your own vehicle.
Please note that all information, illustrations and
specications in this handbook are based on the latest
production information available at the time of printing.
Holden reserves the right to make changes at any time
without notice and without incurring any obligation.
T255 Barina MY9.0 book.indb 2 5/14/2008 3:04:43 PM

Chapter 1A – Dashboard
Dashboard layout
Instrumentation
Warning/reminder indications
Steering, horn, hazard warning
Wipers and washers
Headlights
Ventilation
Manual Heater, air conditioning
Chapter 1B – Audio
Steering wheel remote control
Overview
Important information
Switch on/off
Audio settings
Radio operation
Radio operation
CD operation
AUX operation
Steering wheel audio controls
Antenna information
Notes about compact discs
Glossary of terms
Chapter 2 – Locks
Keys
Ignition switch
Door locks
Boot lock (sedan)
Tailgate lock (hatch)
Bonnet lock
Security
Chapter 3 – Know your vehicle
Seats
Restraints
Supplemental restraint system
Power windows
Mirrors
Interior lamps
Assist grips
Storage compartments
Chapter 4 – Driving
Safety
Park brake
Driving precautions
Engine starting
Transmission operation
Active safety systems
Add on equipment
CONTENTS
3The asterisk signies equipment options not
in all vehicles; model variants, engine options,
optional equipment and Genuine Holden
Accessories (and Parts).
T255 Barina MY9.0 book.indb 3 5/14/2008 3:04:43 PM

Chapter 5 – Fuel
Fuel
Emission control
Reducing fuel consumption
Chapter 6 – Emergencies
Customer assistance - Australia
Customer assistance - New Zealand
Flat tyre
Changing a at tyre
Towing a disabled vehicle
Engine overheating
Flat battery
Fuse replacement
Bulb replacement
Chapter 7 – Weekly checks
Exterior checks
Under bonnet checks
Battery
Chapter 8 – Specications
Specications
Identication labels
Chapter 9 – Tow and load
Loading the vehicle
Towing
Chapter 10 – Cleaning
Interior cleaning
Exterior cleaning
Index
CONTENTS cont.
T255 Barina MY9.0 book.indb 4 5/14/2008 3:04:43 PM

Dashboard
CHAPTER
1A
Page
Dashboard layout ........................1A-2
Instrumentation............................1A-3
Warning/reminder indications......1A-6

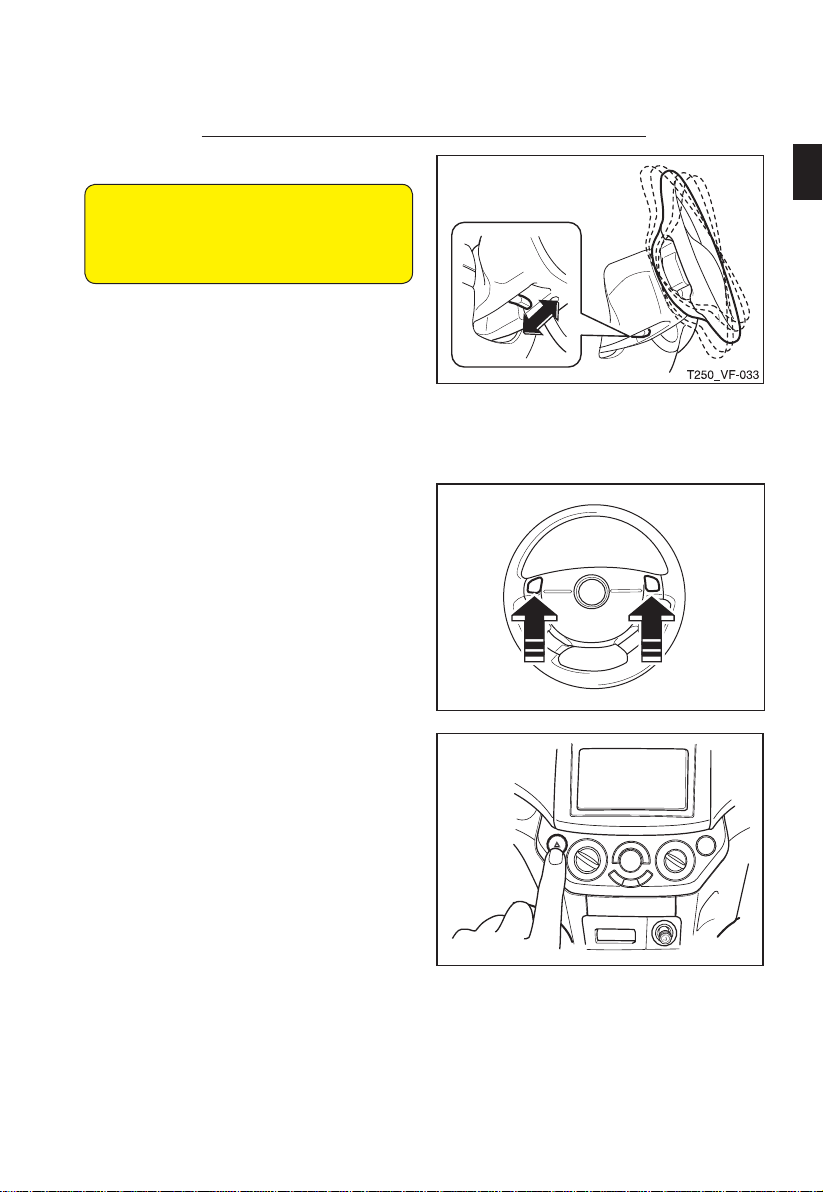

Steering, horn, hazard warning ...1A-9

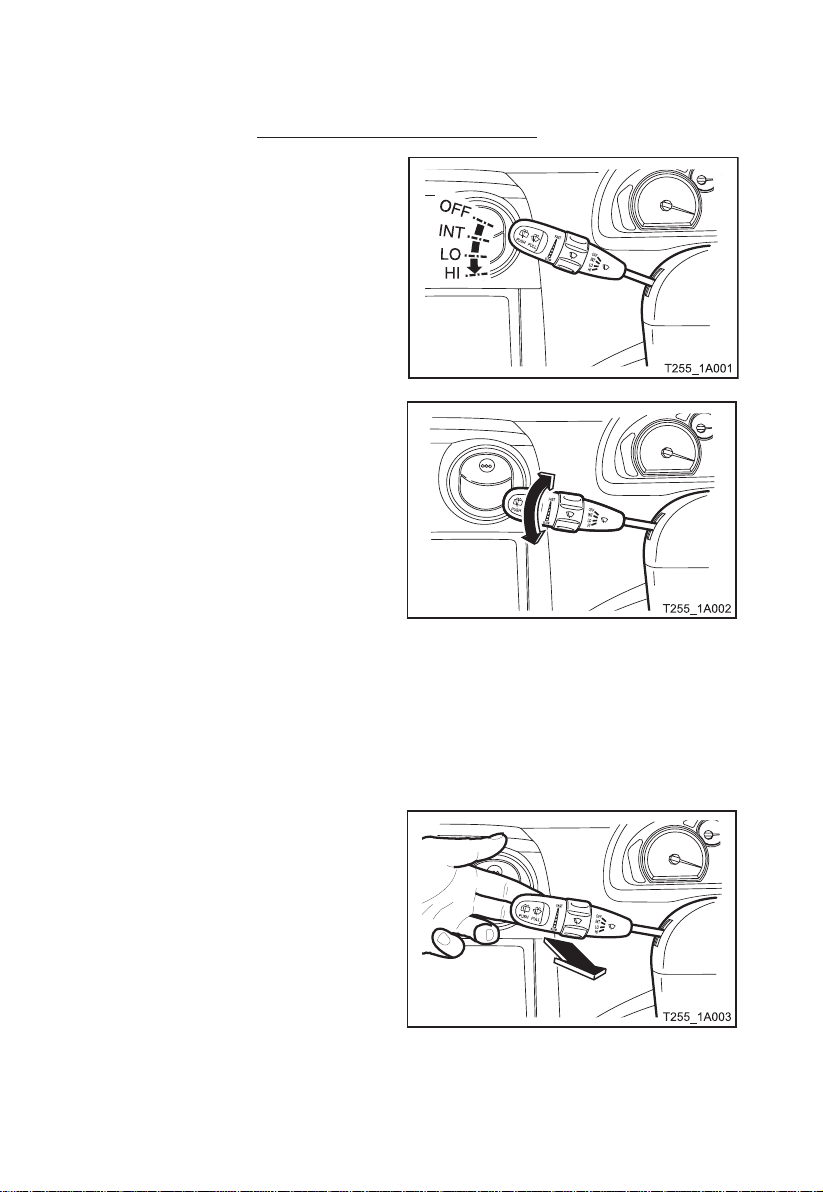

Wipers and washers..................1A-10

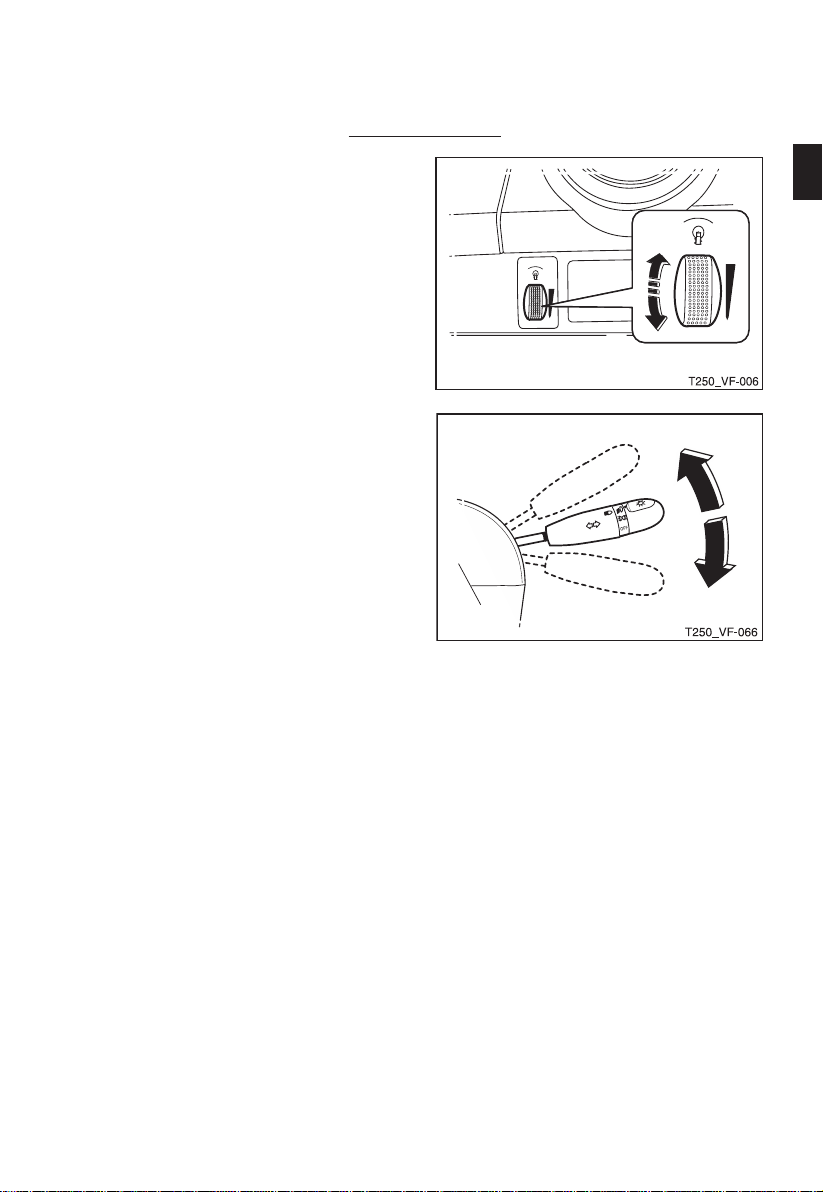

Lights.........................................1A-12
Ventilation..................................1A-14
Manual heater,
air conditioning ..........................1A-15
3The asterisk signies equipment options not
in all vehicles; model variants, engine options,
optional equipment and Genuine Holden
Accessories (and Parts).
T255 Barina MY9.0 book.indb 1 5/14/2008 3:04:43 PM

1A-2 Chapter 1A
DASHBOARD










  

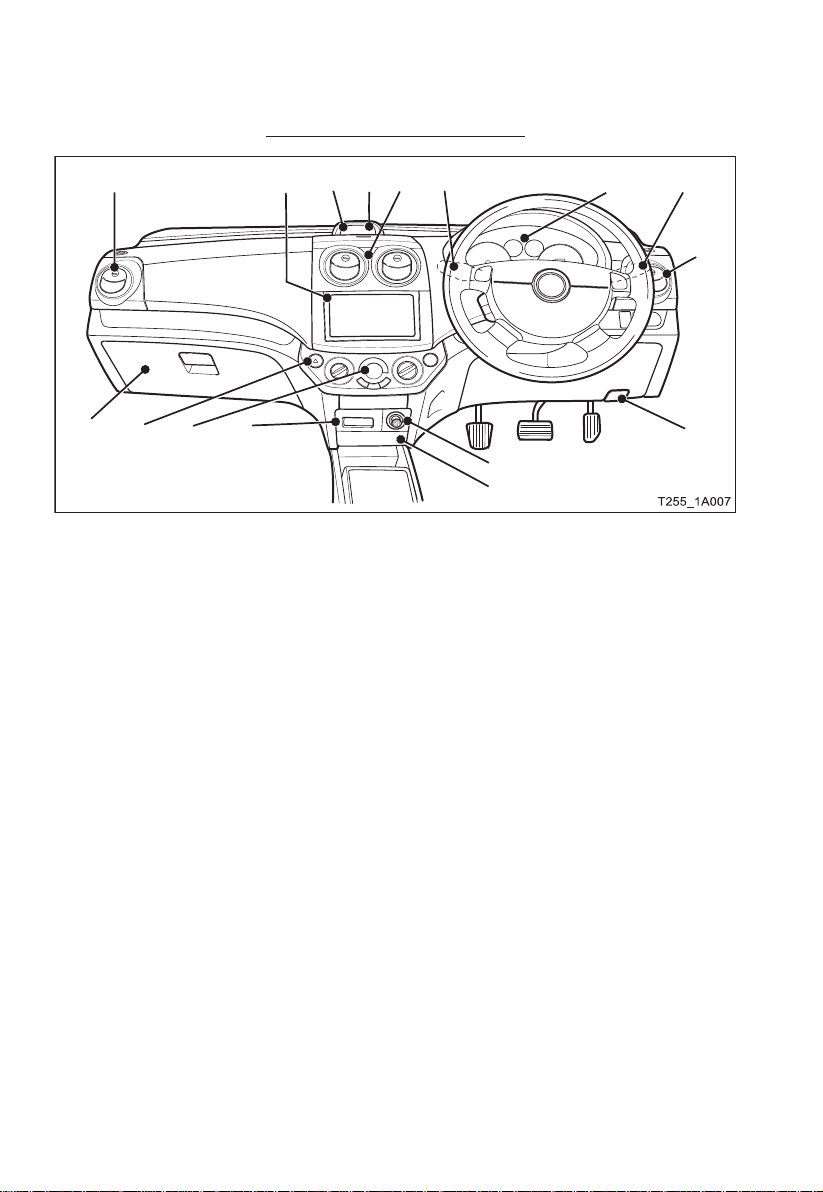

DASHBOARD LAYOUT
Page
Side vents.....................................................................................................1A-14
Audio system .................................................................................................. 1B-2
Security warning indicator lamp.......................................................................2-10
Digital clock.....................................................................................................1A-5
Centre vents..................................................................................................1A-14
Wipers and washers ......................................................................................1A-11
Gauges ........................................................................................................... 1A-3
Headlamps and turn signals .............................................................1A-12, 1A-13
Bonnet release lever..........................................................................................2-8
Cigarette lighter................................................................................................3-28
Cup holders......................................................................................................3-29
Ashtray.............................................................................................................3-28
Heating and air conditioning .........................................................................1A-15
Hazard warning switch.................................................................................... 1A-9
Glovebox..........................................................................................................3-28
T255 Barina MY9.0 book.indb 2 5/14/2008 3:04:43 PM

1A-3
Chapter 1A
DASHBOARD

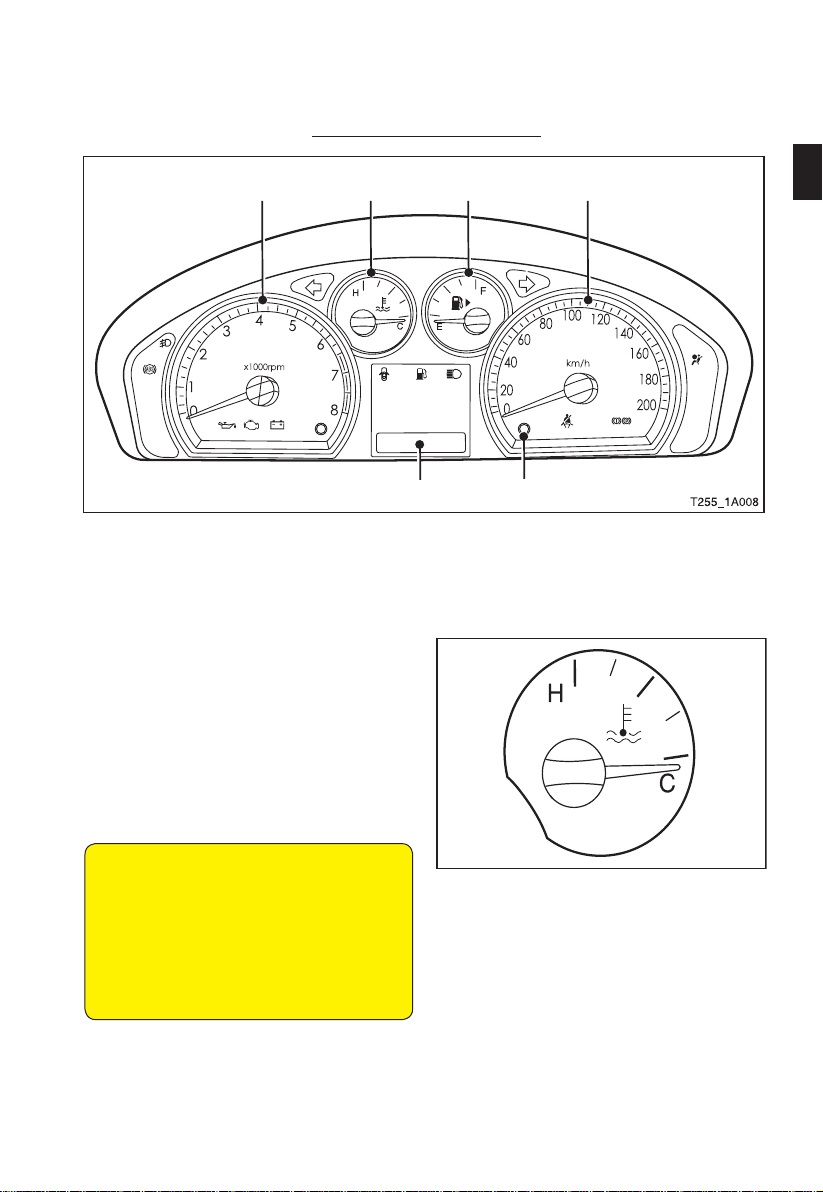

GAUGES
Speedometer
The speedometer indicates the vehicle’s speed in kilometres per hour (km/h).
Temperature gauge
The temperature gauge indicates the
temperature of the engine coolant when
the ignition switch is turned to the ON
position.
Stop-start driving in heavy trafc, driving
at high speed in warm weather or hill
climbing may cause the temperature to
increase. This is normal, and is no cause
for concern.
WARNING
Do not continue driving with the
temperature gauge needle in the red
area; the engine is too hot. Continued
operation of an overheating engine
will result in severe engine damage.
Refer to Engine overheating in
chapter 6.
HOLD
  



INSTRUMENTATION
T250_VF-003
T255 Barina MY9.0 book.indb 3 5/14/2008 3:04:43 PM

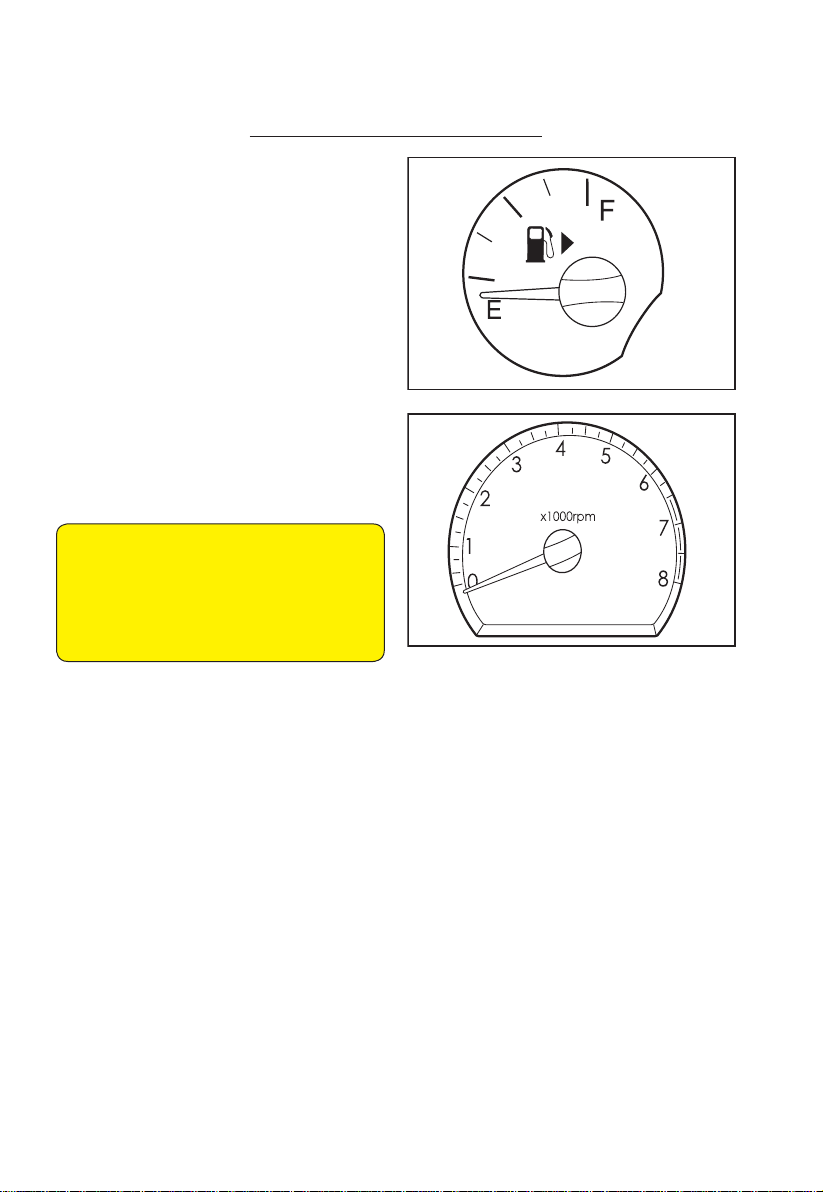

Fuel gauge
The fuel gauge indicates the level of fuel
within the fuel tank when the ignition
switch is turned to the ON position. F
represents full and Erepresents empty.
The needle in the fuel gauge falls to E
when the ignition switch is turned to the
OFF position.
Refer to Refuelling in chapter 5 for
refuelling instructions.
Tachometer
The tachometer indicates the engine
speed in revolutions per minute (rpm).
The red zone of the tachometer indicates
critical engine speed.
WARNING
Never operate the vehicle with
the tachometer needle in the red
zone. Continued operation with the
tachometer needle in the red zone
will lead to serious engine damage.
Odometer and tripmeter
The odometer and tripmeter display is located at the lower middle of gauges.
The odometer records the distance travelled since the vehicle was built, and the
tripmeter records the distance travelled on a particular journey. The tripmeter can keep
arecord of twodifferentjourneysat thesametime.The two tripmetersare distinguished
as TRIP A and TRIP B.
The tripmeter reset button is located at the lower left-hand side of the speedometer
dial.
With the ignition switched on, push the tripmeter reset button to change the display
between the ODOMETER, TRIP A and TRIP B. If the tripmeter reset button is pressed
for more than one second, the tripmeter resets to zero.
T250_VF-004
T250_VF-005
INSTRUMENTATION cont.
1A-4 Chapter 1A
DASHBOARD
T255 Barina MY9.0 book.indb 4 5/14/2008 3:04:44 PM

1A-5
Chapter 1A
DASHBOARD

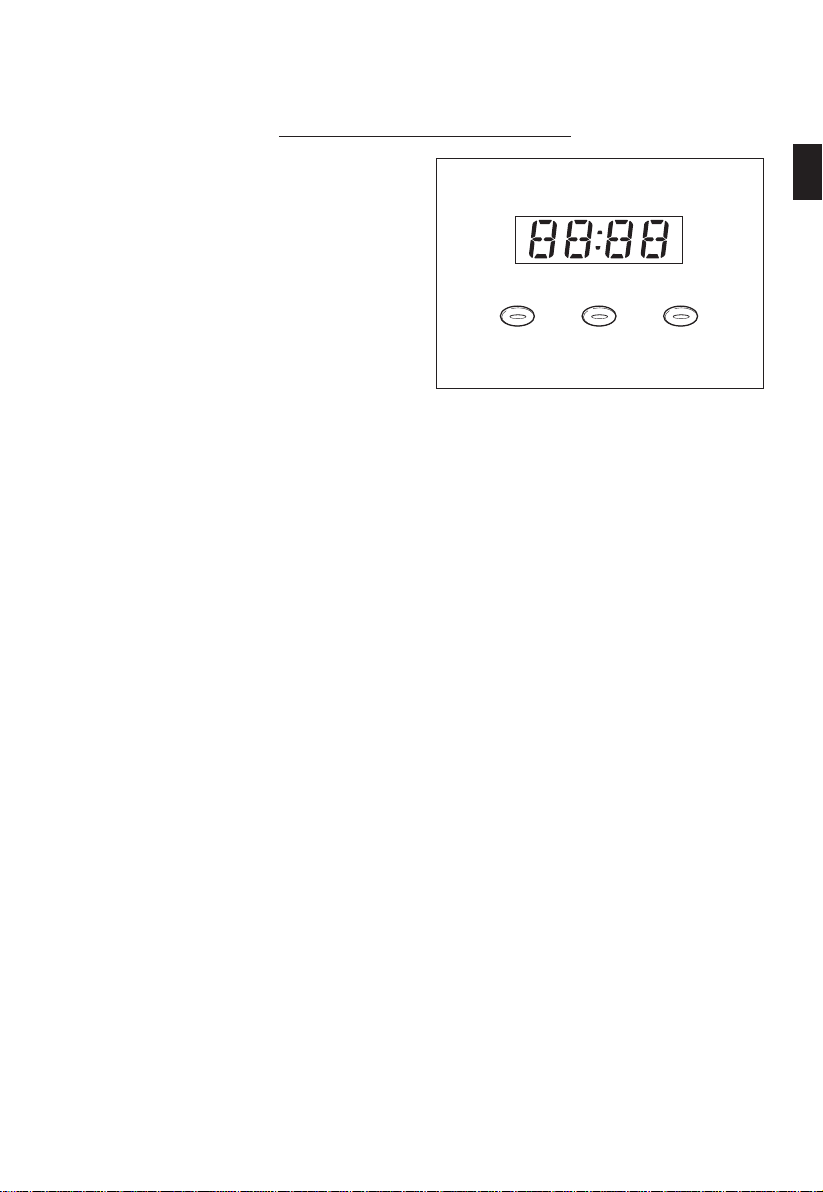

Clock
WiththeignitionintheACC(accessory)or
ON position, the digital clock displays the
time. The digital clock has two adjusting
buttons, Hand Mand a set button, S.
H: Hour button
•To advance 1 hour, press the Hbutton.
•To advance more than 1 hour, press
and hold the Hbutton until the desired
hour is reached.
M: Minute button
•To advance 1 minute, press the M
button.
•To advance more than 1 minute, press
and hold the Mbutton until the desired
minute is reached.
If the power supply to the clock is
interrupted, the clock will need to be
reset.
S: Set button
•To reset the time to the nearest hour,
press the Sbutton.
HM S
T250_VF-007
INSTRUMENTATION cont.
T255 Barina MY9.0 book.indb 5 5/14/2008 3:04:44 PM

Turn signals
When the turn signal switch or hazard warning lamp switch are switched
on, the turn signal indicator lamp (within the dashboard) ashes to
indicate operation of the turn signal lamps or hazard warning lamps.
High beam
This indicator lamp is illuminated when the headlamp high beams are
in use.
Oil pressure
The oil pressure lamp illuminates when the ignition switch is turned to
the ON position, and will remain illuminated until the engine is started.
If the oil pressure lamp illuminates while driving, this indicates the oil
pressure is dangerously low. Stop immediately and check the engine oil
level. Refer to Under bonnet checks in chapter 7.
WARNING
Do not drive the vehicle with the oil pressure indicator lamp
illuminated, consult your Holden Dealer.
Low fuel
The low fuel indicator lamp displays when the fuel tank is approaching
empty. It indicates there is approximately 6 litres of fuel remaining in the
tank. When the low fuel lamp illuminates, add fuel as soon as possible.
Brake
The brake warning lamp will display when the ignition is in the ON
position and the engine is not running, to indicate it is working properly.
If the brake warning lamp illuminates while driving and the park brake
is fully released, you should stop the vehicle as soon as possible and
consult your Holden Dealer.
WARNING
Driving with the brake warning lamp on can lead to an accident.
If the brake warning lamp stays on, consult your Holden Dealer to
have the brakes checked immediately.
WARNING/REMINDER INDICATIONS
1A-6 Chapter 1A
DASHBOARD
T255 Barina MY9.0 book.indb 6 5/14/2008 3:04:44 PM

1A-7
Chapter 1A
DASHBOARD
WARNING/REMINDER INDICATIONS cont.

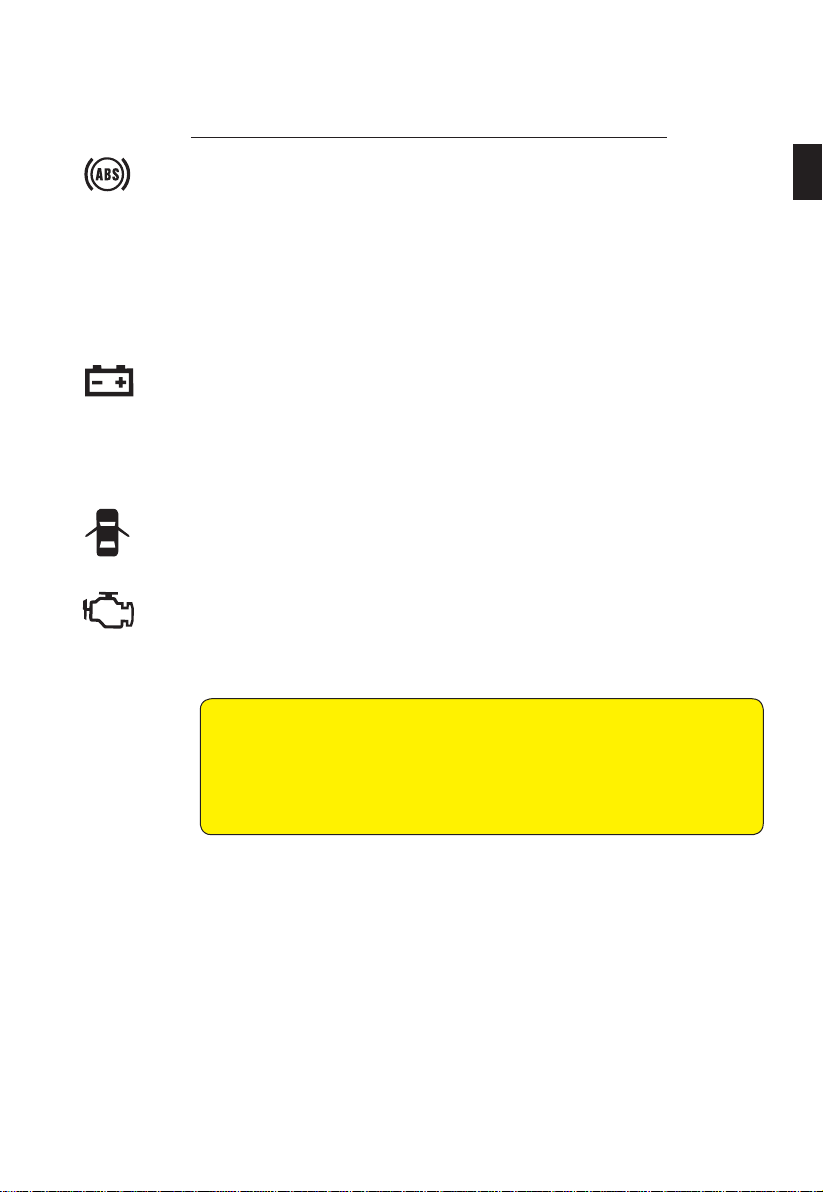

Anti-lock brake system (ABS)3
The ABS warning lamp illuminates when the ignition switch is turned to
the ON position, and goes out after a few seconds.
If the lamp illuminates while driving, carefully stop the vehicle and turn
off the engine. If the lamp stays on or illuminates again while driving,
you should have the system checked by your Holden Dealer.
Note This lamp indicates the anti-lock braking system is not operating.
Your vehicle’s brake system will still operate conventionally. Refer to
Anti-lock Brake System (ABS)3in chapter 4.
Battery
The battery warning lamp illuminates when the ignition switch is turned
to the ON position, and remains on until the engine is started.
If the lamp illuminates while driving, this may indicate that the alternator
is not charging the battery. If the alternator drive belt is intact, there is a
problem in the charging system. Consult your Holden Dealer.
Door ajar lamp
The door ajar lamp illuminates if any door is not fully closed, when the
ignition switch is turned to the ON or START position.
Malfunction indicator lamp
The malfunction indicator lamp monitors the emission control system.
This lamp comes on when the ignition switch is in the ON position and
the engine is not running. If it stays on or comes on while you are driving,
there may be a problem with this system. Consult your Holden Dealer.
WARNING
If you keep driving your vehicle with the malfunction indicator
lamp on, after a while, your emission control may not work, your
fuel economy may not be as good and your engine may not
run as smoothly. This could lead to costly repairs. Consult your
Holden Dealer.
T255 Barina MY9.0 book.indb 7 5/14/2008 3:04:44 PM

Hold mode indicator (automatic transmission)
The hold mode indicator lamp comes on and stays on whenever hold
mode is active. For hold mode operation refer to Automatic transmission
in chapter 4. To return to automatic operation, press the hold switch
again. If the hold mode indicator lamp ashes, have the vehicle serviced
immediately.
Seatbelt reminder
WhentheignitionswitchisturnedtotheONposition,theseatbeltreminder
lamp illuminates to remind occupants to fasten their seatbelts.
Airbag and seatbelt pretensioners indicator
Tocheckifthewarninglampisworking,theSRSwarninglampilluminates
for a short time when the ignition is rst turned to the ON position.
If the SRS warning lamp illuminates while driving, this indicates the
airbagsystemorseatbeltpretensionersystemmaynotfunctioncorrectly,
especially in an accident. Contact your Holden Dealer immediately.
WARNING/REMINDER INDICATIONS cont.
1A-8 Chapter 1A
DASHBOARD
T255 Barina MY9.0 book.indb 8 5/14/2008 3:04:44 PM

1A-9
Chapter 1A
DASHBOARD
TILT STEERING
WARNING
As with all the other driver position
controls, do not attempt to adjust the
steering wheel while driving.
The tilt steering lever is located on the
underside of the steering column. To
adjust the height of the steering wheel,
push the lever away from you. This
unlocks the steering column. Move the
steering wheel to the desired height and
then pull the lever toward you. Try moving
the steering wheel up and down to ensure
it is securely locked into position.
HORN
The horn is activated by pressing one of
the horn symbols on either side of the
steering wheel.
HAZARD WARNING
Press the button to turn the hazard
warning asher on and off. The hazard
warning asher works regardless of
the ignition position. When the hazard
warning asher is turned on, all turn
signals ash continuously.
Use the hazard warning asher to
warn other drivers any time the vehicle
becomes a trafc hazard, day or night.
Use of the hazard warning ashers while
the vehicle is moving is illegal in some
States and countries.
T250_VF-013
STEERING, HORN, HAZARD WARNING
T250_VF-063
T255 Barina MY9.0 book.indb 9 5/14/2008 3:04:44 PM

1A-10 Chapter 1A
DASHBOARD
OPERATING THE WIPERS
AND WASHERS
To operate the windscreen wipers, turn
the ignition switch to the ON position and
move the windscreen wiper/washer lever
downward.
The windscreen wipers operate in the
following four positions:
OFF:
System off. Default position.
INT:
Intermittent operation. Lever down one
level.
Variable intermittent:
The frequency of the intermittent wipe
can be adjusted by rotating the collar up
for more frequent wipes and down for less
frequent wipes.
LO:
Continuouswipe, slowspeed. Leverdown
two levels.
HI:
Continuous wipe, fast speed. Lever down
three levels.
Single wipe:
To operate the wipers once in case of light rain gently move the wiper switch toward
the INT position and release it.
Note Never operate the wipers on dry glass, as this would damage the rubber and
scratch the windscreen. Ensure the wipers are clear of any snow or ice before
switching them on.
Washer
To spray washer uid onto the windscreen,
pull the windscreen wiper lever toward
you. Even if the wipers setting is not
selected, the washer will spray uid and
the wipers will operate for three cycles or
until the lever is released.
WIPERS AND WASHERS
T255 Barina MY9.0 book.indb 10 5/14/2008 3:04:45 PM

1A-11
Chapter 1A
DASHBOARD
Rear wiper washer (hatch)
To operate the rear windscreen wiper,
turn the ignition switch to the ON position
and push the lever forward to the rst
position.
To operate the rear washer, push the lever
forward to the second position.
WIPERS AND WASHERS cont.
T255 Barina MY9.0 book.indb 11 5/14/2008 3:04:45 PM

1A-12 Chapter 1A
DASHBOARD

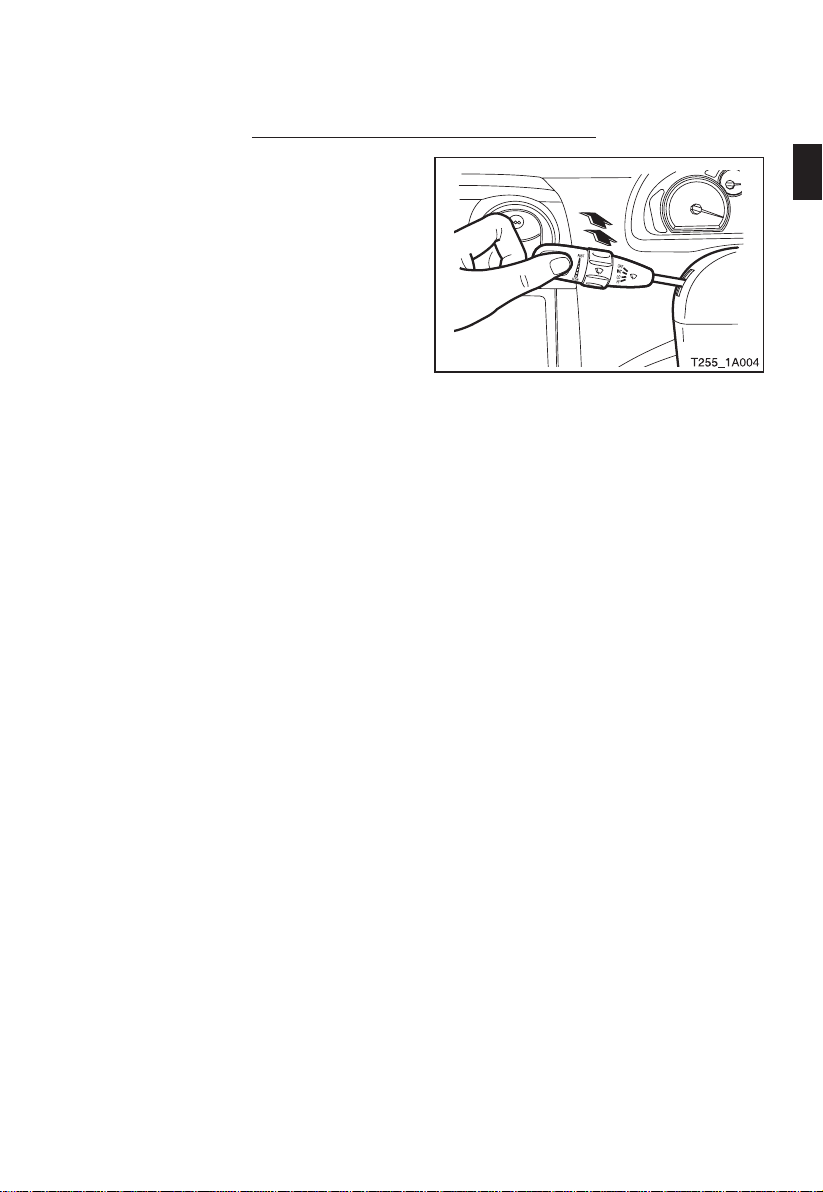

LIGHTS SWITCH
OFF = Turns off the headlamps and park
lamps.
= Park lamps
Turnsonthepark,tail,rearnumber
plate lamps and instrument panel
lighting.
= Headlamps
Turns on the headlamps in
addition to the park lamps.
Battery saver3
If the lamp switch is left in position or then the key is removed and the driver’s
door closed, the lamps will automatically switch off after approximately 5 seconds.
High/low beam
Switching between high and low beam
requires the low beam lamps to be on.
Push the lever toward the front of the
vehicle to switch from low beam to high
beam. Bring the lever back to the original
position to return to low beam.
The headlamp high beam indicator lamp
on the instrument panel illuminates when
the headlamps are on high beam.
Flashing high beam
It is also possible to ash the high beams
for signalling purposes by pulling the lever
toward you (even with the headlamps
switched off). The headlamps remain in
high beam as long as the lever is held in
this position.
LIGHTS
T255 Barina MY9.0 book.indb 12 5/14/2008 3:04:45 PM

1A-13
Chapter 1A
DASHBOARD
Dimmer – instrument lighting
To adjust the instrument lighting
brightness, ensure the headlamps or park
lamps are switched on. Turn the dimmer
thumb wheel to adjust the instrument
lighting to the desired brightness.
Turn signals
The turn signal lever is on the right-hand
side of the steering column. Push the
lever up to signal a left turn and down to
signal a right turn.
In some turns (such as changing lanes),
thesteeringwheelisnotturnedfarenough
to cancel the turn signal. So, to indicate a
lane change, move the lever part way and
hold it. The lever returns to the neutral
position when you release it.
An arrow on the instrument panel ashes
when the turn signals are in operation.
LIGHTS cont.
T255 Barina MY9.0 book.indb 13 5/14/2008 3:04:45 PM

The vehicle features a ow-through ventilation system for comfort. Under reasonable
conditions, it should not be necessary to open the windows at any time. Outside air is
drawn into the vehicle through the opening between the bonnet and the windscreen,
unless recirculation has been selected. Do not allow this grille to become clogged with
debris, such as leaves or snow. Any leaves should be removed each time the vehicle
is washed (recommended weekly).
VENTS
The air can be directed to different types of vents.
The face and rear seat vents have adjustable vanes which can be adjusted up or down
and left or right to allow directional control of air ow.
These vents have shut-off doors which can also be used to adjust the air volume to suit
individual comfort. For example, air ow at the centre vents can be reduced to enhance
air ow at the rear seat vents.
The oor-level and demister outlets are xed, as these direct air to the windscreen, feet
and side windows.
1A-14 Chapter 1A
DASHBOARD
VENTILATION
T255 Barina MY9.0 book.indb 14 5/14/2008 3:04:45 PM
