HOLDEN CG Captiva 2017 User manual

MY17 CG Captiva
MY17 CG Captiva
Owner’s Manual
holden.com.au

GM Holden Ltd, ABN 84 006 893 232, Holden New Zealand Ltd., Company Number 1602 (hereinafter Holden)
Change of name, address or ownership
If you drive a pre-owned Holden, have moved house or changed any of your details, we’d like to hear from you!
Holden uses your details to keep your vehicle’s factory provided RoadsideAssistance and Warranty details up to date.
It also helps us let you know if there is an existing safety recall or rework on your vehicle. To update your details, please
take a few minutes to ll in and mail the form at the back of the Service & Warranty Booklet or visit Holden’s website at:
www.holden.com.au/forms/change-of-owner-details
GM Holden Ltd (Holden) is collecting the new owner’s personal information in order to process the request for
transfer for the specied vehicle. We may disclose your personal information to our related companies and third
parties who provide us with (or help us provide) products and services, including to overseas locations such as the
USA, and other countries in Europe, Oceania and Asia.
Holden’s privacy policy (available at: www.holden.com.au/privacypolicy) states how you can seek to access or correct
any personal information Holden holds about you, how to complain about a privacy breach by Holden and how
Holden will deal with a privacy complaint.
You can contact Holden on 1800 033 349 or alternatively, you may prefer to email Holden at:
[email protected]
Note: Please refer to the inside front cover of the Service & Warranty Booklet for the Vehicle Identication Certicate.
© 2016 GM Holden Ltd.
© 2016 Holden New Zealand Ltd.
Printed in Australia Reproduction in whole or part is
Part No. 92506913 prohibited without written approval from
November 2016 GM Holden Ltd., ABN 84 006 893 232 (Australia) or
(MY17 CG Captiva. Print 1) Holden New Zealand Ltd., Company Number 1602 (New Zealand)

Contents 1
Contents
Introduction..................................... 2
In brief............................................. 4
Seats, restraints............................ 30
Storage......................................... 50
Instruments and controls.............. 54
Lighting......................................... 82
Infotainment system ..................... 88
Climate control............................ 125
Driving and operating ................. 132
Vehicle care................................ 172
Service and maintenance........... 231
Technical data............................. 233
Customer information................. 239
Index........................................... 242

2 Introduction
Introduction
We thank you for choosing Holden and want to
assure you of our continuing interest in your
driving pleasure and satisfaction.
This owner’s manual applies to the current Captiva model.
Therefore, due to different models and options, you may
nd reference in this manual to some equipment
not tted to your own vehicle.
Please note that all information, illustrations and
specications in this manual are based on the latest
production information available at the time of printing.
Holden reserves the right to make changes at any time
without notice and without incurring any obligation.

Introduction 3
Introduction
Your vehicle is a designed
combination of advanced technology,
safety, environmental friendliness and
economy.
This Owner’s Manual provides you
with all the necessary information
to enable you to drive your vehicle
safely and efciently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
Using this manual
• This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply
to your vehicle due to model
variant, special equipment or
accessories.
• The ‘In brief’ section will give you
an initial overview.
• The table of contents at the
beginning of this manual and
within each chapter shows where
the information is located.
• The index will enable you to
search for specic information.
• Directional data, e.g. left or right,
or front or back, always relate to
the direction of travel.
• For a complete list of the
registered trademarks contained
in this manual:
Trademarks and licence
agreements 0239.
Symbols
Page references indicated with 0
This indicates ‘see page’.
Danger, warnings
and cautions
Danger
Text marked Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
Warning
Text marked Warning
provides information on risk of
accident or injury. Disregarding
this information may lead to injury.
Caution
Text marked Caution provides
information on possible damage
to the vehicle. Disregarding this
information may lead to vehicle
damage.

4 In brief
Initial drive
information
Remote keyless entry
A
Q K
L
The keyless access transmitter
operates all door locks:
Q: Lock
K: Unlock
L
: Vehicle locate button
The code number for the keys is
stamped on the key plate (A).
Keys and locks 016
Doors 019
Manual door locks
A
Q K
L
To remove the key for manual door
operation:
1. Press (A).
2. Remove the key from the
transmitter.
Note
Do not remove the key without
pressing the button.
In brief
Initial drive information..........4
Remote keyless entry...................4
Manual door locks........................4
Seat adjustment...........................5
Head restraints ............................6
Seat belts.....................................7
Mirror adjustment.........................7
Steering wheel adjustment...........8
Instrument panel overview...........9
Interior lighting............................10
Exterior lighting ..........................10
Hazard warning asher ..............12
Horn ...........................................12
Washer and wiper systems........12
Climate control...........................13
Transmission..............................13
Starting off..................................14
Starting the engine.....................14
Parking.......................................15

In brief 5
B
A
• To lock all doors, insert the key
into the driver’s door lock and
turn anticlockwise (A), then turn
back to the vertical position and
remove.
• To unlock all doors, insert the
key into the driver’s door lock
and turn clockwise (B), then turn
back to the vertical position and
repeat, then remove.
Keys and locks 016
Doors 019

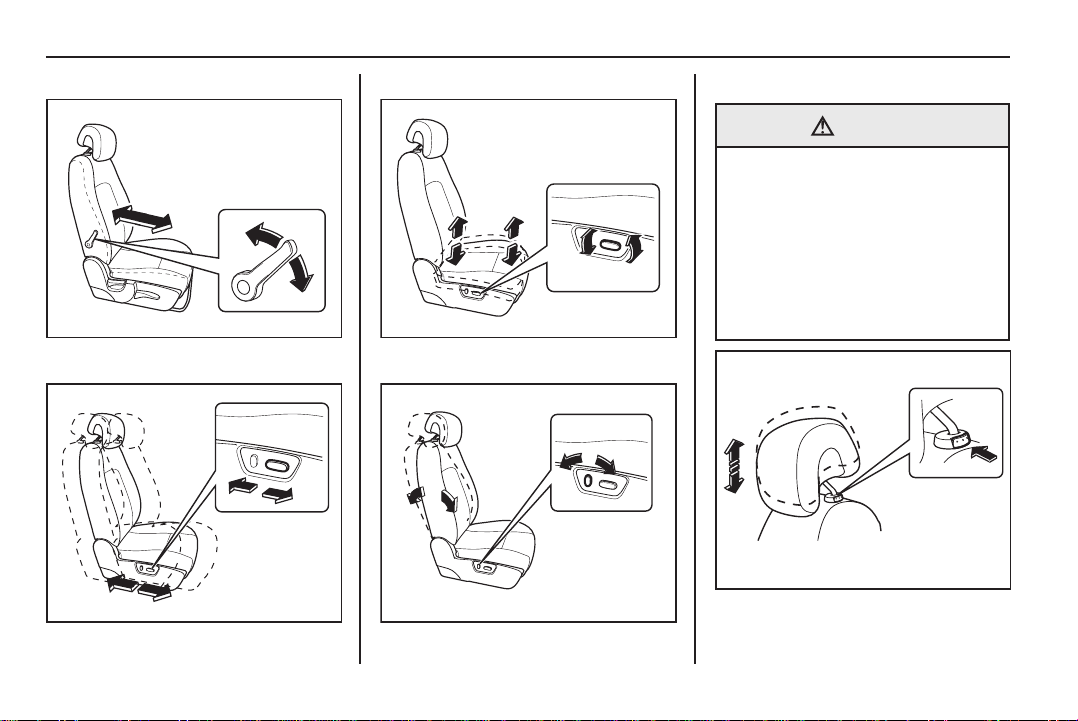

Seat adjustment
The vehicle may have the following
levers and switches for seat
adjustment.
Forwards/backwards (Type A)
Up/down (Type A)
Recline (Type A)

6 In brief
Lumbar
Forwards/backwards (Type B)
Up/down (Type B)
Recline (Type B)
Front seats 031
Head restraints
Warning
The head restraint safety feature
is not intended to rest the head
upon. It is solely for the reduction
of whiplash neck movement in an
accident involving the vehicle.
The centre of the head restraint
should be at eye level, never at
neck level.
To adjust the height:
1. Push the button in.

In brief 7
2. Pull the head restraint up or push
the head restraint down.
To tilt the front head restraints:
1. Place the head restraint in its
rearmost position by pushing it
forward fully and releasing it.
2. Push the head restraint forward
carefully to the required position.
Head restraints 030
Seat belts
The belt should not be twisted. It
should lie at and t rmly across
your hips.
1. Pull the metal tongue across
your body.
2. Clip it into the buckle.
When the metal tongue is locked
safely into place you will hear a
click.
Three point belt 038
Mirror adjustment
Rear view mirror
Adjust the rear view mirror by
moving right or left, up or down.
To reduce headlamp glare at night
from following vehicles, pull the lever
towards the rear of the vehicle.
For daylight operation, push the
lever towards the front of the vehicle.
Interior mirrors 025
Automatic dimming rear view mirror
025

8 In brief
Steering wheel
adjustment
Warning
Do not attempt to adjust the
steering wheel while driving.
1. To unlock, move the lever down.
2. To adjust, move the steering
wheel up, down, in or out.
3. To lock, move the lever up.
Ensure the steering wheel is
locked in position before driving.
Controls 056

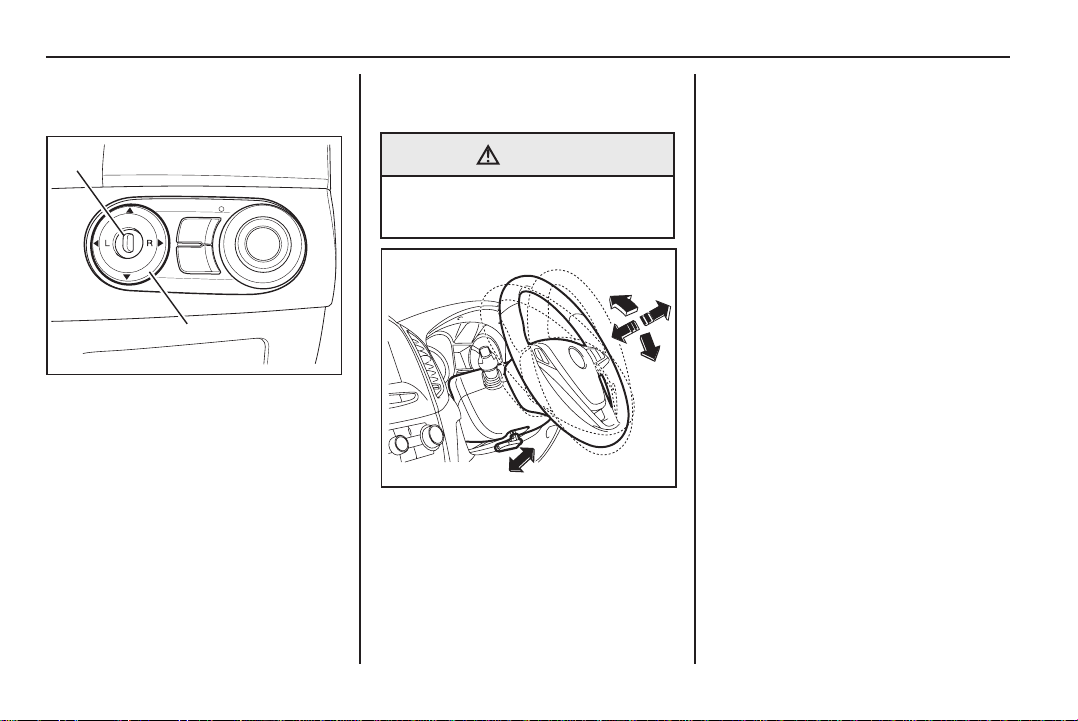

Exterior mirrors
Power mirrors
A
B
To adjust the mirrors, turn the
ignition control knob to the on or
accessories position:
• Move switch (A) to the right to
operate the driver side mirror.
• Move switch (A) to the left to
operate the passenger side
mirror.
• Press the arrows on the switch
(B) to adjust the mirror in the
direction the arrow is pointing.
Exterior mirrors 024

In brief 9
Instrument panel overview
A
VUTSRQPO NM LKJIH
BCDEFG
A. Side vent outlet..................... 130
B. Infotainment system ............... 88
C. Lever for wipers
and washers........................... 57
D. Instrument cluster................... 60
E. Driver Information
Centre (DIC)........................... 73
F. Horn pad................................. 57
G. Lever for:
Turn signal.............................. 84
High / low beam...................... 83
Fog lamps............................... 84
H. Trip computer, vehicle
personalisation ................. 74, 78
I. Coin storage........................... 50
J. Bonnet release lever............. 175
K. Steering wheel
remote controls....................... 92
L. Cruise control ....................... 153

10 In brief
Interior lighting
: On/off.
: Dome lamps.
Interior lighting 086
Dome lamps 087
Exterior lighting
: All lamps are off.
The switch will return to the AUTO
position once released.
To turn the automatic lamp control
on, turn to again.
AUTO: Parking lamps and
headlamps will turn on automatically
depending on the outside light.
8: Parking lamps (DRL and tail
lamps), number plate lamps and
instrument panel lights illuminate.
The headlamps will not come on.
M. Electronic Stability Control
(ESC) off button.................... 149
Descent Control System
(DCS) button......................... 152

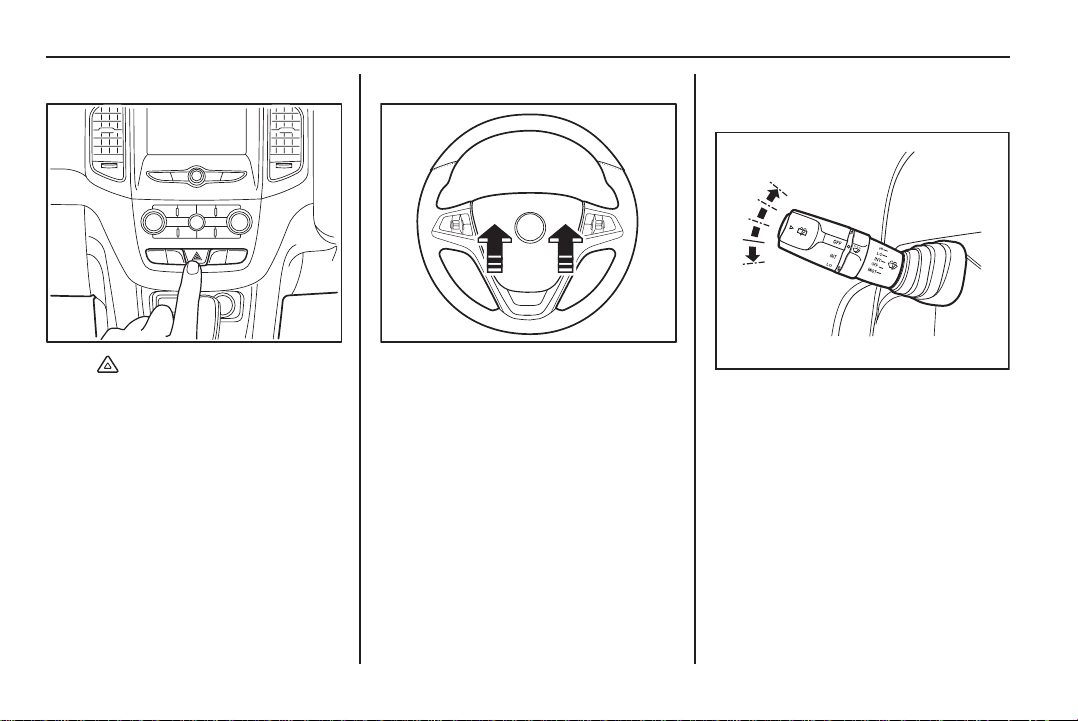

Hazard warning
asher button.......................... 83
Rear air conditioning
button.................................... 129
Economy mode (ECO)
button.................................... 143
N. Power outlet............................ 59
O. Front heated seat (driver)....... 34
P. Electric Park Brake (EPB) .... 148
Q. Front heated seat
(passenger) ............................ 34
R. Shift lever
Automatic transmission ........ 141
Manual transmission............. 144
S. USB /AUX port..................... 100
T. Climate control...................... 125
U. Glove box ............................... 50
V. Front passenger’s
seat belt reminder................... 64

In brief 11

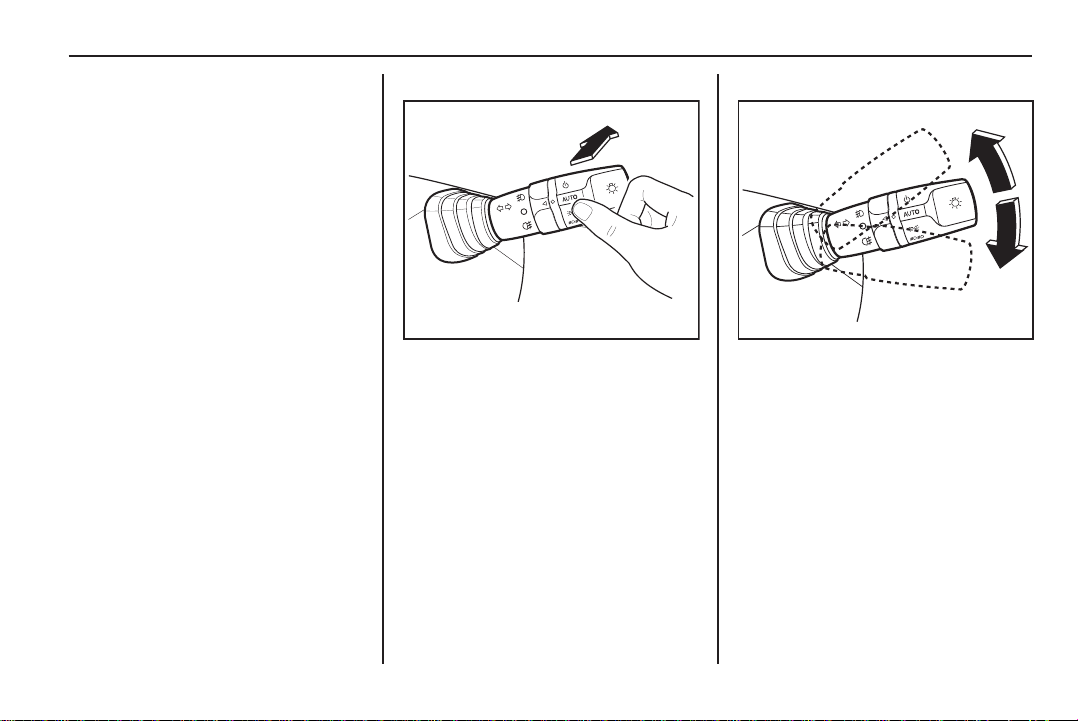

High/low beam
High beam: Push lever.
Low beam: Pull lever from high
beam position.
Headlamp ash: Pull lever .
The high beam lamps can be ashed
even if the headlamps and/or ignition
are off.
Exterior lighting 082
High/low beam 083
9 P: Parking lamps, number plate
lamps, instrument panel lights and
headlamps illuminate.
>: Front fog lamps.
rRear fog lamps.
Exterior lighting 082
Turn signals
Left: Lever up.
Right: Lever down.
Turn signals 084

12 In brief
Horn
Press the horn pad on either side.
Hazard warning asher
Press to turn the hazard warning
asher on and off when the ignition
is in any position.
Hazard warning asher 083
Washer and wiper
systems
MIST: Wipers cycle while the lever is
held down.
OFF: Wipers off.
INT: Move the lever up one level.
Rotate the collar to adjust the
frequency.
LO: Move the lever up two levels.
HI: Move the lever up three levels.
Pull to wash the windscreen.
Windscreen wipers / washers 057

In brief 13
Climate control
OFFMODE
A/C
SYNC AUTO
R
The climate control panel is located
in the centre of the instrument panel.
The climate control settings are
displayed on the information display
when the climate control system is
activated using the buttons or knobs.
Climate control 0125
Transmission
Automatic transmission
P: Park. R: Reverse.
N: Neutral. D: Drive.
Apply the brake pedal and press
the select button on the shift
lever to shift.
Press the select button on the
shift lever to shift.
It is not necessary to apply the
brake pedal or press the select
button on the shift lever to shift.
Automatic transmission 0141
Rear air conditioning system
Press REAR A/C on the centre of
the instrument panel to turn the rear
air conditioning system on.
Set the fan speed to the desired
speed with the rear fan speed switch.
Rear air conditioning system 0129

14 In brief
Starting the engine
Warning
Do not switch the engine off while
the vehicle is moving as there
will not be any power assist for
brakes or steering.
1
2
3
4
• The keyless access transmitter
must be inside the vehicle.
Starting off
Check before starting
• Check the windows, mirrors and
lamps are clean.
• Visually check tyre ination.
Check the tyre pressures
each week.
• Ensure that all doors are closed
and secured.
• Position your seat for
comfortable driving.
• Adjust rear view mirrors.
• Fasten seat belts.
• Check the warning indicators
illuminate when turning the
ignition on.
Starting and operating 0134
Starting the engine 0138
Manual transmission
The manual transmission has six
forward gears and a reverse gear.
The shift pattern is found on the top
of the shift lever.
Pull the button on the front of the
shift lever up to select reverse gear.
Manual transmission 0144

In brief 15
• The shift lever must be in
P (Park) or N (Neutral). The
engine will not start in any other
position.
• The brake pedal must be
depressed to start the engine.
1: (Lock/off).
2: (Accessories) When the ignition
control knob is in the accessories
position, the audio system will
operate.
3: (On) When the ignition control
knob is in the on position, the engine
is ready to start and all electrical
systems are active.
Note
Do not leave the ignition control
knob in the on position for a
prolonged period, unless the engine
is running, otherwise the vehicle
battery will discharge.
Parking
1. Apply the park brake.
Before leaving the vehicle,
ensure is illuminated on
the instrument panel.
Electric Park Brake (EPB) 0148
2. Automatic transmission: Move
the shift lever to position P.
Manual Transmission: Place in
reverse or rst gear.
On an uphill slope, turn the front
wheels away from the kerb.
On a downhill slope, turn the
front wheels towards the kerb.
3. Shut all windows.
4. Switch off all exterior lamps.
5. Turn the ignition control knob to
the off position.
6. Lock all doors.
4: (Start) Petrol engine: Turn the
ignition control knob to the start
position momentarily and then
release.
The engine starts automatically.
Diesel engine: Turn the ignition
control knob to the on position
for preheating until the Klight
extinguishes. Turn the ignition
control knob to the start position.
The ignition control knob
automatically returns to the on
position when released.
Note
• If the engine control knob
does not turn, push the knob
in and turn.
• If the transmitter is not in the
vehicle or there is interference,
Electronic Key Not Detected is
displayed.
Vehicle messages 080
Ignition positions 0136

16 Keys, doors and windows
Keys and locks
Keys
A
Q K
L
The keyless access transmitter
operates all door locks:
Q: Lock.
K: Unlock.
L
: Vehicle locate button
The code number for the keys is
stamped on the key plate (A).
Keys, doors and
windows
Keys and locks .....................16
Keys...........................................16
Matching transmitter(s) to
the vehicle..................................17
Starting the vehicle with a
low transmitter battery................17
Replacing the transmitter
battery .......................................18
About the keys ...........................19
Doors.....................................19
Locking and unlocking................19
Manual door locks......................20
Door lock snibs...........................21
Child safety rear door locks........22
Tailgate.......................................22
Vehicle security ....................23
Immobiliser.................................23
Exterior mirrors ....................24
Power mirrors.............................24
Heated mirrors ...........................24
Folding mirrors...........................24
Interior mirrors......................25
Rear view mirror.........................25
Automatic dimming rear
view mirror..................................25
Sun visor mirrors........................26
Windows................................26
Power windows..........................26
Sun visors.............................27
Assist grips...........................27
Roof .......................................28
Sunroof.......................................28

Keys, doors and windows 17
Record the number, remove the key
plate and keep the number and the
key plate in a safe place (not in the
vehicle).
If the original keyless access
transmitters are lost, any additional
or replacement transmitters must be
purchased from and programmed by
a Holden Dealer, using the key code
number.
Vehicle locate button
To locate the vehicle, press
L
briey.
• The exterior lamps will ash and
the horn will chirp several times.
Matching transmitter(s)
to the vehicle
Each remote keyless access
transmitter is coded to the vehicle.
If the vehicle’s transmitter is lost,
inform a Holden Dealer immediately
so the vehicle can be reprogrammed
and will no longer recognise the
missing transmitter.
Additional transmitters also require
re-coding to match the new
transmitter.
Warning
The remote keyless access
transmitter contains precision
electronic parts.
To help avoid transmitter trouble:
• Do not leave the transmitter in
direct sunlight.
• Do not treat the transmitter
carelessly.
• Do not allow the transmitter to
get wet.
Starting the vehicle with
a low transmitter battery
If the transmitter battery is weak, the
Driver Information Centre (DIC) may
display Electronic Key Not Detected,
when trying to start the vehicle.
To start the vehicle:
1. Open the storage bin.
Cup holders 051
2. Lift the mat on the base of the
centre console bin.

18 Keys, doors and windows
Q K
L
3. Place the transmitter on the base
of the centre console bin in the
position shown, with the buttons
facing up.
4. Place the shift lever in P (Park)
or N (Neutral).
5. Press the brake pedal and rotate
the ignition control knob.
6. Replace the transmitter battery
as soon as possible.
Replacing the transmitter
battery
A
As soon as the range of the remote
keyless access transmitter reduces,
replace the battery:
1. Remove the key from the
transmitter.
Manual door locks 020
2. Separate the transmitter by
placing a at, thin object into the
slot on the side of the transmitter.
3. Remove the battery (A) and
replace with the new one, making
sure the positive (+) side of the
battery is facing down. Replace
with a CR2032 or equivalent
battery.
4. Reassemble the transmitter
ensuring the cover is engaged
correctly.
5. Insert the key back into the
transmitter.
6. Test the operation of the
transmitter.
Note
Avoid touching the at surfaces
of the battery, the circuit board
and other components inside
the transmitter with bare ngers.
Handling will shorten battery life.
