CHAPTERS
Dashboard ..............................................1
Locks ......................................................2
Know your vehicle ..................................3
Driving ....................................................4
Fuel .........................................................5
Emergencies ...........................................6
Weekly checks ........................................7
Specications .........................................8
Tow and load ..........................................9
Cleaning ...............................................10
Index
Rodeo book.indb 1 26/04/2007 12:05:47 PM

We thank you for choosing Holden and want to assure
you of our continuing interest in your motoring pleasure
and satisfaction and compliment you on your choice.
This handbook applies to all Rodeo models.
Due to different models and options, you may nd
reference in this handbook to some equipment not
installed in your own vehicle.
Please note that all information, illustrations and
specications in this handbook are based on the latest
production information available at the time of printing.
Holden reserves the right to make changes at any time
without notice and without incurring any obligation.
Rodeo book.indb 2 26/04/2007 12:05:47 PM

Chapter 1 – Dashboard
Dashboard layout
Instrument panel
Warning/indicator lights
Trip computer3
Wipers and washers
Demister, horn and audio system
Headlights
Turn signals, fog lights and
Ignition switch
Immobiliser, hazard warning and
park brake
Ventilation and heating
Heater controls
Accessory power outlet, lighter and
ashtray
Glovebox, utility tray and
bonnet release
Cruise control3
Chapter 2 – Locks
Keys and keyless entry
Keys and locks
Chapter 3 – Know your vehicle
Seat adjustment
Head restraint adjustment
Seat belts
Which type of child restraint for
your child?
Child restraints
Airbags3
Rear view mirrors
Tilt steering and windows
Power windows3
Interior light and roof console with
map lights
Vanity mirror, assist grip and
sunglasses storage
Centre console and Rear ashtray
Storage box and antenna
Chapter 4 – Driving
Safety
Petrol engine starting
Diesel engine starting
Driving precautions
4x4 driving precautions
Manual transmission
Automatic transmission
Four wheel drive system operation
Anti-lock Brake System (ABS)3
Chapter 5 – Fuel
Fuel
Fuel lling
Fuel types
Emission control
Reducing fuel consumption
Chapter 6 – Emergencies
Customer assistance - Australia
Customer assistance - New Zealand
Flat tyre
Towing a disabled vehicle
Engine overheating
Flat battery
Fuse replacement
Bulb replacement
Draining water separator (Diesel only)
Bleeding fuel system (Diesel only)
CONTENTS
3The asterisk signies equipment options not
in all vehicles; model variants, engine options,
optional equipment and Genuine Holden
Accessories (and Parts).
Rodeo book.indb 3 26/04/2007 12:05:47 PM

Chapter 7 – Weekly checks
Miscellaneous checks
Engine coolant level
Engine oil level
Engine oil consumption
Automatic transmission uid level
Brake and clutch uid level
Power steering and washer
uid levels
Tyres
Battery
Trolley jack locations
Chapter 8 – Specications
Specications
Transmissions
Axles and lubricants
Recommended oil viscosity/
ambient temp
Dimensions and wheels/tyres
Identication plates
Chapter 9 – Tow and load
Loading the vehicle
Towing
Attaching a trailer
Towing precautions
Chapter 10 – Cleaning
Interior cleaning
Caring for paint
Roof, paint polishing, wheels
and tyres
Exterior glass cleaning
Cleaning products
CONTENTS cont.
Rodeo book.indb 4 26/04/2007 12:05:47 PM

Dashboard
CHAPTER
1
Page
Dashboard layout ...........................1-2
Instrument panel.............................1-3
Warning/indicator lights ..................1-6
Trip computer3.............................1-11
Wipers and washers.....................1-12
Demister, horn and
audio system ................................1-13
Headlights.....................................1-14
Turn signals, fog lights
and ignition switch........................1-15
Immobiliser, hazard warning
and park brake............................. 1-16
Ventilation and heating................ 1-18
Heater controls............................ 1-19
Accessory power outlet,
lighter and ashtray....................... 1-22
Glovebox, utility tray
and bonnet release.......................1-23
Cruise control3..............................1-24
3The asterisk signies equipment options not
in all vehicles; model variants, engine options,
optional equipment and Genuine Holden
Accessories (and Parts).
Rodeo book.indb 1 26/04/2007 12:05:47 PM

Chapter 1
DASHBOARD
DASHBOARD LAYOUT
1-2
Page
1 Air outlet (side)...........................1-18
2Passenger’s airbag3................. 3-11
3 Clock3..........................................1-4
4 Air outlets (centre)......................1-18
5Hazard warning switch...............1-17
6Transfer shift switch (4WD)........4-18
Utility tray (2WD)........................1-23
7Wipers and washers lever
(inc. cruise control switch3).......1-12
8 Instrument panel..........................1-3
9Turn signals and
light switch ........................1-14, 1-15
Page
10 Air outlet (side) ..........................1-18
11 Cruise control main switch3.......1-24
12 Bonnet release lever..................1-23
13 Horn...........................................1-13
14 Driver’s airbag............................ 3-11
15 Accessory power outlet..............1-22
16 Cigarette lighter..........................1-22
17 Ashtray.......................................1-22
18 Heater controls...........................1-19
19 Audio system .............................1-13
20 Glovebox....................................1-23
Rodeo book.indb 2 26/04/2007 12:05:48 PM

INSTRUMENT PANEL
Chapter 1
DASHBOARD 1-3
GAUGES
Speedometer
The speedometer gauge indicates
the vehicle speed in kilometres per
hour (km/h).
Odometer and tripmeter
Note For odometer and tripmeter
operation on vehicles with Electro-
luminescent3gauges and trip computer,
refer to Trip computer further on in this
chapter.
Asmall window under the speedometer is
used for the tripmeter and odometer.
The odometer records the distance
travelled since the vehicle was built, and
thetripmeterrecordsthedistancetravelled
on a particular journey. The tripmeter can
keep a record of two different journeys at
the same time.
The tripmeter reset knob is located
at the lower right-hand side of the
speedometer dial.
With the ignition switched on, push the
reset knob to change the display between
ODD (odometer), TRIP A and TRIP B. If
the reset knob is pressed for more than
one second, the tripmeter resets to zero.
Tachometer3
The tachometer indicates the engine
speed in revolutions per minute (RPM).
The red zone of the tachometer indicates
critical engine speed.
WARNING
Never operate the vehicle with the
tachometer needle in the red zone.
Continued operation with the tachometer
needle in the red zone will lead to serious
engine damage.
Reset knob
Rodeo book.indb 3 26/04/2007 12:05:49 PM

INSTRUMENT PANEL cont.
1-4 Chapter 1
DASHBOARD
Fuel gauge
The fuel gauge indicates the level of fuel
within the fuel tank when the ignition
switchison.Frepresentsfull,Erepresents
empty. The needle in the fuel gauge falls
to Ewhen the ignition switch is turned off.
The fuel tank contents displays when the
ignition is turned to ON.
Refer to chapter 5 for refuelling
instructions.
Temperature gauge
The temperature gauge indicates the
temperature of the engine coolant when
the ignition switch is turned on.
Stop-start driving in heavy trafc, driving
at high speed in warm weather, hill
climbing or towing may cause the needle
to move toward the extreme top of the
gauge. This is normal, and is no cause for
concern. However, if the needle moves all
the way to the Hmark on the gauge and
remains there for more than 30 seconds,
you should stop the vehicle as soon as
it is safe to do so. Refer to chapter 6 for
overheating instructions.
Clock3
The time on the clock displays when the
ignition switch is in the ON position. The
clock display is adjusted as follows:
HHour display advances rapidly
while this button is pressed.
MMinute display advances rapidly
while this button is pressed.
SET When the SET button is pressed,
the time is rounded off to the
closest hour.
The clock does not display seconds, but
starts from zero when the SET button is
pressed.
E
Rodeo book.indb 4 26/04/2007 12:05:49 PM

INSTRUMENT PANEL cont. 1-5
Chapter 1
DASHBOARD
DIMMER CONTROLS
Dimmer – instrument lighting
To adjust the instrument lighting
brightness, ensure the headlights or park
lights are switched on. Turn the dimmer
thumb wheel, located to the right-hand
side of the steering column, to adjust
the instrument lighting to the desired
brightness.
Dimmer – electroluminescent3
instrument lighting
To adjust the instrument lighting
brightness press the dimmer knob, the
level of brightness can be reduced by 6
stagesduringday light hoursand5 stages
during night hours.
Note
•When the ignition is switched on, the
instruments will illuminate and all the
gauge needles will sweep to their
maximum position then back.
•If the ignition is switched on, when the
headlights are on, the gauge needles
do not move.
Cancelling gauge needle movement
To cancel the gauge needle movement when the ignition is switched ON, follow the
procedure below.
1. With the ignition switch and headlight switch turned OFF, press and hold the
dimmer knob.
2. Turn the ignition switch to ON while pressing the dimmer knob.
3. Turn the ignition OFF while pressing the dimmer knob.
4. Release the dimmer knob.
Note To activate gauge needle movement follow the same procedure again.
Dimmer Knob
Rodeo book.indb 5 26/04/2007 12:05:50 PM

WARNING/INDICATOR LIGHTS
1-6 Chapter 1
DASHBOARD
Automatic transmission oil temperature
The automatic transmission oil temperature warning light will illuminate
for three seconds after the ignition switch is turned to the ON position,
to check that the light is working.
If the light illuminates while driving, this indicates that the automatic
transmission oil temperature is too high. You should stop the vehicle
as soon as it is safe to do so, leave the engine idling and place the
automatic transmission in P(park). If the light extinguishes, you may
resume driving. If the light does not extinguish, have your automatic
transmission checked by your Holden Dealer as soon as possible.
Turn signals
When the turn signal lever or hazard warning switch are switched on,
the turn signal indicator light (within the instrument panel) ashes to
indicate operation of the turn signal lights or hazard warning lights.
High beam
This indicator light is displayed when the headlight’s high beams are
in use.
Oil pressure
The oil pressure warning light displays when the ignition switch is
turned ON and it remains on until the engine is started, to check that
the light is still working.
If the oil pressure light illuminates while driving, this indicates that the
oil pressure is dangerously low. Stop immediately and check the engine
oil level. Refer to Engine oil level in chapter 7. Do not drive the vehicle
with the Isymbol showing. If the oil level is normal, have the system
checked at your nearest Holden Dealer as soon as possible.
Low fuel
The low fuel indicator light illuminates when the petrol tank is
approaching empty. Never let the tank become empty.
Rodeo book.indb 6 26/04/2007 12:05:51 PM

WARNING/INDICATOR LIGHTS cont. 1-7
Chapter 1
DASHBOARD
Brake
If the brake warning light illuminates while driving and the park brake is
fully released, there maybe a fault with the braking system. You should
immediately stop the vehicle (as carefully as possible) and check the
uid level in the brake master cylinder. Refer to Brake and clutch uid
levels in chapter 7. Do not proceed until the reason for the warning has
been located and rectied.
In addition, diesel equipped vehicles are tted with a low vacuum
warning which may illuminate when the brake pedal is pumped while
the engine is running at low speed. This is due to insufcient vacuum
being generated and does not indicate a problem. However, if the light
illuminates after two or three seconds at idle, the vacuum line may be
defective. Contact your Holden Dealer.
Anti-lock Brake System (ABS)3
The warning light uwill illuminate when the ignition switch is turned to
the ON position, and will go out after a few seconds, to check that the
light is working.
If the light illuminates while driving, carefully stop the vehicle and switch
off the engine. If the light illuminates again while driving, have the
system checked by your Holden Dealer.
Note This light indicates that the anti-lock braking system is not
operating. Your vehicles brake system will still operate conventionally.
Refer to Anti-lock brake system (ABS) in chapter 4.
Battery
To check that the warning light is working, the plight illuminates when
the ignition switch is turned to the ON position, and will remain on until
the engine is started.
If the light illuminates when driving, this may indicate that the alternator
is not charging the battery. If the alternator drive belt is intact, there is a
problem in the charging system. Contact your Holden Dealer.
Glow plug indicator (diesel only)
The glow plug indicator light !may remain on for a short time or may
extinguish right away. The waiting time will vary with the engine and
coolant temperatures. When the glow plugs are sufciently heated for
cold engine starting, the light will extinguish. This indicates that the
engine is ready to be started.
Door open indicator
The (indicator light illuminates if any door is not fully closed, when
the ignition switch is turned to the ON or START position.
Rodeo book.indb 7 26/04/2007 12:05:52 PM

WARNING/INDICATOR LIGHTS cont.
1-8 Chapter 1
DASHBOARD

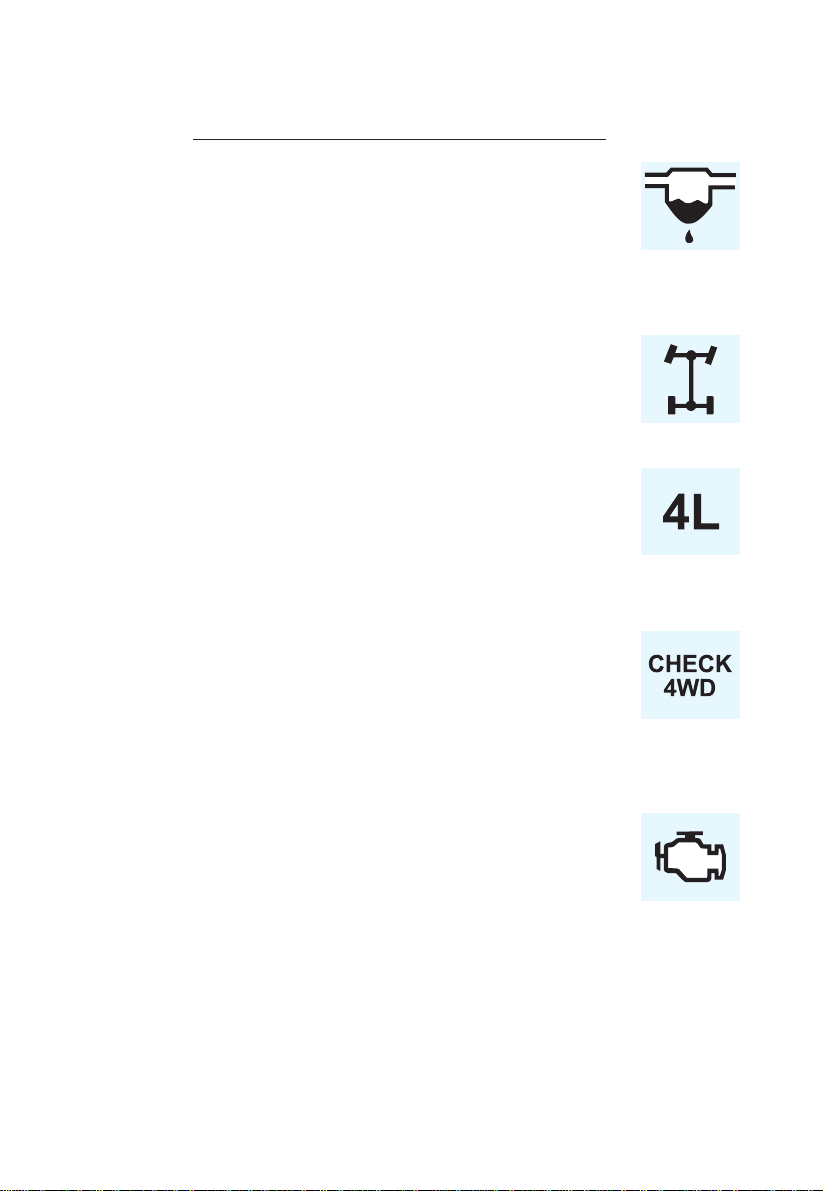

Water separator (diesel only)
Under certain circumstances water may be trapped in the fuel tank.
To prevent this water from reaching the vital parts of the engine or
fuel system, a water separator is installed. When the level of the water
within the water separator reaches a specied level, the 9indicator
light illuminates. If the light illuminates and remains on while the engine
is running, the water needs to be drained from the water separator.
Refer to Draining water separator in chapter 6.
Four wheel drive indicator (4WD only)
The < light illuminates for two seconds when the ignition is switched to
the ON position, to check that the light is working.
The <light illuminates when the transfer control switch is in the 4H or
4L position. Refer to Four wheel drive system operation in chapter 4.
4L (4WD only)
The 4L light illuminates for two seconds when the ignition is switched
to the ON position, to check that the light is working.
This indicator light operates in combination with two other indicator
lights (4WD and Neutral) and indicates the state of the 4WD system.
The 4L indicator light will illuminate when the transfer control switch
is pressed.
Check 4WD (4WD only)
The CHECK 4WD illuminates for two seconds when the ignition is
switched to the ON position, to check that the light is working.
Have the system repaired if the CHECK 4WD light does not come on
for two seconds after the ignition switch is turned to the ON position.
Also, repair of the system is required when the CHECK 4WD lights up
after the two second bulb check. Have your Holden Dealer inspect the
system and correct the problem.
Check engine light (petrol L4 and diesel)
This vehicle is tted with an electronic engine management system.
The Zlight indicates when a system service is required.
The Z illuminates when the ignition is turned to the ON position and
remains on until the engine is started to check that the light is working.
If the light illuminates while driving or does not illuminate when the
ignition switch is turned to the ON position, this indicates a fault in the
engine management system or the engine immobiliser system.
Although the vehicle may still be driveable, it is recommended that
you have a Holden Dealer correct the problem as soon as possible,
as continued driving could affect fuel consumption and engine
performance.
Rodeo book.indb 8 26/04/2007 12:05:53 PM

WARNING/INDICATOR LIGHTS cont. 1-9
Chapter 1
DASHBOARD
MIL - Malfunction indicator light (petrol HFV6)
This vehicle is tted with an emission monitoring system. The light
illuminates when the ignition is switched ON and extinguishes shortly
after the engine starts to run.
If the light illuminates when driving, the emission system may require
servicing. Although the vehicle may still be drivable and not require
towing, consult the nearest Holden Dealer as soon as possible.
However, if the light ashes while driving, reduce speed until the light
stops ashing and take the vehicle to your Holden dealer as soon
as possible.
SVS indicator light (petrol HFV6)
The SVS light is designed to indicate the need for system service. It
illuminates when the ignition switch is in the ON position, but before the
engine is started, to let you know the bulb is working. Have the system
repaired if the SVS light does not illuminate when the ignition switch is
in the ON position, but before the engine is started.
If the light ashes and the engine will not start, switch OFF the ignition
for at least 5 seconds before attempting to start the engine again. Refer
to Immobiliser further on in this chapter.
Note If the light illuminates either intermittently or continuously while
driving, service is required. Even if the vehicle is drivable, and does
not require towing, contact your Holden Dealer as soon as possible
for service of the system. Continued driving could cause damage to
the emission control system. It could also affect fuel economy and
driveability.
Cruise set3
The cruise control has a mlight which illuminates when the cruise
control is maintaining vehicle speed. Refer to Cruise control, further on
in this chapter.
Airbag3
To check that the airbag system is working, the v light will ash seven
times when the ignition switch is turned ON.
If the light villuminates while driving, it indicates that the airbag system
may not inate in an accident. Contact your Holden Dealer.
Seat belt reminder3
When the ignition switch is turned ON, the Xlight illuminates to remind
occupants to fasten their seat belts.
v
m
Rodeo book.indb 9 26/04/2007 12:05:54 PM

Power drive (auto transmission)
The POWER DRIVE indicator light illuminates when the ignition switch
is turned to the ON position for 3 seconds, to check that the light is
working. The light illuminates when power drive is selected. Refer to
Automatic transmission in chapter 4.
Check trans (auto transmission)
The CHECK TRANS warning light illuminates for 3 seconds after the
ignition switch is turned ON, to check that the light is working.
If the CHECK TRANS light illuminates, the computer controlling the
automatic transmission has found a problem. The vehicle can still
be driven when the CHECK TRANS light is illuminated, however
the computer will put the automatic transmission into ‘safety mode’.
Refer to Automatic transmission in chapter 4. Ensure the automatic
transmission is checked by your Holden Dealer as soon as possible.
3rd start (auto transmission)
The 3rd STRT warning light illuminates for 3 seconds after the ignition
switch is turned ON, to check that the light is working.
The 3rd STRT light illuminates when the engine is running with the
automatic transmission lever in Drange, and the 3rd STRT button is
selected. For diesel, the 3rd STRT indicator light will not illuminate
unless the vehicle has stopped or is travelling at a speed below
11 km/h.
For HFV6, the light operates continuously regardless of vehicle speed.
Refer to Automatic transmission in chapter 4, for further information.
Replace fuel lter indicator light (diesel only)
The diesel fuel lter indicator light illuminates when the diesel
fuel lter requires replacement, contact your Holden Dealer as soon
as possible.
Lights on indicator light3
Illuminates when the light switch is turned to the ON position.
WARNING/INDICATOR LIGHTS cont.
1-10 Chapter 1
DASHBOARD
Rodeo book.indb 10 26/04/2007 12:05:54 PM

TRIP COMPUTER3
The trip computer display is located at the
right of the speedo. It has ve functions:
•The odometer records the distance
travelled since the vehicle was built.
•The tripmeter records the distance
travelled on a particular journey. The
tripmeter can keep a record of two
different journeys at the same time.
• The outside temperature is displayed
in °C.
Diesel only
• The instant fuel shows the
instantaneous fuel consumption rate
in litres per 100 km when driving.
•The average fuel shows the average
fuel consumption rate since the trip
computer was reset.
Note Average fuel can be displayed in
both km/L (kilometres per litre) or fuel
consumption rate (litres per 100 km).
Change indicator and reset knob
Push the reset knob briey, to cycle the
display in the order of TRIP A, TRIP B,
instant fuel consumption (INST), average
fuel consumption (AVG.) and outside
temperature.
Push the knob for more than one second
when TRIP A or TRIP B is displayed, and
the value will be reset to 0.
If the reset knob is pressed for more
than one second when the instant fuel
consumption is displayed, the value can
be switched between km/L (kilometers
per litre) or fuel consumption rate (litres
per 100 km).
Note Once the display is reset, the fuel
consumption value will be displayed after
a distance of approximately 200 meters.
1-11
Chapter 1
DASHBOARD
Change indicator and reset knob
Rodeo book.indb 11 26/04/2007 12:05:55 PM

WIPERS AND WASHERS
1-12 Chapter 1
DASHBOARD
Wipers and washers
WARNING
Never operate the wipers on dry glass, as
this will damage the rubber and scratch
the windscreen. Ensure the wipers are
clear of any snow or ice before switching
them on.
The wiper/washer lever is located on
the left-hand side of the steering wheel
column and operates the wipers and
washers. When the wiper/washer lever
is shifted down to the LO position, the
wipers operate slowly. When shifted
down to the HI position, the wipers
operate faster. To stop the wipers,
shift the wiper/washer lever up to the
OFF position.
When the lever is shifted up and held in
the MIST position, the wipers continue to
operate while the lever is held.
Variable intermittent
windscreen wipers3
Move the lever down to the rst stop to set
the wipers to the intermittent Pposition.
The frequency of the intermittent wipe can
be adjusted by rotating the collar. Rotate
the collar up for more frequent wipes, or
down for less frequent wipes.
Windscreen washers switch
To spray washer uid onto the windscreen,
pull the wiper/washer lever towards you.
Even if the wipers setting is not selected,
the wipers will move and operate as long
as the lever is held in this position.
On models with intermittent wipers, the
wipers will continue to operate for a short
time after the lever is released.
PULL
MIST
OFF
LO
HI
S
F
Intermittent
Wiper of f
Mist Fast
Slow
Collar
PULL
MIST
OFF
LO
HI
S
F
PULL
MIST
OFF
LO
HI
S
F
Rodeo book.indb 12 26/04/2007 12:05:56 PM

DEMISTER, HORN AND AUDIO SYSTEM 1-13
Chapter 1
DASHBOARD
Rear window demister3
The ignition must be in the ON position to
operate the demister. The demister switch
is located on the heater control panel.
To operate the rear demister press the Ü
switch. The light in the demister switch
illuminates.
The rear window demister is tted with
an auto cancel timer, which will switch
the demister OFF automatically after 10
minutes.
Switch the demister off manually by
turning the ignition switch to ACC or by
pushing the Üdemister switch again.
WARNING
•Do not use any abrasive cleaner to clean the inside of the rear window. Normal
window cleaning can be done by using a commercial liquid ammoniated cleaner.
•Be careful not to scratch or damage the demister wires when cleaning the
rear window.
•The rear window demister draws a high battery current. Unnecessary use of the
rear window demister will drain your vehicles battery.
Horn
To activate the horn, press the pad, located in the centre of the steering wheel.
Audio system
Refer to the operating instruction supplement in your glovebox for all information
relating to the radio/CD player in your vehicle.
Rodeo book.indb 13 26/04/2007 12:05:58 PM

HEADLIGHTS
1-14 Chapter 1
DASHBOARD
Light switch
The light switch has three positions:
OFF All lights off.
Park lights and instrument
lights on.
Headlights, park lights and
instrument lights on.
Note A constant tone chime reminds
you to switch the headlights off before
leaving your vehicle. It will sound when
the headlights are switched on and the
driver’s door is opened.
High/low beam
With the headlights on, push the lever on
the right-hand side of the steering wheel
column until you feel a click, then release
it. To return to low beam, pull the lever
towards you.
The headlight high beam indicator Pon
the instrument panel illuminates when the
headlights are in high beam.
Flashing high beam
It is also possible to ash the high beams
for signalling purpose by pulling the lever
toward you (even with the headlights
switched off). The lights remain in high
beam as long as the lever is held in
this position.
Rodeo book.indb 14 26/04/2007 12:05:58 PM
