The TP120 Tri-Sat Antenna System
The ‘Tri-Sat’ range of antenna systems are renowned for their compact size, light
weight and powerful performance having been designed to excel in today’s ever
demanding satellite communications industry.
The user friendly modular design allows for simple, fast and accurate satellite
acquisition either as a manually controlled mount or as a fully auto-acquisition
motorised mount controlled either locally via a touch screen or remotely via an
ethernet port.
The clever design of the tri-pod mount also means that other 3rd party antennas can
be fitted allowing existing equipment to be cost effectively upgraded.
The main reflector is manufactured from high quality carbon fibre and is supplied in
six easily assembled petals that employ a revolutionary spherical dowel locking
mechanism.
The revolutionary design of the complete fly-away system allows for the ‘Tri-Sat’ to
be transported in easily manageable carry cases weighing less than 32kg that can
be checked onto any commercial aircraft making the ‘Tri-Sat’ a totally flexible fly-
away system.
The system consists of:-
• 1.2M six segment antenna
• Motorised Ku-Band feed
• LNB
• Antenna control unit
•Ku-Band BUC

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 3 -
Contents
1.0 Case Contents
1.1 Tripod assembly
1.2 Tripod legs, feed assembly, cables and waveguide
1.3 Antenna case
1.4 Elevation head assembly optional BUC
2.0 Assembly Instructions
2.1 Tripod
2.2 Elevation assembly
2.3 Antenna
2.3.1 Antenna packing instructions
2.4 Feed Arm
2.5 BUC Waveguide
2.6 Feed Waveguide
2.7 ACU
2.8 Drive Interface cable
2.9 ACU Connections
2.10 BUC Connections
2.11 Feed Quick Change Mechanism
Appendix A – Ipoint Antenna Control Manual

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 4 -
1.0 Case Contents
The antenna is supplied in ruggedized travel flight cases. The
components are located into high density foam inserts allow for
maximum protection and minimal weight. The antenna system is
contained in 3 flight cases under 32kg.
1.1 Tripod Assembly
1.2 Tripod legs / Feed arm / Flexi-waveguide and cables
Extension leg X3
Cables
Feed arm
Feed assembly

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 5 -
1.3 Case 3 - Antenna Case
Antenna Bag &
Stays
Lift out the antenna bag containing the carbon antenna & stays.
1.4 Case 4 – Elevation head / ACU and cables
Elevation head with
BUC
ACU
Cables

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 6 -
2.0 Assembly Instructions
2.1 Tripod Assembly
Step 1. Remove Tripod from
transit case
Step 2. Invert and Place Tri-pod
base securely onto a firm
surface.

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 7 -
Step 3. Splay the Tri-pod legs
and force the centre lock into
the stow position with the palm
of your hand
Warning : the centre lock can cause a finger trap - ALWAYS use
the palm of your hand

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 8 -
Step 4. Remove the tripod extension
legs
Step 5. locate into tripod head.
Step 6. Tighten and lock leg cams.
Step 7. Stand tripod on legs
Warning : the tripod has a
weight of over 10kg

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 9 -
Step 8. level using adjustable levelling feet and bubble level mounted on the
tripod base.
The tripod is now ready to accept the elevation head assembly.

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 10 -
2.2 Elevation Head Assembly
Step 9. Remove the elevation head
from the packing case.
Step 10. Assemble elevation head
onto the rear locations on the tripod
base
Step 11. lock with Vee-Lock handle by
pushing in an upward motion.
The tripod is ready to accept the antenna.
Warning : the centre lock can
cause a finger trap - ALWAYS use
the palm of
y
our hand

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 11 -
2.3 Antenna Assembly
Step 12. Remove antenna base petal, from
the case
Step 13. Locate and lock antenna base
petal onto tripod head.
Step 14. Secure and lock bottom petal into
position on tripod base petal using over
centre locking clips.
Warning : the centre lock can cause a
finger trap - ALWAYS use the palm of your
hand and keep fingers away from
mating surfaces

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 12 -

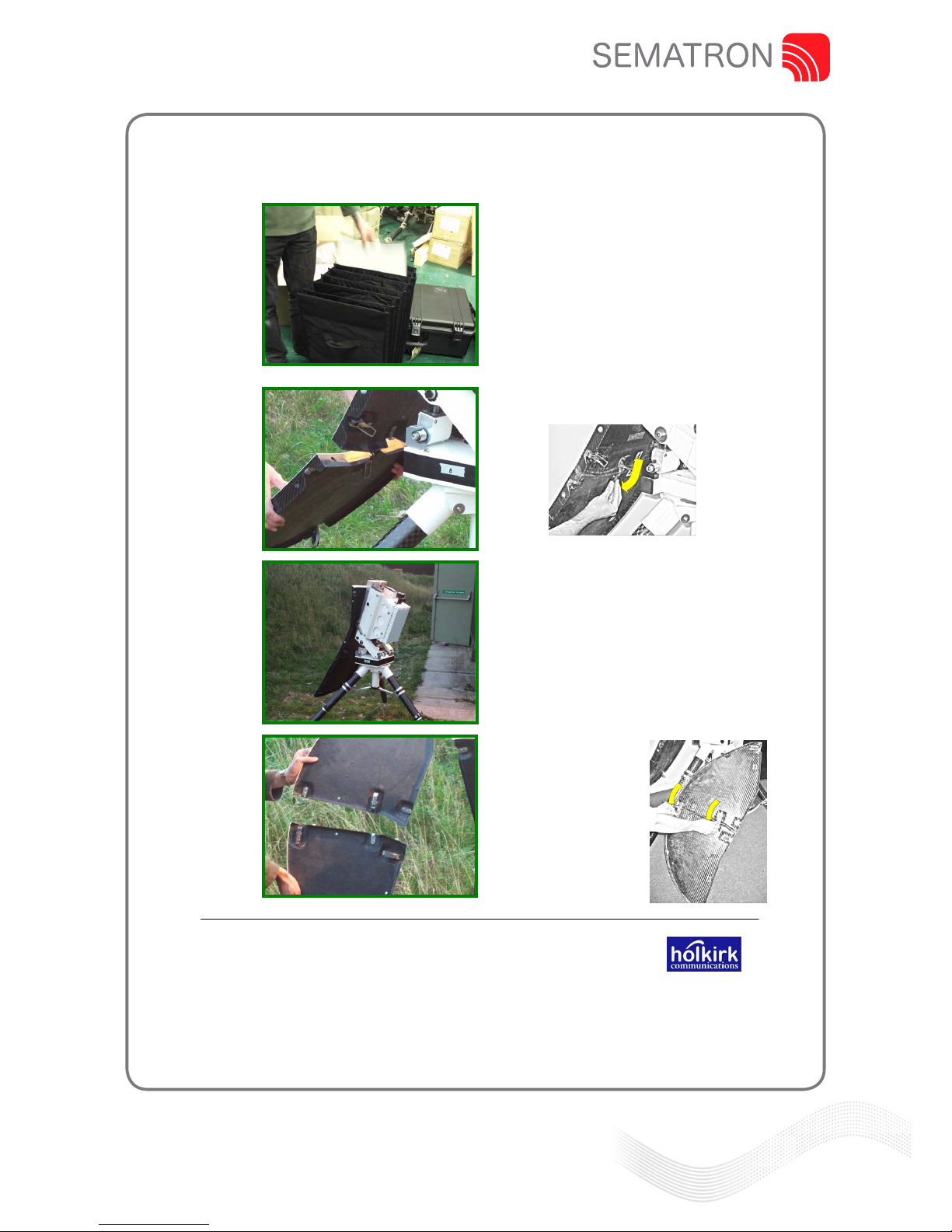

Step 15. Remove centre base petal from
antenna bag
Step 16. line up the spherical dowels
and fasten the over centre catch
(Ready for side petal assemblies)
Step 17. line up the
spherical dowels and
fasten the over
centre catch in two places

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 13 -

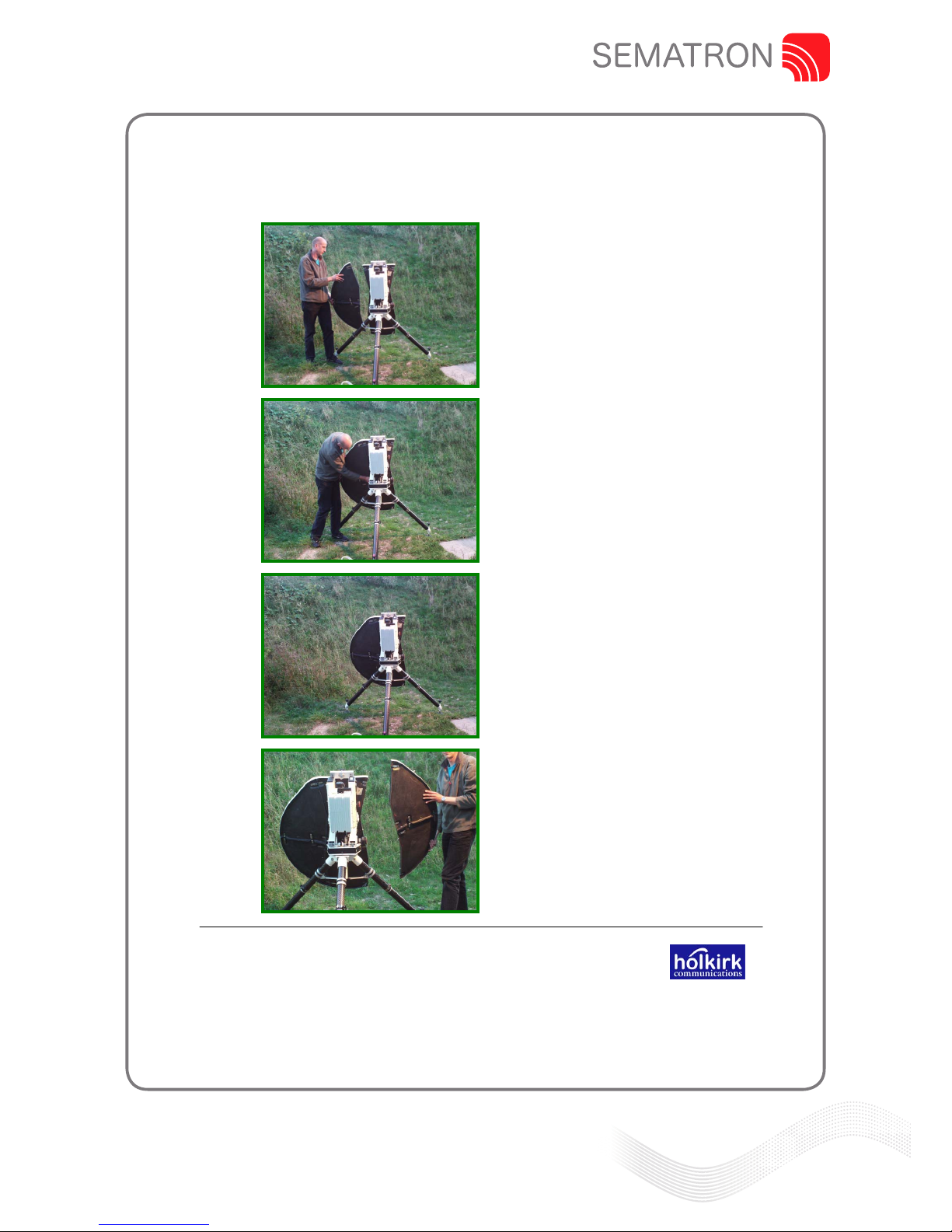

Step 18. Attach the antenna side petal
to the base section of the antenna.
Fasten the over centre catch in four
positions
Step 19. Repeat for the opposite side of
the reflector

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 14 -

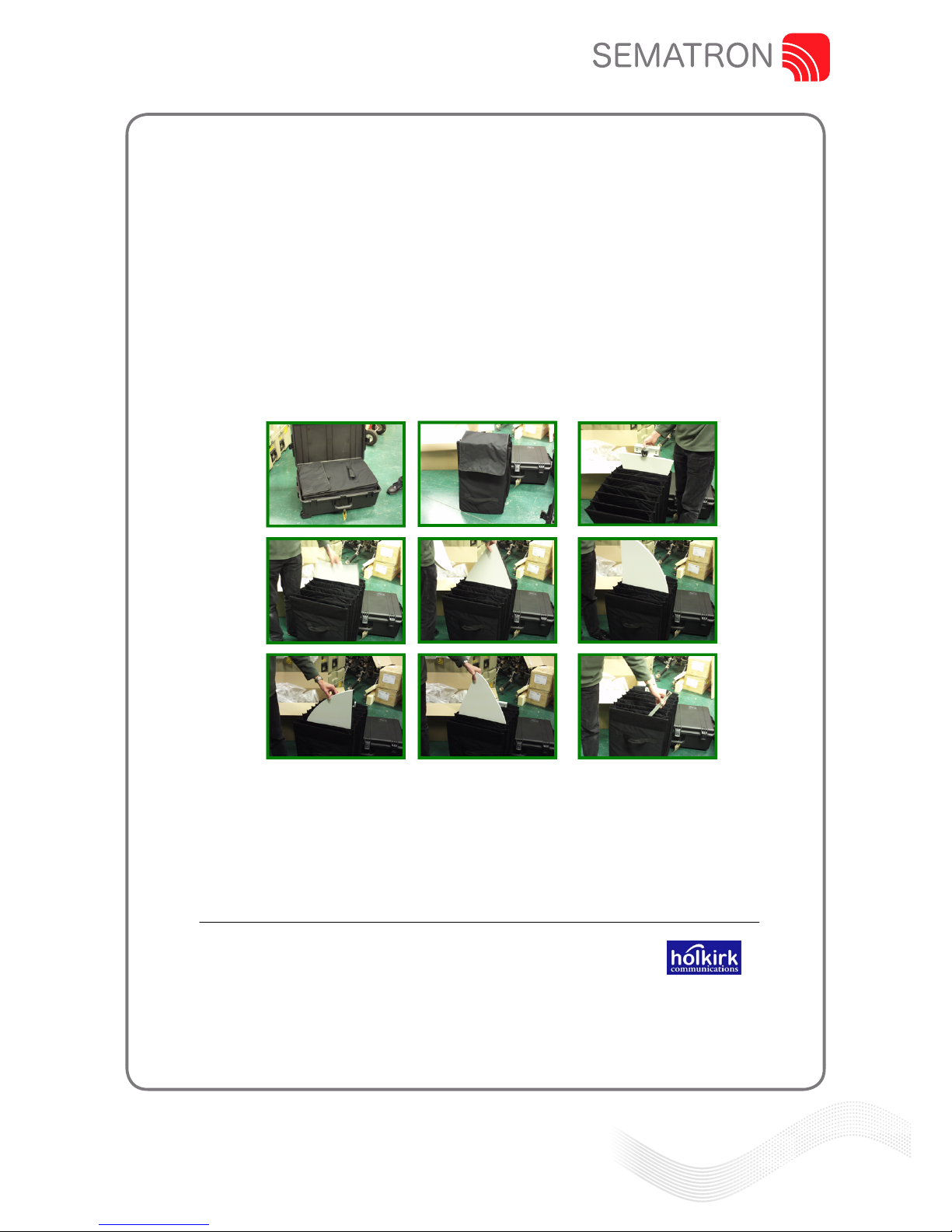

2.3.1 Antenna storage
The antenna must be packed into the storage case in the following order:
•Rear of case – Base petal facing towards the pack
•Bottom base petal
•Side 1 top
•Side 1 bottom
•Side 2 top
•Side 2 bottom
•Antenna stays
This will ensure the antenna packaged in the case will fit without fouling
the hard transit case.

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 15 -
2.4 Feed Arm Assembly
Step 20. Place feed arm extension
(part without feed assembly) into base
petal receptacle
Step 21. Secure feed arm extension
with Cam lever
Step 22. Insert feed assembly onto
feed arm extension

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 16 -
Step 23. Lock both parts of the feed
arm together with feed arm cam. Make
the Quick-Connect™ connections.
Step 24. Connect the antenna stays in
two positions

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 17 -
2.5 Antenna Control Unit
Step 25. Attach the ACU. Hook unit
over location post and tighten the
orange securing handle
The Antenna is now ready for cables
and waveguide

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 18 -
2.6 BUC Waveguide
Step 26. connect the RRF to the BUC using the Quick-Connect™ connection.
*NSSL BUC IMAGE TO BE INSERTED*
Step 27. connect the Flexi-Guide to the ridged waveguide on the feed
extension using the Quick-Connect™ connection.
*NSSL BUC IMAGE TO BE INSERTED*
WARNING : The Receive Reject Filter (RRF) must
be next to the BUC

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 19 -
2.7 Feed Assembly Waveguide
Step 28. remove Quick-Connect™
dust caps and the Motorised POL
drive cable
Step 29. Attach Flexible wave guide to
feed assembly
Step 30. Attach the LNB Rx cable

Sandpiper House, Aviary Court, Wade Road, Basingstoke, Hampshire, RG24 8GX, UK
T [phone] F [phone] E [email protected]
www.sematron.com Making waves...
Operation Manual
Rev A. Feb 11.
TP120 – Operation Manual – E8 September 2010 - 20 -
2.8 Drive Interface Cables
The drive interface is situated on the top of the ACU and feeds power and control to
the Elevation, Azimuth and POL drives.
Azimuth
Elevation
Drive interface cable in ACU
Polarization
