Holland Green Science Hephaestus V094 User manual

User Manual
Version 1.0 1
10310001/10310002
Hephaestus V094/V213

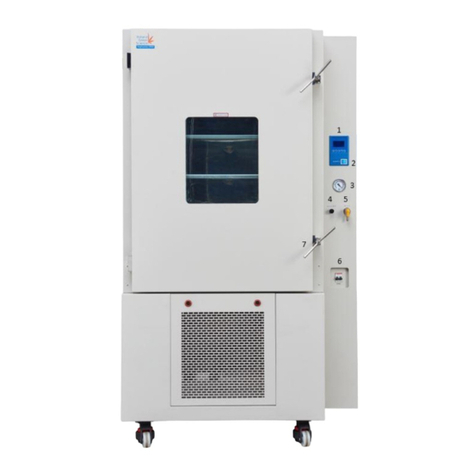

Vacuum Ovens
User Manual

User Manual
Version 1.0 2
Table of Contents
I. Disclaimer & Warranty .................................................................................................. 3
LIMITED WARRANTY & DISCLAIMER .................................................................................... 3
LIMITATION OF LIABILITY....................................................................................................... 6
II. Safety ............................................................................................................................. 7
III. Hephaestus V094/V213 Vacuum Ovens –Introduction............................................... 9
3.1 Vacuum Oven Overview .............................................................................................10
IV. Technical Specifications..............................................................................................12
V. Standards and Conformity...........................................................................................13
VI. Inspection.....................................................................................................................14
6.1 Packing List ................................................................................................................14
VII. Operating Instructions.................................................................................................15

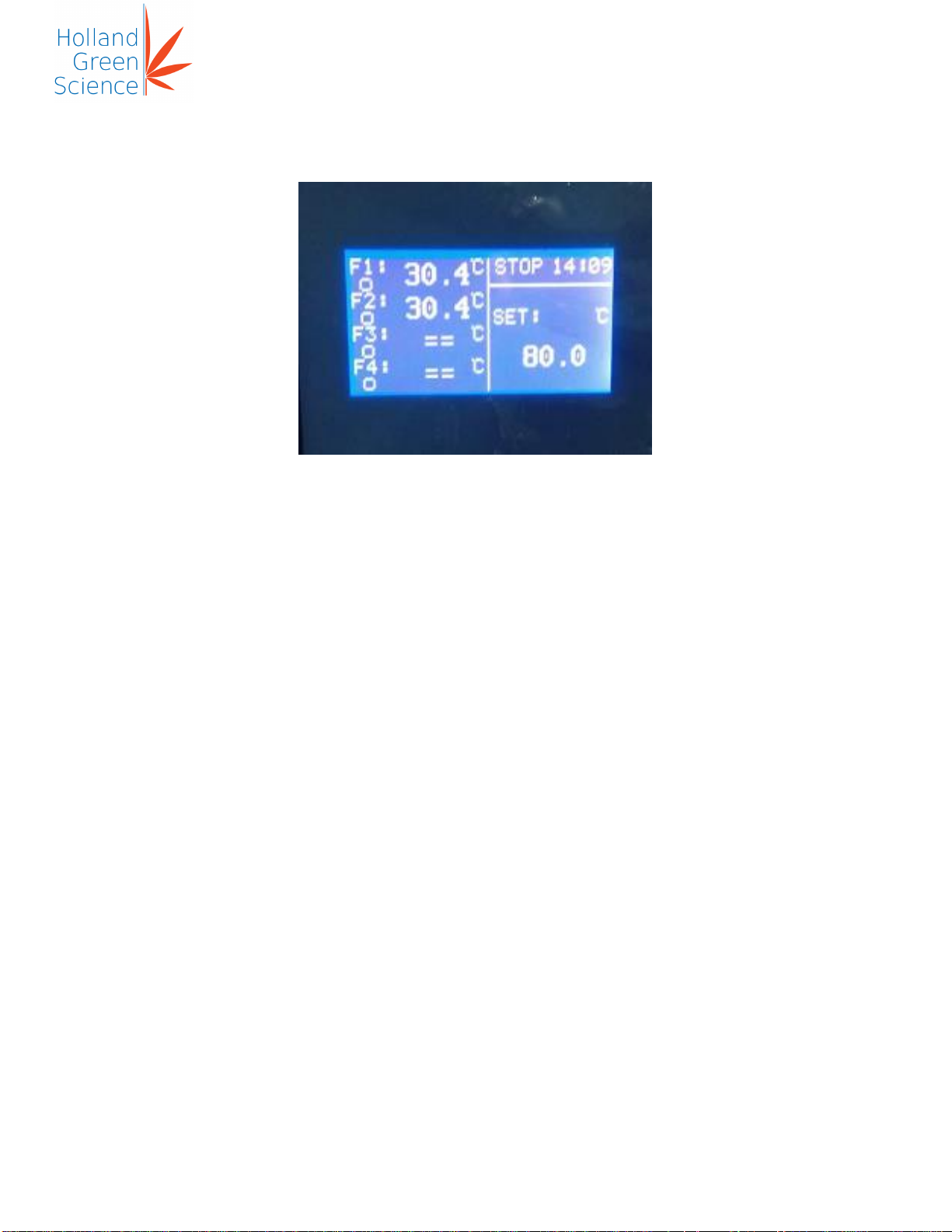

7.1 Temperature Controller Panel.....................................................................................15
7.2 Functions....................................................................................................................16
7.3 Priming the Vacuum Pump .........................................................................................17
7.4 Priming the Vacuum Oven..........................................................................................17
7.5 Setting of Temperature...............................................................................................17
7.6 Start / Stop Operation.................................................................................................17
7.7 Setting the Deviation Alarm and Timer........................................................................18
7.8 Setting the Pre-set Start Function...............................................................................19
7.9 Setting the ENGINEER SETUP..................................................................................19
7.10 Unit, SYSTM Timer and PASSWORD Settings...........................................................20
VIII. Cautions........................................................................................................................21
X. Fault Diagnosis.............................................................................................................22
XI. Maintenance and Cleaning ..........................................................................................24

User Manual
Version 1.0 3
I. Disclaimer & Warranty
•The intellectual property rights for this manual belongs to Holland Green Science
Corporation (hereinafter referred to as “the Company”).
•Products of the company are under the patent protection of China and other
countries and regions (inclusive of obtained patents and patents currently under
application).
•The company reserves the right to change product specifications without notice.
•The contents of the manual are subject to change without notice.
•The manual’s content must not be copied, extracted, or modified in any form without
the Company’s permission.
LIMITED WARRANTY & DISCLAIMER
Products sold by the Company are intended solely for the use(s) specified by the manufacturer
and are not to be used for any other purposes including, but not limited to, unauthorized
commercial purposes. Buyer warrants and represents that Buyer will properly test, use, qualify,
and/or validate each Product for intended use, and, to the extent authorized, manufacture and
market any final articles made from the Company’s Products in accordance with the practices of
a reasonable person who is an expert in the field, and in strict compliance with all applicable
national, state and local laws and regulations. Buyer acknowledges and understands that the
purchase of Products only conveys to Buyer the non-transferable right for only the Buyer to use
the Products purchased in compliance with the applicable manufacturer's Published User
Statement, Limited User Statement, or Limited License, if any. While this manual contains
certain representations of the potential dangers from the instrument or equipment, Buyer is
solely responsible for conducting any research necessary to learn the hazards involved for any
of its intended uses of the instrument or equipment purchased from the Company and to
properly warn its customers, employees and other personnel who may be exposed to such
instrument or equipment of any risks involved in using or handling the instrument or equipment.
The Company warrants that this product will operate or perform substantially in conformance
with the Company’s published specifications and be free from defects in material and
workmanship, when subjected to normal, proper and intended storage and usage by properly
trained personnel, for the duration of the manufacturer’s warranty period set forth in this product
documentation, published specifications or package inserts. If a manufacturer’s warranty period
is not specified in the product documentation, published specifications or package inserts, the
warranty period shall be one (1) year from the date of Bill of Sale to Buyer for equipment, and
the earlier of any stated expiration dates or ninety (90) days for all other products (the "Warranty
Period"). The Company agrees during the Warranty Period, to repair or replace, at the
Company’s option, defective Products so as to cause the same to operate in substantial

User Manual
Version 1.0 4
conformance with said published specifications; provided that Buyer shall (a) promptly notify the
Company in writing upon the discovery of any defect, which notice shall include the product
model and serial number (if applicable) and details of the warranty claim; and (b) after the
Company's review, the Company will provide Buyer with service data and/or a Return Material
Authorization ("RMA"), which may include biohazard decontamination procedures and other
product-specific handling instructions, then, if applicable, Buyer may return the defective
Products to the Company with all costs prepaid by Buyer. Replacement parts may be new or
refurbished, at the election of the Company. All replaced parts shall become the property of the
Company. Shipment to Buyer of repaired or replacement Products shall be made in accordance
with the Delivery provisions of the Terms & Conditions agreed to by the purchase of this
product. Consumables are expressly excluded from this warranty.
Notwithstanding the foregoing, Products supplied by the Company but not manufactured by the
Company are not warranted by the Company, and the Company disclaims all warranties
associated with the accuracy of any original manufacturer or third-party supplier Product
information, but the Company agrees to assign to Buyer any warranty rights in such Product
that the Company may have from the original manufacturer or third-party supplier, to the extent
such assignment is allowed by such original manufacturer or third-party supplier.
In no event shall the Company have any obligation to make repairs, replacements or corrections
required, in whole or in part, as the result of (i) normal wear and tear, (ii) accident, disaster or
event of force majeure, (iii) misuse, fault or negligence of or by Buyer, (iv) use of the Product in
a manner for which they were not designed, (v) causes external to the Product such as, but not
limited to, power failure or electrical power surges, (vi) improper storage and handling of the
Product or (vii) use of the Product in combination with equipment or software not supplied by the
Company. If the Company determines that Product for which Buyer has requested warranty
services are not covered by the warranty hereunder, Buyer shall pay or reimburse the Company
for all costs of investigating and responding to such request at the Company's then prevailing
time and materials rates. If the Company provides repair services or replacement parts that are
not covered by this warranty, Buyer shall pay the Company therefor at the Company's then
prevailing time and materials rates.
ANY INSTALLATION, MAINTENANCE, REPAIR, SERVICE, RELOCATION OR ALTERATION
TO OR OF, OR OTHER TAMPERING WITH, THE PRODUCT PERFORMED BY ANY
PERSON OR ENTITY OTHER THAN THE COMPANY WITHOUT THE COMPANY'S PRIOR
WRITTEN APPROVAL, OR ANY USE OF REPLACEMENT PARTS NOT SUPPLIED BY THE
COMPANY, SHALL IMMEDIATELY VOID AND CANCEL ALL WARRANTIES WITH RESPECT
TO THE PRODUCT.

User Manual
Version 1.0 5
THE OBLIGATIONS CREATED BY THIS WARRANTY STATEMENT TO REPAIR OR
REPLACE A DEFECTIVE PRODUCT SHALL BE THE SOLE REMEDY OF BUYER IN THE
EVENT OF A DEFECTIVE PRODUCT. EXCEPT AS EXPRESSLY PROVIDED IN THIS
WARRANTY STATEMENT, THE COMPANY DISCLAIMS ALL OTHER WARRANTIES,
WHETHER EXPRESS OR IMPLIED, ORAL OR WRITTEN, WITH RESPECT TO THE
PRODUCTS, INCLUDING WITHOUT LIMITATION ALL IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE OR USE. THE
COMPANY DOES NOT WARRANT THAT THE PRODUCTS ARE ERROR-FREE OR WILL
ACCOMPLISH ANY PARTICULAR RESULT.
NOTHING IN THIS MANUAL OR IN THE TERMS AND AGREEMENT AGREED TO AT THE
TIME OF PURCHASE SHALL BE CONSTRUED TO PROVIDE FOR THE TRANSFER,
ASSIGNMENT OR ALIENATION OF THE LIMITED WARRANTIES PROVIDED BY THE
COMPANY HEREIN TO ANY OTHER PARTY OTHER THAN BUYER, INCLUDING BUT NOT
LIMITED TO, SUCCESSORS, HEIRS, SUBSIDIARIES OR ANY OTHER THIRD PERSON.
THE WARRANTIES IDENTIFIED ABOVE ARE THE SOLE AND EXCLUSIVE WARRANTIES
WITH RESPECT TO THIS PRODUCT AND ARE IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED. ALL OTHER WARRANTIES ARE EXPRESSLY DISCLAIMED,
INCLUDING, WITHOUT LIMITATION, THOSE OF NON-INFRINGEMENT,
MERCHANTABILITY, OR FITNESS FOR A SPECIFIC PURPOSE OR USE (WHETHER
ARISING FROM STATUTE, OR OTHERWISE IN LAW, OR FROM A COURSE OF DEALING,
OR USAGE OF TRADE). THIS WARRANTY IS NOT TRANSFERABLE FROM THE ORIGINAL
PURCHASER TO A SUBSEQUENT OWNER. FURTHER, THE COMPANY IS NOT LIABLE IN
CASES OF DELIBERATE, NEGLIGENT OR ACCIDENTAL MISUSE OF THE PRODUCTS,
USE WITH INAPPROPRIATE REAGENTS OR CONSUMABLES, DAMAGE CAUSED BY
DISASTER, REPAIR OR MODIFICATIONS DONE BY ANYONE OTHER THAN THE
COMPANY. THE COMPANY DOES NOT WARRANT THAT THE PRODUCT WILL NOT
INFRINGE THE INTELLECTUAL PROPERTY RIGHTS OF A THIRD PARTY EITHER ALONE
OR IN COMBINATION WITH OTHER PRODUCTS OR IN THE OPERATION OF ANY
PROCESS. THE COMPANY’S TOTAL LIABILITY FOR BREACH OF THESE WARRANTIES
SHALL BE LIMITED TO THE GROSS PURCHASE PRICE FOR THE PRODUCT AS STATED
IN THE RELEVANT INVOICE OR ORDER UNDER WHICH THE ACTIVITY GIVING RISE TO
LIABILITY ARISES. UNDER NO CIRCUMSTANCES SHALL THE COMPANY BE LIABLE FOR
INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES
(INCLUDING LOSS OF BUSINESS OR PROFITS) UNDER ANY THEORY OF LIABILITY
HEREUNDER.

User Manual
Version 1.0 6
For claims under the warranty please contact your local supplier. You may also send the
instrument directly to manufacturer, enclosing the invoice copy and by giving reasons for the
claim.
LIMITATION OF LIABILITY
NOTWITHSTANDING ANYTHING TO THE CONTRARY CONTAINED HEREIN, THE
LIABILITY OF THE COMPANY UNDER THESE TERMS AND CONDITIONS (WHETHER BY
REASON OF BREACH OF CONTRACT, TORT, INDEMNIFICATION, OR OTHERWISE, BUT
EXCLUDING LIABILITY OF THE COMPANY FOR BREACH OF WARRANTY (THE SOLE
REMEDY FOR WHICH SHALL BE AS PROVIDED UNDER THIS SECTION) SHALL NOT
EXCEED AN AMOUNT EQUAL TO THE LESSER OF (A) THE TOTAL PURCHASE PRICE
THERETOFORE PAID BY BUYER TO THE COMPANY WITH RESPECT TO THE
PRODUCT(S) GIVING RISE TO SUCH LIABILITY OR (B) ONE HUNDRED THOUSAND
DOLLARS ($100,000), WHICHEVER IS LESS.
With respect to any software products incorporated in or forming a part of the Product
hereunder Buyer intends and agrees that such software products are being licensed and not
sold, and that the words "purchase", "sell" or similar or derivative words are understood and
agreed to mean "license", and that the word "Buyer" or similar or derivative words are
understood and agreed to mean "licensee". Notwithstanding anything to the contrary contained
herein, The COMPANY or its licensor, as the case may be, retains all rights and interest in
software products provided hereunder. See the Terms & Conditions of purchase for details
regarding such license.

User Manual
Version 1.0 7
II. Safety
IMPORTANT Safety Items to be Observed.
Safety Warnings
! DANGER (may cause serious damage to property and or casualties)
1. Please carefully read this user manual prior to operating the instrument and observe the
instructions on safe operation.
2. The power source must be grounded reliably and away from any sources of
electromagnetic interference.
3. Confirm that the voltage and frequency of the power supply matches the specified
voltage and frequency specified prior to use.
4. The instrument should be operated on an independent power outlet.
5. Do not allow the instrument to be plugged in or unplugged whilst the power switch is in
the on position.
6. Do not modify the power cord.
7. The working environment must be free of any flammable, explosive, volatile or corrosive
substances.
8. The instrument is deenergised only when the power cable is disconnected from the
power source.
9. This instrument is for indoor use only.
10. The instrument should be operated in a low humidity, well ventilated dust and water free
environment, without direct sunshine or an intense magnetic, light or heat source.
11. Ensure that the instrument and its accessories are free of any potential defects.
12. Ensure that the instrument is secured tightly, and only standard accessories supplied by
the manufacturers are used with this instrument.
! WARNING (may cause property damage or personal injury)
13. Prevent water from splashing on the electrical elements of this instrument.
14. Before assembly, disassembly, cleaning or maintenance, the power source must be
disconnected.
15. It is prohibited to place flammable, explosive, volatile or corrosive substances into the
oven.
16. Do not touch the chamber door, the chamber body or the surrounding surface when the
set temperature is over 80℃(176℉) to avoid burns.

User Manual
Version 1.0 8
! ATTENTION (may affect operational performance or service life)
17. When pulling the power plug out from a power source, do not pull out using the power
cord directly.
18. Only accredited and qualified professional repair technicians can open the instrument or
conduct required repairs. Persons performing repairs on the instrument other than those
selected or approved by the Company shall operate to void any warranty contained
hereinabove for the product.
19. The 304 stainless steel liner is not acid resistant, please adhere to advised anti-corrosion
measures and NEVER use acidic media within the oven to prevent damage.

User Manual
Version 1.0 9
III. Hephaestus V094/V213 Vacuum Ovens –Introduction
The Hephaestus V vacuum ovens are designed to efficiently process raw materials in a
temperature controlled vacuum environment. This process has the following advantages:
•The partial vacuum decreases the boiling point of water and thereby decreases the process
temperature and increases the rate of moisture evaporation.
•The reduced processing temperature minimizes the oxidation rate of the product ensuring
less oxidative damage.
The Hephaestus V Vacuum Oven is constructed from 304 stainless steel and the exterior
surface of the oven is polymer coated. The inner chamber uses either a galvanized or a
stainless-steel armour plate. Fiberglass insulation is used to thermally insulate the chamber.
The cabinet door has a viewing window that allows visual inspection of the process. The window
is constructed using a double-layered fortified glass design. The door uses a heavy-duty column
door pin.
Temperature is monitored and controlled using a Pt100 sensor and a temperature controller.
The temperature controller allows the output power with to be controlled using a PID. It also
monitors the process temperature and corrects temperature fluctuations and monitors
processing time(s).

User Manual
Version 1.0 10
3.1 Vacuum Oven Overview
The Hephaestus V094/V213 vacuum oven uses 5-15P power plug (see figure below).
1
2
3
4
5
1) vac-gauge
2) controller
3) LED switch
4) vac-valve
5) handle
6) LED
7) inlet
8) outlet/kf25
9) power switch
10) power cord
11) gas/air

User Manual
Version 1.0 11
3.3 After Sales Support
If problems are encountered or technical assistance support is required, when installing or using
the instrument, please immediately contact the service department at
[e-mail]. The Company may provide technical assistance and
information regarding the instrument or equipment or service without charge at its sole
discretion. Buyer assumes sole responsibility for any reliance on or use of such assistance and
information, and the Company makes no warranty thereon.
Upon contact the following information is required to be provided:
•Product serial number (located on rear panel instrument nameplate)
•Warranty card
•Description of issue or problem (i.e., software or hardware)
•Method and or operating steps you have undertaken towards resolution.
•Your contact details inclusive of telephone number and email address.
For claims under the warranty please contact your local supplier. You may also send the
instrument directly to manufacturer, enclosing the invoice copy and by giving reasons for the
claim.
3.4 Proper Use
The instrument is designed for non-residential use e.g. in schools, laboratories or factories and
to be used in conjunction only with accessories recommended within this manual and by the
manufacturer.

User Manual
Version 1.0 12
IV. Technical Specifications
Model
Index
Name
10310001
10310002
Voltage
AC 120V 60Hz
Input Power
(W)
1350W
1550W
Control Scope
(℃）
RT+10~200
RT refers to Environment Temperature
Fluctuating
Degree
（℃）
1.0
Attainable
Vacuum Degree
133Pa
Number of
Shelves per
Model
(Layer)
4
3
Inner Chamber
Material
304 Stainless Steel
Inner Chamber
Size (mm)
450×450×450
600×600×600
Oven Outer
Dimensions (mm)
740×610×591
890×760×741
Note: 1. This product is produced according to Q/TIWY7-2004.
2. All Technical specifications indexed are conducted under the situation with
environment temperature 25℃, relative humidity ≦85% and vacuum degree is ≧
0.1Mpa, and all data has been tested with a mercurial thermometer to the precision ±0.1
℃. The mercurial head of the thermometer touching the surface of the shelf inside the
cabinet.

User Manual
Version 1.0 13
V. Standards and Conformity
Construction in Accordance with the
following Safety Standards:
UL 61010-1:2012
CSA C22.2#61010-1-12:2012
UL 61010-2-010:2015
CSA C22.2#61010-2-010:2015
Construction in Accordance with the
following EMC Standards:
EN 61326-1

User Manual
Version 1.0 14
VI. Inspection
6.1 Packing List
Unpack the equipment carefully and check for any damage which may have arisen during
transport. In the event of identified damage, please contact
[e-mail]
Note:
If you find any visible damage on the product, please do not
connect the product to power supply.
Type
Item Description
Quantity
Main Unit
Vacuum Oven
1
Fittings
Vacuum Connection Pipe
1
Fittings
Spanner
2
Quick Setup Card
Scan to download user manual
1

User Manual
Version 1.0 15
VII. Operating Instructions
7.1 Temperature Controller Panel
Description of Controller Panel Keys
1) Press and hold the key for 3s or more to control the run/stop of the program.
2) In the setup mode, press this key to add one number and hold the key to increase
numbers successively.
3) In the setup mode, press this key to decrease one number and hold the key
to decrease numbers successively.
4) Return.
5) Set the target temperature and enter the internal parameter layers.

User Manual
Version 1.0 16
7.2 Functions
•F1: first layer measurement temperature
•F2: second layer measurement temperature
•F3: third layer measurement temperature
•F4: fourth layer measurement temperature
•RUN/STOP: display of running status
•14: 09: time display of controller system
•SET: display of set value. (°C: display of temperature unit symbol)

User Manual
Version 1.0 17
7.3 Priming the Vacuum Pump
•Priming of the vacuum pump requires that the connecting tube provided is securely
(airtight sealed) placed between the vacuum pump and the vacuum oven.
•The oven door should be securely shut and the door handle secured in a closed position
(this will prevent air from entering the chamber by causing the hole in the rubber plug
and the hole in the pipe core to be 180 ° out of phase).
•Power to the vacuum pump should be turned on and then the vacuum valve should be
closed by turning the handle clockwise 90°during processing.
•To stop the process, reduce the vacuum in the chamber -0.1Mpa before turning off the
vacuum pump. This will ensure that no engine oil from the vacuum pump will be drawn
into the chamber.
7.4 Priming the Vacuum Oven
•Turn on power to the vacuum oven (a power-on indicator light will confirm this) and after
a 5 second self-test is completed, the temperature controller will automatically enter the
“run” mode. This will allow the PV screen to display the process temperature and the SV
screen display the set temperature.
•Once the process begins the AT indicator light will turn on and if process temperature is
less than the set temperature heating lamps will turn on.
7.5 Setting of Temperature
•When the instrument is switched on, press the button one time, and the “set
temperature value”will start to blink. Set the desired temperature value (in Celsius
degrees) by pressing keys.
•Use the button to move between the digits.
•Confirm the set value by pressing the button.
Note:
Pressing the ‘ or ’ key once changes the value by 0.1.
Press and hold the keys changes the value rapidly.
7.6 Start / Stop Operation
•After setting the operating parameters, press button for 4-5 seconds to start the
heating process. When the word “STOP” appears on the upper right corner of the
screen, the system is in the stopped state. When the message “RUN” appear in the

User Manual
Version 1.0 18
upper right comer, the system is in the running state and the screen will display values
like timer, temperature measured inside the chamber.
•At any time, you can always manually stop running by pressing the button for 4-5
seconds.
7.7 Setting the Deviation Alarm and Timer
•On the controller panel, press and hold the key for 4-5 seconds.
•Press key to confirm, press or key to move, press key to return.
•TIMER WAIT: ON/OFF of waiting temperature. When ‘ON’ the waiting temperature is
available. When ‘OFF’ no waiting temperature is available.
•ALM Temp: Setting of temperature deviation alarm: when the measured temperature >
set temperature +ALM TEMP, an audible alarm will sound.
•RH Temp: Setting of the upper limit for Temperature Control.
•Timer: When the time is set as 0, timing function is not available.
When other than 0 is applied the controller is in ‘Timer’ function.

User Manual
Version 1.0 19
Press the key so, that Timer numerical value is back lit displayed, indicating the
timer can now be set as required, by pressing either the or key.
NOTE: If no operation is performed for a long time, the system automatically returns to
the home screen.
7.8 Setting the Pre-set Start Function
•Press and hold the key and press key, then shift the cursor to ‘START
SETUP’, and press key.
1) START TIMER: Press ‘ON’ to start the Pre-Set timer function settings
2) YEAR, MONTH, DAY, HOUR, MINUTE: Enter timer pre-set required details
7.9 Setting the ENGINEER SETUP
•Press and hold the key and press key, then shift the cursor to ‘ENGINEER
SETUP’, and press key, enter password (The default is”0”) and press to
confirm. Press key to move, press key to confirm, and then press or
key to adjust.
NOTE: The parameters here are factory parameters, do not adjust (except for the system
date and password)

User Manual
Version 1.0 20
7.10 Unit, SYSTM Timer and PASSWORD Settings
•Unit:”0” ℃，”1”℉
•YY: year; MM: month; DD: day; HH: hour; MM: minute; SS: second;
(this is the apparatus system time setting)
•PASSWORD: for direct input and changing of new password.
0: ℃
1：℉
