Holman 318HX Series Owner's manual

1
®
®
®
®
®
PROVEYOR
MULTI-PURPOSE OVEN
MODEL
314HX, 318HX Series
Installation and
Operation
Instructions
2M-HG0105 Rev. C 5/06/2011
314HX

2
2
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.
Star reserves the right to change specications and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.
Due to periodic changes in designs, methods, procedures, policies and
regulations, the specications contained in this sheet are subject to change
without notice. While Star International Holdings Inc., Company exercises
good faith efforts to provide information that is accurate, we are not
responsible for errors or omissions in information provided or conclusions
reached as a result of using the specications. By using the information
provided, the user assumes all risks in connection with such use.
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance.
Please record the model number, serial number, voltage and purchase date in the area below and have it ready when
you call to ensure a faster service.
SAFETY SYMBOL
Model No.
Serial No.
Voltage
Purchase Date
Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:
Telephone: [phone]
Fax: [phone]
E-mail [email protected]
[email protected]
W[email protected]
Website: www.star-mfg.com
Service Help Desk
Authorized Service Agent Listing
Reference the listing provided with the unit
or
for an updated listing go to:
Website: www.star-mfg.com
E-mail [email protected]
Mailing Address: Star International Holdings Inc., Company
10 Sunnen Drive
St. Louis, MO 63143
U.S.A

3
PAGE
Maintenance and Repairs 2
Star Contact information 2
Specications 3
General Information Data 4
Inspection & Assembly 4
Assembly and Installation 4
Heating Elements 5
Cooling System 5
Final Check 5
Electrical Connection 5
Stacking Ovens 6
Daily Operation 7
Oven Components 7
Operating Hints & Saftey 7
Cleaning 8
Maintenance Procedures 11
TroubleshootingGuide 13
Limited Equiptment Warranty 14

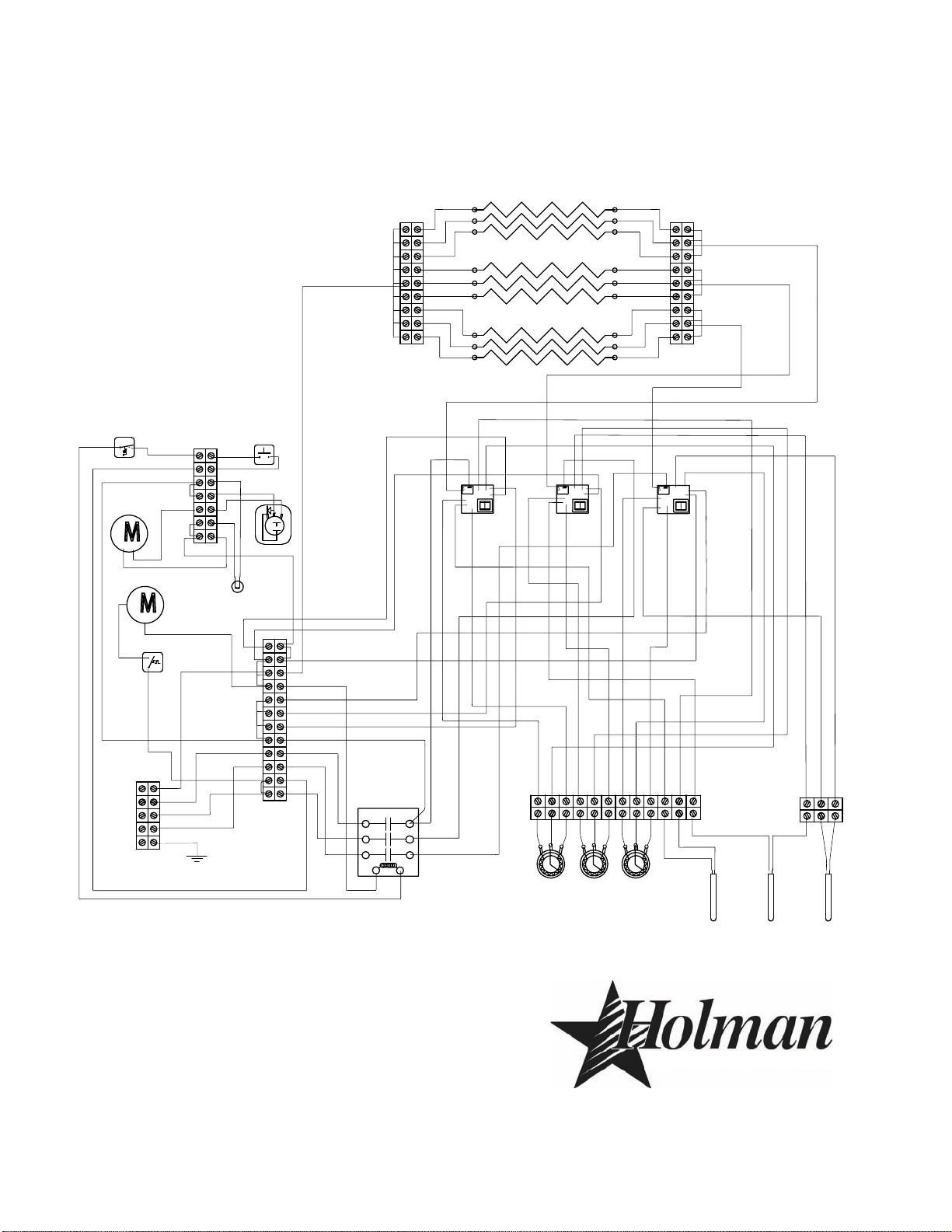

Wiring Diagram 15-18

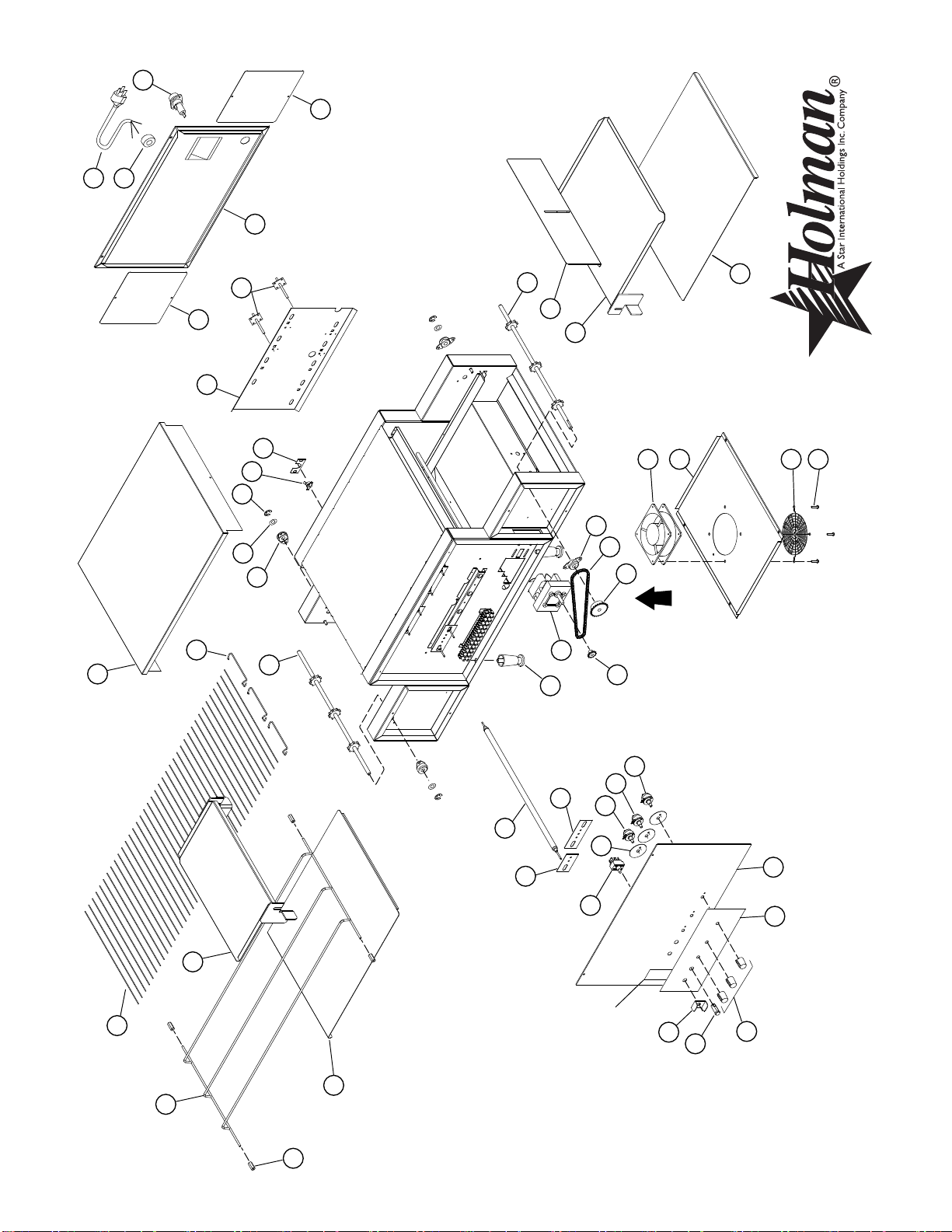

Exploded View Illustration 20
PartsList314HX 21
PartsList318HX 22
ControlBoxConguration 23
TABLE OF CONTENTS
Specications
Model Voltage Hz Watts Amps Phase Cord
314HX 208V
50 5,400 8.7 3Ph 6-50P
240V 6-30P
318HX 208V 6,200 9.9 3Ph 6-50P
240V 6-30P
Dimensions Weight
Width Depth Height Installed Shipping
314HX 60” (152.4 cm) 21 1/4” (54cm) 16 1/8” (40cm) 86lbs (40kg) 115lbs (52kg)
318HX 24 7/8” (63.2cm) 96lbs (44kg) 130lbs (59kg)

4
GENERAL INSTALLATION DATA
This equipment is designed and sold for commercial use only by personnel trained and experienced
in its operation and is not sold for consumer use in and around the home nor for use directly by the
general public in food service locations.
Before using your new equipment, read and understand all the instructions & labels associated with
the unit prior to putting it into operation. Make sure all people associated with its use understand the
units operation & safety before they use the unit.
All shipping containers should be checked for freight damage both visible and concealed. This
unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If
equipment is received in damaged condition, either apparent or concealed, a claim must be made
with the delivering carrier.
Concealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a
request for inspection of concealed damage must be made with carrier within 15 days. Be certain to
retain all contents plus external and internal packaging materials for inspection. The carrier will make
an inspection and will supply necessary claim forms.
INSPECTION & ASSEMBLY
UNCRATING AND INSPECTING
Unpack the unit and components from the shipping container. Remove all visible packing material
andthosefrominsidethecookingchamber.Ifdamageisdiscovered,leaclaimimmediatelywith
the carrier that handled the shipment. Do not operate the unit if it was damaged during shipping.
The following should be included: Proveyor Multi-Purpose Oven, Stainless Steel Load Up & Unload
Trays, 4 Stainless Steel Legs.
REMOVE ALL HEATING ELEMENT SHIPPING SUPPORTS PRIOR TO PLACING YOUR
UNIT INTO OPERATION.
ASSEMBLY AND INSTALLATION
Theunitwasshippedwithcertainassemblyrequired,plugintoastandardoutletspeciedforits
voltageandampdraw.Ifimproperelectricalsupplyisdetermined,contactaqualiedelectricianprior
to using the unit. Removal and replacement of the power cord and plug will void the warranty. For
assistance, contact your local authorized service agent for service or required maintenance.
Attach the 4 legs by screwing them into the weld nuts located on the bottom of the unit. When
complete, use two people to carefully turn the unit upright. Level unit by adjusting the feet
(approximately 1/2" adjustment). Never operate unit without proper legs in place.
Beforeusingtheunitforthersttime,wipedowntheexteriorwithadampcloth.
CAUTION
Allow enough space around the oven for adequate ventilation. Do not operate the unit without the
crumb tray properly positioned. Overheating and poor baking may occur. Read all labels on the unit
and follow their instructions.

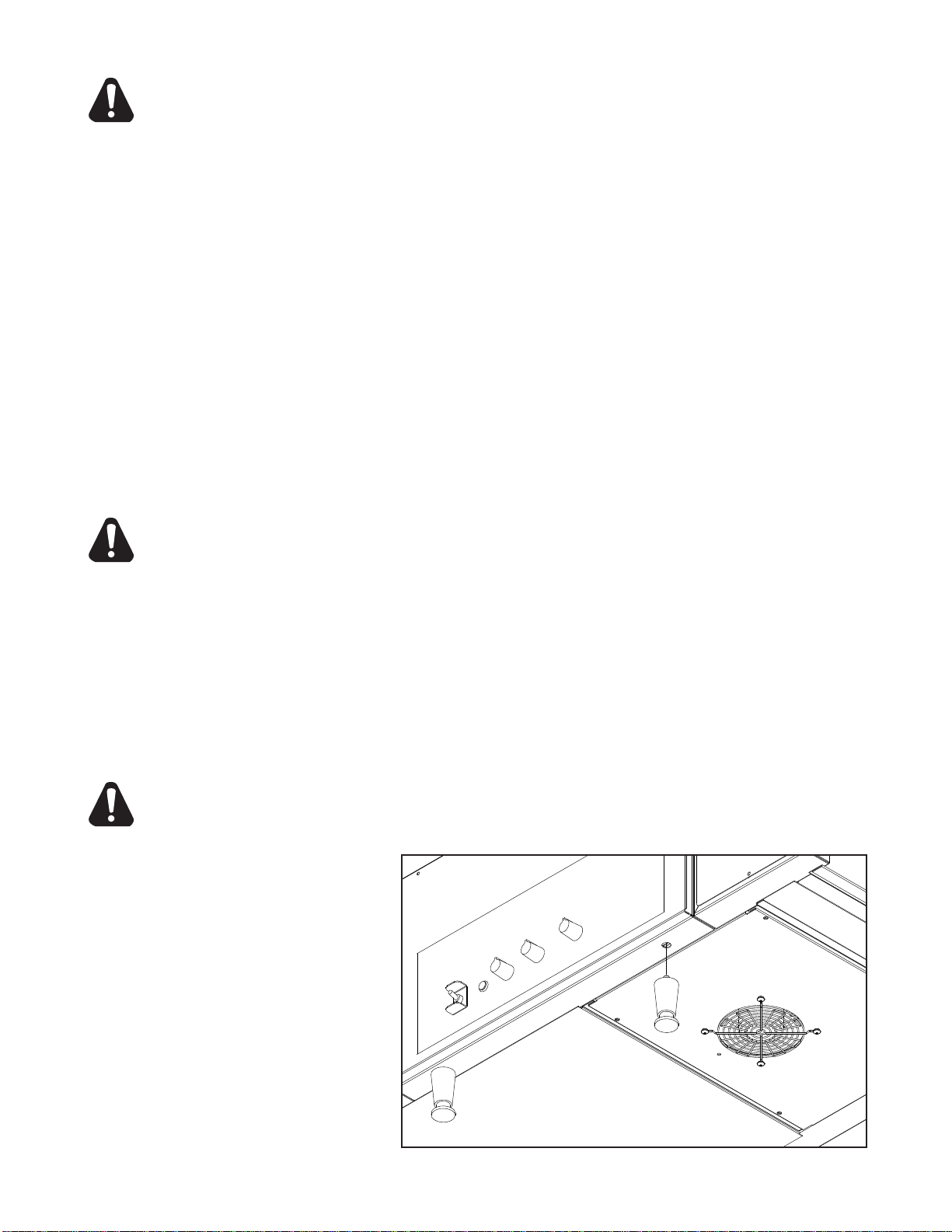

LEG INSTALLATION
CAUTION
CAUTION
CAUTION

5
ASSEMBLY AND INSTALLATION continued
Install unit in its operating
positionallowsufcientspacefor
operating personnel. Install the
Load, Unload and Crumb Trays
as shown, making sure the ends
are at least 6" from any vertical
combustible surfaces.
Have an electrician connect input
power to the unit(s) in accordance
with local electrical codes. A
connection terminal block is inside
the left side cavity for models not
provided with a cord and plug set.

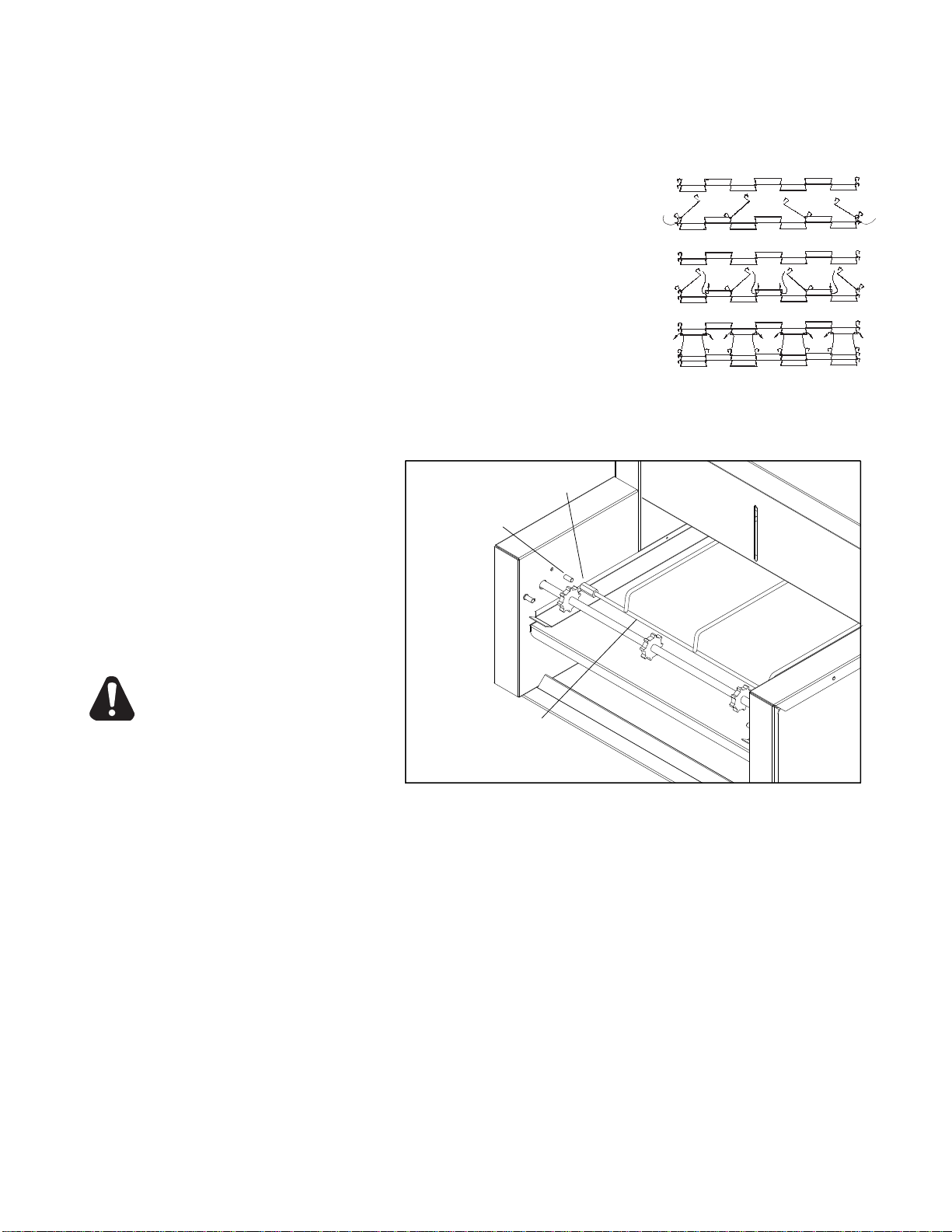

HEATING ELEMENTS
Inspect all heating elements in
the unit for breakage. Every unit
is properly tested prior to leaving
the factory, but damage may of
occurred during shipping. If a broken tube is found, do not apply power to the unit. If everything
checks out, Turn on Main Power Switch, Turn both heat controls and conveyor belt speed control to
the maximum setting and check all heater tubes and conveyor for proper operation.
COOLING SYSTEM
After the unit is initially turned on, allow 5 to 8 minutes for the fan cooling system to come on. Once
on,checktheairintakearealocatedundertheunitandbesurethatthereisasufcientowofair
into the control box. Keep area under the unit clean from obstructions that may result in restricted air
owtothecontrolbox.Restrictingtheairowwillcausetheunittorunhotterthendesigned,causing
the Hi-Limit to turn unit off. See the Oven Components section on page 7 for control box & Hi-Limit
Reset locations.
FINAL CHECK
If all heaters and conveyor systems are operating properly, switch the master on/off switch to the OFF
position and allow unit to cool, the fan will continue to circulate air, cooling the unit until the internal
temperatures have been decreased.
If a problem is discovered during any of these start-up procedures, immediately switch the master
on/off switch to the OFFpositionandnotifytheStarServiceDepartmentat(314)634-6303.
ELECTRICAL CONNECTION
Before making any electrical connection to this unit, check that the power supply is adequate for the
voltage, amperage and requirements stated on the rating plate.
A wiring diagram is included herewith.
Disconnect the unit from the power source before installing or removing any parts.
Be absolutely sure that the ground connection for the receptacle is properly wired. Do not connect
equipment to power without proper ground connections. Improper grounding may result in personal
injury or fatality.
DO NOT CUT OR REMOVE THIS PLUG OR GROUNDING PRONG FROM THE PLUG.
CONNECT/PLUG UNIT INTO DEDICATED A.C. LINE ONLY SPECIFIED ON THE DATA
PLATE OF THE UNIT.
CLEAN
OPERATE
UNLOAD TRAY
LOAD TRAY
CRUMB TRAY
CRUMB TRAY
TYPICAL LEFT TO RIGHT CONFIGURATION
IL1001
ADJUSTABLE
HEAT SHUTTERS
WARNING
WARNING

6
STACKING OVENS

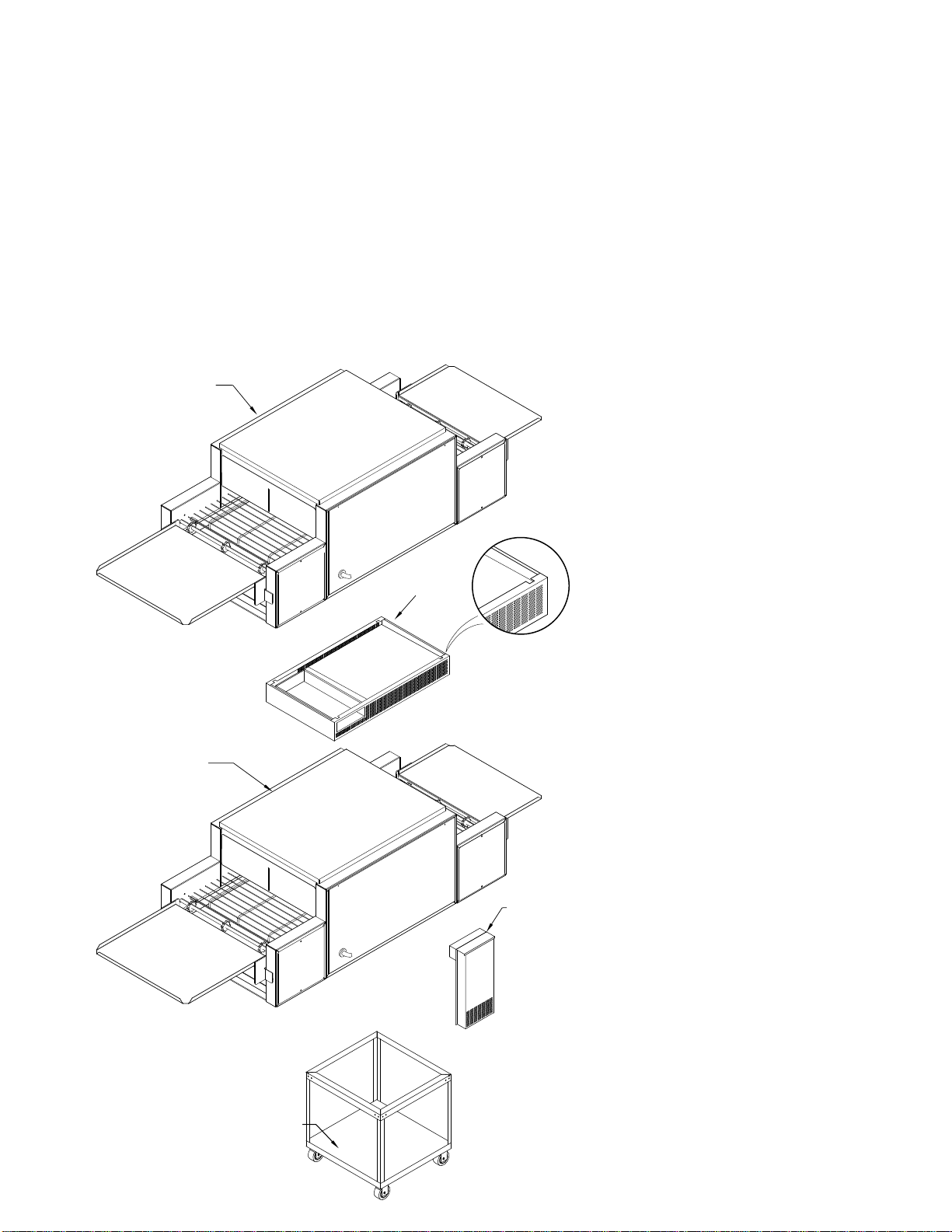

When stacking two Holman Proveyor Ovens a stacking spacer with an external air duct MUST be
used to prevent overheating of the control box of the top oven.
1. If a cart is to be used with units, place bottom unit on cart and align leg holes of unit with the holes
onthecart.Insert3/8"boltsthroughcartandintolegholestosecurebottomunittocartasshown
below.
2. Place stacking spacer on top of bottom oven with internal air duct facing up and towards the rear
of the oven.
3. Mountexternalairductonstackingspacerasshownbelow.Externalairductmustbeinstalled
for cooling system of top unit to function properly.
4. Screw cap screws (Qty 4) into leg hold on the top oven.
5. Place top oven on stacking spacer. Cap screws will set into cut out in top of stacking spacer to
lock unit into position.
OVEN
OVEN
STACKING SPACER
EXTERNAL AIR
DUCT
EQUIPMENT
STAND
IL1020
SET-SCREW
CUT OUTS
NOTE: Air intake of top unit must
t over the internal air duct of
stacking spacer to allow airow
into the control box of the top
oven.
TOP UNIT: cap screw, screws
into leg holes, unit sits on top of
spacer.
STACKING SPACER:
(REQUIRED) Sits on top of bottom
oven.
EXTERNAL AIR DUCT: Mounts
onto spacer, pointing downward.
BOTTOM UNIT: Can be placed on
a counter or mounted on cart as
shown.
Cart: Mounting bolts for bottom
unit screw into leg holes through
the top cart frame.

7
DAILY OPERATION
Baking in these units is a combination of heat and belt speed. Some foods may require more top
heat or visa versa; other foods may require low top and bottom heat and slow belt speeds. Every
product should, therefore, be tested using the separate top & bottom controls and the variable speed
control to arrive at the correct balance of heat and belt speed. When changing heat and or belt speed
setting allow approx. 5 minutes for the oven to stabilize itself at the new settings.
Check the power cord to insure that it is plugged into a proper outlet.
Always allow 10 to 15 minutes of preheat time before loading the unit with product. Failure to
allowsufcientpreheattimewillresultinunsatisfactorycookinguntiltheunitreachesoperating
temperature.
1) Turn the master on/off switch to the ON position.
2) Set both the top and bottom heat controls to 500°F (260°C).
3-Phase Control Units, set front heat controls to 500°F (260°C)
3) Turnconveyorspeedcontroltothefastestsetting.
4) Allow 10 to 15 minutes for initial warm up,
(5 to 8 minutes to reach adjusted temperature, once unit is fully warmed up)
CERTAIN SURFACES ARE EXTREMELY HOT DURING OPERATION AND CARE SHOULD
BE TAKEN WHILE USING THIS UNIT.
OVEN COMPONENTS
ADJUSTABLE HEAT SHUTTER
(QTY 2)
LOAD TRAY
UNLOAD TRAY
IL1006
ON/OFF
SWITCH PILOT LIGHT
UPPER
HEAT
CONTROL
LOWER
HEAT
CONTROL
CONVEYOR
SPEED
FRONT
HEAT
CONTROL
(3 Phase only)
CONTROL
BOX
HI-LIMIT
SWITCH POWER CORD
CRUMB
TRAY
(QTY 2)
AIR INTAKE
FAN
OPERATING HINTS AND SAFETY
Disconnect power to the unit with the switch at the end of each day of operation.
Do not leave the unit in operation without an attendant.
Do not leave the unit at high temperature when not in use or during idle periods. This will cause food
particlesandgreaselmtocarbonize.Itwilltakeonlyafewminutestoregainoperatingtemperature.
CAUTION

8
CLEANING
Preventive maintenance for your Holman Oven consists of the following recommended cleaning
procedures. To keep your oven in its top operating condition, these steps should be performed on a
daily, weekly or as indicated.
DISCONNECT UNIT FROM POWER SUPPLY OR TURN POWER OFF AT WALL
BREAKER.
DAILY
1. Turn main power switch to the OFF position. Disconnect unit from power source and
allow to cool.
2. Using a mild detergent, wipe exterior surfaces, clean with a damp cloth.
a. For lightly soiled build-up, clean with a damp cloth.
b. For heavily soiled build-up, use an soft damp cloth and mild detergent.
DO NOT use caustic cleaners.
3. Remove the load & unload tray by lifting them out of position. Clean using mild detergent and
warm water.
4. Remove each crumb tray by sliding each of them out from under the conveyor belt.
Clean crumb trays by wiping with a damp cloth and mild detergent.
DO NOT use caustic cleaners. Place trays back in place prior to putting unit back into
operation.
5. Reconnect power.
WEEKLY
1. Turn main Power switch to the OFF
position. Disconnect unit from power
source and allow to cool.
2. Perform daily cleaning procedures.
3. Usingadampcloth,wipecleanthefan
guard located on the control box cover
under the unit.
CLEAN CONVEYOR BELT
4. Reconnect power or turn power back on.
5. Switch the ON/OFF switch to the ON
position, and turn Conveyor to its fastest
setting.
6. With the Conveyor turned on and the crumb trays in place, take a wire grill brush or dry abrasive
pad, clean the exposed surface of Conveyor Belt by passing the brush or pad, back and forth
across the surface of the Conveyor Belt as the belt moves past. Continue until the entire belt is
clean. Make sure the Crumb Tray is installed, this will minimize the amount of particles that fall
into the oven.
7. When the Conveyor Belt is clean, take a damp cloth and wipe the conveyor, removing
any loose particles on the belt surface. Turn Conveyor OFF.
8. Remove the Crumb Trays by sliding out from beneath the conveyor belt. Clean the
Crumb Trays by wiping with a damp cloth and mild detergent.
DO NOT use caustic cleaners.
DO NOT RUN CONVEYOR OVEN WITHOUT CRUMB TRAYS INSTALLED.
DO NOT IMMERSE OR LET THE UNIT STAND IN WATER.
DO NOT HOSE DOWN THE UNIT OR THE TABLE/COUNTER IF THE UNIT IS ON THE
TABLE/COUNTER.
KEEP AWAY FROM RUNNING WATER.
WARNING
WARNING
CAUTION
IL1023
CLEANING CONVEYOR BELT

9
CLEANING CONTINUED
MONTHLY
1. Turn main power switch to the OFF position. Disconnect unit from power source and allow to
cool.
2. Perform daily & weekly cleaning procedures.
REMOVAL & CLEANING CONVEYOR BELT

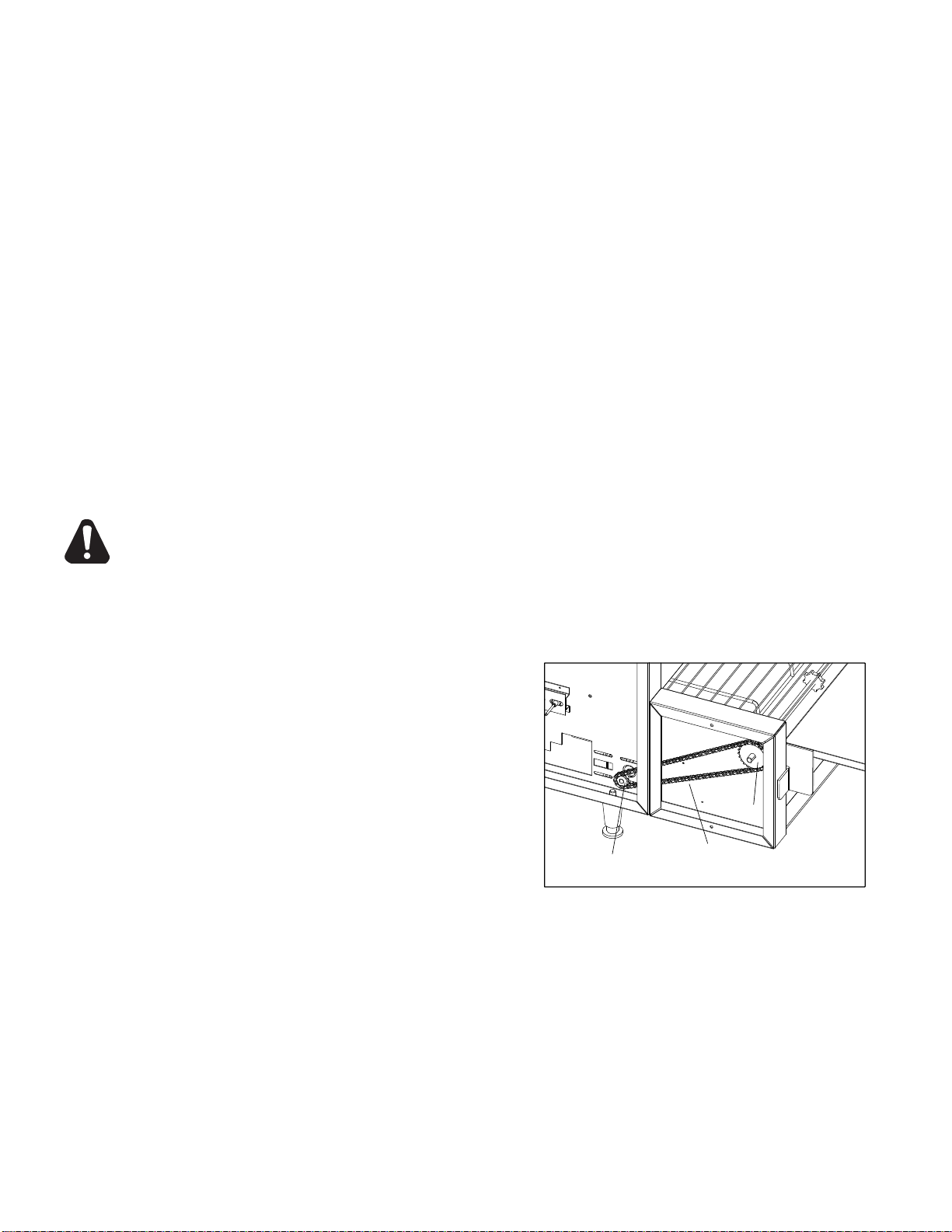

3. Heavilysoiledconveyorsurfaces,locatetheMaster
Links on the conveyor belt. Follow the step 1 in Fig 1, to
removealloftheMasterLinks.314modelshave3master
links,318modelshave4masterlinks.
4. Now that the links have been un-hooked, the conveyor can
now be carefully removed from the oven. Standing at one end
of the oven. Starting with the end on the bottom, roll the
conveyor belt until it has been totally removed. Take careful
notice being sure not to damage the heater tubes.
5. Clean conveyor belt in deep sink, caustic cleaners may be
used. For a heavy soiled conveyor belt, soak over night in hot soapy water.
NOTE: DO NOT ATTEMPT TO CLEAN THE HEATER TUBES.
6. Take this opportunity to
clean and remove any
loose materials inside the
unit. Using a mildcleaner
and damp cloth, carefully
wipe the inside surfaces
being sure NOT to clean
theheatertubes.DAMAGE
CAN OCCUR TO THE
HEATER TUBES FROM
IMPROPER CLEANING.
DO NOT SPRAY
CLEANING SOLUTIONS
INTO OVEN CAVITY.
7. Remove the conveyor
support system as shown
in Fig 2. by removing the
Couplers from the mounting Studs. Clean by warm water and abrasive pad.
8. Reinstall the conveyor support system.
9. Reinstallconveyorbeltbyrstlayingthebeltalongthebottomoftheovencavitymaking 
sure the hooks on the sides are facing the inside and the ends of the hooks will be
pointing away form the direction of the belt so not to catch on any internal components
once put back into operation.
NOTE: THE DIRECTION OF THE BELT.
10. Next, pull one end of the conveyor belt over the top of the sprockets, (being sure to line the links
up properly with the sprockets) bringing the two ends together.
11. Reinstallthepreviouslyremovedmasterlinksasshowninsteps2&3inFig.1.
12. Examinetheoventoassureproperinstallation,oncesatised,installcrumbtraysifyou 
have not done so.
13. Reconnectoventopowersupplyandcheckforproperoperation.
IF ASSISTANCE IS REQUIRED, CALL THE STAR SERVICE TEAM AT [phone].
1.
2.
3.
IL1021
MOUNTING STUD
COUPLER
BELT SUPPORT ROD
IL1022
CAUTION

10
MAINTENANCE PROCEDURES
A. REPLACING HEATER TUBES
1) DISCONNECT POWER SOURCE.
2) Remove both the left and right side panels,
by removing the truss head screws. Pull the
top of each panel out slightly and lift up.
3) Remove heater tube wires which are requiring
replacement from its terminal block connection.
4) Remove heater tube retainer by removing
retainer screws with washer.
5) Gently, pull defective heater tube out of unit.
6) Gently, put new heater tube into unit.
7) Replace heater tube retainers.
8) Reconnect the heater tube wires to the
terminal block.
9) Install each side panel
10) Connect unit to power source and test unit for proper operation.
B. REPLACING FAN MOTOR
1) DISCONNECT POWER SOURCE.
2) After unit has cooled, remove the load &
unload trays, and turn unit over so the bottom is
facing upward.
3) Remove the control box cover which contains the fan
motor, by removing the screws.
4) Unplug power supply cord from fan motor.
5) Remove (4) screws, which hold fan motor and grill to
the control box cover and remove fan.
6) Once removed, clean grill and control box
cover using warm soapy water.
7) Put replacement motor and grill in place and secure
to the control box cover with screws
previously removed.
8) Reconnect power supply cord to fan motor.
9) Replace back panel and enclosure. Fasten with
screws removed in step 3.
10) Connect unit to power source and test unit for proper operation.
C. REPLACING BELT DRIVE MOTOR
1) DISCONNECT POWER SOURCE.
2) After unit has cooled, remove the load & unload trays,
and turn unit over so the bottom is facing upward.
3) Remove the control box cover which contains the fan
motor, by removing the (4) screws.
4) Remove the side panel that will expose the
drive chain and sprockets.
5) Remove sprocket from motor shaft, using anAllen
wrench and loosening the set-screw.
6) Remove the wire from terminal block connecting the
drive motor to the internal wiring. On units rated 208
or 240 volts, note which color leads are being used
for these connections and which lead is capped with
glass tape. The new motor should use the same ar-
rangement.
7) Remove screws holding motor in place and remove motor from unit.
8) Put new motor in place and attach loosely with mounting screws.
9) Replace sprocket on motor shaft.
NOTE: The two sprockets must line up FLUSH with each other, so the chain does not twist any during
operation. Also the hub gets installed closets to the motor.
IL1003
ELEMENT RETAINER ELEMENT
IL1004
AIR INTAKE GRILL
FAN MOTOR
DRIVE MOTOR
DRIVE SPROCKET IL1005

11
MAINTENANCE PROCEDURES continued
10) Slide motor until the drive chain has about 1/4” slack when
lightly pushed at the center of its top open run.
See chain tensioning illustration.
11) Tighten screws to secure motor.
12) Rewire leads same as removed in step 6.
13)At this time you may plug unit in and test for proper operation prior
to reinstalling panels and turning unit back over onto its feet.
14) If unit is working correctly, turn unit off and unplug until completed
15) Reinstall side panels and control box cover.
Place unit back into its upright position.
Reinstall the load & unload trays.
16) Connect unit to power source and test unit for proper operation.
D. REPLACING SPEED CONTROL
1) DISCONNECT POWER SOURCE.
2) Remove the speed control knob and the locking
nut holding the speed control in place.
3) Remove right side panel, by removing the truss
head screws. Pull the top of the panel out slightly
and lift up.

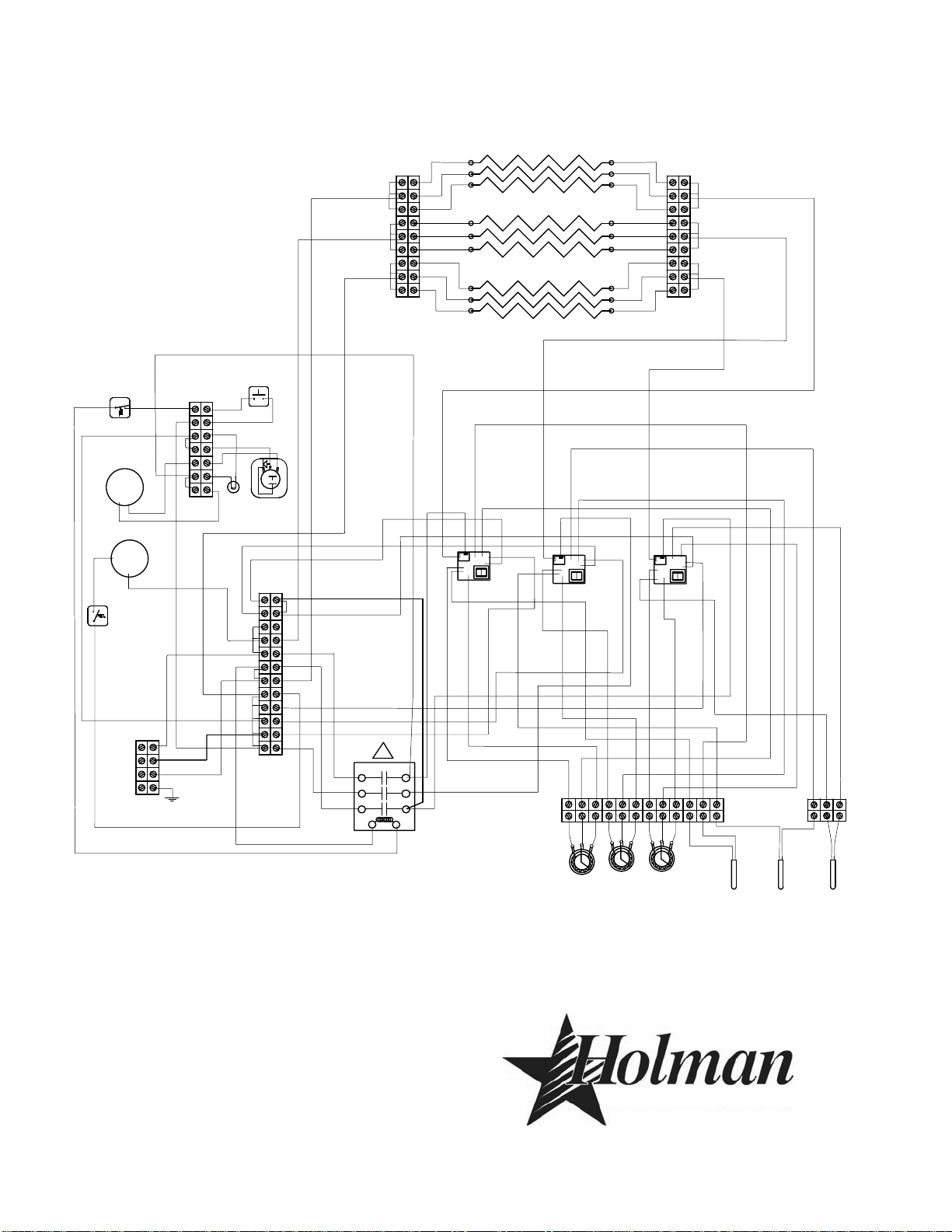

4) Wires from the speed control go into a terminal block
located on the side of the chassis. Remove the wires
from the control and insert wires for the new speed
control into the same positions as shown on the
wiring diagram.
5) Install the washer onto the shaft of the speed control,
followed by the installation.
6) When mounting the speed control in the side panel be sure to position the anti-rotation pin in the slot as shown.
7) Tighten the speed control assembly by using the locking nut, followed by the control knob.
8) Reinstall the side panel and tighten with the screws previously removed.
E. CLEANING AIR INTAKE ONCE A WEEK.
1) DISCONNECT UNIT FROM POWER SOURCE.
2) Place unit on its backside.
3) Use a vacuum cleaner and or a damp cloth to clean the air intake.
This procedure should be done at least once a week.
F. LUBRICATE THE CHAIN & SPROCKETS EVERY 6 MONTHS
1) DISCONNECT UNIT FROM POWER SOURCE.
2) Remove the side panels which exposes chain drive.
3) Using an extreme pressure, synthetic chain lubricant with a temperature range up to 400°F.
Apply liberally onto chain and sprockets.
This grease is available separately as part no. 1P-Z8914. Call 1-[phone] to order.
4) Replace side panels, Reconnect power source and test unit.
IL1002
SPEED CONTROL
WASHER
INSTALLATION
LOCKING NUT
KNOB
SIDE PANEL
1/4”
Chain Tension

12
TROUBLESHOOTING GUIDE
A. UNIT WILL NOT HEAT, CONVEYOR BELT WILL NOT MOVE.
1) Be sure the main circuit breaker is switched to the ON position and there is power to the outlet.
2) Check to see if the oven is plugged in and all controls are turned to the ON position.
 3) BesuretheHi-LimitResetButtonispushedin.
 4) CalltheStarServiceHelpDeskat(314)634-6303.
B. UNIT WILL NOT HEAT, CONVEYOR TURNS PROPERLY.
1) Check to see if the top and bottom heat controls have been turned to the maximum setting.
2) Press the Hi-Limit Reset Button located underneath the conveyor belt on the right side. If this reactivates
the heater tubes, see Hi-Limit Reset Section below.
 3) CalltheStarServiceHelpDeskat(314)634-6303.
C. HI-LIMIT (HEAT) RESET.
Your Holman conveyor oven is equipped with an automatic activated temperature limit switch which interrupts the
heater tube connections if the air temperature in the control box exceeds 190°F (88°C) This limit switch can be
reset manually by pushing the button in the center of the switch which is located on the right side under the
conveyor belt. See Oven Components on Page 7 for location. Unit will not reset until internal temperature has
fallen below 190°F (88°C).
NOTE: THE HI-LIMIT SWITCH CAN BE ACTIVATED IF THERE IS NOT A PROPER AMOUNT OF
AIR FLOW BEING GENERATED BY THE COOLING FAN. IF THIS OCCURS:
1) DISCONNECT UNIT FROM POWER SOURCE.
2) Check to see if the air intake area (center of the control box, bottom of unit) is free of dust,
grease or other obstructions.
 3) Checktoseeifcrumbtrays(heatreectors)areinplace.IftheHi-LimitSwitchcannotbereset,callthe 
  StarServiceHelpDeskat(314)634-6303.
NEVER OPERATE UNIT WITHOUT CRUMB TRAYS IN POSITION AS THIS CAUSES
OVERHEATING IN THE CONTROL BOX.
D. CONVEYOR WILL NOT TURN, UNIT HEATS PROPERLY.
To check for mechanical binding:
1) DISCONNECT UNIT FROM POWER SOURCE.
DRIVEN SPROCKET
DRIVE SPROCKET CHAIN
IL1007
2) Check to see if there are obstructions in the conveyor
system that may cause a jam. If so, remove obstruction.
 3) Checkpowersupply&terminalblocksforlooseor
disconnected wires.
4) Remove right side panel and drive motor sprockets,
see illustration. Manually move conveyor belt to check
for mechanical binding. If conveyor belt moves freely,
  calltheStarServiceHelpDeskat(314)634-6303.
The drive motor or speed control may have to be replaced.
E. CONVEYOR TURNS AT ONE SPEED
REGARDLESS OF SPEED CONTROL SETTING.
 1) CalltheStarServiceHelpDeskat(314)634-6303,asspeedcontrolMAY need replacing.
Refer to REPLACING SPEED CONTROL in the previous section.
F. COOLING FAN DOES NOT START
1) Remove control box cover and check fan blade for obstruction.
2) Check electrical connections are secure and complete.
 3) CalltheStarServiceHelpDeskat(314)634-6303,asthefanswitchandorfanmotorMAY need
replacing.
Refer to REPLACING FAN MOTOR in the previous section.
CAUTION

13
2M-4497-2 6/1312
The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.
FOR ASSISTANCE
Should you need any assistance regarding the Operation or Maintenance of any Star equipment; write, phone, fax or email our Service Department.
In all correspondence mention the Model number and the Serial number of your unit, and the voltage or type of gas you are using.
ALL:
*Pop-Up Toasters
*Butter Dispensers
*Pretzel Merchandisers
(Model 16PD-A Only)
*Pastry Display Cabinets
*Nacho Chip Merchandisers
*Accessories of any kind
*Sneeze Guards
*Pizza Ovens
(Model PO12 Only)
*Heat Lamps
*Pumps-Manual
Visit our Website at: www.star-mfg.com Email: [email protected]
THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL
This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which
the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation
company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty status of the unit.
LIMITED EQUIPMENT WARRANTY
All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited
to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair
of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below) should be taken
to the closest Star service agency, transportation prepaid.
>Star will not assume any responsibility for loss of revenue.
>On all shipments outside the United States and Canada, see International Warranty.
*The warranty period for the Ultra-Max, Hot Plates, Griddles, Charbroilers is (3) years parts & labor.
*The warranty period for the Star-Max, Charbroilers, Griddles, Hot Plates, Fryers & Finishing Oven is (2) years parts & labor.
*The warranty period for the JetStar six (6) ounce & Super JetStar eight (8) ounce series popcorn machines is two (2) years.
*The warranty period for the Chrome-Max Griddles is ve (5) years on the griddle surface. See detailed warranty provided with unit.
*The warranty period for Teon/Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not apply if damage occurs to
Teon/Dura-Tec coatings from improper cleaning, maintenance, use of metallic utensils, or abrasive cleaners, abrasive pads, product identiers and
point-of-sale attachments, or any other non-food object tha comes in continuous contact with the roller coating. This warranty does not apply to the
“non-stick” properties of such materials.
>This warranty does not apply to "Special Products" but to regular catalog items only. Star's warranty on "Special Products" is six (6) months on parts
and ninety (90) days on labor.
>This warranty does not apply to any item that is disassembled or tampered with for any purpose other than repair by a Star Authorized Service Center or
the Service Center's sub-agency.
>This warranty does not apply if damage occurs from improper installation, misuse, wrong voltage, wrong gas or operated contrary to the Installation and
Operating instructions.
>This warranty is not valid on Conveyor Ovens unless a "start-up/check-out" has been performed by a Factory Authorized Technician.
PARTS WARRANTY
Parts that are sold to repair out of warranty equipment are warranted for ninety (90) days. The part only is warranted, the labor to replace the part is NOT warranted.
SERVICES NOT COVERED BY WARRANTY
PORTABLE EQUIPMENT
Star will not honor service bills that include travel time and mileage charges for servicing any products considered "Portable" including items listed below.
These products should be taken to the Service Agency for repair:
1. Travel time and mileage rendered beyond the 50 mile radius limit
2. Mileage and travel time on portable equipment (see below)
3. Labor to replace such items that can be replaced easily during a daily cleaning
routine, ie; removable kettles on fryers, knobs, grease drawers on griddles, etc.
4. Installation of equipment
5. Damages due to improper installation
6. Damages from abuse or misuse
7. Operated contrary to the Operating and Installation Instructions
8. Cleaning of equipment
9. Seasoning of griddle plates
10. Voltage conversions
11. Gas conversions
12. Pilot light adjustment
13. Miscellaneous adjustments
14. Thermostat calibration and by-pass adjustment
15. Resetting of circuit breakers or safety controls or reset buttons
16. Replacement of bulbs
17. Replacement of fuses
18. Repair of damage created during transit, delivery, &
installation OR created by acts of God
*The Model 510FD, 510FF Fryer.
*The Model 526TOAToaster Oven.
*The Model J4R, 4 oz. Popcorn Machine.
*The Model 518CMA & 526CMA Cheese Melter.
*The Model 12MC & 15MC & 18MCP Hot Food Merchandisers.
*The Model 12NCPW & 15NCPW Nacho Chip/Popcorn Warmer.
*All Hot Dog Equipment except Roller Grills & Drawer Bun Warmers.
*All Nacho Cheese Warmers except Model 11WLA Series Nacho Cheese Warmer.
*All Condiment Dispensers except the Model HPD & SPD Series Dispenser.
*All Specialty Food Warmers except Model 130R, 11RW Series, and 11WSA Series.
*All QCS/RCS Series Toasters except Model QCS3 & RCS3 Series.
*All Fast Steamer Models except Direct Connect Series.

14
®
MODEL: 314HX, 318HX, 208/240V, 3 PHASE, DELTA CONF
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
820134 Rev A
7/15/2004
Red Red
Blk Blk
Brn Brn
Brn
Brn Brn
Brn Brn Brn
Brn
Brn Brn
Blk Blk
Blk
Blk
Blk
Blk
Red
Red
Red
Red
Blk
Blk
Blk
Blk
Blk
Blk
Yel
Yel Pur Pur Ong Yel
Yel
A
FRONT HEAT
TOP HEAT
BOTTOM HEAT
FRONT TOP BOTTOM
SPEED
CONTROL
FAN
CONTROL
SWITCH
ON/OFF
PILOT
LIGHT
HIGH LIMIT
RESET
MAIN POWER
L1
L2
L3
G
MOTOR
CONV.
HEAT
PROBE
TOP
CONTROL
HEAT
FRONT BOTTOM
CONTROL
HEAT
HEAT
TOP
CONTROL FRONT
PROBE
HEAT PROBE
HEAT
BOTTOM
FAN
MOTOR
M
M
LT
A
1
2
33
2
1

15
®
MODEL: 314HX, 318HX, 208/240V, SINGLE PHASE
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
820078 Rev A
08/16/2001
RED
ORG
BLU
BRN
ORG
ORG PUR
BRN
BRN
BRN
BRN
BRN BRN RED YEL RED
YEL
ORG
PUR
YEL
ORG
PUR
BLK
YEL
ORG
PUR
YEL
BLK
RED
BLK
BLK
BLK
RED
BLK
YEL
BLK
BLK
BLK
RED
BLK BLK
YEL
RED
BLK

16
®
MODEL: 314HX, 318HX, 208/220/240 VOLT, 60 Hz
SINGLE PHASE (PHASE CONTROLS)
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
020078 Rev - 05/2/2000
ORN
BLU
RED
BLK BLK
PUR
BRN
BLK
RED
RED
BLK
BLK
YEL
YEL
RED
RED
BLU
BLK
ORN
ORN
YEL
PUR
BLK

17
115394
MAIN POWER
G
N
L3
L2
L1
CONV.
MOTOR
HIGH LIMIT
RESET
135100
SPEED
CONTROL
FAN
LIGHT
PILOT
CONTROL
ON/OFF
SWITCH
BOTTOM HEAT
TOP HEAT
FRONT HEAT
BLK
RED
BLU
BRN
BRN
PROBE
HEAT
CONTROL
CONTROL
HEAT
FRONT TOP
CONTROL
HEAT
BOTTOM
FRONT
HEAT
200556
BOTTOM
FRONT TOP
PROBE PROBE
HEAT
BOTTOM
HEAT
TOP
115392
BLK
RED
RED
RED BLK
BLK
BRN
BRN
BRN
ORG ORG BRN ORG
BRN
BRN BRN YEL PUR YEL PUR YEL PUR
RED
RED
RED
RED
BLK
BLU
BLK
®
MODEL: 314HX, 318HX, THREE PHASE WYE CONF.
(STRATFORD CONTROLS)
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
820145 Rev B
10/22/2004
M
M
BLK ORG
BLU
BRN
YEL
BLK
RED
YEL
BRN
BLU
BLK
BLK

Control Box View
Page 23
MODEL: PROVEYOR
314HX, 318HX, 418HX SK2145 Rev. A 9/14/09
1
1
2
3
4
5
7
8
9
10 12 13
11
14
15
16
16
17
19 18
50
20
21
22
42 43 44 45
10
23
24
25
26
28
29
30
31
32 34 35 36
37
33
38
39
40 41
NAMEPLATE
6

314HX Series Holman Conveyor Oven
Rev. C 9/19/2013 NI = NOT ILLUSTRATED
Fig No Part No Qty Description App.
1GD-401227 2 TRAY, CRUMB 22A-200672 4 COLLAR, SHAFT 3GD-100707 1 RACK, BELT SUPPORT SYSTEM 4GD-100403 1 TRAY, LOAD-UP 5GD-160008 1 CONVEYOR BELT (14” X 75”) 62B-200626 3 LINK, MASTER, CONVEYOR BELT 7GD-401168 1COVER, TOP 82A-200284 3 E-CLIP 92C-200149 3 WASHER
10 GB-112262 4 BUSHING 3/8”
11 GD-101253 1 SHAFT, IDLER (3/8”)
12 2E-200574 1 SWITCH, FAN MOTOR 13 HG-402144 1 FAN SWITCH BRACKET 14 GD-401238 1 RETAINER, HEATER TUBE RIGHT 15 2J-200568 2PROBE, HEAT (Stratford Control Model)
3 3 Phase
16 GD-401206 4 COVER, EXTENSION SIDE 17 GD-101488 1PANEL ASSY, PLUG SIDE (L-R MODEL)
GD-101489 PANEL ASSY, PLUG SIDE (R-L MODEL)
18 2K-200458 1 BUSHING, POWER SUPPLY CORD 19
GD-Z11260 1CORDSET 10-3 W/6-50P, 50A,
Ser No on/after CO3181009A0001 314HX
2E-200383 1CORD/PLUG SEET, 10GA, 30A,
Ser No Before CO3181009A0001
20 GD-101252 1 SHAFT, DRIVE (3/8”) 21 GD-401233 2 SHUTTER, HEAT 22 GD-101403 1 TRAY, UNLOAD 23 2P-150023 1 DRIVE CHAIN (27”) 24
2P-200654
1
SPROCKET, DRIVEN (25B24 X 3/8”)
2P-115362 SPROCKET, DRIVEN (25B11 X 3/8”) 314HXRD,
HXRRD
25
2P-200643
1
SPROCKET, DRIVE (25B11 X 5/16”)
2P-200650 SPROCKET, DRIVE (25B24 X 5/16”) 314HXRD,
HXRRD
26 2U-Z11871 1MOTOR, DRIVE (L-R), CCW 208/240V
2U-Z11870 MOTOR, DRIVE (R-L), CW 208/240V
27 2R-200721 1 BLADE, FAN, DRIVE MOTOR
Fig No Part No Qty Description App.
28 2R-200716 4 LEG, 2 1/2” METAL 29
GD-197888
9
HTERTUBE, QRTZ; 208V, 613W, 67.9 ohm 208V
GD-197893 HTERTUBE, QRTZ; 220V, 600W, 78.7 ohm 220V GD-197889 HTERTUBE, QRTZ; 240V, 600W, 90 ohm 240V 2N-209201 ELEMENT, METAL, 600W, 208V 1 208V 2N-209203 ELEMENT, METAL, 600W, 240V, 1 314HXTA,
314HXTAR
30 GD-402446 1RETAINER, SINGLE HTERTUBE, QUARTZ
GD-401238 RETAINER, SINGLE HTERTUBE, METAL
31 GD-401232 4RETAINER, DUAL HTERTUBES, QUARTZ
GG-401989 RETAINER, HEATERTUBES, METAL
32 2E-200564 1 SWITCH, ON/OFF TOGGLE 314HX 33 2P-401780 1GUARD, TOGGLE 34 2E-200180 3 INSULATION, SWITCH, POT. 35
2J-200567
1
SWT, FRONT HEAT CNTRL POT., 3Ph Stratford 3 Phase,
Stratford
2J-200567 SWT, TOP HEAT CNTRL POT. Stratford GD-115350 SWITCH, CNTRL HEAT ASSY TOP, Phase
Cntrl
36 2J-200567 1SWITCH, BTM HEAT CNTRL POT. Strat
GD-115351 SWITCH, CNTRL HEAT ASSY BTM, Phase
37 GB-118062 1SWITCH, SPEED CNTRL ASSY (1000Ω) 314HX 38 2J-200427 1 PILOT LIGHT 39
2R-200708 3CAP, KNOB CONTROL
4 3 Phase
2R-200768 3KNOB, HEAT CONTROL, SPEED
CONTROL
4 3 Phase
40 2M-200866 1LABEL 3 PHASE HX CONTROL LABEL 3 Phase
2M-200872 LABEL, CONTROL PANEL
41 GD-401375 1 PANEL, CONTROL SIDE
GD-401540 3 Phase
42 2U-200561 1 MOTOR, FAN 43 HT-401496 1 COVER, CONTROL BOX 44 2R-200562 1 GRILL, FAN MOTOR 45 2C-Z5883 4 SCREW, 10-24 X 1/2 FZA, SELF DRILLING
