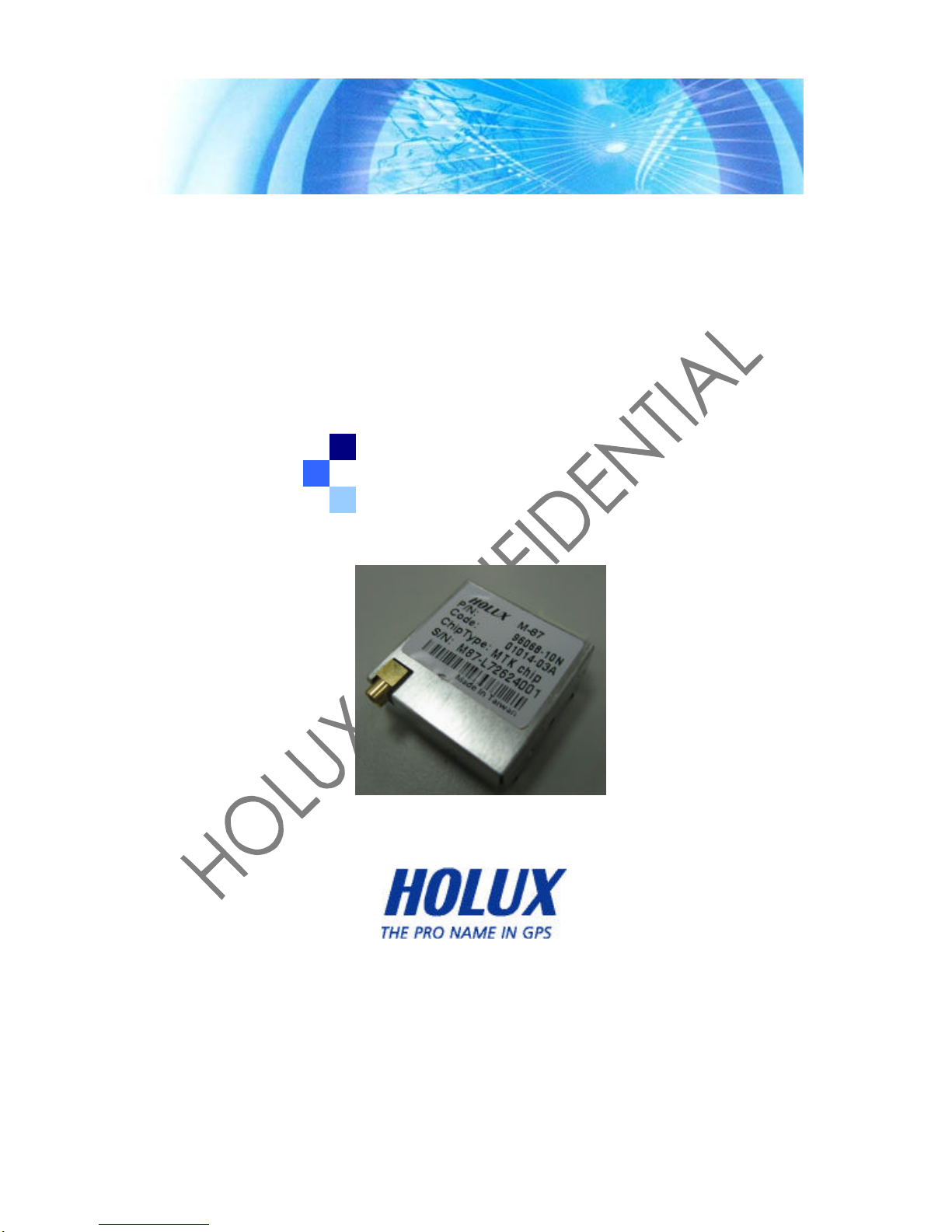

M-87
SPECIFICATION
GPS Engine Board

M-87
GPS Module series THE PRO NAME IN GPS
HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[email protected] http:www.holux.com.tw
Version Change History
Version Date Revised Reason
0.1 2007/06/27
Officialrelease

M-87
GPS Module series THE PRO NAME IN GPS
HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[email protected] http:www.holux.com.tw
Outline
1. Introduction........................................................................................................4
1.1 General introductions ..............................................................................4
1.2 Key Features.............................................................................................4
1.3 Applications ..............................................................................................4
2Technical Description......................................................................................5
2.1 Block Diagram..........................................................................................5
2.2 Pin Definition............................................................................................5
2.3 Specification...............................................................................................6
2.4 Configuration Information......................................................................8
3. Mechanical Dimension........................................................................................9
3.1 M-87-T0A, M-87-T0C outline.................................................................9
3.2 M-87-T0B, M-87-TOD outline ..............................................................10
4. Package.................................................................................................................11
4.1 Packing.....................................................................................................11
5. User Interface..................................................................................................12
5.1 Protocol....................................................................................................12
5.2 NMEA Protocol......................................................................................12
5.3 MTK NMEA Packet Format..................................................................13

M-87
GPS Module series THE PRO NAME IN GPS
HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[email protected] http:www.holux.com.tw
1. Introduction
1.1 General introductions
M-87 is an easy used 25.4 * 25.4 * 7mm GPS engine board designed by low
power consumption MTK GPS solution. It provides superior sensitivity up to
-159dBm and fast Time-To-First-Fix in navigation application. The stable
performance of M-87 is your best choice to be embedded in your portable device
design, like PND for GPS service.
1.2 Key Features
•small form factor: 25.4 * 25.4 * 7mm
•RoHS/WEEE compliant
•High sensitivity -159dBm
•Searching up to 32 Channel of satellites
•Fast Position Fix
•Low power consumption
•RTCM-in ready.
•Built-in WAAS/EGNOS/MSAS Demodulator.
•Support NMEA0183 V 3.01 data protocol.
•Real time navigation for location based services.
•Embedded MMCX connector.
•For Car Navigation, Marine Navigation, Fleet Management, AVL and
Location-Based Services, Auto Pilot, Personal Navigation or touring
devices, Tracking devices/systems and Mapping devices application
1.3 Applications
•Automotive and Marine Navigation
•Automotive Navigator Tracking
•Emergency Locator
•Geographic Surveying
•Personal Positioning
•Sporting and Recreation
•Embedded applications:
•UMPC, PND.

M-87
GPS Module series THE PRO NAME IN GPS
HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[email protected] http:www.holux.com.tw
2Technical Description

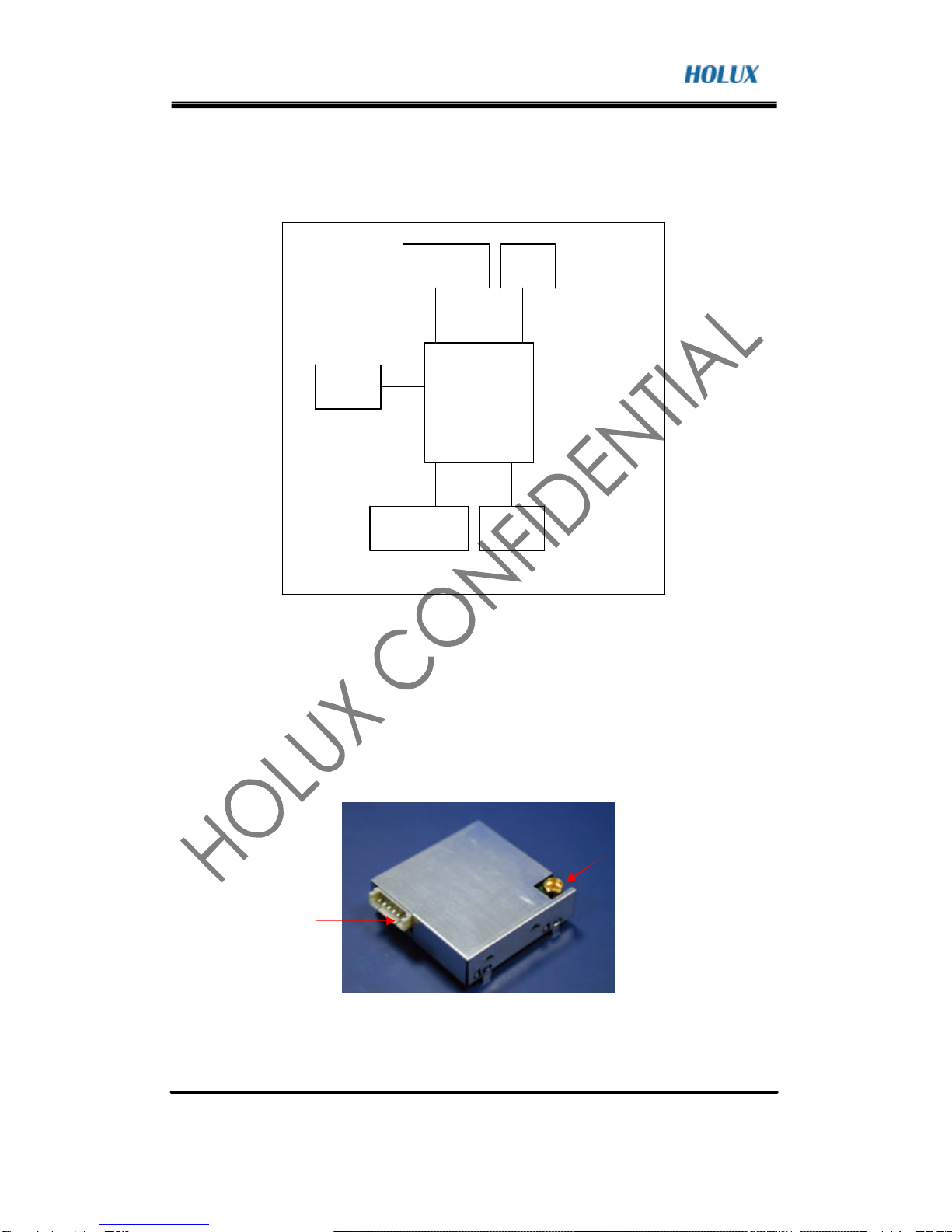

2.1 Block Diagram
2.85V
RTC
Xtal
MT3318
LDO
SAW
Backup
Li_ion_BTY
TCXO
16.368MHz
2.2 Pin Definition
Pin1
J1 Connector
180°MMCX Active
Antenna connector

M-87
GPS Module series THE PRO NAME IN GPS
HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[email protected] http:www.holux.com.tw
Pin
Pin Name
Type
Function description
1
VCC_IN I3.3 ~ 5 V supply input
2
TXA OSerial Data Output A
3
RXA ISerial Data input A
4
RXBISerial Data input B
5
GND OGround
6
TIMEMARK/
RESET(OPTI
ON)
I/OTIMEMARK:1PPS Time mark output
RESET:Reset input(Active Low)(option function)
2.3 Specification
General
GPS technology
MTK GPS chipset
Frequency
L1,1575.42MHZ
C/A Code
1.023MHZ chip rate
Channels
32 channels all in view searching
Sensitivity
Better than -159dBm
ReceiverAccuracy (Follow MTK chip specification)
Position
Without aid:3.0 M2D-RMS
DGPS(WAAS, EGNOS, MSAS, RTCM):2.5 M
Velocity
Without aid:0.1 M/sec
Time
0.1μs. Sync GPS time
Datum
Datum
WGS84(Default) total 219 datum’s
Time to First Fix (Follow MTK chip specification)
Hot start
1 sec.average
Warm start
33 sec.average
Cold start
36 sec.average
Reacquisition
＜1sec.
Protocol
GPS Output Data
NMEA0183(v3.1)-GGA,GSA,GSV,RMC,VTG
Support Baud rate 4800/9600/…./115200 bps (default 4800),
Data bit:8,Stop bit:1,No parity.

M-87
GPS Module series THE PRO NAME IN GPS
HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[email protected] http:www.holux.com.tw
Update Rata
1Hz(default)
Protocol Support
NMEA-0183
1PPS Enable(1Hz pulse 1% duty cycle)
Limitations (Follow MTK chip specification)
Acceleration Limit ＜4G
Altitude Limit ＜18000 meters
Velocity Limit ＜515 M/sec
Jerk Limit 20 M/sec3
Power
Operation Current
Acquisition:60 [email protected]
Operation Current
Tracking:＜[email protected]
Backup power
3V Rechargeable Lithium cell battery,up to 500 hours discharge
DC Input Range
VCC 3.3~5.0V
Processing Core
Processor Type ARM7EJ-S
Interface CMOS 2.8 V Level
Temperature
Operating Temperature -10 to +60 .
Storage Temperature
-20 to +85 .
Operating Humidity
5% to 95%, Non condensing
Physical
Dimension
25.4 * 25.4 * 7mm.
Weight
7g.
Interface
Connector 6-pin straight male header,1.25mm pitch
NOTE:TIMEMARK1PPS(default)/ RESET (option)
This pin default is provides 1 pulse per second output from the M-87
engine board, which is synchronized to within 1 microsecond of GPS time. The
output is a CMOS 2.8V positive level signal. Only upon a situation of tracking
or navigating will output once per second.
The secondary option function is provides an active-low reset input to the engine
board. It causes the engine board to reset and start searching for satellites. (This
second function setting need contact factory).

M-87
GPS Module series THE PRO NAME IN GPS
HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[email protected] http:www.holux.com.tw
2.4 ConfigurationInformation
M-87 provide 4 configurations because of the different angle of MMCX
connector and different RF interface output voltage.
Model No. Output Level
(CMOS 3V )
RF interface
output voltage (V)
Back-up battery
(Rechargeable
Lithium)
RF
Connector
Type
M-87-T0A CMOS 3V 2.85YMMCX(180°)
M-87-T0B CMOS 3V 2.85YMMCX(90°)
M-87-T0C CMOS 3V VCC_IN YMMCX(180°)
M-87-T0DCMOS 3V VCC_INYMMCX(90°)

M-87
GPS Module series THE PRO NAME IN GPS
HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[email protected] http:www.holux.com.tw
3. Mechanical Dimension
3.1 M-87-T0A, M-87-T0C outline
lPicture
lDesign Layout Diagram:(unit mm)
180°MMCX Active Ant
connector

M-87
GPS Module series THE PRO NAME IN GPS
HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[email protected] http:www.holux.com.tw

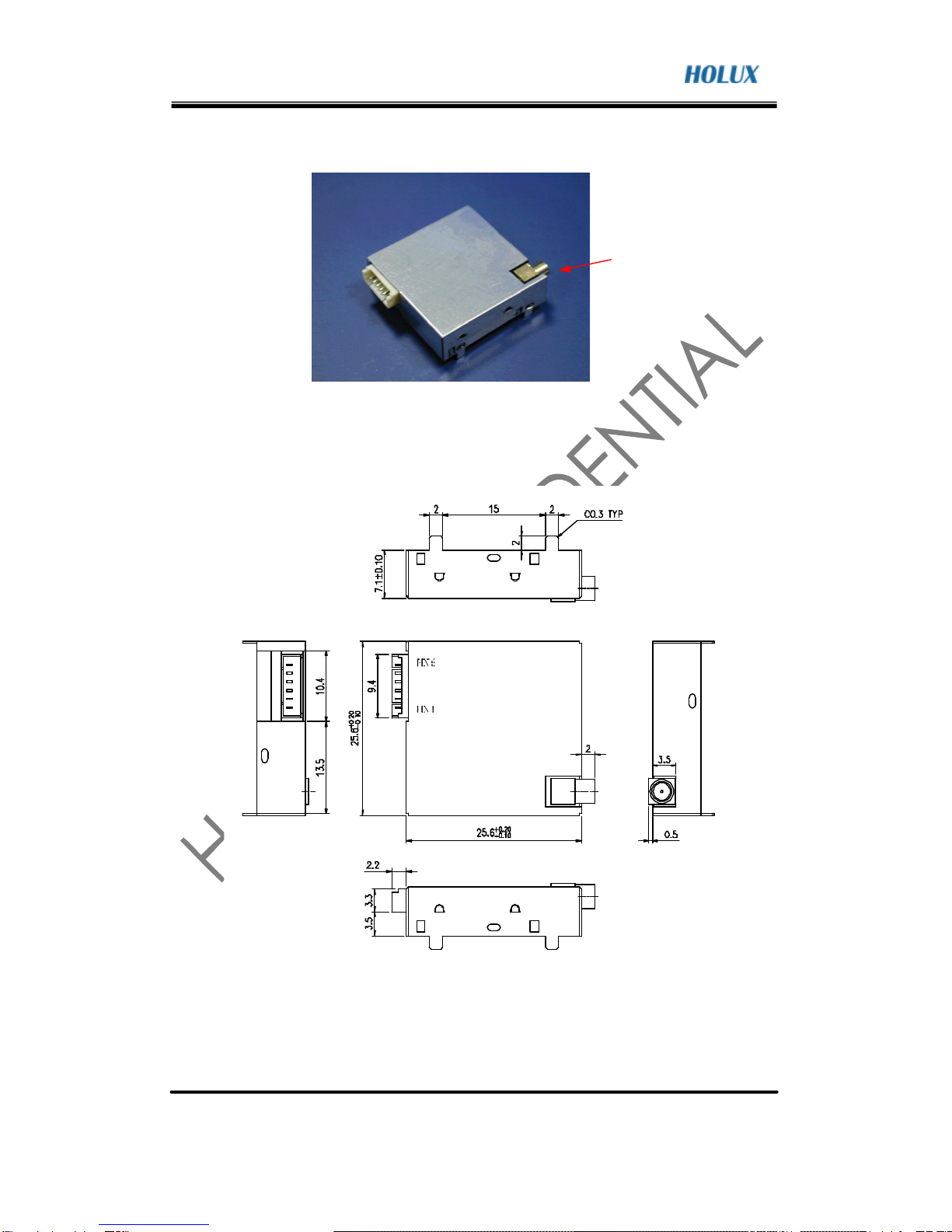

3.2 M-87-T0B, M-87-TOD outline
lPicture
lDesign Layout Diagram:(unit mm)
90°MMCXActive Antconnector

M-87
GPS Module series THE PRO NAME IN GPS
HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[email protected] http:www.holux.com.tw
4. Package
4.1 Packing
EPE Tray dimension : 370*312*20mm,
Standard Content Qty : 50 pcs.
Carton dimension : 376*322*255mm, 10 trays are packed,
Standard Content Qty : 500 pcs。

M-87
GPS Module series THE PRO NAME IN GPS
HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[email protected] http:www.holux.com.tw
5. User Interface
M-87 provides 2-wire digital UART port for communication of GPS position data
using NMEA protocol or MTK extension protocol. UART port is capable of 4800 to
115200 baud rate.
5.1 Protocol
M-87 is default to support standard NMEA-0183 protocol. In addition, a series of
MTK extensions (PMTK messages) have been developed that can be used to provide
extended capabilities common to many applications.
5.2 NMEA Protocol
M-87 is capable of supporting following NMEA formats:
NMEA RECORD Description
GGA GPS fix data
GLL Geographic
GSA GNSS DOP and active satellite
GSV GNSS Satellites in view
RMC Recommended minimum specific GNSS data
VTG Course Over Ground and Ground Speed
ZDA Time&Data

M-87
GPS Module series THE PRO NAME IN GPS
HOLUX Technology, Inc.
1F, No.30, R&D Road, Hsinchu 300, Taiwan (Hsinchu Science Industrial Park)
TEL: [phone] FAX:[phone] E-mail:[email protected] http:www.holux.com.tw
5.3 MTK NMEA Packet Format
Preamble TalkerID
PktType Datafield
* CHK1 CHK2 CR LF
Maximum packet length is restricted to 255 bytes
Field Length Type D
Preamble 1 byte Character “$”
TalkerID 4 byte Character string “PMTK”
PktType 3 byte Character string “000”to “999”, an identifier used to tell the decoder how to
decode the packet
DataField Variable “, ”must be inserted ahead each data filed to help the decoder
process the Data Field
* 1 byte Character The star symbol is used to mark
the end of Data Field
CHK1
CHK2 2 byte Character string checksum of the data between Preamble “, ”and “*”
CR, LF 2 byte Binary data used to identify the end of a
packet
