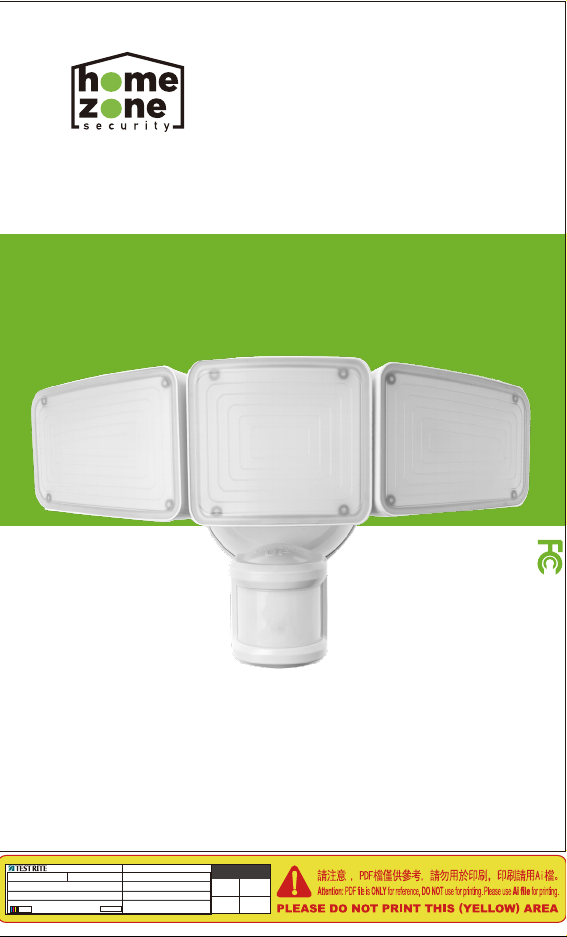

Linkable 5000LM
Triple Head
LED Security Light
the bright way to do home security.
ES00942G
INSTALLATION INSTRUCTIONS
®

1. Turn off electrical power at fuse or circuit breaker box before wiring
fixture to the power supply.
2. Make sure all electrical and grounded connections are in accordance with
the National Electrical Code and applicable local code requirements.
3. All wiring connections should be compliant with UL standard.
1. Wear gloves and safety glasses all the time when moving luminaire from
carton, installing, servicing or performing maintenance.
2. Avoid direct eye exposure to the light source while it is on. Or this may
cause irreparable damage to the eyes.
3. Account for small parts and destroy packing material, as these may be
hazardous to children.
1. Allow fixture to cool before touch.
2. Do not exceed maximum wattage marked on luminaire label."
Attention: lights must to be installed by the experienced household wire
installer or a qualified electrician, Electrical system and
the electrical connection method of light fixture must conform to the
national electrical standards and specification
requirements of the local architecture."
PLEASE READ CAREFULLY AND SAVE THESE INSTRUCTIONS, AS YOU
MAY NEED THEM AT A LATER DATE.
Warning
1. Please read all warning and instruction labels which are included in the
box and fixture to avoid personal injury, property damage caused by fire,
cuts, bruises, death and other dangers.
2. Please follow these general precautions before installing, maintaining, or
fixing.
IMPORTANT SAFETY OPERATING INSTRUCTIONS
WARNING
WARNING:This product can expose you to chemicals including lead
and lead compounds, Di(2-ethylhexyl)phthalate (DEHP), which are
known to the State of California to cause cancer and birth defects or
other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
Risk of Electrical Shock
Risk of Injury
Risk of Burn
1

1. Turn off electrical power at fuse or circuit breaker box before wiring
fixture to the power supply.
2. Make sure all electrical and grounded connections are in accordance with
the National Electrical Code and applicable local code requirements.
3. All wiring connections should be compliant with UL standard.
1. Wear gloves and safety glasses all the time when moving luminaire from
carton, installing, servicing or performing maintenance.
2. Avoid direct eye exposure to the light source while it is on. Or this may
cause irreparable damage to the eyes.
3. Account for small parts and destroy packing material, as these may be
hazardous to children.
1. Allow fixture to cool before touch.
2. Do not exceed maximum wattage marked on luminaire label."
Attention: lights must to be installed by the experienced household wire
installer or a qualified electrician, Electrical system and
the electrical connection method of light fixture must conform to the
national electrical standards and specification
requirements of the local architecture."

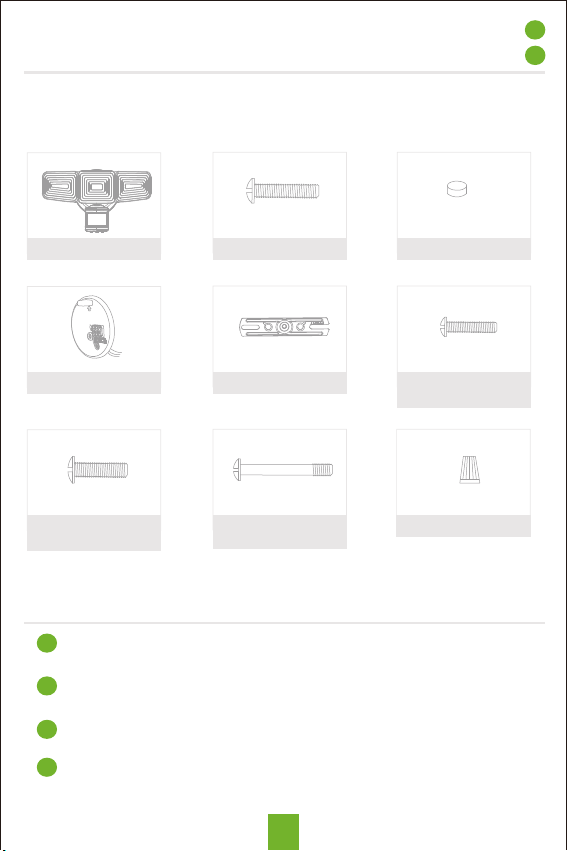

Ref. Parts
Parameter
1Illumination output: approx. 5000 lumens / 5000K
Wattage: 47W
Power source: AC120V/60Hz
Detection range: up to 70feet (21.3m), 240 degree
2
3
4
PREPARATION
Tools required for assembly (not included): phillips screwdriver, safety
goggles, power drill and ladder.
1. Please read all warning and instruction labels which are included in the
box and fixture to avoid personal injury, property damage caused by fire,
cuts, bruises, death and other dangers.
2. Please follow these general precautions before installing, maintaining, or
fixing.
Small Mounting BoltLight fixture Decorative Cover
A B C
Mounting BracketMounting Plate #6-32 X 1/2”
Junction Box Screw
D E F x 2
Large Mounting Bolt
(pre-installed)
#8-32 X 1/2”
Junction Box Screw
G x 2 H
Wire Nut
I x 3
2

2Connecting the Wires
CAUTION: Do not cut any wires and remove the wire connectors.
*Connect the wires on the mounting plate (D) and the wires on the
junction box with wire nut (I).
- White to white
- Black to black
- Green ground wire to house ground
Note: Make sure the polarity is correct.
Installing the Mounting Bracket
* Align the holes on the mounting bracket (E) with the holes on
your junction box.
* Lock the two mounting screws (F or G) to the junction box.
Note:
*Make sure the mounting bracket with the stamped word "FRONT"
facing away from the junction box.
* For the best performance, install the light fixture at 5.9 feet ~11.5
feet (1.8~3.5m) above the ground.
E
E
F or G
Installation
1
DI
E
3

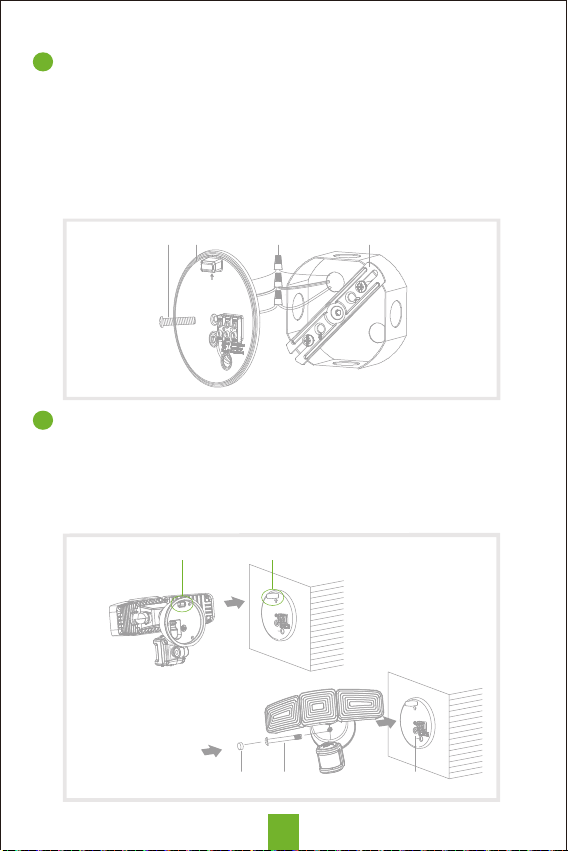

Installing the Mounting Plate
• Place the mounting plate (D) against the junction box.
When installing the mounting plate to a wall, the “arrow” must be
upward.
When installing the mounting plate to an eave, the “arrow” must be
toward the house.
• Insert the small mounting bolt (B) through the mounting plate (D)
hole and mounting bracket (E) hole. Tighten the bolt (B) securely.
• Pull on the mounting plate (D) to verify if it is tightly attached to
the mounting bracket (E).
B D I E
arrow
C H D
3
4Mounting the Light Fixture
Connecting the positioning hole of the light fixture (A) and position-
ing pillar of the mounting plate (D).
• Tighten the large mounting bolt (H) securely through the center of
the mounting plate (D). DO not overtighten.
• Push the decorative rubber cover (C) firmly into the large mounting
bolt hole on the light fixture (A).
Positioning Hole Positioning Pillar
4

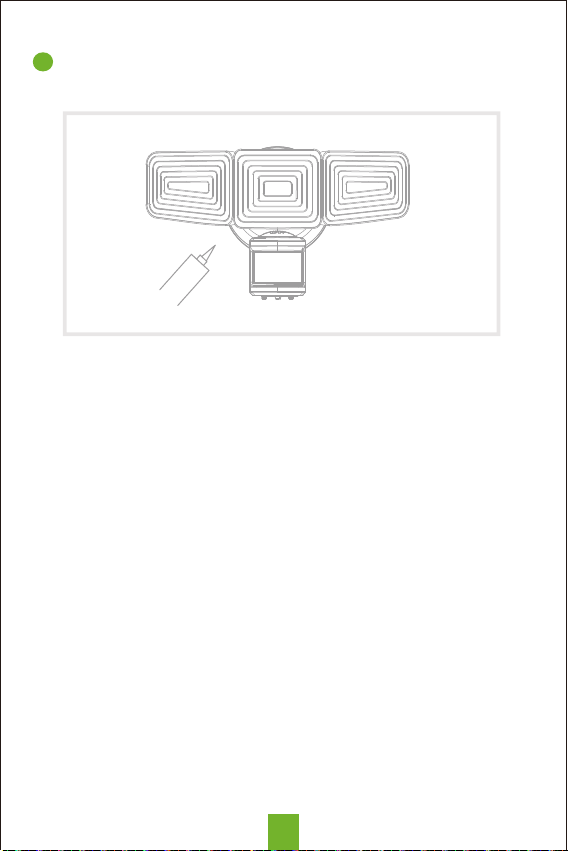

5Use silicone caulk to seal completely around the gap between the
mounting bracket and the wall.
Note: If you install this light fixture on the covered wall or eave
without junction box, you must consult a qualified, licensed
electrician and use the appropriate screws (not included) to
install this light fixture on the wall or eave directly depending on
the surface.
5

Product Function Description
1. SENS Setting
Adjust the SENS setting to adjust range of Passive Infrared
Motion Sensor
SENS
Slide toward the “ ” (low) position for short detection range (3-30 ft).
Slide toward the “ ” (Middle) position for middle detection range ( 3-49 ft).
Slide toward the “ ” (high) position for long detection range ( 3-70 ft).

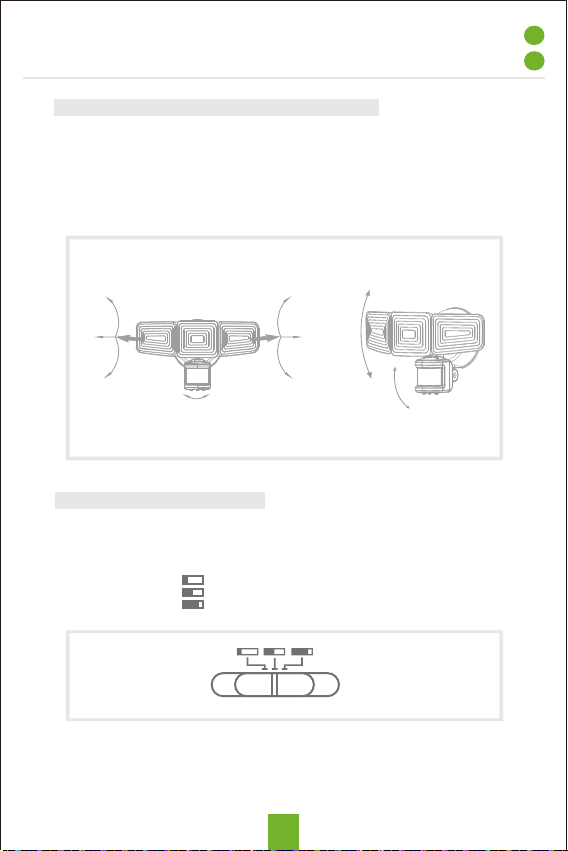

How it Works
• Swing the lamp heads to adjust the lamp head left and right or up
and down to get the desired lamp direction.
• Gently grasp the motion sensor and adjust the sensor left and
right or up and down to get the desired lamp direction.
Adjusting the lamp heads and motion sensor
35º
80º
100º
90º 90º
70º
45º
45º
35º
100º
70º
6

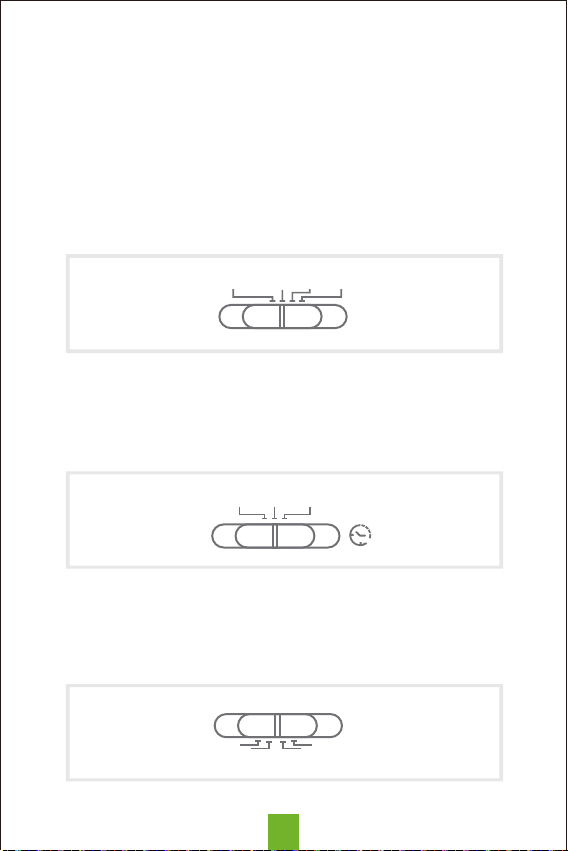

2. 4 Working Modes
• Test mode: check the light’s sensory function in order to test
the sensory range. The time duration for the light will be 5s.
• Auto: when motion is detected, the light will turn on automatically
for the time set (can choose 1, 3 or 7mins) at night.
• On: The light will stay on when it is switched on and turn off
when it is switched off by light switch, whether it is day or at
Night.
• D2D: The light automatically lights up at night time and turns
off during daylight.
3. TIME Setting
This setting is used to control the time span of how long the light
remains on when motion is deteced.Set the switch to the 1, 3, 7
minutes position. The security light will stay on as long as motion is
detected and will go off after the time span you set after no motion
is detected.
4. Linkable Channels Setting
This setting has 4 channels. As long as you choose “linkable”
security light or sensors from Home Zone Security, selecting a
specific channel to connect all linkable security lights and sensors.
They will be grouped as an invisible system and working together.
One linkable light triggered, all linkable lights on.
CHANNELS
MODE
TEST
1min 3min 7min
AUTO D2DON
CH1 CH2 CH3 CH4
7

FCC
Cleaning and Maintenance
1. Clean periodically with soft cloth.
2. Do not use any cleaners with chemicals, solvents or harsh
abrasives on this light. Do not use scouring pads, powders, steel
wool or brasive paper. They could cause deterioration of the finish.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
This device complies with FCC Part 15 of FCC Rules.
Warning
: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE
: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
8
This equipment should be installed and operated with a minumum distance of 20 cm
between the radiator and your body.
