HOME2US 8800 IR User manual

Digital Set-Top-Box
IRDETO CAS Satellite Receiver
HOME2US 8800 IR
USER’S MANUAL

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 1 -
TABLE OF CONTENT
1. PRE-INSTALLATION CHECKUP ........................................................................................... 2
2. SAFETY WARNINGS ............................................................................................................. 3
3. CONNECTIONS ..................................................................................................................... 5
4. REMOTE CONTROL .............................................................................................................. 7
4.1 Illustration Diagram of Remote Control Usage................................................................... 8
5. MENU INSTRUCTIONS ......................................................................................................... 9
5.1 Main Menu .......................................................................................................................... 9
5.2 TV Guide........................................................................................................................... 10
5.4 Parental Control................................................................................................................ 11
5.5 Installation......................................................................................................................... 12
5.5.1 Service Searching........................................................................................................ 12
5.5.1.1 Antenna Setting ........................................................................................................ 13
5.5.1.2 Manual Searching..................................................................................................... 14
5.5.1.3 Searching by PID...................................................................................................... 15
5.5.2 Service Organizing....................................................................................................... 15
5.5.2.1 Organizing TV........................................................................................................... 16
5.5.2.2 Organizing Radio ...................................................................................................... 18
5.5.2.3 Organizing Network .................................................................................................. 18
5.5.3 Default Settings............................................................................................................ 18
5.6 System Settings................................................................................................................ 18

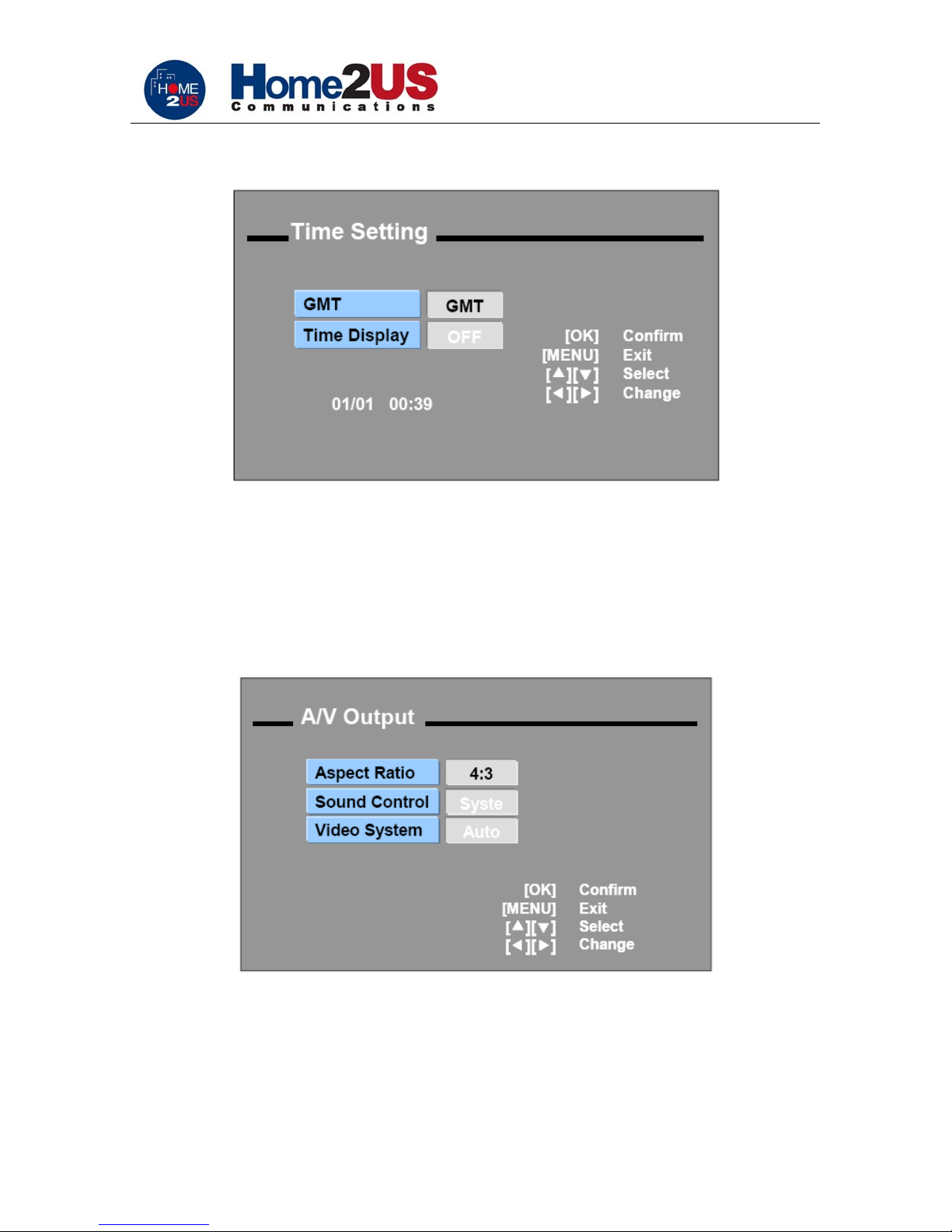

5.6.1 Time Setting................................................................................................................. 19
5.6.2 A/V Output Setting ....................................................................................................... 19
5.6.3 Power Up Channel....................................................................................................... 20
5.6.4 System Status.............................................................................................................. 20
5.6.5 CA Function ................................................................................................................. 20
5.6.5.1 Change PIN Code..................................................................................................... 21
5.6.5.2 Verify PIN Code ........................................................................................................ 21
5.6.5.3 Software Download................................................................................................... 21
5.6.5.4 Information ................................................................................................................ 22
6. SPECIFICATIONS ................................................................................................................ 23
6.1 Compliance....................................................................................................................... 23
6.2 Major Features ................................................................................................................. 23
7. QUICK REFERENCE GUIDE............................................................................................... 24

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 2 -
1. PRE-INSTALLATION CHECKUP
Please check the following items after opening the package: digital satellite receiver, remote
control, battery, A/V cable, RF,power cable cord and user's manual. Please keep the packaging
box, packaging material and plastic bag in a safe place for repackaging in the future.
Packaging Box
HOME2US 8800 IR
RF Cable
Power Cord
User’s
Manual
Batteries
Audio/Video
Cable
Remote
Control

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 3 -
2. SAFETY WARNINGS

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 4 -

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 5 -
3. CONNECTIONS
Please refer to Figure 1 and Figure 2 for the following instructions. Connect the LNB cable from
the dish antenna to the LNB IN connector on the back of the digital satellite receiver. Use the
RCA audio/video cables to connect the Audio Left, Audio Right, and Video Outputs to the
corresponding connectors on TV.
Figure 1 - Front Panel
To switch between standby and power-on states, or exit from menu or submenu.
To adjust the volume output of the receiver when receiving TV programs, or
change parameters within the menu.
When receiving TV programs, pressing these keys switches to the next higher or
lower numbered program, or to move the scroll bar up or down on the menu.
MENU To bring up the main menu.
OK To enter the next lower level submenu or to confirm the parameter value
entered.
CARD
READER The smart card must be inserted in the slot when viewing scrambled programs.

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 6 -
Rear Panel
LNB OUT Satellite signal loop out terminal
LNB IN Satellite signal input terminal from LNB
RS-232 RS-232 serial port
S-VIDEO Connect to S-VIDEO Jack of the TV or VCR
VIDEO (yellow) Line signal output for video
AUDIO (white) Line signal output for left audio channel
AUDIO (red) Line signal output for right audio channel
DIGITAL AUDIO Connect to digital amplifier
RF OUT PLA CH21-69 RF Signal output to TV
RF IN RF Signal input from ANT or CATV system
AC 90-240V AC power cord
POWER Receiver power switch

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 7 -
4. REMOTE CONTROL
KEY FUNCTION
Turns power ON/OFF of the DSR
When watching a channel, mutes the
sound.
9 – 0
Enter number of the requires menu
item or select a channel number to
watch
TV/RADIO Switch between TV and Radio mode
PR This key is reserved for future use.
FAV This key is reserved for future use.
FUNC This key is reserved for future use.
MENU Press this key one time to run menu on
screen and call command box
FAV+
FAV-
Moves up/down in the Favorite channel
list.
OK
Executes the selected item in the menu
screen or enters the desired value in
any input mode.
SYS This key is reserved for future use.
CH+
CH-
When watching a channel, change
channels, or move to the left or right
item in menu.
VOL+
VOL-
When watching a channel, adjust the
volume, or move to the left or right item
in menu.
CLEAR Returns to the previous menu on the
menu screen or escape from the menu.
D/A This key is reserved for future use.
EPG Calls the EPG (Electronic Program
Guide)
R/L Selects the different audio modes.
TV/AV This key is reserved for future use.
Display
Display the program name and audio
output mode information of the current
program.
Teletext Switches to teletext or subtitle mode.
Figure 3 Remote Control Signal Display the signal strength and quality
information.

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 8 -
4.1 Illustration Diagram of Remote Control Usage
Please refer to the following diagram (Figure 4) when using the remote control. The maximum
distance for usage is 10 meters (30 feet) with look angle 60 degrees. Please aim the infrared
transmitter in the front of the remote control to the front panel of the receiver.
Figure 4 Remote Control Usage Range

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 9 -
5. MENU INSTRUCTIONS
5.1 Main Menu
The contents of main menu are as follow:
TV Guide
It shows the list of TV program.
Radio Guide
It shows the list of radio program.
Parental Control
It is possible to control the access to certain programs by active this mode and change the PIN
Code. Entering the pin code can be used to release the parental block of a service.
Installation
Installation is used to search for new services or to edit existing ones. It can also be used to load
the default setup of the receiver.
System Settings
The System settings provide a convenient way of selecting different power-up channels, adjusting
the time and A/V output mode, and displaying the hardware and software version of this box.
Mail information
To view the e-mail information sent by the operator. An icon is displayed on the corner of the
screen if new email arrives.

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 10 -
5.2 TV Guide
You can select one of the TV programs (event name) by pressing ▲/▼keys and then press OK
key. To access this menu press the MENU key, then select the TV Guide in the Main Menu.
5.3 Radio Guide
You can access one of the radio programs (event name) by pressing ▲/▼keys then press OK
key. To get into this menu, press the MENU key, select the Radio Guide then press OK key.

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 11 -
5.4 Parental Control
In this menu, you can set up the Parental Control mode and change the PIN Code. To enter this
menu, you have to input the PIN Code first. The default PIN code is 000000.
Parental Control
You can press ◄/►keys to switch parental control mode between ON and OFF.
ON Parental control is enabled.
OFF Parental control is disabled.
NOTE: If parental control is enabled, you must enter the PIN code before viewing a locked
service. You can press OK while watching a program then the Favorite and parental lock control
menu is popped up. Use ◄/►keys to active or disable these functions.
New PIN Code
To change the PIN Code, input new PIN code (six digits).

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 12 -
5.5 Installation
This menu provides all the settings for customizing, adding new services, editing existing services,
and reset to default setup.
5.5.1 Service Searching
Before entering the Service Searching Menu or Service Organizing Menu, you have to input the
PIN Code if parental control is enabled.

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 13 -

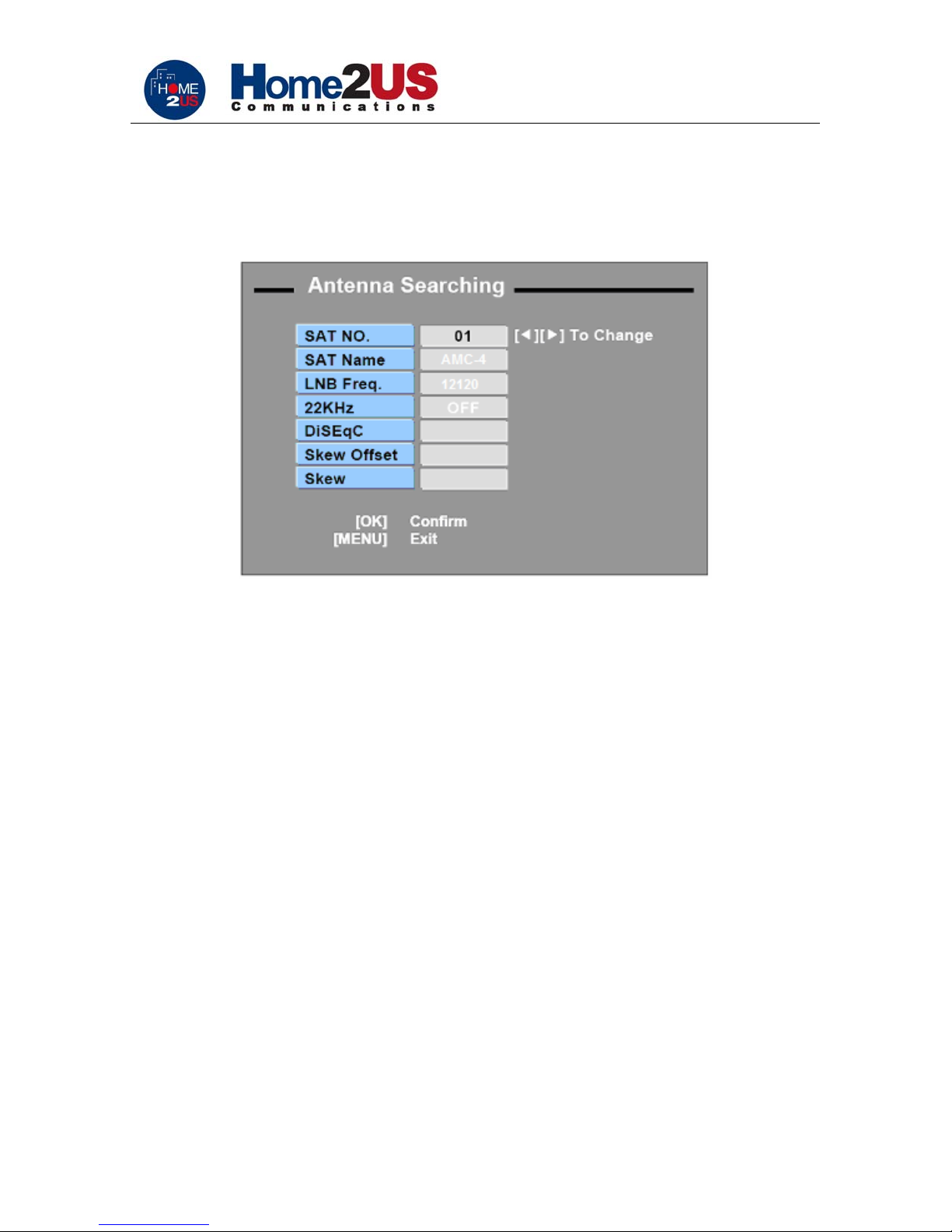

5.5.1.1 Antenna Setting
You can select the Antenna and LNB settings for service searching, as well as the settings of
22KHz tone and DiSEqC switch. There are 32 possible antenna settings. The values set in this
menu are available for selection in other Service Searching Menus.
Press ▲/▼keys to select between the following items, press ◄/►or 0…9 to change its value:
SAT No.
You can select the satellite number by pressing ◄/►keys. The total number is 32.
SAT Name
It shows the satellite name. You can change the name by pressing FAV+, FAV- keys.
LNB Freq.
Select the L.O. Frequency that is set to antenna. You can select the LNB frequency of 5150,
9750, 10600, 10750, 11250, or 11300 MHz by using the ◄/►key. If the required LNB frequency
is not available then enter the frequency using the 0…9 keys.
22kHz
Set to OFF to select dual-LNB or set to ON to select two antennas connected to a 22kHz tone
switch.
DiSEqC
According to the option and position of DiSEqC switch, you can select from A to D of DiSEqC and
turn it OFF.
Skew
This function is not implemented in this receiver.

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 14 -
5.5.1.2 Manual Searching
After setting the search parameters like frequency, symbol rate etc, you can find the services in
the transponder you selected. There are two bars on the bottom to indicate the signal strength
and quality. The bars in red color show the signal is in good conditions.
You can press ▲/▼keys to select between following items, and ◄/►or 0...9 keys to change its
value:
D/L Freq.
Input transponder frequency.
Symbol Rate
Inputs symbol rate of the transponder.
Polarization
You can select the polarization of the transponder by setting Horizontal or Vertical. In horizontal
case, the 18V and in vertical case, 13V are output through LNB line.
PID Search
In PID search mode (ON), you can search a specified service by input its A/V/PCR PID's. Set it
ON and press OK, you will be able to move to Searching by PID menu.
SAT No.
Select the satellite number that corresponding to the value of the Antenna alternative.
LNB Freq./22KHz/DiSEqC
As you have set all the values in Antenna Setting menu, you do not have to change them in most
cases. After selecting all above values, press OK key to perform service searching or MENU key
to exit.

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 15 -
5.5.1.3 Searching by PID
You can set the PID information to search services. The PID is in decimal value. You can press
▲/▼keys to select between following items, and use ◄/►or 0…9 keys to change the values.
The meanings of these items are explained in Manual Searching menu except:
PCR PID
This is used to set PCR PID of certain service.
V PID
This is used to set Video PID of certain service.
A PID
This is used to set Audio PID of certain service.
After setting these values, press OK key to perform service searching or MENU key to exit.

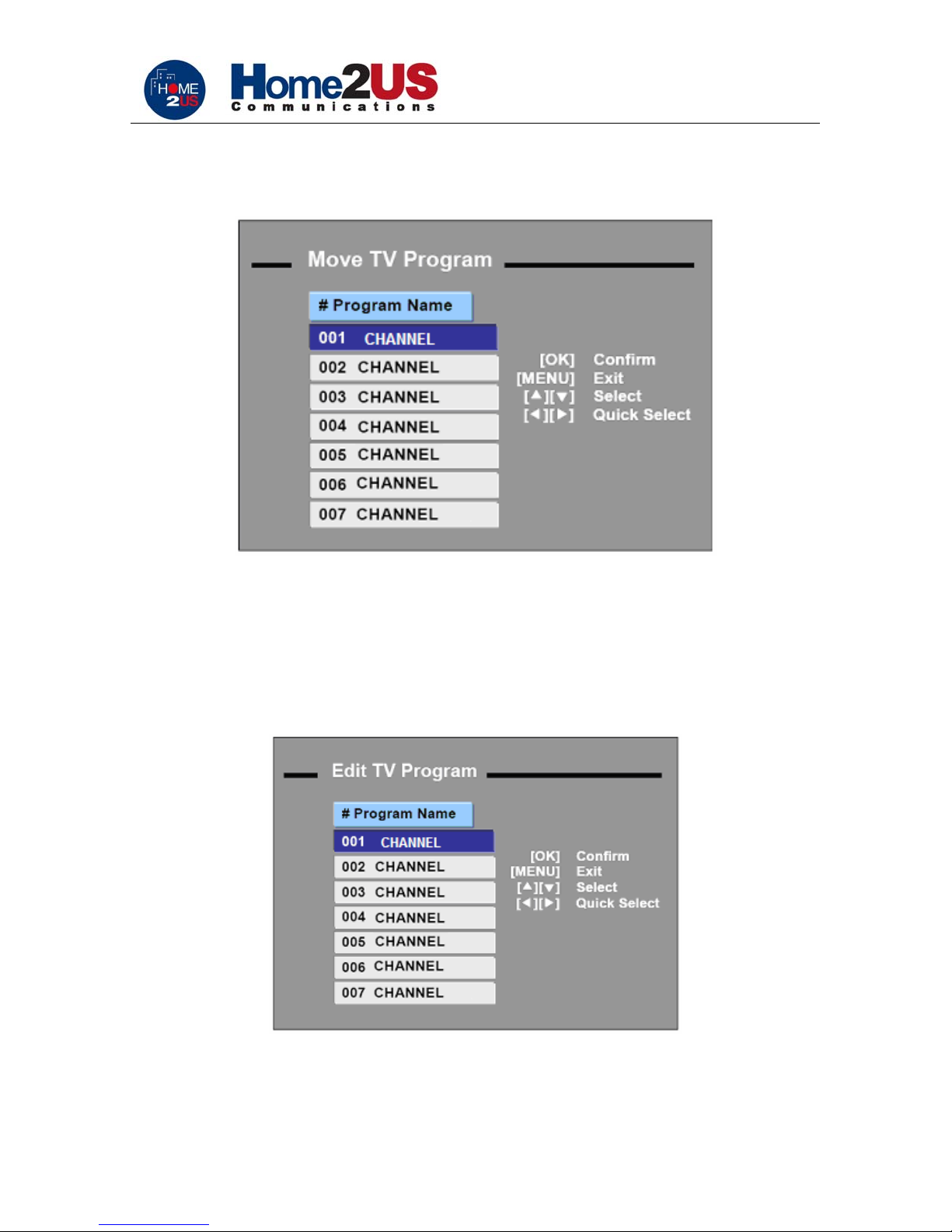

5.5.2 Service Organizing
This menu gives users the options that organize their TV services, Radio services and Networks.
You can Rename, Delete, Move or Edit an existing service/network.

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 16 -
5.5.2.1 Organizing TV
This menu allows users to Rename, Delete, Move and Edit TV services.
Rename
1. Press ▲/▼key to move to the service.
2. Press OK key, color of the selected program will become red.
3. Press ◄/►key to select the character along the program name.
4. Press▲/▼key to change the alphabet.
5. Press OK key to confirm or MENU key to discard the changes and exit.
Delete
You can delete unwanted services by:
1. Press ▲/▼key to select service you want to delete.
2. Press OK key, a dialog box will appear.

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 17 -
3. Select YES to delete or NO to cancel.
4. Press MENU key to exit.
Move
1. Press ▲/▼key to select service you want to move.
2. Press OK key to confirm. The color of this service will become red.
3. Press the ▲/▼key to move it to a new position.
4. Press the OK key to confirm or MENU key to cancel.
Edit
This menu is used to modify the parameter values in the TV programs, such as Audio Mode,
Aspect Ratio, Favorite setting, Lock setting, PCR PID, VIDEO PID and AUDIO PID.
1. Press ▲/▼key to select service you want to edit.
2. Press OK key, the parameter values will appear.

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 18 -
3. Press ▲/▼key to select parameter you want to modify.
4. Press ◄/►key or 0…9 keys to change the parameter value.
5. Press OK to confirm or MENU key to ignore the modifications and exit.
5.5.2.2 Organizing Radio
Same as Organizing TV.
5.5.2.3 Organizing Network
Same as Organizing TV.
5.5.3 Default Settings
When you select YES, the system setup and channel data will be changed to the default values.
All the service information manually entered by user will be lost! To exit, select NO or press
MENU key.
5.6 System Settings

.
Digital Satellite Receiver HOME2US 8800 IR - User’s Manual
- 19 -
5.6.1 Time Setting
GMT
Set the local time zone offset of GMT from –12 to +12.
Time Display
This is used to enable or disable time display function on channel banner.
5.6.2 A/V Output Setting
Aspect Ratio
You can select the screen aspect ratio of TV (4:3 or 16:9).
Sound Control
You can select the sound control mode by System or Channel.
Video System
You can select the video output mode to Auto, NTSC or PAL.
