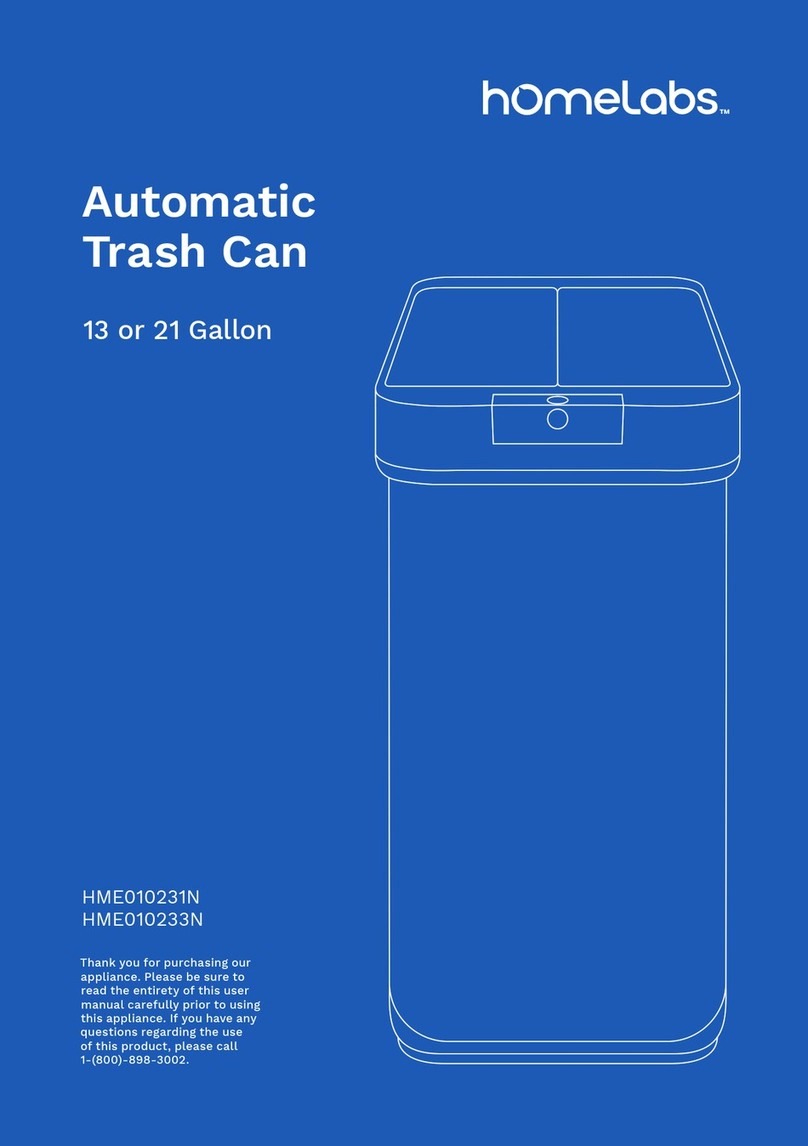

homelabs HME010231N User manual

Before using your touchless trash can, please read this manual.
TOUCHLESS
TRASH CAN
HME010231N
HME010233N

Important Safety Instructions 6
Parts Description 7
Operation 8
Warranty 9
Manufacturing Info 9
Warning 9
Contact Us 9
TABLE OF CONTENTS

on bringing home your new appliance!
Congratulations
Don’t forget to register your product at homelabs.com/reg
for updates, coupons, and other relevant information.
Although greatly appreciated, product registration is not
required to activate any warranty.

6 7
When using your hOme™ Touchless Trash Can (appliance), basic safety precautions should always be followed to
reduce the risk of electrical shock, and/or injury to persons. Incorrect operation due to ignoring instructions may
cause harm or damage.
• Use this appliance only for its intended purpose as described in this manual.
• Do not immerse the Lid Cover in water because it is equipped with electronic components. You can clean it
with a damp cloth.
• Do not press or force the Lid of the Trash Can to close when it is open. Let it close by itself.
• To prevent battery leak that potentially causes damage to the electronic components, remove batteries if
the unit is not intended to be used for a long time.
• Avoid direct sunlight onto the infrared Sensor Ball.
• Make sure there is enough room to operate the Trash Can without blocking the end of the Lid.
• Do not use solvents or other chemicals to clean.
• Only use hOmelabs power adapter model HME010246N with an output of 5.9V/500mA.
• Ensure the Sensor Ball is kept clean for normal function.
• Do not mix old and new batteries.Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-
mh, etc) batteries.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
For Indoor Use Only
PARTS DESCRIPTION
TOP LID
90° SWIVELING
SENSOR BALL
CAN BODY
PRESS BOTH TABS TO OPEN
BATTERY COVER
POWER SWITCH
POWER JACK
PLASTIC BRACKET
CAN BODY
90° SWIVELING SENSOR BALL
Rotate The Ball To Adjust The
Sensor Direction TOP or SIDE
SMART RETAINER RING
MANUAL
OPEN
BUTTON
MANUAL
CLOSE
BUTTON

8 9
The Trash Can uses infrared technology. As your hand approaches the Trash Can (within 6 inches) the Infrared Sensor
on the lid will work automatically to open the lid. After your hand moves away from the lid it will close automatically
in about 6 seconds. The Lid will remain open if your hand is within 6 inches of the infrared sensor zone. There are 2
buttons on the front to open and close the lid manually.
OPERATING INSTRUCTIONS:
• Remove the Lid Cover from the bin. Open the cover of the battery compartment located on the backside and
insert four C Cell Batteries following the polarity marking on the cabinet. Close the battery cover.
• Insert the garbage bag through the smart Retainer Ring.
• Place the Lid Cover on top of the Can Body. Adjust the sensor direction UP or SIDE by rotating the Sensor Ball.
• Turn on the power switch at the back of the Lid Cover.
• A red indictor light will ash once. Then it ashes once every 5 seconds, indicating that the system is
activated and ready.
• To open the lid in a touchless way, place your hand or any object about 6 inches above the Infrared Sensor
on the front of the Lid Cover. The lid will remain open if it detects any objects within the Sensor Zone. It will
close automatically in about 6 seconds after your hand or object moves away. The 6 indicator lights will light
off one by one each second until the lid closes.
• To manually open the lid, press the Open button. The lid will open and remain open for about 6 minutes. The
6 indicator lights will light off one by one each minute until the lid closes. You can choose to press the Close
button to force it close during the progress.
• Operation Indicator:
(1) The indicator light in the standby mode ashes once every 5 seconds.
(2) Under manual or automatic opening all 6 indicator lights will turn red at the same time.
(3) When the batteries are exhausted, the six indicator lights will repeatedly ash together every second.
• Depending on battery making and capacity, four new C Cell Alkaline batteries should last for around 3 months.
• To ensure normal operation, always keep the Sensor Ball clean.
How the smart retainer ring works:
OPERATING INSTRUCTIONS
OPERATION WARRANTY
hOme™offers a limited two-year warranty (“warranty period”) on all of our products purchased new and unused
from hOme Technologies, LLC or an authorized reseller, with an original proof of purchase and where a defect has
arisen, wholly or substantially, as a result of faulty manufacture, parts or workmanship during the warranty period.
The warranty does not apply where damage is caused by other factors, including but without limitation: (a) normal
wear and tear; (b) abuse, mishandling, accident, or failure to follow operating instructions; (c) exposure to liquid or
inltration of foreign particles; (d) servicing or modications of the product other than by hOme™; (e) commercial or
non-indoor use.
The hOme™warranty covers all costs related to restoring the proven defective product through repair or
replacement of any defective part and necessary labor so that it conforms to its original specications. A
replacement product may be provided instead of repairing a defective product. hOme™’s exclusive obligation under
this warranty is limited to such repair or replacement.
A receipt indicating the purchase date is required for any claim, so please keep all receipts in a safe place. We
recommend that you register your product on our website, homelabs.com/reg. Although greatly appreciated, the
product registration is not required to activate any warranty and product registration does not eliminate the need
for the original proof of purchase.
The warranty becomes void if attempts at repair are made by non-authorized third parties and/or if spare parts,
other than those provided by hOme™, are used.
You may also arrange for service after the warranty expires at an additional cost.
These are our general terms for warranty service, but we always urge our customers to reach out to us with any
issue, regardless of warranty terms. If you have an issue with a hOme™product, please contact us at 1-800-898-
3002, and we will do our best to resolve it for you.
This warranty gives you specic legal rights and you may have other legal rights, which vary from state to state,
country to country, or province to province. The customer may assert any such rights at their sole discretion.
STEP 1: Place the garbage
bag inside the Can Body,
then wrap the top of bag
over the top.
STEP 3: Pull up the smart
ring and x the bag on
both sides.
STEP 2: Place the plastic
bracket on the top of the
Can Body. The surplus will
be folded up inside the can.
WARNING
Keep all plastic bags away from children.
This manual is to be used with all items with the model number
MANUFACTURING INFO
HME010231N
HME010233N
1-(800)-898-3002
CONTACT US
homelabs.com/chat
CHAT W ITH U S CALL U S
[email protected]
EMAIL U S

All rights reserved, hOme™. Printed in China.
© 2018 hOme Technologies, LLC
37 East 18 Street, 7th Floor
New York, NY 10003
For Indoor Use Only 1-800-898-3002
[email protected]
homelabs.com/help
